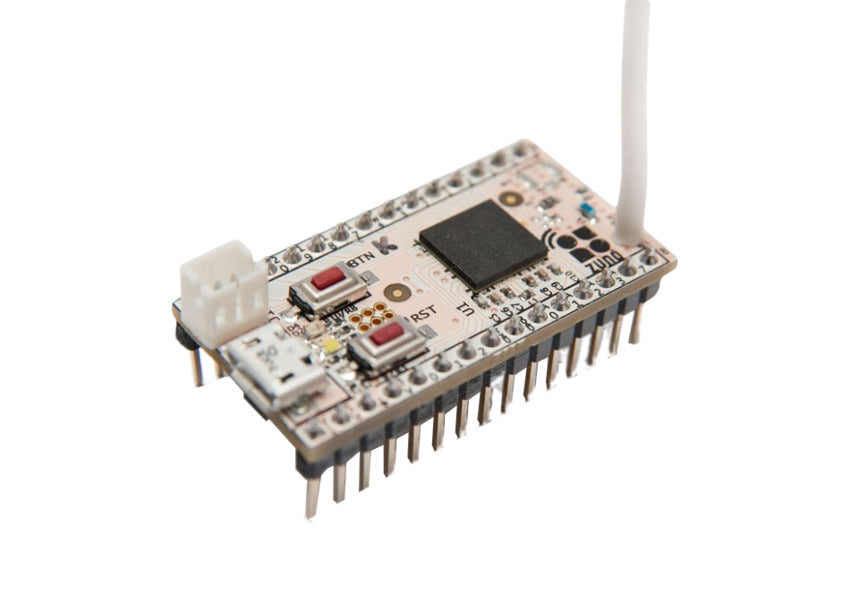

ZME Z-Wave Z-Uno Board - for home automation
Estimated delivery between October 20 and October 22.
Description
Quick Overview
The Z-WAVE.ME Z-Uno is the first (and only) easy to use developer board that allows you to create your own Z-Wave device!
- Compatible with many Arduino peripherals
- Z-Wave Plus certified
- Programmable with simplified C language
- Supports 1-Wire and I2C (software)
Product Details
The Z-WAVE.ME Z-Uno is the perfect solution for DIY home automation systems. It is made for those who are limited by the existing choice of Z-Wave products and want to extend their smart homes with more sensors and actuators; connect LEDs buttons switches motors or any low voltage sensor (including most compatible Arduino sensors) and write your own code in simplified C language to create your personalized Z-Wave device.
You can find many example projects and comprehensive tutorials on the Z-WAVE.ME Z-Uno website.
This product integrates with all Australian-certified (921.42MHz) Z-Wave controllers including:
- Vera Edge
- Fibaro Home Center 2/Lite
- Z-Wave.me RaZberry Card
Product Support
Manuals:
⇒ Z-WAVE.ME Z-Uno Technical Specifications
⇒ Z-WAVE.ME Z-Uno Power Supply Schematic
Technical Specifications
RF Protocol |
Z‐Wave Plus (500 series chip) |
RF Frequency |
921.42Mhz ‐ AU/NZ approved RF for Z‐wave |
Z-Wave Device Type |
Binary/Multilevel switch Binary/Multilevel sensor meter |
Power |
USB 5V external 3V external 7-18V or battery |
Hardware |
28kB Flash memory for sketches 2 kB RAM 26 GPIO 1 USB (serial port) 64 kB EEPROM |
Operation Range |
Up to 30m indoors (with no obstacles) |
Z-Wave Channel Types |
Binary/Multilevel switch Binary/Multilevel sensor meter |
Operation temperature |
10 ~ 40 °C |
Storage temperature |
‐10 ~ 60 °C |
Weight |
10g |
Board Dimensions |
39mm x 20mm x 16mm |
Antenna Length |
86mm |
Housing |
N/A |
