Description::High-Performance 915 MHz LPWAN Narrowband Antenna with Ground Plane Independence and Customisable OptionsThe 2J 915 MHz LPWAN Narrowband Stud Antenna provides coverage for LoRa 915 ZigBee SIGFOX and ISM spectrums with a frequency range of 902-928 MHz.Key FeaturesGround Plane Independent2.5 dBi Peak Gain at 915 MHzCustomisable Cable and Connector optionsThe antenna housing is constructed from PC/ABS UV-protective material ensuring durability and reliability in outdoor environments. It is designed to withstand extreme temperatures from -40°C to +85°C making it suitable for a variety of outdoor applications. The compact design measures 50 x 50.8 mm.2J Antennas is committed to environmental responsibility manufacturing all products without hazardous materials to ensure full compliance with REACH and RoHS standards. Read more

Specification:2J 915 MHz LPWAN Narrowband Stud Antenna (2J7615B-915) The antenna housing is manufactured from a PC/ABS UV protective material allowing it to withstand extreme temperatures ranging between -40C to +85C and making it ideal for outdoor applic…

@23/25

Description::The 2J5083P brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility.In addition this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). 2J5083P offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.FEATURES:Ultra Wide band Antenna617-5925 MHz Sub 6GHz BandsFull 4GLTE backward compatibilityGround Plane Independent3.6 dBi 5G NR Peak GainLow ProfileCustomizable Cable and Connector2J I-Bar 4G-5G WiFi Ultraband Adhesive Antenna (2J5083P)With overall dimensions of only 116 x 22 x 6.7 mm high-quality adhesive tape and PC/ABS UV stable housing the 2J5083P can be installed on any glass or ABS surfaces found in the most extreme outdoor environments without any risk of failure. The 2J5083P features a standard SMA-Male connector and a 300 cm long LL100 cable. As an added measure this antenna was designed with ground plane independence in order to eliminate any grounding restrictions during the installation process. The health of the environment is important to 2J Antennas; therefore all our products are manufactured without hazardous materials making us fully REACH and RoHS compliant. Read more

Specification:Explore the 2J I-Bar 4G/5G WiFi Ultraband Adhesive Antenna covering 617 to 5925 MHz. Perfect for enhancing connectivity with its ultra-wideband performance and easy adhesive mounting.

@12/23

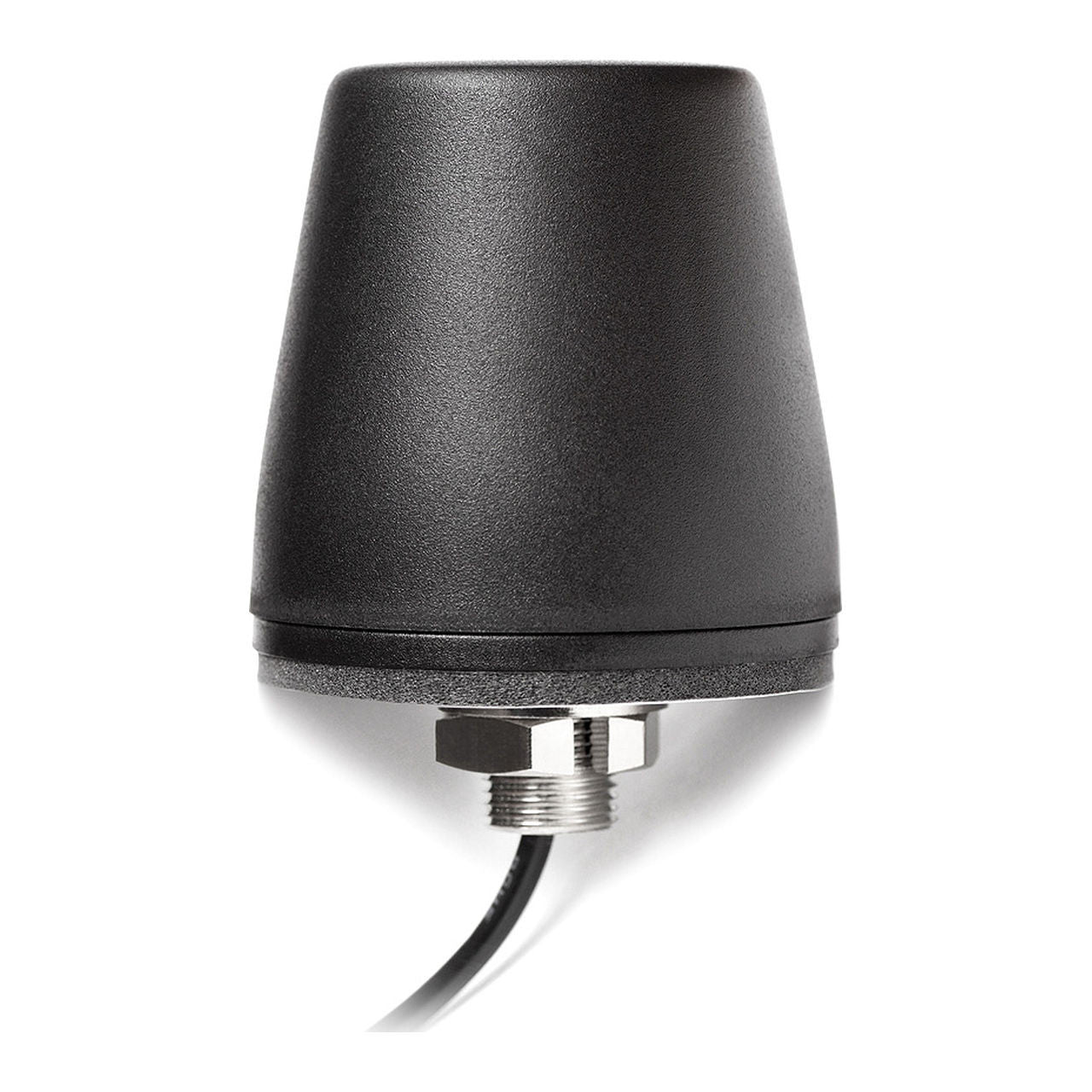

Description::The 2J Mini-Shaker 4G Stud Mount Antenna (2J7624B) is designed to fit a wide range of installation requirements while keeping cost-effectiveness and reliable connectivity in mind. Designed with a low-profile housing this antenna is ideal for high quality data and voice throughput for mobile NB-IoT LPWA CAT-X/M and FirstNet applications that operate within 698 MHz to 2700 MHz frequencies.FEATURES:Ground Plane IndependentWide Band Antenna698-2700 MHz 4GLTE Bands3.2 dBi 4G LTE Peak GainCustomizable Cable and Connector 2J Mini-Shaker 4G Stud Mount Antenna (2J7624B)The 2J Mini-Shaker 4G Stud Mount Antenna is fully IP67 and IP69 rated with protection against ingress of moisture water dust and high temperatures (-40C - +85C) without any compromise to antenna operations. The antenna housing is manufactured with commercial grade ASA material with a Zamak antenna base and double-sided foam gasket for extra protection. With compact measurements of Ø 50 x 50.8 mm make this ground plane independent antenna ideal for indoor or outdoor installations without restrictions. This antenna is tuned with a single 300 cm long DACAR100 cable that feeds through the anti-rotation screw mount and an SMA-Male end connection. Read more

Specification:Discover the 2J Mini Shaker 4G Stud Mount Antenna covering 700 to 2700 MHz. Perfect for boosting your 4G connectivity with a compact and reliable design.

@14/24

Description::The 2J Phoenix 4G-5G WiFi Ultraband 2x2 MIMO + GNSS 3-Port Combo Stud Antenna is a cost-effective solution for industrial commercial and residential applications that rely on high performance reliability high data throughput and precision.FEATURES:3-in-1 Combination AntennaUltra Wide band Antenna617-5925 MHz Sub 6GHz BandsFull 4GLTE backward compatibilityGround Plane Independent5.1 dBi 5G NR Peak GainActive GNSS Antenna28 dB GNSS Active GainPre-Filter GNSSGNSS Voltage Range .5 - 3.6 VLow ProfileAnti-Rotation MountingCustomizable Cable and Connector2J Phoenix 4G-5G WiFi Ultraband 2x2 MIMO + GNSS 3-Port Combo Stud Antenna (2J6984BGFa)The 2J Phoenix 4G-5G WiFi Ultraband 2x2 MIMO + GNSS 3-Port Combo Stud Antenna comes in a low-profile box shape antenna housing measures 80 x 74 x 25.6 mm and is manufactured with highly durable ASA UV stable material (available in black and white). Fully IP67 and IP69 certified give this antenna full protection to water and dust in the harshest environments.  Designed with a heavy-duty anti-rotation screw mount this antenna can be securely and easily installed on vertical or horizontal surfaces without the need for grounding. With an omni-directional radiation pattern the antenna position should be aligned in 360-degree line of sight for optimal and uninterrupted signal strength. Read more

Specification:Check out the 2J Phoenix 4G/5G WiFi Ultraband 2x2 MIMO GNSS 3-Port Combo Stud Antenna offering 617 to 5925 MHz coverage. Enhance your connectivity with this versatile and high-performance antenna.
