Booster

Cel-Fi GO G31-3/5/28S-LPDA-DAS Stationary TELSTRA - 11dBi LPDA7030 | 6dBi DAS 6938-SDP150 Internal Panel Mount Antenna Bundle

What's in the Box

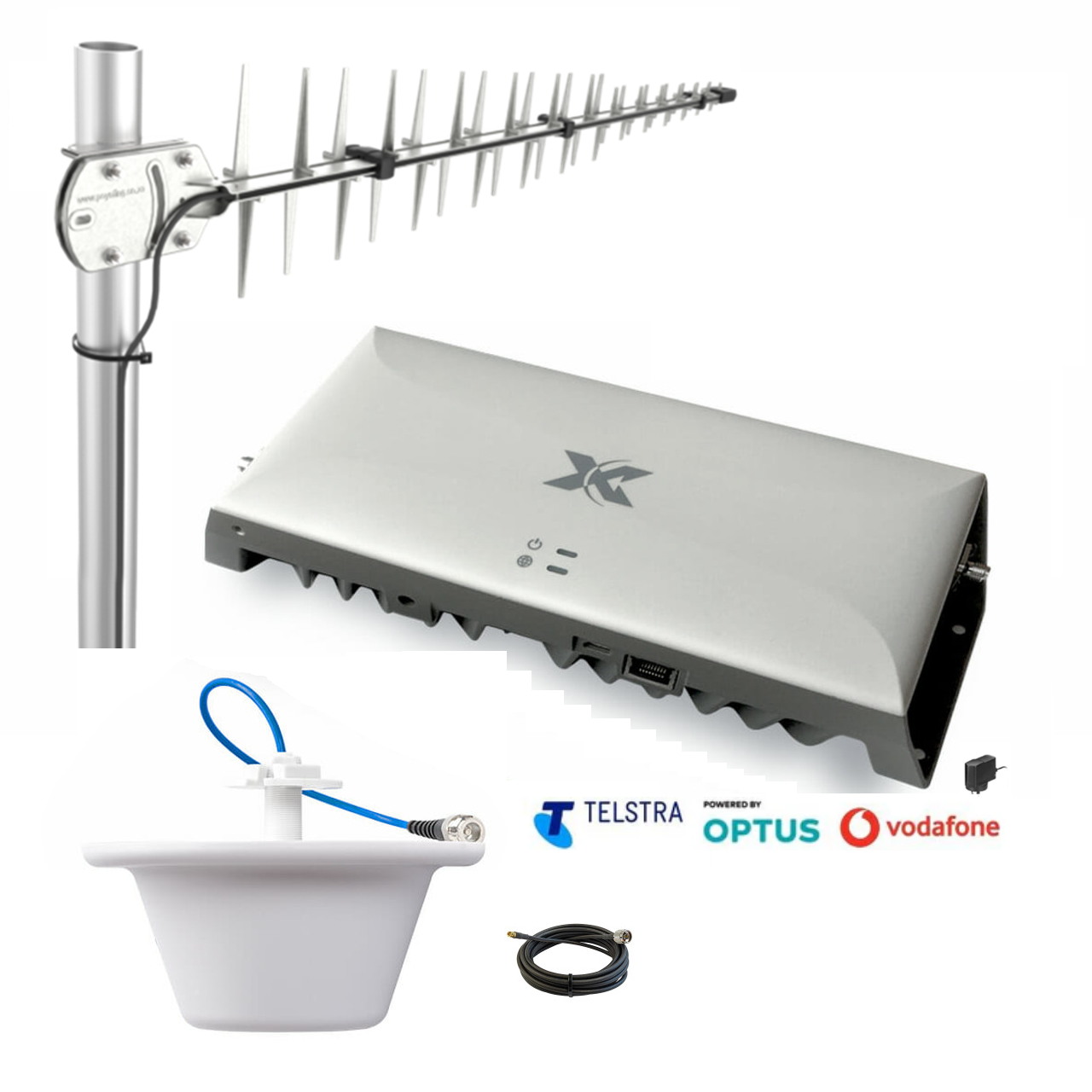

G41-LPDA7038-CEILING
1x CEL-FI-GO G41-JE-003 Telstra/Optus/Vodafone

1x 240VDC Power Pack

1x POYNTING LPDA-7038-11-10SMA Wideband Antenna with 10M cable SMA terminated (pole not included)

1x Ceiling Dome 4G-5G 698-4000MHz Antenna -150dBc PIM Antenna

1x 10.0Mtr Cable - N(M) to SMA(M)

@184/71

~~$1,516.95~~ $1,509.97

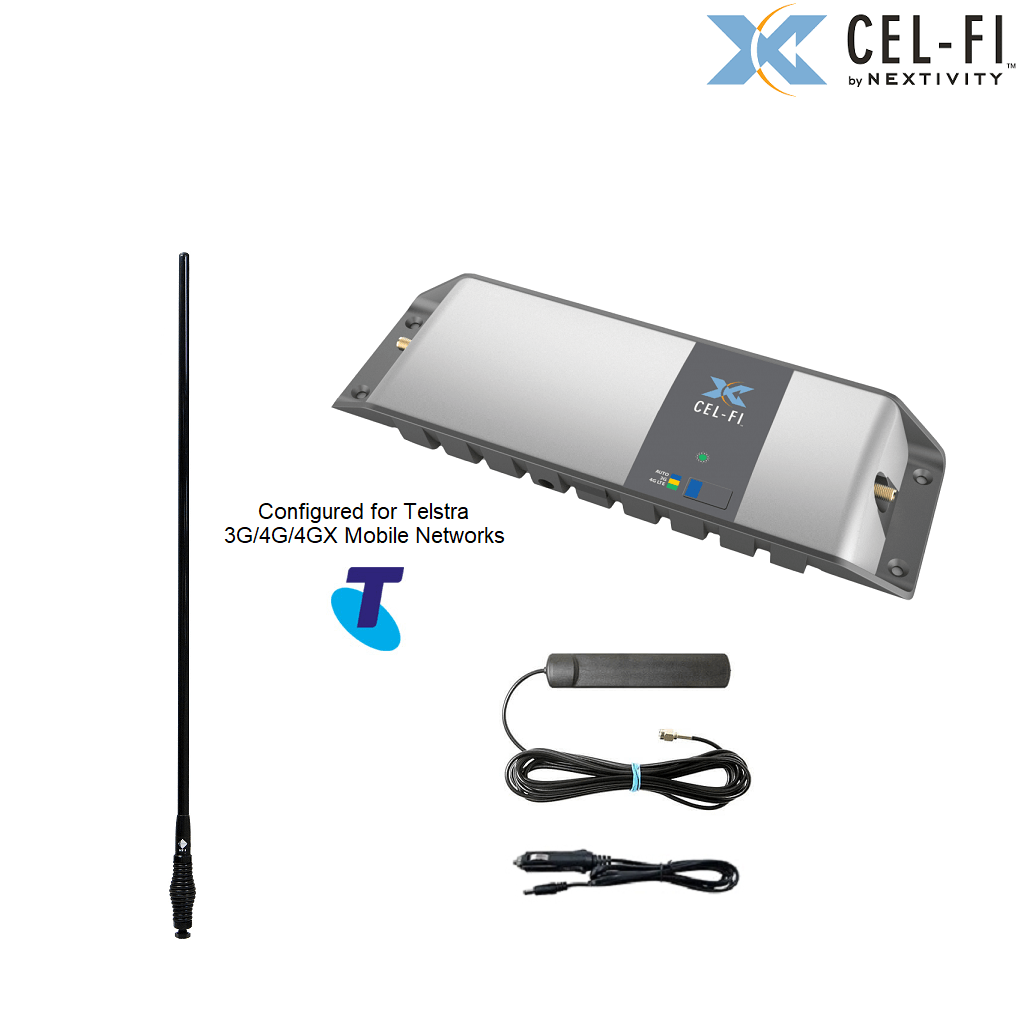

G31-TM-CD4-B Telstra Cel-Fi GO Mini 4WD/Trucker Vehicle Pack incl compact 65cm RFI CD8194-B (5.5dBi) Antenna

~~$1,188.95~~ $1,182.97

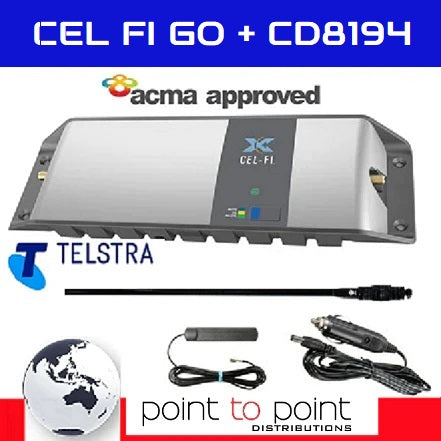

Cel-Fi GO Mobile Telstra + RFI CD8194-B (5.5dBi) Black Donor Antenna 655mm + T5-4M-SMA Internal Server Antenna (G31-TM-CD4-B)

This product is End of Life (EOL) and no longer available

The Cel-Fi GO Telstra Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.

What's included in the bundle...

G31-TM-CD4-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8194-B Black Donor Antenna with 5M cable SMA(M) 655mm long

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
12-24VDC
Network Safe
Configuration for Mobile or Stationary version via Wave app

TELSTRA MOBILE SIGNAL AVAILABILITY

3-BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

Ge t setup in 5 easy steps

SUPPORTED NETWORKS

Telstra Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Telstra Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Warranty: 2 Years.

Also available in these antenna configurations

Cel-Fi GO Mobile Telstra + T5-4M-SMA Internal Antenna

Cel-Fi GO Mobile Telstra + CD8194-B (5.5dBi) Antenna 65cm

Cel-Fi GO Mobile Telstra + CDR7194-B (5.5dBi) Antenna 70cm

Cel-Fi GO Mobile Telstra + CDQ7194-B (5.5dBi) Antenna 73cm

Cel-Fi GO Mobile Telstra + CD8195-B (5.5dBi) Antenna 89cm

Cel-Fi GO Mobile Telstra + CDR8195-B (6.5dBi) Antenna 93cm

Cel-Fi GO Mobile Telstra + CDQ8195-B (6.5dBi) Antenna 97cm

Cel-Fi GO Mobile Telstra + CD7197-B (7.5dBi) Antenna 114cm

Cel-Fi GO Mobile Telstra + CDQ8197-B (6.5dBi) Antenna 121cm

Documentation

View the RFI CD7100 Series Technical Data Sheet

Wave App

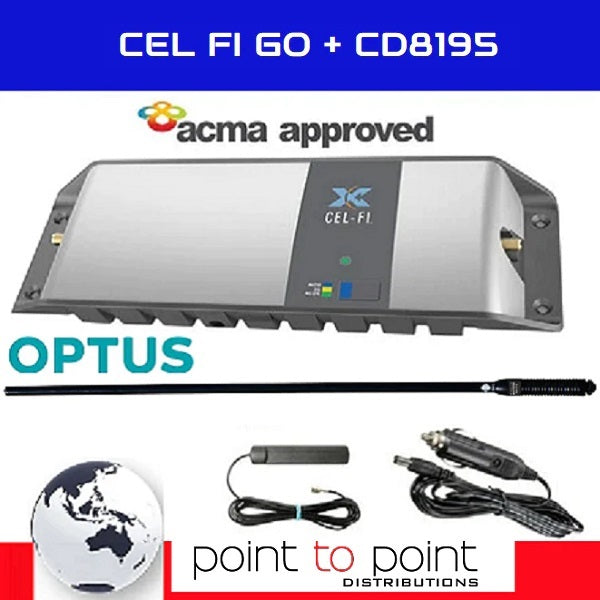

G31-OM-CD5-B Optus Cel-Fi GO 4WD/Trucker Vehicle Pack incl 89cm RFI CD8195-B (6.5dBi) Antenna

What's in the Box

G31-TM-CD4-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8194-B Black Donor Antenna with 5M cable SMA Male

@96/51

~~$884.95~~ $878.97

Cel-Fi GO Mobile Optus + RFI CD8195-B (6.5dBi) Black Donor Antenna 890mm + T7-4M-SMA Internal Server Antenna

The Cel-Fi GO Optus Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.

What's included in the bundle...

OPTUS-G31-OM-CD5-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8195-B Black Donor Antenna with 5M cable - SMA male - 890mm long

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
Network Safe
Configuration for Mobile or Stationary version via Wave app

3-BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

Ge t setup in 5 easy steps

SUPPORTED NETWORKS

Optus Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 900mhz or 4G 700mhz or 4G 1800mhz). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Optus Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Warranty: 2 Years.

Also available in these antenna configurations

Cel-Fi GO Mobile Optus + CDR7195-B (6.5dBi) Antenna 93cm

Cel-Fi GO Mobile Optus + CDQ7195-B (6.5dBi) Antenna 97cm

Documentation

View the RFI CD7100 Series Technical Data Sheet

Wave App

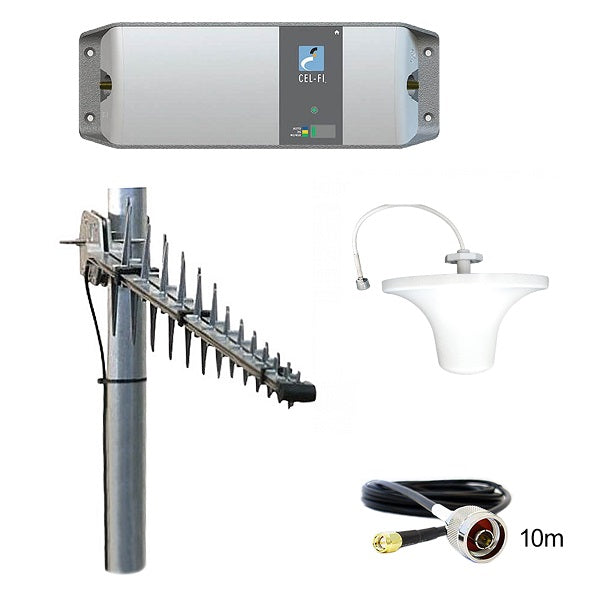

Cel-Fi GO G31-3/8/28SK-DL-1SO Stationary OPTUS - 11dBi LPDA7038 | 6dBi DAS 6938-SOC150 Omni Ceiling Mount Antenna Bundle

What's in the Box

OPTUS-G31-OM-CD5-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8195-B Black Donor Antenna with 5M cable - SMA conection

@71/45

~~$1,494.95~~ $1,487.97

Cel-Fi GO Stationary Optus - 11dBi LPDA7038 | 6dBi DAS 6938-SOC150 Omni Directional Ceiling Mount Antenna Bundle ( KIT-G31-3/8/28SK-DL-1SO)

Each Cel-Fi GO - Stationary Optus LPDA/DAS bundle consists of...

OPTUS-G31-3/8/28S Optus 3/8/28S Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack

RFI LPDA7038-11-10SMA 11dBi Log Periodic Antenna GSM 700-1000 MHz/1500-3000Mhz. inc 10M cable terminated with SMA connector

DAS6938-SOC150-N D AS LTE Omni Directional Ceiling Antenna 698-3800MHz N type connector

9207N-10 Cable Extension 10Mts - SMA Male to N Female

The Cel-Fi GO Stationary Smart Signal Repeater the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties government buildings agricultural settings small manufacturing operations rural areas businesses and large homes.

Cel-Fi Go Features:

3G / 4G / 4GX Voice and Data for the Optus Network
Up to 1 500 m2 of Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
Network Safe
Configure for Mobile or Stationary use via Wave app

3-Band Cel-Fi GO Mobile

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

SUPPORTED NETWORKS

Optus Network

SPECIFICATIONS - Cel-Fi Go Stationary

Available Frequency Bands (MHz)	Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	GO unit + AC adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50 Ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Specifications - LPDA7030-11-10SMA

Nominal Gain dBd	11dBi / 9dBd
Frequency MHz	700 - 1000 / 1500 - 3000
Tunable Bandwidth	Full band.
VSWR	<2.0:1
Polarisation	Linear
Vertical Beamwidth	50 (± 5)
Horizontal Beamwidth	55 (± 5)
Front/Back Ratio dB	20 dB (± 3 bB)
Power W	10
Dimensions mm	1100 x 180 x 60
Length mm	1100
Weight (kg)	1.85
Termination	10 meters cable terminated with male SMA connector

Specifications - DAS6938-SOC153-N

Electrical Specifications

Frequency Range: 698-960MHz / 1710-2700MHz / 3500-3600MHz / 5200-6000MHz
Max Gain: 2.0dBi / 4.0dBi / 4.0dBi / 6.0dBi
Input Impedance: 50 Ω
VSWR: <1.7:1 / <1.7:1 / <1.6:1 / <1.7:1
Vertical Beamwidth: 100° / 55° / 45° / 30°
Horizontal Beamwidth: 360°

Mechanical/Environmental Specifications

Construction: PC + ABS
Cable: 300mm
Input Connector: N Female
Weight: 0.25 kg
Dimensions: 89 x 184mm (H x Ø)
Mounting: Ceiling

Ge t setup in 5 easy steps

Warranty: 2 Years

Documentation

Cel-Fi GO Stationary Quick Start Guide

LPDA7030-11-10SMA Technical Data Sheet

LPDA7030-11-10SMA Installation Instructions

DAS6938-SOC150-N Technical Data Sheet

Wave App

Cel-Fi ROAM R41 RFI Antenna Bundle - CD8197 115cm

What's in the Box

KIT-G31-3/8/28SK-DL-1SO
1x CEL-FI-GO Optus 3/8/28S Stationary unit
1x 240VDC Power Pack
1x RFI LPDA70308-11-10SMA 11dBi Log Periodic Antenna - 10Mtr cable
1x DAS6938-SOC153-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz N type connector

1x 9207N-10 Cable Extension 10Mts - SMA Male to N Female

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)

Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers

@120/56

~~$1,094.95~~ $1,087.97

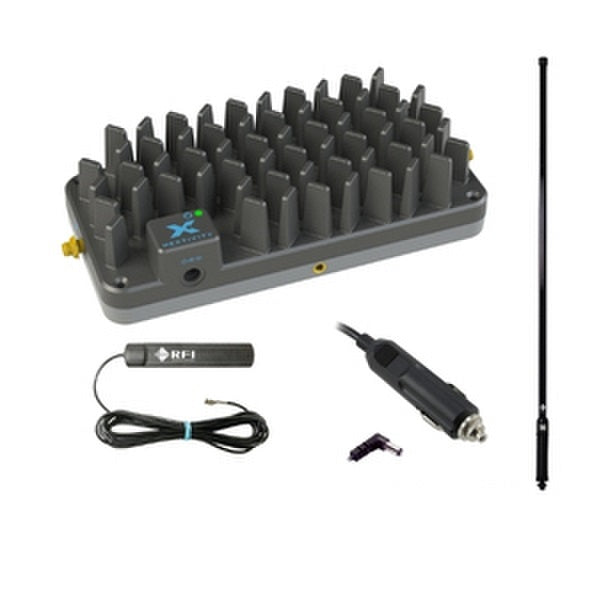

Cel-Fi ROAM R41 Mobile Bundle -Telstra/Optus + RFI CD8197-B (6.5dBi) Black Donor Antenna 1152mm + Internal Server Antenna

Introducing the latest addition in the Nextivity product lineup CEL-FI ROAM R41 a plug-and-play cellular coverage solution with a quick and easy setup designed to keep everyone connected anywhere they are.

CEL-FI ROAM R41 is created to solve any mobile voice and data coverage disruptions ensuring that reliable 3G 4G and 5G connectivity is delivered while on the move.

What to know more about the Cel-Fi ROAM R41 - check out the video

ROAM R41 VIDEO

CEL-FI ROAM R41 Works Best with RFI antennas...

The CEL-FI ROAM R41 covers most Frequency bands for the Australian market from 698MHz up to 2700MHz. The RFI 8100 series CD8195 is one of the few antennas available that support this whole frequency range.

The CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G 4G and 5G connectivity inside vehicles and boats.

With the latest Nextivity propriety IntelliBoost chip ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling texting and streaming on the move.

The system features plug-and-play operation for quick and easy setup improving connectivity in any car truck RV or boat within minutes.

Multi Carrier Switching...

CEL-FI ROAM R41 supports carrier switching through the Nextivity WAVE App for iOS and Android devices.

What's included in the bundle...

R41-CD8197
1x CEL-FI ROAM R41 mobile unit
1x CEL-FI ROAM R41 12VDC CLA power lead
1x Internal Server Antenna with 4M cable SMA male
1x RFI CD8197-B Black Donor Antenna with 5M cable SMA(M) 1152mm long

Documentation

ROAM R41 Specification Sheet

ROAM R41 Quick Start Guide

ROAM R41 LED Guide & Error Codes

Related Products

R41-CD8194

R41-CD8195

@88/49

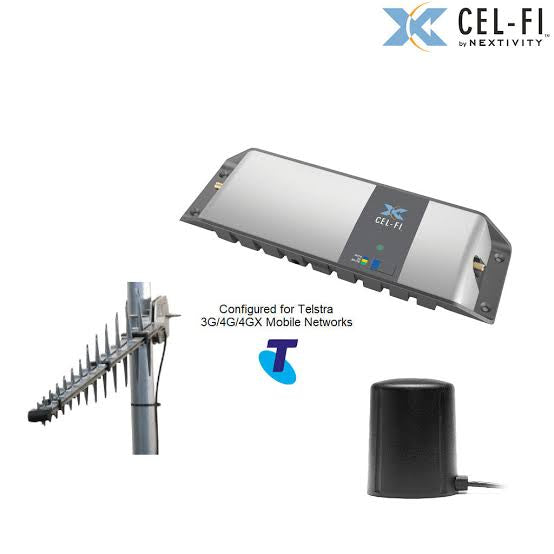

Cel-Fi GO G31-3/5/28S-LPDA-MAGS Stationary TELSTRA - 11dBi LPDA7038 | 3dBi LTE-MAGS Antenna Bundle

~~$1,477.95~~ $1,470.97

Cel-Fi GO G41 Building LPDA-92 Antenna Pack including Paddle Antenna - Telstra | Optus | Vodafone

~~$2,147.95~~ $2,141.97

Cel-Fi GO G41 Building LPDA92 with Paddle Antenna Pack - Telstra | Optus | Vodafone

NOW IN STOCK - AVAILABLE FOR IMMEDIATE DELIVERY

Introducing the latest Smart Signal Repeater from Nextivity...

700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
3G 4G VoLTE NB-IoT (G41 has 5G capabilities but is currently not enabled or approved)
Carrier Switching using WAVE App between Telstra Optus or Vodafone - one carrier at a time
Up to 3000 m2 coverage area
Two bands simultaneous relay
Total System Relay Bandwidth – Up to 40 MHz
Remote Monitoring Control and Alert Capabilities via WAVE Portal (for approved installers)
Ethernet Port for connection to internet source for live monitoring

This product can work on any of the Australian networks (Telstra Optus Vodafone/TPG) but like all other Cel-Fi products it will only amplify one operator’s service at a time. You have the option to switch it between the operators via the Wave app if you wish to change from one network to the other.

Designed to solve indoor mobile voice and data coverage issues the Cel-Fi GO G41 is the latest and most powerful Smart Signal Repeater to the Nextivity range.

Note: This device is only for fixed installation in a building and is not suitable for vehicle installation/useage.

INDUSTRY LEADING SIGNAL GAIN

Boasting up to 100dB gain the GO G41 features a higher output power than the G31 and G32 at +20dBm per channel.

3G/4G/LTE WITH CARRIER SWITCHING Now operating across all Australian 3G/4G/LTE frequency bands the GO G41 is 5G ready carrier safe and can be deployed anywhere within the network to amplify service.

Like the all other Cel-Fi Go products the Cel-Fi GO G41 amplifies the service of one operator at time. To quickly change or switch between operators simply download the Cel-Fi WAVE app .

FLEXIBLE SYSTEM DESIGN

The Cel-Fi GO G41 features a flexible system design making it suitable for a deployment in a wide variety of applications including:

Government buildings
Agricultural settings
Parking garages
IoT and M2M (machine to machine)
Small manufacturing operations
Business in single / multi-level commercial properties
Remote or rural locations
Large homes

What's in the Box

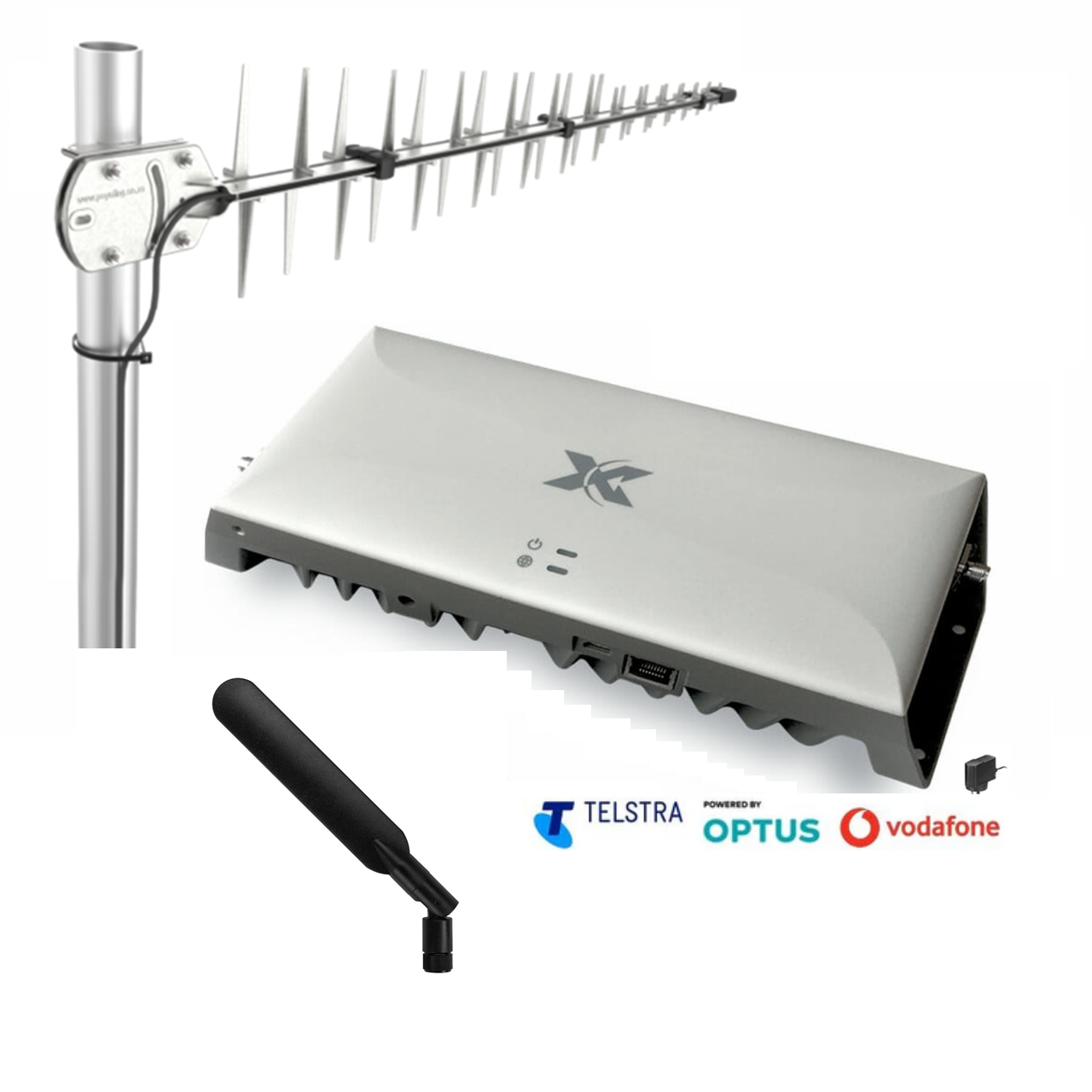

G41-LPDA92-PADDLE
1x CEL-FI-GO G41-JE-003 Telstra/Optus/Vodafone

1x 240VDC Power Pack

1x POYNTING LPDA-92 Wideband Antenna with 7M cable SMA terminated (pole not included)

1x Paddle 698/960-1710/2700-3300/3800MHz and 3dBi Antenna

Warranty: 2 Years

Documentation

Cel-Fi GO - G41 Brochure

Cel-Fi Go Specification Sheet

Cel-Fi Go - G41 Carrier Switching Instructions

Wave App

Cel-Fi GO G31-3/5/28MK-CDQ4-B Telstra 4WD/Trucker Vehicle Pack including 73cm RFI CDQ7194-B (5.5dBi) Antenna

What's in the Box

G41-LPDA92-PADDLE

x CEL-FI-GO G41-JE-003 Telstra/Optus/Vodafone

1x 240VDC Power Pack

1x POYNTING LPDA-92 Wideband Antenna with 7M cable SMA terminated (pole not included)

1x Paddle 698/960-1710/2700-3300/3800MHz and 3dBi Antenna

@173/69

~~$1,357.95~~ $1,351.97

Cel-Fi GO Mobile Telstra + RFI CDQ7194-B (5.5dBi) Black Donor Antenna 735mm + T7-4M-SMA Internal Server Antenna (G31-3/5/28MK-CDQ4-B)

This product is End of Life (EOL) and no longer available

The Cel-Fi GO Telstra Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.

What's included in the bundle...

G31-3/5/28MK-CDQ4-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDQ7194-B Black Donor Antenna with 5M cable 735mm long

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
12-24VDC
Network Safe
Configuration for Mobile or Stationary version via Wave app

TELSTRA MOBILE SIGNAL AVAILABILITY

3-BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

Ge t setup in 5 easy steps

SUPPORTED NETWORKS

Telstra Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Telstra Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Warranty: 2 Years

Also available in these antenna configurations

Cel-Fi GO Mobile Telstra + T5-4M-SMA Internal Antenna

Cel-Fi GO Mobile Telstra + CD8194-B (5.5dBi) Antenna 65cm

Cel-Fi GO Mobile Telstra + CDR7194-B (5.5dBi) Antenna 70cm

Cel-Fi GO Mobile Telstra + CDQ7194-B (5.5dBi) Antenna 73cm

Cel-Fi GO Mobile Telstra + CD8195-B (5.5dBi) Antenna 89cm

Cel-Fi GO Mobile Telstra + CDR8195-B (6.5dBi) Antenna 93cm

Cel-Fi GO Mobile Telstra + CDQ8195-B (6.5dBi) Antenna 97cm

Cel-Fi GO Mobile Telstra + CD7197-B (7.5dBi) Antenna 114cm

Cel-Fi GO Mobile Telstra + CDQ8197-B (6.5dBi) Antenna 121cm

Documentation

View the CDQ 7100 Series Technical Data Sheet

Wave App

Cel-Fi ROAM R41 RFI Antenna Bundle - CDQ8195 98cm

What's in the Box

G31-3/5/28MK-CDQ4-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDQ7194-B Black Donor Antenna with 5M cable

@109/54

~~$1,144.95~~ $1,137.97

Cel-Fi ROAM R41 5G Repeater for Caravan | Motorhome | Marine with RFI 6dBi Panel Antenna

~~$1,394.95~~ $1,387.97

Cel-Fi ROAM R41 5G Caravan Bundle Telstra/Optus Repeater for Caravan | Motorhome | Marine with RFI 6dBi Internal Panel Antenna

Now in Stock - Available for immediate delivery

CEL-FI ROAM R41

Introducing the latest addition in the Nextivity product lineup CEL-FI ROAM R41 a plug-and-play cellular coverage solution with a quick and easy setup designed to keep everyone connected anywhere they are.

CEL-FI ROAM R41 is created to solve any mobile voice and data coverage disruptions ensuring that reliable 3G 4G and 5G connectivity is delivered while on the move.

What to know more about Cel-Fi ROAM R41 - check out the video

ROAM R41 VIDEO

CEL-FI ROAM R41 Works Best with RFI antennas...

The CEL-FI ROAM R41 covers most Frequency bands for the Australian market from 698MHz up to 2700MHz. The RFI 8100 series CDQ8195 is one of the few antennas available that support this whole frequency range.

The CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G 4G and 5G connectivity inside vehicles and boats.

With the latest Nextivity propriety IntelliBoost chip ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling texting and streaming on the move.

The system features plug-and-play operation for quick and easy setup improving connectivity in any car truck RV or boat within minutes.

Multi Carrier Switching...

CEL-FI ROAM R41 supports carrier switching through the Nextivity WAVE App for iOS and Android devices.

What's included in the bundle...

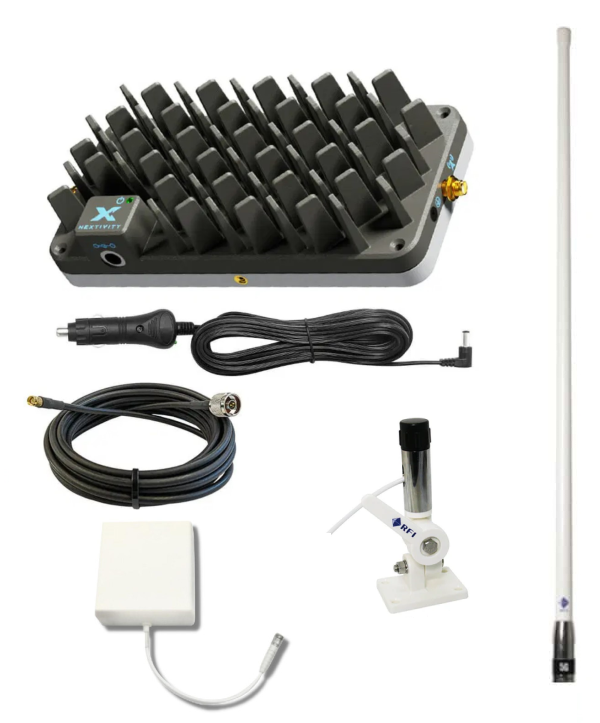

R41-MARINE-PAN

1x CEL-FI ROAM R41 mobile unit

1x CEL-FI ROAM R41 12VDC CLA power lead

1x MAM-CDQ Fold-Down Antenna Mount with 5Mtr cable

1x RFI CDQ-8195-W-WHIP White Antenna Whip 4G/5G

1x DAS6938-SDP150-N Panel Antenna covering 4G/5G

1x 9207N-10 Extension cable 10Mtr -SMA Male to N Female

Documentation

ROAM R41 Specification Sheet

ROAM R41 Quick Start Guide

ROAM R41 LED Guide & Error Codes

CDQ8100 Series Technical Data Sheet

T5-4M-SMA Product Data Sheet

DAS6938-SDP150-N Product Data Sheet

Wave App

Cel-Fi GO G31-3/8/28M Mobile Optus - No Antenna

@112/54

~~$834.95~~ $827.97

Cel-Fi GO - Mobile Optus - No Antenna (G31-3/8/28M)

The Cel-Fi GO Optus Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.

What's included in the bundle...

G31-3/8/28M
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
NO ANTENNAS

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated.
Network Safe
Configuration for Mobile or Stationary version via Wave app

*Requires additional Server and Donor antennas - available separately

3-Band Cel-Fi GO Mobile

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

Ge t setup in 5 easy steps

SUPPORTED NETWORKS

Optus Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Telstra Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Warranty: 2 Years

Documentation

Wave App

Cel-Fi ROAM R41 Axis Antenna Bundle - 72cm

What's in the Box

G31-3/8/28M
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
NO ANTENNAS

Packaging Dim. 39.5cm x 11cm x 6.5cm
Weight: 1Kg

@67/44

~~$1,046.95~~ $1,040.97

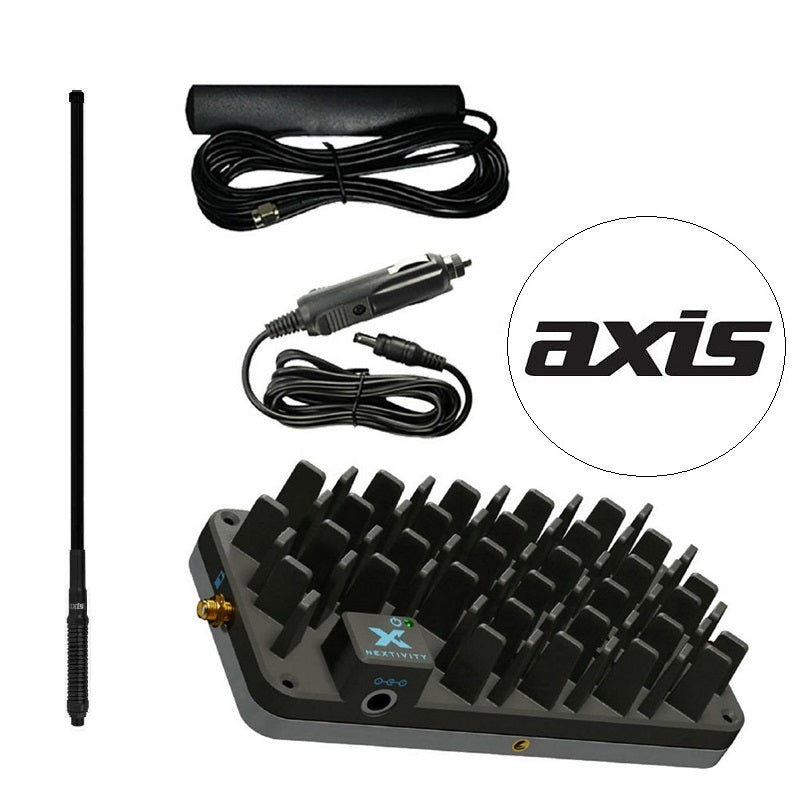

Cel-Fi ROAM R41 Mobile Bundle -Telstra/Optus + AXIS BullBar Black Donor Antenna 720mm (7-9dBi) + Internal Server Antenna

Introducing the latest addition in the Nextivity product lineup CEL-FI ROAM R41 a plug-and-play cellular coverage solution with a quick and easy setup designed to keep everyone connected anywhere they are.

CEL-FI ROAM R41 is created to solve any mobile voice and data coverage disruptions ensuring that reliable 3G 4G and 5G connectivity is delivered while on the move.

What to know more about the Cel-Fi ROAM R41 - check out the video

ROAM R41 VIDEO

CEL-FI ROAM R41 Works Best with Axis Antennas...

Axis CLR8-5G 730mm Axis 7dBi - 9dBi antenna with non-removeable whip integrated with a Heavy Duty spring and 5.3Mtr cable.

Collinear design offering the ultimate in coverage and gain
Ideal for all new 5G 4G LTE networks with true multi-band coverage
High gain across all bands making it suiting fringe and rural applications
Frequency Range: 700-2700Mhz 3400-3800Mhz (5G 4G LTE 4GX)
Stainless Steel Spring- Black
Fiberglass Radome Mast – 730mm Long
7 - 9dBi Gain
5.3m Coaxial Cable Assembly
Terminates to SMA/M
Includes: SMA/F to FME/F Adaptor

The CEL-FI ROAM R41 covers most Frequency bands for the Australian market from 698MHz up to 2700MHz.

The CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G 4G and 5G connectivity inside vehicles and boats.

With the latest Nextivity propriety IntelliBoost chip ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling texting and streaming on the move.

The system features plug-and-play operation for quick and easy setup improving connectivity in any car truck RV or boat within minutes.

Multi Carrier Switching...

CEL-FI ROAM R41 supports carrier switching through the Nextivity WAVE App for iOS and Android devices.

What's included in the bundle...

1x CEL-FI ROAM R41 mobile unit
1x CEL-FI ROAM R41 12VDC CLA power lead
1x Internal Server Antenna with 4M cable SMA male
1x AXIS Black Donor Antenna with 5.3M cable FME/SMA(M) 720mm long

Documentation

ROAM R41 Specification Sheet

ROAM R41 Quick Start Guide

ROAM R41 LED Guide & Error Codes

@84/48

Cel-Fi GO G31-3/8/28S Stationary - Optus Network - No Antenna

~~$821.95~~ $814.97

OPTUS Network Cel-Fi GO - Stationary Optus - No Antenna (OPTUS-G31-3/8/28S)

The Cel-Fi GO Optus Stationary Smart Signal Repeater the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties government buildings agricultural settings small manufacturing operations rural areas businesses and large homes.

Features:

3G / 4G / 4GX Voice and Data for the Optus Network
Up to 1 500 m2 of Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
Network Safe
Configure for Mobile or Stationary use via Wave app
Requires additional Server and Donor antennas - available separately

*Requires additional Server and Donor antennas - available separately

3-Band Cel-Fi GO Mobile

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

SUPPORTED NETWORKS

Optus Network

SPECIFICATIONS

Available Frequency Bands (MHz)	Optus Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	GO unit + AC adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50 Ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Ge t setup in 5 easy steps

Warranty: 2 Years

Also available in these antenna configurations

Documentation

Cel-Fi GO Stationary Quick Start Guide

Wave App

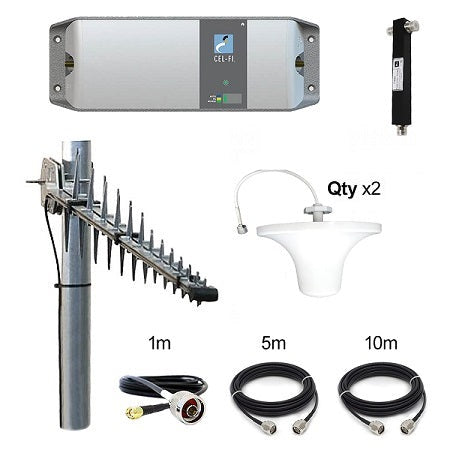

Cel-Fi GO G31-3/5/28SK-DL-2SO Stationary TELSTRA - 11dBi LPDA7038 | 2x DAS 6dBi 6938-SOC150 Omni Ceiling Mount Antenna Bundle

What's in the Box

OPTUS-G31-3/8/28S
1x CEL-FI-GO Optus Band 3/8/28S Stationary unit only
1x 240VDC Power Pack
No Antennas

Packaging Dim. 39.5cm x 11cm x 6.5cm
Weight: 1Kg

@66/44

~~$1,621.95~~ $1,615.97

Cel-Fi GO G31-TM-CSM600-MAG - Telstra Low Profile Vehicle Pack incl CSM600 Magnetic Base Antenna

~~$1,188.95~~ $1,182.97

Cel-Fi GO Mobile Telstra + RFI CSM600 Magnetic Base Donor Antenna + T5-4M-SMA Internal Server Antenna (G31-TM-CSM600-MAG)

The Cel-Fi GO Telstra Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs earth moving equipment caravans/campers and boats.

What's included in the bundle...

G31-TM-CSM600-MAG
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CSM600-MAG-4M-SMA Magnetic base Black Donor Antenna with 4M cable SMA(M)

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
12-24VDC
Network Safe
Configuration for Mobile or Stationary version via Wave app

TELSTRA MOBILE SIGNAL AVAILABILITY

3-BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

Ge t setup in 5 easy steps

SUPPORTED NETWORKS

Telstra Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Telstra Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Warranty: 2 Years.

Also available in these antenna configurations

Cel-Fi GO Mobile Telstra + T7-4M-SMA Internal Antenna

Cel-Fi GO Mobile Telstra + CD7194-B (5.5dBi) Antenna 65cm

Cel-Fi GO Mobile Telstra + CD7197-B (7.5dBi) Antenna 114cm

Cel-Fi GO Mobile Telstra + CDR7195-B (6.5dBi) Antenna 93cm

Cel-Fi GO Mobile Telstra + CDQ7195-B (6.5dBi) Antenna 97cm

Cel-Fi GO Mobile Telstra + CDQ7197-B (6.5dBi) Antenna 121c m

Documentation

RFI CSM600 Specifications

Wave App

Cel-Fi GO G31-TM-CDR4-B Telstra 4WD/Trucker Vehicle Pack including 70cm RFI CDR8194-B (5.5dBi) Antenna

What's in the Box

G31-TM-CSM600-MAG
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead.
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CSM600-MAG-4M-SMA Magnetic base Black Donor Antenna with 4M cable SMA(M)

@96/51

~~$1,325.95~~ $1,318.97

Cel-Fi GO Mobile Telstra + RFI CDR8194-B (5.5dBi) Black Donor Antenna 695mm + T5-4M-SMA Internal Server Antenna ( G31-TM-CDR4-B )

The Cel-Fi GO Telstra Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.

What's included in the bundle...

G31-TM-CDR4-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDR8194-B Black Donor Antenna with 5M cable SMA male 695mm long

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
12-24VDC
Network Safe
Configuration for Mobile or Stationary version via Wave app

TELSTRA MOBILE SIGNAL AVAILABILITY

3 BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

Ge t setup in 5 easy steps

SUPPORTED NETWORKS

Telstra Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Telstra Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Warranty: 2 Years

Also available in these antenna configurations

Cel-Fi GO Mobile Telstra + T5-4M-SMA Internal Antenna

Cel-Fi GO Mobile Telstra + CD8194-B (5.5dBi) Antenna 65cm

Cel-Fi GO Mobile Telstra + CDR7194-B (5.5dBi) Antenna 70cm

Cel-Fi GO Mobile Telstra + CDQ7194-B (5.5dBi) Antenna 73cm

Cel-Fi GO Mobile Telstra + CD8195-B (5.5dBi) Antenna 89cm

Cel-Fi GO Mobile Telstra + CDR8195-B (6.5dBi) Antenna 93cm

Cel-Fi GO Mobile Telstra + CDQ8195-B (6.5dBi) Antenna 97cm

Cel-Fi GO Mobile Telstra + CD7197-B (7.5dBi) Antenna 114cm

Cel-Fi GO Mobile Telstra + CDQ8197-B (6.5dBi) Antenna 121cm

Documentation

RFI CDR7100 Series Technical Data Sheet

Wave App

Cel-Fi GO G31-TM-CDR5-B Telstra 4WD/Trucker Vehicle Pack including 93cm RFI CDR8195-B (6.5dBi) Antenna

What's in the Box

G31-TM-CDR4-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDR8194-B Black Donor Antenna with 5M cables SMA male

@107/53

~~$1,325.95~~ $1,318.97

Cel-Fi GO Mobile Telstra + RFI CDR8195-B (6.5dBi) Black Donor Antenna 930mm + T5-4M-SMA Internal Server Antenna (G31-TM-CDR5-B)

This product is End of Life (EOL) and no longer available

The Cel-Fi GO Telstra Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.

What's included in the bundle...

G31-TM-CDR5-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDR8195-B Black Donor Antenna with 5M cable SMA conn. 930mm long

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
12-24VDC
Network Safe
Configuration for Mobile or Stationary version via Wave app

TELSTRA MOBILE SIGNAL AVAILABILITY

3 BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.

Ge t setup in 5 easy steps

SUPPORTED NETWORKS

Telstra Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Telstra Band 3/8/28
Frequency Range	1800Mhz 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Warranty: 2 Years

Also available in these antenna configurations

Cel-Fi GO Mobile Telstra + T7-4M-SMA Internal Antenna

Cel-Fi GO Mobile Telstra + CD7194-B (5.5dBi) Antenna 65cm

Cel-Fi GO Mobile Telstra + CD7195-B (6.5dBi) Antenna 89cm

Cel-Fi GO Mobile Telstra + CD7197-B (7.5dBi) Antenna 114cm

Cel-Fi GO Mobile Telstra + CDQ7195-B (6.5dBi) Antenna 97cm

Cel-Fi GO Mobile Telstra + CDQ7197-B (6.5dBi) Antenna 121c m

Documentation

RFI CDR7100 Series Technical Data Sheet

Wave App
