Camera

The D-Link DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

High-Quality Video

To maximise bandwidth efficiency and improve image quality, the DCS-6314 provides real-time video compression using the H.264, MPEG‑4, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to a network attached storage (NAS) device or internal Micro SD card.

Continuous Monitoring

The DCS-6314’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify objects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. In addition, the DCS-6314 also has built-in IR LED illuminators with a 45 feet range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Robust Management Software

The DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Flexible Connectivity

The DCS-6314 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.

SPECS
Vandal-proof

• Yes

Max Resolution

• Full HD

Camera Type

• Dome

Design

• Outdoor|Vandal Proof|Night Vision|PoE

Housing Type

• Dome

Indoor / Outdoor

• Outdoor

Megapixels

• 2 MP

Max. Video Resolution

• 1920x1080 @ 30fps

Night Vision

• Yes

Night Vision Range

• 15m

Motorised Pan / Tilt

• No

Optical Zoom

• 4x

Motion Detection

• Yes

Video Compression

• MPEG-4

Lens Type

• Varifocal

Horizontal Field of View

• 31 - 97 degrees

Lens Focal Length

• 2.8 - 12mm

Image Enhancement

• WDR|BLC|AES|AGC|AWB

Power

• PoE, Power Supply

Memory Card Slot

• Micro SD

ONVIF Compliant

• Yes

Dimensions (Size)

• 128 x 128 x 123 mm

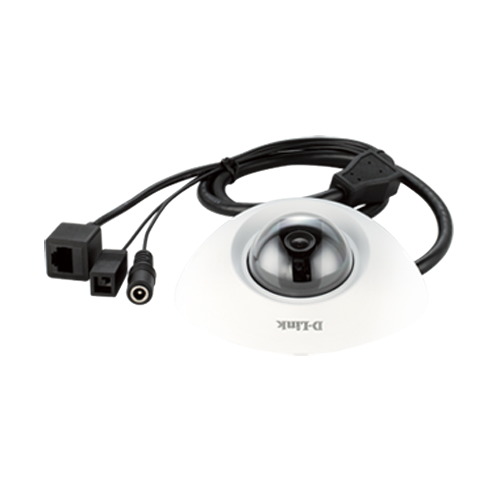

Compact and Strong

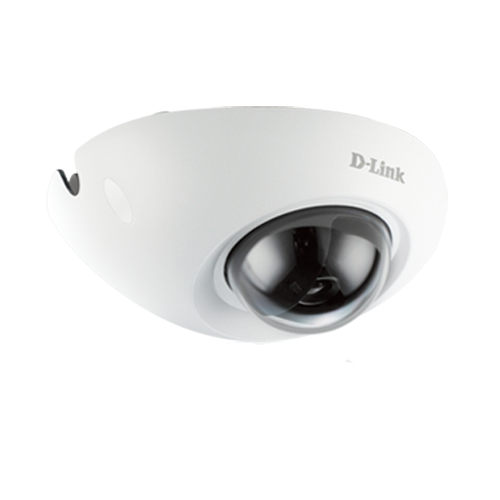

The DCS-6210 high resolution indoor/outdoor fixed dome camera is tough, vandal resistant, and weatherproof. Industry rated, it is extremely versatile and unobtrusive, easy to mount anywhere, and the fully adjustable 3-axis gimbal allows you to get the view you need. The rugged IP66-rated housing is designed for the harshest environments. Equipped with a high resolution 2 megapixel sensor to provide Full HD 1080p video, the DCS-6210 also comes with an SD card slot for local video storage.

Built for Tough Environments
The DCS-6210 has a toughened metal, industry-certified IK10 (vandal proof) and IP66 (weatherproof) housing, specially designed for use in rugged environments, and built to withstand sudden high impact and adverse weather conditions.

Flexible Installation
The DCS-6210 has a Power over Ethernet (PoE) port which allows you to connect the camera to your network and power it through a single cable. This both expands and simplifies your options by doing away with the need for a nearby power outlet, making installation on ceilings much easier. The DCS-6210 can alternatively be powered by 12VDC, which broadens installation options, including transportation and solar deployments.

Surveillance in Full High Definition
The DCS-6210 is built with a 2 megapixel image sensor to provide both high-quality snapshots and video with resolutions up to 1920 x 1080. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily.

A Complete, Expandable Surveillance Solution
The DCS-6210 is a self-sufficient surveillance solution, capable of recording snapshots and video to a microSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

Built for Versatility
The DCS-6210 comes with a wealth of features that enhance its surveillance capabilities, making it ideal for any situation. Its 3-axis lens mounting allows you to position it perfectly, while its motion detection capabilities allow it to automatically record video and send you a notification when motion is detected.

Open Network Video Interface Forum (ONVIF)
ONVIF is an open industry forum for the development of a global standard for the interface of IP-based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-6210 is ONVIF-compliant and therefore compatible with many third party Video Management Software (VMS) solutions.

Robust Management Software
D-ViewCam is a software program that allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

Event Management

• Motion detection by weekly schedule

• Event notification and upload snapshots/video

• Clips via HTTP, SMTP or FTP

• Multiple HTTP, SMTP or FTP server configurations

• Multiple event notifications

• Multiple recording methods for easy backup

D-ViewCam™ Features

• Manage up to 32 cameras at once

• Adjustable image size and quality

• Custom recording schedules

• Event notifications

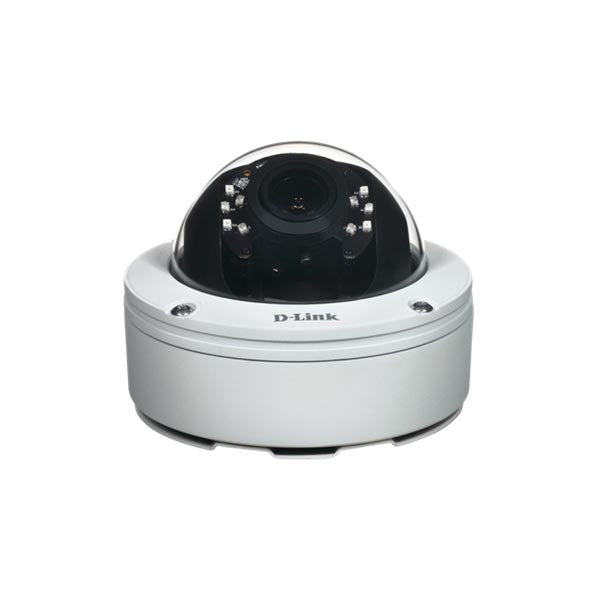

Camera Overview

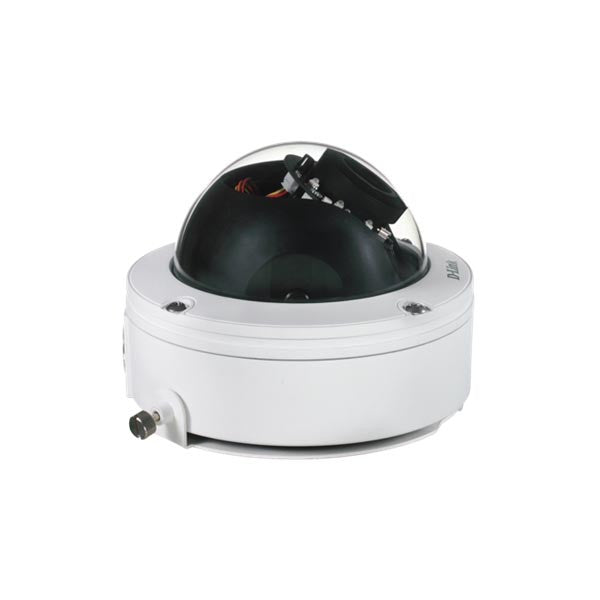

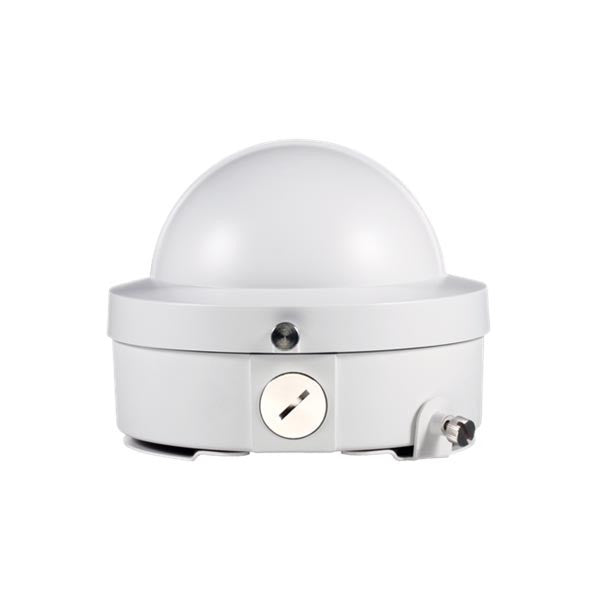

The D-Link DCS-6517 5 Megapixel Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a 5 megapixel progressive scan CMOS sensor to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

Built for the Outdoors
Specially built for outdoor use, the DCS-6517 has an IP66 weatherproof housing that protects it from dirt and rain. The durable housing of the DCS-6517 has also been designed to meet IK10 vandal proof specifications, meaning that it can be deployed into areas that require the peace of mind that the DCS-6517 can provide. Combined with its power over Ethernet (PoE) capability, the DCS-6517 truly is a versatile solution that be used in a wide range of applications.

Continuous Monitoring
In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-6517 also has built-in IR LED illuminators with a 20 meter range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day. To maximize bandwidth efficiency and improve image quality, the DCS-6517 provides real-time video compression using the H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Flexible Connectivity
The DCS-6517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.

Video Management Software
The DCS-6517 5 Megapixel Day & Night Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices,

Event Management
  • Motion detection by weekly schedule
  • Event notification and upload snapshots/video
  • Clips via HTTP, SMTP or FTP
  • Multiple HTTP, SMTP or FTP server configurations
  • Multiple event notifications
  • Multiple recording methods for easy backup

D-ViewCam™ Features
  • Manage up to 32 cameras at once
  • Adjustable image size and quality
  • Custom recording schedules
  • Event notifications
  • Upload a customised floor plan

SPECS
Vandal-proof

• Yes

ONVIF Compliant

• Yes

Dimensions (Size)

• 137 x 137 x 106 mm

Max Resolution

• Full HD +

Camera Type

• Dome

Design

• Outdoor|Vandal Proof|Night Vision|PoE

Housing Type

• Dome

Indoor / Outdoor

• Outdoor

Megapixels

• 5 MP

Max. Video Resolution

• 2560x1920 @ 15fps

Night Vision

• Yes

Night Vision Range

• 20m

Motorised Pan / Tilt

• No

Optical Zoom

• 3x

Motion Detection

• Yes

Email Notification

• Yes

Video Compression

• MPEG-4|MJPEG|H.264

Lens Type

• Varifocal

Horizontal Field of View

• 27 - 67 degrees

Lens Focal Length

• 3 - 10.5mm

Image Enhancement

• WDR|AES|AGC|AWB

Power

• PoE, Power Supply

Memory Card Slot

• Micro SD

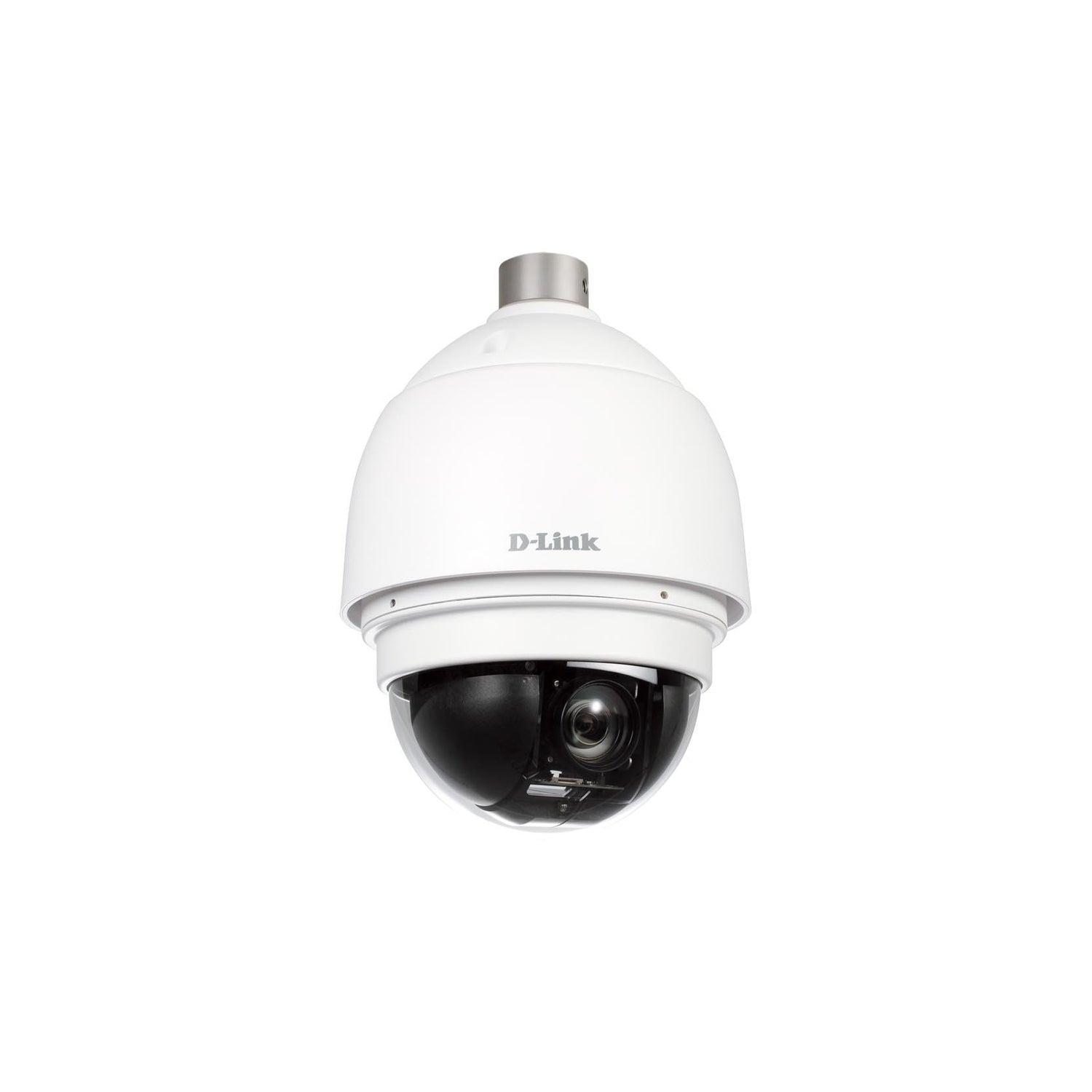

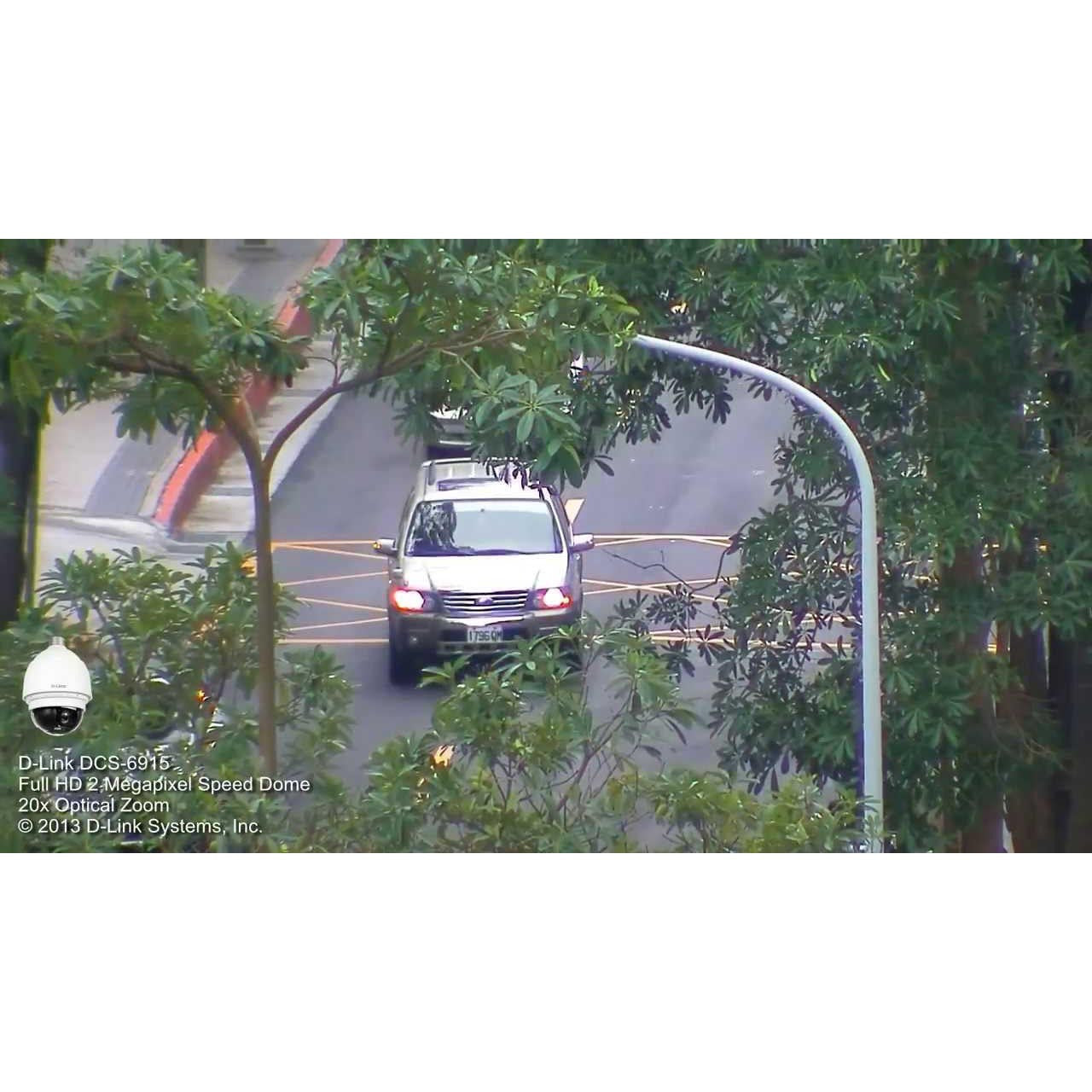

The DCS-6915 Outdoor 20X Full HD WDR Speed Dome Network Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The DCS-6915 features a 3 megapixel sensor capable of Full HD 1080p resolution, allowing for very clear surveillance footage to be taken. The powerful 20X optical zoom and 10X digital zoom ensure that you can see even the smallest details with ease.

Proportional Pan, Tilt, and Zoom Speeds

Proportional pan and tilt make it easy to precisely adjust the camera’s view. When the camera zooms in, the panning speed is automatically slowed to improve camera tracking and control. PTZ presets allow the camera to monitor specified areas along predefined paths. The broad tilt range from -10° to 190° allows the camera to see beyond the true horizon, meaning you can see more even when zoomed in.

Built for Tough Environments

Specially designed for use in challenging environments the DCS-6915 has a toughened metal, industry-certified IK-10 (vandal-proof) and IP66 (weather-proof) housing. This means that it is able to withstand sudden high impacts, as well as adverse weather conditions. With its built-in heater and fan, the camera can operate in extreme environments at temperatures ranging from -40 to 50 °C (-49  to 122 °F).

High-Quality Video

To maximise bandwidth efficiency and improve image quality, the DCS-6915 provides real-time video compression using the H.264 and MJPEG codecs. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to an internal MicroSD card¹.

Wide Dynamic Range (WDR)

IP surveillance cameras are often installed in areas with consistent lighting, like offices, banks or stores. This makes it easy to set exposure levels for optimal image quality. At other times, surveillance personnel are not so lucky. Doorways, glass walls or other areas that are exposed to direct or varying sunlight can create backlit or high contrast scenes. In such conditions, detail is lost in bright areas because of over-exposure and in dark areas because of low light. Wide Dynamic Range (WDR) technology overcomes these conditions by merging two images, one with a short exposure time to capture detail in the brighter parts of the image, and one with a longer exposure time to reveal detail in the darker areas. The resulting WDR image provides natural, balanced detail – a must in critical surveillance applications with tricky lighting conditions.

Removable IR Cut Filter for Continuous Monitoring

The IR Cut Filter can be manually applied, or set to automatically adjust based on lighting conditions. This feature enables the camera to capture crisp colour images during the daytime, and grayscale images in low-light.

Robust Management Software

The included D-ViewCam™ camera management software allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

SPECS
Camera Hardware Profile

• Sony Exmor 1/2.8" 3 Megapixel CMOS Sensor
• Variable Speed 20x Optical Zoom
• Day & Night with Mechanical IR Filter
• 0.1 Lux (Color); 0.01 Lux (B/W)
• Electronic shutter speed 1/1 - 1/10,100 second
• Wide Dynamic Range (WDR)
• Focal Length: 4.7 to 96 mm
• Horizontal Field of View: 52° to 4°

PTZ Hardware Profile

• Pan travel: 360° endless
• Tilt Travel: -10° to 190°
• Presets: 256 points
• Preset Accuracy: ± 0.225°
• Preset Speed: 5° to 400° per second
• Sequence Paths: 8
• Auto Pan Paths: 4
• Cruise Paths: 8
• Pan and tilt speed proportional to zoom ratio
• Resume after power loss
• Home Function: Preset, Sequence, Auto pan, Cruise
• Auto Flip: Mechanical/Digital/Off
• Digital Slow Shutter
• Image Freeze
• Image Inverse

Image Features

• Adjustable image size, quality, frame rate and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• 16 configurable privacy masks
• Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression

• Simultaneous H.264/MJPEG format compression
• H.264 multicast streaming
• JPEG for still images

Video Resolution

• 1920 x 1080 (1080P)
• 1280 x 720 (720P)
• 800 x 600 (SVGA)
• 640 x 480 (VGA)
• 1280 x 1024 (SXGA)
• 1024 x 768 (XGA)
• 640 x 480 (VGA)
• 320 x 240 (CIF)

Audio Compression

• G.726
• G.711

External Device Interfaces

• 4 alarm inputs
• 2 alarm outputs
• Audio input/output
• microSD card slot¹

Network Protocol

• IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP, PPPoE, UPnP Forwarding, RTP/RTSP/RTCP, IP filtering, IGMP, IEEE802.1x, QoS, SNMP, ONVIF Compliant

Security

• Administrator and user group protection
• Password authentication

System Requirements for Web Interface

• Microsoft Windows 8/7/Vista/XP/2000
• Internet Explorer, Chrome, or Firefox

Event Management

• Motion detection
• Tamper detection
• Event notification and upload snapshots/video clips via SMTP or FTP
• Multiple event notification
• Multiple recording methods for easy backup
• Supports multiple HTTP, SMTP and FTP servers

Remote Management

• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive

D-ViewCam System Requirements

• Operating System: Microsoft Windows 7/Vista/XP
• Web Browser: Internet Explorer 7 or higher

D-ViewCam Software Functions

• Remote management/control of up to 32 cameras
• Viewing of up to 32 cameras on one screen
• Supports all management functions provided in web interface
• Scheduled motion triggered, or manual recording options

Power Input

• AC 24V, 3A
• 802.3at PoE+²

Max. Power Consumption

• Max 65W (with heater)

Temperature

• Operating: -40° to 122° F (-40° to 50° C)
• Storage: -4° to 158° F (-20° to 70° C)

Humidity

• 20% to 80% non-condensing

Housing Ratings

• IP66 Weatherproof
• IK10 Vandalproof

Certifications

• FCC (Class A)
• CE (Class A)
• CE LVD (EN60965-1)
• ICES-003
• C-Tick

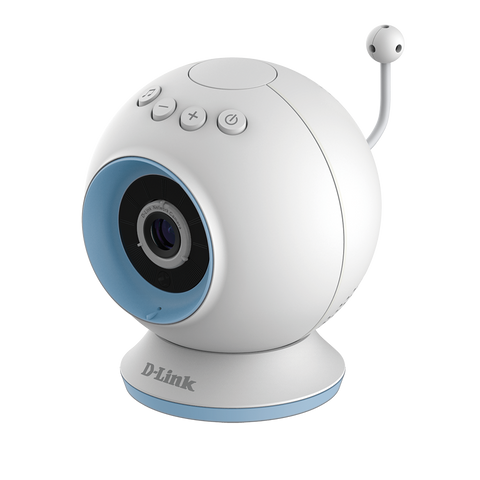

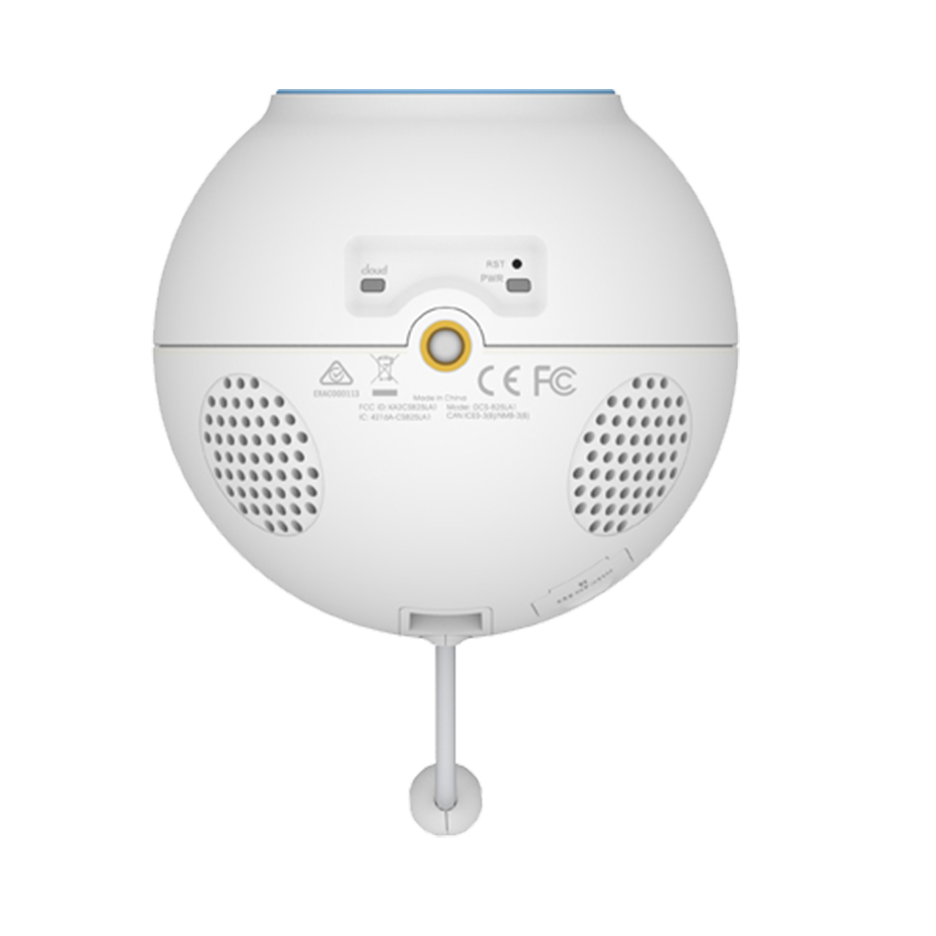

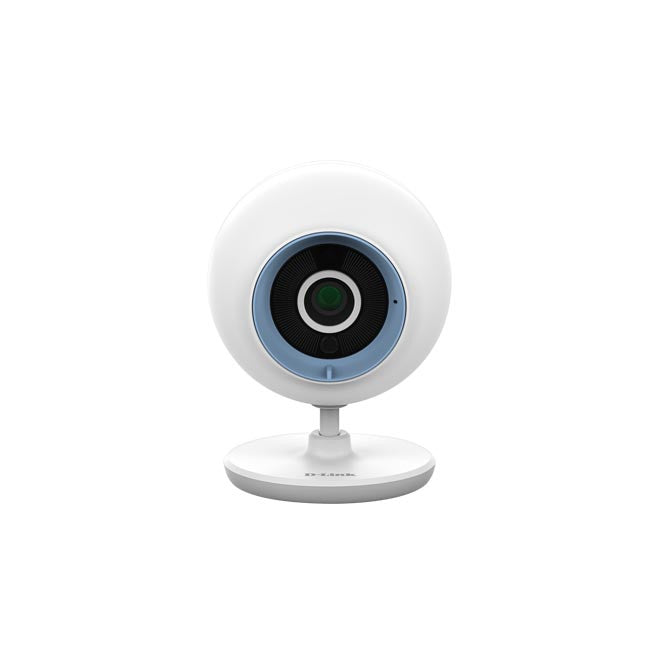

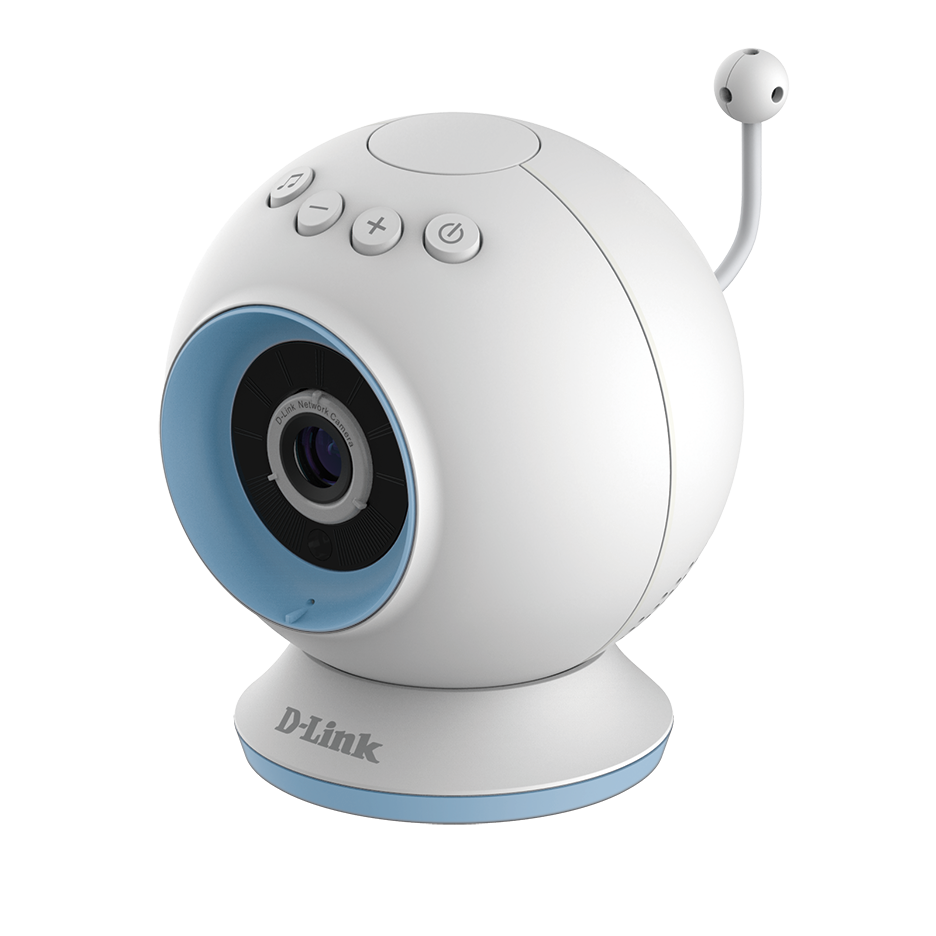

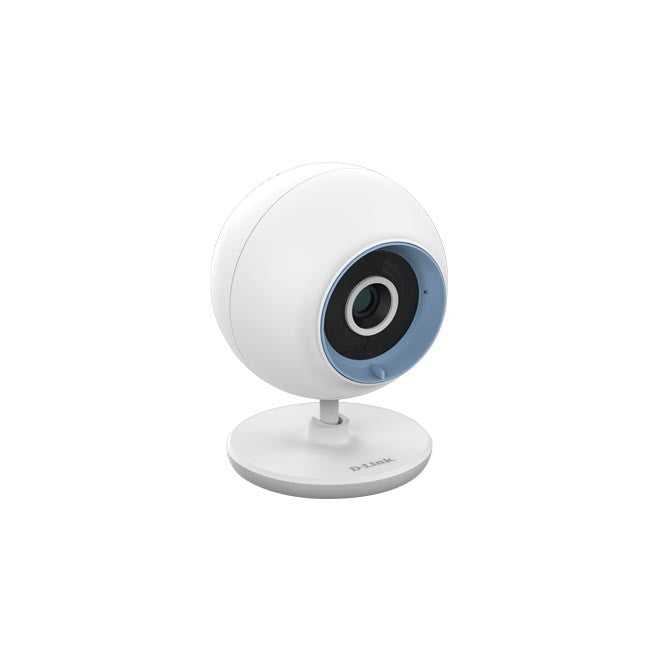

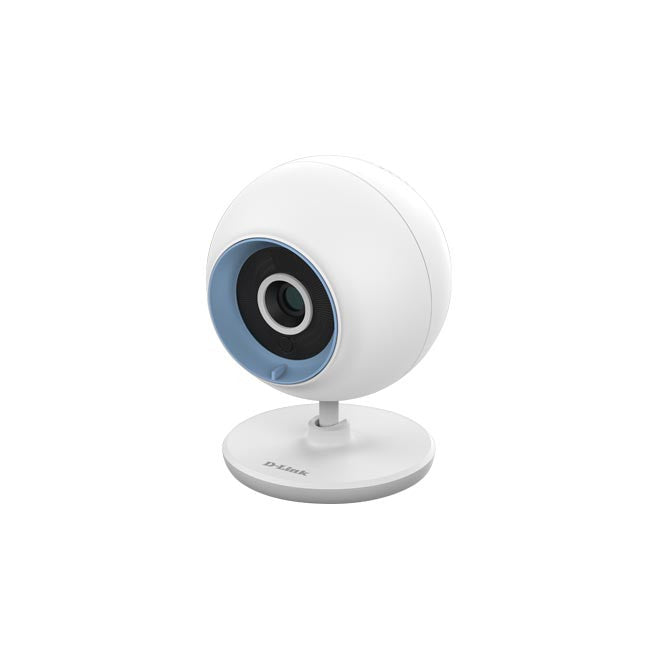

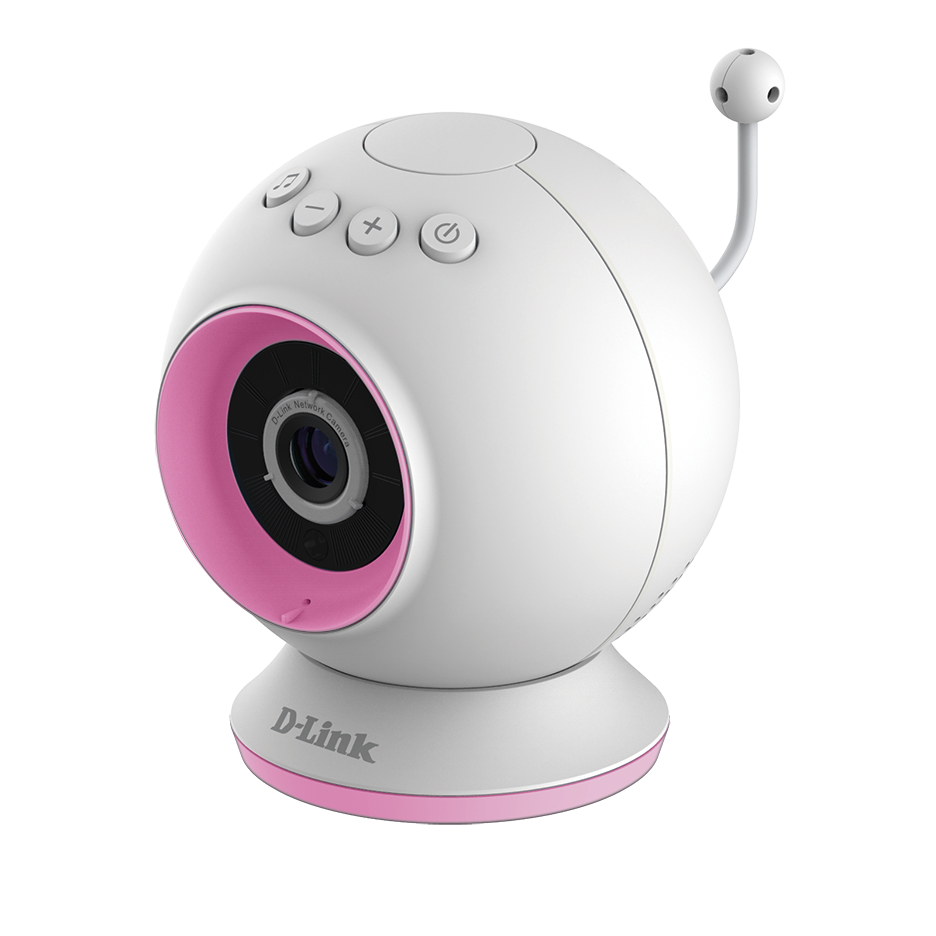

Day/Night HD Wi-Fi Baby Camera

D-Link introduces the Day/Night HD Wi-Fi Baby Camera, transforms your mobile device into a unique and versatile baby monitor that helps you stay connected, no matter where you are.

Easy Do-it-Yourself Setup

Download the free mydlink™ Baby app for your iPhone, iPad or Android device and follow the simple steps to set up your camera.

Monitoring Your Baby Has Never Been Easier!

mydlink® Baby App

Whether you’re at home or on-the-go, the mydlink® Baby app keeps you connected to your baby and allows you to manage all of your camera's features directly from your mobile device.

Two Way Audio (Push to Talk)

Whether you're in the next room or away from home, comfort your baby with the sound of your voice.

Sound & Motion Detection

Receive alert notifications when a movement or loud noise is detected.

Day & Night Vision

Keep an eye on your little one day or night with up to 16 feet of visibility in the dark.

5 Classic Lullabies

Choose from 5 gentle lullabies to soothe your baby with the built-in speaker.

Photo & Video Snapshots

Save your photos and video clips directly to your mobile device's photo/video folder for easy sharing.

4x Digital Zoom

View more details of your baby with a few simple gestures.

Connect Directly

Even when an Internet connection isn't available you can connect your mobile device to the camera's wireless network for instant local monitoring.

SPECS
Maximum Video Resolution

• 640 x 480 @ 30fps

Night Vision

• Yes

Motorised Pan/Tilt

• No

ePTZ

• Yes

MicroSD Card Slot

• No

Digital Zoom

• 4x

Two-way Audio

• Yes

Ethernet Port

• No

Built-in Speaker

• Yes

Motion Detection

• Yes

Sound Detection

• Yes

Dimension

• 70 x 75 x 100 mm

Wireless Connectivity

• 802.11n

Indoor/Outdoor

• Indoor

Night Vision Range

• B&W 5m

Camera Type

• Baby Cam

Rugged Outdoor Reliability

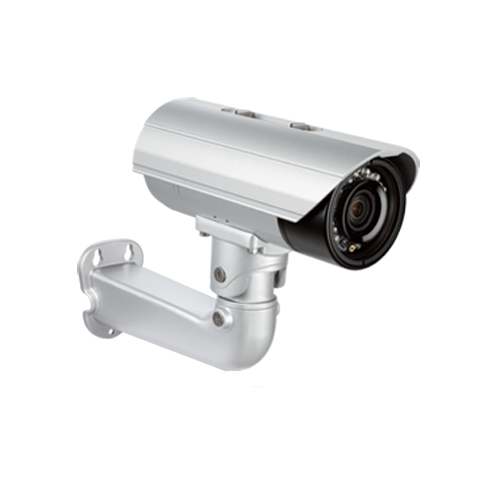

The D-Link DCS-7513 Full HD Day & Night WDR Outdoor Bullet Camera is a high-definition professional surveillance camera suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor to deliver high quality video under a wide range of lighting conditions. A remotely adjustable vari-focal lens with P-Iris ensures you can get the proper field of view, even after installation. The all-in-one rugged design makes this camera ideal for reliable deployment in surveillance applications without the need for additional accessories. The included cable management bracket protects the cabling from both vandalism and weather conditions. The IP66 rating of the DCS-7513 ensures the camera is protected from not only rain but also from water jets used to wash down buildings.

24-Hour Surveillance
The DCS-7513 has an integrated mechanical IR filter and infrared LEDs to allow the viewing and recording of video even in complete darkness, up to 30m away from the camera.

P-Iris & Motorised Lens
Motorised control of the P-Iris lens gives finer contrast and much clearer image quality in difficult lighting environments and allows remote zoom and focus.

Wide Dynamic Range (WDR) Applications
The Wide Dynamic Range (WDR) function provides properly exposed video even under backlit conditions where the intensity of illumination can vary significantly, making the DCS-7513 ideal for high-contrast environments such as such as parking structures, alleyways, entryways and shipping docks.

Multiple Video Streams
The DCS-7513 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. The DCS-7513 supports multiple independent streaming profiles, each with its own resolution, frame rate and codec.

Flexible Connectivity
The DCS-7513 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. It also incorporate Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Robust Management Software
D-ViewCam is a software program that allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

Event Management

• Motion detection by weekly schedule
• Event notification and upload snapshots/video
• Clips via HTTP, SMTP or FTP
• Multiple HTTP, SMTP or FTP server configurations
• Multiple event notifications
• Multiple recording methods for easy backup

D-ViewCam™ Features

• Manage up to 32 cameras at once
• Adjustable image size and quality
• Custom recording schedules
• Event notifications
• Upload a customized floor plan

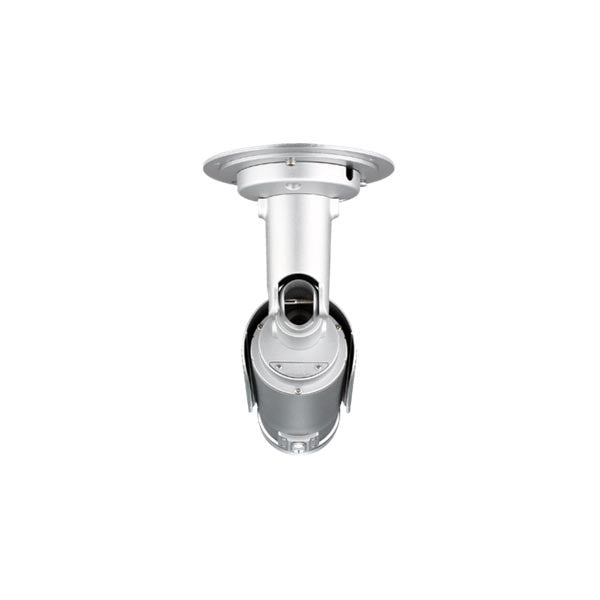

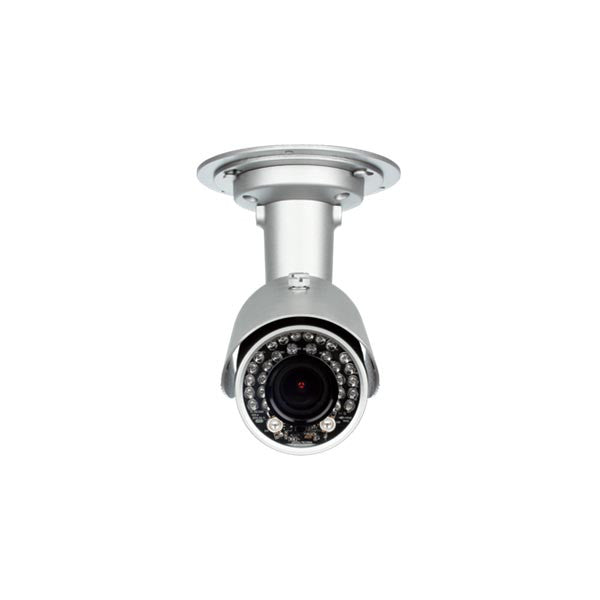

Camera Overview

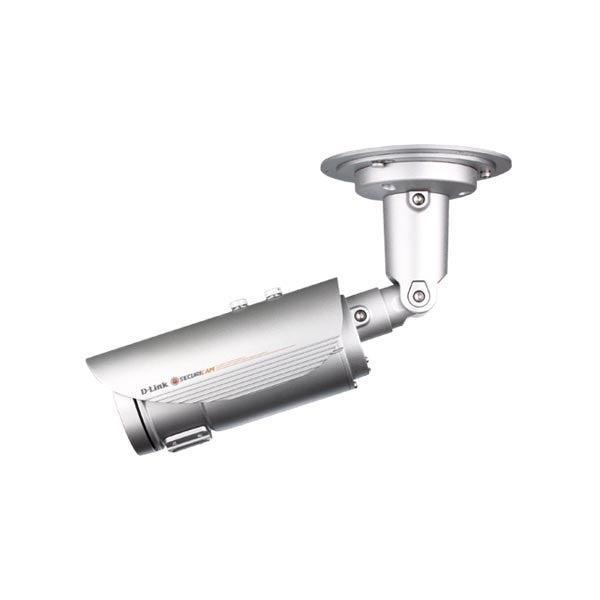

The D-Link DCS-7517 5 Megapixel Day & Night Outdoor Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high resolution 1/3” 5 megapixel sensor with digital WDR image enhancement to deliver balanced video in varying lighting conditions. With 2560 x 1920 resolution, the DCS-7517 captures more detail in areas such as license plates, faces and currency. The rugged design makes this camera ideal for deployment in a wide variety of surveillance applications.

High-Quality Streaming & Recording
To maximize bandwidth efficiency and improve image quality, the DCS-7517 provides real-time video compression using the H.264 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring
The DCS-7517’s digital wide dynamic range (WDR) video enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-7517 also has built-in IR LED illuminators with a 90 foot range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Flexible Connectivity
The DCS-7517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

Video Management Software
The DCS-7517 5 Megapixel Day & Night Outdoor Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Event Management
  • Motion detection by weekly schedule
  • Event notification and upload snapshots/video
  • Clips via HTTP, SMTP or FTP
  • Multiple HTTP, SMTP or FTP server configurations
  • Multiple event notifications
  • Multiple recording methods for easy backup

D-ViewCam™ Features
  • Manage up to 32 cameras at once
  • Adjustable image size and quality
  • Custom recording schedules
  • Event notifications
  • Upload a customised floor plan

SPECS

Max Resolution

• Full HD +

Camera Type

• Bullet

Design

• Outdoor|Night Vision|PoE

Housing Type

• Bullet

Indoor / Outdoor

• Outdoor

Megapixels

• 5 MP

Max. Video Resolution

• 2560x1920 @ 15fps

Night Vision

• Yes

Night Vision Range

• 30m

Motorised Pan / Tilt

• No

Optical Zoom

• 4x

Motion Detection

• Yes

Email Notification

• Yes

Video Compression

• MPEG-4|MJPEG|H.264

Lens Type

• Varifocal

Horizontal Field of View

• 25 - 85 degrees

Lens Focal Length

• 2.8 - 12mm

ONVIF Compliant

• Yes

Image Enhancement

• WDR|BLC|AES|AGC|AWB

Vandal-proof

• No

Power

• PoE, Power Supply

Memory Card Slot

• Micro SD

Dimensions (Size)

• 245 x 395 x 163 mm

Day/Night HD Wi-Fi Baby Camera
D-link introduces the Day/Night HD Wi-Fi Baby Camera, transforming your mobile device into a versatile baby monitor to help you stay connected to your most valuable treasure, no matter where you are!

Download the free mydlink™ Baby app for your iPhone, iPad or Android device and follow the

                                               simple steps to set up your camera

mydlink Baby App
Whether you're at home or on-the-go, the mydlink Baby app keeps you connected to your baby and allows you to manage all of your mobile device.

HD 720p High Quality Video
Never miss a detail with the sharp clarity of 720p HD picture for the best monitoring experience.

Two Way Audio
Whether you're in the next room or away from home, comfort your baby with the sound of your voice.

Sound & Motion Detection
Receive instant notification alerts when a movement or loud noise is detected.

Day & Night Vision
Keep an eye on your little one day or night with up to 16 feet of visibilty in the dark.

5 Classic Lullabies
Choose from 5 gentle lullabies to soothe your baby with the built-in speaker.

Instant Temperature Alerts
Keep the nursery at the perfect temperature and receive instant alerts when the room gets too hot or cold.

Photo & Video Snapshots
Save your photos and video clips directly to your mobile device's photo/video folder for easy sharing.

4x Digital Zoom
View more details of your baby with a few simple gestures.

Connect Directly
Even when an internet connection isn't available you can connect your mobile device to the camera's wireless network for instant local monitoring.

Specificaitons

Functions and Features

Camera

• HD resolution (1280 x 720)
• Night vision with infrared LEDs that turn on automatically when it gets dark
• 802.11n wireless lets you place the camera anywhere
• MicroSD/SDHC card slot¹ for recording snapshots and video triggered by motion or sound
• Can be powered by an external USB battery
• 5 gentle lullabies built-in
• Interchangeable blue and pink accent color rings

Intelligent Baby Monitoring

• Sound detection alerts you to loud noises, such as a baby crying
• Temperature sensor and indicator light informs you if the room becomes too hot or cold
• Built-in motion detection lets you know if the camera detects movement
• Notifications can be sent to your mobile device for detected events
• Two-way audio lets you hear your baby and allows you to respond and calm your child

Convenient Control from your Mobile Device and Computer

• Uses the free mydlink™ Baby app for iPhone, iPad, and Android devices
• The mydlink™ Baby app helps you set up your device and gives you easy access to all functions
• View and control through the secure mydlink™ web portal

Technical Specifications

Camera Hardware Profile

• 1/4」 megapixel progressive CMOS sensor
• 16 ft night vision with infrared LEDs
• Minimum illumination: 0 lux with IR LEDs on
• Built-in microphone and speaker
• 4x digital zoom
• Tripod screw mount
• Focal length: 3.3 mm
• Aperture: F2.2
• Angle of view:   (H): 66.18°    (V): 35.9°   (D): 76.22°

External Device Interfaces

• 802.11n wireless
• microSDHC card slot
• Reset button
• Lullaby, Volume Up/Down, and Power buttons
• Power port (Micro-USB)

Image Features

• Configurable image size
• Time stamp and temperature overlays

Video Compression

• H.264 format video compression
• JPEG for still images

Video Resolution

• 1280 x 720
• 640 x 360

Audio Support

• AAC

Baby Monitoring Features

• Sound detection with adjustable sensitivity
• Motion detection with adjustable sensitivity
• Records snapshots and video to microSD when triggered by motion or sound
• Temperature detection with configurable alert range
• Sends notifications when sound/motion/temperature change is detected
• 2-way audio lets you listen and respond to your child

Mobile App

• Free mydlink Baby Camera Monitor app available on the Apple App Store and Google Play
• Compatible with iPhone and iPad using iOS 5.1.1 or higher
• Compatible with Android smartphones and tablets using Android 4.01 or higher

Network

Network Protocols

• IPv4
• ARP
• TCP/IP
• UDP
• ICMP
• DHCP client
• HTTP
• HTTPS (for configuration)
• UPnP port forwarding
• RTP/RTSP/RTCP

Security

• Administrator protection
• Password authentication
• HTTP and RTSP digest encryption

Physical

Dimensions (L x W x H)

• 5.4 x 3.6 x 4.2 inches with temperature sensor fully extended

Weight

• Device: 4.9 oz

Power Input

• 5 V DC / 1.5 A, 50/60 Hz through power adapter
• Can be powered by an external USB battery with at least 2 A output

Power Consumption

• 7.5 watts max.

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing

Cerficications

• CE
• CE LVD
• FCC
• C-Tick

1. Supports microSDHC Class 6 card and above up to 32 GB. MicroSD card not included.
2. USB battery not included, requires at least 2A output.

See more of your spaces.

With a 120° wide angle lens, you can see more of your rooms, pets and kids.

Home security in high definition.

Crisp 720p HD video gives you a clear view of what's going on at home. See more of your favorite faces and places - it's home security with an eye for detail.

Responsive recording.

Your camera begins recording automatically to a microSDXC card up to 128 GB when it senses changes in your home.

Be there. Even when you're not

Check in on the people and places you love whenever you'd like with our free mydlink app. ^*

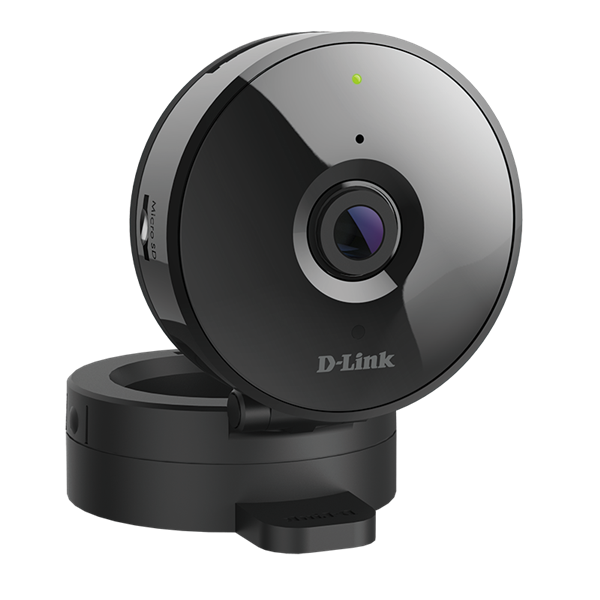

Easy to set up. Even easier to expand.

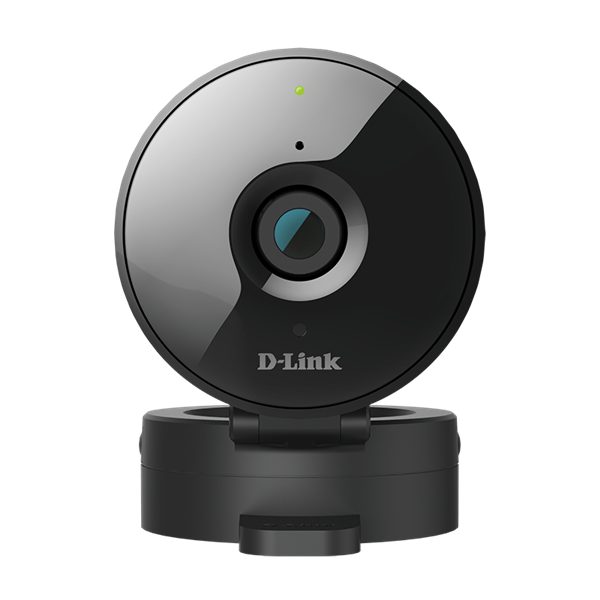

Get your DCS-936L set up in minutes, and place it just about anywhere in your home. Easily add cameras to cover new spaces and new additions.

Build your own complete security system.

Connect the mydlink Camera Recorder and up to 2 hard drives to simultaneously stream and record up to 4 D-Link Wi-Fi cameras.

SPECS
Maximum Video Resolution

• 1280 x 720 @ 30fps

Ethernet Port

• No

Wireless Connectivity

• 802.11n

Indoor / Outdoor

• Indoor

Video Compression

• MPEG-4|MJPEG|H.264

Night Vision Range

• B&W 5m

Camera Type

• Cube

Night Vision

• Yes

Motorised Pan/Tilt

• No

ePTZ

• Yes

MicroSD Card Slot

• Yes

Digital Zoom

• 4x

Two-way Audio

• No

Email Notification

• Yes

Wireless Range Extender Built In

• No

Motion Detection

• Yes

Sound Detection

• Yes

Built-in Microphone

• Yes

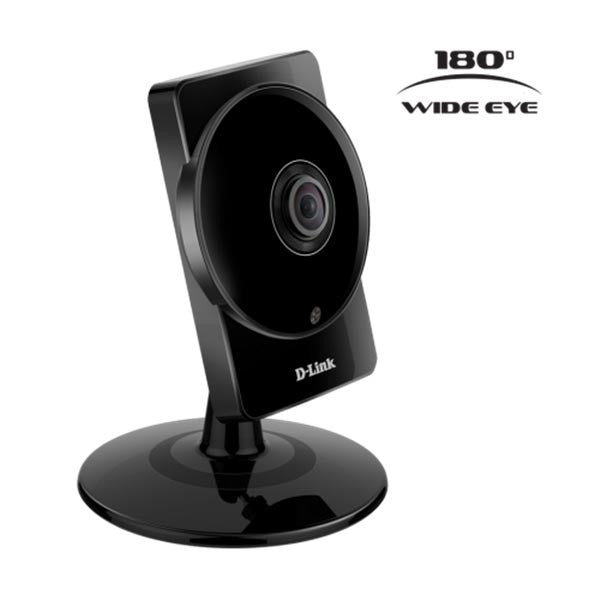

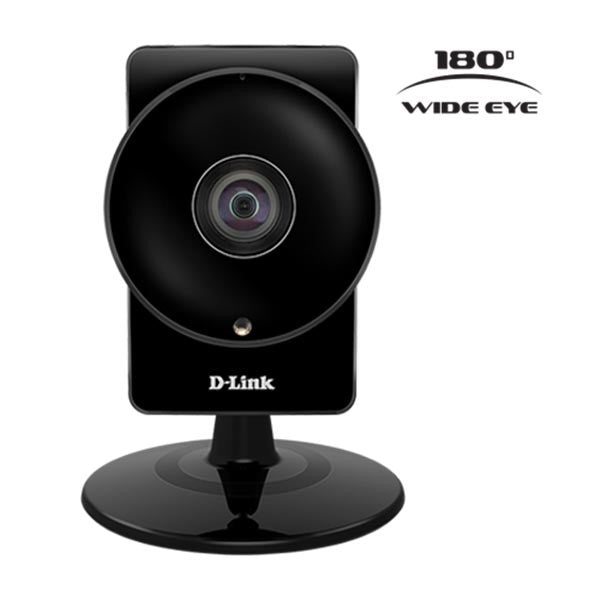

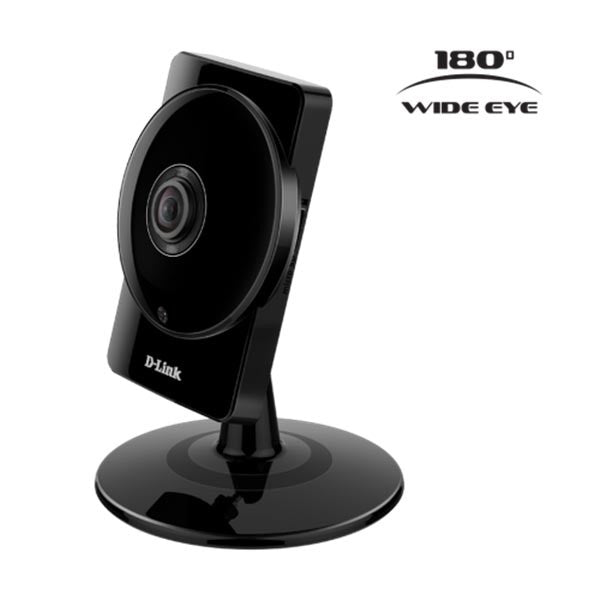

View more with less.

Why limit yourself? See more of your home and never worry about what's happening off-camera.

Unique de-warping technology.

Maximizes the video quality with less distortion - letting you see more of your home at a glance.

Home security in high definition.

Crisp 720p HD video gives you a clear view of what's going on at home. See more of your favorite faces and places - it's home security with an eye for detail.

Round-the-clock peace of mind

Peace of mind shouldn't end when the sun goes down. With 16 feet night vision, you'll never miss a thing.

Be there. Even when you're not

Check in on the people and places you love whenever you'd like with our free mydlink app

Easy to set up. Even easier to use.

Get your Wi-Fi Camera set up in minutes, and place it just about anywhere in your home. The free mydlink® Lite app is available for iOS, Android devices, and Windows Phones.

Why you want it.

SPECS
Maximum Video Resolution

• 1280 x 720 @ 30fps

Night Vision

• Yes

Motorised Pan / Tilt

• No

ePTZ

• No

MicroSD Card Slot

• Yes

Two-way Audio

• No

Email Notification

• Yes

Ethernet Port

• No

Wireless Range Extender Built In

• No

Motion Detection

• Yes

Sound Detection

• Yes

Built-in Microphone

• Yes

Dimensions (Size)

• 137.5 x 95.8 x 95.8 mm

Wireless Connectivity

• 802.11ac

Indoor / Outdoor

• Indoor

Night Vision Range

• B&W 5m

Camera Type

• 180 degree wide view

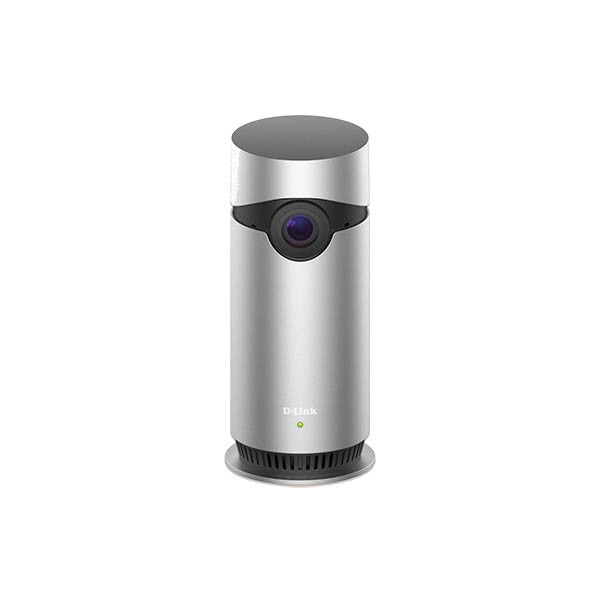

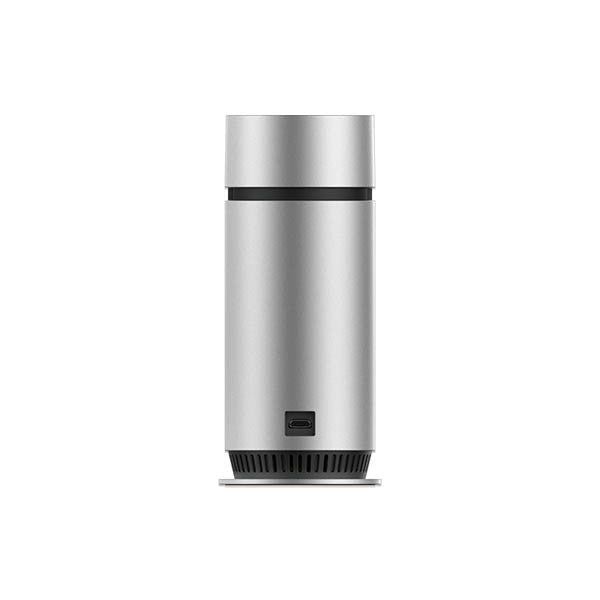

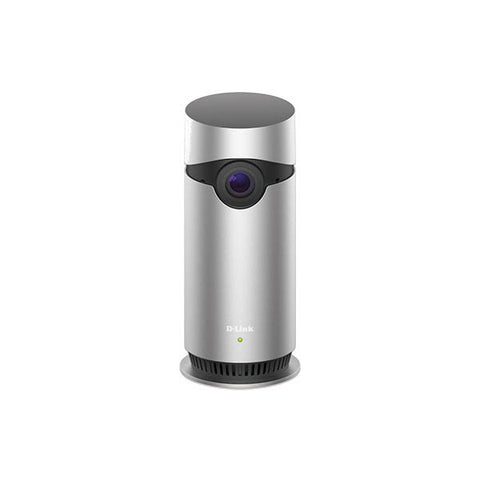

Packed with features

• 180-degree wide-angle lens gives you a complete picture
• Motion detection feature automatically captures events and sends alerts
• Built-in microphone and speaker for two-way audio communication
• Full HD 1920 x 1080 resolution for detailed video
• IR LEDs let you see up to 5m (16ft.) in complete darkness
• Record video clips and images to a microSD card for backup

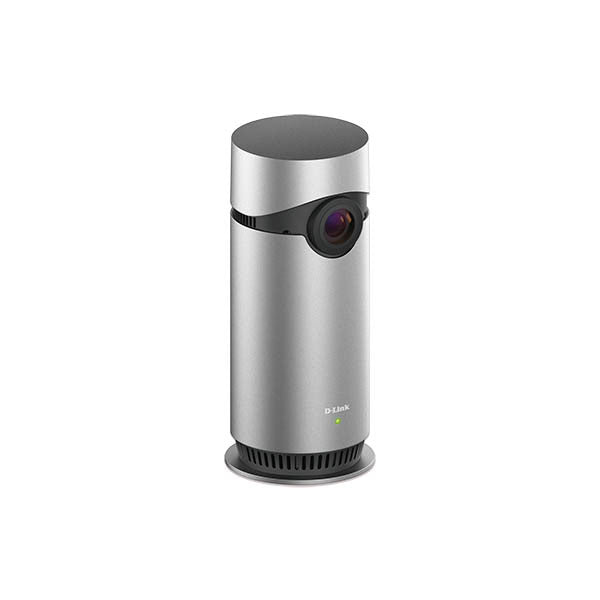

Set up in seconds...

Follow a few simple steps in the Apple HomeApp to instantly see and hear everything that is happening in your home.

Features

• 4MP, 1/3” CMOS image sensor,low illuminance, high image definition
• Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
• H.265 coding, high compression ration, low bit rate
• Built-in IR LED, max IR distance: 40 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tempering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
• Max. 256 GB SD card · 12V DC/POE power support · IP67 protection

System Overview

With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function , complying to the standards of IP67.

Functions

Smart(H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

DHI-NVR4104

• Smart H.265+/H.265/Smart H.264+/H.264

• Max 80Mbps Incoming Bandwidth

• Up to 8MP Resolution for Preview and Playback

• Up to 2ch@4K/8ch@1080P decoding

• HDMI/VGA simultaneous video output

• Support IPC UPnP, 4PoE ports

System Overview

Dahua NVR4104-4KS2 is introduced as the first Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.

4K Resolution

4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Intelligent Video System

Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data – Facial Detection, People Counting, and Heat Map – from IP cameras with built-in Intelligent Business Analytics.

ANR (Automatic Network Replenishment Technology)

Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

DMSS

The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere!

Features

• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
• H.265 coding, high compression ration, low bit rate
• Built-in IR LED, Max IR distance: 40 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
• Max. 256 GB SD card · 12V DC/POE power support · IP67 protection

System Overview

With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colourful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function, complying to the standards of IP67.

Functions

Smart(H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with a strong light source, you can also get clear images.

Starlight

Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colourful video. Even in the environment of min. illumination, the technology can guarantee a good image effect.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It is dust-proof, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to an outdoor environment with unstable voltage.

DHI-NVR4108

• Smart H.265+/H.265/Smart H.264+/H.264

• Max 80Mbps Incoming Bandwidth

• Up to 8MP Resolution for Preview and Playback

• Up to 2ch@4K/8ch@1080P decoding

• HDMI/VGA simultaneous video output

• Support IPC UPnP, 4PoE ports

System Overview

Dahua NVR4108-4KS2 is introduced as the first Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.

4K Resolution

4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Intelligent Video System

Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data – Facial Detection, People Counting, and Heat Map – from IP cameras with built-in Intelligent Business Analytics.

ANR (Automatic Network Replenishment Technology)

Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

DMSS

The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere!

Package content:

1 x 8ch PoE NVR-4108HS-8P-4KS2 NVR

1x Surveillance HD-4TB installed

8x HDW2431TP-ZS-S2 4MP Motorised Turret Cameras
