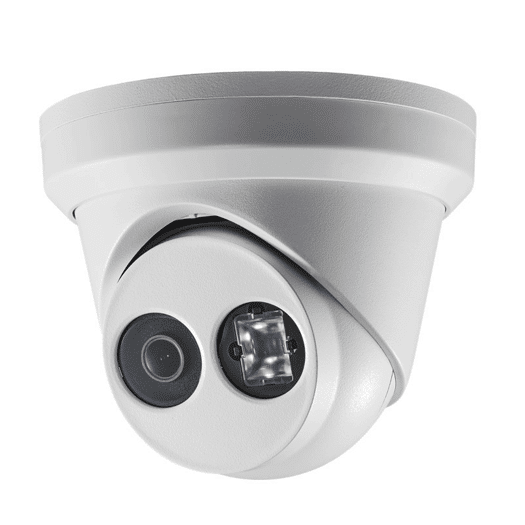

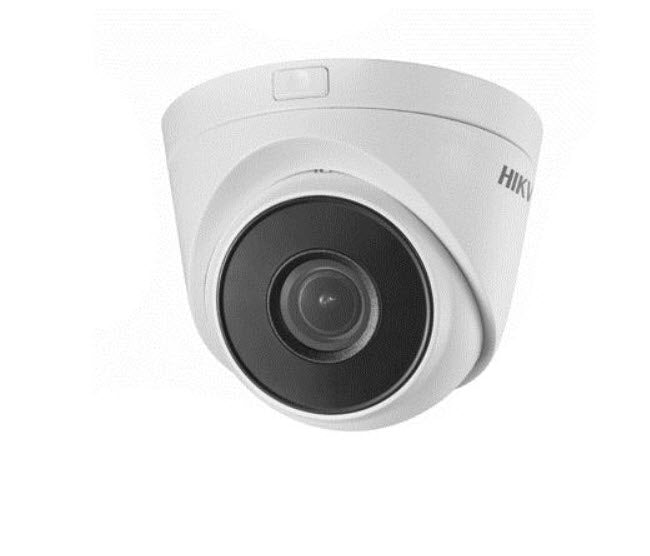

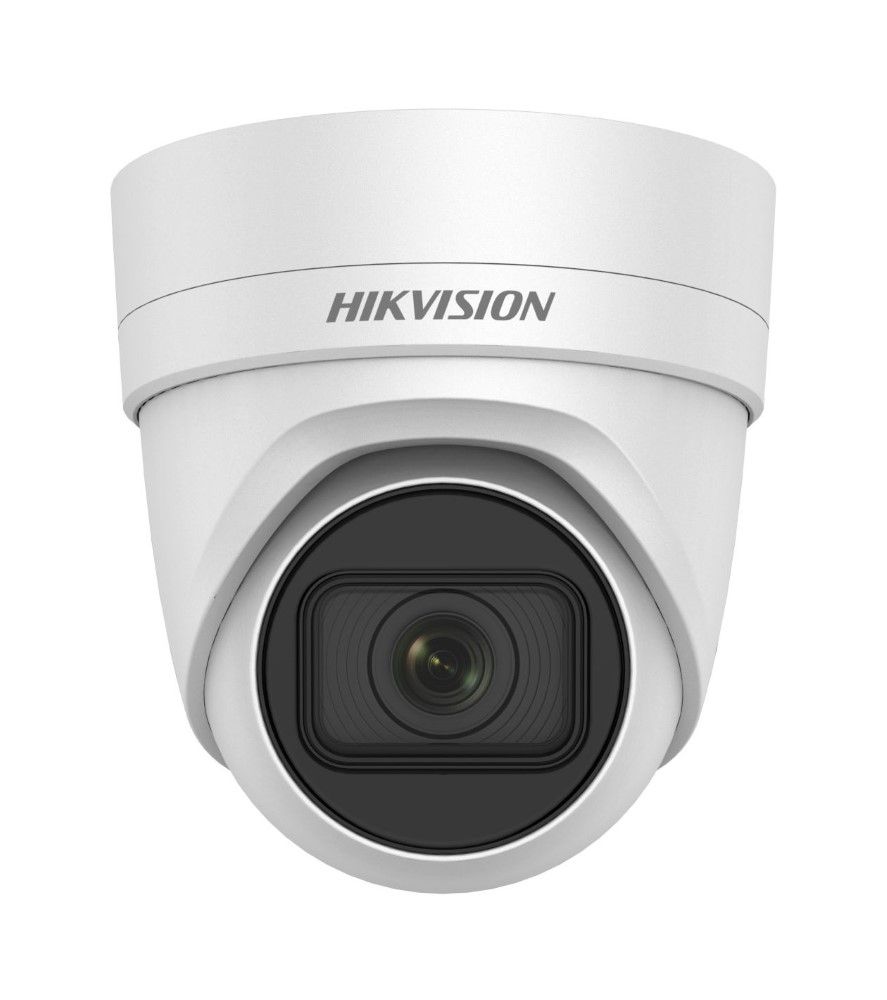

Hikvision DS-2CD2H85FWD-IZS 8MP WDR Motorized Vari-Focal Network Turret Camera
$607.00
Unit price perHikvision DS-2CD2H85FWD-IZS 8MP WDR Motorized Vari-Focal Network Turret Camera
$607.00
Unit price perKey Features:
- Indoor and OutDoor
- 1/2.5" Progressive Scan CMOS
- 3840 × 2160 resolution
- 2.8 to 12 mm Motorized focal length
- H.265, H.265+, H.264+, H.264
- 120dB Wide Dynamic Range
- BLC/3D DNR/ROI
- IP67, IK10
- 4 behavior analyses & face detection
|
Powerful Features |
|
|
|
•
|
1/2.5" 8 Megapixel Progressive Scan CMOS
|
|
|
•
|
Max. 20 fps @ 8 MP (3840 x 2160)
|
|
|
•
|
2.8mm / 4mm fixed (view: 102° / 79°) lens
|
|
|
•
|
H.265+ / H.265 / H.264+ / H.264 / MJPEG Triple Streams
|
|
|
•
|
WDR (120dB Wide Dynamic Range)
|
|
|
•
|
Day/Night(ICR) AWB AGC BLC
|
|
|
•
|
3D Digital Noise Reduction
|
|
|
•
|
EXIR Smart IR LEDs range: up to 50m night vision
|
|
|
•
|
Support on-board storage up to 120 GB
|
|
|
•
|
Line Crossing Intrusion Face Detection Unattended Baggage Object Removal
|
|
|
•
|
IP67 DC12V PoE (802.3af)
|
|
|
•
|
Ø104.8 x 299.7 mm 1.2 Kg
|
|
Technical Specifications

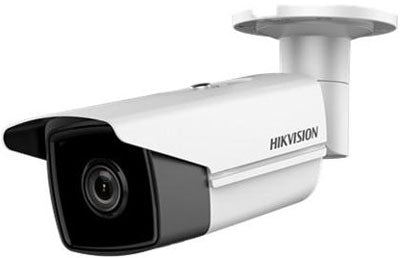

| DS-2CD2T85FWD-I5 | |
| Image Sensor | 1/2.5" 8 Megapixel Progressive Scan CMOS |
| Effective Pixels | 8 MP (3840 x 2160) |
| Electronic Shutter | 1/3 s to 1/100 000 s |
| Synchronization | Internal |
| Min. Illumination | 0.01Lux 0Lux IR on |
| Camera Features | |
| Max. IR LEDs Length | 50m Smart IR |
| Day/Night | Auto(ICR) / Color / B/W |
| Noise Reduction | 3D |
| Lens | |
| Focal Length | 2.8mm / 4mm fixed (view: 102° / 79°) Lens |
| Mount Type | Board-in Type |
| Video | |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG Triple Streams |
| Resolution | Up to 8 MP (3840 x 2160) |
| Frame Rate | 20fps@8 MP (3840 x 2160) |
| Network | |
| Ethernet | 1 x RJ-45 (10/100Base-T) |
| Protocol | TCP/IP UDP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP PPPoE NTP UPnP SMTP SNMP IGMP 802.1X QoS IPv6 |
| ONVIF | ONVIF (Profile S Profile G) PSIA CGI ISAPI |
| Client | iVMS-4200 Hik-Connect iVMS-5200 iVMS-4500 |
| Smart Feature-set | |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage purse dangerous materials |
| Object Removal | Objects removed from the pre-defined region such as the exhibits on display |
| Recognition | Face Detection |
| Auxiliary Interface | |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot up to 120GB |
| General | |
| Power Supply | DC12V PoE (802.3af) |
| Power Consumption | Max 9.5W |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) |
| Ingress Protection | IP67 |
| Dimensions | Ø104.8 x 299.7 mm |
| Weight | 1.2 Kg |

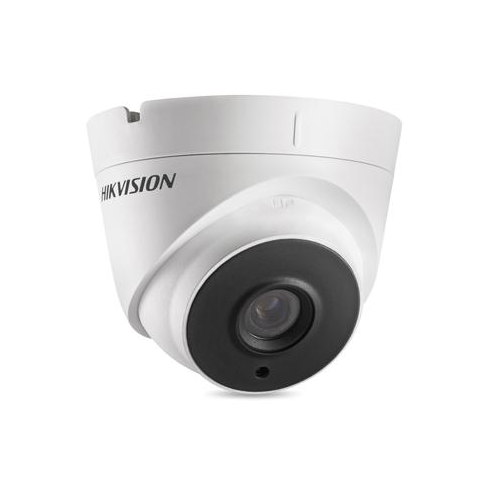

The DS-2CE56H1T-IT3 camera is a high performing 5MP external TVI Technolgy TRUE WDR Turret (Eye Ball) Camera that transmits 5MP in TVI technology over Coax cable.
Great for new installations or retrofit to existing coax cable for up to 500 Meters.
DS-2CE56H1T-IT3 2.8mm 5MP@20fps, 4MP@25fps(P)/30fps(N)(Default), EXIR, 40m IR, Outdoor EXIR Eyeball, ICR, 0.01 Lux/F1.2, 12 VDC, Smart IR, DNR, OSD Menu(Up the Coax), IP66,
Key Features;
• 5 Megapixel high-performance CMOS
• Analog HD output, up to 3MP resolution
• 2.8mm Lens
• True Day/Night
• OSD menu, DNR, Smart IR
• True WDR, up to 120dB
• EXIR technology, up to 40m IR distance
• IP67 weatherproof
• Up the Coax(HIKVISION-C)
Note:
This 5MP TVI Camera will work on the previous 3MP DVR's. However; by default, these are set to 5MP Resolution. If using previous Model TVI DVR then please consult your Sale staff to have the resolutions downgraded to 2MP before receiving, otherwise, these will not work on 2/3MP DVR's.
Note: Compatible with Hikvision 5MP TVI DVR's, Part No's 104-647 (4 Channel), 104-648, 104-650 (8 Channel) or 104-649 (16 Channel)
| Effective Pixels: | | | Max. 4.5 W |
| Min. Illumination: | | | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Lens: | | | 2.8 mm fixed focal lens |
| Auto Iris: | | | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Adjustment Range: | | | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Menu | ||
|---|---|---|
| Language: | | | English |
| Function: | | | Brightness, Sharpness, DNR, Mirror, Smart IR |
| General | ||
| Power Consumption: | | | Max. 4.5 W |
| Dimension: | | | Φ 110 mm × 93.2 mm (Φ 4.33" × 3.67") |
| Weight: | | | Approx. 350 g (0.77 lb.) |

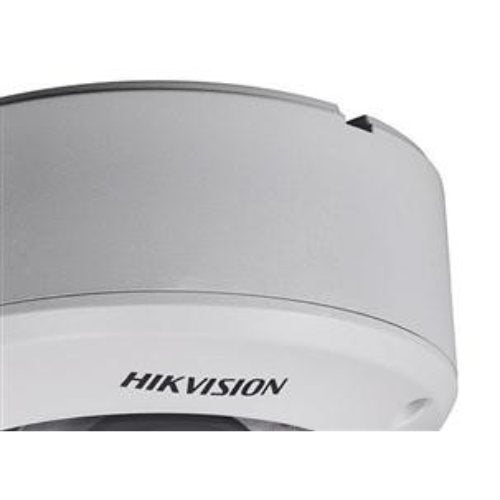

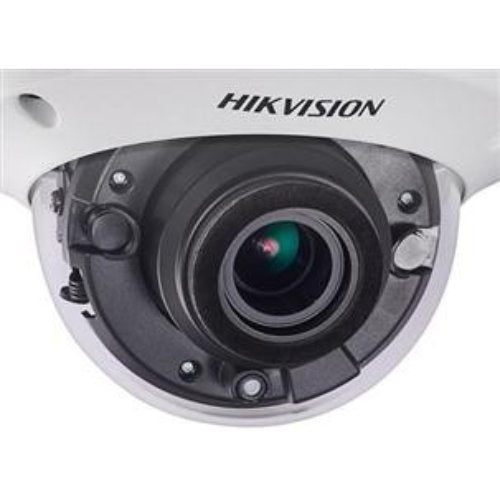

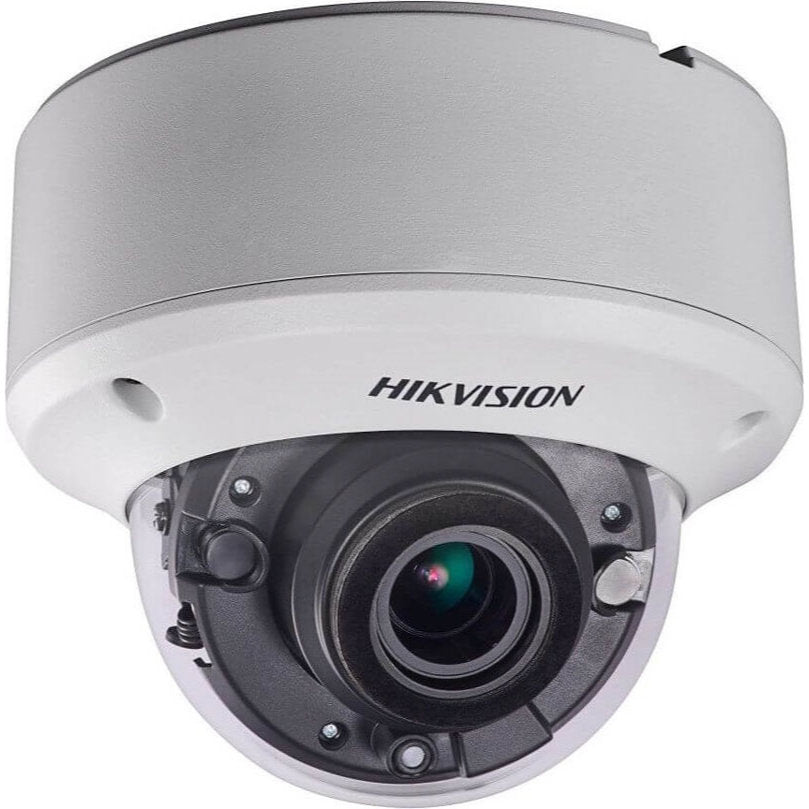

DS-2CE56H5T-VPIT3Z 5MP Ultra-Low Light VF EXIR Dome Camera
• 5 Megapixel high-performance CMOS
• Analog HD output, up to 5MP resolution
• 2.8-12mm motorized vari-focal lens
• True Day/Night
• OSD menu, DNR, Smart IR
• EXIR technology, up to 40m IR distance
• IP66 Weatherproof
• Up the Coax(HIKVISION-C)
| Camera | ||
|---|---|---|
| Image Sensor: | 5MP CMOS Image Sensor | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | Motorized VF lens; 2.8 to 12 mm | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 2560 × 1944 @ 20fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| D/N Mode: | Auto / Color / B/W | |
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English | |
| Function: | Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±25% -A: 12 VDC±25%, 24 VDC±25% |
|
| Power Consumption: | Max. 6 W -A: Max. 6 W |
|
| Impact Protection: | IK10. | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 40m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | Φ 145.2 mm × 124.1 mm (Φ 5.72" × 4.89" ) | |
| Weight: | Approx. 1600 g (3.53 lb.) | |

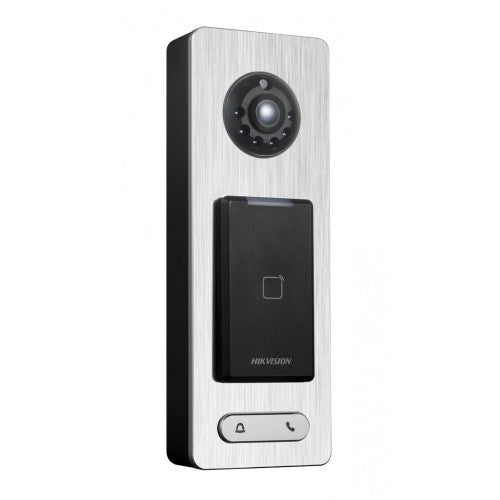

DS-K1T500S is a video access control terminal, which is equipped with HD camera (2 MP/1080p). It supports multiple advanced technologies including face detection, smart card recognition, two-way intercom audio, remote live view, picture capture, video recording through NVR, and so on.
Access Can be granted via either Card or QR code.
- Brushed metal surface
- Communication via TCP/IP and Wi-Fi
- Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, Included)
- Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card (SD Card Sold Seperatly)
- QR code authentication; Generates QR code via iVMS-4200 client software or other systems
- Two way-audio
- Open door remotely via iVMS-4200 client software
- Max. 50,000 cards No., Max. 200,000 access control event records
- Supports Mifare card reading
- Multiple authentication modes: QR code or card
- Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
| System Parameters | ||
|---|---|---|
| Micro SD Card: | Max. 128G | |
| Storage: | 50,000 cards 200,000 events |
|
| Card Reading Distance: | ≥2cm | |
| Card Reading Mode: | Mifare Card | |
| Video Storage: | Record and Save Video through NVR or Micro SD Card | |
| Camera: | 2MP/1080P, IR Light | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | Terminal Mode: Uplink(TCP/IP), Downlink(RS485) Card Reader Mode: Uplink (Wiegand 26/34, RS-485) |
|
| Output Interface: | Lock × 1, Alarm Output (Doorbell) × 1 | |
| Input Interface: | Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1 | |
|
General |
||
|---|---|---|
| Working Current: | 600mA (max) | |
| Power Supply: | DC 12V/1A | |
| Audio: | Audio Input: Build-in Micro Phone( Sensitivity: -25±3DB) Audio Output: Build-in Loudspeaker(1W) |
|
| Dimensions (L×W×H): | 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61") | |
| Protection Level: | IP 65 | |
| Installation: | Wall Mounting | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |

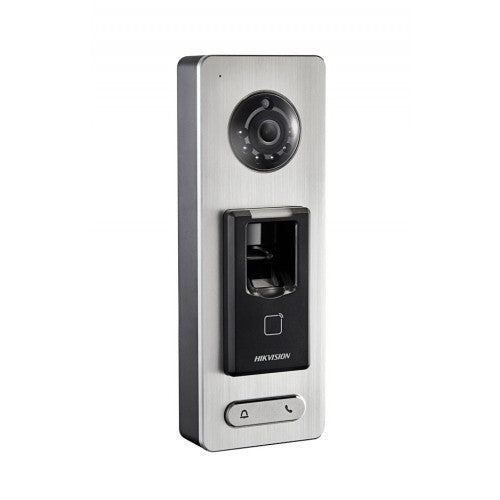

HIKVISION DS-K1T500SFN Video Access Control Terminal with Fingerprint Recognition Module
$499.00
Unit price perHIKVISION DS-K1T500SFN Video Access Control Terminal with Fingerprint Recognition Module
$499.00
Unit price per
Video Access Control Terminal with Fingerprint Module"
DS-K1T500SFN is a video access control terminal, which is equipped with HD camera (2 MP/1080p) and fingerprint recognition module (supporting 1:1 mode and 1:N mode). It supports multiple advanced technologies including face detection, smart card recognition, two-way intercom audio, remote live view, picture capture, video recording through NVR, and so on.
Access Can be granted via either Card, Fingerprint or QR code.
* Communication via TCP/IP and Wi-Fi
* Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, Included)
* Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card (SD Card Sold Seperatly)
* QR code authentication; Generates QR code via iVMS-4200 client software or other systems
* Two way-audio
* Open door remotely via iVMS-4200 client software
* Max. 50,000 cards No., Max. 200,000 access control event records
* Supports Mifare card reading
* Multiple authentication modes: QR code, card, fingerprint, card + fingerprint.
* Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
| System Parameters | ||
|---|---|---|
| Fingerprint Recognition Duration: | ≤ 1.5s | |
| Micro SD Card: | Max. 128G | |
| Storage: | 50,000 cards 200,000 events |
|
| FRR (False Rejection Rate): | ≤0.01% | |
| Card Reading Distance: | ≥2cm | |
| FAR (False Accept Rate): | ≤0.001% | |
| Card Reading Mode: | Mifare Card | |
| Video Storage: | Record and Save Video through NVR | |
| Camera: | 2MP/1080P, IR Light | |
| Fingerprint Recognizer: | Optical Fingerprint Recognizer Module | |
| Fingerprint Capacity: | 5,000 | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | Terminal Mode: Uplink(TCP/IP), Downlink(RS485) Card Reader Mode: Uplink (Wiegand 26/34, RS-485) |
|
| Output Interface: | Lock × 1, Alarm Output (Doorbell) × 1 | |
| Input Interface: | Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1 | |
|
General |
||
|---|---|---|
| Working Current: | 600mA (max) | |
| Power Supply: | DC 12V/1A | |
| Audio: | Audio Input: Build-in Micro Phone( Sensitivity: -25±3DB) Audio Output: Build-in Loudspeaker(1W) |
|
| Dimensions (L×W×H): | 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61") | |
| Protection Level: | IP 65 | |
| Installation: | Wall Mounting | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |

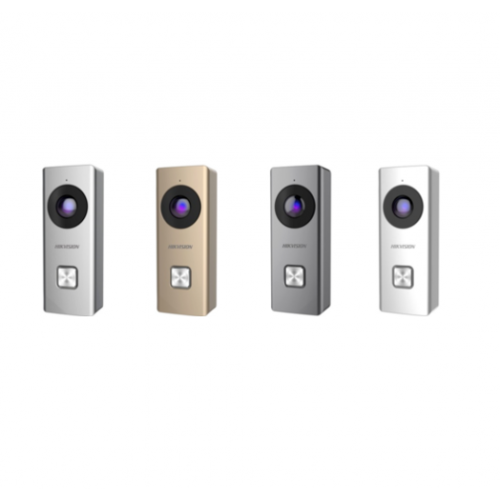

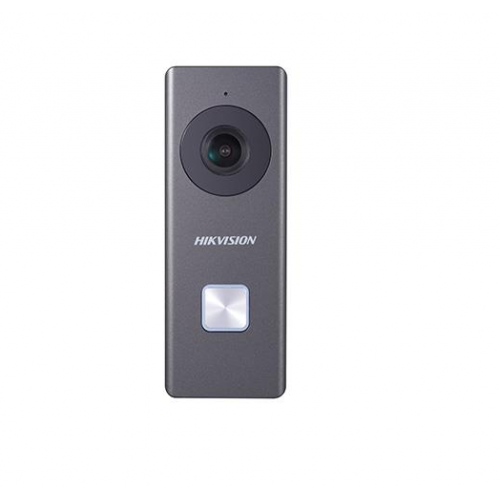

2 Megapixels WiFi Door Bell that connects to your WiFi Router. It will communicate to Hikvision SmartPhone App providing Video and two way Audio with the door station. Download Hik-connect app from Apple App Store or Google Play Store.
Basic Functions
- Video intercom function, supporting the audiovisual communication with the mobile App directly
- Self-adaptive IR supplement with max. 5-meter IR distance
- High-performance embedded SOC processor
- IP 54 standard
Video/Audio Functions
- HD video surveillance with ultra-wide angle (180º) and high-performance CMOS, up to 1080P
- Noise suppression and echo cancellation
- H.264 video compression standard
- Low illumination
- Supports voice prompt
- Volume configuration via App
Other Functions
- Online upgrade via the mobile App
- Supports motion detection and video recording
- Supports the storage and playback via TF card
- Equipped with a backlit call button
- Equipped with a replaceable faceplate
- Equipped with a reset button
Specifications

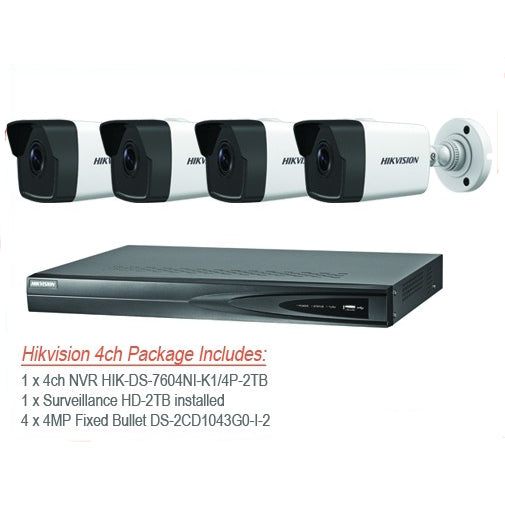

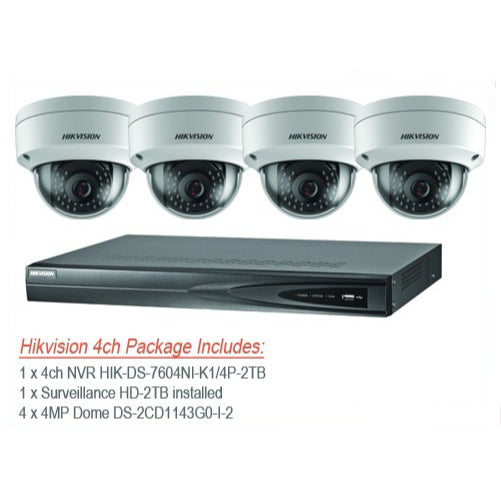

Hikvision Kit 4-Channel NVR 2TB Surveillance HDD 4x 4MP IP Outdoor Dome Cameras CCTV Package
$999.00
Unit price perHikvision Kit 4-Channel NVR 2TB Surveillance HDD 4x 4MP IP Outdoor Dome Cameras CCTV Package
$999.00

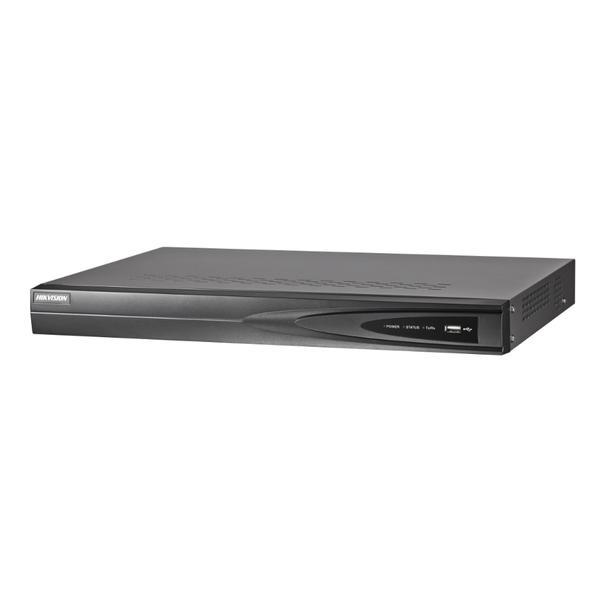

Unit price per- 1 x HIK-DS-7604NI-K1/4P 4 Channel NVR
- 1 x Security HDD 2TB installed

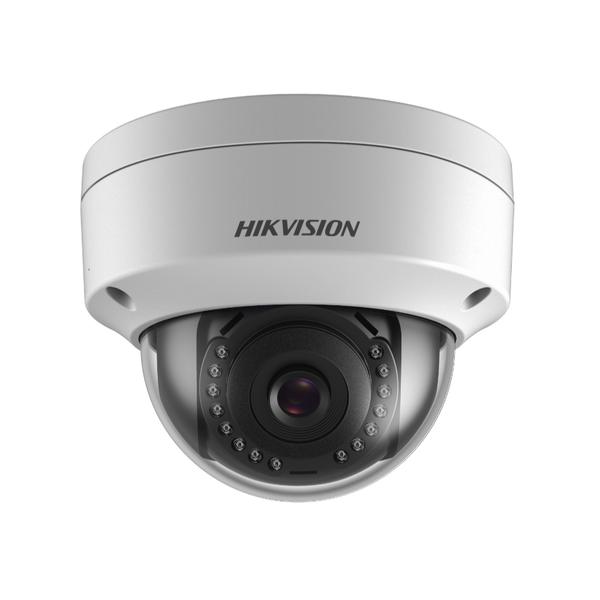

- 4 x DS-2CD1143G0-IP Dome Camera
Features and Functions
HD Input
-
H.265+/H.265/H.264/H.264+ video formats
-
Connectable to the third-party network cameras
-
Up to 4 IP cameras can be connected
-
Recording at up to 8 MP resolution
-
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
-
HDMI/VGA simultaneous output (DS-7604NI-K1/4P (B))
-
HDMI and VGA independent outputs (DS-7608NI-K1/8P(B))
-
HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- 1 SATA interface connectable for recording and backup
- H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 1 self-adaptive 10/100/1000 Mbps network interface
- 4/8 independent PoE network interfaces are provided
Various Applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for the assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management

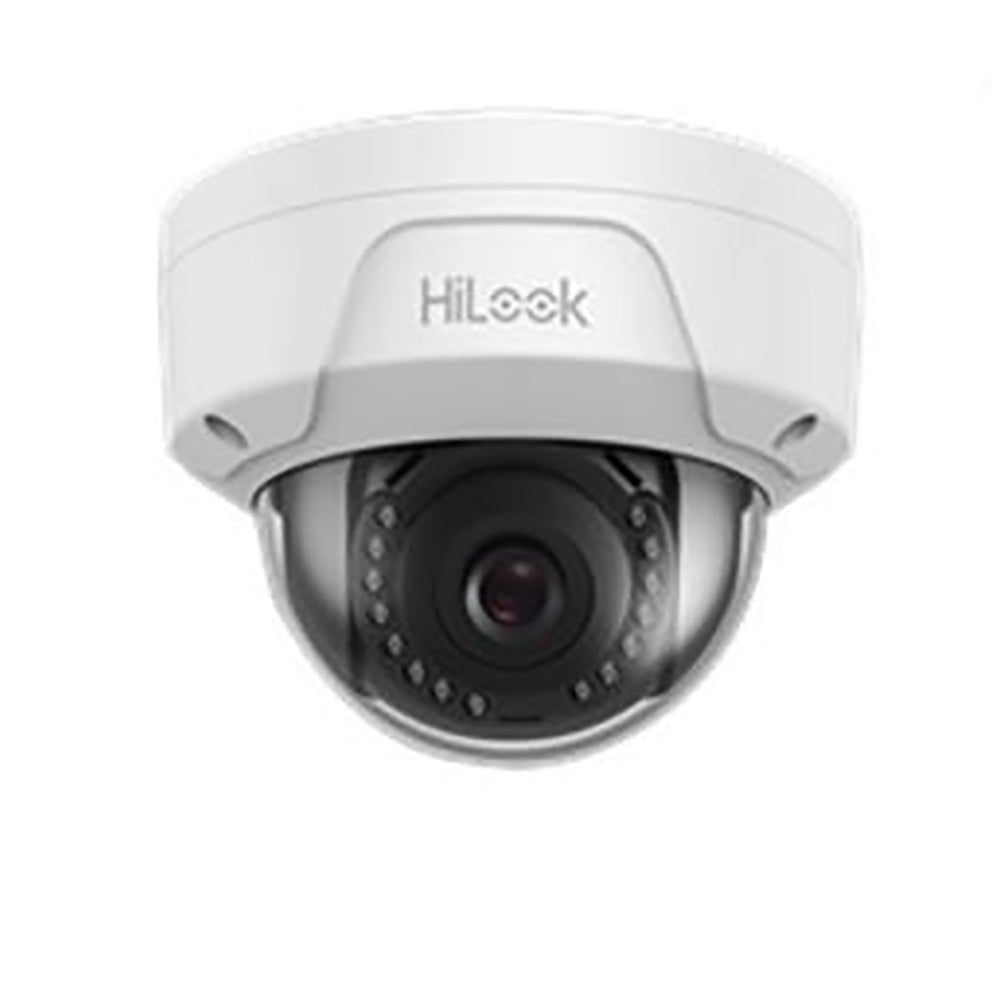

Key Features of the IP Dome cameras
- 1/3" progressive scan CMOS
- 3D DNR (Digital Noise Reduction)
- 2560 × 1440@20fps
- Up to 30 m IR range
- 2.8 mm/4 mm/6 mm fixed lens
- PoE (Power over Ethernet)
- H.265+, H.265, H.264+, H.264
- IP67, IK10
- Dual stream
- Digital WDR (Wide Dynamic Range)
12 month warranty
- 1 x HIK-DS-7604NI-K1/4P 4 Channel NVR
- 1 x Security HDD 2TB installed
- 4 x DS-2CD1043G0-I-2 Bullet Camera
Features and Functions
HD Input
-
H.265+/H.265/H.264/H.264+ video formats
-
Connectable to the third-party network cameras
-
Up to 8 IP cameras can be connected
-
Recording at up to 8 MP resolution
-
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
-
HDMI/VGA simultaneous output (DS-7604NI-K1/4P (B))
-
HDMI and VGA independent outputs (DS-7608NI-K1/8P(B))
-
HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- 1 SATA interface connectable for recording and backup
- H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 1 self-adaptive 10/100/1000 Mbps network interface
- 4/8 independent PoE network interfaces are provided
Various Applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for the assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management

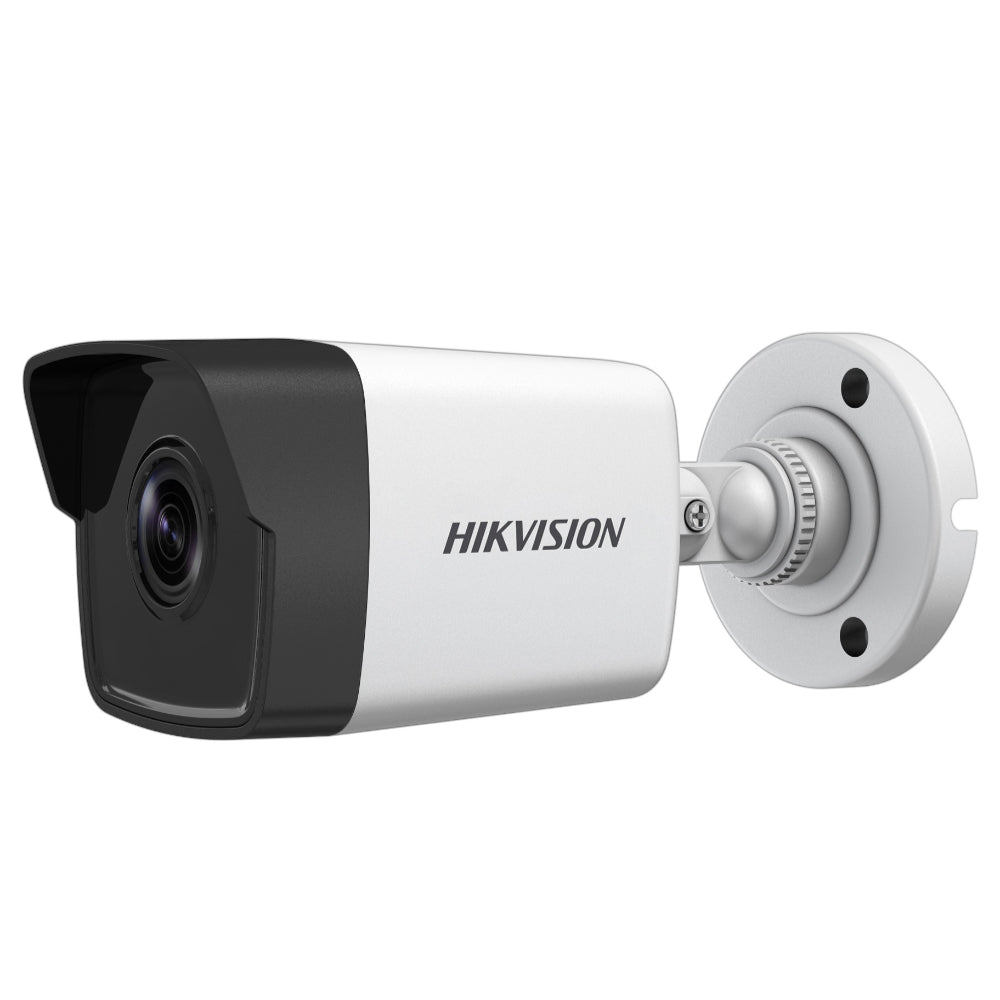

Key Features of the IR Bullet cameras
- 1/3" progressive scan CMOS
- 3D DNR (Digital Noise Reduction)
- 2560 × 1440@20fps
- Up to 30m IR range
- 2.8 mm/4 mm/6 mm fixed lens
- PoE (Power over Ethernet)
- H.265+, H.265, H.264+, H.264
- IP67 Weather Proof
- Dual stream
- Digital WDR (Wide Dynamic Range)
12 Month warranty
Hikvision Kit 8-Channel NVR 3TB Surveillance HDD 8x 4MP IP Outdoor IR Bullet Cameras CCTV Package
$1,899.00
Unit price perHikvision Kit 8-Channel NVR 3TB Surveillance HDD 8x 4MP IP Outdoor IR Bullet Cameras CCTV Package
$1,899.00
Unit price perDS-7600NI-K2/8P Network Video Recorder Bundle
Features and Functions
Professional and Reliable
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
HD Input
- H.265+/H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- Up to 8 IP cameras can be connected
- Recording at up to 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
- HDMI/VGA simultaneous output (DS-7604NI-K1/4P (B))
- HDMI and VGA independent outputs (DS-7608NI-K1/8P(B))
- HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- 1 SATA interface connectable for recording and backup
- H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 1 self-adaptive 10/100/1000 Mbps network interface
- 8 independent PoE network interfaces are provided
Various Applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management
Key Features of the IR Bullet cameras
- 1/3" progressive scan CMOS
- 3D DNR (Digital Noise Reduction)
- 2560 × 1440@20fps
- Up to 30m IR range
- 2.8 mm/4 mm/6 mm fixed lens
- PoE (Power over Ethernet)
- H.265+, H.265, H.264+, H.264
- IP67 Weather Proof
- Dual stream
- Digital WDR (Wide Dynamic Range)
12 Month warranty
Box Contain:
- 1 x HIK-DS-7608NI-K2/8P NVR
- 1 x Security HDD 3TB installed
- 8 x DS-2CD1043G0-I-2 IR Bullet Camera

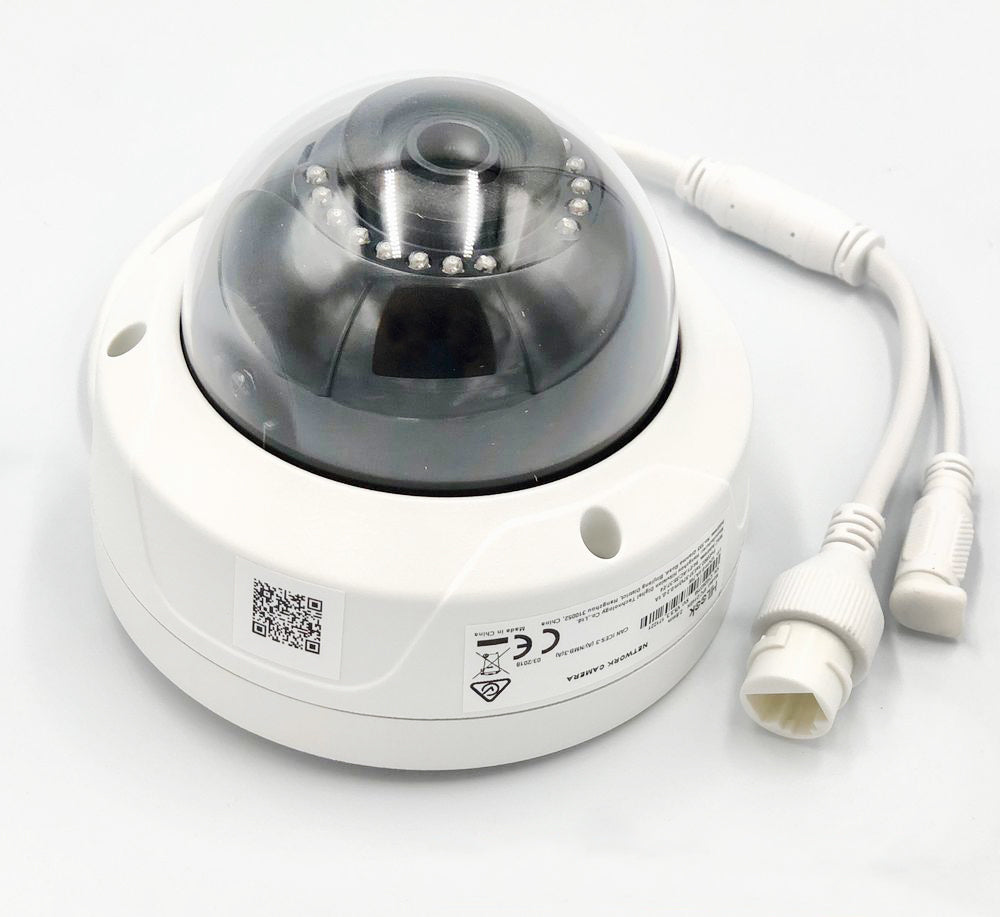

Description:
- Up to 4 megapixel
- 1/3" Progressive CMOS
- 4MP(2560x1440):20fps
- ICR, 3D DNR, BLC
- 2.8 mm fixed lens
- H.265, H.265+, H.264+, H.264
- EXIR Smart IR range: up to 30m
- 120dB Wide Dynamic Range
- Compatible with Hivision NVR
- Support mobile via Hi-Connect
- IP67, IK10, DC12V & PoE (802.3af)
- Size: 111(Φ) x 82.4(H) mm
- Weight: 410g

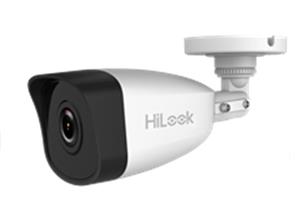

Description:
- Up to 4 megapixel
- 1/3" Progressive CMOS* 4MP(2560x1440):20fps
- ICR, 3D DNR, BLC
- 2.8 mm fixed lens
- H.265, H.265+, H.264+, H.264
- EXIR Smart IR range: up to 30m
- 120dB Wide Dynamic Range
- Compatible with Hivision NVR
- Support mobile via Hi-Connect
- Support IP67, DC12V & PoE (802.3af)
- Size: 70(Φ) x 191.3(H) mm
- Weight: 280g
- HiLook NVR-104MH-C/4P, NVR-108MH-C/8P, NVR-216MH-C/16P
- Hivision DS-7604NI-K1/4P, DS-7608NI-I2/8P, DS-7616NI-I2/16P, DS-7732NI-I4/16P, DS-9632NI-I8, DS-9664NI-I8, DS-9664NI-I16, DS-96128NI-I16

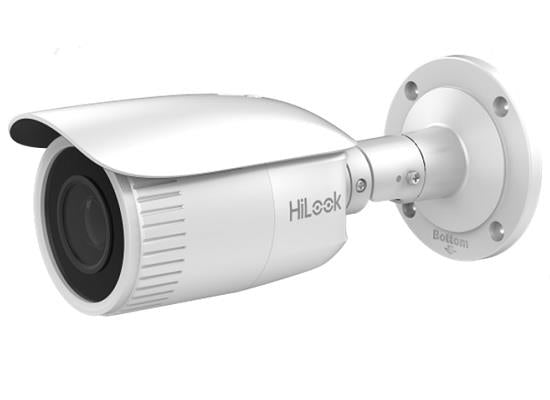

Description:
- Up to 4 megapixel
- 1/3" Progressive CMOS
- 4MP(2560 × 1440):20fps
- WDR(120dB), ICR, 3D DNR, BLC
- 2.8 ~ 12 mm motorized lens
- H.265, H.265+, H.264+, H.264
- EXIR Smart IR range: up to 30m
- 120dB Wide Dynamic Range
- Compatible with Hivision NVR
- Support mobile via Hi-Connect
- Support IP67, IK10, DC12V & PoE (802.3af)
- Size: 105 x 105 x 145 mm
- Weight: 1035g

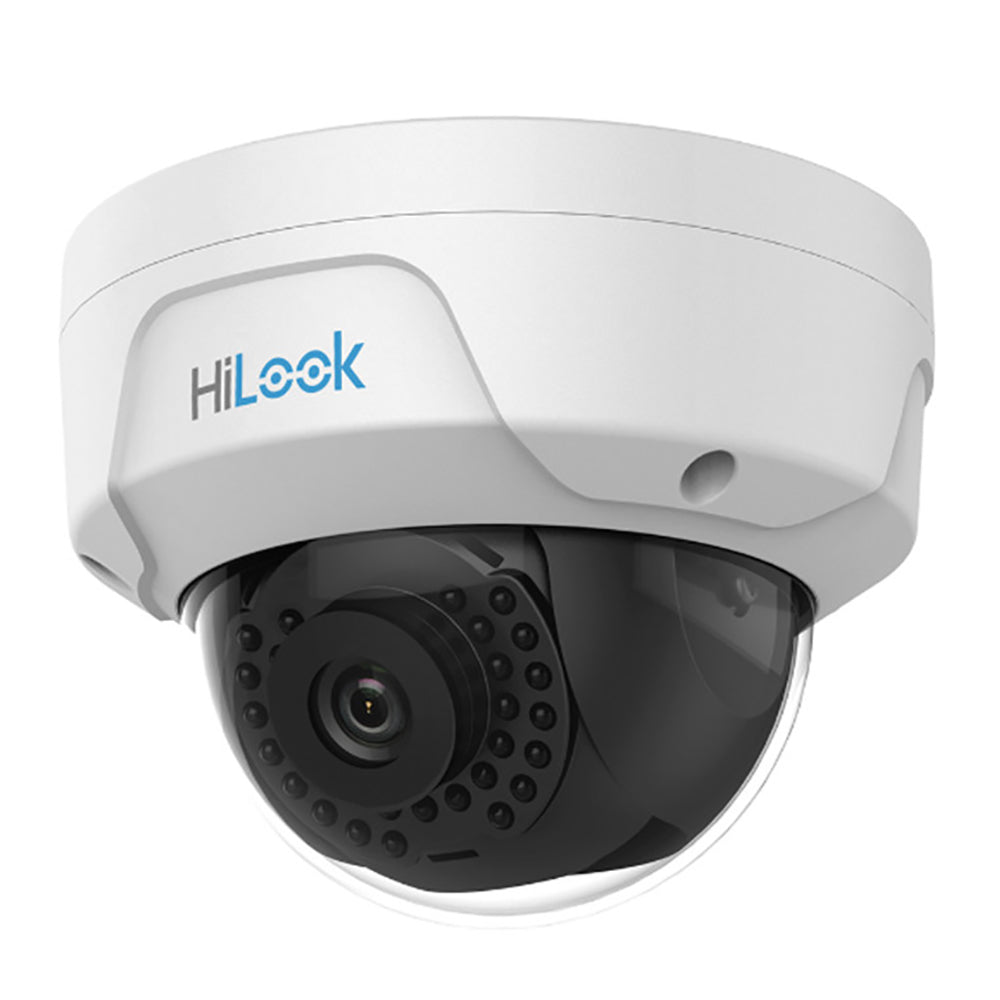

Weatherproof indoor outdoor CCTV 3 year warranty
Provides security for your home, able to connect to HiVision NVR via mobile.
Features
• Up to 4 megapixel
• 1/3" Progressive CMOS
• 4MP(2560x1440):20fps
• ICR, 3D DNR, BLC
• 2.8 mm fixed lens
• H.265, H.265+, H.264+, H.264
• EXIR Smart IR range: up to 30m
• 120dB Wide Dynamic Range
• Compatible with Hivision NVR
• Support mobile via Hi-Connect
• IP67, IK10, DC12V & PoE (802.3af)
• 111(Φ) x 82.4(H) mm, 410g
Specifications
| Image Sensor: | 1/3" Progressive Scan CMOS | |
| Min. Illumination: | Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) | |
| Shutter time: | 1/3 s to 1/100, 000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58° |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile/Main Profile/High Profile | |
| Video bit rate: | 32Kbps~8Mbps | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2560 × 1440 | |
| Frame Rate: | 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Image Enhancement: | BLC, 3D DNR | |
| Image Settings: | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software | |
| BLC: | Support | |
| Day/Night Switch: | Auto, scheduled | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS) | |
| Alarm Trigger: | Motion detection, video tampering alarm, illegal login | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Reset Button: | Yes | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W |
|
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | Camera: ? 111 mm × 82.4 mm (? 4.4" × 3.2") With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
|
| Weight: | Without –M model: Camera: approx. 410 g (0.9 lb.) With package: approx. 610 g (1.3 lb.) –M model: Camera: approx. 455 g (1 lb.) With package: approx. 655 g (1.4 lb.) |
|

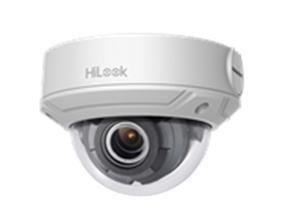

Description:
- Up to 4 megapixel
- 1/3" Progressive CMOS
- 4MP(2560 × 1440):20fps
- WDR(120dB), ICR, 3D DNR, BLC
- 2.8 ~ 12 mm motorized lens
- H.265, H.265+, H.264+, H.264
- EXIR Smart IR range: up to 30m
- 120dB Wide Dynamic Range
- Compatible with Hivision NVR
- Support mobile via Hi-Connect
- IP67, IK10, DC12V & PoE (802.3af)
- Size: 141(Φ) x 99.6(H) mm
- Weight: 820g

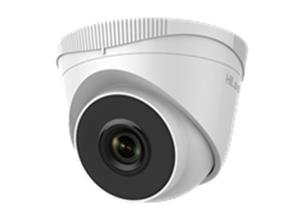

Descriptions:
- Up to 4 megapixel
- 1/3" Progressive CMOS
- 4MP(2560x1440):20fps
- ICR, 3D DNR, BLC
- 2.8 mm / 6mm fixed lens
- H.265, H.265+, H.264+, H.264
- EXIR Smart IR range: up to 30m
- 120dB Wide Dynamic Range
- Support mobile via Hi-Connect
- IP67, DC12V & PoE (802.3af)
- Size:110(Φ) x 93.2(H) mm
- Weight: 350g
Recommended Compatible NVR (Network Video Recorder)
-
HiLook NVR-104MH-C/4P, NVR-108MH-C/8P, NVR-216MH-C/16P
-
Hivision DS-7604NI-K1/4P, DS-7608NI-I2/8P, DS-7616NI-I2/16P, DS-7732NI-I4/16P, DS-9632NI-I8, DS-9664NI-I8, DS-9664NI-I16, DS-96128NI-I16
Descriptions:
- Up to 6 megapixel
- 1/3" Progressive CMOS
- 6MP(3072x2048):20fps
- ICR, 3D DNR, BLC
- 2.8 mm / 6mm fixed lens
- H.265, H.265+, H.264+, H.264
- EXIR Smart IR range: up to 30m
- 120dB Wide Dynamic Range
- Support mobile via Hi-Connect
- IP66, DC12V & PoE (802.3af)
- Built-in Microphone
Recommended Compatible NVR (Network Video Recorder)
-
HiLook NVR-104MH-C/4P, NVR-108MH-C/8P, NVR-216MH-C/16P
-
Hivision DS-7604NI-K1/4P, DS-7608NI-I2/8P, DS-7616NI-I2/16P, DS-7732NI-I4/16P, DS-9632NI-I8, DS-9664NI-I8, DS-9664NI-I16, DS-96128NI-I16

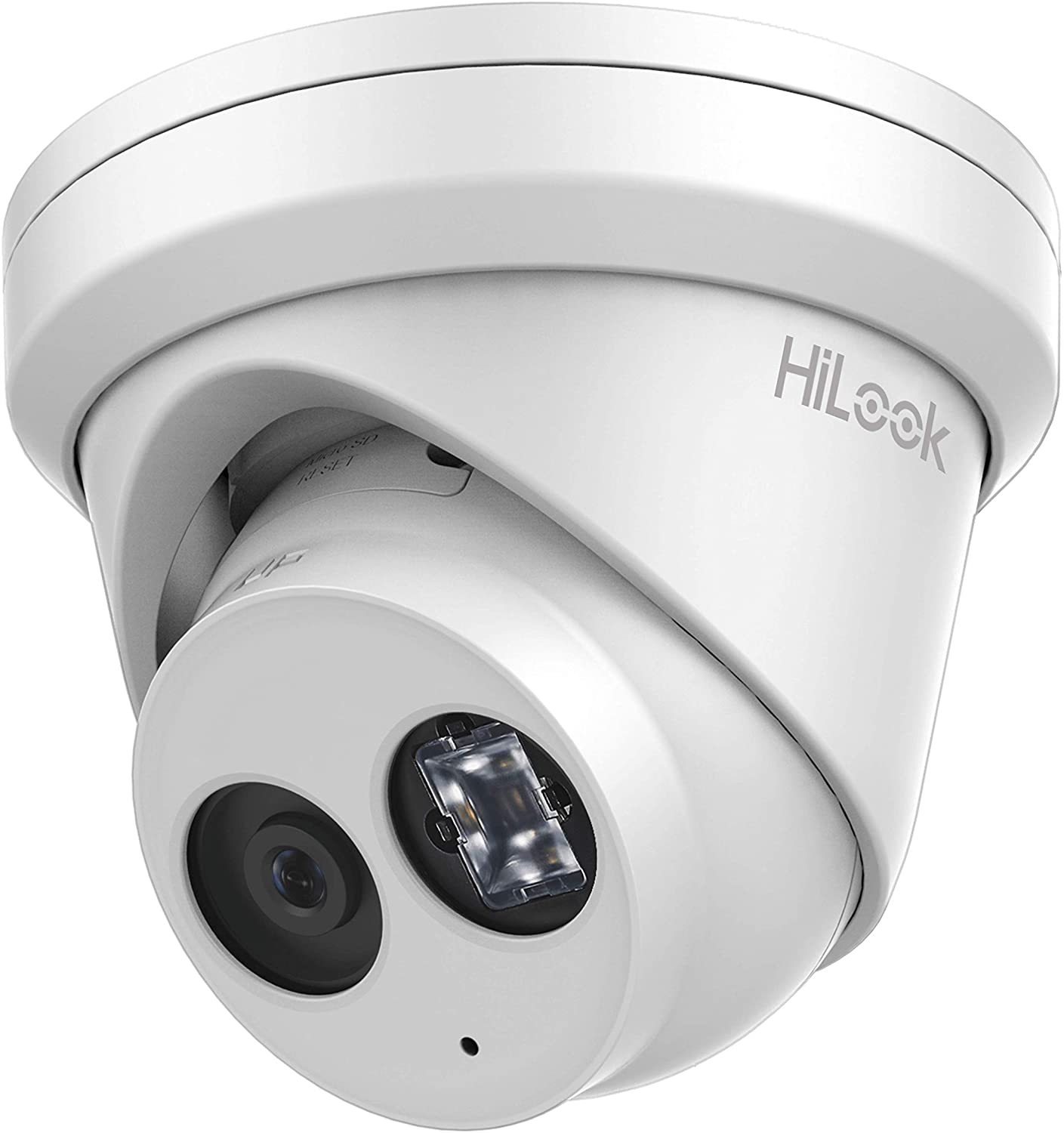

HiLook IPC-T280H-MU 8 MP Network 30m IR Turret Camera with Built-in Microphone
$209.94
Unit price perHiLook IPC-T280H-MU 8 MP Network 30m IR Turret Camera with Built-in Microphone
$209.94
Unit price perDescriptions:
- Up to 8 megapixel
- 1/3" Progressive CMOS
- 8MP(3845x21600):20fps
- ICR, 3D DNR, BLC
- 2.8 mm / 6mm fixed lens
- H.265, H.265+, H.264+, H.264
- EXIR Smart IR range: up to 30m
- 120dB Wide Dynamic Range
- Support mobile via Hi-Connect
- IP66, DC12V & PoE (802.3af)
- Built-in Microphone
Recommended Compatible NVR (Network Video Recorder)
-
HiLook NVR-104MH-C/4P, NVR-108MH-C/8P, NVR-216MH-C/16P
-
Hivision DS-7604NI-K1/4P, DS-7608NI-I2/8P, DS-7616NI-I2/16P, DS-7732NI-I4/16P, DS-9632NI-I8, DS-9664NI-I8, DS-9664NI-I16, DS-96128NI-I16
