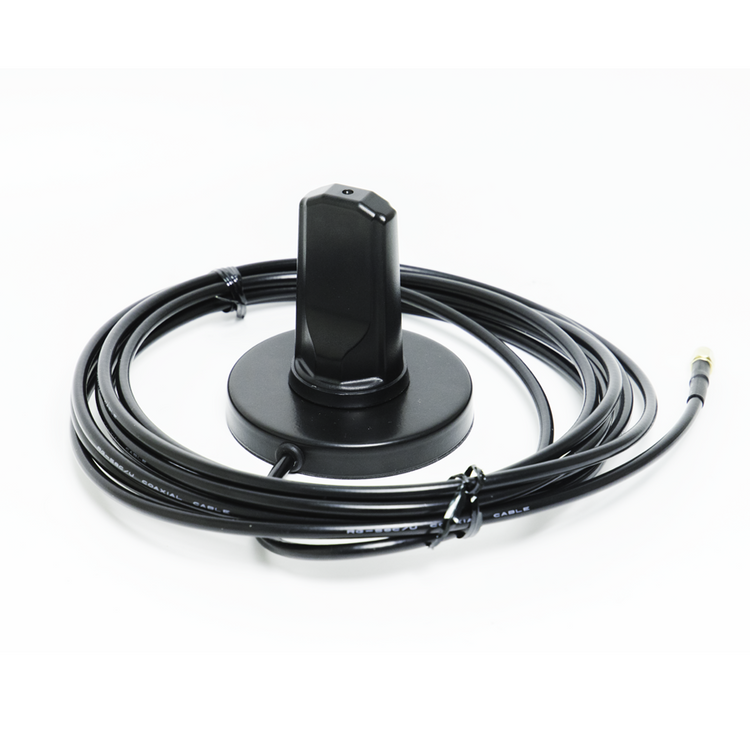

RFI CSM600-MAG-4M-SMA Black Cellular Mobile Antenna with Magnetic Base with 4M RG58 Cable
Estimated delivery between October 20 and October 22.
RFI CSM600-MAG-4M-SMA Black Cellular Mobile Antenna with Magnetic Base with 4M RG58 Cable terminated with SMA (M)
The CSM600-MAG Series is a compact LTE magnetic base antenna and is ideal cellular applications which a removable or temporary antenna is required. The antenna uses a microstrip design radiator enclosed a an UV stable ABS radome mount on an 84mm magnetic base supplied with 4 metre RG58C/U cable terminated with an SMA male.
It's a compact low-profile omni-directional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698-960MHz and 1710-2700MHz. The antenna features an attractive compact housing that can be used for both indoor/outdoor applications and is IP65 rated.
Key Features:
- Multi-band LTE coverage
- Compact low-profile design
- IP65 rating
Specifications
| Brand | RFI |
| Frequency MHz | 698 - 960 / 1710 - 2170 / 2300 - 2700 |
| Tuned Bandwidth | Full. No tuning required |
| Termination | SMA male connectors |
| VSWR | <2.5:1 |
| Nominal Gain [dBi] | 2.5dBi / 3.3dBi / 4.6dBi (peak) |
| Power [W] | 10 |
| Connector | SMA(M) |
| Band | LTE |
| Packaging | Clear Bag |
| Antenna Type | Omni |
| Antenna Application | Terminal Antenna |
| Antenna Configuration | SISO |
Documentation
CSM600-MAG-4M-SMA Product Data Sheet
