CommScope CMAX-O-43-UW-153 Cell-Max Low PIM Omni In-building Antenna 6176000 MHz
Estimated delivery between October 19 and October 21.
Minimum of
1
/
increment of
1
Enhance your in-building connectivity with CommScope CMAX-O-43-UW-153 Cell-Max™ Low PIM Omni Antenna 617–6000 MHz. Features include a low profile design single port for CEL-FI GO amplifier and PIM Rating of 153 dBc.
Description::

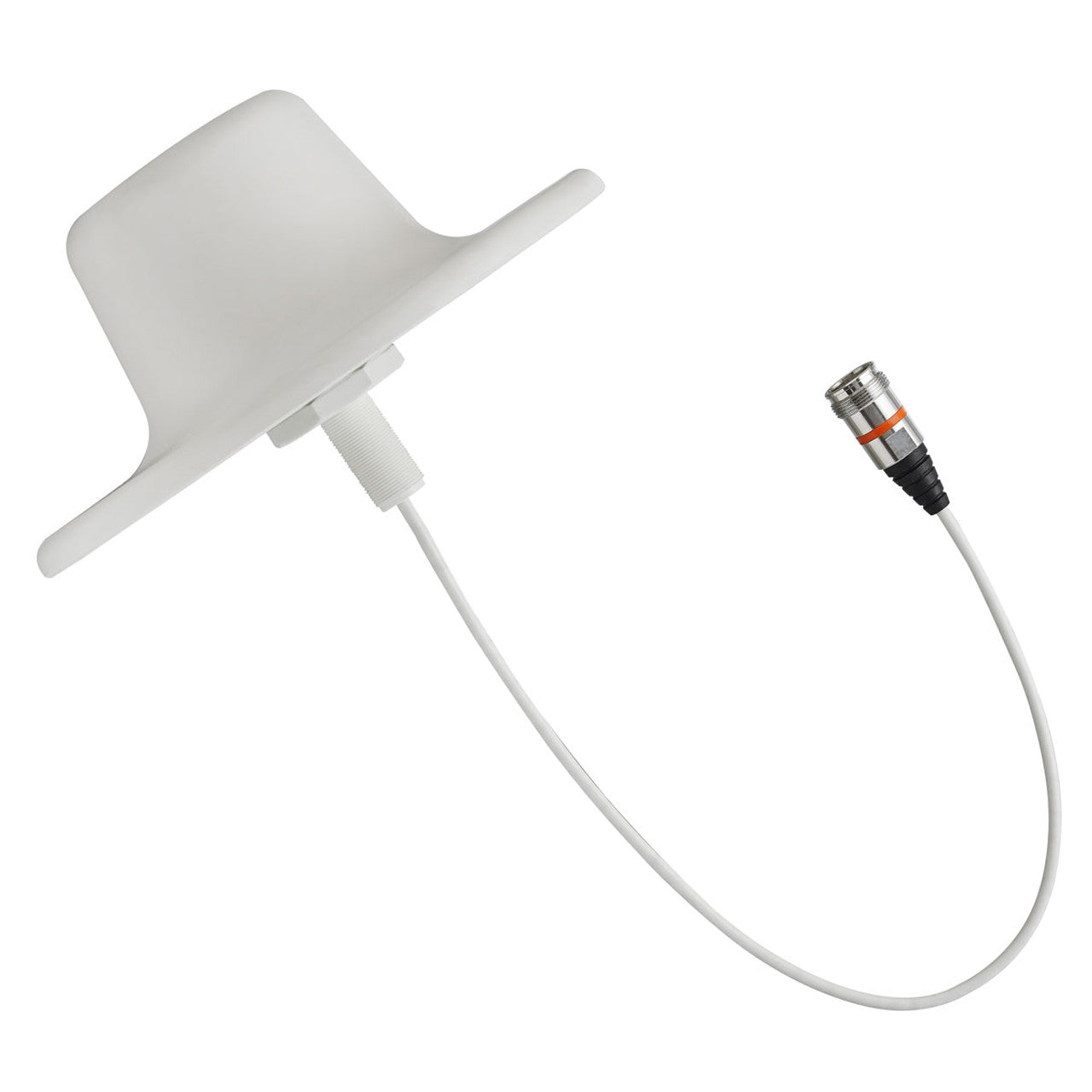

CommScope CMAX-O-43-UW-153 Cell-Max™ Low PIM Omni In-building Antenna 617–6000 MHz
Introducing the CommScope CMAX-O-43-UW-153 Cell-Max™ Low PIM Omni In-building Antenna designed to boost indoor cellular coverage across a wide frequency range of 617–6000 MHz.
Key Features
- Low PIM design for clear voice calls and fast data.
- Omni-directional coverage for consistent signal strength.
- High gain for optimal performance in challenging environments.
- Durable construction for long-term reliability.
- Easy installation with seamless integration meeting BigCommerce standards. Upgrade your in-building cellular network effortlessly with CommScope's superior connectivity solution.
Specification:
| Specification Category | Details |
|---|---|
| Product Classification | |
| Product Type | In-building antenna |
| Product Brand | Cell-Max™ |
| General Specifications | |
| Application | Indoor |
| Antenna Type | Omni |
| Antenna Array Characteristic | SISO |
| Polarization | Vertical |
| Color | White (RAL 9016) |
| Mounting | Thru-hole ceiling mount (optional) |
| Number of Ports | 1 |
| Pigtail Cable | 670-141SXE plenum rated |
| Radome Material | ASA+PC UV stabilized |
| RF Connector Interface | 4.3-10 Female |
| Dimensions | |
| Height | 82 mm | 3.228 in |
| Pigtail Length | 500 mm | 19.685 in |
| Outer Diameter | 206 mm | 8.11 in |
| Electrical Specifications | |
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 698 MHz | 698 – 960 MHz | 1400 – 1600 MHz | 1710 – 2700 MHz | 3300 – 4200 MHz | 5150 – 5925 MHz |
| Electrical Note | Values typical unless otherwise stated |
