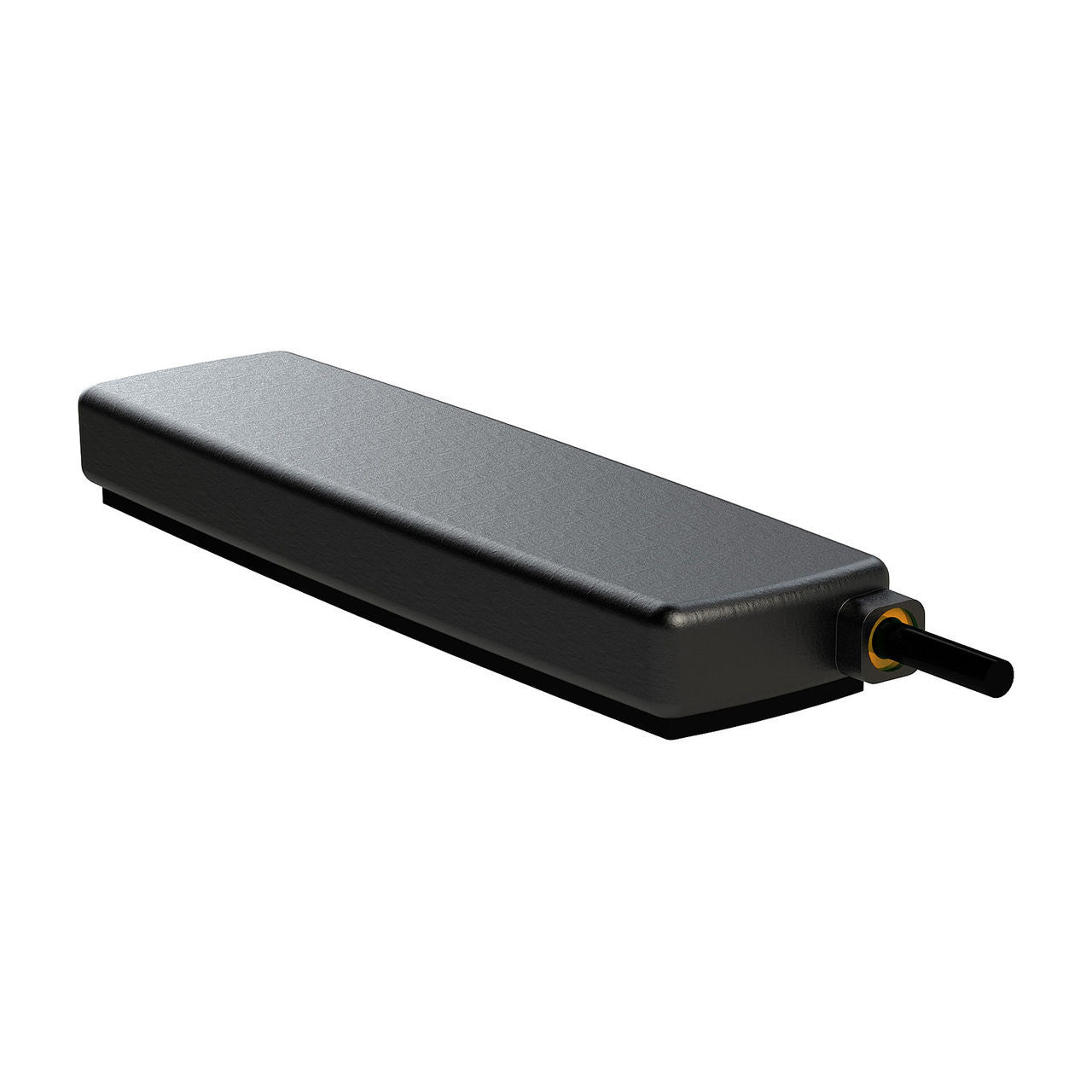

2J 4G-5G WiFi Ultraband Weatherproof Adhesive Antenna 617 to 5925 MHz
Estimated delivery between October 19 and October 21.
Description::
This antenna combines wideband multi-application device functionality that caters to 5GNR 4GLTE 3G 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The 2J4983P is a solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial industrial and consumer industries.
2J4983P 5G NR Low Profile Adhesive Mount Antenna Feautres:
- Ultra-wideband antenna
- Sub 6GHz Bands 617-5925 MHz
- Full 4G LTE backwards capability
- Ground plane independent
- 3.5 dBi 5G NR peak gain
- High performance
- Low profile
- Customisable cable and connector
The 2J4983P brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward compatibility. In addition this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). 2J4983P offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.
Suggested applications include:
- Automotive
- Industrial and Consumer IoT
- Telemetry
- Telematics
- Commercial and Home Automation
- HD Video High-Speed Streaming
- High Volume MIMO Networks
With overall dimensions of only 150.5 x 42 x 15.3 mm high-quality adhesive tape and ASA UV stable housing the 2J4983P can be installed on any surfaces found in the most extreme outdoor environments without any risk of failure. The 2J4983P features a standard SMA-Male connector and a 300 cm long LL195 cable. As an added measure this antenna was designed with ground plane independence in order to eliminate any grounding restrictions during the installation process.
5GNR Antenna Bands list | ||||
|---|---|---|---|---|
| Parameters | 5GNR Antenna | |||
| Frequency (MHz) | 617-960 | 1427-2690 | 3300-5000 | 5150-5925 |
| Band (MHz) | 600 700 850 900 | 1500 1600 1700 1800 1900 2000 2100 2300 2500 2600 |
3300 3500 3600 3700 4500 | 5200 5500 5800 |
| 5GNR Bands | n5 n8 12 n20 n28 n71 n81 n82 n83 |
n1 n2 n3 n7 n25 n34 n38 n39 n40 n41 n50 n51 n66 n70 n74 n75 n76 n80 n84 n86 |
n77 n78 n79 | |
| 4GLTE Bands | B5 B6 B8 B12 B13 B14 B17 B18 B19 B20 B26 B27 B28 B29 B44 B67 B68 B71 B85 |
B1 B2 B3 B4 B7 B9 B10 B11 B21 B23 B24 B25 B30 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B45 B50 B51 B65 B66 B69 B70 B74 B75 B76 |
B22 B42 B43 B48 B49 B52 |
B46 B47 B252 B255 |
| 3GCELL Bands | B5 B6 B8 B12 B13 B14 B19 B20 B26 |
B1 B2 B3 B4 B7 B9 B10 B11 B21 B25 B32 B33 B34 B35 B36 B37 B38 B39 B40 |
B22 | |
| 2GCELL Bands | 710 750 810T 850 900P 900E 900R |
1800DCS 1900PCS | ||
| CDMACELL Bands | BC0 BC2 BC3 BC7 BC9 BC10 BC12 BC18 BC19 |
BC1 BC4 BC6 BC8 BC13 BC14 BC15 BC16 BC20 BC21 |
||
Specification:
| 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G | |
|---|---|
| Technologies | 5G 4G 3G and 2G |
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency (MHz) | 617-960 1427-2690 3300-5000 5150-5925 |
| Return Loss (dB) | ~-8.2 ~-12.3 ~-8.6 ~-7.6 |
| VSWR | ~2.8:1 ~1.8:1 ~2.3:1 ~2.8:1 |
| Efficiency (%) | ~55.9 ~60.4 ~45.8 ~25.8 |
| Peak Gain (dBi) | ~2.2 ~3.5 ~3.0 ~0.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
