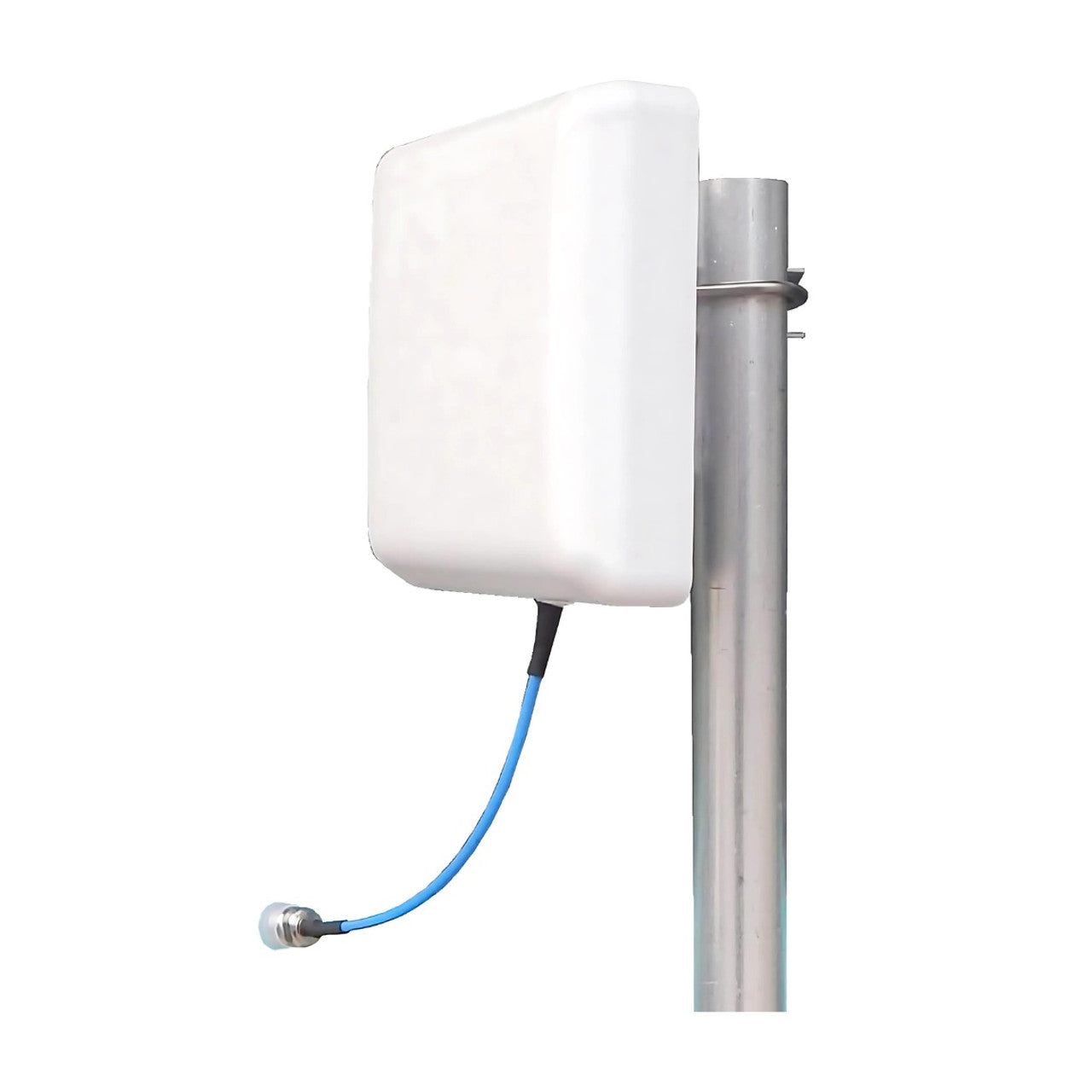

Powertec 4G-5G Outdoor Wall Mount Antenna 698 to 4000 MHz N Female
Estimated delivery between October 20 and October 22.
Minimum of
1
/
increment of
1
The Powertec 4G-5G Outdoor Wall Mount Antenna 698 to 4000 MHz N Female delivers up to 7 dBi gain. Its low-PIM design ensures reliable and clear connectivity.
Description::
Mounting Option – Wall Mount
Mounting Option – Pole Mount
Specification:
| Category | Specification | Details |
|---|---|---|
| Model Version | Product Name | Powertec 4G-5G Outdoor Wall Mount Antenna |
| Frequency Range | 698-806 MHz | 5.5 dBi Gain |
| 806-960 MHz | 6.5 dBi Gain | |
| 1710-2700 MHz | 8 dBi Gain | |
| 3300-4000 MHz | 7 dBi Gain | |
| VSWR | 698-806 MHz | ≤2.0 |
| 806-960 MHz | ≤2.0 | |
| 1710-2700 MHz | ≤1.8 | |
| 3300-4000 MHz | ≤1.8 | |
| Polarisation | Type | Vertical |
| PIM 3rd Order 2×20W | Total | ≤-150 dBc |
| Front-to-Back Ratio | 698-806 MHz | ≥9 dB |
| 806-960 MHz | ≥10 dB | |
| 1710-2700 MHz | ≥15 dB | |
| 3300-4000 MHz | ≥11 dB | |
| Horizontal Beamwidth | 698-806 MHz | 100° |
| 806-960 MHz | 85° | |
| 1710-2700 MHz | 65° | |
| 3300-4000 MHz | 50° | |
| Vertical Beamwidth | 698-806 MHz | 90° |
| 806-960 MHz | 82° | |
| 1710-2700 MHz | 60° | |
| 3300-4000 MHz | 45° | |
| Input Impedance | Total | 50 Ω |
| Max. Input Power | Total | 50 W |
| Lightning Protection | Type | DC Ground |
| Connector | Type | N Female |
| Dimensions | Size | 180 × 158 × 60 mm |
| Weight | Total | 0.5 kg |
| Reflector Material | Type | Aluminium |
| Radome Material | Type | ABS (UV Stabilised) |
| Ingress Protection | Type | IP65 |
| Operating Temperature | Range | -40 to +65 °C |
| Mounting | Pole Size | Ø38-Ø52 mm |
