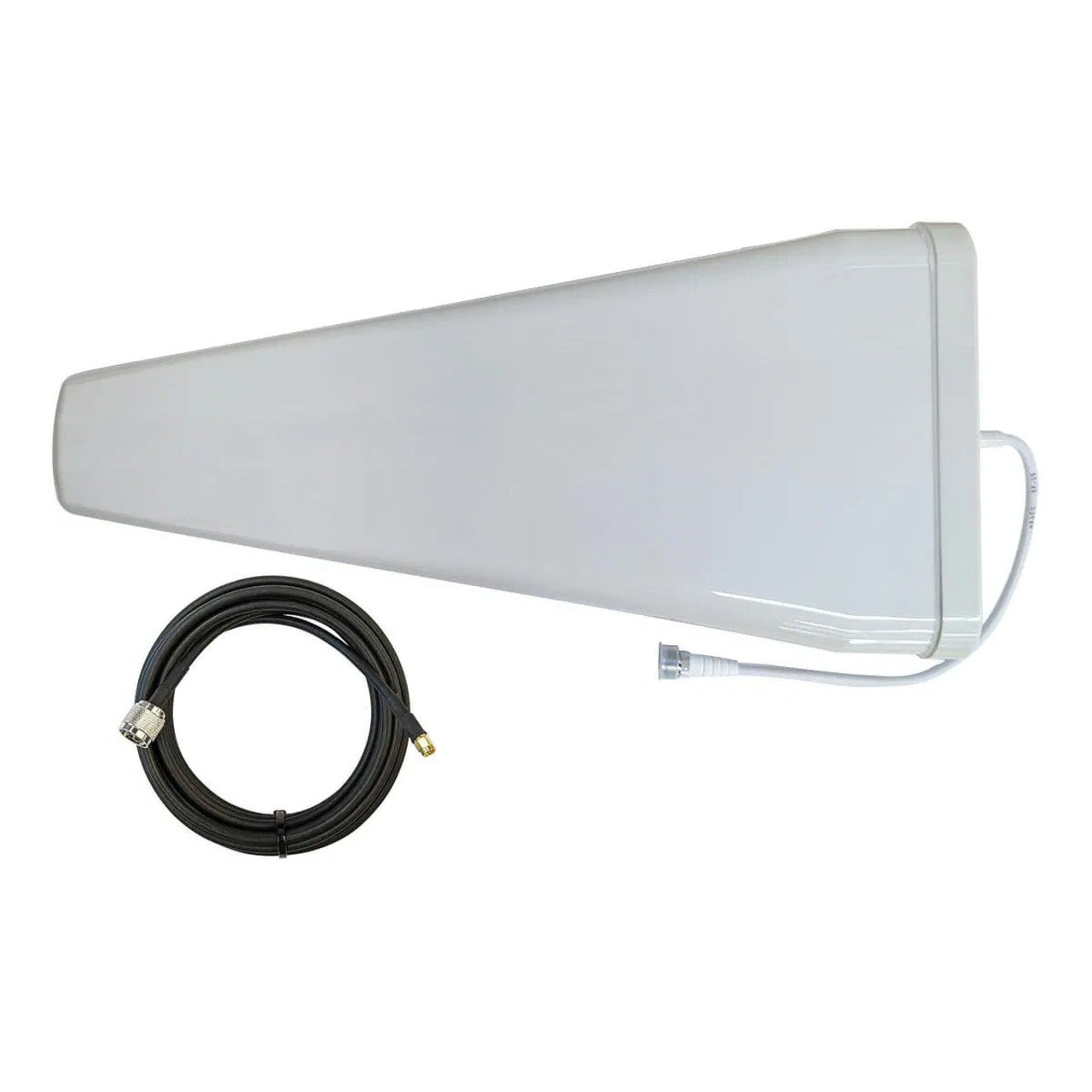

Blackhawk 4G Wideband LPDA Antenna 698 to 2700 MHz + 10m Cable N Male to SMA Male
Estimated delivery between October 19 and October 21.
Minimum of
1
/
increment of
1
Improve coverage in low-signal areas with a compact antenna providing reliable signal reception and simple mounting for optimal performance
Description::
A Versatile Antenna that Provides a Cost-effective Solution for Improving Wireless Signal
The Blackhawk 4G Wideband LPDA Antenna is a high-performance antenna designed to enhance weak indoor signals with its impressive 10 dBi gain in the 698-960 MHz range and 11 dBi gain in the 1710-2600 MHz range. Ideal for temporary or portable installations this lightweight antenna offers easy mounting with the included clamp and a 30 cm tail with pre-terminated N Female connector. The antenna comes with 10 meters of PT240 cable featuring N Male to SMA Male connectors providing a reliable and cost-effective solution for improving signal strength
Key features
- 10/11 dBi Gain: Strong signal reception across lower and upper frequency bands.
- Compact Design: Lightweight and easy to install for temporary or traveling setups.
- Versatile Mounting: Includes mounting clamp and pole-mounting options for flexible installation.
- 10m PT240 Cable: Supplied with N Male to SMA Male connectors for reliable connectivity.
- Weather-Resistant: Built with durable aluminum and ABS suitable for harsh conditions.
- Wide Temperature Range: Operates in temperatures from -40°C to +65°C with a wind resistance of up to 210 km/h.
*Note: This product comes with a 10m cable included.
Specification:
Specifications
| Electrical Specifications | |
|---|---|
| Frequency Range | 700-960 MHz / 1710-2600 MHz |
| Input Impedance | 50 Ω |
| Gain | 10 / 11 dB |
| VSWR | ≤ 2.0 / ≤ 1 |
| Polarisation | Vertical |
| Horizontal Beamwidth | 70° |
| Vertical Beamwidth | 50° |
| Maximum Input Power | 50 W |
| Lightning Protection | DC Ground |
| Mechanical Specifications | |
|---|---|
| Dimensions | 450 x 210 x 65 mm |
| Weight | 1.1 kg |
| Operating Temperature | -40°C – +65°C |
| Connector | 1 x N-Female |
| Material | Aluminium and ABS |
| Antenna Colour | White |
| Mounting Pole | 38 – 52 mm |
| Rated Wind Velocity | 210 km/h |
