Powertec 4G Low Band Grid Antenna 698 to 960 MHz 4.3-10 Female
Estimated delivery between October 20 and October 22.
Description::

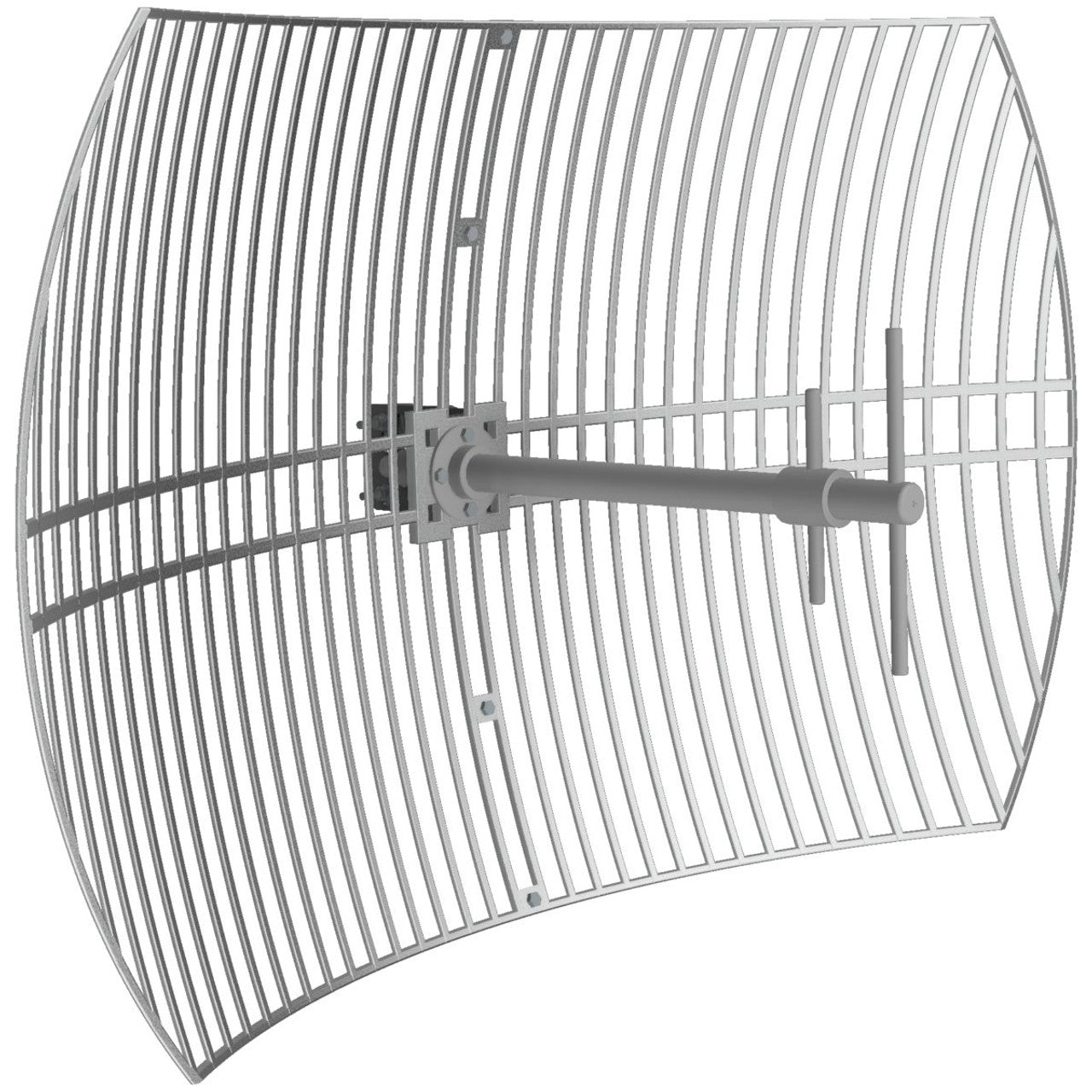

High-Performance Grid Antenna for Regional 4G and 5G Coverage
This grid parabolic antenna is designed to significantly boost 4G and low-band 5G connectivity in regional and remote areas. Tuned for the 698–960 MHz range it supports key bands such as LTE Band 28 and NR bands n5 and n8. With up to 14 dBi peak gain the antenna directs strong signal toward the nearest tower while maintaining a broad enough beamwidth to capture scattered reflections. The ruggedised construction includes a powder-coated cast aluminium reflector solid aluminium feed and stainless steel pole-mount clamp. A 30 cm RG-142 cable tail fitted with a waterproof 4.3-10 Female connector ensures reliable weather-resistant installation in extreme outdoor environments.
Key Features
- Optimised Frequency Range: Covers 698–960 MHz for enhanced reception on LTE Band 28 and 5G bands n5 and n8 used in regional Australia.
- High Peak Gain Performance: Delivers up to 14 dBi gain in the 698–890 MHz range and 13.4 dBi up to 960 MHz focusing signal for improved long-range performance.
- Grid Parabolic Reflector Design: Projects signal like a directional beam to maximise energy toward distant towers while maintaining beamwidth for off-angle capture.
- Vertically Polarised Output: Supports SISO communication with a vertical polarisation to suit typical mobile network tower transmission standards.
- Durable Construction: Built with powder-coated cast aluminium reflector and solid aluminium/acetal feed for long-lasting outdoor use.
- Wide Temperature Range: Operates from –40 °C to 65 °C ensuring performance under harsh Australian climate conditions.
- Weatherproof Connector System: Features a 30 cm RG-142 tail and 4.3-10 Female waterproof connector to maintain integrity against moisture and dust.
- Secure Pole Mounting: Supplied with a stainless steel clamp for stable installation on poles 30–60 mm in diameter.
This antenna offers reliable high-gain signal reception for low-band 4G and 5G applications in demanding rural environments.
Specification:
| Product Specifications | |
|---|---|
| Model Number | VGR-6996-14.432 |
| Frequency Range | 698–960 MHz |
| Supported Bands | LTE Band 28 8; NR n5 n8 |
| Peak Gain | 14 dBi (698–890 MHz) 13.4 dBi (890–960 MHz) |
| VSWR | < 1.3:1 (698–803 MHz) < 1.7:1 (803–890 MHz) < 3.0:1 (890–960 MHz) |
| Polarisation | Vertical (SISO) |
| Input Impedance | 50 Ω |
| Max Input Power | 100 W |
| Connector Type | 4.3-10 Female |
| Tail Cable | 30 cm RG-142 |
| Construction Material | Cast aluminium powder-coated |
| Mounting Type | Pole mount 30–60 mm diameter |
| Dimensions (W×H×D) | 900 × 600 × 510 mm |
| Weight | 2.3 kg |
| Operating Temperature | –40 °C to 65 °C |
