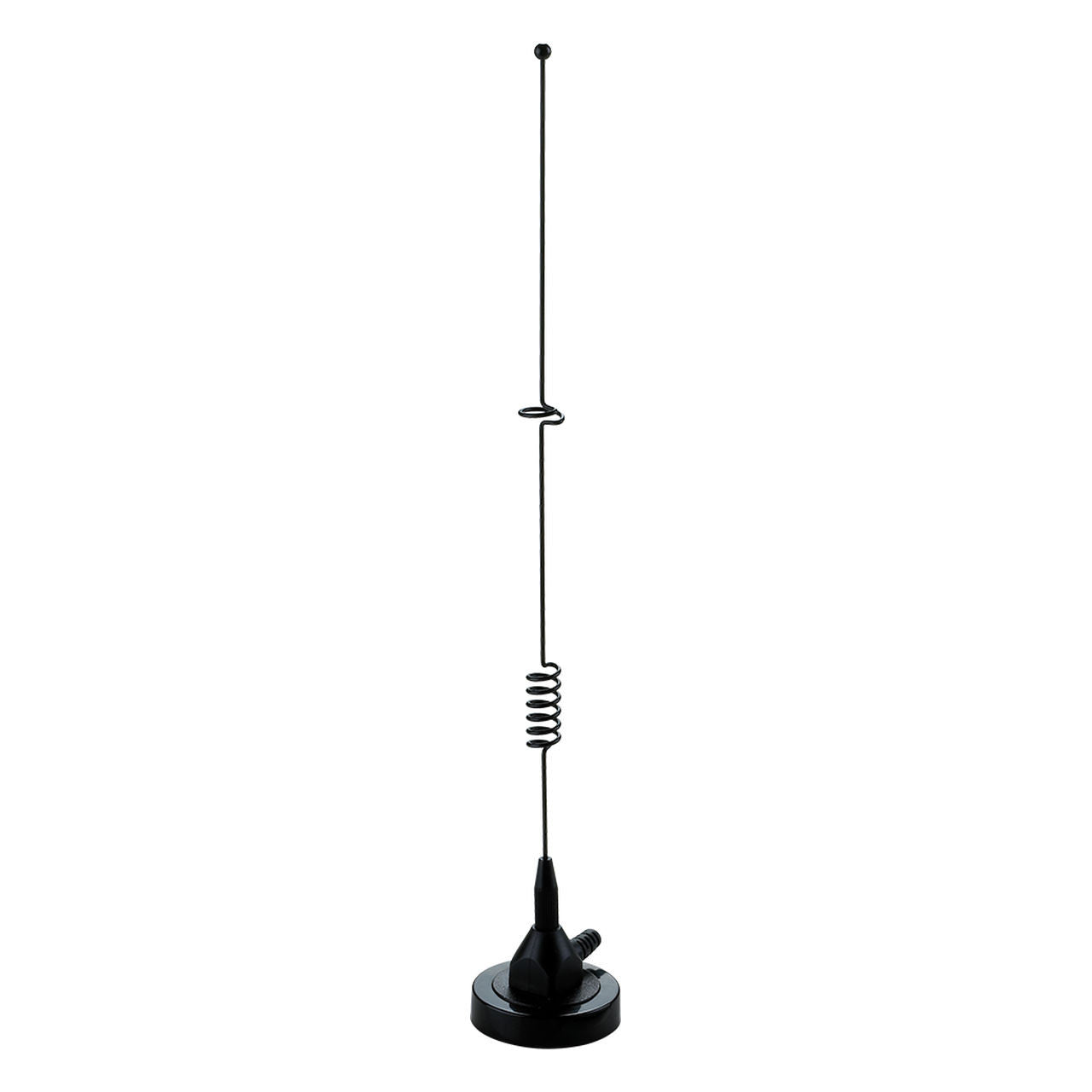

Taoglas GA.110 Wideband 4G-5G Magnetic Whip Antenna

Description::

The GA.110 magnetic ultra-wideband cellular antenna delivers stable high omni-directional gain and efficiencies across all common 3G 4G and 5G cellular bands from 700 MHz to 3.5 GHz. This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like 3G to 4G. Being magnetic mount it is designed to be mounted on a ground plane for optimal performance.

• Strong neodymium magnetic mount
• Flexible black whip
• Wideband covering all major cellular bands from 698 to 3500 MHz
• Ground plane dependent
• 1 metre RG174 cable with SMA Male straight connector

A reliable return loss of <10 dB when mounted on a metal plate ensures it complies with the industry standards set by module makers and networks worldwide. Taoglas recommends using the antenna with 1 m cable length or less and can provide customised connectors and cable lengths upon customer requirements. The strong magnet base is extremely stable and robust using only high quality neodymium magnets for a secure magnetic mount to ensure a high pull force to disengage. Performance on 5G n78 (3500 MHz) is acceptable but weakened due to the antenna's 19% radiation efficiency at this band.

Specification:
