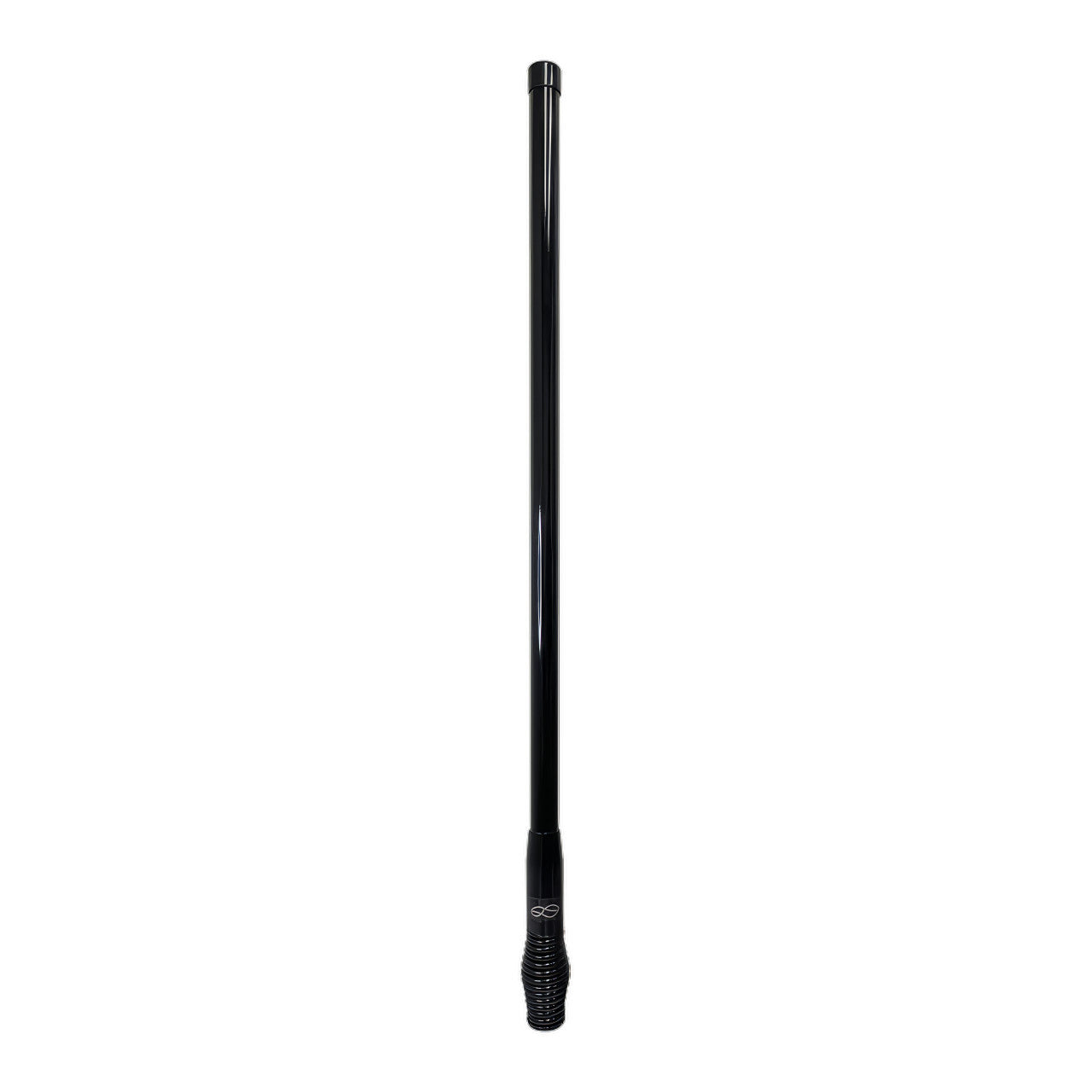

Zetifi 4G-5G Cellular Smart Antenna Black 698 to 3800 MHz 1050mm
Estimated delivery between October 20 and October 22.
Description::
The Zetifi 4G-5G Cellular Smart Antenna 698 to 3800Mhz 1050 mm represents a breakthrough in antenna technology with its location-aware variable gain system. This innovative antenna automatically switches between high and low gain modes to optimise performance based on real-time conditions. Utilising ZetiLink™ technology it dynamically adjusts gain by interpreting GPS data and antenna tilt ensuring the best possible signal reception in various environments.
Key Features:
- Location-Aware Technology
- Variable Gain Modes
- Advanced Signal Processing
- Wide Frequency Range
- Durable Construction
- Flexible Installation
Dynamic Gain Adjustment
Equipped with a sophisticated ZetiLink™ engine the ANCA1101AU intelligently processes data from its inbuilt GPS and gyroscope sensors. This allows the antenna to adapt its gain settings according to terrain (flat hilly or urban) and antenna attitude. Whether you're navigating hilly landscapes or cruising on flat terrain the antenna automatically selects the optimal gain mode for uninterrupted connectivity.
High-Performance Specifications
The ANCA1101AU offers impressive performance across a wide frequency range. It supports frequencies from 698-900 MHz 1710-2700 MHz and 3400-3800 MHz with a gain of 3dBi in low mode and 6.5dBi in high mode. Its vertical beam width ranges from 50° to 20° depending on the gain mode ensuring strong and reliable signal reception.
Sturdy Construction
Built for durability the antenna features a fibreglass whip with a reconfigurable PCB antenna element. It includes a steel ferrule with an integrated ZetiLink™ controller and a bellied spring for added resilience. The M14 threaded stud and nut ensure a secure mounting suitable for various installation scenarios.
Comprehensive Installation Kit
The ANCA1101AU comes with a complete installation kit including a 4360 mm LMR195 coaxial cable a 2500 mm 16AWG automotive power cable and a 500 mm conduit cable protector. The kit also includes a 22 mm split socket tool for easy antenna attachment ensuring a hassle-free setup process.
Optimised for Performance
Designed for optimal performance the antenna's VSWR is less than 2.5:1 at 698-900 MHz and under 2:1 at other frequencies providing efficient signal transmission. It operates on a DC voltage range of 12V to 18V with a low power consumption of just 0.7W making it suitable for a variety of applications.
User-Friendly App Integration
Enhance your antenna's functionality with the companion app which allows you to monitor and control the automatic switching between high and low gain modes. This feature adds an extra layer of convenience letting you tailor the antenna's performance to your specific needs and preferences.
Specification:
| Category | Specification | Details |
|---|---|---|
| Model Version | Product Name | ANCA1101AU-02 |
| Type | Smart Antenna | |
| Technology | ZetiLinkTM technology | |
| Physical Dimensions | Height | 1050 mm |
| Whip Diameter | 33 mm | |
| Spring Diameter | 56 mm | |
| Base Diameter | 42 mm | |
| Antenna Gain | Low Gain Mode | 3 dBi |
| High Gain Mode | 6.5 dBi | |
| Vertical Beamwidth | Low Gain Mode | 50/30/20 degrees |
| High Gain Mode | 25/15/10 degrees | |
| VSWR | 698-900 MHz | <2.5:1 |
| 1710-2700 MHz | <2:1 | |
| 3400-3800 MHz | <2:1 | |
| Nominal Impedance | 50 Ω | |
| Frequency Range | 698-900 MHz 1710-2700 MHz 3400-3800 MHz | |
| Construction | Fibreglass whip reconfigurable PCB steel ferrule bellied spring | |
| Mounting | Threaded Stud | M14 |
| Mounting Hole Diameter | 16 mm | |
| Weight | Antenna | 1250 g |
| With Cabling | 2000 g | |
| Integrated Antenna Cables | Low Loss Coaxial Cable | 145 mm RG316 with SMA male |
| Automotive Power Cable | 215 mm 20AWG with bullet connectors | |
| Coaxial Cable | Length | 4360 mm |
| Termination | SMA female (antenna end) SMA male (device end) | |
| Power Cable | Length | 2500 mm |
| Termination | 3A blade fuse bullet connectors 8.5 mm lugs | |
| Input Voltage | Range | 12V DC to 18V DC |
| Input Current | 60 mA | |
| Input Power | 0.7 W |
