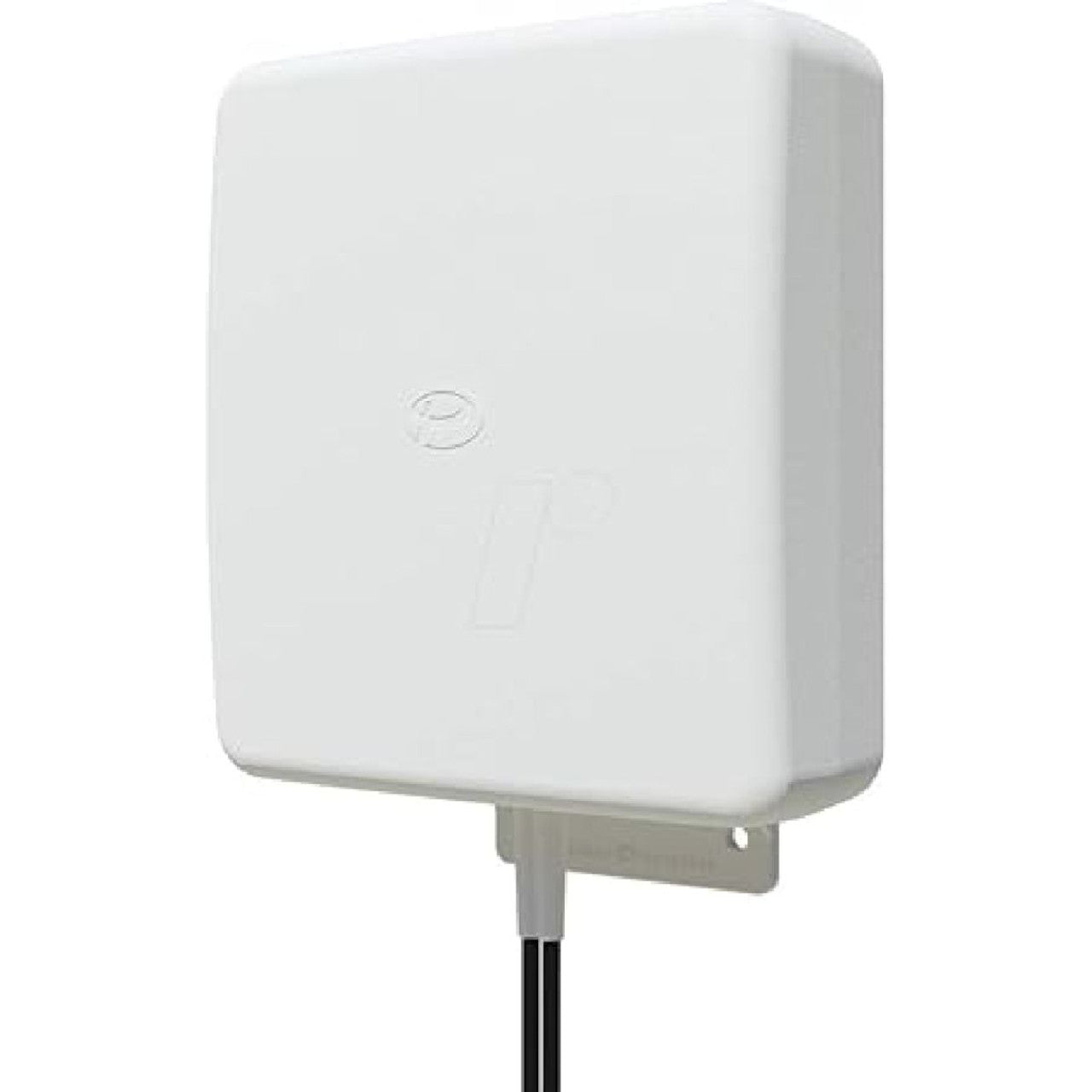

Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni 700 to 3800Mhz
Estimated delivery between October 20 and October 22.
Description::
Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni 700 to 3800Mhz
FEATURES
- 2x2 MIMO Wideband Cellular LTE Antenna
- Medium dB Gain
- Can be Wall or Mast mounted
- A desk stand is also included to enable the antenna to be positioned on a window sill if preferred.
- UV Stable IP65 Rated Housing
- Ideal Product for fringe network areas
- Integrates your wireless services into a single antenna
Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni 700 to 3800Mhz provides an innovative and Future Proof solution for 3G/4G and 3.4-3.8GHz 5G networks.
Incorporating two separately fed ultra-wideband elements in a single housing it provides a client-side 2x2 MiMo antenna system for the networks of today and tomorrow. With between 2-5dBi gain in the range 698-3800MHz the WMMG gives a great performance whilst maintaining a wide beam pattern which is ideal for metro and urban areas.
The rugged weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be positioned on a window sill if preferred.
The antenna is supplied with an integral “twinned” CS29 coaxial cable. WMMG-7-38-5SP version has a 5m length fitted with sma plug connectors for a simple ‘plug & play' installation. WMMG-7-38-03NJ version has a 30cm length fitted with N socket connectors which enables the use of lower loss cable types for longer runs.
The WMMG is a cost-effective value-added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers improving satisfaction and retention.
Specification:
| Specification Category | Details | |
|---|---|---|
| Part No. | WMMG-7-38-5SP | WMMG-7-38-03NJ |
| Frequency Range | 698-960 / 1710-2700 / 3400-3800 MHz | 698-960 / 1710-2700 / 3400-3800 MHz |
| Operational Bands | 3G/4G/5G | 3G/4G/5G |
| VSWR (excluding cable) | < 2:1 | < 2:1 |
| Peak Gain (excluding cable loss) | 698-960 MHz: 2dBi 1710-2700 MHz: 5dBi 3400-3800MHz: 4dBi | 698-960 MHz: 2dBi 1710-2700 MHz: 5dBi 3400-3800MHz: 4dBi |
| Correlation Co-efficient (all bands) | < 0.2 | < 0.2 |
| Typical Element Isolation | > 20dB | > 20dB |
| Max Input Power | 20 W | 20 W |
| Impedance | 50Ω | 50Ω |
| Mechanical Data | ||
| Dimensions | Height: 155mm (6.1”) Width: 155mm (6.1”) | Height: 155mm (6.1”) Width: 155mm (6.1”) |
| Operating Temp. | -30° / +80°C (-22° / 176°F) | -30° / +80°C (-22° / 176°F) |
| Material | ASA | ASA |
| Colour | White | White |
| Weight (including cable) | 950g | 430g |
| Ingress Protection | IP65 | IP65 |
| Mounting Data | ||
| Fixing | Wall mount / Mast mount / Desk mount | Wall mount / Mast mount / Desk mount |
| Mounting Bracket Material | Stainless steel / Aluminium | Stainless steel / Aluminium |
| Pole Diameter | 20-50mm / (0.78 - 1.96”) | 20-50mm / (0.78 - 1.96”) |
| Cable Data | ||
| Type | 2 x CS29 (4G/5G) | 2 x CS29 (4G/5G) |
| Diameter | 5mm (0.2”) | 5mm (0.2”) |
| Length | 5m (16’) | 0.3m (1’) |
| Termination | 2x SMA (M) | 2x N JACK (F) |
