Lightning Cable for the Mavic Remote Control

Male Micro USB to Lightning connector

Product Information

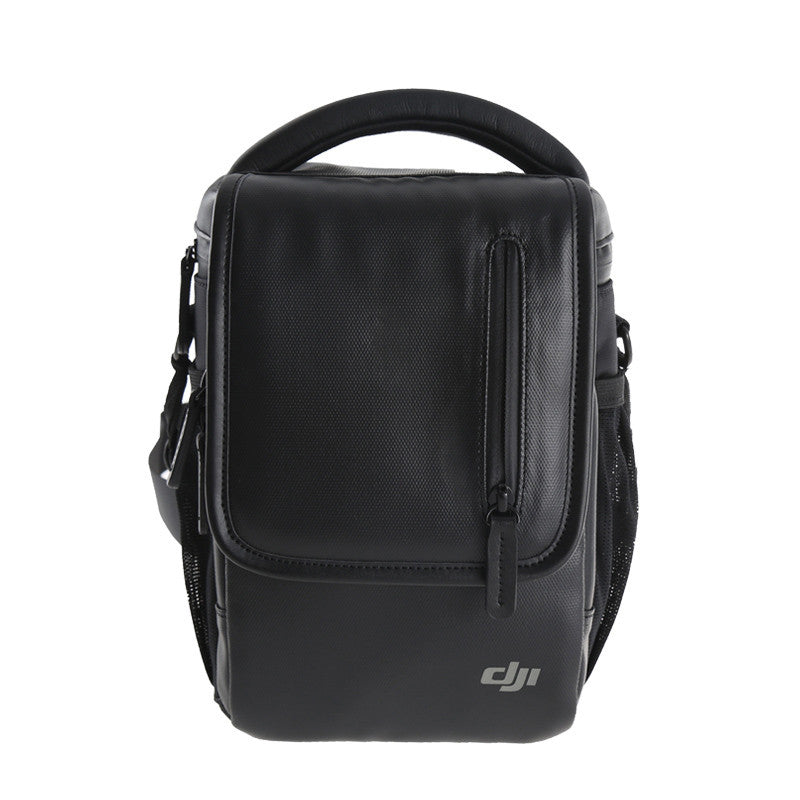

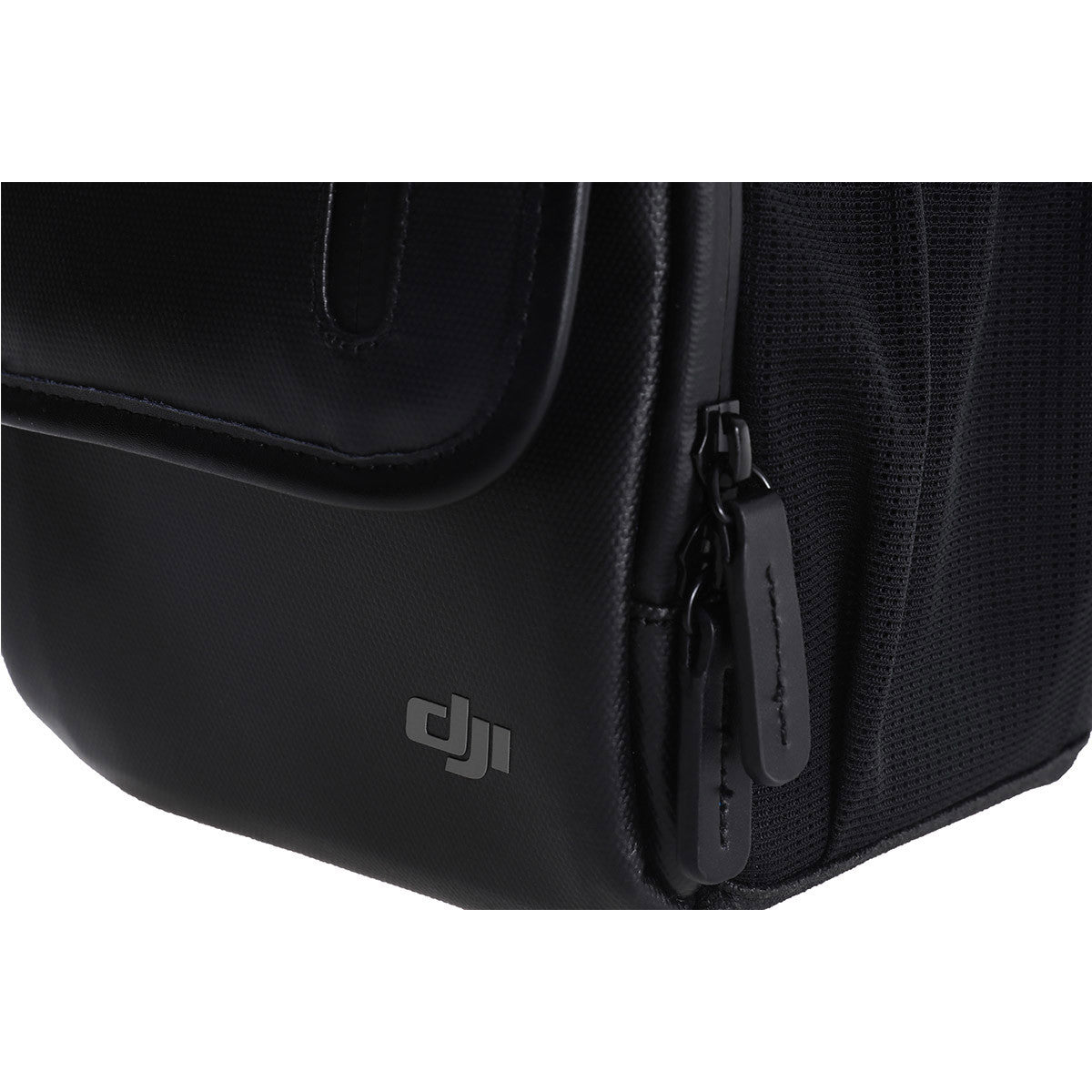

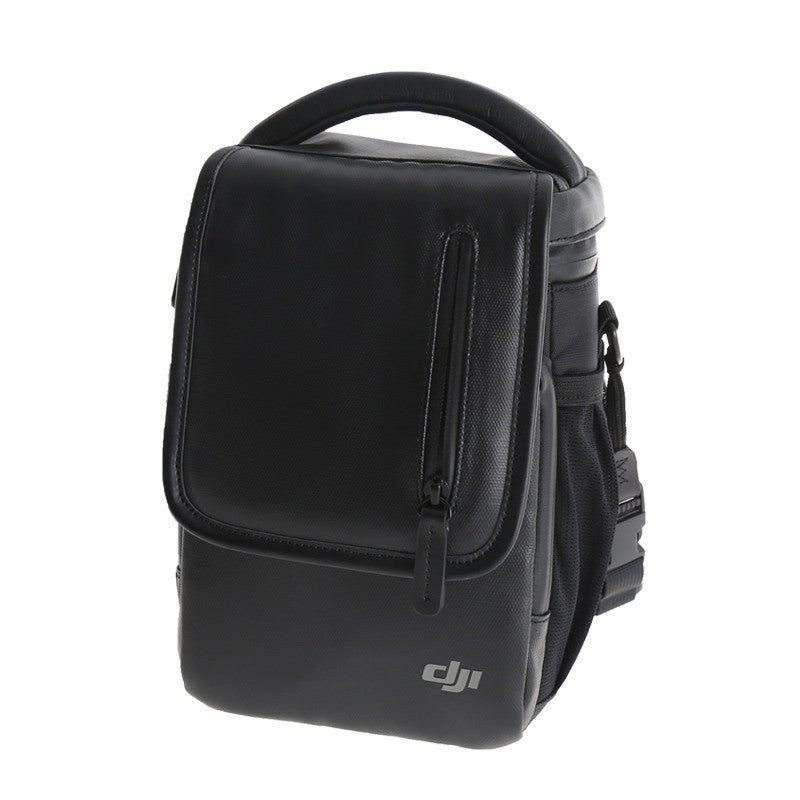

You can carry the Mavic and its accessories by using this Bag.
Holds: 1 aircraft, 1 controller, 4 batteries, 1 smartphone, and smaller accessories such as cables.

Hightlights
A complete Mavic in one bag

In the Box

Mavic - Shoulder Bag × 1

SPECS
Dimensions

• 17.5 × 12.5 ×21 cm

Maximum weight

• 3 kg

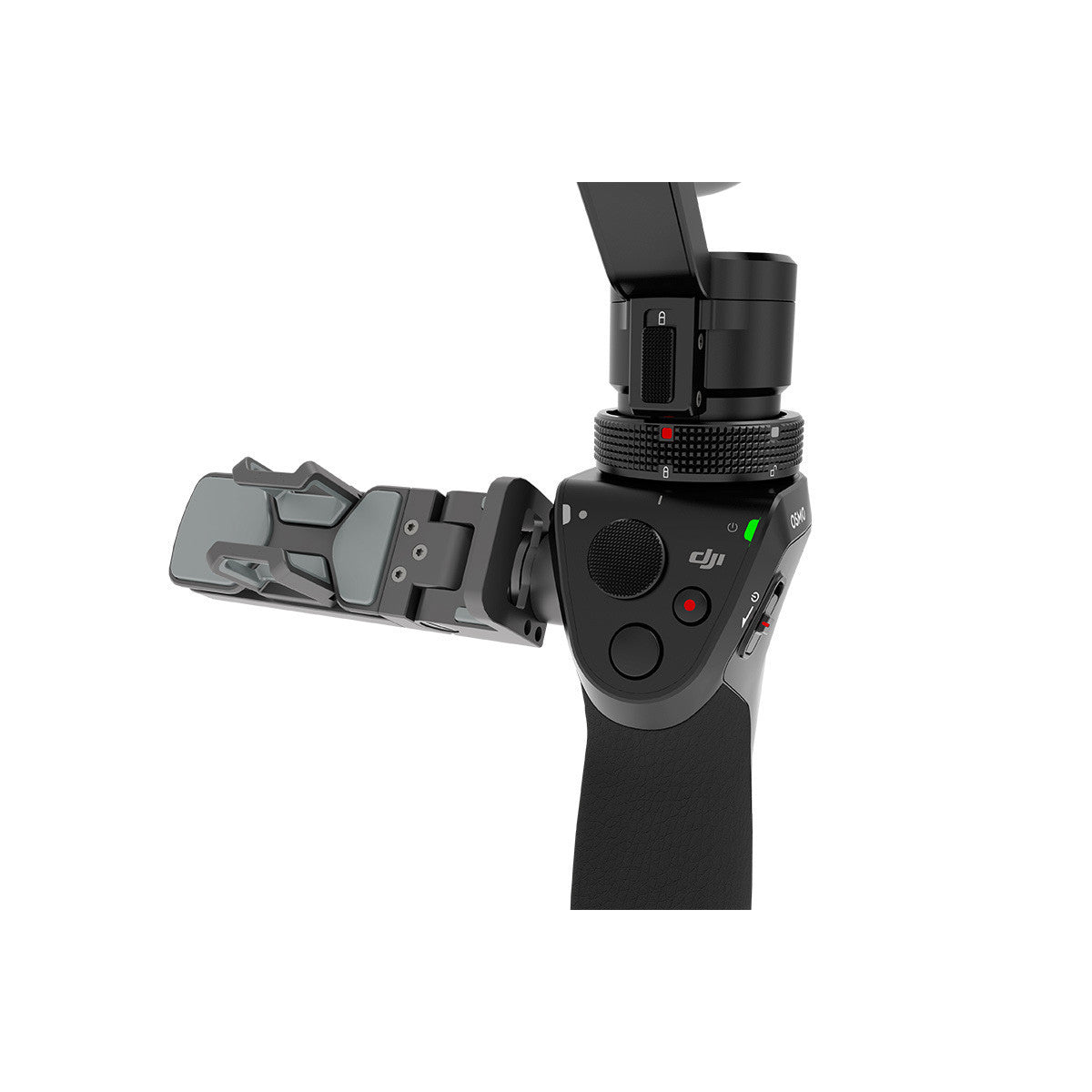

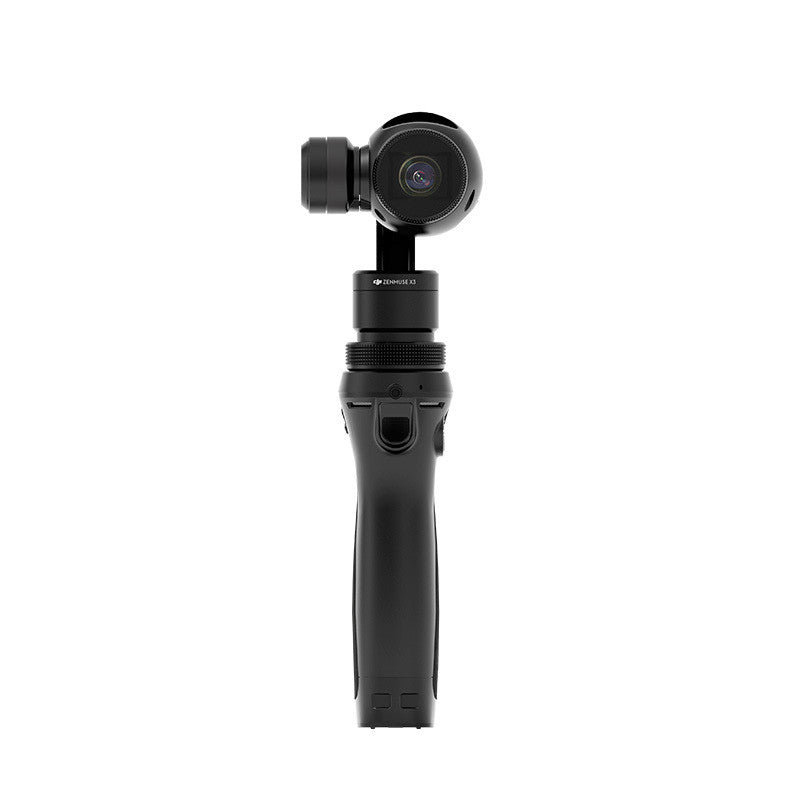

OSMO
REIMAGINE MOVEMENT
Motion without blur. Action shots without shake. Perfect video even when you move. Thanks to advanced technologies specifically designed to keep the camera flat no matter how you move it, the DJI Osmo helps you record videos and take photos like never before. It is much more than just a camera, it helps you create with more freedom than ever.

The WORLD IN 360 DEGREE
An Automatic Panorama mode makes shooting 360 photos easier than ever. Just hold Osmo up above your head and tap the shutter release. The camera will rotate, capturing images as it goes while staying completely level. Don't just get a snapshot of a piece of your travels, make a memory of the whole scene.

CAPTURE TIME
Osmo helos you record the passage of time more easily ever with its intelligent Timelapse modes. Whether moving through the hustle and bustle of Hong Kong's streets, exploring dense Brazilian rainforests, or recording daily life, you can capture timelapses automatically and smoothly without a tripod. For more advanced users, you can even use the Osmo as a motion control system to add a new dimension to timelapse creativity.

TRIPOD FREE LONG EXPOSURE
Take long exposure shots with absolute crispness and sharpness, even without a tripod. The stabilizaiton system in the Osmo keeps the camera totally still so you can freehand capture stills of up to 2 seconds. With practice, you can get even longer shots. Now you can capture night time cityscapes, or blur out your subject's background the moment inspiration strikes.

ADVANCED STABILIZATION
The DJI Osmo brings DJI's recognized leadership in camera stabilization down to the ground and into your hands. A 3-axis stabilization system completely integrated with the camera cancels out your movements in three directions so it stays even if your hands shake or wobble. This is the first time this technology is available in a camera you can hold.

POWER IN YOUR PALM
The grip on the Osmo is precisely engineered with materials selected for comfort and durability, and designed to ergonomically fir the palm of your hand. Conveniently placed buttons and controls keep important functions by your thumb for instant access.

Put your smartphone in the included phone holder to see what your camera and control it with a tap of your finger. Your phone is also the home of all the Osmo's powerful intelligent shooting modes.

Remote Control
All of these shooting modes can be controlled and triggered by remote control from within the DJI GO app on your smartphone. Mount the Osmo on a tripod, or any of the other available mounts, and take a few steps back to a position from where you can easily overlook the scene then control the camera when you're ready.

PERFECT VISION
The Osmo's Zenmuse X3 camera works as one with the stabilization system. It bring you 4K video at 24, 25 or 30 frames per second so you could even shoot for the big screen, and captures photos at 12 megapixels in Adobe DNG RAW opening up shots that you never thought possible before.

The Osmo is also compatible with the all-new X5 series of cameras, bringing you highly stabilized imaging with all the benefits of a large M4/3 sensor.

Accessorize
The Osmo supports a number of mounts and extensions so that you can use it in almost any situation. A tripod lets you set the Osmo down for added stability or long-distance control. The Bike Mount take the Osmo for a ride and an Extension Road opens up a range of brand new angles.

INTELLIGENT SLEEP MODE
Put down Osmo, and it automatically enters into sleep mode after a set amount of time. Entering sleep mode not only extends your Osmo's battery life, but also protects the advanced electronic inside for a long life. When you wake up Osmo, it's ready to go instantly, enabling you to capture life's moments as they happen.

AUDIO
An integrated microphone allows onboard audio recording. With advanced features like audio gain settings, you can be sure you're not only getting the shot but also capturing the sound. A standard 3.5mm port is also available, so you can plug into your own microphone.

SPECS
Handle
Dimensions

• 2.4 x 1.9 x 6.4 inches (61.8 x 48.2 x 161.5 mm)

Output Power (With Camera)
Static

• 9 W; Dynamic: 11 W

Angular Vibration Range:

• ±0.03°

Mount

• Detachable

• Controllable Range

Tilt

• - 35° to +135°

Pan

• ±320°

Roll

• ±30°

Mechanical Range
Tilt

• - 90° to +150°

Pan

• ±330°

• - 50° to +90°

Max Controllable Speed
Pitch:

• 120°/s

Camera
Model

• X3/FC350H

• Sony Exmor R CMOS;
• 1/2.3”

Effective pixels

• 12.40M (Total pixels: 12.76M)

Lens

• 94° FOV 20mm (35mm format equivalent)

• f/2.8

Focus

• 3.5m (suitable range 1.5m to infinity)

ISO Range

• 100-3200 (video);100-1600 (photo)

Electronic Shutter Speed

• 8s - 1/8000s (up to 30s when camera is on M mode)

Max. Image Size

• 4000 x 3000 pixels

Still Photography Modes

• Single Shot

Photo Burst Mode

• 3/5/7 shots

Auto Exposure Bracketing (AEB)

• 3/5 bracketed frames @ 0.7EV bias

• Interval

• Timelapse

• Auto Panorama

• Selfie Panorama

• Video Resolution

UHD

• 4K (4096 x 2160) 24/25p

• UHD 4K (3840 x 2160) 24/25/30p

• 2.7K (2704 x 1520) 24/25/30p

FHD

• 1920 x 1080 24/25/30/48/50/60/120p

HD

• 1280 x 720 24/25/30/48/50/60p

Video Recording Modes

• Auto;
• Slow Motion(FOV 47°)

Max. Video Bitrate

• 60 Mbps

Supported File Formats

• FAT32

Photo Formats

• JPEG,
• DNG

Video Formats

• MP4/MOV (MPEG-4 AVC/H.264)

Supported SD Cards

• Micro SD; Max. Capacity: 64 GB;

• Class 10 or UHS-1

Operating Temperature

• 32° to 104° F (0° to 40° C)

Audio Output

• Two channel, 48 KHz; AAC

• Wi-Fi Video Link

Operating Frequency

• 2.412-2.462 GHz; 5.180-5.805 GHz

Max. Transmission Distance

• 82 feet (25 m)

Transmitter Power (EIRP)

• 2.4 G: 8 dBm; 5 G: 12 dBm

Intelligent Battery
Model:

• HB01-522365

Type

• LiPo

Capacity

• 980 mAh

Energy

• 10.8 Wh

Voltage

• 11.1V

Charging Temperature

• 59° to 104° F (15° to 40° C)

Operating Temperature

• 14° to 122° F (-10° to 50° C)

Battery Charger
Model

• SOY015A-1260120

Input

• 100-240 V, 50/60 Hz

Output

• 12.6 V, 1.2 A

Compatible Device
Microphones (Confirmed)

• Sennheiser MKE400

• Sony ECM DS70P

• Rode VideoMic Pro

• Rode VideoMicro

• Mymyk Smartmyk

• DED DV-889

Description

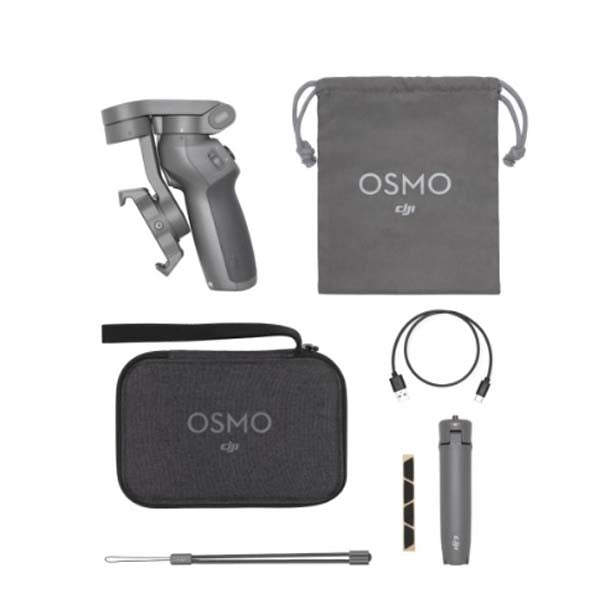

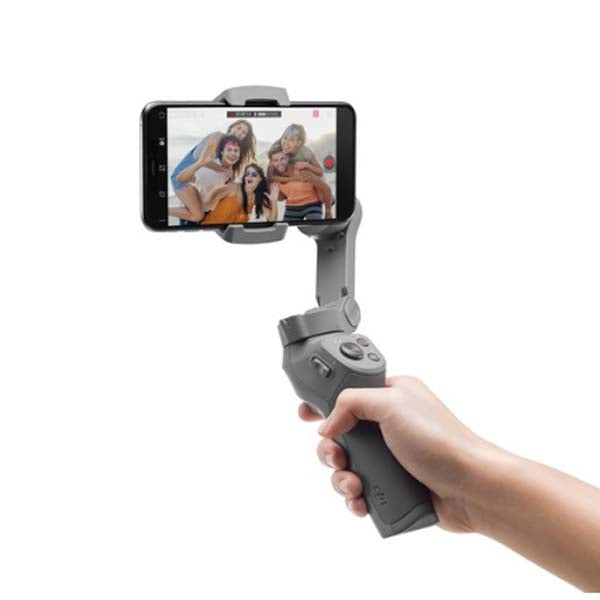

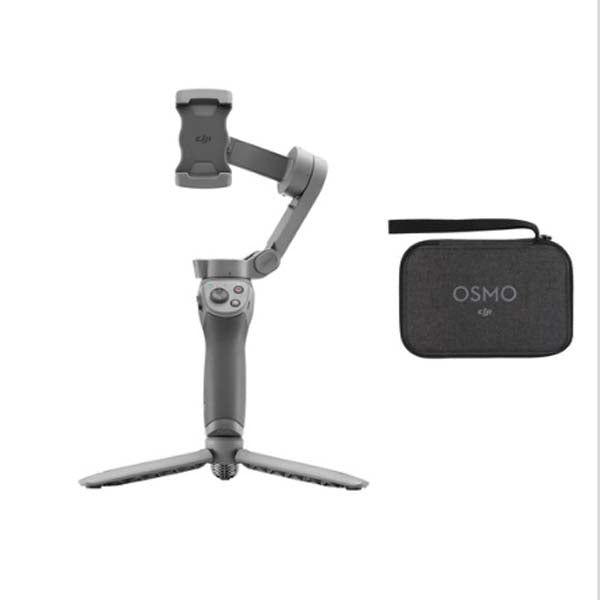

Offering the pinnacle of gimble innovation, the DJI Osmo Mobile 3 Combo features state-of-the-art technologies combined with an ergonomic, 15-degree angled grip and a foldable design, letting you take charge of your videography skills. This combo includes a handy carrying case and a tripod, so capturing moments is easier than ever.

Smooth Stabilisation

Combining a lightweight, highly responsive design, and a 3-axis gimbal, the DJI Osmo Mobile 3 Combo offers anti-shake benefits for your compatible device, so you get to capture images or record footages without motion blur getting in the way.

ActiveTrack Technology

Featuring ActiveTrack 3.0 technology, the Osmo Mobile 3 uses sophisticated computer algorithms to track moving subjects with precision as you record, making way for you to create stunning Hyperlapse videos.

Hands-free Convenience

Thanks to Mobile 3’s Gesture Control, you can easily snap a photo or record footages by gesturing to your smartphone while its Quick Roll feature lets your compatible device transition from portrait to landscape mode with a simple press of the M button and trigger.

Shooting Versatility

The Osmo Mobile 3 has a Panorama mode which captures the bigger picture with automatic, 180-degree, 3x3 scenes. It also has a Timelapse, Slow motion, and a Sport mode, allowing you to unleash your creativity in capturing your favourite moments.

Share Your Moments

Instantly share your photos and videos with loved ones on social channels via the DJI Osmo Mobile 3’s Story mode. In Story mode, you get to enjoy experimenting with one-tap templates that beautify your shots using music, transitions, filters, and other effects.

What's In The Box?

Add an extra microphone or an LED light to your Osmo 1.

OSMO+

A CLOSER LOOK

Get closer to your subjects then ever before with the DJI Osmo+. DJI's fisrst handheld gimbal with an integrated zoom camera. A 7x zoom, consisting of 3.5x optical and 2x digital lossless zoom*, give it a focal length ranging from 22mm to 77mm without sacrificing HD quality. This gives you more control over your composition then ever before.

REIMAGINE MOVEMENT
Motion without blur. Action shots without shake. Perfect video even when you move. Thanks to advanced technologies specifically designed to keep the camera flat no matter how you move it, the DJI Osmo helps you record videos and take photos like never before. It is much more than just a camera, it helps you create with more freedom than ever.

The WORLD IN 360 DEGREE
An Automatic Panorama mode makes shooting 360 photos easier than ever. Just hold Osmo up above your head and tap the shutter release. The camera will rotate, capturing images as it goes while staying completely level. Don't just get a snapshot of a piece of your travels, make a memory of the whole scene.

CAPTURE TIME
Osmo helos you record the passage of time more easily ever with its intelligent Timelapse modes. Whether moving through the hustle and bustle of Hong Kong's streets, exploring dense Brazilian rainforests, or recording daily life, you can capture timelapses automatically and smoothly without a tripod. For more advanced users, you can even use the Osmo as a motion control system to add a new dimension to timelapse creativity.

TRIPOD FREE LONG EXPOSURE
Take long exposure shots with absolute crispness and sharpness, even without a tripod. The stabilizaiton system in the Osmo keeps the camera totally still so you can freehand capture stills of up to 2 seconds. With practice, you can get even longer shots. Now you can capture night time cityscapes, or blur out your subject's background the moment inspiration strikes.

ADVANCED STABILIZATION
The DJI Osmo brings DJI's recognized leadership in camera stabilization down to the ground and into your hands. A 3-axis stabilization system completely integrated with the camera cancels out your movements in three directions so it stays even if your hands shake or wobble. This is the first time this technology is available in a camera you can hold.

POWER IN YOUR PALM
The grip on the Osmo is precisely engineered with materials selected for comfort and durability, and designed to ergonomically fir the palm of your hand. Conveniently placed buttons and controls keep important functions by your thumb for instant access.

Put your smartphone in the included phone holder to see what your camera and control it with a tap of your finger. Your phone is also the home of all the Osmo's powerful intelligent shooting modes.

Remote Control
All of these shooting modes can be controlled and triggered by remote control from within the DJI GO app on your smartphone. Mount the Osmo on a tripod, or any of the other available mounts, and take a few steps back to a position from where you can easily overlook the scene then control the camera when you're ready.

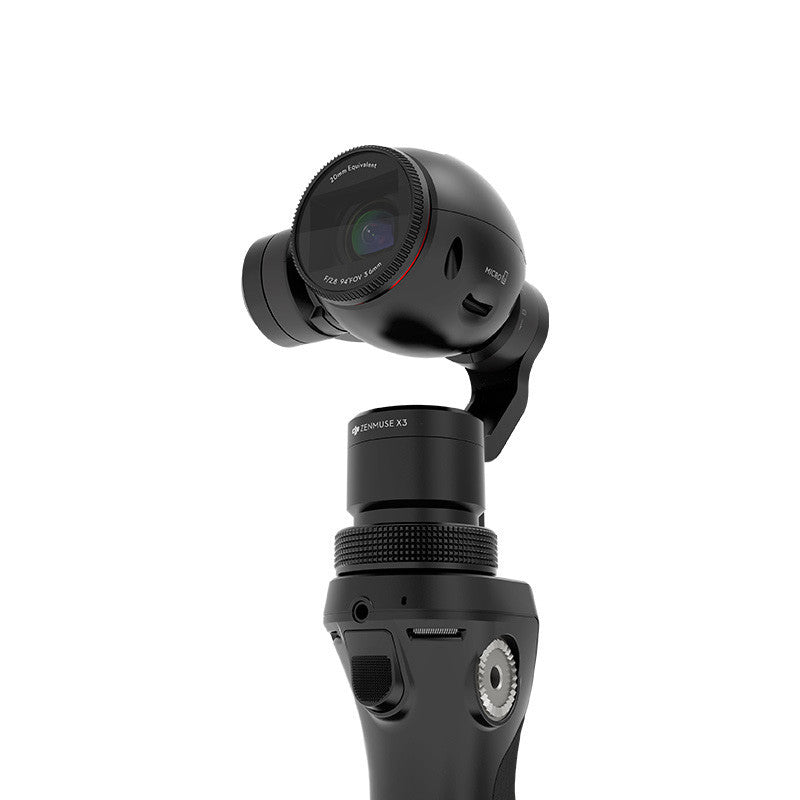

PERFECT VISION
The Osmo's Zenmuse X3 camera works as one with the stabilization system. It bring you 4K video at 24, 25 or 30 frames per second so you could even shoot for the big screen, and captures photos at 12 megapixels in Adobe DNG RAW opening up shots that you never thought possible before.

The Osmo is also compatible with the all-new X5 series of cameras, bringing you highly stabilized imaging with all the benefits of a large M4/3 sensor.

Accessorize
The Osmo supports a number of mounts and extensions so that you can use it in almost any situation. A tripod lets you set the Osmo down for added stability or long-distance control. The Bike Mount take the Osmo for a ride and an Extension Road opens up a range of brand new angles.

INTELLIGENT SLEEP MODE
Put down Osmo, and it automatically enters into sleep mode after a set amount of time. Entering sleep mode not only extends your Osmo's battery life, but also protects the advanced electronic inside for a long life. When you wake up Osmo, it's ready to go instantly, enabling you to capture life's moments as they happen.

AUDIO
An integrated microphone allows onboard audio recording. With advanced features like audio gain settings, you can be sure you're not only getting the shot but also capturing the sound. A standard 3.5mm port is also available, so you can plug into your own microphone.

MOVING SELFIES

A focal distance that starts from just 0.5meters means you are perfectly in focus when shooting an action selfie. Just triple tap the trigger button to enter Selfie Mode and start shooting.

LONG EXPOSURE

Take long exposure shots with absolute crispness and sharpness, even without a tripod. The stabilization system in the Osmo+ keeps the camera totally still so you can freehand capture long exposures.

IN THE BOX

SPECS
Handle
Dimensions

• HANDLE

  Dimensions	2.4x1.9x6.4 inches (61.8x48.2x161.5 mm)
  Weight (including battery)	201 g
  Supported Mobile Device	Max Size: 6.2 (L) x3.1 (W) inches 158.2 (L) x 77.9 (W) mm

  CAMERA

  Model	X3 ZOOM / FC350Z
  Sensor	1/2.3” CMOS Effective pixels:12.40 M (Total pixels: 12.76 M)
  Lens	3.5× Optical Zoom 22 - 77mm Equivalent F2.8 (Wide) - F5.2 (Tele) FOV 92° (Wide) - 35° (Tele)
  Focus	0.5 m to infinity
  ISO Range	100-3200 (video); 100-1600 (photo)
  Electronic Shutter Speed	8 s-1/8000 s (up to 30 s when camera is in M mode)
  Max. Image Size	4000 x 3000 pixels
  Still Photography Modes	Single Shot Photo Burst Mode: 3/5/7 shots Auto Exposure Bracketing (AEB): 3/5 bracketed frames @ 0.7 EV bias Interval Auto Panorama Selfie Panorama 9-shot Panorama Motion Timelapse Regular Timelapse
  Video Resolution	C4K (4096×2160) 24/25p 4K (3840×2160) 24/25/30p 2.7K (2704×1520) 24/25/30p FHD: 1920×1080 24/25/30/48/50/60/100p
  Video Recording Modes	Auto; Slow Motion
  Max. Video Bitrate	60 Mbps
  Supported File Formats	FAT32(≤32 GB); exFAT (>32 GB)
  Photo Formats	JPEG, DNG(RAW)
  Video Formats	MP4/MOV (MPEG-4 AVC/H.264)
  Supported SD Cards	Micro SD; Max. Capacity: 64 GB; Class 10 or UHS-1
  Operating Temperature	32° to 104° F (0° to 40° C)
  Audio Output	48 KHz; AAC

  INTELLIGENT BATTERY

  Model	HB02-542465
  Type	LiPo
  Capacity	1225 mAh
  Energy	14.1 Wh
  Voltage	11.55 V
  Charging Temperature	41° to 104° F (5° to 40°C)
  Operating Temperature	32° to 104° F (0° to 40°C)

  FLEXI MICROPHONE

  Sensitivity	-32 ± 3 dB (0 dB = 1V/Pa)
  Frequency Response	100 -10000 Hz
  Signal-to-Noise Ratio	60 dBA
  Pin Diameter	3.5 mm
  Length	88 mm
  Weight	4 g

  GIMBAL

  Model	Zenmuse X3 Zoom
  Weight	268 g
  Output Power (with camera)	8 W
  Angular Vibration Range	±0.02°
  Mount	Detachable
  Controllable Range	Tilt: -35° to +135° Pan: ±320° Roll: ±30°
  Mechanical Range	Tilt: -50° to +140° Pan: ±330° Roll: - 50° to +90°
  Max Controllable Speed	120°/s

  WI-FI VIDEO LINK

  Operating Frequency	2.412-2.462 GHz; 5.180-5.805 GHz
  Max. Transmission Distance	2.4G: 82 feet (25 m); 5G: 328 feet (100 m)
  Transmitter Power (EIRP)	2.4G: 8 dBm; 5G: 12 dBm

  BATTERY CHARGER

  Model	OS1C11
  Input	100-240 V; 50/60 Hz
  Output	12.6/13.2 V, 0.8 A

  COMPATIBLE DEVICE

  Microphones (Confirmed)	Sennheiser MKE400 Sony ECM DS70P  Rode VideoMic Pro Rode VideoMicro Mymyk Smartmyk DED DV-889

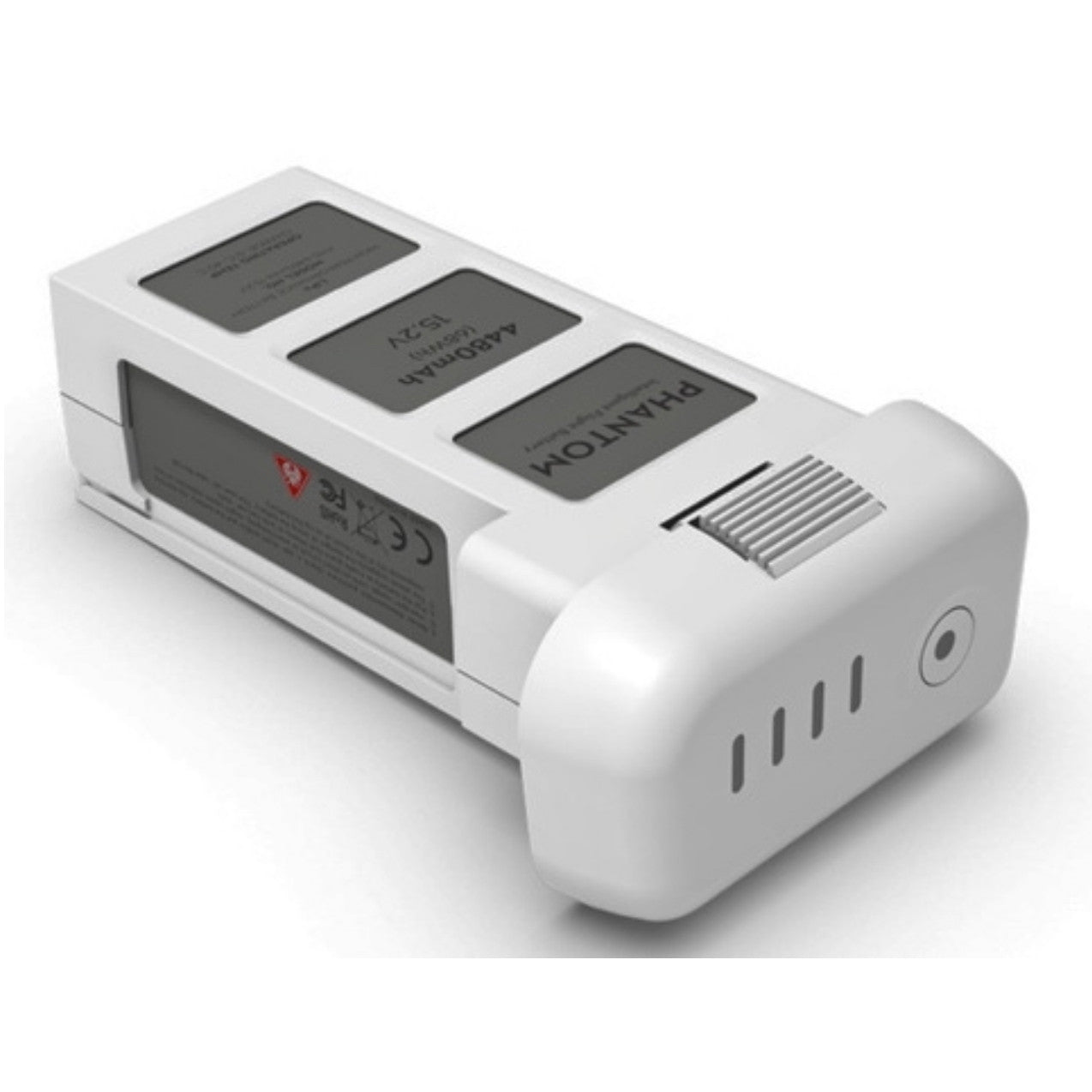

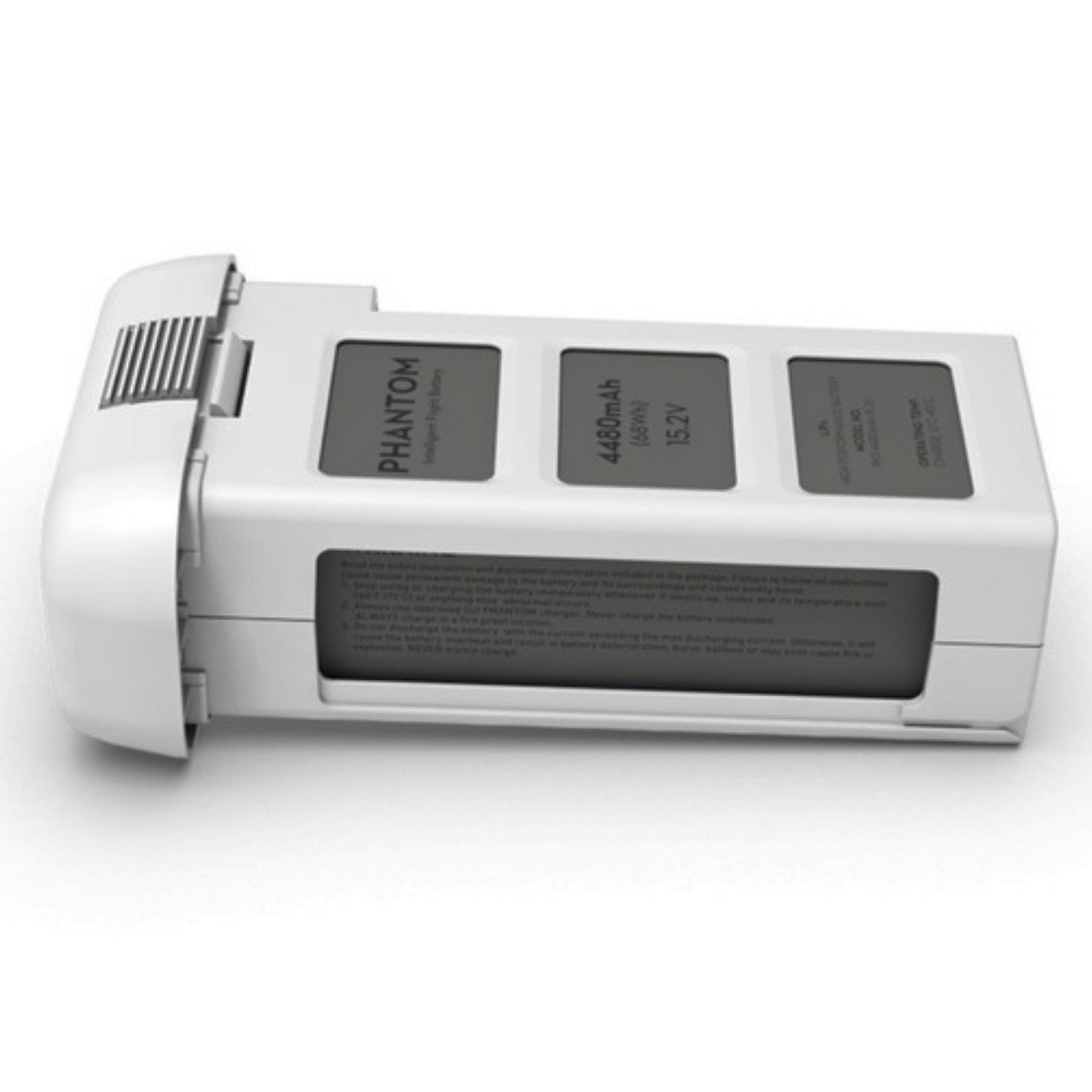

The new generation DJI Intelligent Flight Battery is a 4480mAh, 15.2V LiPo 4S battery that is specifically designed for the DJI Phantom 3 series. This is the genuine DJI battery and will NOT fit a Phantom 2.

Highlights

Battery Charging

• Product Highlights

  • For DJI Phantom 4 Pro/Pro+ Obsidian
  • Quick Mounting and Releasing from Rotors

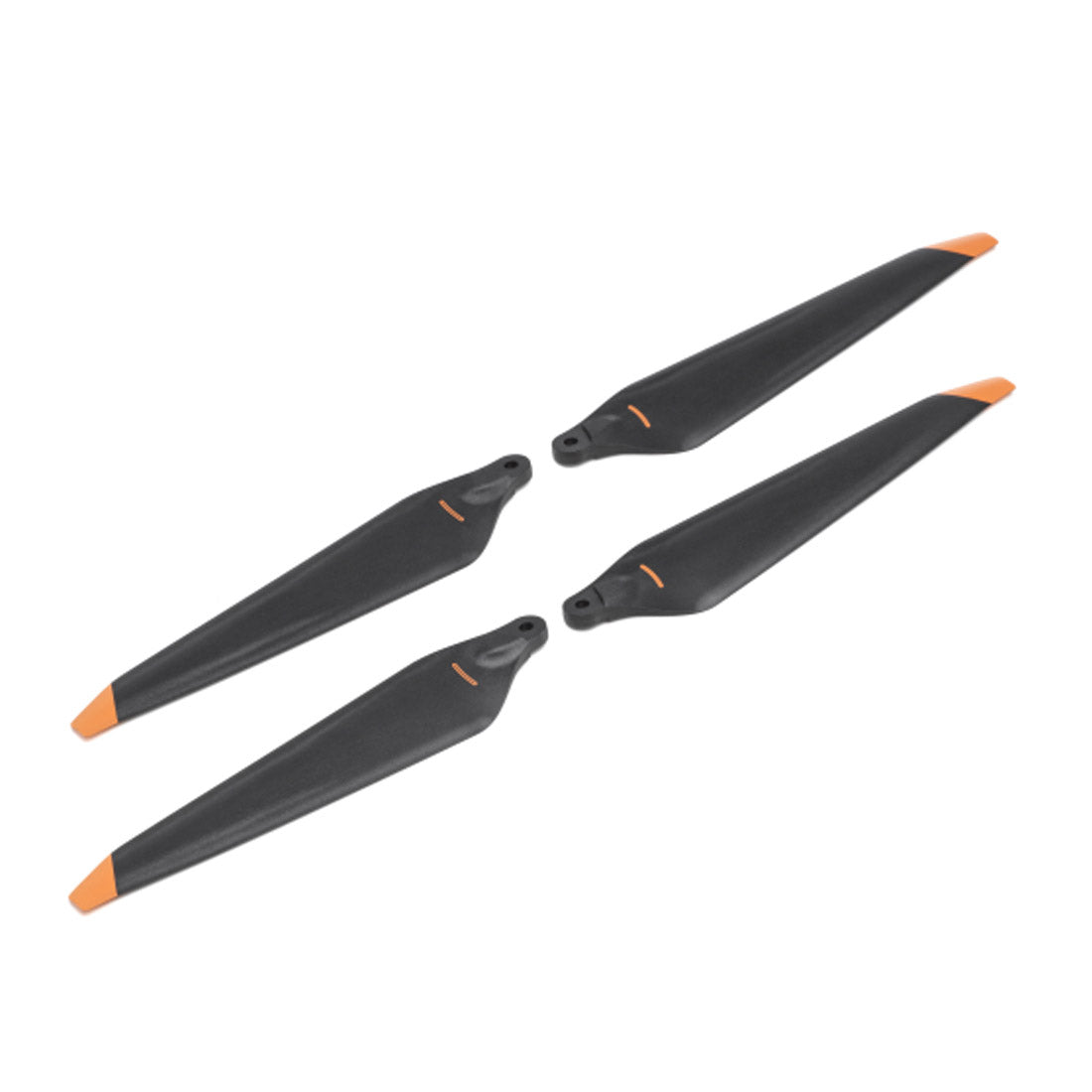

  • 2 Set of 2 Propeller Blades (CW and CCW)
  -A; 5 V, 2 A

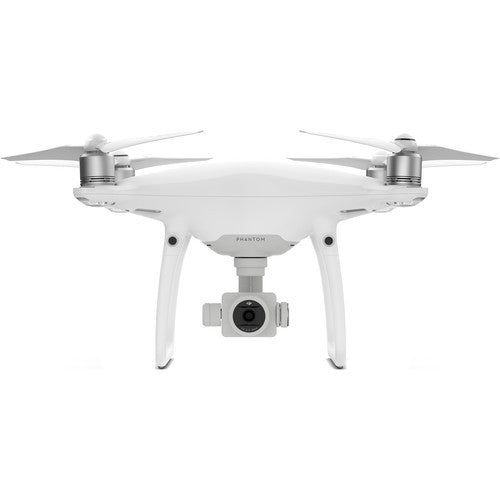

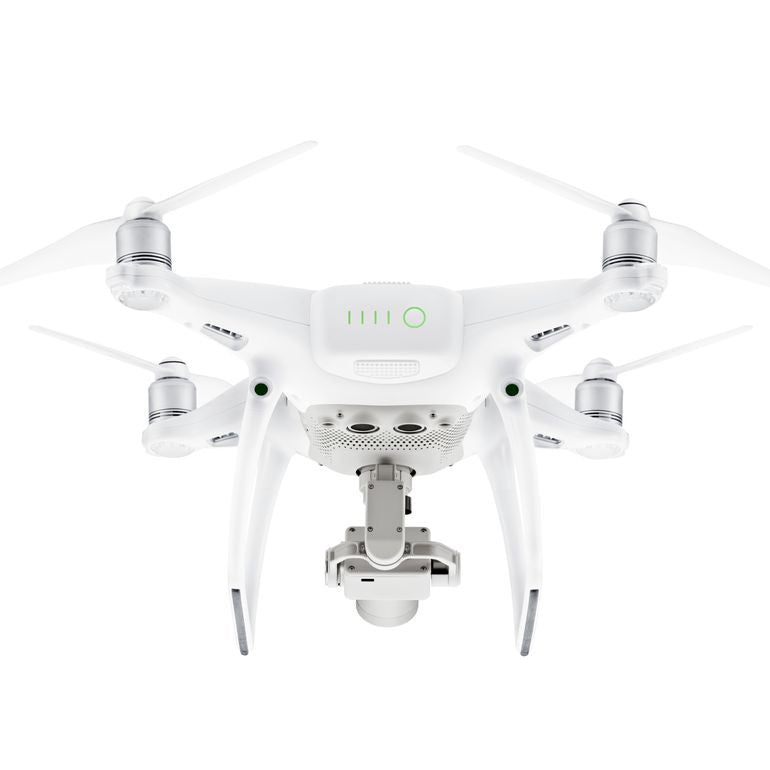

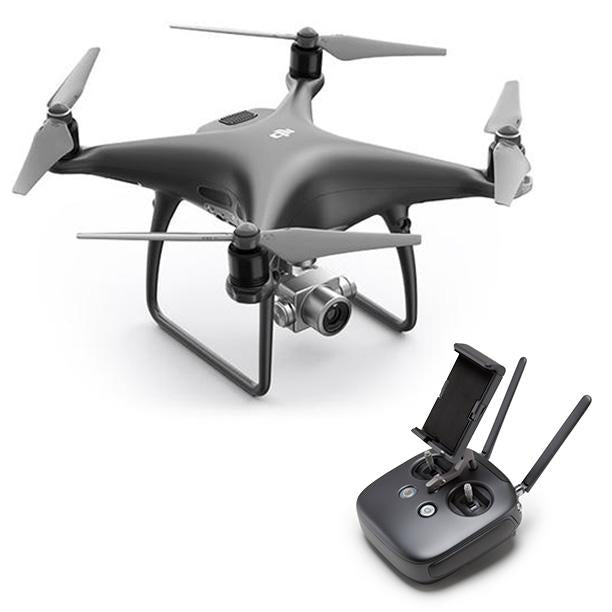

DJI’s Phantom quadcopter range has always included quality cameras that get the job done. DJI’s latest release, the Phantom 4 Pro completely eclipses this. The Phantom 4 Pro boasts a professional-grade camera with capabilities significantly greater than any of its predecessors.

This new Phantom 4 Pro V2.0 features an OcuSync HD transmission system, which supports automatic dual-frequency and switching and connects to DJI Goggles wirelessly. LIke the Phantom 4 Pro and Advance, the Phantom 4 Pro V2.0 is equipped with a 1" 20MP sensor capable of shooting 4K/60fps video and burst mode stills at 14 fps. Plus, its FlightAutonomy system includes dual rear vision sensors and infrared sensing systems for a total of 5 directions of obstacle sensing and 4 directions of obstacle avoidance.

The camera contains a 1” CMOS sensor (4 times larger than the Phantom 4 camera sensor) capable of 4K video at 60fps and improved low light performance. The larger sensor size results in a greater dynamic range. This means the camera will be better able to balance and resolve differences between light and dark. This is a common problem in aerial footage, when you often have a brightly lit sky against dark terrain below.

Many drone cameras also struggle with the ‘rolling shutter’ effect, which can give a jello-like shake to footage, especially when filming quick pans or chasing fast-moving subjects. The mechanical shutter of the Phantom 4 Pro helps eliminate this.

The added ability to adjust the lens aperture gives filmmakers greater control over depth of field in their images. The electronic shutter has also been improved with a max shutter speed of 1/8000-second.

The 20MP camera can now shoot 14 photos per second in burst mode and capture slow motion video at 60 frames per second.

The Phantom 4 Pro camera has an aerial-optimized f/2.8 wide-angle lens with a 24 mm equivalent focal length. It features eight elements that fit into a smaller, more compact frame. Images are consistently detailed with low distortion, ensuring photos and videos are sharp and vivid.

Improvements to the onboard camera are not the only upgrades for the Phantom 4 Pro. Other features include:

• Remote controller includes screen with 5.5" built-in 1920x1080 display
• The new Phantom 4 Pro V2.0 features an OcuSync HD transmission system
• 1" 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps
• FlightAutonomy system includes dual rear vision sensors and infrared sensing systems for a total of 5 directions of obstacle sensing and 4 directions of obstacle avoidance
• Aircraft noise has been reduced by up to 4dB* (60%) for quieter, more enjoyable flights
• Free from cable constraints, you can enjoy exciting FPV flight at speeds of up to 72kph (45mph) in S-mode
• The Phantom 4 Pro V2.0 wirelessly connects to DJI Goggles, putting you directly in the heart of the action with dual LTPS displays that offer a high-quality 1080p live camera view with an 85° FOV
• 3-axis Gimbal (pitch, roll, yaw)
• 30-minute flight time

The Phantom 4 Pro v2.0 includes all of the revolutionary Intelligent Flight Modes introduced in the Phantom 4, as well as a few new ones. These include:

Draw

With Draw, simply draw a route on screen and the Phantom 4 Pro will move in that direction while keeping its altitude locked. This allows the pilot to focus on camera control and enables more complex shots. There are two Draw modes that can be used in different scenarios:

Standard: The aircraft follows the route at a constant speed with the camera facing in the direction of flight.

Free: The aircraft only moves along the route when instructed. In this mode, the camera can face in any direction during a flight.

Gesture Mode

With Gesture Mode, computer vision technology allows the Phantom 4 Pro to take instructions through gestures. The subject simply lifts their arms when facing the camera and the aircraft will recognize this movement by locking on and placing the subject in the centre of the frame. When ready for a photo, the subject holds their arms out to signal the aircraft. A three-second countdown will begin, making time to strike a pose, allowing moments to be captured without the remote control.

ActiveTrack

Following fast-moving objects can be very challenging, but advanced, image-recognition algorithms used by the Phantom 4 Pro allow it to recognize and track an object while keeping it in the frame. This algorithm also recognizes a range of subjects, from people to vehicles to animals, and will adjust its flight dynamics to match, ensuring smoother shots.

TapFly

Fly in any direction visible on-screen with a simple tap. Tap anywhere on-screen to smoothly adjust the direction of flight while automatically avoiding obstacles and tap the screen again or use control sticks to change direction.

An AR route function shows the aircraft's real-time flight direction for reference as its route is adjusted. As it can be difficult to control altitude, course, speed and camera pitch simultaneously using joysticks, TapFly Free allows a pilot to set the direction of flight, allowing them to turn the Phantom 4 Pro or tilt the gimbal as required without changing the direction of flight.

Return to Home

In its Return to Home mode, the Phantom 4 Pro can automatically choose the best route to return home depending on environmental conditions. It records its route as it flies, allowing it to return along the same route avoiding obstacles if the control signal is disconnected.

Based on its altitude at the time of disconnection, the Phantom 4 Pro is also able to adjust its flight path to avoid obstacles it has seen during its flight.

At takeoff, the Phantom 4 Pro will record the scene below and compare its recording with what it sees as it returns, for more precise landing.

It can also detect the ground to see whether there is a suitable spot for landing. If any obstacles are found, or there is water on the ground, it will alert the pilot and hover at an appropriate height, helping the aircraft to land more safely.

With this new camera, this Phantom easily surpasses all previous Phantoms. Check out the Phantom 4 Pro introductory video.

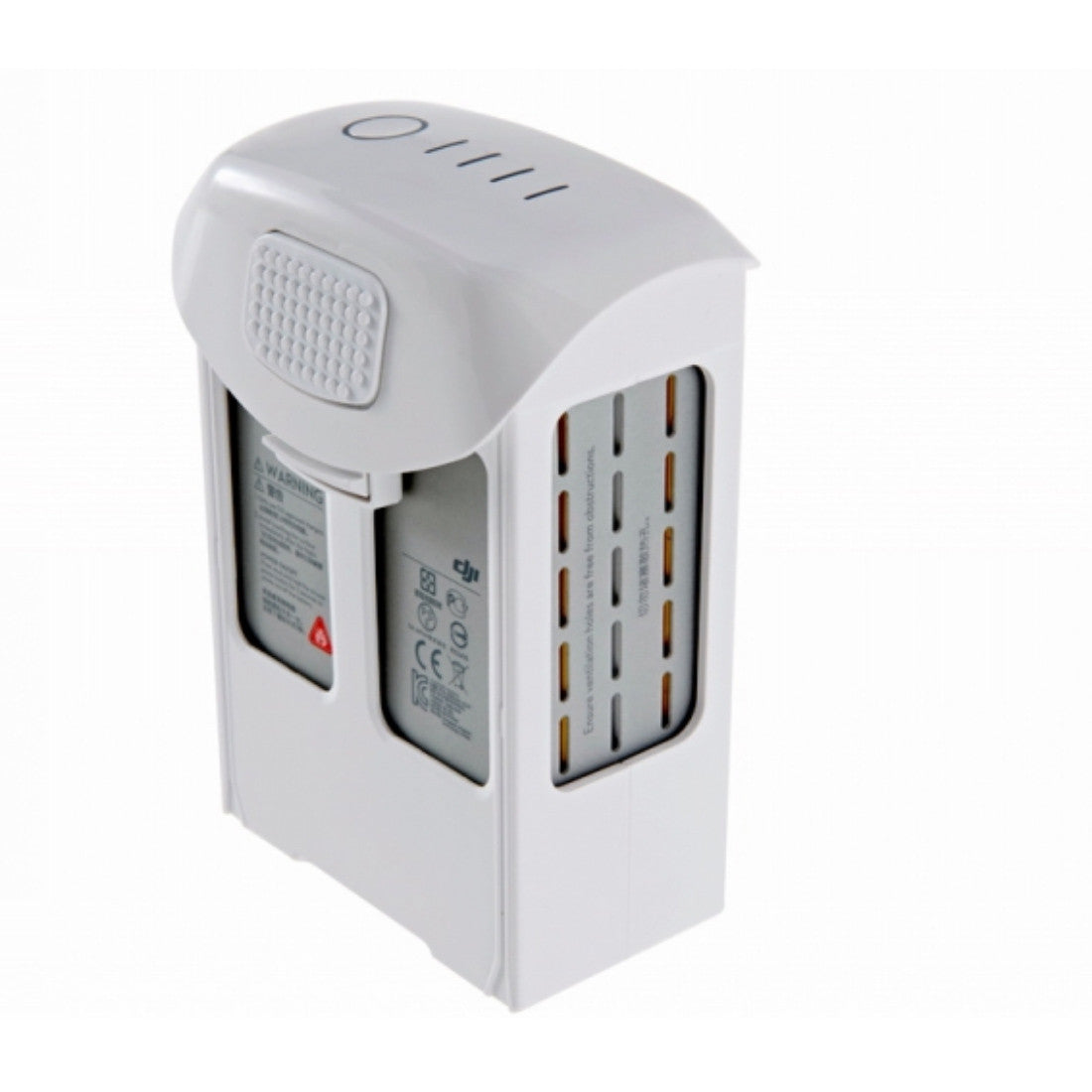

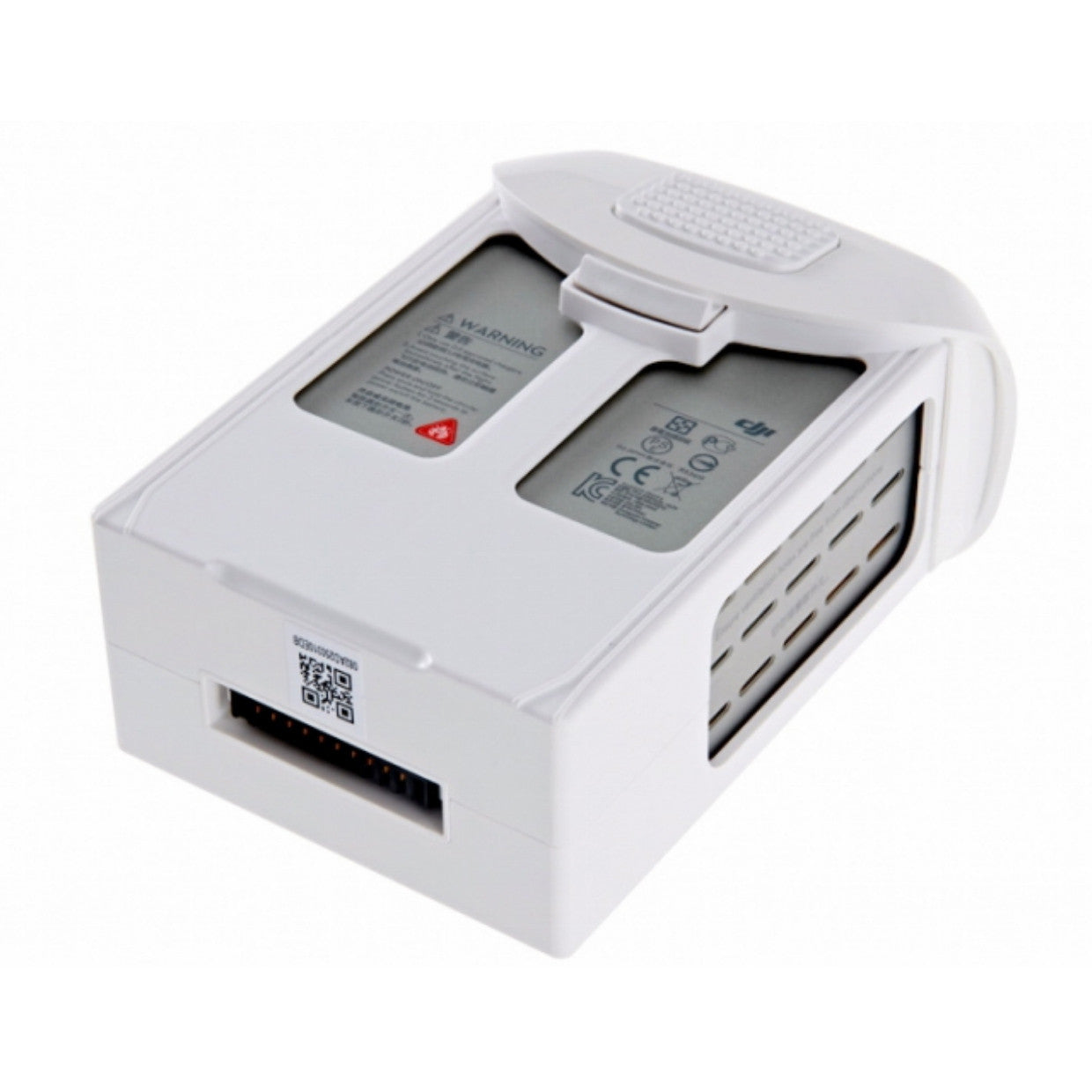

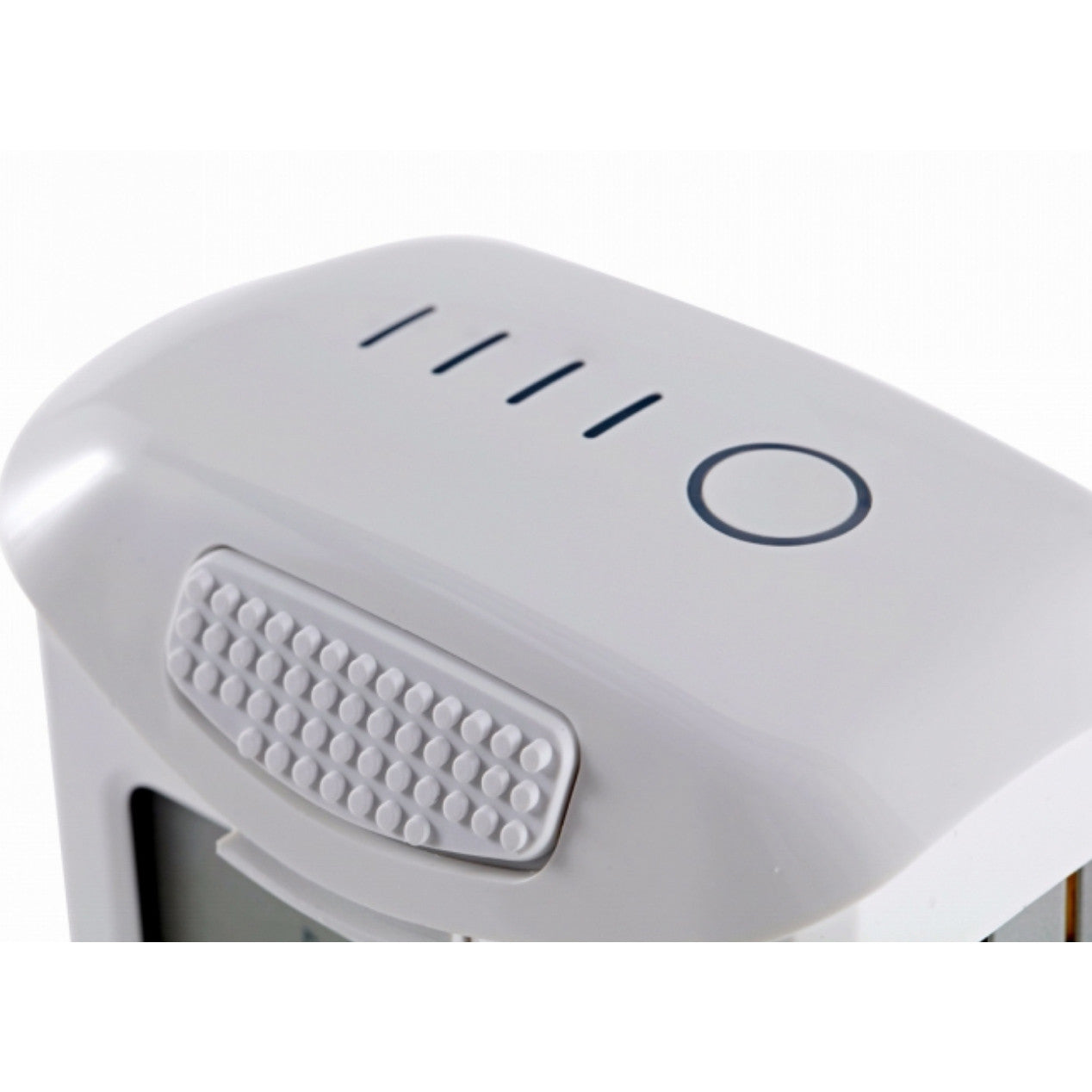

The DJI Phantom 4 Intelligent Flight Battery is a 5350mAh, 15.2V, 4S LiPo battery, specifically designed for optimal performance in the Phantom 4 and Phantom 4 Pro.

The battery has built-in sensors and bright LEDs that let you know its status and remaining power in real time.

It can only be charged using a Phantom 4 charger.

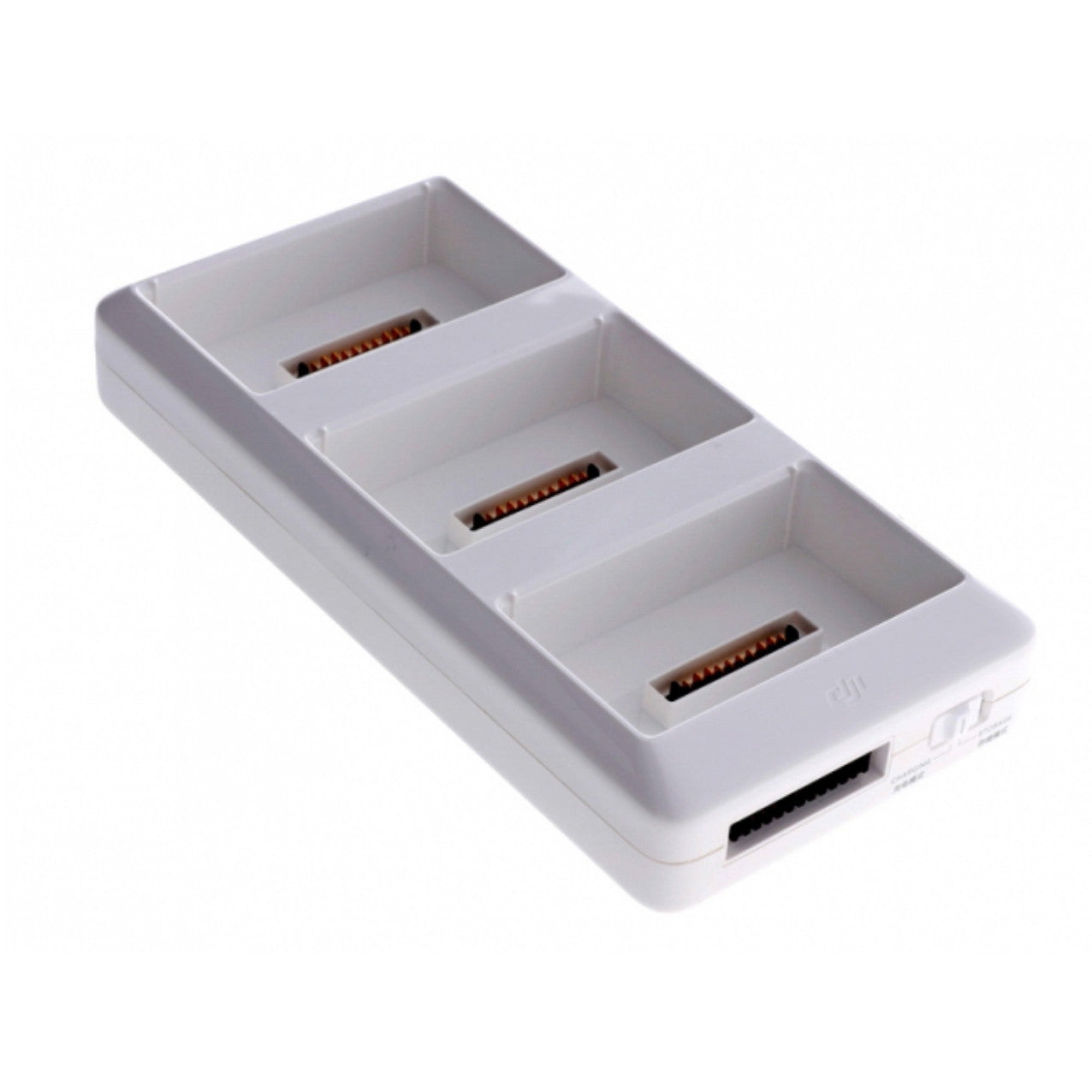

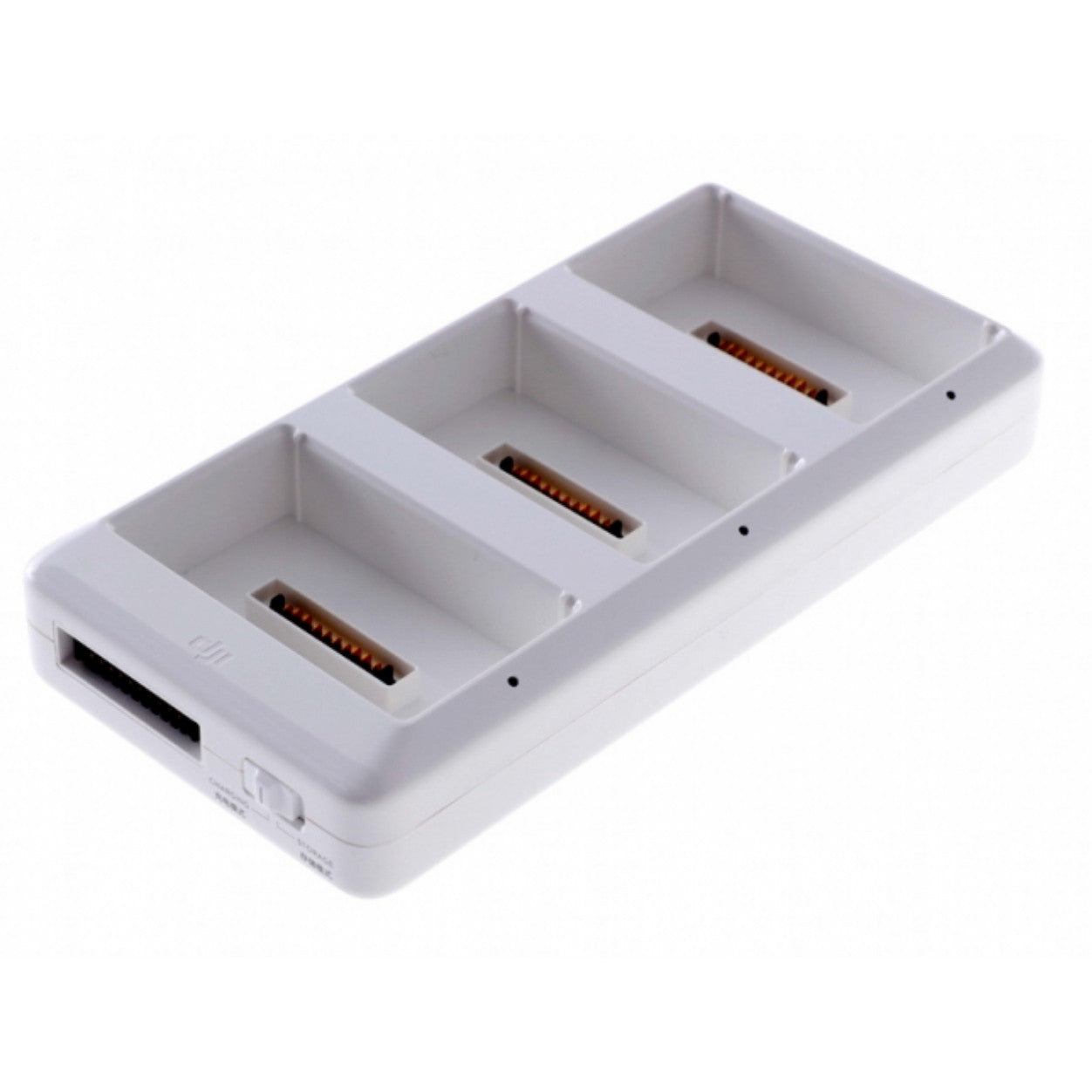

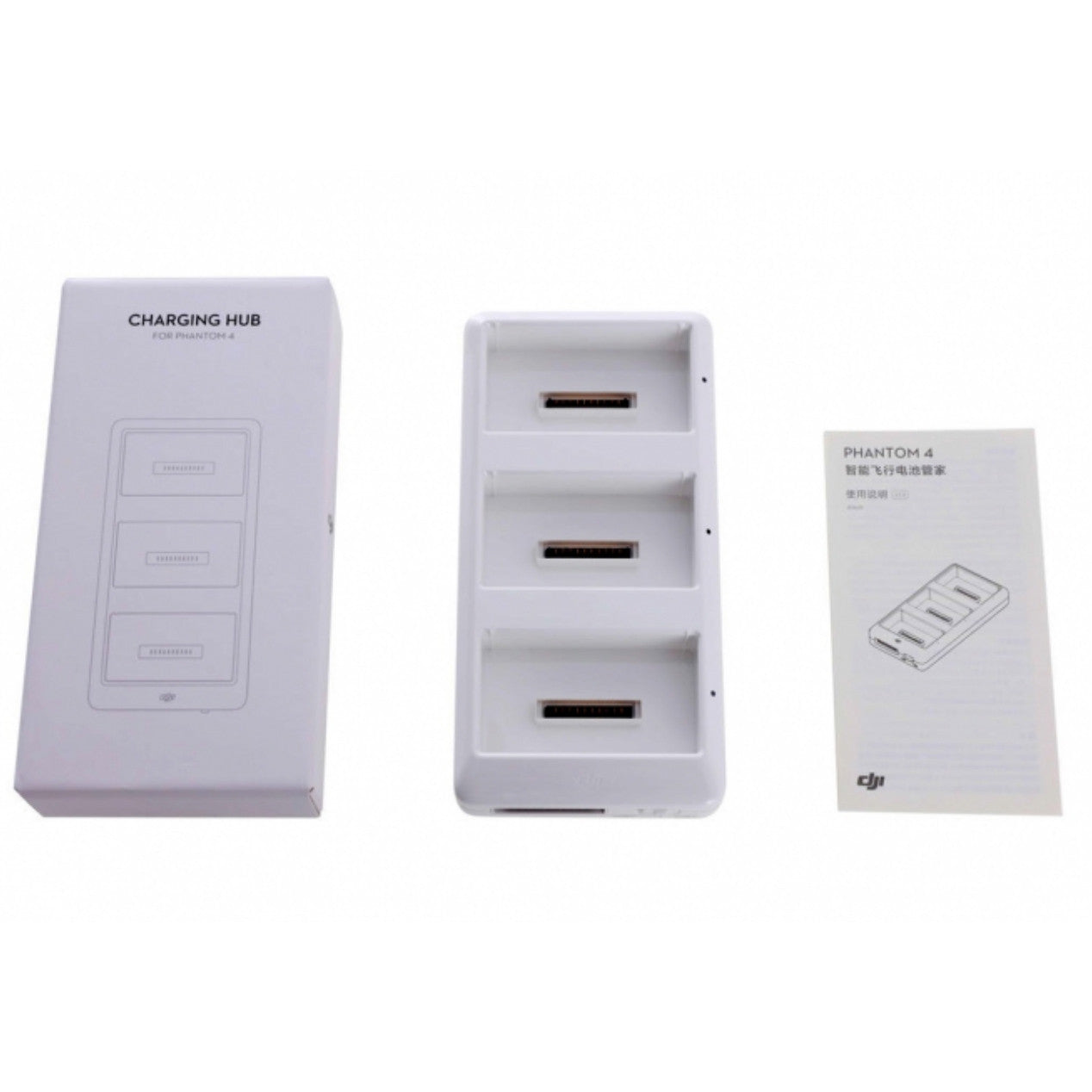

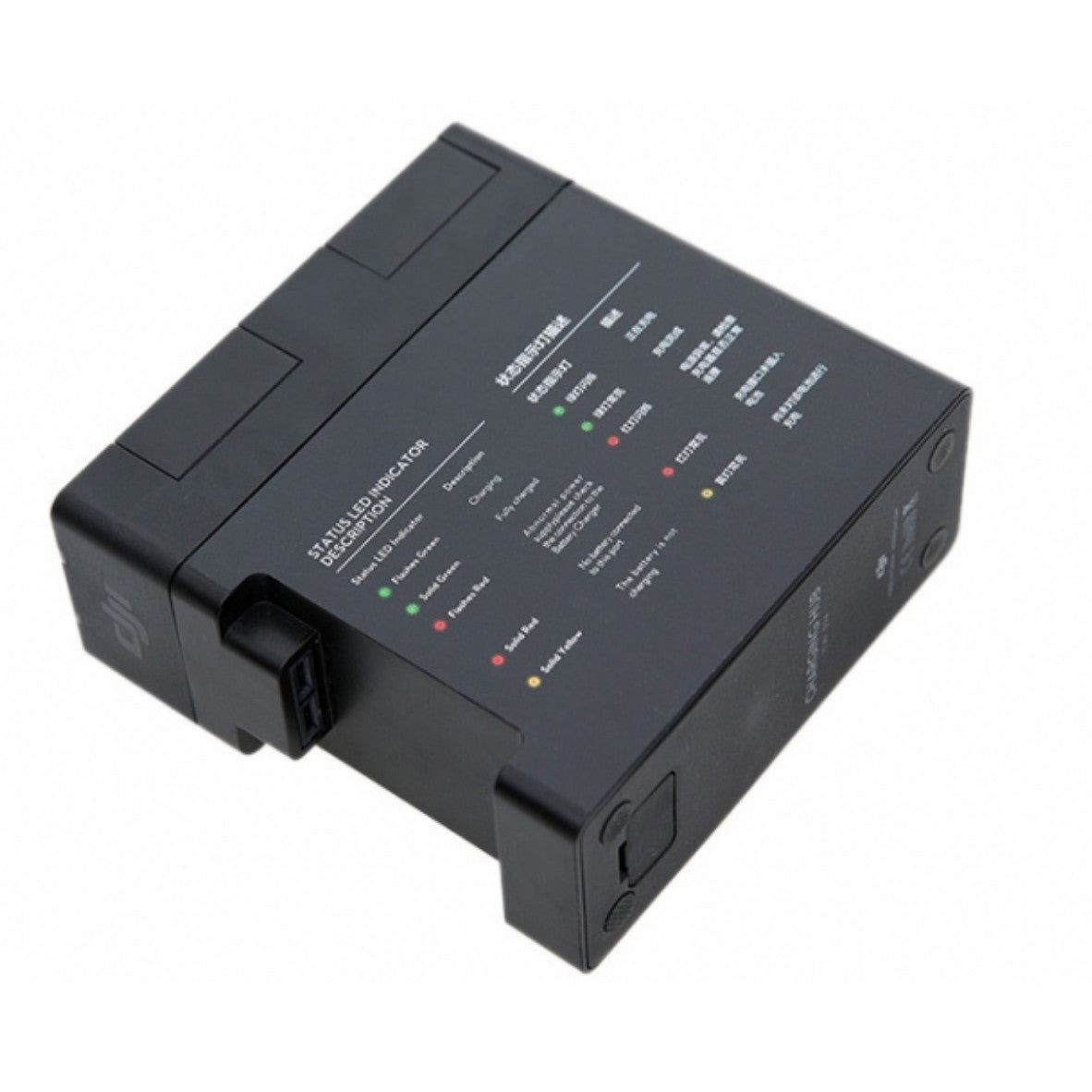

The P4 Triple Battery Charging Hub, when connected to your regular Phantom 4 Charger, can fully charge up to three batteries in sequence.

But unlike previous DJI multi-charger hubs, it includes a selectable Storage Mode which sets a battery storage charge of 50%, the safest level to store all LiPo batteries.

And the really neat trick is that it will both charge AND discharge to reach that level, depending on the existing charge of each battery. For example, if you select Storage Mode and insert three batteries - one at 20%, one at 40% and one at 90% - it will automatically charge the first two and discharge the last one until all are at 50%.

In addition, if all batteries require discharge only, the device doesn't even need to be connected to power! Just turn on the batteries and leave them in the slots - they will turn off when they hit 50%.

This is great news for owners who want to get the maximum possible flights out of their expensive batteries without the messing around to partially charge and discharge them.

The Hub is compatible with Phantom 4 and Phantom 4 Pro batteries.

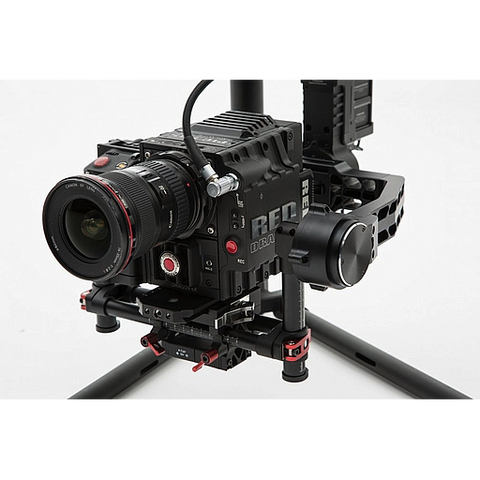

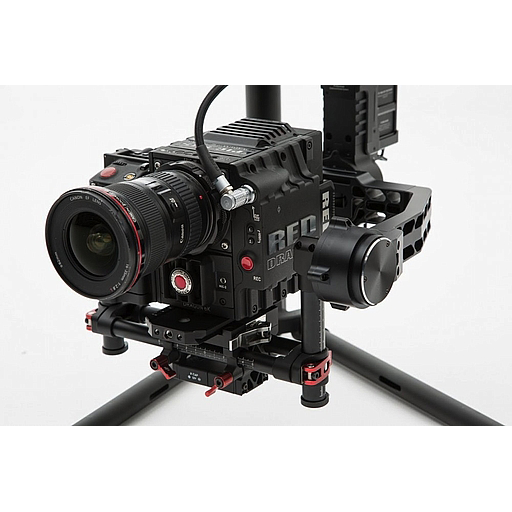

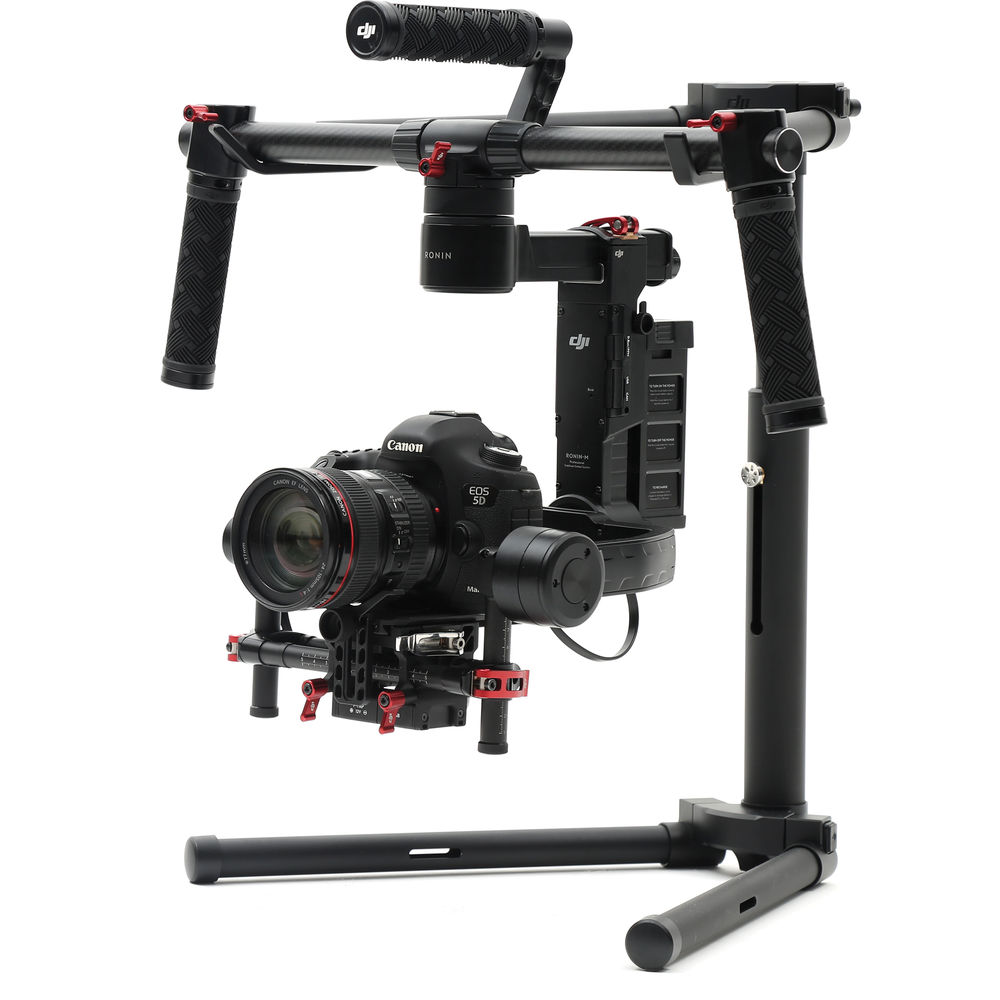

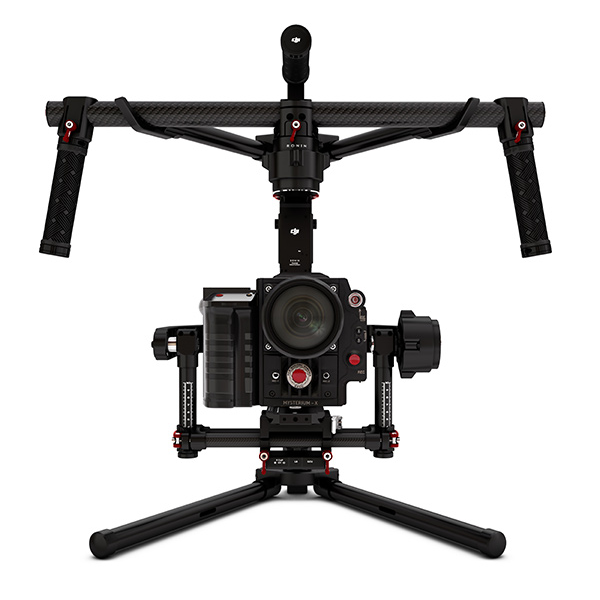

3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM
Developed for the filmmaking professional, the DJI Ronin marks a generational leap in camera stabilization technology. Its custom sensors, powerful motors and advanced algorithms put world-class precision in your hands.

SAVE TIME ON SET
Once your camera is configured, the Ronin can be ready to shoot in as little as 5 minutes, saving time and increasing efficiency on set. The built-in ATS (Auto Tune Stability) technology intelligently tunes Ronin to your camera rig at the touch of a button.

SMOOTHTRACK CONTROL
Transform tilt and pan movements on the Ronin into smooth and stabilized camera angle chanes.

3 OPERATION MODES
3 differnet modes of operation allow the Ronin to be used in different scenarios, all of which can be entered without changing settings on the Ronin Assistant app or a 2nd operator remote. SmoothTrack fun ctionality remains in all three modes.

1 UPRIGHT MODE

Flip the gimbal over to bring the camera closer to eye level for a higher perspective without straining to fit it. Use this mode when sticking the Ronin out of a car's sunroof or when trying to shoot over a crowd of people.

2 UNDERSLUNG MODE

The default gimbal operation is the Underslung mode. The camera can be comfortably held low to the ground, at chest level or anywhere in between. This is also used when the Ronin is suspended from a camera jib or crane.

3 BRIEFCASE MODE

When a slimmer gimbal profile is needed, i.e when moving through doorways or narrow paths, briefcase mode is deal, it allows the gimbal to be held to the side close to the legs, much like a briefcase.

EXTREMELY DURABLE, HIGH BUILD QUALITY
Made from precision machined aircraft-grade aluminum, the Ronin offers the durability to withstand rugged use on set and meet the high demand for reliability. No loose cables or zip ties give it a clean, professional appearance.

MOBILE BLUETOOTH ASSISTANT SOFTWARE
The feature-rich iOS and Android DJI Assistant software allows easy setup of all system configurations. The PC and Mac Assistant also provides control of all the Ronin's functionalities in addition to firmware upgrades for future features.

SIMPLE 5-MINUTE SETUP
With a little practice, the Ronin takes less than 5 minutes to set up and balance whenever the camera configuration is changed. This saves time, making the Ronin more efficient in professional envirnments where every second counts. The built-in ATS (Auto Tune Stability) technology intelligently tunes the Ronin to your camera a rig at the touch of a button.

SUPPORTS A MULTITUDE OF CAMERAS AND LENSES
The Ronin is not customized for any specific camera, it can be easily adjusted to carry everything from small & light M4/3 cameras to heavier systems like the Red Epic.

BASED ON ZENMUSE TECHNOLOGY
The DJI Zenmuse gimbals were the first commercially available system in the world to utilize brushless motor technology for professional filming and aerial photography. The Zenmuse gimbal line has long been a benchmark that others have been measured against. The Ronin is based off the same technology and also offers multiple control modes, a built-in IMU, and customized direct drive brushless motors.

2ND OPERATOR CONTROLLER
An included 2nd operator transmitter allows a 2nd operator to pan, tilt, and roll independent of the Ronin's movement. SmoothTrack speeds and operation modes can be assigned with 2 custom toggle switches on the transmitter.

HIGH PERFORMANCE PROCESSING POWER
A customized, advanced 32-bit floating point DSP processor offers more efficiency than an ARM processor, for faster processing of signals from the onboard encoders.

HIGH TORQUE, PRECISION CONTROLLED MOTORS
Motors have been developed with the high performance Ronin in mind. Using FOC control, you can count on high precision, low vibration, and increased torque. Digital Absolute Positioning Encoders in each axis provide the highest levels of accuracy. This combination of custom motor modules and features is found in no other system.

BUILT-IN RECEIVER & REMOTE CONTROL
A built-in DJI receiver allows the Ronin to be remotely controlled by a 2nd operator. The gimbal operator can focus on gimbal movement while the 2nd operator pays attention to camera movement. 2nd operator mode is also useful for gimbal control when working with flying platforms for aerial cinematography. A D-Bus port is also included if a non-DJI receiver is required.

QUICK RELEASE TOP HANDLE BAR
The top bar features a quick release system allowing easy attachment and detachment for repaid setup and break down. The same attachment can be used for vehicle or multi-rotor mounting.

QUICK SWAP INTELLIGENT BATTERY
The Ronin's customized intelligent battery is easy to install and simple to charge with the provided charger. Remaining power can be checked directly on the battery. Overcharge and over depletion protection is built-in, as is individual battery cell charge balancing. Expected run time is approximately 6 hours, depending on the camera rig and gimbal usage.

POWER DISTRIBUTION BOX
Two regulated 12V P-taps, one 500mAH full size USB connector, and also a connection point for the DJI Light bridge Long Range HD Video Downlink are provided. This offers convenient power connection for various accessories including follow focus system, HD video downlinks and others, all while keeping the wiring to a minimum.

DUAL 15MM RODS FOR FOLLOW-FOCUS ACCESSORIES
Follow focus systems and matte boxed can be easily mounted on the Ronin using industry standard dual 15mm segmented rods. The segmented rods allow for customization of different lengths, dependent on camera and lens setup.

PROTECTIVE CARRYING CASE
An extremely strong, durable and water tight carrying case with rolling wheels provides easy transportation. Dense custom cut EPP foam protects the Ronin and accessories.

AUTO CONFIGURATION
After balancing a camera rig, simply tap the Auto Tune Stability button to tune the Ronin for use. It will intelligently adjust parameters based on your camera rig's weight and independently adjust each individual axis until an optimal setting is found. Auto Tune Stability also fine-tunes other aspects of control system, making balancing fast and easy.

SMOOTHTRACK TUNING
Tune each individual speed to your preference. SmoothTrack provides movement translation based off the Roin operator's movement. As the Ronin operator pans or tilts the gimal, the camera orientation will pan and tilt in the direction the gimbal is moved and then ramp down in speed. This pan and tilt movement speed can be independently adjusted using software. Translated movement acceleration can also be fine tuned as well. If the Ronin operator needs to pan or tilt rapidly between two positions and the standard speed isn't sufficient, an accelerated speed can be adjusted without affecting slower movements.

REMOTE OPERATOR CONTROL
Full configuration of the transmitter can be accomplished through the DJI Assistant. Features such as control speed, remapping of what the control joysticks do, and also end-point adjustments can be configured through Assistant.

RONIN STATS
The Ronin's vital stats can also be viewed on the Assistant app. Key items such as motor power, pan-tilt-roll axis's degrees of movement, electronics' temperature monitoring, as well as remaining battery life.

FIRMWARE UPGRADABLE
All unis shipped will have the latest firmware, but due to our continuous drive to innovate, firmware updates will be made available online for improved performance and future features.

PRECISE FOCUS CONTROL
Use the Ronin with the DJI Focus for wireless control of focus or aperture from anywhere on a set.

SPECS
GENERAL
Built-in Functions

• Three Operation Modes
  · Underslung Mode
  · Upright Mode
  · Briefcase Mode
• Built-in independent IMU module
• DJI Specialized Gimbal Drive Motors with Encoders
• Bluetooth Module
• USB Connection
• 2.4GHz Receiver
• Temperature Sensor
• DJI Advanced 32-Bit DSP Processor
• D-Bus Supported

MECHANICAL & ELECTRICAL CHARACTERISTICS
Working Current

• Static current: 300mA (@16V)
• Dynamic current: 600mA (@16V)
• Locked motor current: Max 10A (@16V)

Operating Temperature

• -15°C ~ 50°C (5°F ~ 120°F)

Weight

• 4.20kg (9.26lbs) fully loaded with handlebar

Gimbal Dimensions

• 620mm(W) x 280-380mm (D)x 500mm(H)

Supported Camera Dimensions

• Maximum depth at center of mass on camera base plate: 140mm
• Maximum height measured from top of camera base plate: 225mm
• Maximum width: 195mm

PERIPHERAL
Accessory Power Connections

• 12V regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1

GCU Input Power

• 4S Ronin Battery

Connections

• 2.4GHz Remote Control, Bluetooth, USB

PC Assistant Software Requirements

• Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)

Mobile Assistant Software Requirements

• iOS version 6.1 or above Mobile Device iPhone 4s, iPhone 5, iPhone 5s, iPod touch 5 , iPad 3, iPad 4, iPad mini

WORKING PERFORMANCE
Load Weight (Reference Value)

• 7.25kg (16lbs)

Angular Vibration Range

• ± 0.02°

Maximum Controlled Rotation Speed

• Pan axis: 90°/sec
• Tilt axis: 100°/sec
• Roll axis: 30° /sec

Controlled Rotation Range

• Pan axis control: 360°
• Tilt axis control: Up 45° to Down 120°
• Roll axis control: ± 25°
