Security

Armed with an HD fisheye lens, superior night vision and accurate motion detection mechanisms, smanos UFO Panoramic WiFi camera brings clarity, immersive vision and ease of use to home monitoring.

Design That Fits Your Home Decor

Extra thin, light, and trendy. The UFO-shaped camera is constructed with high-quality, ceramic-like ABS plastic to ensure its lasting beauty for many years to come.

An All-Seeing Eye

The smanos camera works independently or with smanos K1 system, delivers six types of HD view (Birds Eye, Panorama, Hemisphere, Triple View, Two Halves, and Quad View).

Guard Your Home Around the Clock

The smanos UFO keeps an eye on your loved ones and home, day or night, and automatically records everything onto a microSD(TM) card (to be purchased separately) which can be accessed from your smartphone in the "smanos home"

The UFO is always recording in a loop onto your microSD™ card, and you only get notifications when motion is detected (user adjustable). You can access recorded footage or motion triggers remotely from anywhere in the world, anytime.

Security, Beauty, Comfort, All in Your Hand

The UFO's 180-degree (desk or wall mount) or 360-degree (ceiling mount) field of view means that you get to keep an eye on your loved ones or property – with no blind spot, day or night – on your iPhone or Android phone anywhere, anytime without monthly fees.

Features:

• 24/7 on-site recording - The microSD™ card slot supports Cards up to 32GB for continuous local video recording.
• In the Know, On the Go - You and your family members get alerted Whenever the UFO detects motion.
• Stay Connected - Engage in a two-way conversation as long as your UFO is connected to your home WiFi network.
• Elegance at Home: Less is More - The UFO camera can be ceiling-, wall- or desk-mounted.



Specifications

• Model:
  PT-180H
• Power:
  DC 5V 1A
• Camera:
  full HD 1080p
• Field of view:
  horizontal 180°, vertical 180°
• Video compression:
  H.264/MJPEG
• Video resolution:
  1080p 1920x1080 / 720p 1280x720 / VGA 640x480
• Night vision:
  yes, auto IR-cut filter
• WiFi:
  802.11b/g/n/ac with WEP/WPA/WPA2 encryption 2.4GHz+5GHz
• On-site storage:

  microSD™ card up to 32GB (not included)

• Operating conditions:
  0-50℃, humidity < 95% RH (non-condensing)
• Dimensions (L x W x H):
  106 X 106 X 36mm

Security Simplified:The W020 is ready to go as soon as you connect it to your WiFi router. Add wireless sensors and accessories to the system directly on your smartphone app anytime as you wish as your security or smart home needs evolve. Smanos W020 is ideal for residences SOHOs and small shops.Smanos W020 comes with futuristic curved design and simplistic elegance so it blends in well with almost any type of residential d�cor. Discreet security that simply works is priceless.|Intuitive Operation:Smanos W020 stays true to plug-and-play. Simply plug in the power download the free iOS or Android app setup WiFi with Smart Link add and pair wireless sensors or accessories and you go out to play with complete peace of mind! System maneuvers such as siren volume and time exit and entry delays sensor additions or deletions and many more intuitive settings can all be done with a few swipes and taps on your smartphone.|As Easy As 123:Who knew security could be this sexy" With no wires and no fuss Smanos W020 is a smart system that will grow on you and grow with you. From door/window contacts and PIR motion sensors to flood gas and smoke detectors everything is wireless and will go wherever you want them to with 3M tapes turning your security reinforcement into a fun DIY project.|Security Redefined:Security resilience is built in the system with 1 million radio frequency codes combinations.|Reliable Tech:With world-class proprietary 868/915 MHz wireless protocol Smanos W020 ensures long-distance interference-free communication within the system. It makes sure you get the call (in the form of push notifications).|On Guard 24/7:Smanos W020 works around the clock and stays vigilant at all times without dozing off (like security guards do). Its backup battery ensures 60 hours of extra vigilance in the event of power outage or sabotage.

Specifications:

Model No.: W020 Power Supply: DC12V 500mA Battery: AA 1.5V LR6 x 4pcs Standby Current: ＜30uA Alarm Current: ＜200mA Internal Siren: 105dB (High Volume) Expandable Accessories: 10 remote controls 30 sensors Radio Frequency: 915MHz Housing Material: ABS plastic Operation Condition: Temperature: 0�C~+55�C Relative Humidity: ＜80% (non-condensing) Dimensions (L x W x H): 117 x 118.5 x 40.5mm|

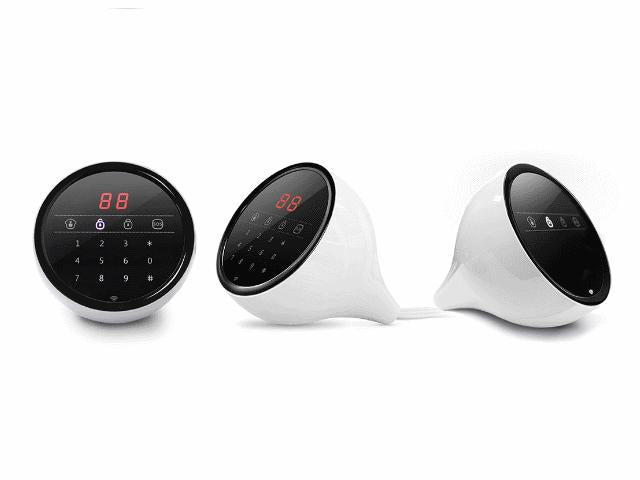

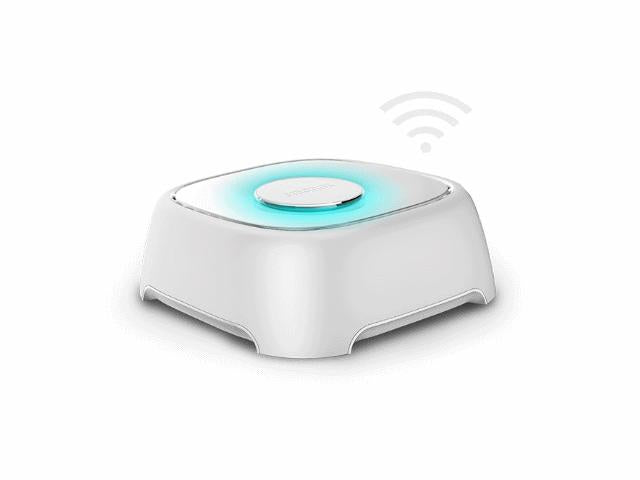

Plug & Play:The W100 is a dual-network WiFi / Phone Line friendly alarm system with very simple wireless setup and no mechanical keys to wear out. Simply plug in a Phone Line follow easy setup steps via WiFi and voila your house is protected. You can then control the entire system via smartphone app commands and when an alarm is triggered pre-programmed numbers will get a notification call or a push message.|Beauty & Techie:The W100 is a sleek-looking security appliance that works in disguise and blends in effortlessly with any residential d�cor. The LED screen and touch panel are intuitive to operate on and age well with time.|Double The Security:The Phone Line connection is the primary line of defense. If an alarm is triggered the system dials out to pre-programmed numbers for appropriate response; authorized numbers can also dial in for necessary setup changes. The WiFi connection is IEEE802.11b/g/n compatible and works as backup. If an alarm is triggered and the landline is compromised the system can still send out alerts and accept smartphone app commands. Dual networks double the security.|Relentlessly Reliable:Up to six phone numbers can be pre-programmed for emergency notifications. The W100 alarm controller communicates with its detectors and sensors on proprietary 915MHz making all signal transmissions stable and interference-free.|Remote Wonders:The smartphone app is iOS7-compatible and always stays connected to the system controller via WiFi; its interface is aesthetic to look at and intuitive to operate on like its hardware counterpart.

Specifications:

Model No: W100 Power Input: DC 12V 500mA Static Current: ≤65mA Alarm Current: ≤230mA Backup Battery: 3.7V 1800 mAh 18650 lithium battery Internal Siren Volume: 110 dB Supported Accessories: 10 Remote controls 30 Sensors Radio Frequency: 915MHz (�75KHz) Housing Material: ABS Plastic Operation Condition: Temperature 0�C ~ +55�C - Relative Humidity ≤80% (Non-condensing) Dimensions (L�W�H): 138.8 x 125 x 125.5 mm|In The Box:WiFi/Phone Line Alarm System �1 MD2300 Wireless PIR Motion Detector �1 DS2300 Wireless Door/Window Contact �1 RE2300 Wireless Remote Control �2|

Description:

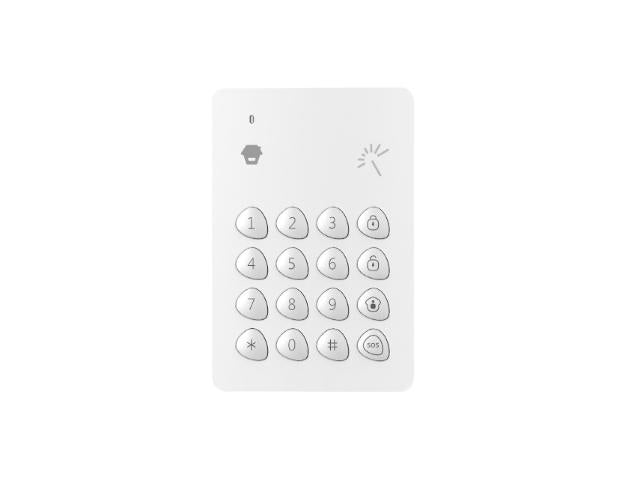

Just punch in your code on the Smanos WK7000 and you can quickly arm or disarm your smanos alarm system. The WK7000 also works with electronic locks for home or office use so it can be used as an access control measure for small offices and any residence.

Specifications:

Power Supply: DC 3V (AAA LR03 battery x 3) Static Current: ≤ 3 uA Transmitting Current: ≤ 10 mA Transmitting Distance :≤ 80 m (in open air) Support RFID Tags: 50pcs Radio Frequency: 868 MHz or 915 MHz Housing Material: ABS plastic Operation Condition:Temperature: -10�C ~ +55�C Relative Humidity: ≤80% (Non-condensing) Dimensions (L�W�H): 135 x 90 x 15 mm|



Network Video Recorder NVR216

Coming with a dedicated 1080p HDMI output, Synology Network Video Recorder NVR216 is an all-in-one, PC-less surveillance solution designed for offices and retail stores where space is precious. Capable of displaying and recording up to 4 IP cameras, expandable to 4 bays of storage with DX213, and extremely energy-efficient, NVR216 offers an effortless surveillance experience.

1080p HDMI output for local display

Equipped with a dedicated HDMI output to display at 1080p resolution on a monitor, Synology NVR216 lets users watch up to 4 channels at 720p/30FPS of surveillance feeds without using a computer. In addition, you can directly manage cameras and recordings through Surveillance Station interface on the same monitor.

Intuitive Surveillance Station to streamline deployment

Synology Surveillance Station provides a user-friendly and centralized interface, letting you manage and monitor IP cameras in your shop or office. It delivers robust features, such as the Live View panel with on-screen operations for monitoring video streams from multiple IP cameras, Timeline panel letting you select a date and time and then play back recordings from multiple channels at once, and an instant alert system to keep you always notified. With NVR216, it’s easy to monitor and protect your physical environment from practically anywhere, anytime - via local display, browsers, or mobile devices.

On-the-go surveillance with DS cam mobile app

Available on iOS and Android devices, DS cam is the mobile extension of Surveillance Station — allowing you to access Live View, playback, adjust PTZ, and receive push notifications. You can browse through recorded events and use a timeline bar to move backward or fast forward. With DS cam, it’s easy to monitor IP cameras located anywhere in the world. Never worry about missing any suspicious events!

Expandable recording storage, up to 4 drives

NVR216 can be connected to Synology DX213 expansion unit to expand the available space from 2 to 4 drives, allowing users to create a RAID 5 volume and find the ideal balance for their storage strategy. Once connected via eSATA with a specially designed locking cable, NVR216’s raw capacity can be as high as 32TB.

Get the alert. Don’t miss a thing

It’s impossible to keep your eyes on a monitor all day. So how do you protect your store after closing time? Surveillance Station provides multiple notification settings to keep you alerted. For example, when a thief sneaks into your shop and is detected by a camera, you will receive snapshots of the recordings through email. In this case, even if your NVR216 has been tempered with, you will keep the evidence. If camera is disconnected or damaged, you can also receive a message via SMS and push notifications on DS cam for iOS and Android devices.

Easy navigation and two-way audio

NVR216 comes with three USB ports, including one USB 3.0, allowing you to connect to a mouse and keyboard to navigate between different camera streams with ease. Plug a microphone on the audio input and speak directly to individuals via cameras with two-way audio.

Extensive support for different types of cameras

Deploying a surveillance solution can be simpler if you have a good start. NVR216 runs Surveillance Station which supports ONVIF Standards and is compatible with more than 4000 cameras with a wide range of variety, from 90 or more renowned brands. You can select fisheye, PTZ, multi-lenses, or Wi-Fi cameras according to your preference and needs to safeguard your shops!

Eco-friendly Network Video Recorder

NVR216 is designed with energy efficiency and quietness in mind. When paired with 9 channels of camera streaming, continuously recording, and with HDMI output enabled, NVR216 only consumes 14.14W* -as little power as one energy saving light bulb! In addition, NVR216 is built with RoHS compliant parts.

* The power consumption figures vary on different environments.

Watch your premises simply via a monitor

Optimize your budget and retail space when deploying a surveillance solution. Connect NVR216 to a monitor via a 1080p HDMI output, and start to watch live view streams and manage cameras. Everything can be done without a PC. No matter what business you do, NVR216 helps you to save money and room that could be used for more things.

Specification:

•CPU: Embedded NVR SoC dual-core 1.0Ghz
•RAM size : DDR3 1GB
•Compatible drive type : 3.5/2.5" SATA III/II x 2 ( HDD not included. Disk holder required for 2.5" )
•USB: 1 x USB 3.0 , 2 x USB 2.0 , eSATA x 1
•Video Output: HDMI x1
•Audio Output: 3.5mm Stereo Audio Jack x2
•Supported video output res : 1920 x 1080 (1080p) , 60Hz
•Size (HxWxD) (mm) : 130x130x32 mm
•Weight:0.9 kg
•LAN: Gigabit (RJ45) x 1
•AC Input Power Voltage: 100V to 240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5°C-35°C
•Storage Temperature: -10°C-70°C
•Relative Humidity: 5%-95% RH
•Maximum Operating Altitude: 10,000 feet



The new sleek and modern VBell™ Video VoIP Intercom is a Smart Home intercom, which includes a high definition camera, as well as a two-way communication sound system, using Voice over IP (VoIP) video-audio transfer technology. This device can be accessed through your smart phone or tablet from any location around the world, and provides a simple way to protect and secure your home.

The VBell™ Video VoIP Intercom can be placed anywhere; in your home, office or workshop. At the touch of a button, the intercom camera can be accessed via an application on your smart device, as well as missed calls can be checked from the log file, and a snapshot image with time stamp will be stored for easy access via the application. No additional fees are required for storage. VBell™ Video VoIP Intercom can be integrated into your home automation system as a standard VoIP device. This smart device feature is a must-have accessory for any homeowner.

Connected Access Control
VBell™ Video VoIP Intercom can communicate with other smart home devices using Ethernet, has relay outputs to control of a door or gate and is powered by 12V DC adapter or PoE (Power over Ethernet).

Mobile App Enabled
VBell™ Video VoIP Intercom comes with free smartphone apps available to download from the Apple and Google Play stores. The apps are very easy to operate and configure.

You can not only immediately engage the video call with a person in front of the intercom, but also see the snapshots taken on previous interactions with your VBell intercom.

Product Range VoIP intercom Black or White

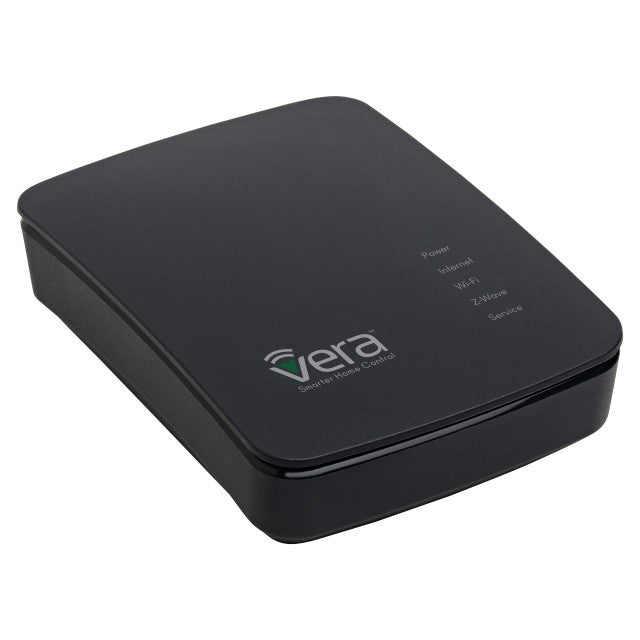

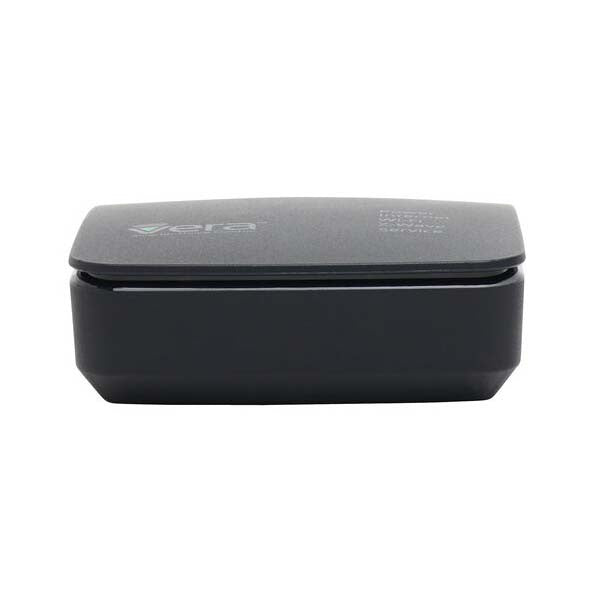

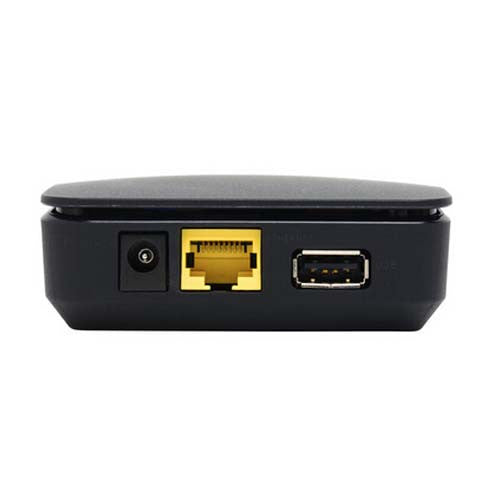

The VeraEdge is a Z-Wave™ compatible device, which allows you to control your smart home products from a mobile device or computer. You can schedule events to trigger by activating motion or light sensors. And you can save your preferred temperature or light settings, which can easily be changed with a single click. With VeraEdge you can do anything today's most advanced smart homes can do.

The VeraEdge introduces some new features, like geo fencing, which notifies the system when you're coming home. Using the controller, you can adjust the right temperature in your bedroom or living room when you arrive. You can save energy by switching off all the lights and unnecessary equipment that’s accidentally left on. There are thousands of ways to make your home or office more secure and efficient. And Vera gives you the freedom to experiment with all of them, until you find the smartest way to live.

Your VeraEdge system can do many different things, depending on the accessories you add to it:

• Build a security system by adding door locks, door/window sensors, motion sensors, wireless video cameras, and sirens.
• Create an energy saving system with thermostats, light dimmers, and AC controllers.
• Set up a home safety monitoring system with smoke detectors, carbon monoxide detectors, and flood detectors.
• Make your life more convenient by connecting garage door openers, light switches, and lawn sprinklers that operate automatically.

Feel free to combine all these functions into one system!

VeraEdge works with all leading brands of Z-Wave sensors, locks, thermostats, cameras, switches and other devices, so you don’t have to worry about compatibility issues. Since the first version of UI7, manufacturers have significantly improved their Z-Wave Plus support and they continue to release updates that keep up with the latest technology.

What's New?

• Faster processor allows greater compatibility with devices
• More memory for better response times and flexibility
• WPS easy push button pairing for Wi-Fi devices
• Improved multi-camera management
• Intuitive user set-up and control
• Local Z-Wave control of devices so the scenes and schedule work locally even when your Internet goes down

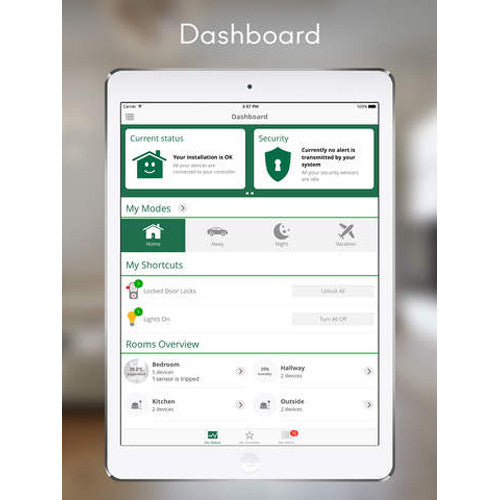

Vera UI7 features:

• One simple user interface across all platforms (PC/Mac desktops, smartphones, tablets)
• Integrated Help - contextual help callouts and links to detailed documentation on the support site
• Preconfigured Device Settings for Easy Setup
• At a Glance Reporting of Household Energy Consumption (Daily, Monthly, and Annual Reporting)
• Improved access control with PIN management
• Customizable dashboard - pin your favourite devices for quick monitoring, instant access and control

The VeraEdge is now available for purchase through the network of Digital Home Systems' resellers.

Technical Specifications

RF Protocol	Z-Wave Plus™ and 802.11 a/b/g/n Wi-Fi
RF Frequency	921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Connection Type	Australian type Socket Plug connection
Power	AC 230V / 50Hz
Operation Range	Up to 30m indoors with no obstacles
Hardware	CPU: 600MHz MIPS SoC Flash Memory: NAND 128 MB Memory: DDR2 128 MB
Wired Interface	1 x USB Port for future expansion 1 x WAN Port
Networking	4 x LAN Port 1 (10/100 Mbit/sec port)
Application	Indoor use only
Operation temperature	0 ~ 40 °C
Storage temperature	‐10 ~ 70 °C, humidity 5~95%RH (max)
Weight	750g
Housing	ABS
Compliance	Australian RCM mark, CE, FCC, RoHS, Z-Wave Plus
Dimensions	(LxWxH) 120mm x 80mm x 30mm

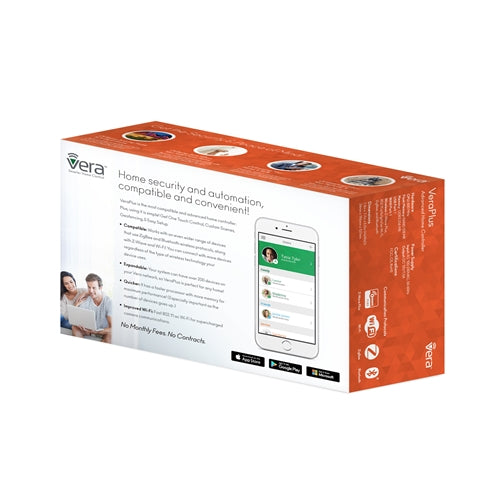

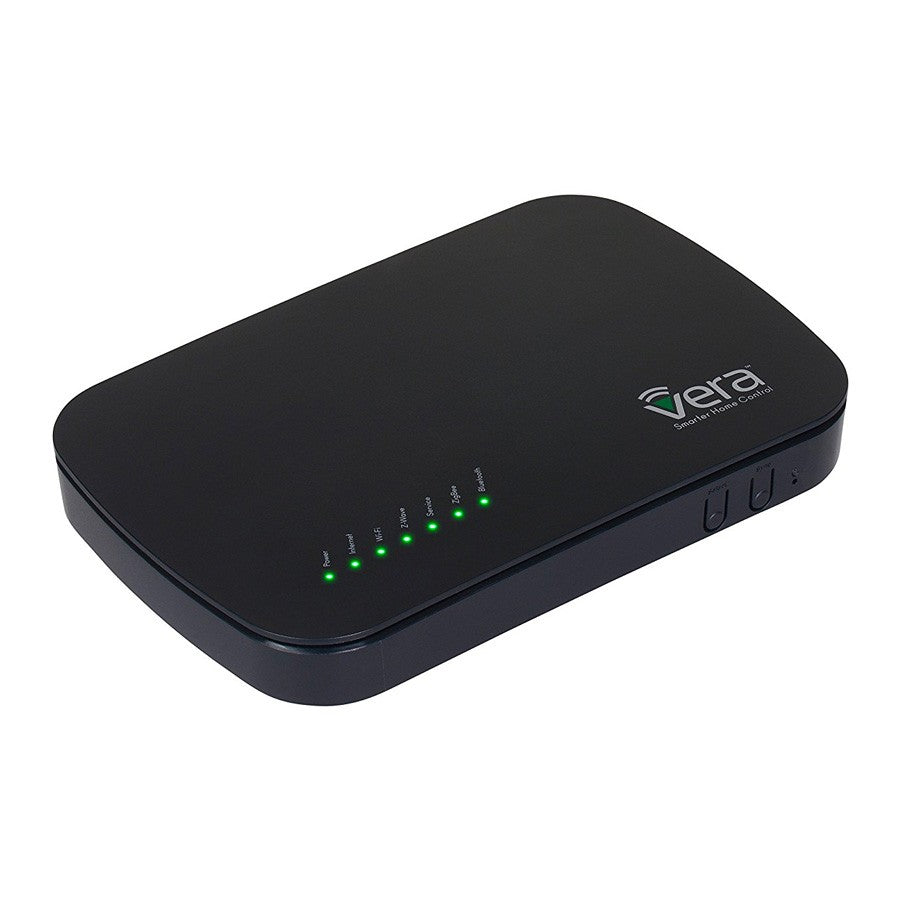

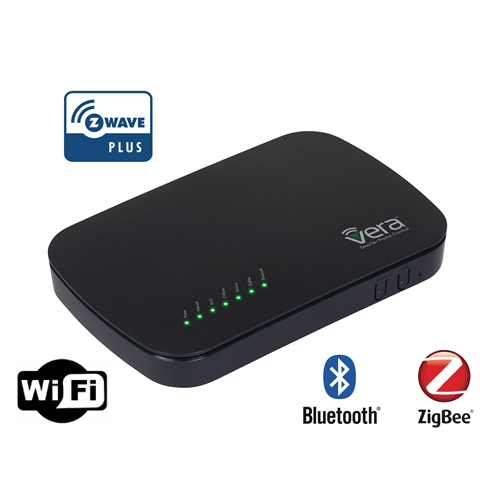

 The Vera Plus Home Controller is an advanced home automation gateway that allows you to manage and control home automation devices.

This newest edition of the Vera gateway is compatible with an even wider range of devices than its predecessor (the Vera Edge) and supports ZigBee and Bluetooth wireless protocols along with Z-Wave and Wi-Fi. It also boasts a faster processor and more memory than its predecessor! And best of all, there are still NO MONTHLY FEES!

Your VERA Plus Home Controller can meet many different needs depending on the accessories you add to it:

• Build a security system by adding door locks, door/window sensors, motion sensors, wireless video cameras, and sirens.
• Create an energy saving system with thermostats, light dimmers, and AC controllers.
• Set up a home safety monitoring system with smoke detectors, carbon monoxide detectors, and flood detectors.
• Make your life more convenient by connecting garage door openers, light switches, and lawn sprinklers that operate automatically.
• Feel free to combine all these functions into one system!

Technical Specifications

• Communication Protocols: Z‐Wave Plus (500 series chip), ZigBee, Bluetooth LE, 802.11 a/b/g/n/ac Wi-Fi
• RF Frequency: 921.42Mhz ‐ AU/NZ  approved RF for Z‐Wave
• Z‐Wave device type:  Z-Wave controller
• Power Supply: Input: 240VAC, 50-60Hz, Output: DC 12V/1.5A
• Hardware: CPU: 880MHz MIPS SoC, Flash Memory: NAND 128MB, Memory:DDR3 256MB, USB Port: 1 USB 2.0, WAN Port: 1 Gigabit Ethernet
• Operation Range: Up to 40m indoors (with no obstacles)
• Application: Indoor use
• Operation temperature: 5 ~ 40 °C
• Storage temperature: ‐10 ~ 60 °C
• Weight: 300G
• Dimensions: 198mm x 128mm x 33mm
• Housing: ABS

Quick Overview

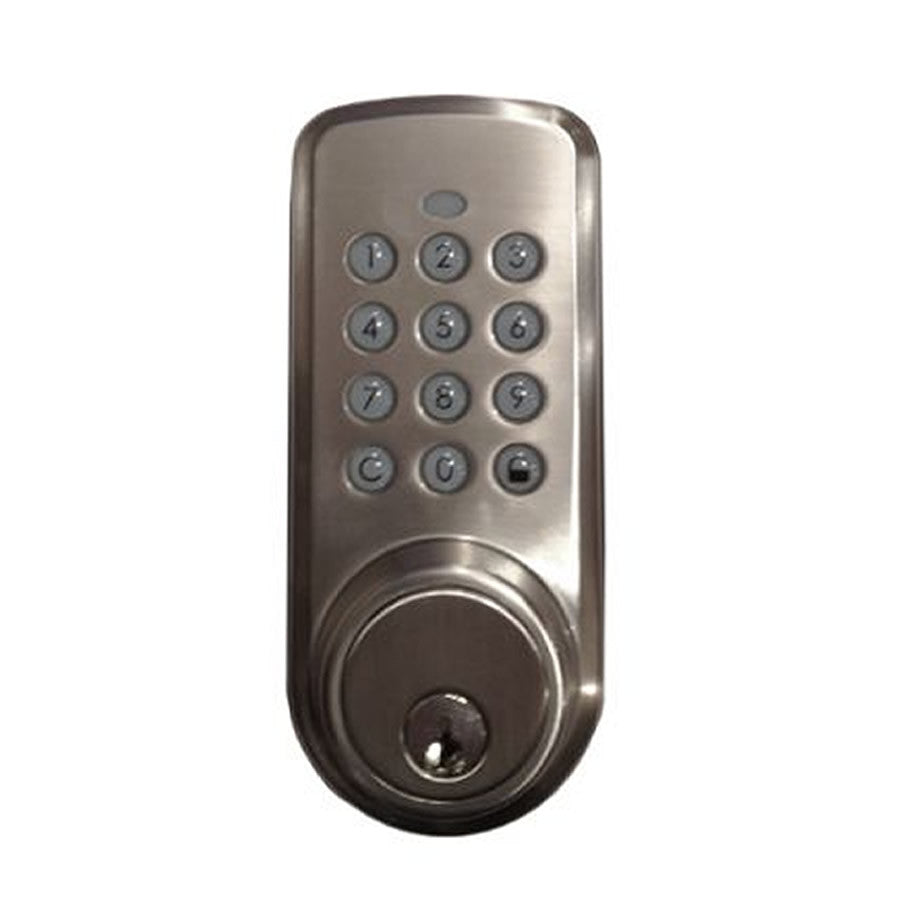

 The Vision Z-Wave Deadbolt Keypad Lock is an intelligent lock capable of remote operation with compatible controllers.

Quick Overview

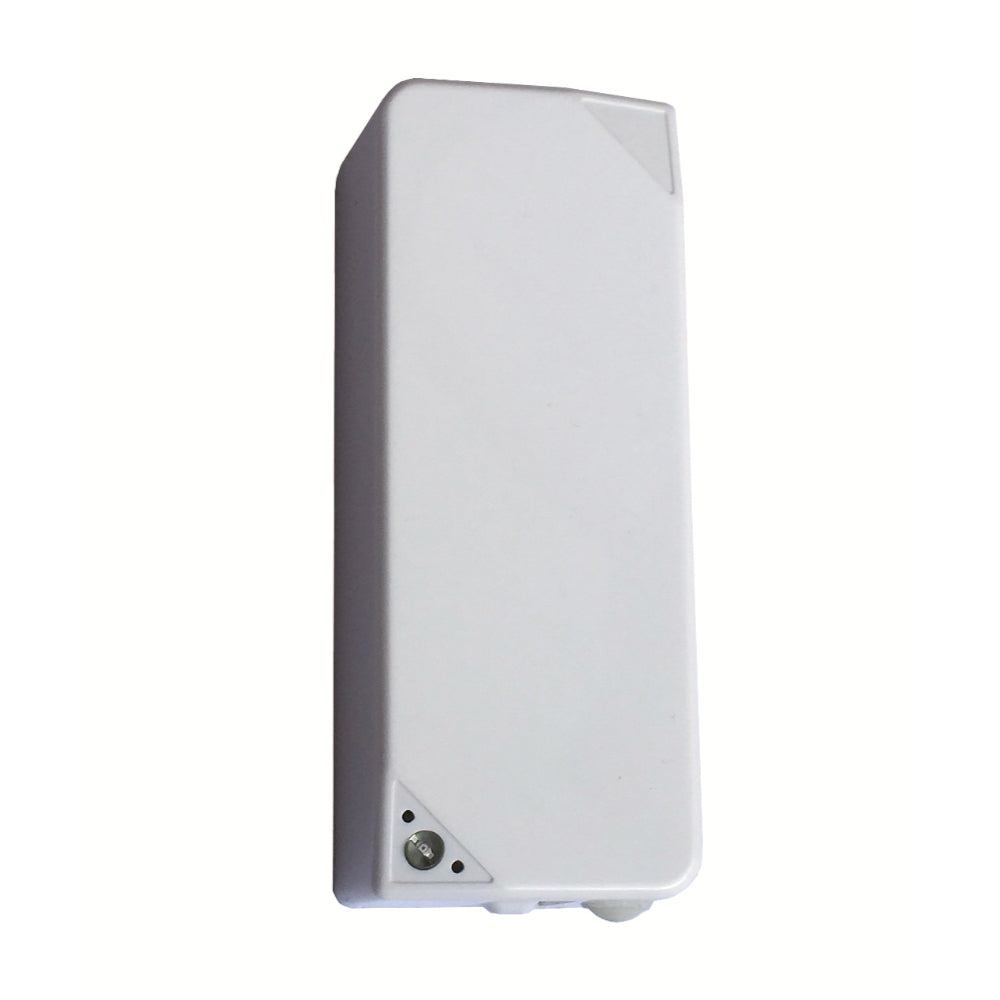

The Vision 4 in 1Z-Wave Door/Window Sensor is a small, battery powered, magnetic sensor capable of detecting when a door/window is opened as well as changes in humidity, light and temperature.  This sensor is a Z-Wave enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave Plus enabled network and its security framework.  Vision 4 in 1Z-Wave D/W sensor sends Z-Wave signal when door or window is opened or closed or there is a humidity, temperature, luminance change.

Product Details



The Vision 4 in 1Z-Wave D/W Sensor includes a smart magnetic door/window sensor consisting of two magnetic units, one is placed on the moving part of the door or window and the other on the frame. The sensor expands the capabilities of the system by monitoring the opening of doors, windows and garage doors.

When the sensor is triggered it can send binary ON/OFF commands wirelessly using a Z-Wave enabled (AUS/NZ version 921.42 MHz) transmitter to assigned controllers, switches, dimmers, blind controllers, fans, power boards, locks etc. The sensor can be used to automatically turn on lights, turn wireless switches ON/OFF and for security applications within the Z-Wave network as well as monitoring whether any doors or windows are open to ensure that your air-conditioning is not operating when it is not efficient to do so.

The Vision 4 in 1Z-Wave D/W Sensor also reports temperature , humidity and illumination changes to the associated Z-Wave gateway which can be used to improve the efficiency of your smart home.

Featuring the new Z-Wave 500 series chip the Vision 4 in 1Z-Wave D/W Sensor supports higher data transfer rates (9.6/40/100kbps) as well as over-the-air firmware updates meaning it is always operating with the most advanced firmware available.

Integrates with Australian Z-Wave certified (921.42MHz) controllers including:

• Fibaro Home Center 2
• Fibaro Home Center Lite
• Homeseer

Technical Specifications



RF Protocol	Z‐Wave Plus
RF Frequency	921.42Mhz ‐ AU/NZ  approved RF for Z‐Wave
Z‐Wave device type	Z-Wave binary sensor, multilevel command supported
Power	Two batteries, type AAA. 3V
Operation Range	Up to 30m indoor
Application	Indoor use only
Temperature detect range	-20 ~ 50 °C
Weight	60g
Housing	ABS
Dimensions	(HxWxD) 70mm x 27mm x 20mm
Compliance	RCM AS/NZS 4268

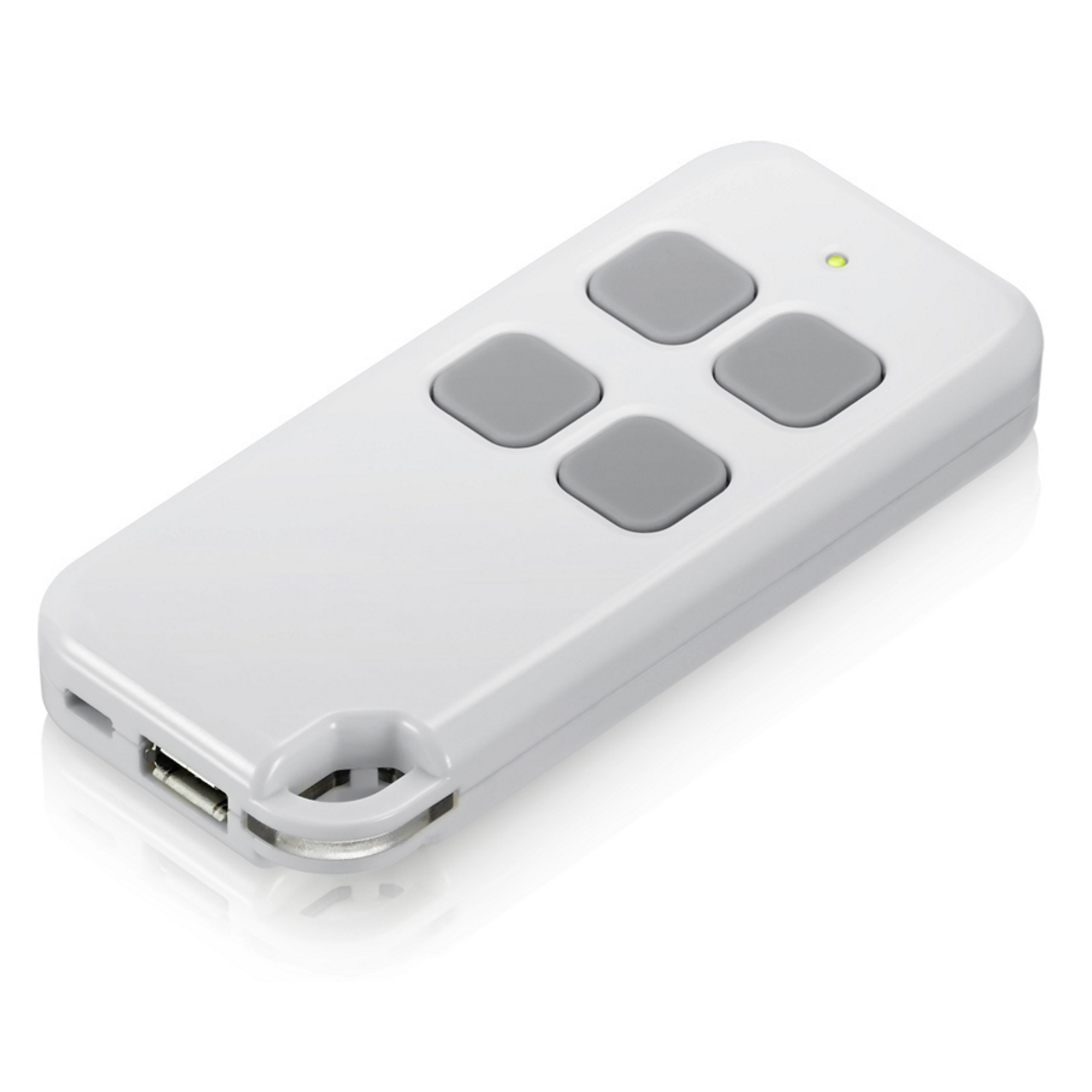

The VISION Z-Wave Plus KeyFob (4) controller allows the user to wirelessly control home appliances using Z-Wave enabled devices.

Product Details

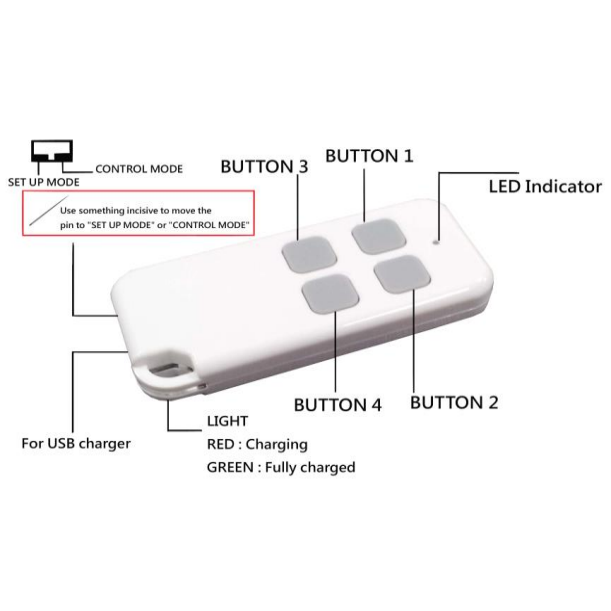

The VISION Z-Wave KeyFob (4) is a fully functional Z-Wave remote controller capable of adding, removing and controlling other Z-Wave devices. Advanced functions include automatic rediscovery of the Z-Wave network as well the ability to become a secondary or inclusion controller to a SIS gateway in a Z-Wave network.

This product allows the user to control home appliances wirelessly using Z-Wave enabled (AUS/NZ version 921.42 MHz) devices like: switches, dimmers, blind controllers, fans, power boards, locks, ect.  An internal lithium battery allows for months of usage and can be recharged via USB.

The VISION Z-Wave Keyfob(4) offers four control buttons for scene selection.



 This product is compatible with:



Technical Specifications



RF Protocol	Z‐Wave
RF Frequency	921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐Wave device type	Z-Wave Controller
Status Indicator	LED Lights
Operation Range	Up to 30m without obstacles
Application	Indoor use only
Operation temperature	-10 ~ 55 °C
Storage temperature	‐10 ~ 80 °C
Weight	70g
Housing	ABS

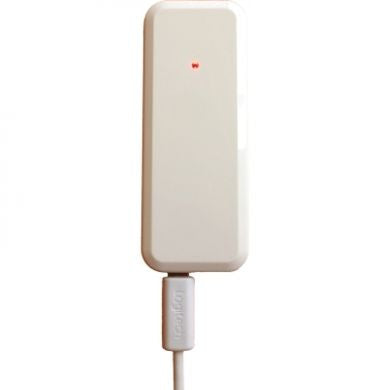

 The Vision Z-Wave Range Extender is a smart, discrete Z-Wave device designed to amplify the signals of any Z-Wave devices in your Z-Wave network which helps to eliminate "RF dead spots".

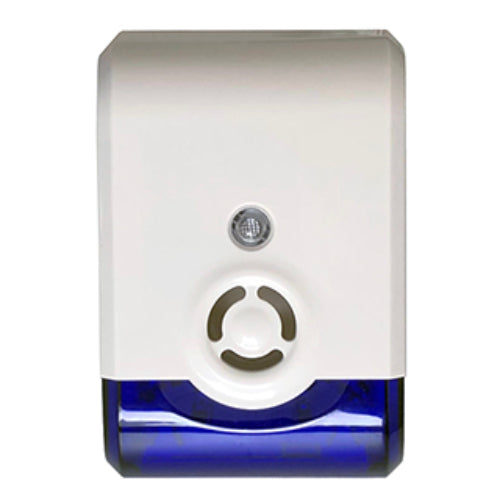

The Vision Z-Wave™ Siren and Strobe is a wireless device capable of producing an audible and visual alarm.

• Blue LED flashing strobe light
• Loud 105dB audible alarm
• Low battery and Tamper indicators
• Easy installation - no extra wires required
• Includes a 15V DC power supply
• Configurable with Z-Wave™ certified gateways

Product Details

The Vision Z-Wave™ Siren and Strobe (ZM1601AU) is a wireless device  - programmable with certified Z-Wave™ gateways  - capable of producing a loud audible and visual strobe alarm based on your Home Automation and/or Security Network settings.

This device is designed to operate alongside a Z-Wave™ enabled sensor which can detect a threat to your household.

The Vision Z-Wave™ Siren and Strobe also includes a battery status indicator which will notify you when its battery level is low. It also includes a tamper alarm, which sends an alarm signal to an associated Z-Wave™ gateway if anyone tries to tamper the device.

This product integrates with all Australian certified (921.42MHz) Z-Wave™ controllers including:

• Homeseer HS3
• Vera Edge
• Vera Plus
• Fibaro Home Center 2/Lite
• Homeseer HS3
• REMOTEC Z-Wave Universal Remote Controller
• RaZberry Pi

Product Support



Manuals:

⇒ VISION Z-Wave Siren and Strobe User Manual (Size: 260 kB)



Configuration Command Class:

Parameter 0: Siren/ Strobe Mode, 1 Byte
Value: 0=Siren and Strobe enabled (default), 1=Siren only, 2= Strobe only.
Parameter 1: Alarm auto stop time command, 1Byte
Value: 0=30 seconds (default), 1= 60 secs, 2= 120 secs, 3= Siren will not stop automatically.

Technical Specifications

RF Protocol	Z‐Wave, Z-Wave Plus cerification
RF Frequency	921.42Mhz ‐ AU/NZ approved RF for Z‐Wave
Z‐Wave device type	Z-Wave binary switch
Internal Alarms	Tamper, Low Battery
Operating Voltage	9~24V DC / 6V Ni-MH CELL 150mAh (included)
Connection Type	wires
Operation Range	Up to 30m indoor with no obstacles
Application	Indoor use only
Operation temperature	-5°C ~ 55°C
Loud Audiable Alarm	105dB @ 1meter
Weight	290g
Housing	ABS
Dimensions	(H x W x D) 116mm x 77mm x 40mm
Compliance	RCM, CE



The VistaCam 1000 HD WEATHERPROOF OUTDOOR CAMERA WITH PUSH BUTTON PAIRING.

With easy Wi-Fi setup, weatherproof case, infrared night illumination and HD picture quality, VistaCam 1000 is perfect for outdoor camera applications such as patios, driveways and garages where AC power is nearby. Features motion detection for automated recording.

See what’s happening outside your home or small business with VistaCam 1000, the weatherproof outdoor HD video camera that’s as comfortable on a deck, patio, doorway or driveway as it is indoors. With one-touch Wi-Fi setup (WPS) VistaCam 1000 easily connects wirelessly to your Vera controller. Automatically records video and sound when motion is detected for playback later. View and hear anywhere on smartphone, tablet or browser, day or night. For viewing at night, the powerful built-in infrared (IR) illumination lets you see in the dark, up to fifteen feet from the camera. Supplied with an included AC power adapter that is plugged into a nearby outdoor AC outlet (such as found on a deck or side of a house.)

Product Details

• See home or small business in clear high definition (720p) video quality
• One-touch WPS setup easily connects wirelessly to your Vera controller (or home Wi-Fi)
• Motion detection with built-in PIR sensor automatically triggers video recording
• Built-in microphone lets you hear who is at the door, listen to kids playing in back, or know what intruders are saying
• Built-in Backup Memory (8-GB) records video even when internet service goes out (and uploads automatically when service is restored)
• Weatherproof connector for included power adapter withstands harsh outdoor conditions

Sensor and Lens

• Image Sensor: 4 megapixel 1/3″ CMOS Sensor
• Minimum Illumination: 0 Lux (with IR LED)
• Lens: Fixed Focus Lens, Aperture: F2.0
• Field of View: 110°
• PIR Motion Sensor: 5-meters detection range

Video

• Video Compression: H.264 Main Profile, M-JPEG
• Image Settings: Flip, Mirror, Brightness, Sharpness, White Balance
• Video Backup Memory: 8GB
• Video Streaming: Simultaneous H.264 and M-JPEG
• Resolution and Frame Rate: 16:9 720p (1280×720), 640×360 4:3 XGA (1024×720), VGA (640×480) and QVGA (320*240), Mixed Mode 720p, VGA, and QVGA, Up to 30 fps

Audio

• Built-in Microphone

Network

• Protocols: TCP/IP, HTTP, HTTPS, DHCP, FTP, uPnP, NTP, RTCP, DNS, RTSP
• Wireless

Technical Specifications

CPU	ARM-Cortex A9, 720Mhz
Flash	NAND Flash 128MB
RAM	256MB
Power	12V / 1.5A, 100 – 240V
Operation Range	Up to 30m indoors (with no obstacles)
Application	Indoor and outdoor use
Operation temperature	10 ~ 40 °C
Storage temperature	‐10 ~ 60 °C
Weight	150g
Dimensions	76.4mm x 76.4mm x 38.8mm
Housing	ABS



HD CAMERA WITH EASY SETUP IN VERA GATEWAYS Elegance, HD Resolution, and Wi-Fi with WPS That's Very Affordable The VistaCam 700 has everything you need for basic camera operation -- place it using the supplied swivel mount to show the view you want, and leave it.  The compact, elegant VistaCam 700 video camera features wired Ethernet and Wi-Fi operation (with WPS setup), High Definition image quality (HD 720p), built-in IR night illumination, motion detection, great value and easy setup with your Vera system!.

The Wi-Fi is easier to get setup thanks to a WPS button (Wi-Fi Protected Setup). With the VistaCam 700 you can keep an eye on your living room, nursery, garage, your small business, cash register, hallway, or anywhere else you want to keep tabs on. You can hear what's going on too, with the built-in microphone. Plus see even in total darkness with the built-in infrared illumination, up to about 16-feet away. The VistaCam 700 also serves double duty as a motion detector. That's useful for home and small business security so your camera can start recording when the motion sensor is triggered. It is also handy for automation when used with a gateway like Vera. For example, Vera will automatically turning on a hallway light whenever motion is detected. The VistaCam 700 comes supplied with a sturdy swivel mount base, making it easy to manually adjust the camera angle. This compact camera fits in neatly with any decor.

Product detail

• HD Image Quality with 720p (1280 x 720) Resolution
• Motion detection capable via Built-in Software
• Wi-Fi connectivity with WPS setup button
• Ethernet connectivity
• Built-in Infrared LED for Night Time Illumination
• Built-in microphone lets you hear as well as see
• Dual Video Streaming (H.264, M-JPEG) for High-Quality Videos
• Compatible with Mobile Phone 3GPP Live Video Streaming
• 802.11n/b/g Wireless Connectivity Supported with WPS Setup
• Elegant White Case with Black Accent and Internal Wi-Fi Antenna
• For indoor use

Product support

The compact, elegant VistaCam 700 video camera features wired Ethernet and Wi-Fi operation, High Definition image quality (HD 720p), built-in IR night illumination, motion detection, great value and easy setup with your Vera system. The outdoor VistaCam 1100 video camera is ideal for outdoor applications, and features a PoE (Power over Ethernet) system for powering the Wi-Fi camera from an outdoor outlet. This guide covers the process of pairing the camera with your Vera system.



Technical Specifications



Model	VistaCam-700
Resolution	720p
Color	White
Weight	0.8
Image Sensor	1/4'' CMOS Sensor
Display Resolution	(720 Pixels)
Lens	Fixed Focus Lens
Mini Lumination	0.5Lux
Lens Type	Glass Lens
Viewing Angle	60 Degree
Input	Built-In Microphone
Output	Built-In Speaker
Audio Compression	ADPCM
Image Compression	H.264 and MJPEG
Image Frame Rate	30fps (QVGA)
Flip Mirror Images	Verical / Horizontal
Light Frequency	50Hz, 60Hz
Video Parameters	Brightness, Contrast
Ethernet	One 10/100 MBPS RJ - 45
Wireless Standards	IEEE 802.11b/g/n
Data Rate	802.11b: 11Mbps(Max.), 802.11g: 54Mbps(Max.) 802.11n: 150Mbps(Max.)
Wireless Security	WPS Supported
RAM	128 MB
Infrared Light	1 IR, LEDs, Night visibility up to 8 meters
Dimension	8 x 6 x 5.5 icm
Gross Weight	0.6 kg
Net Weight	0.4 kg
Storage Temperature	-10°C ~ 60° (14°F ~ 140°F)
Storage Humidity	0% ~ 90% non-condensing
LED indicator	2
Supported OS	Microsoft Windows 2000/XP, Vista, Windows7, Windows 8, Mac OS, Linux
Browser	IE6/IE7/IE8/IE9,Firefox,Safari,Goolge Chrome,other standard browsers
Warranty	Limited 1-year warranty
Protocol support	TCP/IP, HTTP, HTTPS, DHCP, SMTP, FTP, UPnP, DDNS, NTP, RTP, RTCP, RTSP, SMB, DNS

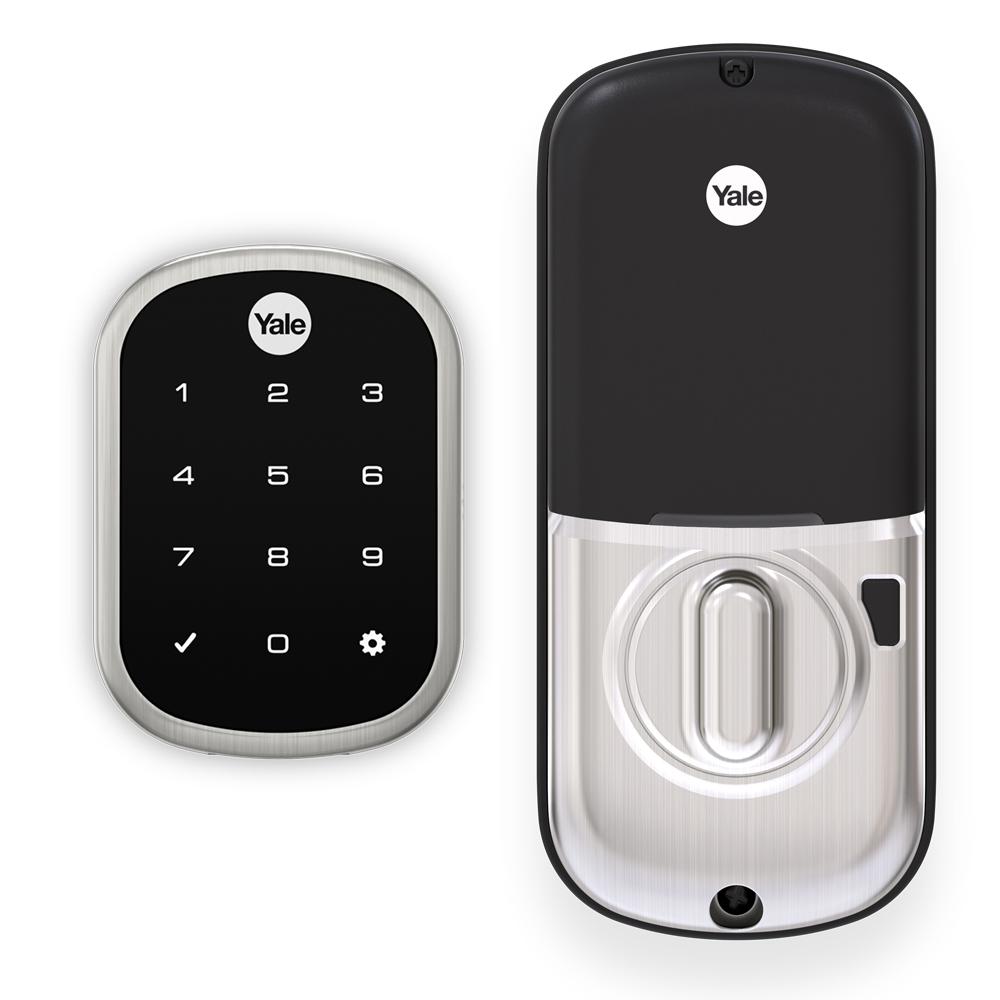

The LOCKWOOD Z-Wave deadbolt lock with touchscreen combines a highly secure lockset with an elegant electronic interactive touchscreen, which allows users to access their premises effortlessly with manual control or remote automated control. Designed for seamless integration with any Z-Wave product or automated control systems. Monitor the status of this device and usage through a centralized controller. Voice guided programming makes set up very easy as well as updates to user information.

Forget carrying around keys; lock and unlock your home with your smartphone. Share digital keys with friends and family, view access history and manage user settings, all from your Yale Assure app.

Controlled via the Yale Assure App, Yale’s “Twist and Go” function allows users the unique ability to unlock their door by twisting their smart phone when within Bluetooth range. The “Twist and Go” feature protects you and your family from unintended unlocking. Also offering a backlit touch screen keypad, users have the option of entering a PIN code to unlock the door.

An automatic Re-lock function is available so that when the latch is retracted, the lock will automatically lock after a specified period of time.

For those times when you don't have your smartphone with you, unlock by entering your unique 4-8 digit pin code on the touchscreen keypad.

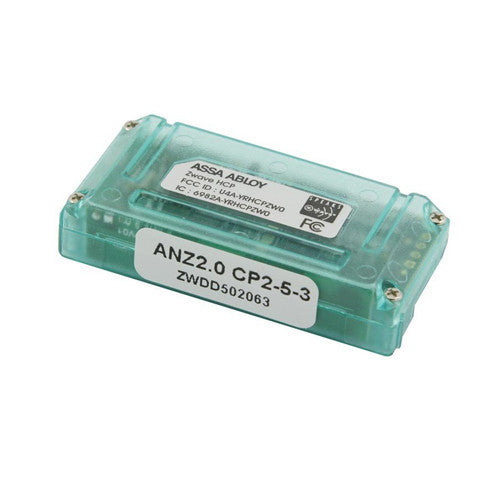

The Yale Assure digital deadbolt with Bluetooth can be upgraded with a Yale Assure Z-Wave Network Module to seamlessly integrate into most home automation and alarm systems.

Available in Keyless Satin Chrome finish and Key override Satin Chrome finish.

The LOCKWOOD Z-Wave deadbolt lock

This lock will fit in the place of your existing deadbolt and is compatible with all standard interior and exterior doors. Tapered features of the deadbolt allow it to be used even in applications where the door is not perfectly aligned. The wireless Radio Frequency (RF) range of this lock is 50 -100 feet and will need to be at least that close to another network controller in the Wireless Z-Wave System. This RF range can be influenced by surrounding objects and may be extended depending on the location of other Z-Wave devices in the system. If this unit is to be controlled and managed by a single network controller, it is recommended that this Z-Wave lock be programmed through the centralized User Interface (UI) using a PC or hand-held device. This will ensure the best and most reliable communication to and from the deadbolt lock and centralized controller.

Product Highlights

Share Keys - Share or delete digital keys using the app. Includes 5 digital keys with download.

Manage Users - Set unique access schedule for each user and view a history of who accessed your home, and when.

Create Unique Pin Codes - Create up to 12 unique PIN codes, adjust lock features and personalise your settings.

Twist & Go Unlocking - Rotate your smartphone 90 degrees upon approaching the door and touch the keypad to unlock.

Touchscreen Keypad - Unlock by entering your PIN code and lock-up with a smiple tap of the keypad.

100% key Free - No cylinder means no lost keys and no pick and bump break-ins. You don't need to worry about house keys with the Assure Lock -Your phone is your new key and the door can always be unlocked using the touchscreen keypad.

Simple Installation - Replace your existing deadbolt in minutes with just a screwdriver.

• Uses 128 bit AES encryption for security
• Slim design, LED visual and audible  feedback
• Schedule Setting/Logging
• Can be used in new and retrofit houses
• Integrates with certified Z-Wave controllers in Australian version (921.42MHz):

VERA 3 / Lite
Simon XT
Advance remote Controller
Fibaro HC2

IMPORTANT:

This lock may not be used on moving doors, i.e., Cars, Trains or similar applications. The lock is designed for residential and commercial applications only and door sizes between 32-50mm. We highly recommend that a secondary entrance is required in the unlikely event of total failure. This lock may not be used on fire doors.

Why choose a Wireless Digital Deadbolt?

Safety - Never carry keys
Keyless PIN code access ensures security whilst away and allows people entrusted with a PIN code to gain entry with the simple push of a button.

Security - Resting easy all night long
Privacy mode provides ease of mind by disabling the keypad to ensure that no one can enter the property from outside while you are sleeping, with the exception of close family entrusted with a key.

Remote Management - Remote access control
The Wireless Digital Deadbolt lock status can be viewed and controlled via a PC, Notebook, Tablet or Smartphone. Simply lock or unlock your door from anywhere in the world.

Receive a text message or email alert when the door is accessed to know that your loved ones have arrived home safely (when integrated with Remote Management Software).

Convenience - Trigger other devices
Integration with Remote Management Software will enable you to turn on other devices when you open the door using your unique PIN code including:

• Unlock all doors
• Turn on the interior house lights
• Turn on the TV
• Adjusts the thermostat to 21°C
• Close the curtains

Control - Building automation & integration
The Lockwood Wireless Digital Deadbolt has been designed to easily integrate with a variety of wireless building control and security systems when used with Z-Wave or ZigBee wireless network modules. Remote management puts you in control of protecting what is valuable to you from anywhere and at anytime.

Lock Functionality

Wireless Network Connectivity
This product can be integrated with building automation systems when used with Z-Wave or ZigBee wireless network modules. When connected to a network the lock can be controlled remotely.

Illuminated touch screen keypad
The touch screen keypad has no mechanical buttons which means no trace of your secret pin code.

Pin Code Allowance
One master pin code will manage up to 250 user codes when used with a wireless network module or 25 user codes when not networked.

Voice Guided Programming
Voice Guided Programming will audibly provide step by step programming instructions.

One Touch Locking
Conveniently lock your door by simply touching the keypad or use the automatic locking function.

Low Battery Warning
When battery power is below 30%, the low battery icon will begin flashing.

Tamper Alert
An audible alarm sounds if attempting to forcibly remove outside lock from door.

Automatic Re-locking
This selectable feature will automatically extend the bolt into the locking position after a 30 second delay.

User Interface Functionality

View/Change Lock Status
The lock status can viewed or changed on a Smart Phone, Tablet or PC. From anywhere in the world, remotely unlock the door for a neighbour or a caregiver.

Setup/Management
Set-up each lock and control the management of users on every door where a Lockwood Wireless Digital Deadbolt is installed.

History
View the history of who comes and goes at each door.

Trigger other devices
Use the lock to trigger other devices within the building such as lights, thermostat, alarm system and more.

Text/Email Alerts
Receive text/email alerts when the kids get home from school

Available functions may vary based on your home control software.

Product Specifications

Backset	Adjustable 60-70mm
Battery type	AA
Body / Case Material	Zinc
Bolt Type / Function	Deadbolt
Door Thickness Range	35mm to 50mm
Door Preparation	25mm latch hole and 54mm lock hole
Lock Type	Deadbolt
No. of Keys	5 digital keys supplied
Product Cabability	Android devices running 4.3 or later, iOS devices running 9.0 or later
Standard Finish	Satin Chrome
Warranty / Guarantee	Yale 1 year Electomechanical
Key Profile (Keyed version)	C4
Outside Temperature range	30°C to 60°C
Inside Temperature Range	15°C to 70°C
Operating Humidity	up to 95%
Approvals	RCM & CE certification AS/NZS 61000.6.3 2012
