Networking

Description::

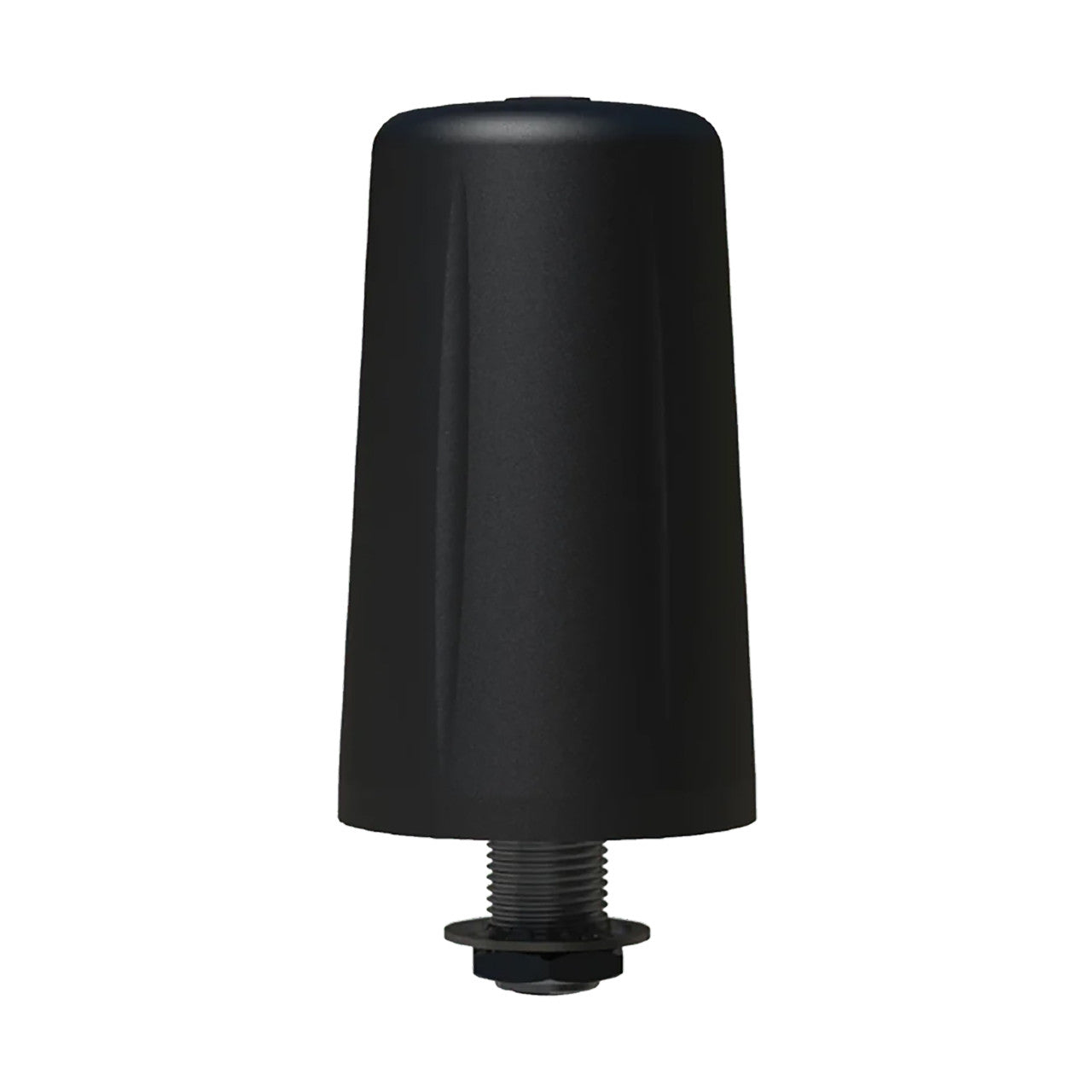

The LPB-6-60 Low Profile Antenna offers an efficient and reliable solution for 2G 3G 4G and 5G coverage making it ideal for both industrial and domestic applications. With a frequency range of 617-960/1710-6000 MHz this antenna ensures robust connectivity across multiple bands supporting a wide range of cellular devices. Its compact design allows for easy integration into various environments without compromising performance.

Designed with durability in mind the LPB-6-60 features a robust yet subtle build making it suitable for both internal and external installations. The antenna comes equipped with an integrated low-loss CS29 coaxial cable ensuring minimal signal degradation and maintaining optimal performance. This makes it an excellent choice for machine-to-machine (M2M) wireless connectivity and other critical communication applications.

The antenna’s omnidirectional pattern and vertical polarisation offer consistent signal reception while its IP66-rated construction provides protection against harsh environmental conditions. For optimal performance the LPB-6-60 requires a conductive ground plane of at least 300 mm in diameter or can be mounted using a compatible bracket. Its versatile design and reliable performance make it an indispensable component for modern communication systems.

Installation is straightforward with a panel mount fixing method and a compact design that doesn’t take up much space. The LPB-6-60 is available with a variety of connector options providing flexibility for different installation scenarios. Whether for enhancing mobile network coverage or supporting complex wireless networks this antenna delivers dependable performance every time.

Key Features:

• Low-profile wideband antenna
• Durable construction
• Integrated low loss cable
• Various cable length options
• Supports 2G 3G 4G and 5G LTE cellular bands
• Medium-gain antenna performance
• IP66 rated

Versatile Coverage for Multiple Networks

The LPB-6-60 Low Profile Antenna is an ideal solution for those seeking dependable coverage across 2G 3G 4G and 5G networks. This antenna operates efficiently within a wide frequency range of 617-960 MHz and 1710-6000 MHz ensuring consistent and uninterrupted communication in various environments. Whether installed indoors or outdoors it provides reliable omnidirectional coverage making it a versatile option for diverse applications.

Discreet and Durable Design

With its compact and low-profile design the LPB-6-60 seamlessly blends into both industrial and domestic settings. Despite its subtle appearance the antenna is constructed with high-quality materials including ASA aluminium and zinc-plated steel ensuring long-lasting performance. The IP66 rating further enhances its durability offering protection against harsh weather conditions and making it suitable for outdoor use.

Easy Installation and Connectivity

The LPB-6-60 is designed for hassle-free installation featuring a simple panel mount setup that requires minimal effort. It is equipped with an integrated 5 mm double-shielded CS29 coaxial cable available in 2m or 5m lengths ensuring low signal loss and optimal performance. The antenna is compatible with various connectors providing flexibility in connecting to different devices.

Superior Signal Performance

Engineered for efficiency the LPB-6-60 antenna delivers excellent signal performance across all supported frequencies. With peak realised gains of up to 9dBi in higher frequency bands and a nominal radiated efficiency of over 70% this antenna ensures strong and stable signals for your devices. Its vertical polarisation and omnidirectional pattern further contribute to its exceptional coverage.

Ideal for M2M Applications

The LPB-6-60 is particularly well-suited for Machine to Machine (M2M) wireless connectivity applications offering reliable communication between devices in both industrial and residential environments. Its broad frequency range and high efficiency make it a preferred choice for maintaining stable connections in M2M networks ensuring seamless data transmission.

Ground Plane Requirement for Optimal Performance

To achieve the best performance the LPB-6-60 requires a conductive ground plane with a diameter of at least 300 mm. This enhances the antenna's signal strength and coverage making it a reliable choice for various deployment scenarios. Alternatively the antenna can be bracket-mounted using the optional B4BE-6-60 bracket for installations where a ground plane is not feasible.

Tailored for Various Environments

Whether you need reliable connectivity in an industrial setting or a discreet solution for a residential area the LPB-6-60 Low Profile Antenna is designed to meet your needs. Its combination of wide frequency support easy installation and durable construction makes it a versatile and practical choice for a range of applications ensuring continuous and efficient communication.

Specification:

@7/17

Description::

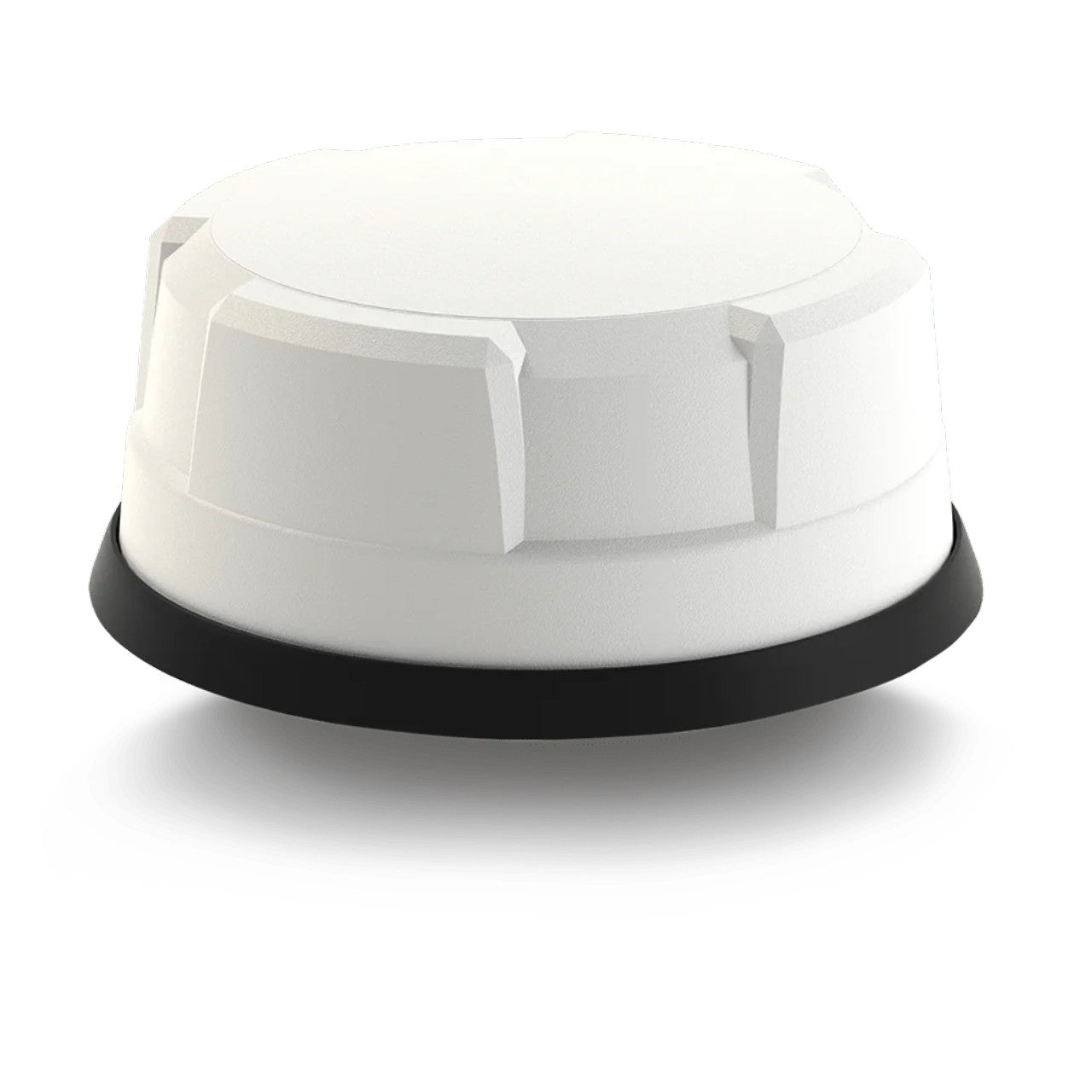

High-Performance Multi-Band Antenna for 4G/5G and Wi-Fi Applications

The Panorama LPMDM4-6-60-24-5 is a robust low-profile antenna designed to provide reliable connectivity for 4G/5G and Wi-Fi applications. Featuring 4x4 MIMO for cellular networks and 2x2 MIMO for Wi-Fi this antenna ensures optimal performance for data-intensive operations. Its durable construction and versatile mounting options make it suitable for various environments including vehicles industrial settings and outdoor installations.

Key Features

• 4x4 MIMO for 4G/5G: Supports frequencies from 617 to 960 MHz and 1710 to 6000 MHz ensuring broad compatibility with cellular networks.
• 2x2 MIMO for Wi-Fi: Covers 2.4 GHz and 5 GHz bands providing reliable wireless connectivity.
• High Gain Performance: Delivers peak gains up to 9 dBi enhancing signal strength and data throughput.
• Durable Construction: Rated IP69K and IK10 offering resistance to water dust and mechanical impacts.
• Versatile Mounting: Ground plane independent design allows for installation on various surfaces including non-metallic ones.
• Compact Design: Low-profile form factor minimizes visual impact and is ideal for space-constrained applications.

Ideal for applications requiring robust and reliable wireless connectivity such as fleet management public safety and industrial automation.

Specification:

@39/69

Description::

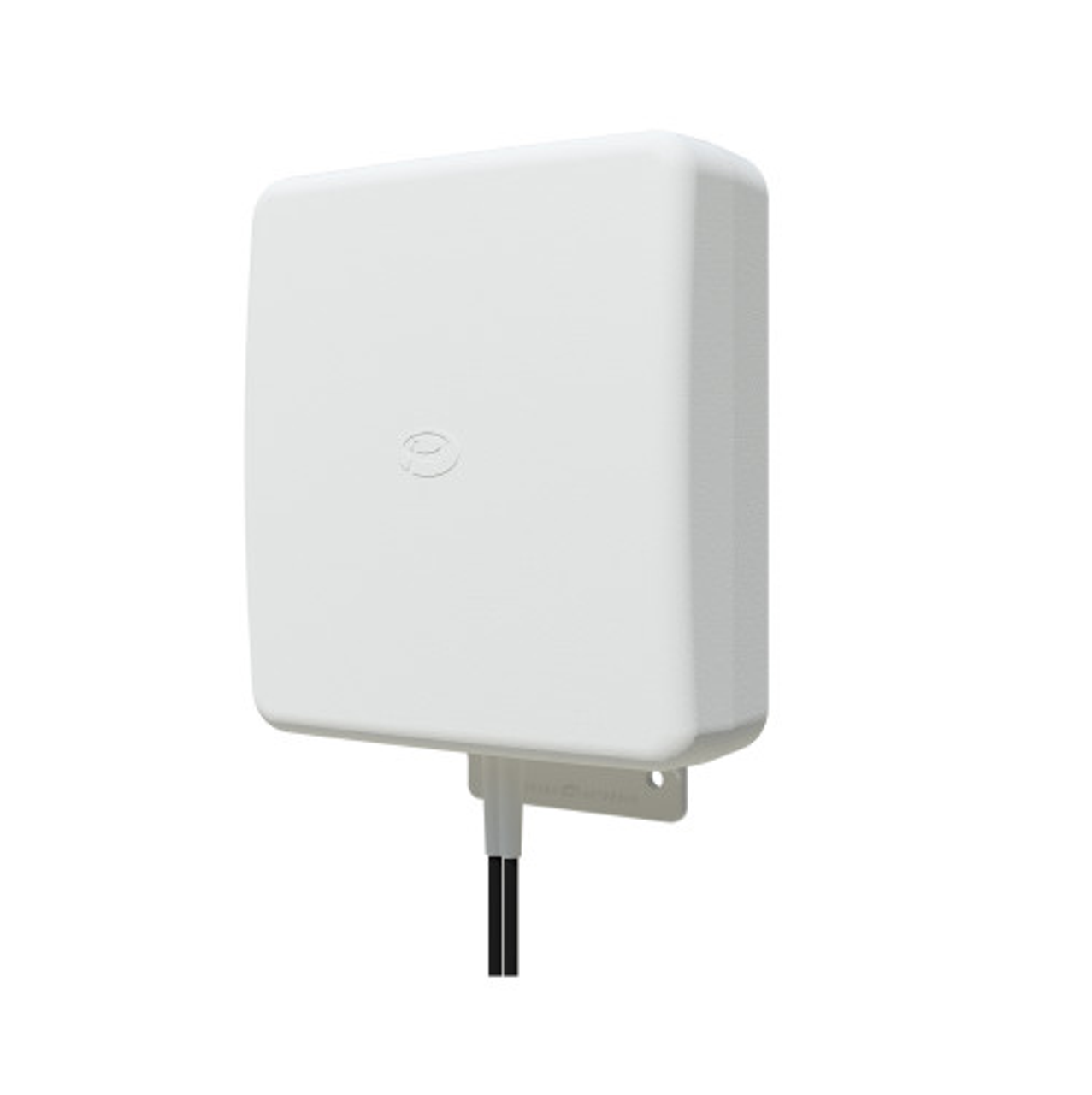

The WMM8GG-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and some 5G networks.

FEATURES:

• 3-in-1 antenna with directional 2x2 MIMO LTE and GPS
• High 6-9dBi peak gain directional fixed-site antenna
• 5m SMA(m) cable
• UV stable IP65 rated housing
• Integrate your wireless services into a single antenna
• Can be wall or mast-mounted

@29/53

Description::

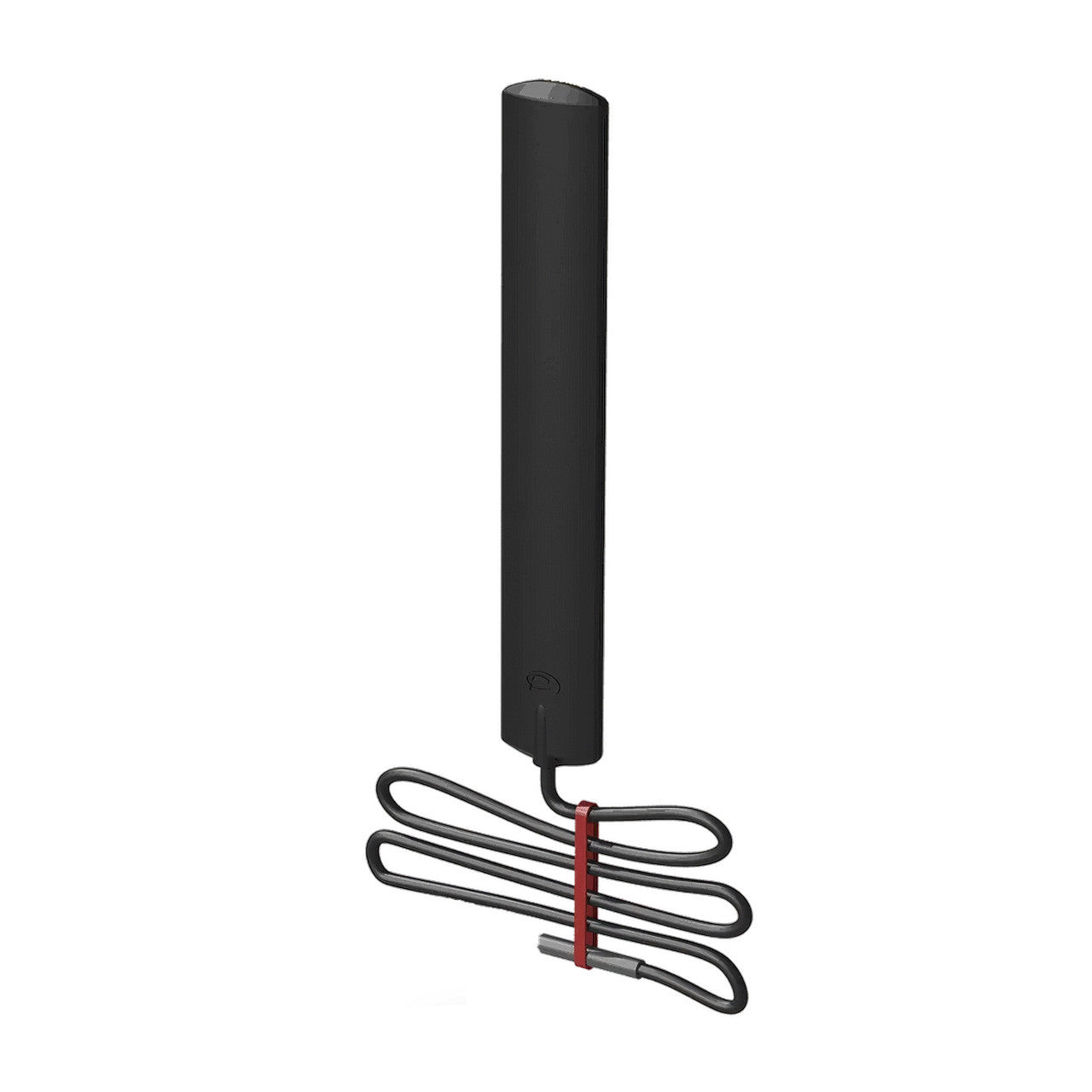

2G/3G/4G Easy-Fit Antenna. The Panorama EF-BC3G-26 antenna is designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.

Key Features:

• Compact design for easy installation
• Can be mounted on any non-conductive surface
• Suitable for use in a vehicle or static device
• Covers all 2G/3G/4G LTE bands
• Omni-directional and can be installed with or without a ground plane
• Slimline design

Benefits:

• A plug-an-play solution with no additional tuning
• Versatile product for multiple applications
• Improved your cellular connectivity

Applications:

• In-vehicle connectivity
• Smart metering
• Vending machines
• M2M applications

Specification:

@8/18

Description::

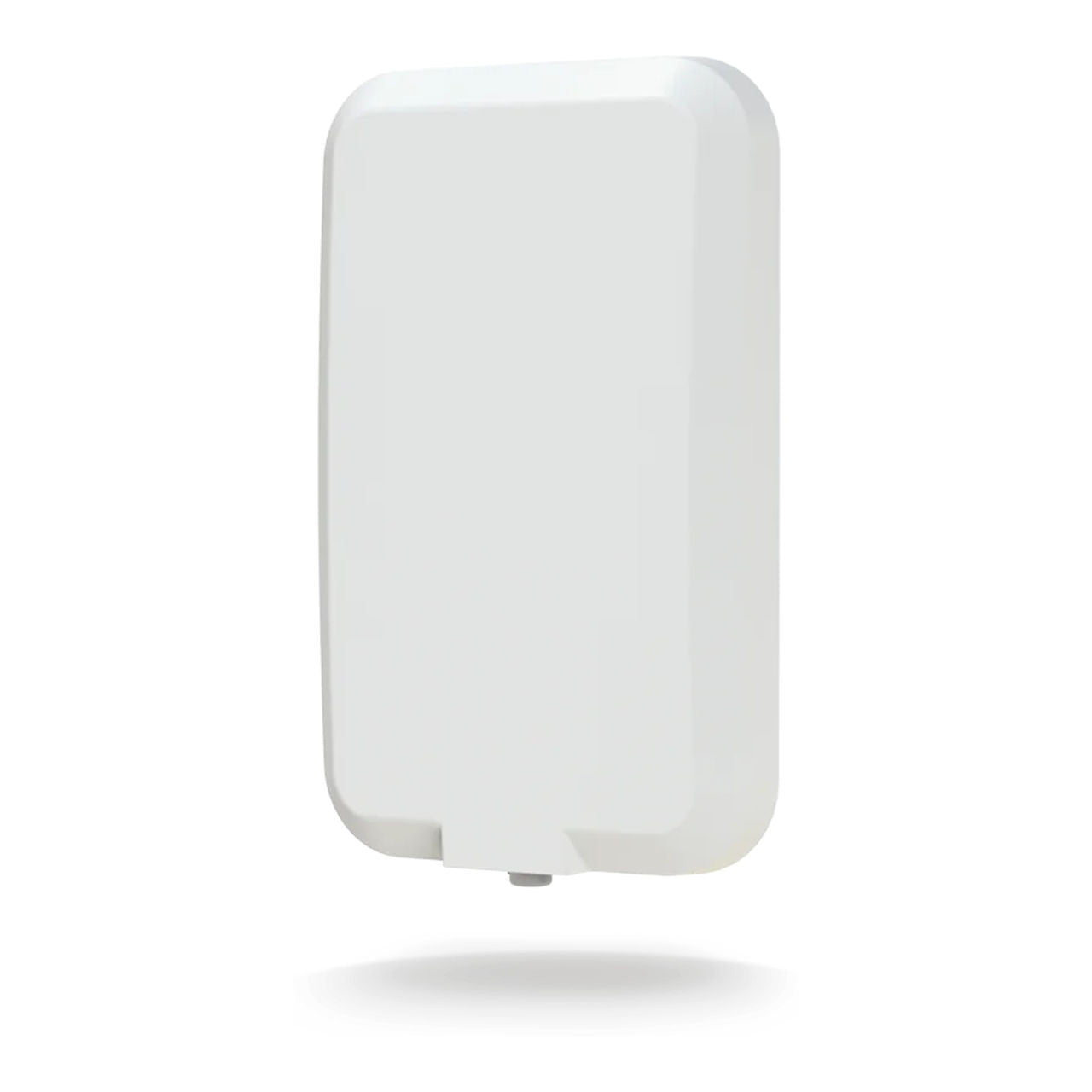

Panorama's WMM2G-6-60 MIMO antenna incorporates two wideband element assemblies in a single housing and is designed to support fixed-site client devices. This antenna offers a 6 dBi peak gain for the lower 617 to 960 MHz band and a 9 dBi peak gain for 1710 to 6000 MHz upper band. The weather-resistant housing is designed for wall or mast mounting with the supplied hardware.

The WMM2G-6-60-05NJ version has 50cm length cable tails fitted with N-Type Female connectors which is ideal for installations that require a short flexible tail to connect to larger feeder cables.

The WMM2G-6-60 is a value-added product for network operators and service providers by improving the link resilience to the router achieving increased data rates for the subscriber and resulting in customer satisfaction and retention.

FEATURES:

• 2x2 MIMO Wideband Cellular LTE Antenna
• Can be all or mast mounted
• IP66 rated
• Ideal product for fringe network areas
• Integrates your wireless services into a single antenna
• Failover and Enterprise Solutions
• 50cm length cable tails fitted with N-Type Female connectors

@48/50

Description::

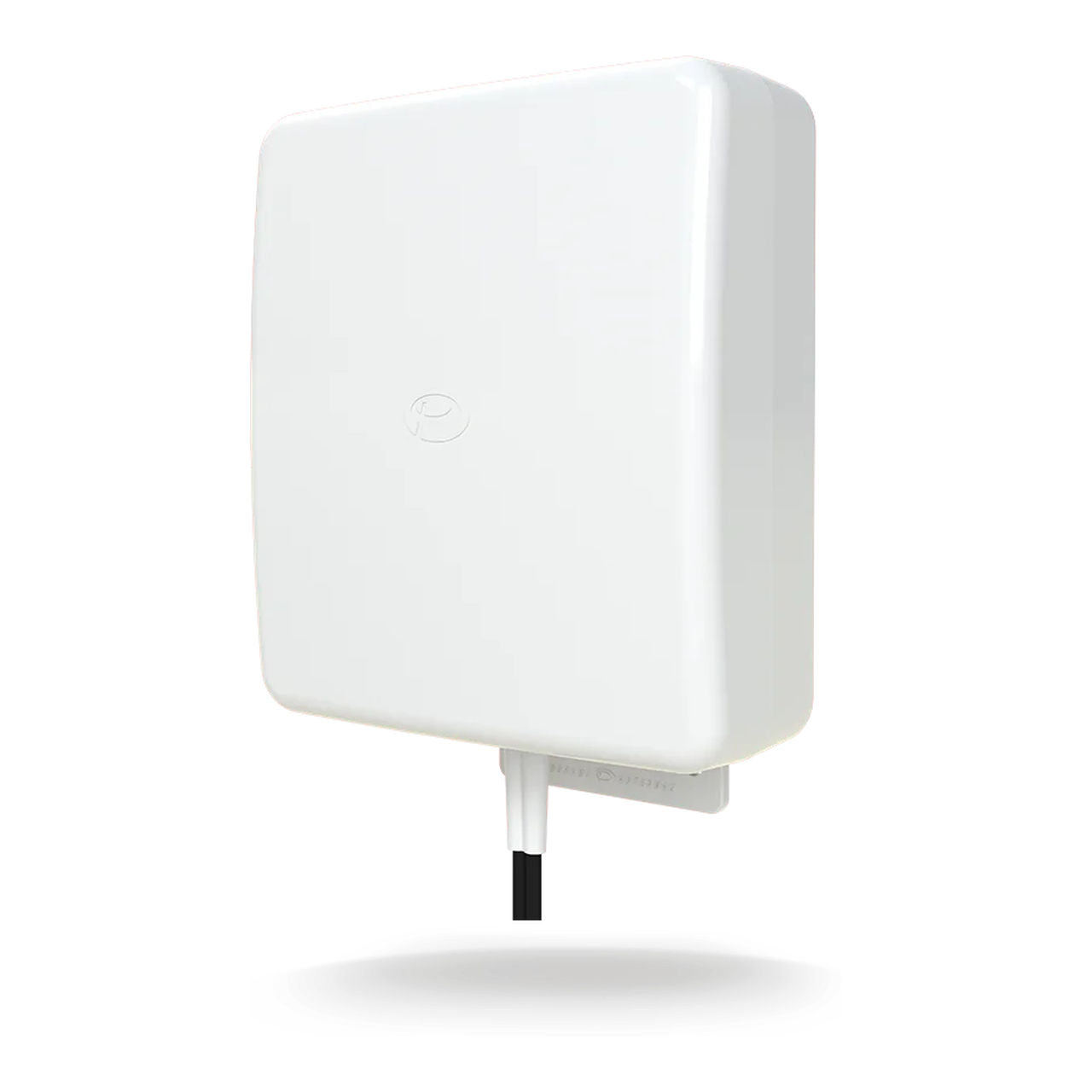

The WMM8G-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and some 5G networks.

FEATURES:

• 2x2 MiMo wideband cellular LTE antenna
• High 9dBi peak gain directional product
• Covers wideband 700-3800MHz for 2G/3G/4G/5G LTE
• 6-9dBi peak gain directional fixed-site antenna
• Ideal product for fringe network areas

The rugged weatherproof housing is designed for wall or mast mounting. The antenna has a gain of 6-9dbi and 5m Twin cable with SMA male connector.

PRODUCT VARIANT

@21/40

Description::

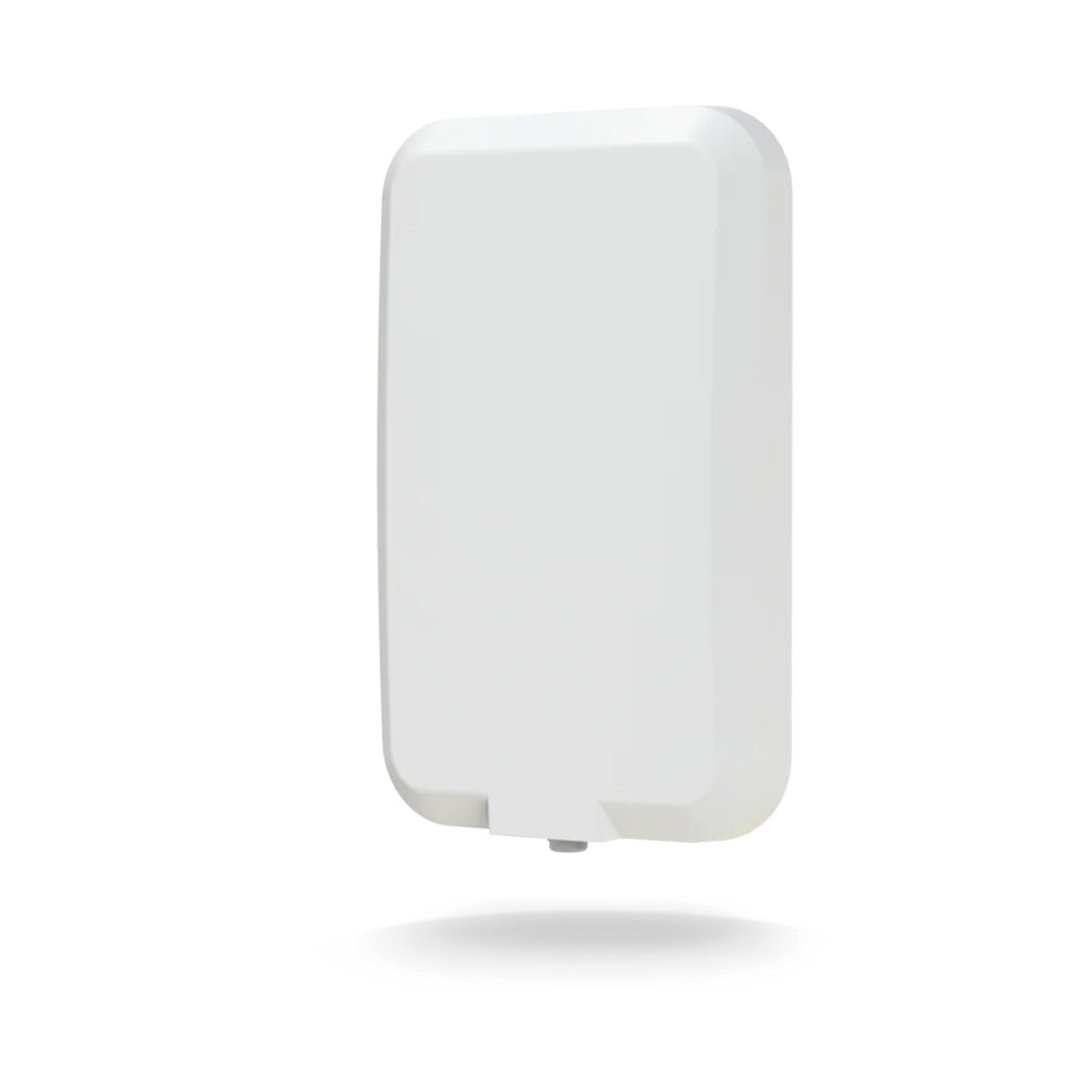

The WMM4G-6-60-05NJ is a high-gain directional 4×4 MiMo antenna designed to boost 4G and 5G signals. It features four separately fed wideband element assemblies within a single housing providing client-side MiMo support with a peak gain of 6dBi at 617-960MHz and 9dBi at 1710-6000MHz.

Housed in weather-resistant casing it is suitable for wall mounting with wall and mast mount brackets included. The antenna comes with low-loss double-shielded cables for cellular/LTE reducing exposed connector joints and simplifying cable management for easy installation.

@59/60

Description::

Advanced 4x4 MIMO Directional Antenna Designed for Superior 4G/5G Connectivity and Long-range High-speed Performance in Challenging Environments

The Panorama Wall mount MIMO 4G/5G Directional Antenna is a high-performance antenna designed for optimal connectivity in modern 4G and 5G wireless networks. Offering a 60° beamwidth this advanced directional antenna supports 4x4 MIMO (Multiple Input Multiple Output) technology to enhance signal strength and ensure faster more reliable data transfer. Whether you're deploying in a rural area remote location or urban environment the Panorama antenna is engineered to provide high throughput and exceptional coverage over long distances.

Key Features

• 4x4 MIMO Support: Delivers maximum throughput by utilizing multiple antennas for simultaneous signal reception and transmission.
• Wideband 4G/5G Coverage: Operates across a broad frequency range providing seamless support for 4G LTE and 5G NR networks.
• Directional Design: With a 60° beamwidth it focuses signal transmission for long-range high-performance connections.
• High Efficiency: Ensures strong stable connections even in challenging environments reducing network congestion and signal loss.
• Weather-Resistant Construction: Built to withstand harsh conditions the antenna is weatherproof and suitable for outdoor deployments.
• Compact and Lightweight: Despite its robust performance the antenna's compact design makes it easy to install and deploy.

Upgrade your network with the Panorama Wall Mount MIMO 4G/5G Directional Antenna and experience enhanced coverage improved data speeds and a reliable long-distance connection for critical wireless applications.

Specification:

@62/62

Description::

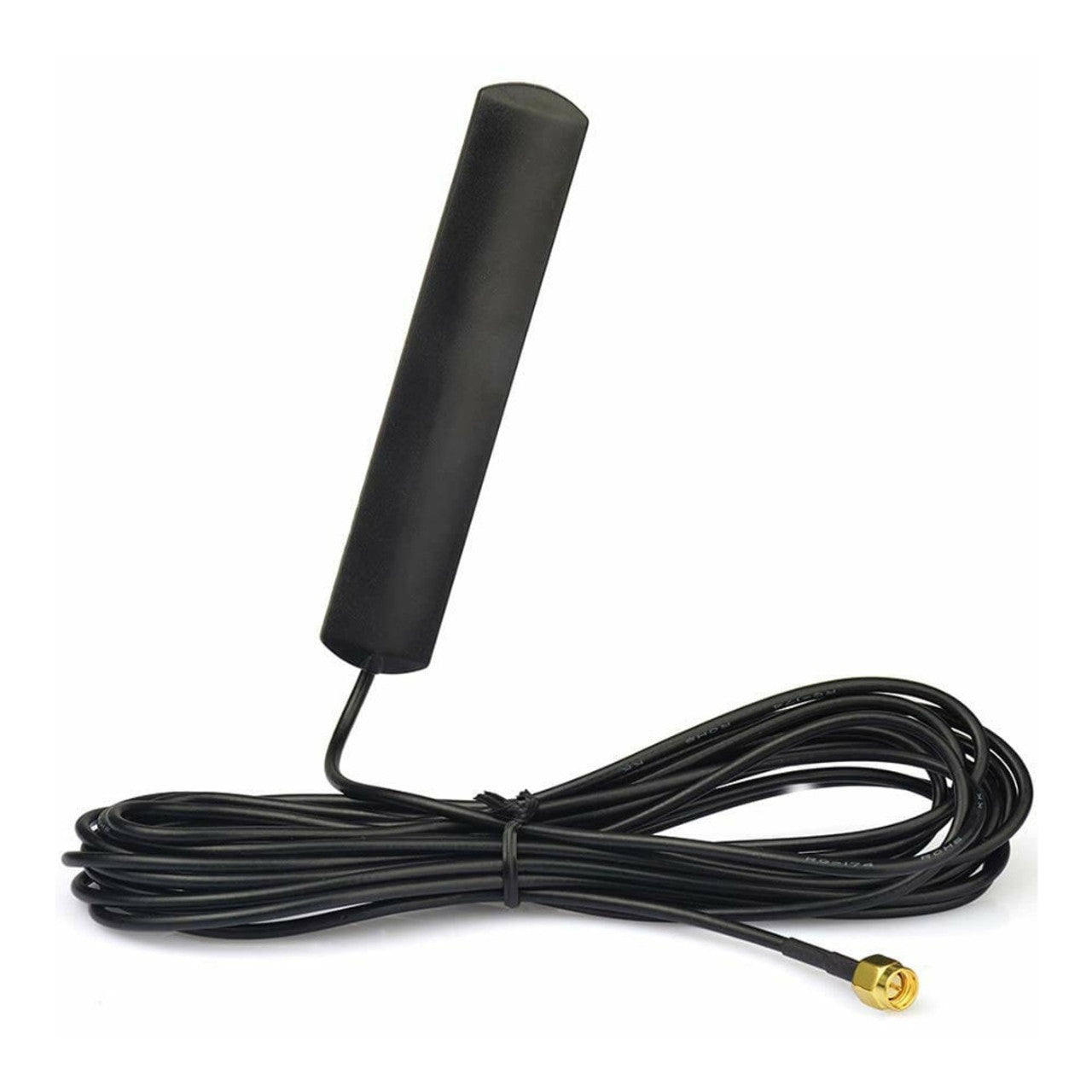

The Powertec 4G Adhesive Antenna 700 to 2700 MHz SMA Male is engineered to offer exceptional performance in a compact form. Measuring just 115 mm x 21 mm x 3 mm this antenna is designed for ease of installation and discreet placement. Its sleek black finish ensures it blends seamlessly into various environments while providing reliable connectivity.

Key Features:

• 698-960 MHz and 1710-2700 MHz Frequency Range
• 3 dBi Gain
• ≤3.0:1 VSWR
• Omnidirectional radiation pattern
• 10W Power Handling Capacity
• Linear Polarisation
• 50 Ohms Impedance
• Equipped with an SMA Male connector.

Broad Frequency Coverage

This antenna supports a wide frequency range from 698 MHz to 2700 MHz making it highly versatile for different 4G applications. Whether you need to enhance signal strength for low or high frequency bands the Powertec adhesive antenna delivers consistent performance across its operational range.

Enhanced Signal Gain

With a gain of 3 dBi the Powertec antenna enhances signal reception and transmission contributing to better overall network performance. This gain level is ideal for boosting connectivity in areas where signal strength needs improvement ensuring a stable and reliable connection.

Easy Installation with Adhesive Mounting

The antenna features a convenient 3M adhesive mount allowing for straightforward and secure installation on various surfaces. This adhesive backing eliminates the need for drilling or complex mounting hardware making setup quick and hassle-free.

Omnidirectional Radiation Pattern

Designed with an omnidirectional radiation pattern this antenna provides 360-degree coverage ensuring consistent signal reception from all directions. This feature is particularly beneficial in environments where signal sources come from multiple angles.

Durable and Reliable

Constructed to handle up to 10 watts of power the Powertec antenna is built for durability and reliability. Its sturdy design ensures long-term performance even in demanding conditions making it a dependable choice for enhancing 4G signal strength.

Versatile Connectivity Options

The antenna comes equipped with an SMA Male connector providing compatibility with a wide range of devices and equipment. This versatile connector ensures easy integration with existing systems and contributes to the antenna's flexibility in various applications.

Specification:

@4/12

Description::

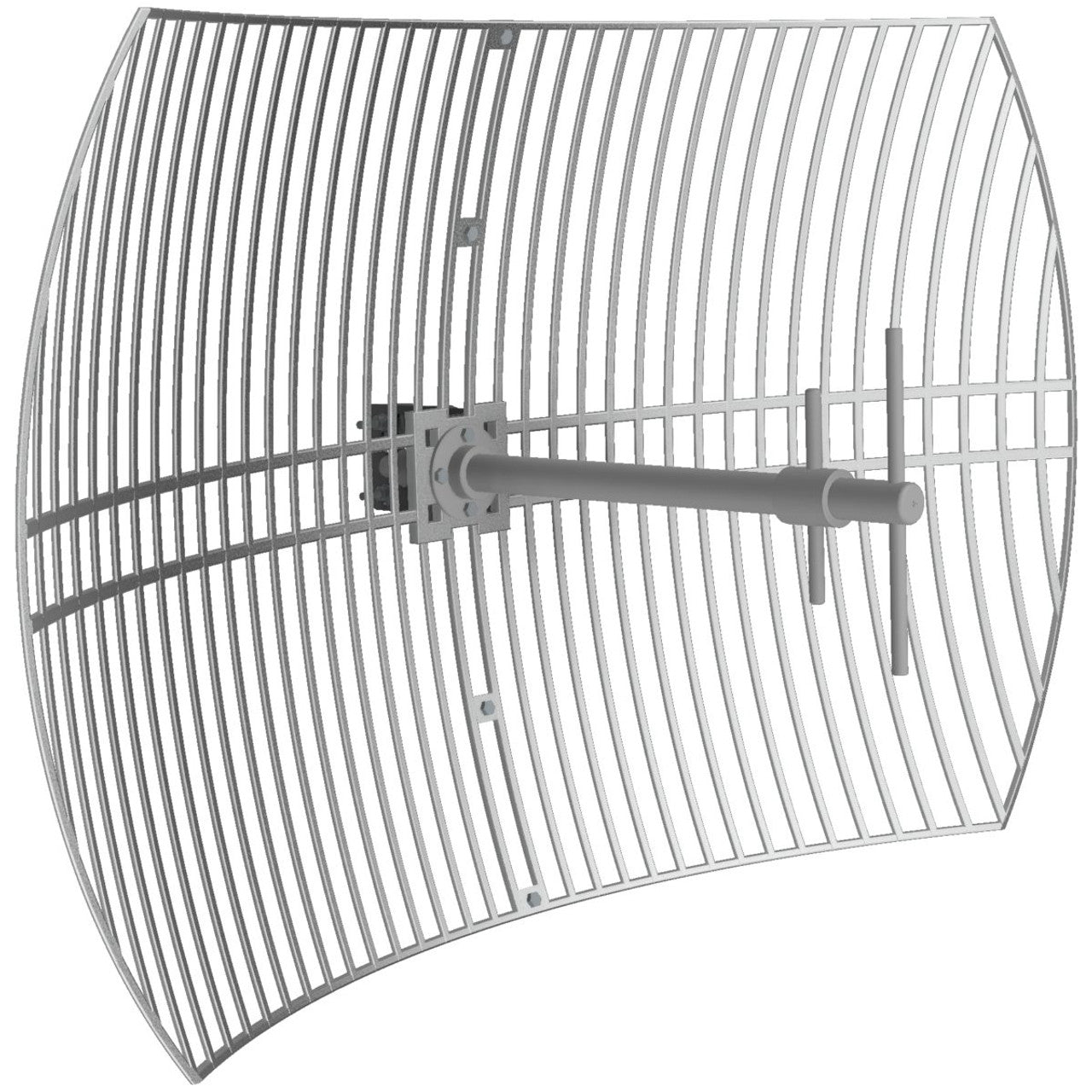

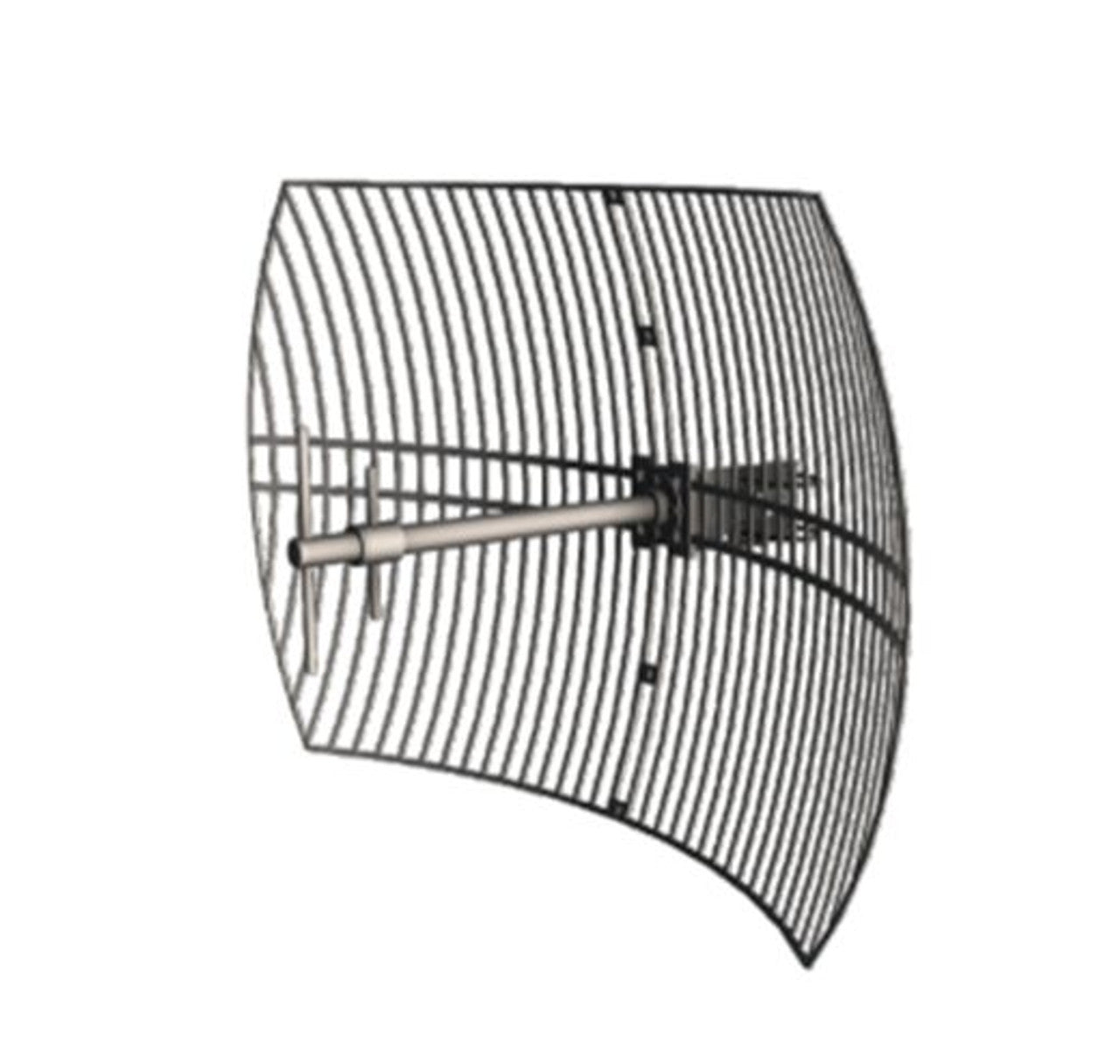

High-Performance Grid Antenna for Regional 4G and 5G Coverage

This grid parabolic antenna is designed to significantly boost 4G and low-band 5G connectivity in regional and remote areas. Tuned for the 698–960 MHz range it supports key bands such as LTE Band 28 and NR bands n5 and n8. With up to 14 dBi peak gain the antenna directs strong signal toward the nearest tower while maintaining a broad enough beamwidth to capture scattered reflections. The ruggedised construction includes a powder-coated cast aluminium reflector solid aluminium feed and stainless steel pole-mount clamp. A 30 cm RG-142 cable tail fitted with a waterproof 4.3-10 Female connector ensures reliable weather-resistant installation in extreme outdoor environments.

Key Features

• Optimised Frequency Range: Covers 698–960 MHz for enhanced reception on LTE Band 28 and 5G bands n5 and n8 used in regional Australia.
• High Peak Gain Performance: Delivers up to 14 dBi gain in the 698–890 MHz range and 13.4 dBi up to 960 MHz focusing signal for improved long-range performance.
• Grid Parabolic Reflector Design: Projects signal like a directional beam to maximise energy toward distant towers while maintaining beamwidth for off-angle capture.
• Vertically Polarised Output: Supports SISO communication with a vertical polarisation to suit typical mobile network tower transmission standards.
• Durable Construction: Built with powder-coated cast aluminium reflector and solid aluminium/acetal feed for long-lasting outdoor use.
• Wide Temperature Range: Operates from –40 °C to 65 °C ensuring performance under harsh Australian climate conditions.
• Weatherproof Connector System: Features a 30 cm RG-142 tail and 4.3-10 Female waterproof connector to maintain integrity against moisture and dust.
• Secure Pole Mounting: Supplied with a stainless steel clamp for stable installation on poles 30–60 mm in diameter.

This antenna offers reliable high-gain signal reception for low-band 4G and 5G applications in demanding rural environments.

Specification:

@26/49

Description::The Powertec Low Band Grid Antenna 698 to 960 MHz 14 dBi N Female is one of the highest performing external antenna solutions available for poor 4G voice and data service. This antenna has been optimised for long range 4G connectivity tuned specifically for frequencies used in regional and remote areas. This Grid antenna covers the cellular bands between the 700 and 960 MHz range with a very high 14 dBi peak gain.  Gain of this magnitude focuses maximum energy in the direction of the cell tower while still maintaining a reasonable beamwidth to capture reflected and scattered signal. By narrowing the operating frequency range to just the lower cellular band maximum radiated efficiency is achieved and no energy is wasted on short-range frequencies.

FEATURES:

• Ruggedised construction for Australian conditions
• Solid aluminium feed powder coated cast aluminium reflector.
• Stainless steel mounting clamp included.
• 30 cm tail with an N-Female connector.

@26/49

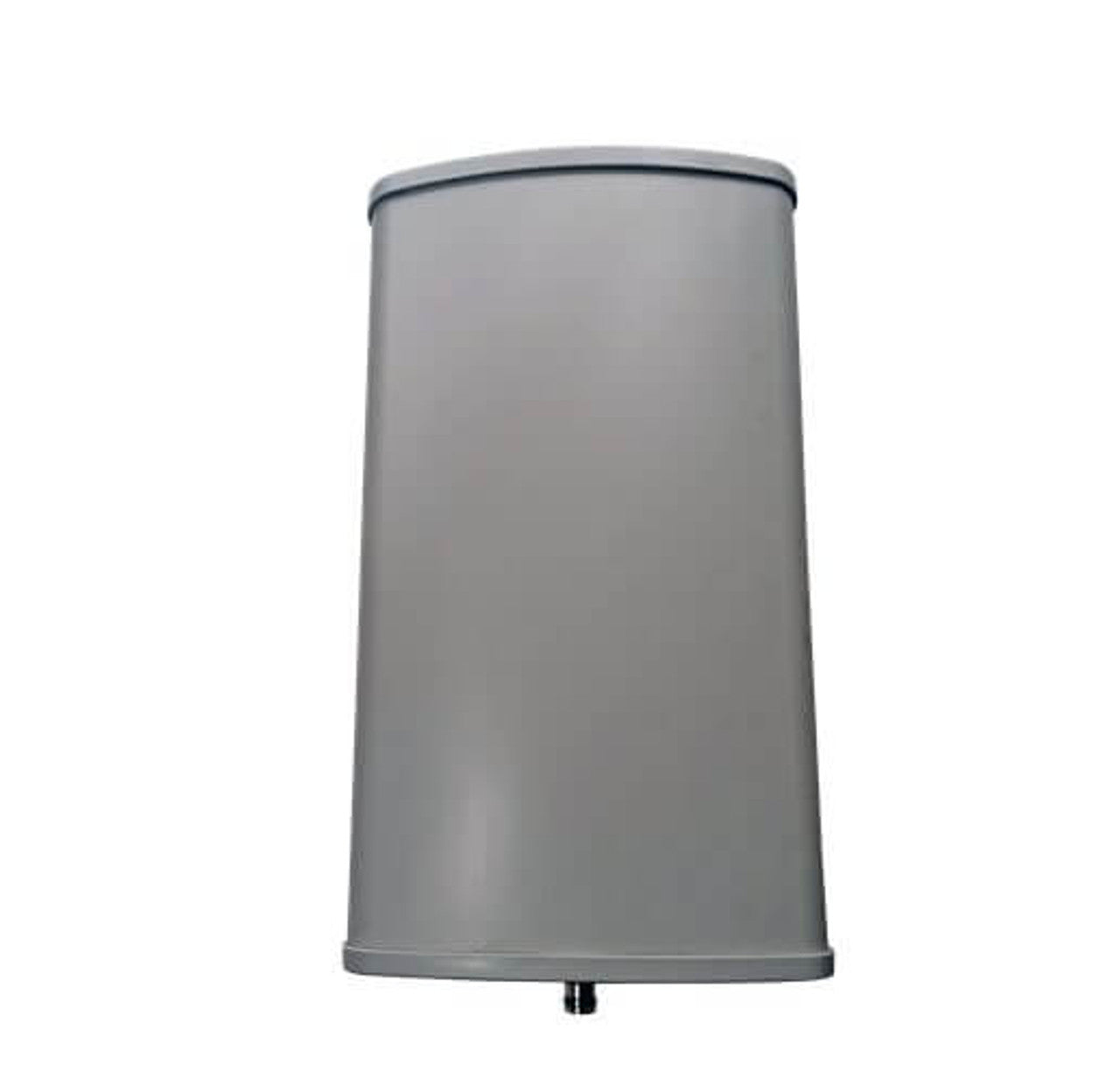

Description::The Powertec Low Band H-Pol Panel Antenna 698 to 960 MHz 4.3-10 Female operates on all low band 4G and 5G frequencies.  This antenna is designed for rebroadcast of cellular repeater signal.

FEATURES:

• Shaped to transmit a wide beam of coverage when connected as a Service Antenna to a repeater system like the Nextivity's CEL-FI GO.
• Industrial grade single port SISO antenna.
• Horizontally polarised for maximum isolation and ruggedized construction for tough conditions.
• 10 to 11 dBi gain across 4G-5G Low Band 698 to 960 MHz.
• UV-stable PVC construction.
• Low PIM 4.3-10 Female connector.

@32/58

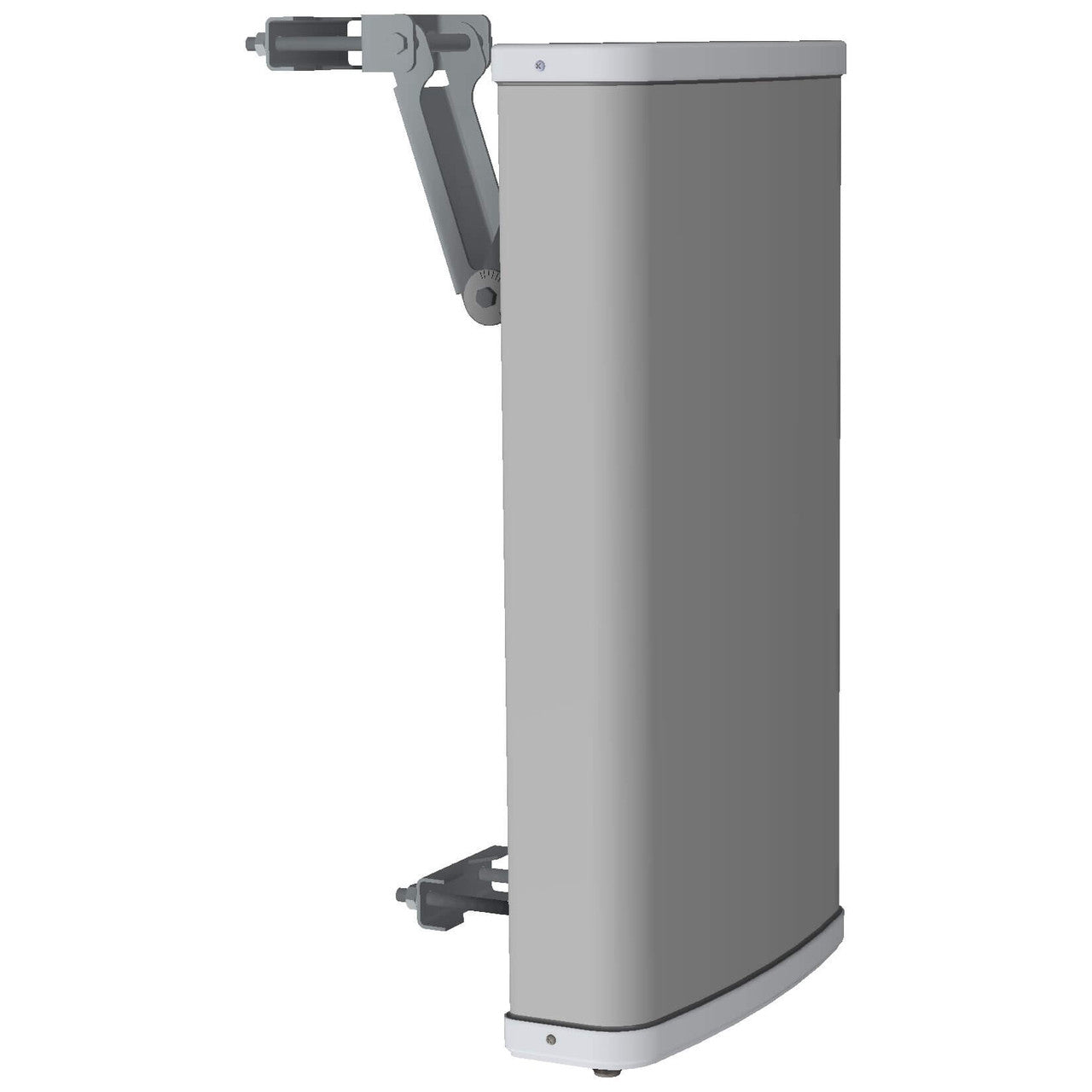

Description::2XPA-6996-15 is a heavy duty 2x2 MIMO antenna covering 4G LTE and 5G NR lower cellular bands from 698 to 960 MHz with high gain high front-to-back ratio and low VSWR. The antenna is designed for long range 4G data connectivity and also as an outdoor broadcast antenna for CEL-FI Quatra repeaters. With a 14 dBi peak gain across the entire band it serves as a exceptional long range 700 MHz 4G LTE MIMO XPOL antenna. The antenna is ready for Telstra's long range 5G 850 MHz network as well Optus and Vodafone 900 MHz services. This high performance antenna ensures the best possible connectivity regardless of network coverage type. The antenna has two 4.3-10 female RF connectors providing IP67 weatherproof cable connectivity.

• 13.9 dBi gain across cellular low band 698 to 960 MHz
• Ruggedised fibreglass construction with mechanical tilting bracket
• Two 4.3-10 Female flange connectors (IP67 ingress protected)
• Low Band 5G-Ready (Telstra NR850)

@42/75

Description::

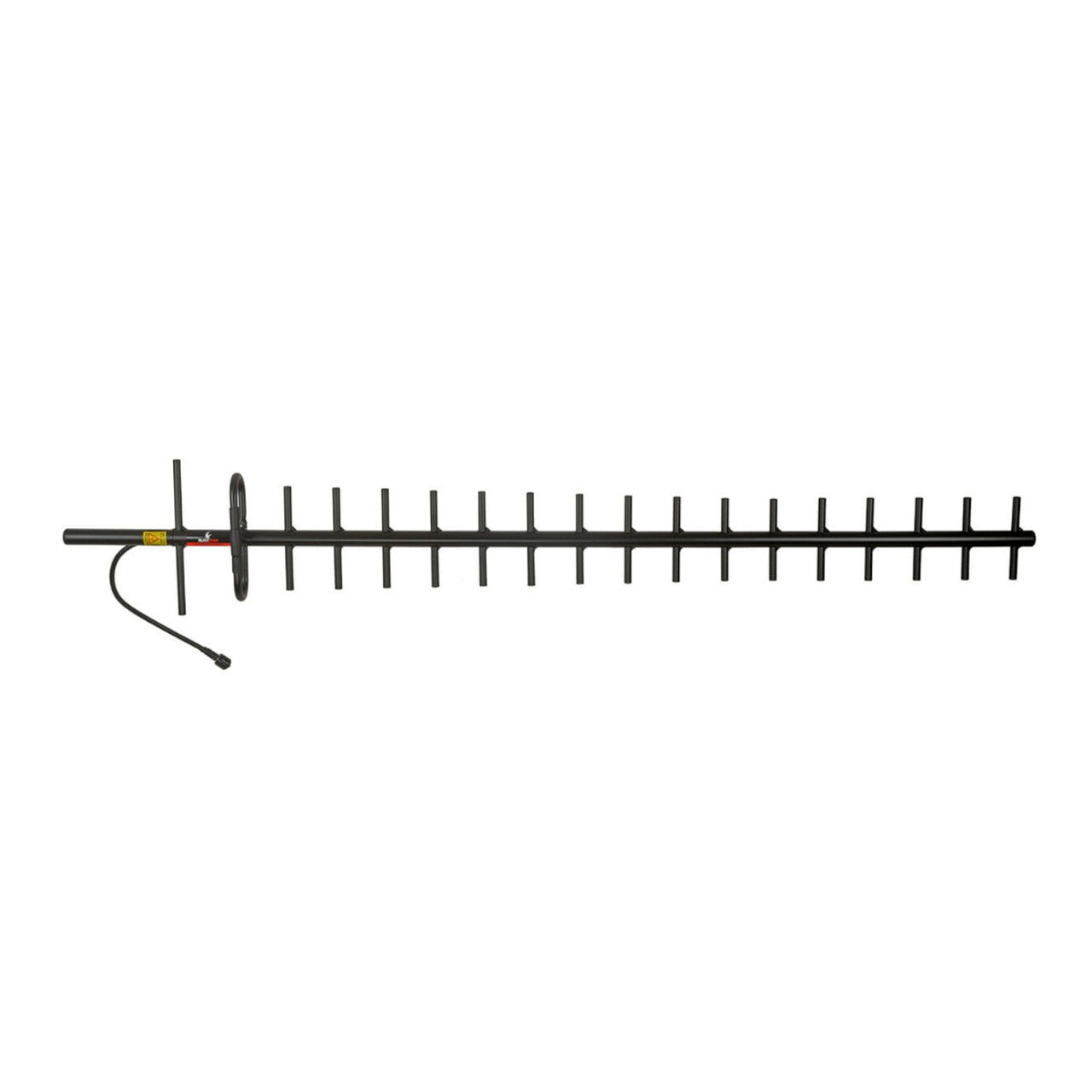

The Powertec 4G Low Band Yagi Antenna 698 to 960 MHz N Female + 10m Cable N Male to SMA Male is engineered for optimal performance over extended distances. With a peak gain of 13 to 14 dBi this antenna is designed to enhance signal reception in rural and remote areas providing reliable connectivity up to 40 kilometres from the nearest base station.

Key Features:

• Ruggedised fully welded construction for extreme conditions
• Galvanised mounting clamp included
• 30 cm tail terminated with an N Female connector
• 10m LMR240 Cable
• Ideal solution for voice and data applications where high gain antennas are required
• Suitable for fixed wireless terminals mobile broadband internet and smart repeater applications

Specification:

@29/53

Description::

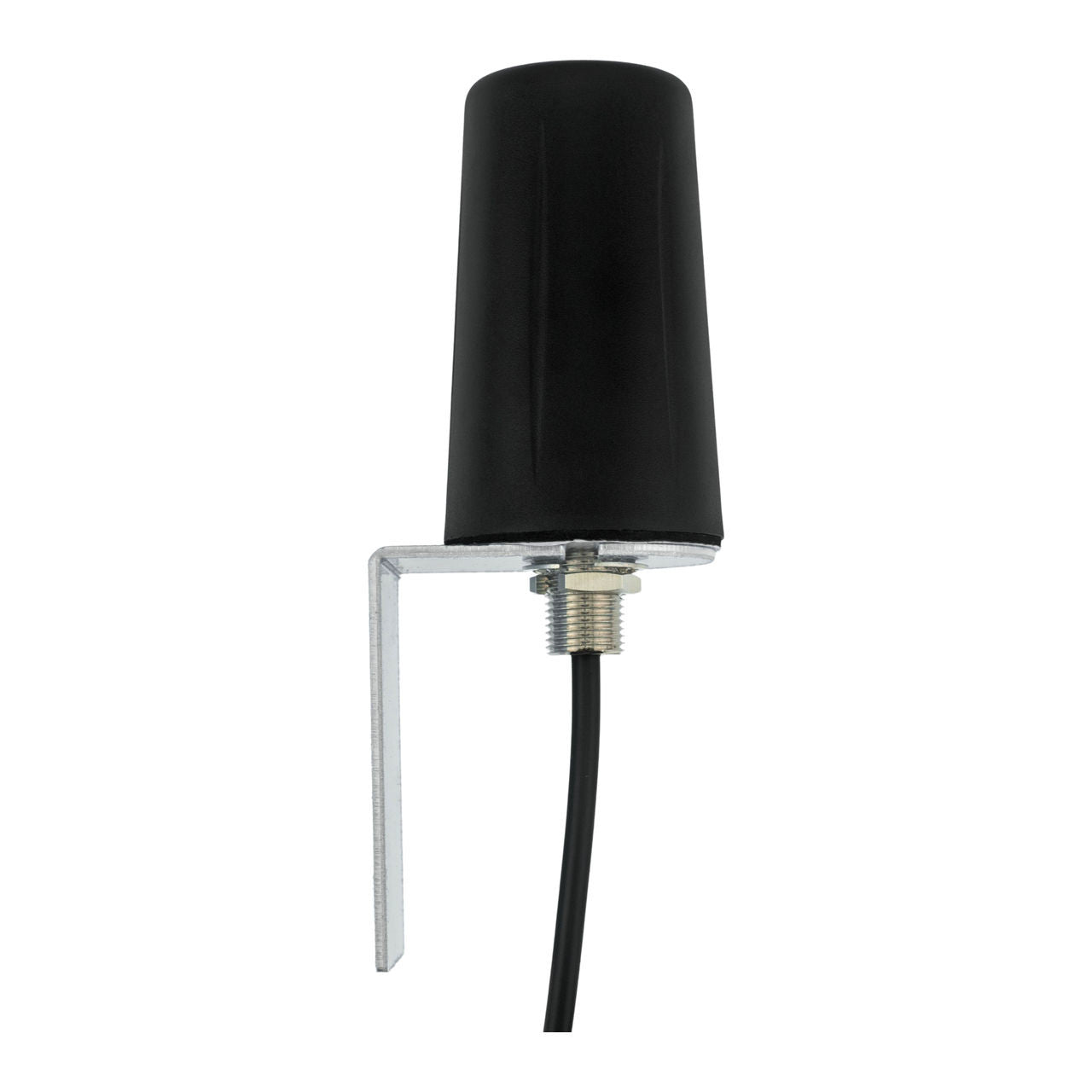

The Blackhawk M2M omni antenna is a compact antenna capable of operating on any network in Australia making it suitable for M2M communications on Telstra Optus and Vodafone TPG networks. The antenna is most commonly used in machine telemetry such as in smart metering vending machines and industrial control systems. This model has been selected on the basis of its high radiation efficiency and stable average gain across the operating frequency range.

FEATURES:

• 4 dBi gain across lower bands 698-960 MHz
• 5 dBi gain across bands 1710-2170 MHz
• 4 dBi gain across upper bands 2500-2700 MHz
• Black ABS construction
• Bracket mount included
• 3 m cable with pre-terminated SMA male connector
• Ideal for Telstra Vodafone and Optus M2M applications.

 With a height of only 82 mm the antenna is also a fantastic option for low clearance vehicles buses and caravans. With a simple stud mount the antenna can be a great internal antenna for the CEL-FI repeater system in fact in multi-storey buildings or multi-level car parks the antenna makes for an excellent external antenna where multiple antennas must be mounted on the building roof.

@7/17

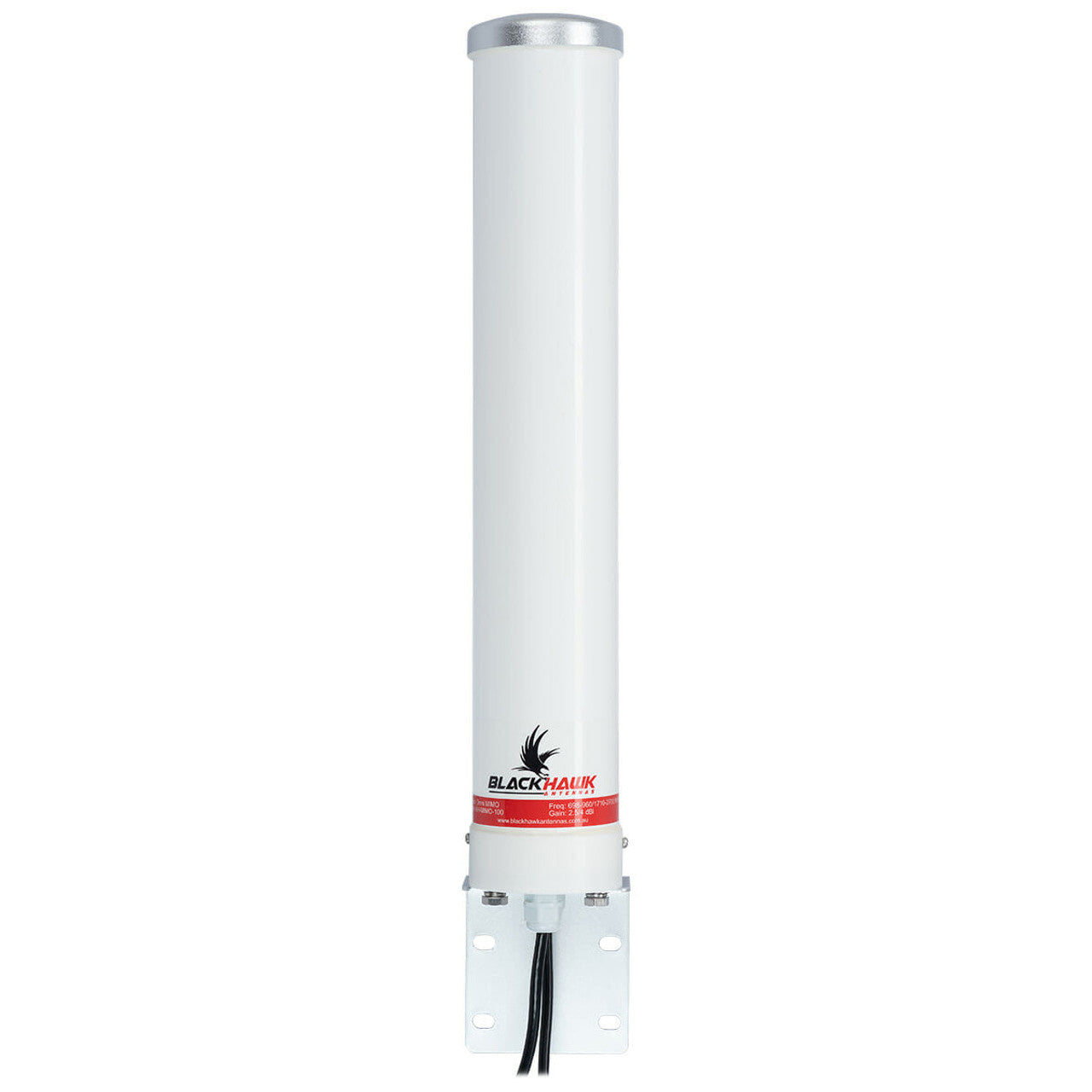

Description::The Blackhawk MIMO Omni Antenna is a compact 4G LTE antenna designed to receive signal from any direction. The antenna incorporates two separate antenna elements to provide a nominal MIMO 4G connection (V-V Pol) providing up to twice the data speeds of a single omni antenna. The antenna has two 5 metre cables pre-fitted with SMA Male connectors to support convenient connectivity into a 4G modem.

FEATURES:

• 2.5 dBi gain across lower bands 698 to 960 MHz
• 4 dBi gain across upper bands 1695 to 2700 MHz
• Ruggedized construction for extreme conditions
• UV-stable PVC construction
• Stainless steel mounting clamp included
• Includes two 5 m RG58 cables pre-fitted with SMA male connectors
• Ideal for high speed 4G LTE applications.

@26/48

Description::

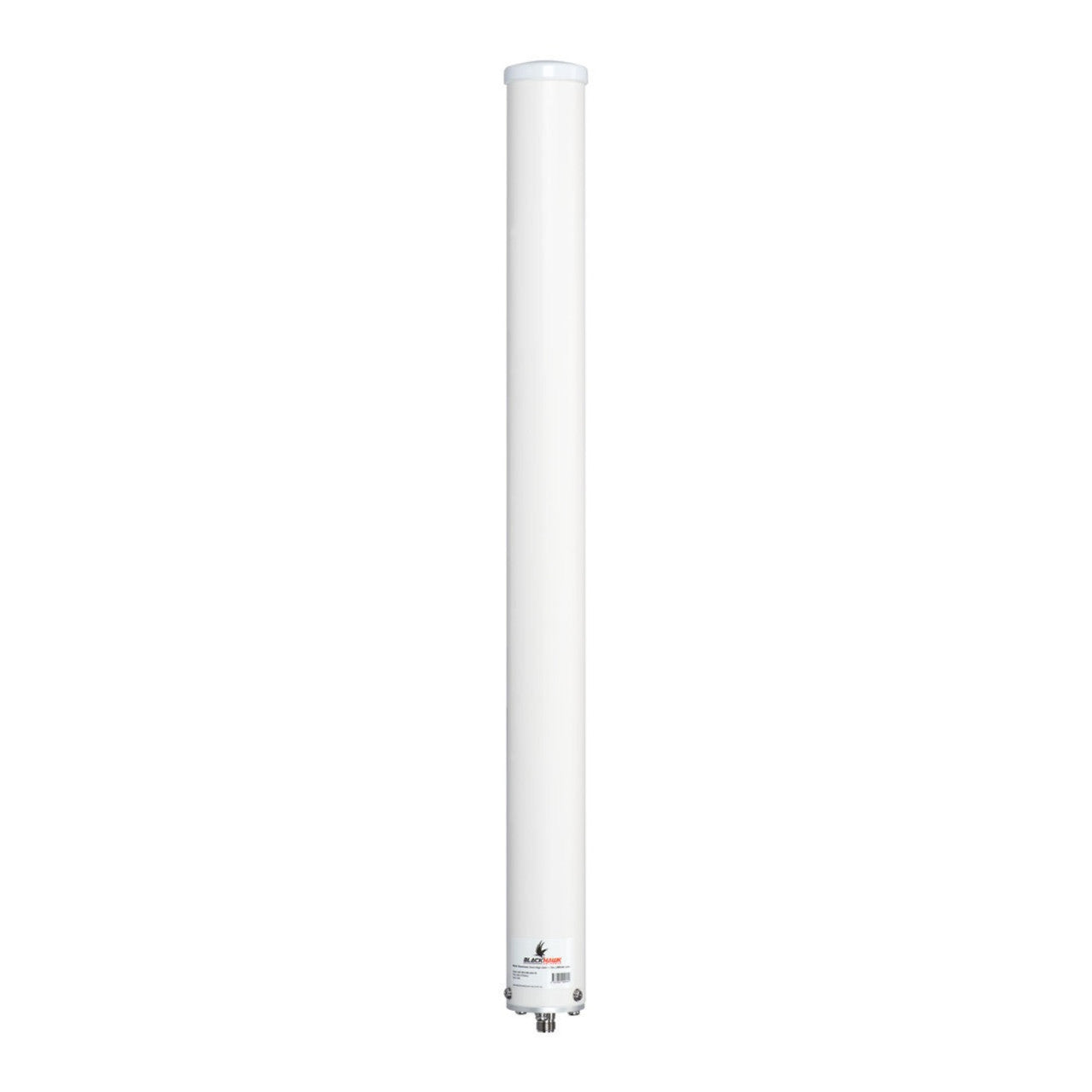

The Powertec 4G Omni High Gain Antenna 698 to 2700 MHz N Female PTL-240 Coaxial Cable N Male to SMA Male 10m offers exceptional performance across a wide frequency range. This omnidirectional antenna is designed for seamless installation in any direction making it perfect for use with Cel-Fi repeater systems and other mobile equipment. Whether mounted on moving machinery or deployed in fixed locations this antenna ensures reliable signal strength and coverage even in challenging environments.

Key Features:

• 5 dBi gain across lower bands 698 to 960 MHz
• 6 dBi gain across upper bands 1695 to 2700 MHz
• Ruggedised construction for Australian conditions
• UV-stable PVC construction
• Stainless steel L-bracket included
• Integrated N Female connector
• 10 m PT-240 low loss cable

Specification:

@20/38

Description::

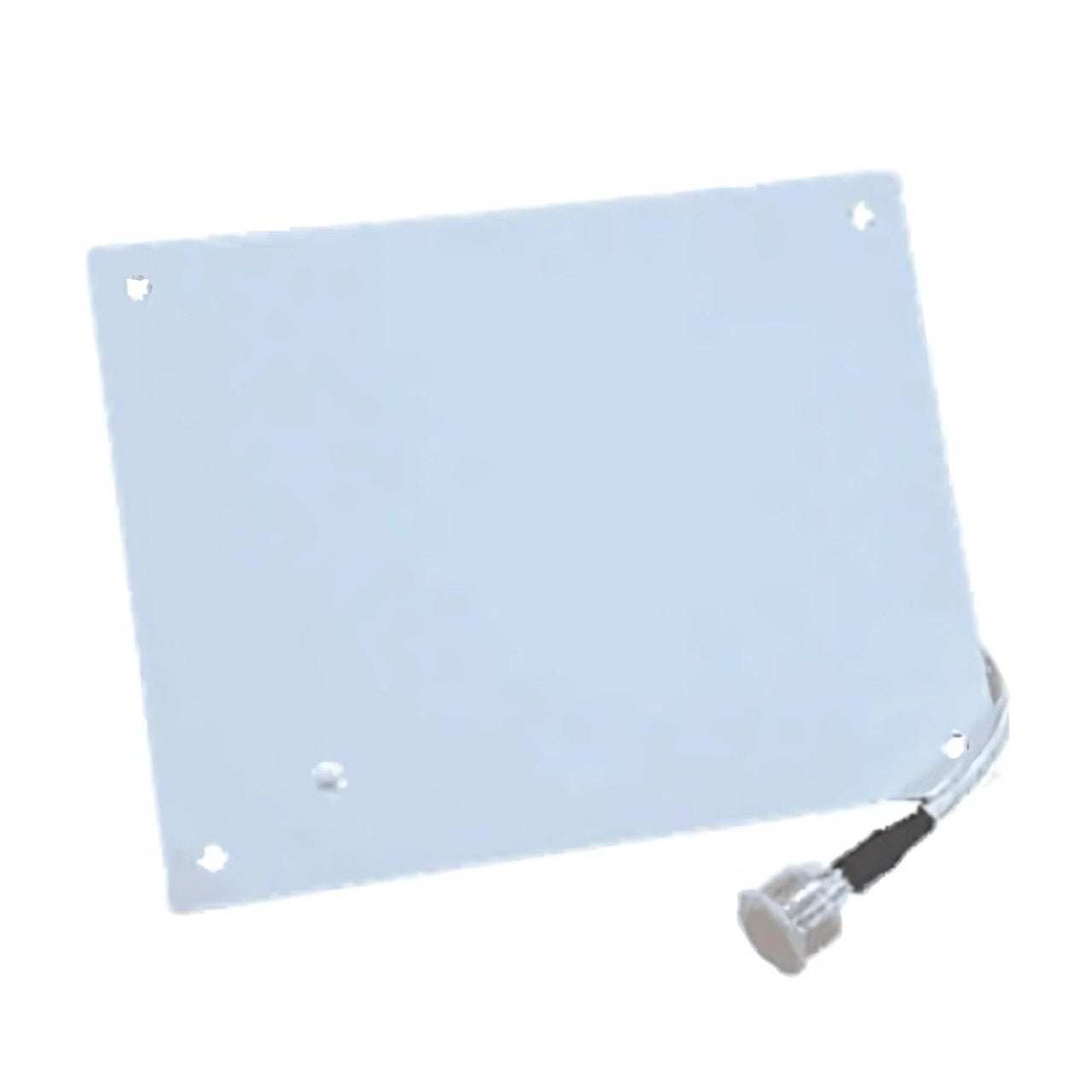

Ultra-slim Panel Antenna Designed for Discreet 4G Signal Enhancement

This compact antenna delivers dependable 4G performance in a sleek and space-saving form factor. Designed for flat surface mounting it supports a broad frequency range of 698 to 2700 MHz making it ideal for indoor or outdoor use in commercial industrial or embedded system installations. Its N Female connector and slimline profile make it both robust and easy to integrate into new or existing communication systems.

Key Features

• Wide frequency support from 698 to 2700 MHz: Covers major 4G LTE bands providing flexible compatibility for use across metropolitan regional and remote networks.
• 3 dBi gain for stable 4G signal improvement: Offers moderate signal gain improving connection reliability without introducing excessive signal amplification which is ideal for general coverage enhancement.
• One of the slimmest panel antennas available: Designed with an ultra-thin profile that allows discreet mounting on walls cabinets and within equipment enclosures where space is limited.
• Durable N Female connector for secure installations: Fitted with a robust N Female interface that enables dependable long-term use and simplified integration with coaxial cabling.
• Indoor and outdoor installation ready: Built to withstand diverse environments it’s suitable for a wide range of deployment scenarios including office interiors utility cabinets and sheltered outdoor locations.

Upgrade connectivity with this thin high-performance 4G panel antenna—ideal for modern installations that demand space efficiency and wideband reliability.

Specification:

@7/18
