Description::

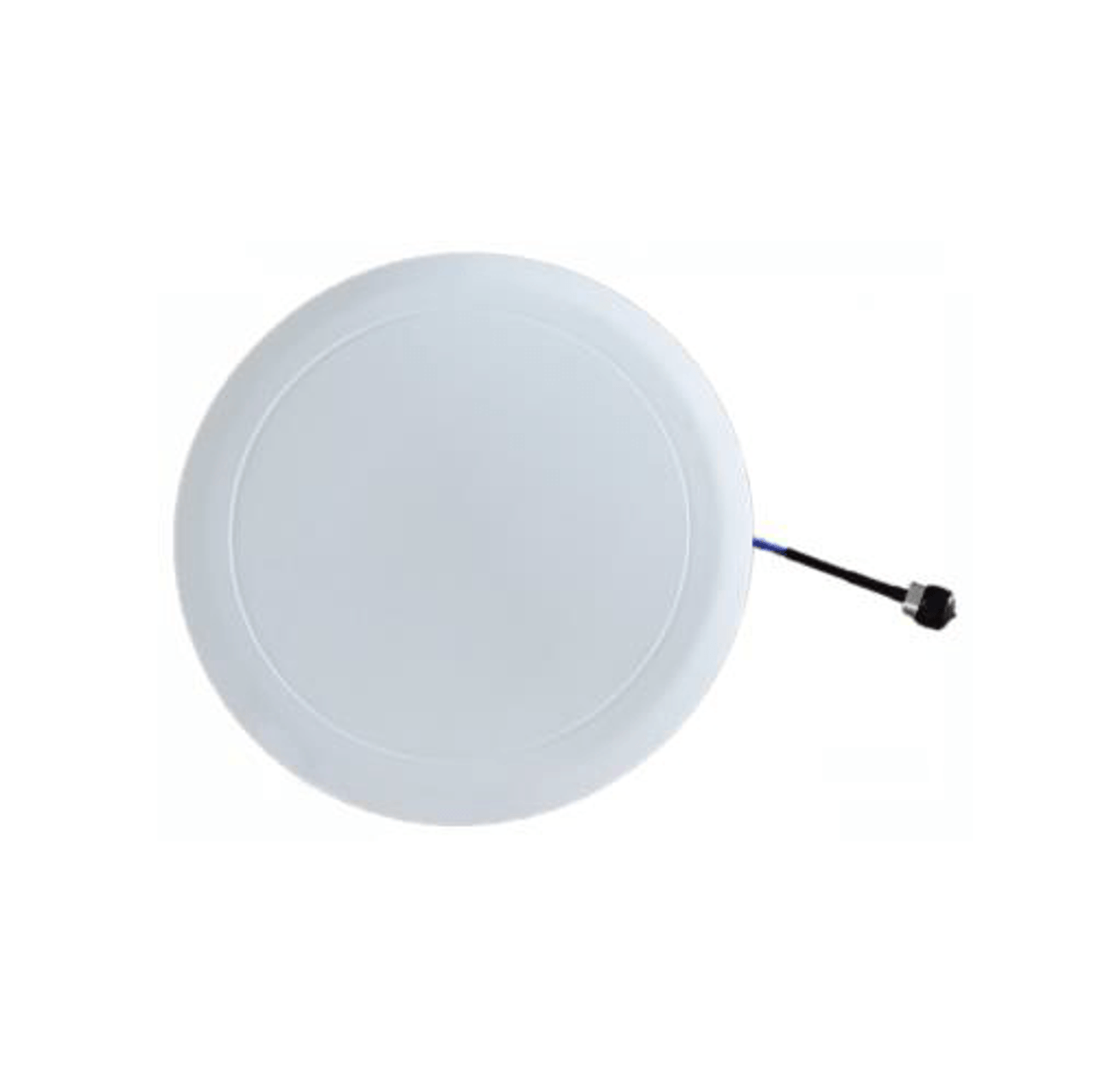

The Powertec 4G-5G Slim Series Large Ceiling Antenna 380 to 4000 MHz N Female combines advanced technology with a sleek design. Measuring just 19 mm thick and 28 cm in diameter this antenna provides a visually unobtrusive solution for high-profile locations such as hotels and convention centres where aesthetics are crucial.

Key Features:

• 380-4000 MHz Frequency Range
• 2 dBi and 4 dBi Gain Options
• Slim profile
• Ideal for indoor use
• 360° Beamwidth
• N Female connector

Wide Frequency Range

Designed to operate across a broad frequency range of 380 to 4000 MHz this antenna ensures compatibility with all mobile carriers. Whether you need coverage for 4G or 5G networks this versatile antenna adapts to various frequency requirements making it suitable for diverse applications.

Optimal Gain for Enhanced Coverage

The Blackhawk Large Ceiling Antenna offers two gain settings: 2 dBi and 4 dBi. This flexibility allows for customised performance ensuring that you can achieve the optimal signal strength and coverage for your specific needs.

360-Degree Beamwidth

Providing a full 360-degree beam width this antenna delivers comprehensive internal coverage. This feature is essential for ensuring uniform signal distribution in indoor environments enhancing connectivity across large spaces.

Ideal for Indoor Use

Tailored for indoor applications this ceiling-mounted antenna is perfect for installations in venues where visual impact is a concern. Its compact and low-profile design makes it an excellent choice for maintaining a clean aesthetic while delivering powerful signal performance.

Easy Integration

The antenna's design facilitates straightforward installation in various indoor settings. Its slim profile and unobtrusive appearance make it easy to integrate into existing infrastructures without disrupting the venue’s overall look.

Reliable Performance

With its wide frequency range and flexible gain options the Blackhawk Slim Series Large Ceiling Antenna offers reliable performance for indoor mobile repeater applications. It ensures consistent and effective signal coverage enhancing the connectivity experience in high-traffic and high-importance venues.

Specification:

@12/26

Description::

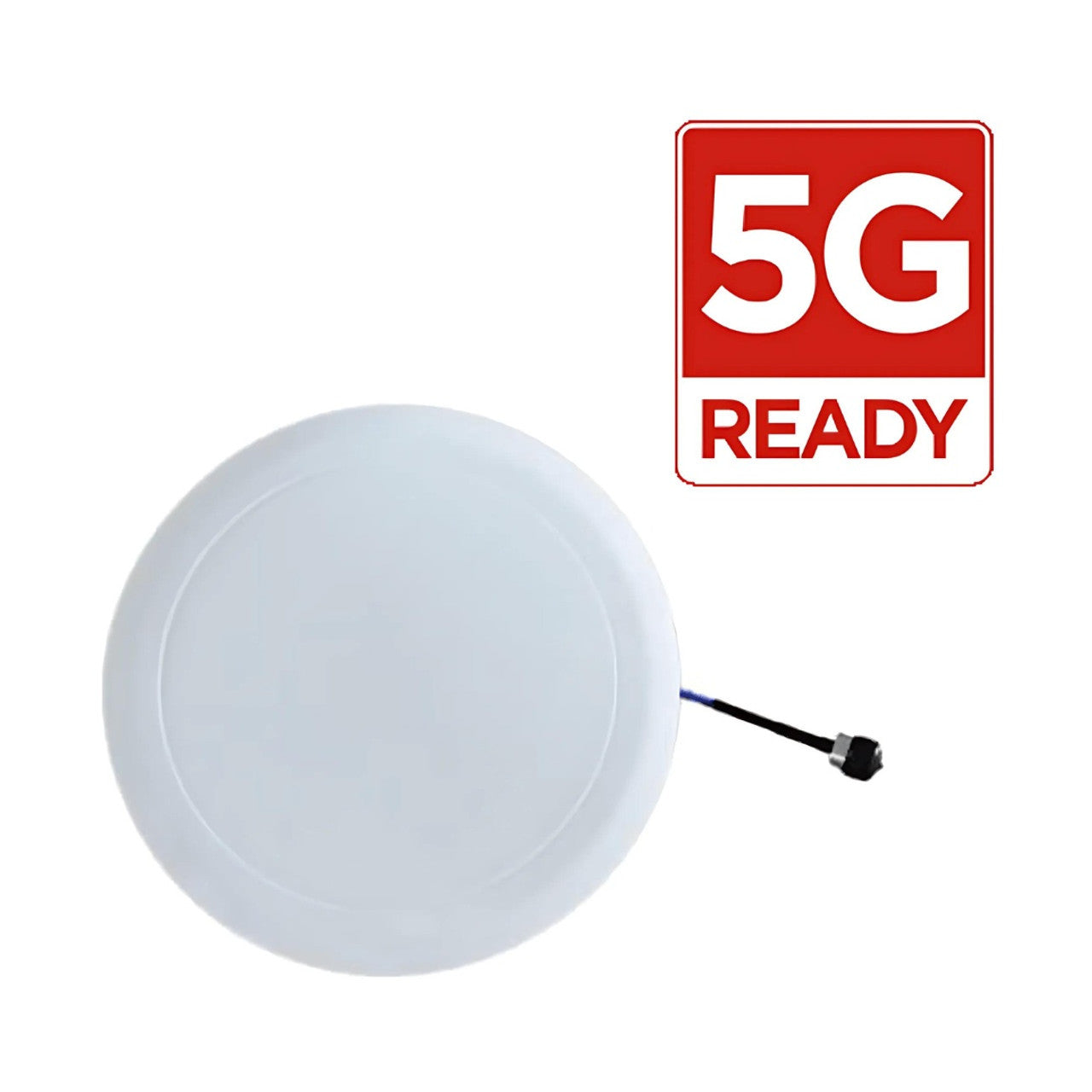

Slim Ceiling Antenna for Enhanced 4G and 5G Wireless Coverage in Commercial and Industrial Environments

The Powertec 4G-5G Slim Series Large Ceiling Antenna is designed to provide excellent performance across a wide frequency range from 380 MHz to 4000 MHz supporting both 4G and 5G networks. This high-performance antenna is ideal for a variety of applications including commercial and industrial environments that require reliable and robust wireless connectivity.

With a slim sleek design this antenna can be easily mounted on ceilings ensuring minimal space usage while delivering strong consistent signals. The 4.3-10 Female connector ensures compatibility with a wide range of devices and network setups. The antenna is engineered to deliver optimal signal strength making it suitable for high-demand environments such as offices warehouses and other large spaces.

Key Features

• Broad Frequency Range: Covers 380 MHz to 4000 MHz supporting 4G and 5G networks.
• Slim and Compact Design: Perfect for ceiling installations in commercial and industrial spaces.
• Excellent Signal Performance: Ensures stable and reliable connectivity for demanding applications.
• 4.3-10 Female Connector: Compatible with a variety of wireless devices and network setups.
• Versatile Application: Ideal for offices warehouses and large indoor areas requiring strong wireless coverage.

@15/31

Description::

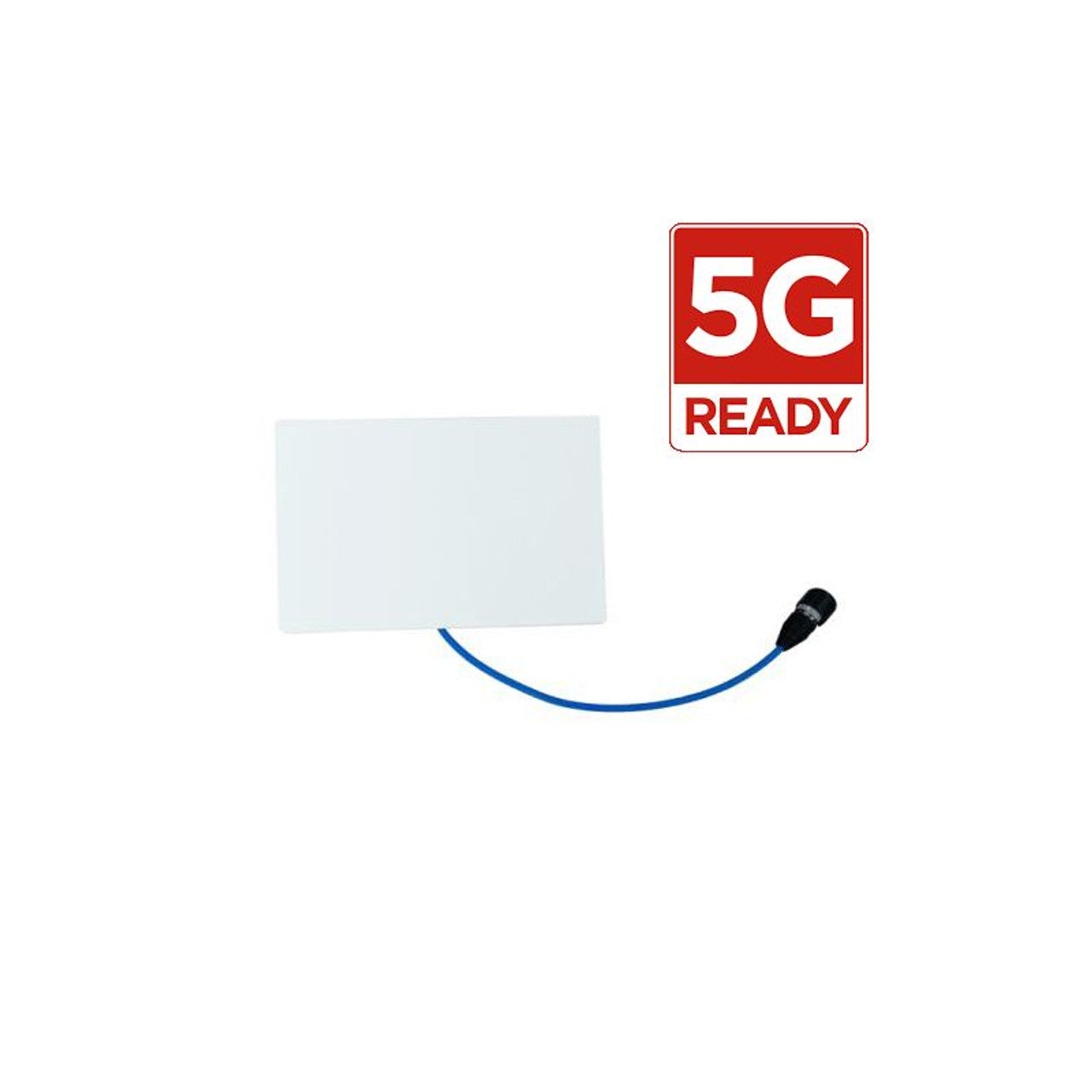

The Blackhawk Small Card antenna is part of the slim series range measuring only 7mm thick. The thin and compact white design is 18cm x 11cm and allows the product to be nearly invisible when mounted yet provides industry-leading increases for in-building coverage and capacity.

This side mount antenna is designed to operate with all mobile carriers regardless of what frequency they operate on and offers a 3 or 5dBi gain depending on MHz range. Perfect for indoor mobile repeater applications.

@7/18

Description::

Specification:

@54/55

Description::

Specification:

@54/55

Description::

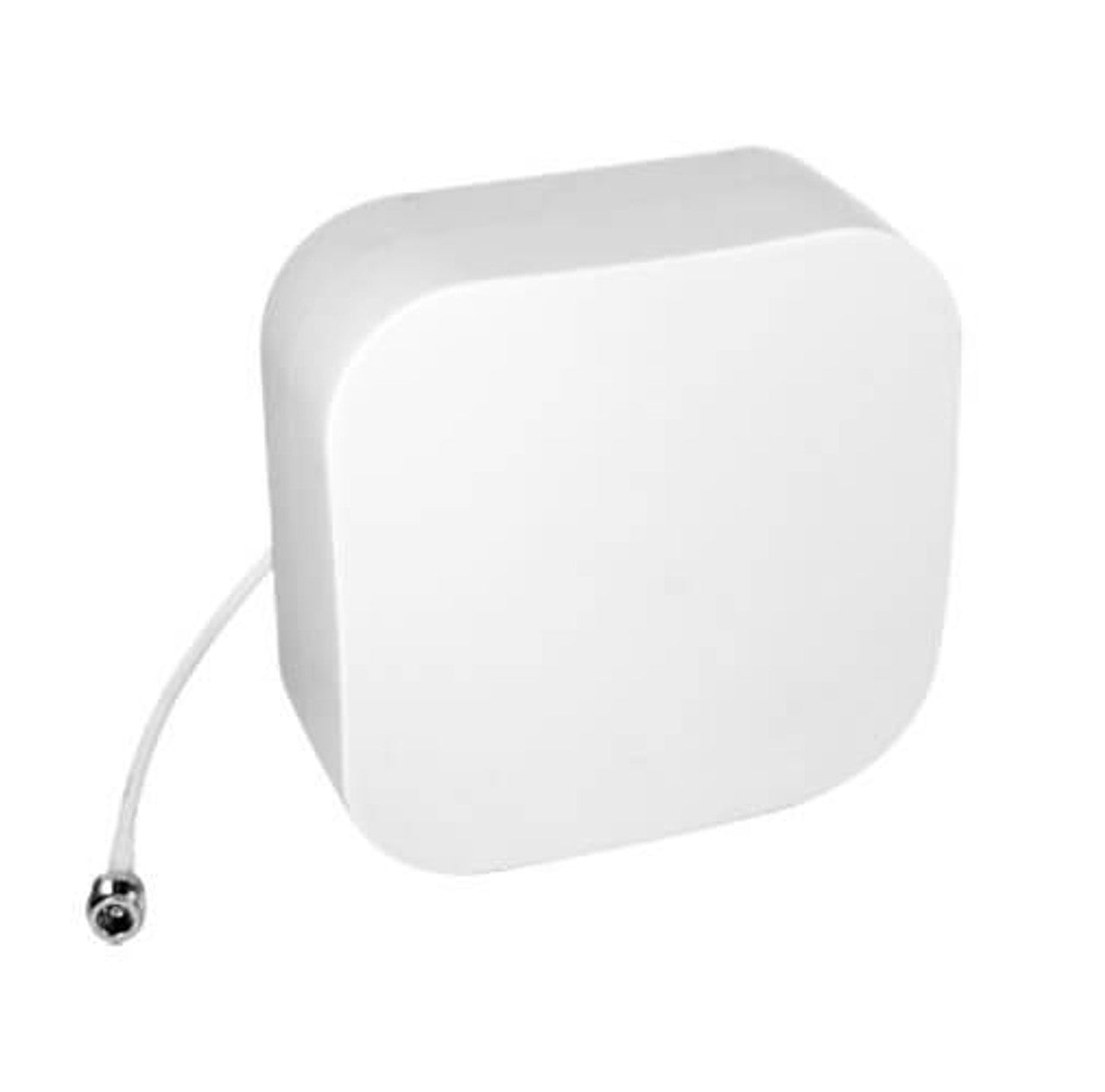

The Powertec Universal Ceiling-Wall Mount antenna allows flexible mounting on walls ceilings or standalone on a tabletop. The modern design makes it perfect for businesses houses apartments and many other in-building applications.

FEATURES:

• 5G Ready: Covers 698–4000MHz (5G 4G LTE and 3G frequencies)
• Flexible vertical or horizontal mounting and positioning
• Light compact and modern design (17.5 x 17.5 x 6.8cm / 0.5kg)
• N-female pigtail cable attachment
• 5.5 to 8dBi gain

 PACKAGE CONTENTS

• Powertec Universal Ceiling-Wall Antenna 698-4000MHz
• Threaded Fixing Nut
• Threaded Post
• Wall Mounting Plate
• Screws & Anchors

  MOUNTING - Above Ceiling Mount (Roof Cavity)

1. Drill a 2.5cm (1 inch) hole in the ceiling. The hole should be large enough to allow the antenna's Threaded Post to pass through.
2. Side the notched bottom of the Threaded Post into the mounting bracket attached to the antenna; running the antenna cable through the post grove.
3. Push the antenna through the ceiling surface with the antenna cable passing through the ceiling.
4. Use the threaded fixing nut to secure the antenna by tightening around the Threaded Post.
5. Connect N female antenna connector to N male low-loss cabling.

 MOUNTING - Wall/ Below Ceiling Mount (Solid Ceiling without a cable hole)

1. Attach the Wall Mounting Plate to the wall with the provided Screws & Anchors.
2. Align the antenna mount above the Wall Mounting Plate and slide the antenna on the Wall Mounting Plate.
3. Make sure to bend the antenna cable down through the notch of the mounting bracket and into the grove at the base of the antenna. This will allow the antenna to rest flush on the wall.
4. Connect N female antenna connector to N male low-loss cabling.

@11/23

Description::

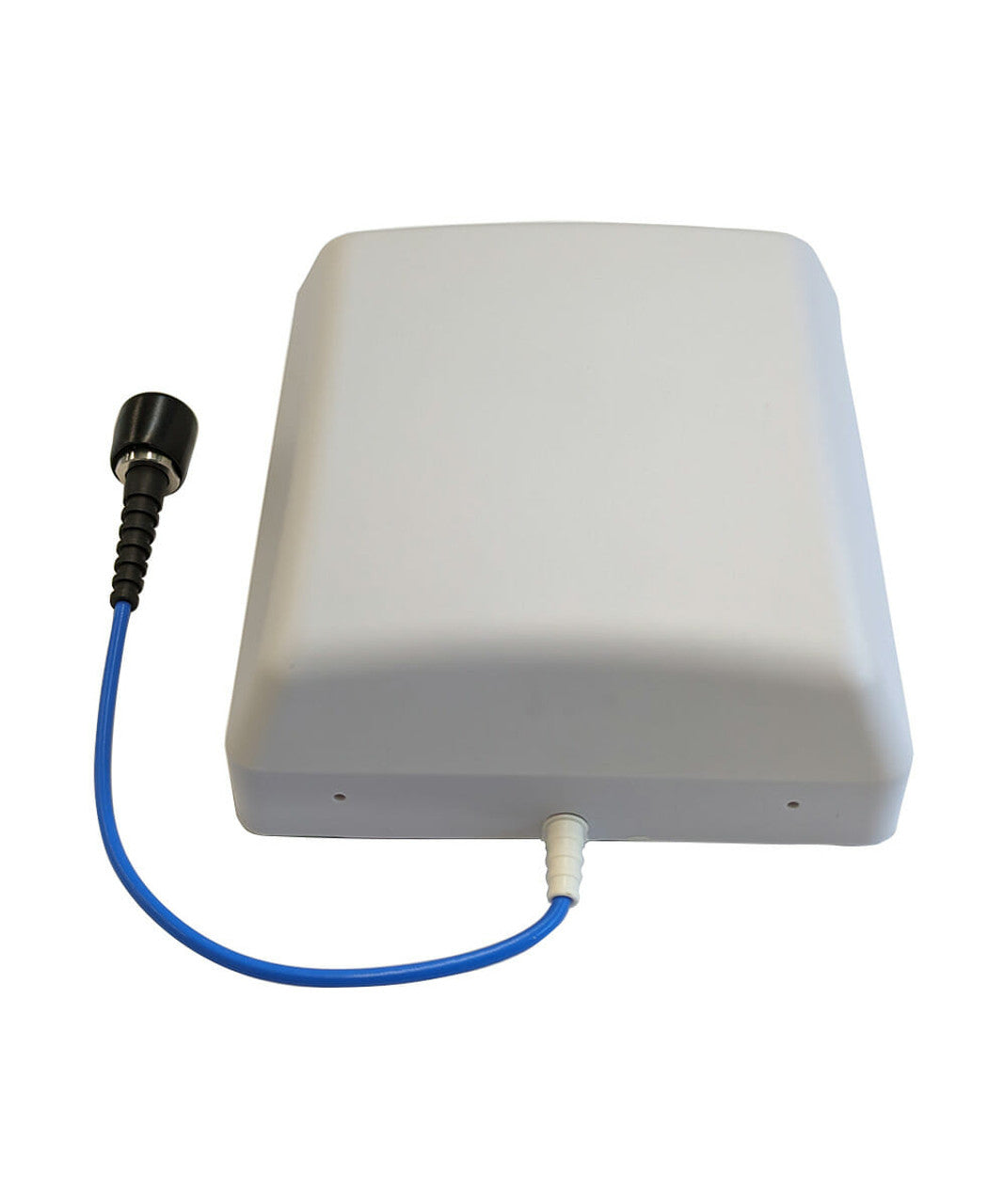

The Powertec 4G-5G Wall Mount Panel Antenna is engineered to elevate your wireless connectivity experience. Operating across a broad frequency range of 698 to 4000 MHz this high-performance antenna offers a gain of 5-8 dBi ensuring exceptional signal strength for demanding applications.

Key Features:

• 5 to 8 dBi High Gain
• 698 MHz to 4000 MHz Frequency Range
• Durable Construction
• -150 dBc PIM rating
• 4.3-10 Connector
• Compatible with 3G 4G LTE and emerging 5G networks

Durable and Weather-Resistant Design

Crafted with robust materials the Powertec panel antenna is designed for longevity and resilience against the elements. Its durable construction guarantees reliable performance making it suitable for both indoor and outdoor installations in various environments.

Minimal Signal Distortion

With an impressive -150 dBc PIM rating this antenna minimises signal distortions and interferences ensuring clear and reliable communication. Whether for 3G 4G LTE or emerging 5G networks the Powertec antenna amplifies wireless signals to enhance coverage and connectivity.

User-Friendly Installation

The user-centric wall mount design simplifies the installation process making it accessible for both professionals and DIY enthusiasts. Featuring a future-proof 4.3-10 connector this antenna is compatible with evolving industry standards positioning you for seamless upgrades in your wireless network infrastructure.

Specification:

@11/24

Description::

Powertec Wideband Grid Antenna 698 to 4000 MHz

Ideal for areas with very low or noisy signal to maximise the input signal for cellular modems or CEL-FI repeaters. Due to the narrow beamwidth this antenna can also be used in areas where multiple cell sites are present and isolating a single tower is required. Two antennas can be pole mounted on the appropriate angles in a MIMO configuration to support high-speed data throughput.

The antenna has been carefully designed to provide higher gain on the upper-frequency bands which experience weaker signal strength at a distance providing the best possible performance with 5G and LTE-A Pro Carrier Aggregation technologies. No adjustment of the feedhorn is required to support all frequency bands simultaneously.

@44/47

Description::

Powertec Wideband Grid Antenna 698 to 4000 MHz

Ideal for areas with very low or noisy signal to maximise the input signal for cellular modems or CEL-FI repeaters. Due to the narrow beamwidth this antenna can also be used in areas where multiple cell sites are present and isolating a single tower is required. Two antennas can be pole mounted on the appropriate angles in a MIMO configuration to support high-speed data throughput.

The antenna has been carefully designed to provide higher gain on the upper-frequency bands which experience weaker signal strength at a distance providing the best possible performance with 5G and LTE-A Pro Carrier Aggregation technologies. No adjustment of the feedhorn is required to support all frequency bands simultaneously.

@44/47

@15/30

Description::

The Powertec 4G-5G Wideband LPDA Antenna 698 to 4000 MHz N Female PTL-240 Coaxial Cable N Male to SMA Male 10m offers consistent and powerful performance for 4G and 5G cellular networks. This antenna is designed to improve signal strength in areas where indoor reception is weak making it ideal for residential commercial and industrial applications.

Key Features:

• 698 to 4000 MHz Frequency Range
• 9dBi Gain
• Log Periodic Dipole Array (LPDA) design
• Supports 4G and 5G
• UV-stable ABS radome construction
• N Female connector
• 300 mm RG-142 cable tail
• 50W max. Input Power

Enhanced Gain for Maximum Performance

Featuring a peak gain of 9 dBi the Powertec LPDA antenna ensures optimal signal reception and transmission. Its broad frequency range allows it to maintain high performance across all cellular bands including 4G and 5G networks providing strong and stable connectivity in urban and remote areas alike.

Durable Design for Harsh Conditions

Constructed from extra-UV stable ABS plastic and housed in a robust radome this antenna is built to withstand various environmental conditions. With a temperature operating range of -40 °C to +65 °C it is suitable for installation in both extreme hot and cold climates ensuring long-lasting reliability.

Easy Installation and Versatile Mounting

The antenna comes with a pole mounting bracket designed to support multiple polarisations and pole sizes ranging from Ø 25 to 50 mm. This versatile mounting system simplifies installation allowing for quick setup and easy alignment to base stations for optimal performance.

Wide Frequency Coverage

The Powertec LPDA Antenna covers a wide range of frequencies:

• 698 to 960 MHz with 8.5 dBi gain
• 1695 to 2700 MHz with 9.5 dBi gain
• 3300 to 4000 MHz with 9.5 dBi gain This extensive coverage ensures excellent signal strength for various applications making it an ideal solution for 4G-5G systems.

Reliable Signal Quality

With an input impedance of 50 Ω and a maximum input power of 50 W this antenna is designed to maintain high-quality signal transmission without distortion. The low VSWR values across its frequency range ensure minimal signal loss providing clear and reliable communications.

Flexible Connectivity Options

The antenna comes with an N Female connector and a short 300 mm RG-142 coaxial cable tail allowing for easy integration with existing network systems. The included PTL-240 Coaxial Cable featuring N Male to SMA Male connectors and a length of 10 metres further enhances its adaptability to various setups.

Specification:

@15/30

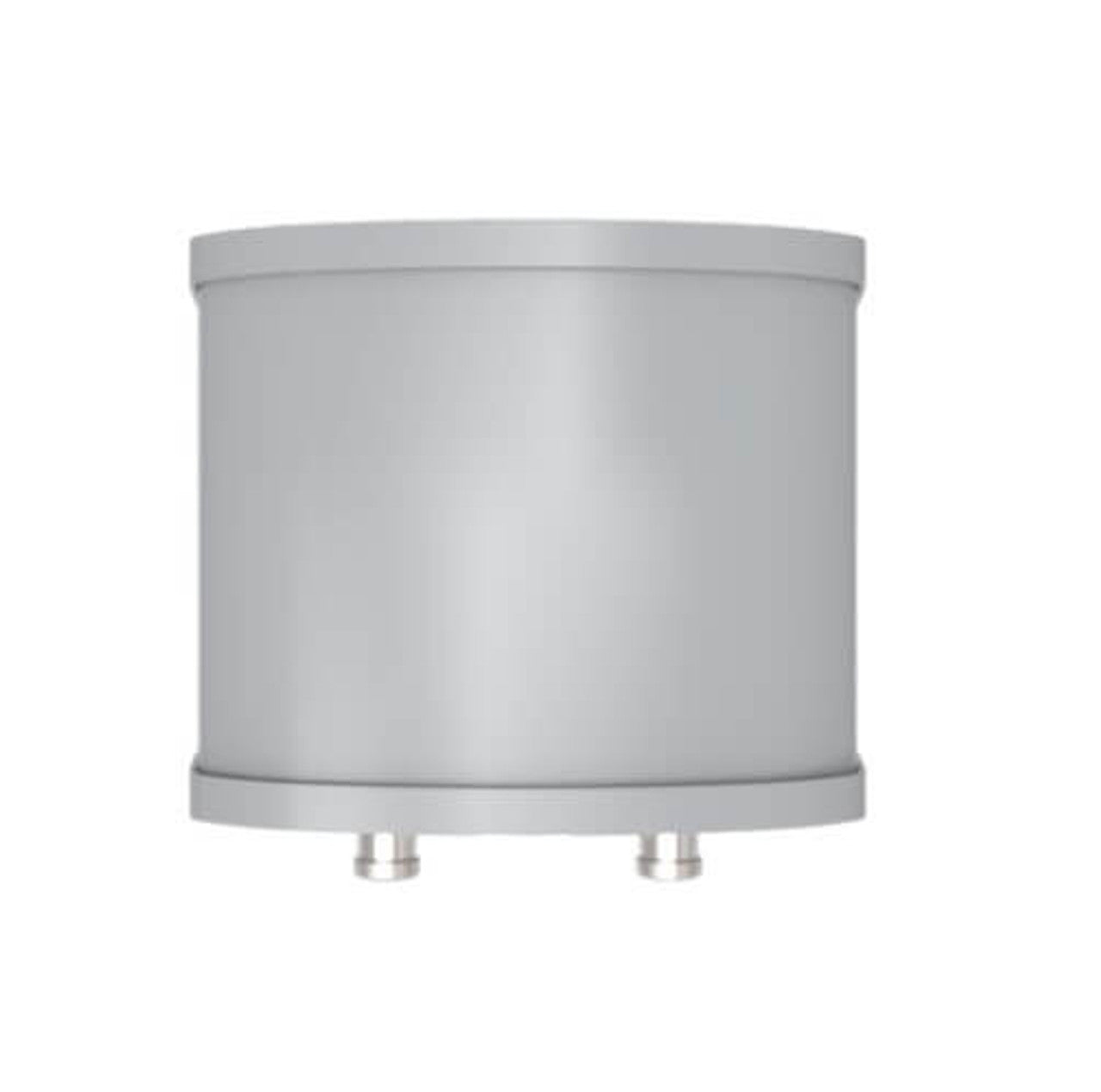

Description::The Powertec 4G-5G Wideband MIMO Panel Antenna 698 to 3800 MHz 4.3-10 Female is an industrial-grade 2x2 MIMO two-port panel antenna covering all 4G and 5G bands within the 698 to 3800 MHz range. The antenna exhibits exceptional performance right across the frequency range providing 7 to 9 dBi gain with very low LSWR high inter-port isolation and consistent polar patterns. Engineered exclusively for Powertec the highly sought antenna facilitates EN-DC for aggregation of the 4G LTE and 5G NR carriers with the entire frequency range available at both ports. During design close attention was paid to 3.5 GHz to ensure performance was maximized on the  n78 (3500 MHz) 5G FR1 mid-band. It is suitable for LTE / NR cell-edge and small cell deployments and has two 4.3-10 Female connectors at the base of the antenna.

FEATURES:

• Wideband 698 to 960 and 1695 to 3800 MHz
• Dual slant polarised ±45° 2x2 MIMO
• Ideal for LTE / NR small cell/ blackspot deployment
• ±10° stainless steel mechanical construction
• Operator-grade mechanical construction

@39/69

Description::

The Blackhawk MIMO High Gain Panel Antenna provides an ideal solution for 4G data applications where a high-speed MIMO data connection is required. This antenna is typically used to provide a high-speed 4G connection in very remote areas with only extremely weak 4G signal or quite often where no 4G signal is present at all. This antenna is extremely well designed with fully engineered microwave grade internal componentry.

FEATURES:

• 14 dBi gain across lower bands 698-960 MHz
• Ruggedized construction for extreme conditions
• UV-stable PVC construction
• Stainless steel mounting clamp included
• Two integrated N Female connectors
• Ideal for high-speed 3G and 4G LTE applications.

While 1.2 m in height the antenna remains slim with a 280 mm width ensuring least visual impact possible. The antenna is of course quite large a consequence of being finely tuned for the lower 700 to 900 MHz frequencies which have a large wavelength.

@55/57

Description::A dual-band 5G commercial-grade 4x4 MIMO antenna with a unique design offers a high 14 dBi gain across the 3400 to 3800 MHz range covering the n78 (3500 MHz) and a subset of the n79 (4500 MHz) bands. Originally configured for NTT DoCoMo it can be easily modified to suit any other network's requirements. The slim patch array design ensures an unobtrusive form factor with excellent isolation null fill and discrimination characteristics and it is mounted using a simple pole mount bracket with an integrated 30° mechanical tilt mechanism.

Powertec Multiband 5G 4×4 MIMO Panel Antenna A 4x4 MIMO antenna designed for commercial use in dual-band 5G networks boasts a high 14 dBi gain across two mid-bands of 5G. Specifically catering to the 3400 to 3800 MHz range it covers the heavily utilized section of the n78 (3500 MHz) band and a subset of the n79 (4500 MHz) band. This particular antenna configuration was tailored to meet the specifications of NTT DoCoMo but is adaptable to suit the requirements of any other network. The slim and unobtrusive form factor of the antenna is attributed to its patch array design which also ensures exceptional isolation null fill and discrimination characteristics. The mounting is facilitated by a straightforward pole mount bracket featuring an integrated 30° mechanical tilt mechanism.

@30/55

Description::The Blackhawk Reflector Plate is suitable for all Blackhawk ceiling antennas with the central screw clamp ceiling system.

FEATURES:

• Increases gain
• Improves front to back ratio
• Results in a larger signal footprint
• Assists with isolation on donor and service antenna for cellular repeater applications
• Compatible for all Blackhawk ceiling antennas

@8/19

Description::

Boost Your Connectivity with the Powertec Wideband 4G-5G Hinged Antenna – Reliable Performance Across 700 to 3800 MHz

Enhance your cellular connectivity with the Powertec Wideband 4G-5G Hinged Antenna. Designed to cover a broad frequency range of 700 to 3800 MHz this versatile antenna is perfect for supporting 4G LTE and 5G networks. Whether you're in a rural area or an urban setting this antenna ensures reliable performance across all major frequency bands.

Key Features

• Wide Frequency Range: Covers 700 to 3800 MHz providing excellent signal reception for both 4G LTE and 5G networks.
• SMA Male Connector: Compatible with a wide range of devices ensuring a secure and stable connection.
• Hinged Design: Adjustable hinge allows for optimal positioning enhancing signal strength and improving overall performance.
• Durable Construction: Built to withstand various environmental conditions making it ideal for both indoor and outdoor use.
• Easy Installation: Simple to set up with its plug-and-play design making it a convenient solution for boosting cellular signals.

Specification:

@2/10

Description::

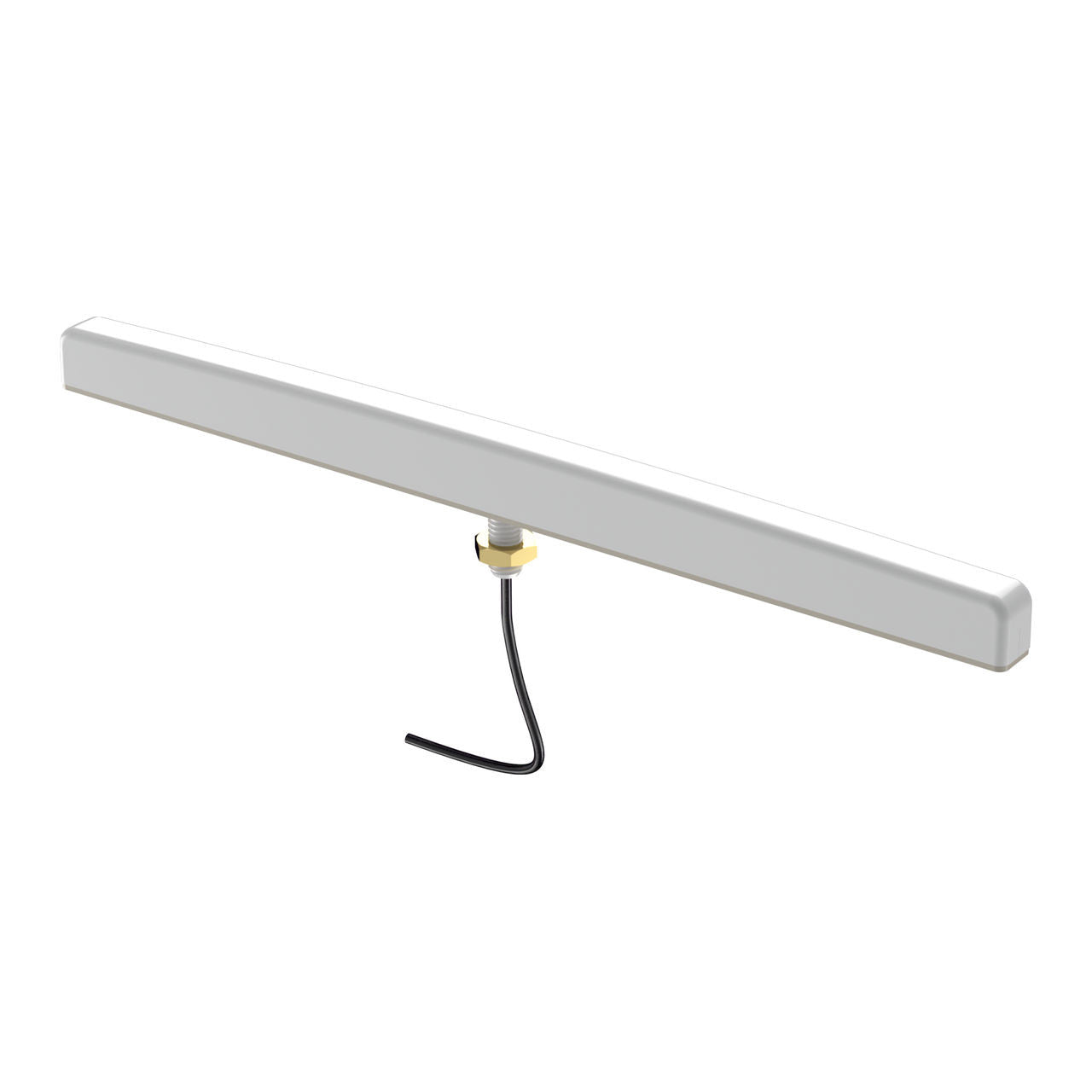

The DASH-1 bi-directional antenna is designed for low profile requirements such as Smart Meters. The DASH-1 antenna is designed with installation simplicity in mind while covering the LTE frequency bands from 698 – 2700MHz with a modest 3.8 dBi gain.

Supports the following IoT technologies:

• Zigbee
• Wi-Fi
• Z-Wave
• Wi-Fi HaLow
• LoRaWAN
• LTE-M/NB-IoT
• Sigfox
• Bluetooth

 Features:

• Omni-directional antenna
• Wideband frequency ranges from 690-2700 MHz
• Stylish but robust design
• Robust vandal-resistant and waterproof (IO67) antenna
• Ultra-versatile mounting options for easy installation
• Right Angle SMA Male 1m

Specification:

@7/17

Description::

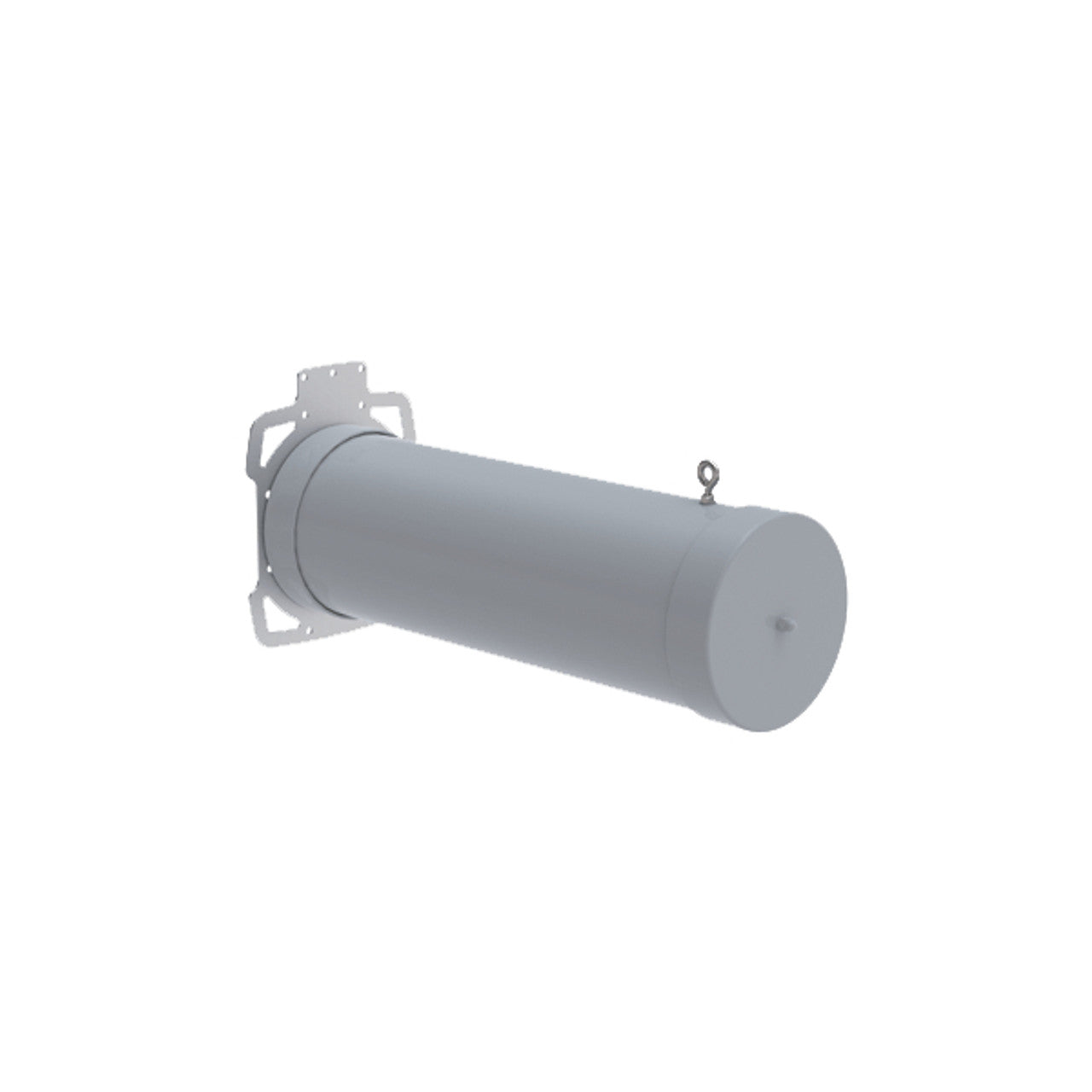

The HELI-6 is a high gain LTE directional mine and tunnel antenna. Poynting has fifteen years of experience in designing and manufacturing antennas for underground mining communication and data networks. The hardy construction of the antenna makes it ideal for a mining environment but it is also suitable for oil/gas chemical environments and even fiery mines. In tests the data rate and range achieved with this antenna were substantially greater than linear polarized panel antennas of the same gain. The HELI-6 operates from 698–960MHz.

• Cable sold separately. N-type (f)
• Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
• Covers traditional ISM bands for 868/915 MHz LoRa and other technologies
• Uni-directional – radiates in one direction in a tunnel
• Ruggedized & water ingress protected (IP 65)
• Ideal for Mining & Tunnel M2M and IoT deployments

We are taking expressions of interest for this antenna. Please call our office on 07 5577 0500 if you have an application that this antenna would be suitable for and we will be in touch.

Specification:
