Works at 1000Mbps in Full-Duplex mode for both TX port and FX port Supports auto MDI/MDIX for TX port Provides switch configuration of Force /Auto transfer mode for FX port. Extends fiber distance up to 15km Easy-to-view LED indicators provide status to monitor network activity easily External power supply
What This Product Does The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards; the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis; Auto MDI/MDI-X for TX port; and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x Basic Function Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 15km Ports 1 1000M SC/UPC port 1 1000M RJ45 port (Auto MDI/MDIX) Wave Length 1310nm Network Media 1000BASE-FX Single-mode Fiber Network Media 1000BASE-T UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) LED Indicators PWR; LINK; RX Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) Power Supply External Power Adapter Max Power Consumption 5.5W Safety & Emission FCC; CE; RoHS Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
@6/16
@5/15
@8/15
Up to 102 watts output power Output over-voltage/short circuit/over-current protection

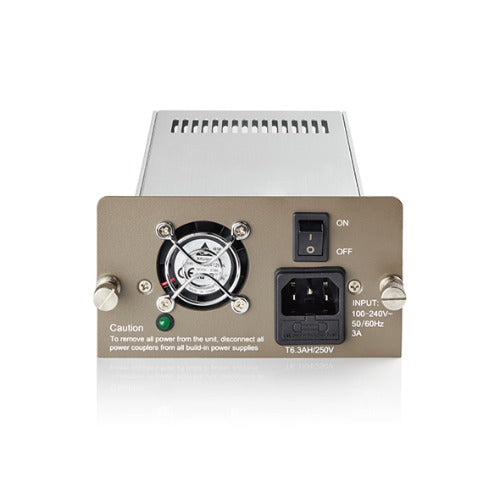

What this product does The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 9.5VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.
REDUNDANT POWER SUPPLY AC Power Input 100-240V~ 50/60Hz 3A DC Power Output 9.5V/9.5A Dimensions 210*130*70 mm Environment Operating Temperature: 0℃~60℃ (32℉~140℉) Storage Temperature: -35℃~85℃ (-31℉~185℉) Operating Humidity: 20%~90%RH non-condensing Storage Humidity: 10%~95%RH non-condensing
@14/19
@64/50

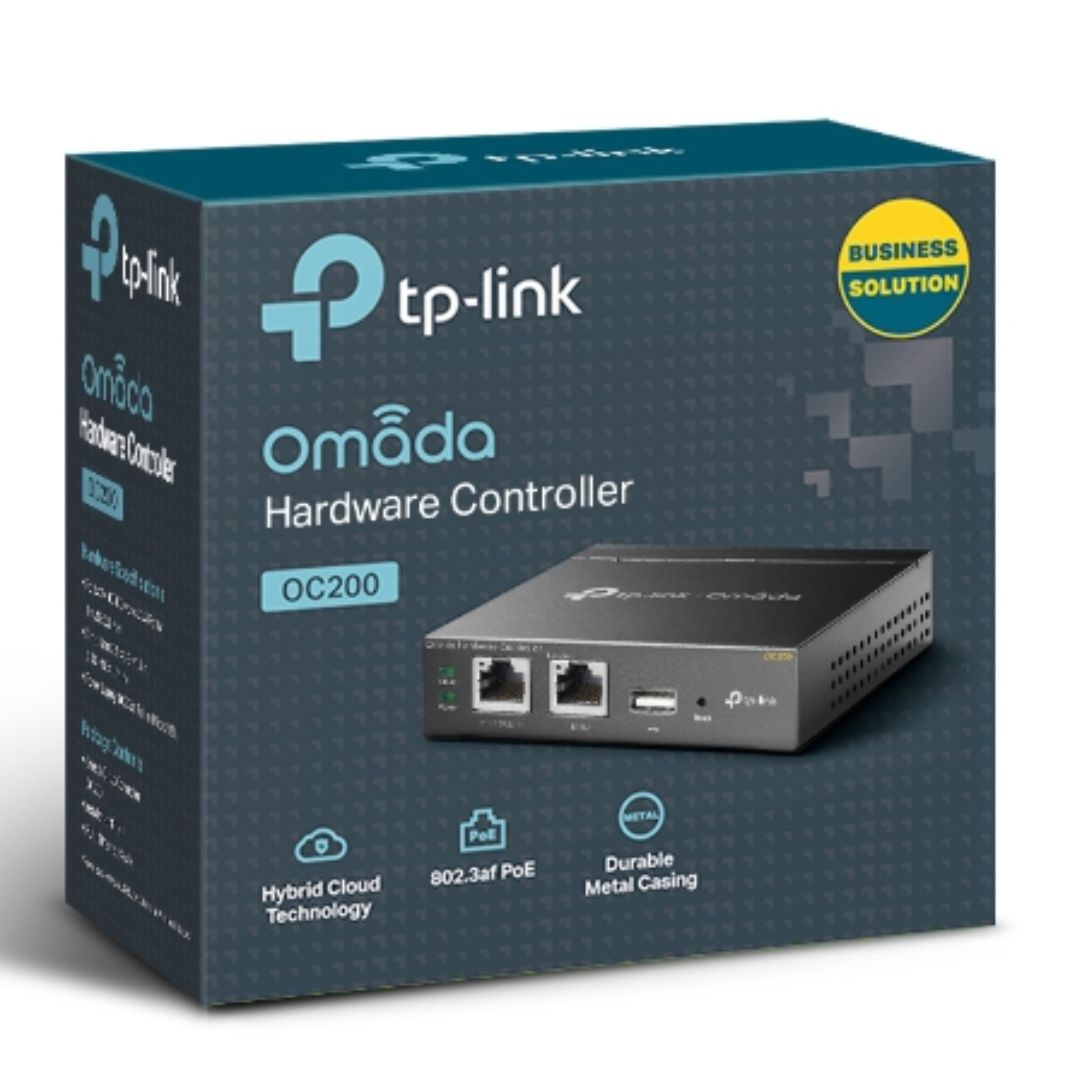

Dedicated Network for Centralised Management The OC200 Omada Cloud Controller provides centralised management of the whole Omada network. Monitor statistics in real-time; view a graphical analysis of network traffic; create a captive portal; upgrade and reboot your system; and effortlessly scale your network to boost your business.
Professional centralised management for Wi-Fi network Cloud access to manage from anywhere; anytime PoE (802.3af/802.3at) supported for easy installation Industry-leading hardware design with a powerful chipset; durable metal casing; and USB port for auto backup Omada App for a convenient management Secure guest network with multiple login options(Facebook Wi-Fi; SMS login; Voucher)
HARDWARE FEATURES Interface 10/100Mbps Ethernet Port*2 USB 2.0 Port*1 Micro USB Port*1 Power Supply 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A） Dimensions 3.9×3.9×1.0 in (100×98×25 mm)
FEATURES Wireless Fuction L3 Management Multi-SSID Load Balance Band Steering Airtime Fariness Beamforming Rate Limit Wireless Schedule QoS Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection AP Management Automatic Discovery Unified Configuration Reboot Schedule Batch Firmware Upgrade LED ON/OFF Authentication Captive Porta
MANAGEMENT Omada App Yes Centralized Management Up to 100 Omada access points; JetStream switches; and SafeStream routers Cloud Access Yes L3 Management Yes Multi-site Management Yes
@18/23

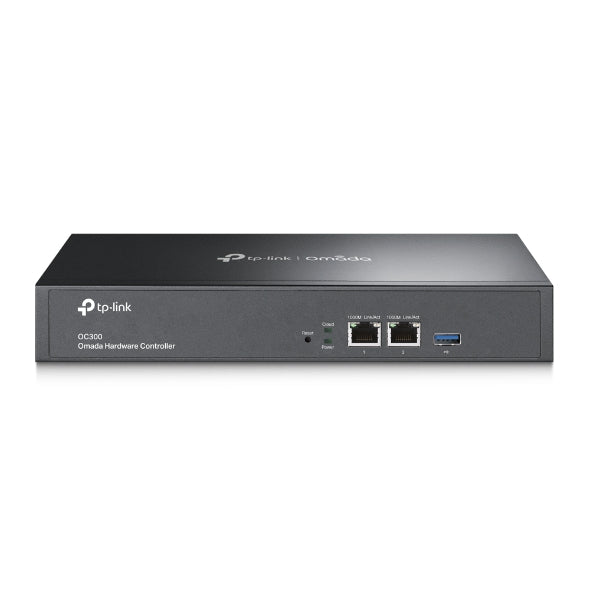

HARDWARE FEATURES Interface • 2× 10/100/1000 Mbps Ethernet Ports • 1× USB 3.0 Port Power Supply 100–240 V~50/60 Hz; 0.6 A Dimensions 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) MANAGEMENT Omada App Yes Centralized Management • Up to 500 Omada access points; JetStream switches; and SafeStream routers* • Up to 15;000 clients
*Only some JetStream switches and Safestream gateways can be centrally managed by OC300; please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300 Cloud Access Yes L3 Management Yes Multi-site Management Yes Management Features • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration
OTHERS Certification CE; FCC; RoHS Package Contents • Omada Hardware Controller OC300 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit System Requirements Microsoft® Windows®10; 8; 7;Vista™; XP or MAC® OS; NetWare®; UNIX® or Linux Environment • Operating Temperature: 0–50 ℃ (32–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90%
@55/45
@0/68
Warranty Period: 3-Year
@3/15
Warranty Period: 3-Year
@28/30
@33/32

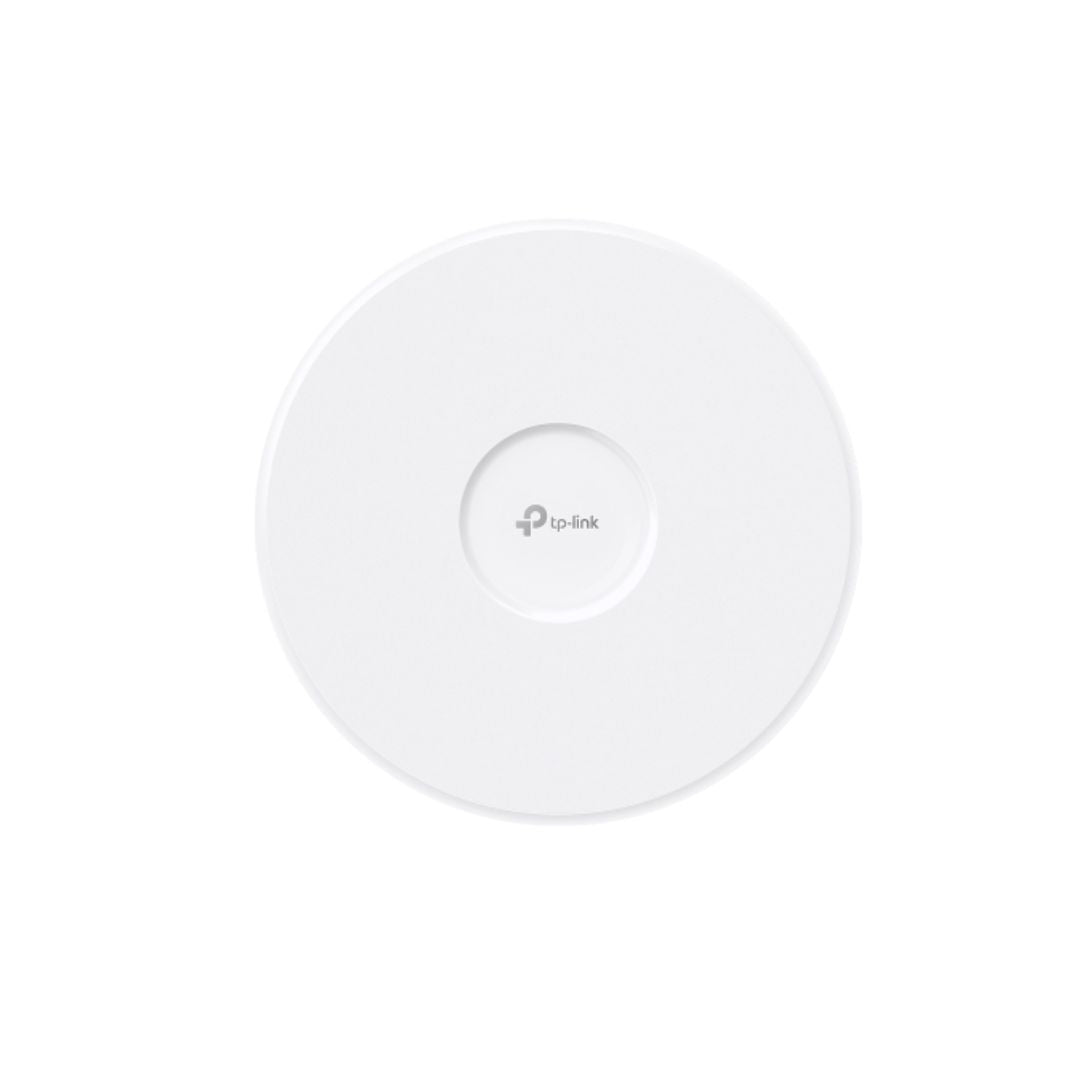

• BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).† • 1× 2.5G port unlocks the full potential of Wi-Fi 7. • 160 MHz bandwidth enables many more simultaneous transmissions.‡ • Multi-RUs ensure the high performance of your network.‡ • Advanced Functions: Centralised management; Mesh; and Seamless Roaming.
Warranty Period: 5-Year
@20/25
Warranty Period: 3-Year
@5/15
Warranty Period: 3-Year
@6/16
Warranty Period: 3-Year
@5/15
@4/15

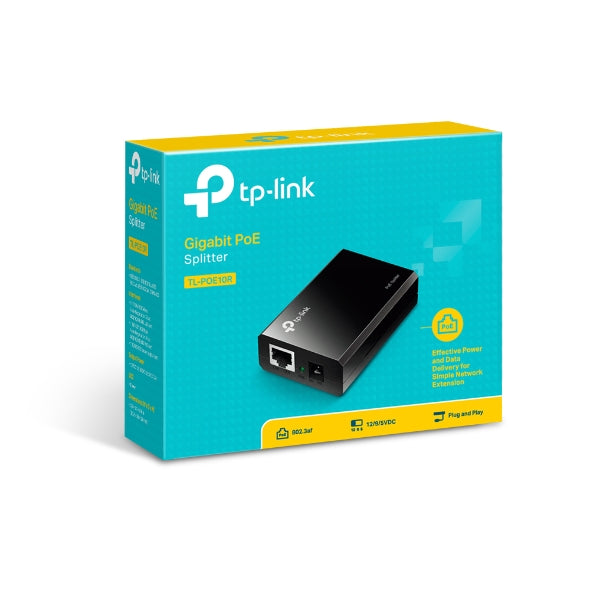

IEEE 802.3af compliant Delivers power up to 100 meters Gigabit speed support Optional 12V DC 9V DC or 5V DC power supply Plug-and-Play; requires no configuration
HARDWARE FEATURES Interface 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 POWER OUTPUT PORT Network Media 10BASE-T: UTP category 3; 4; 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5; 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5; 5e; 6 cable (Max 100m) Power Supply 12VDC 1A; 9VDC 1A; 5VDC 2A Basic Function Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC; 9VDC or 5VDC Power Output LED Indicator PWR Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
SOFTWARE FEATURES Basic Function Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC; 9VDC or 5VDC Power Supply
