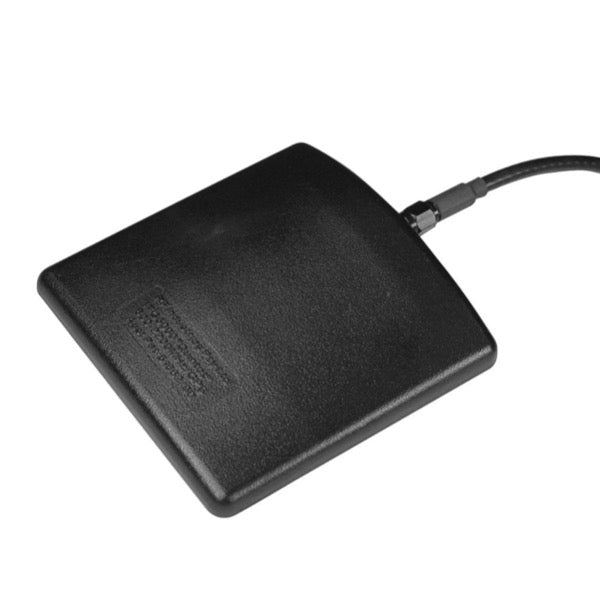

RFI ITG5001 ON-GLASS CELLULAR MOBILE ANTENNA MULTIBAND 824-960MHZ/1710-2170MHZ
The Quintet™ offers incredible versatility. It can be used in almost any cellular system, will provide superior performance to externally glass mounted antennas and yet can be mounted quickly and easily inside the vehicle with no external components.
Features:
•.Superb performance – approaches a quarter wave antenna and easily out-performs external mounted glass mount antennas. Patented mixed polarity design.
• Reduce inventories – one antenna suits all systems and can be shipped globally
• Completely internal – no impact on prestige vehicles, no threat of vandalism, no car wash damage and simplified installation
• Supplied ready to go with peel and stick mounting and pre-terminated, fully shielded low loss coaxial cable
Specifications:
| Band | 824 - 960MHz / 1710 - 2170MHz |
| Tunable Bandwidth | Entire specified band @ <2.0:1 VSWR |
| Nominal Gain dBi | 1.1 @ 806 - 960MHz / 4.4 @ 1710 - 1990 / 4.5 @ 1910 - 2170 |
| Tuning | Supplied pre-tuned |
| Power W | 10 |
| Cable and Connector | Cellular feeder of 5.0m 9014 low loss, fully shielded cable terminated with SMA male and FME nipple. |
| VSWR | <2.0:1 |
| Height mm | 17 |
| Width mm | 90 |
| Length mm | 90 |
| Termination | SMA Female |

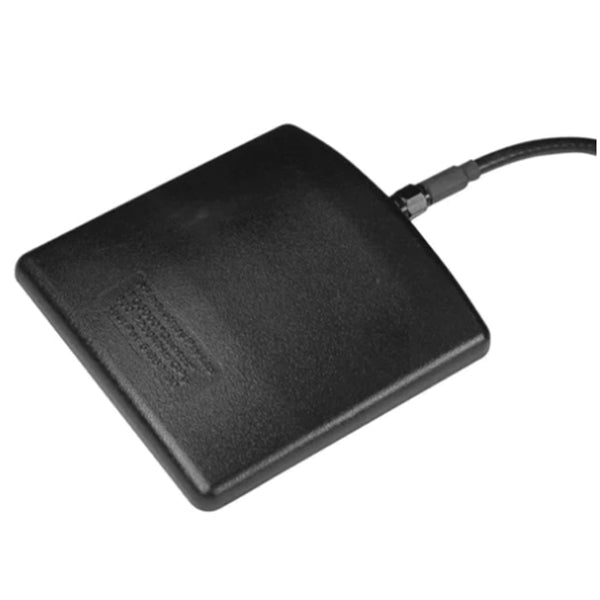

RFI ITG5001 On-Glass Cellular Mobile Antenna Multiband 824-960MHz/1710-2170MHz
RFI ITG5001 On-Glass Cellular Mobile Antenna Multiband 824-960MHz/1710-2170MHz
RFI ITG5001 On-Glass Cellular Mobile Antenna Multiband 824-960MHz/1710-2170MHz
The Quintet™ offers incredible versatility. It can be used in almost any cellular system will provide superior performance to externally glass mounted antennas and yet can be mounted quickly and easily inside the vehicle with no external components.
Features:
Superb performance – approaches a quarter wave antenna and easily out-performs external mounted glass mount antennas. Patented mixed polarity design.
• Reduce inventories – one antenna suits all systems and can be shipped globally
• Completely internal – no impact on prestige vehicles no threat of vandalism no car wash damage and simplified installation
• Supplied ready to go with peel and stick mounting and pre-terminated fully shielded low loss coaxial cable
Specifications:
| Band | 824 - 960MHz / 1710 - 2170MHz |
| Tunable Bandwidth | Entire specified band @ <2.0:1 VSWR |
| Nominal Gain dBi | 1.1 @ 806 - 960MHz / 4.4 @ 1710 - 1990 / 4.5 @ 1910 - 2170 |
| Tuning | Supplied pre-tuned |
| Power W | 10 |
| Cable and Connector | Cellular feeder of 5.0m 9014 low loss fully shielded cable terminated with SMA male and FME nipple. |
| VSWR | <2.0:1 |
| Height mm | 17 |
| Width mm | 90 |
| Length mm | 90 |
| Termination | SME Female and FME nipple |
Documentation
View the ITG5001 Technical Data Sheet
Availability

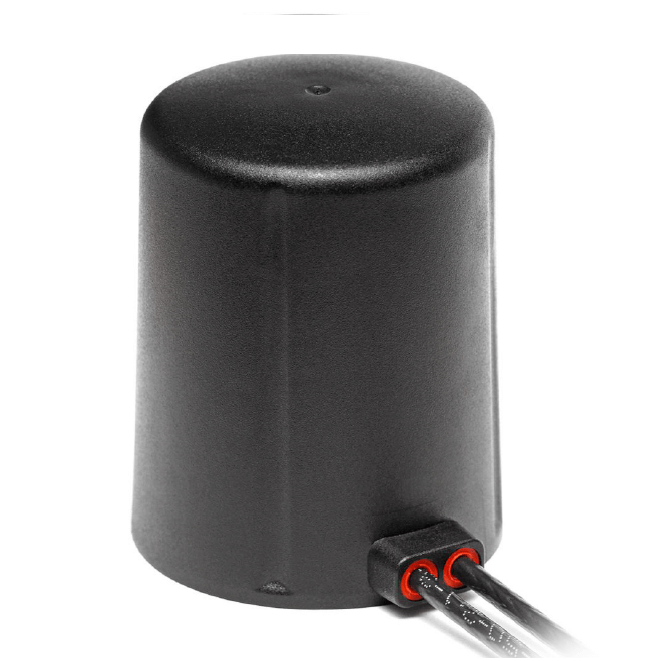

RFI LTE-MAGM-3M-SMA LTE Cellular MIMO Low Profile Magnetic Antenna - 2 x 3M RG174 / SMA Male Connector
The LTE-MAGM Series of magnetic MIMO wideband cellular antenna delivers stable omni-directional gain across all common 4G 3G & 2G global cellular bands from 698 MHz to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not require changing antennas when deploying from most major markets worldwide such as 4G to 3G. The strong magnetic base is extremely robust and uses high-quality rare earth magnets for a secure magnetic mount to any metal surface.
Features:
• Magnetic mount
• High performance MIMO
• Ground plane dependent
• Customised cable & connectors (MOQ’s may apply)
• IP69K
LTE-MAMM-3M-SMA Technical Specifications - click here
Specifications:
| Frequency: | 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz |
| Band | MIMO LTE |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | -0.1dBi / 3.1dBi / 3.5dBi (peak) |
| Power W | 25 |
| Packaging | Clear Bag |
| VSWR | <3.0:1 |
| Cable Type / Length | 2 x 3m RG174 |
| Termination | 2 x SMA male connectors |
| Mounting | Magnetic |
Operating Temperature °C |
-40 to +85 |
| Ingress Protection Rating | IK69K |
Documentation
LTE-MAGM-3M-SMA Technical Data Sheet
Availability

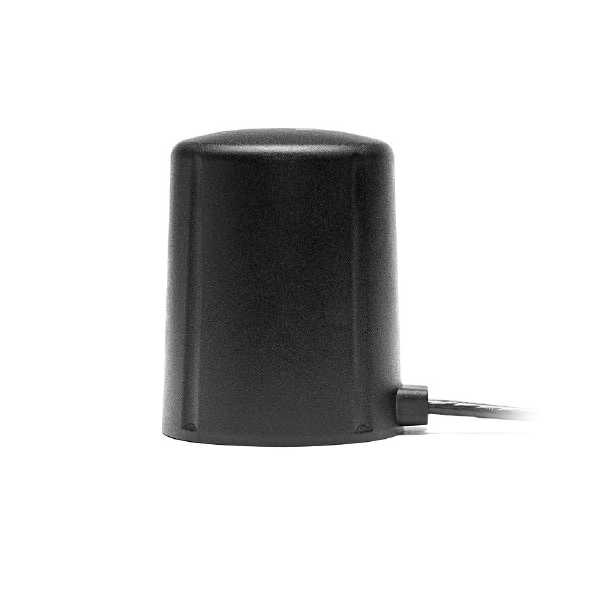

RFI LTE-MAGS-3M-SMA TE SISO Magnetic Base Antenna 698-2700MHZ - 3M Cable with SMA Male
The LTE-MAGS Series of magnetic wideband cellular antenna delivers stable omni-directional gain across all common 4G & 3G global cellular bands from 698 MHz to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not require changing antennas when deploying from most major markets worldwide such as 4G to 3G. The strong magnetic base is extremely robust and uses high-quality rare earth magnets for a secure magnetic mount to any metal surface.
Features:
Magnetic mount
High performance
Ground plane dependent
IP69K
Specifications
| Frequency: | 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz |
| Band | SISO LTE |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 1.8dBi / 3.1dBi / 2.9dBi (peak) |
| Power W | 25 |
| Packaging | Clear Bag |
| VSWR | <3.0:1 |
| Cable Type / Length | 1 x 3m RG174 |
| Termination | 1 x SMA male connectors |
| Mounting | Magnetic |
| Operating Temperature °C | -40 to +85 |
| Ingress Protection Rating | IK69K |
Documentation
LTE-MAGS-3M-SMA Product Data Sheet
Availability

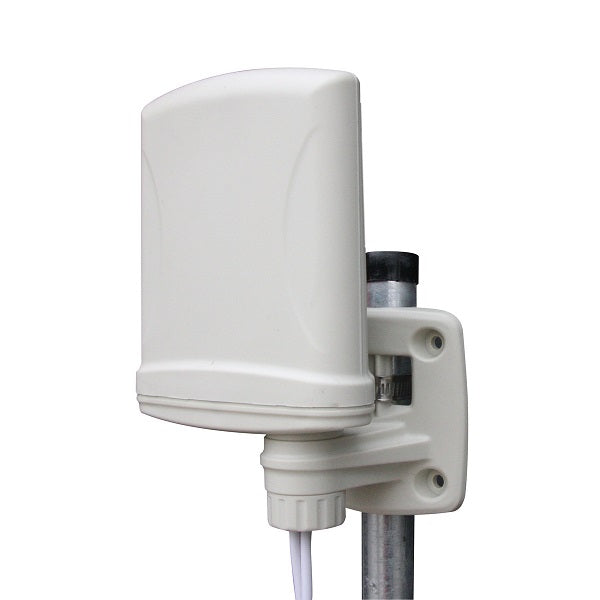

RFI LTE-XPOL-001 LTE MIMO Omni-Directional Antenna 790MHz-2700MHz - 2 X 5m 2 X SMA(M)
The LTE-XPOL-001 Omni-directional LTE MIMO antenna provides an innovative and future proof solution for 4G / 3G & 2G networks. LTE-XPOL-001 Features: It is ideal for those seeking increased signal and hence faster more reliable data speeds on today's modern 4G networks. It incorporates two separately fed ultra-wideband elements in a single housing which provides full MIMO diversity for the networks of today and tomorrow. The weatherproof housing is designed for window (suction) pole or wall mounting and has dual 5m RG58 low loss cable terminated with SMA male connectors.
Features:
- Omni-directional
- Window wall or pole mounted
- Lightweight
- Waterproof (IP65)
Scope of Supply:
1 x Antenna with DUAL(2) low loss 5mtr RG58 cables terminated with SMA male connectors
1 x Mounting bracket
1 x Hose clamp
4 x Suction cups
4 x Suction cup mounting pins
4 x Wall screws
Related Products
RFI Eave/Wall Mount Pole (Hockey Stick)
LTE-XPOL-001 Installation Instructions - click here
| Cable And Connector | 2 x RG58 Terminated with 2 x SMA(M) |
| Frequency Range | 1710 - 2170 2300 - 2700 825 - 960 |
| Power w | 5 |
| Nominal Gain Dbi | 2.4 / 5 / 6 |
| VSWR | < 2.5:1 |
| Mounting area | Window (suction) wall or pole mount |
| Tuned bandwidth | Full. |
| Frequency MHz | 790-960 / 1710-2170 / 2500-2700 |
| Brand | RFI |
Documentation
LTE-XPOL-001 Installation Sheet
Related Products
RFI Eave/Wall Mount Pole (Hockey Stick)
Availability

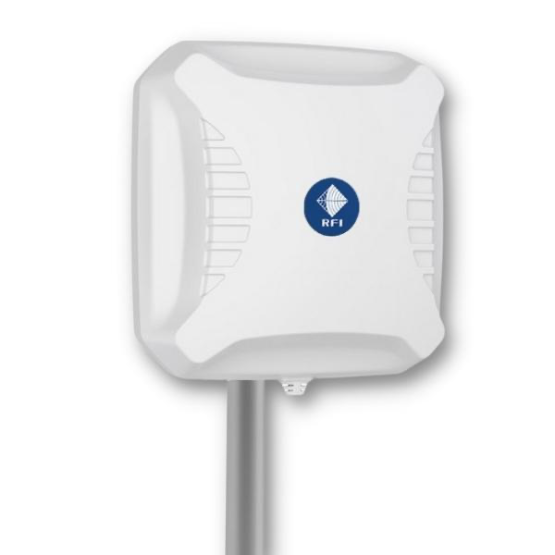

RFI LTE-XPOL-002-5G LTE 5G 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin LMR195 SMA(M)
RFI LTE-XPOL-002-5G LTE 5G 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin LMR195 SMA(M)
RFI LTE-XPOL-002-5G LTE 5G 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin LMR195 SMA(M)
The LTE-XPOL-002-5G is the third generation of this very popular Cross Polarised (LTE-XPOL-002-V2) cellular band 2x2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled further adding to the performance of the antenna.
The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands which were not previously covered by our V2 and is suitable for 2G 3G 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz 1700 – 2170MHz 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss LMR195 cable terminated with SMA male connectors.
Features:
- 2-3dB higher gain over all the bands compared to “V2”
- New 3400MHz-3800MHz 5G band with 11dBi gain
- Consistent broadband performance
- X-Polarised 2x2 MIMO antenna
- Wall or pole mountable
- Lightweight & rugged
- Weatherproof & waterproof (IP65)
- High pattern consistency across bands for 4G/5G carrier aggregation
| Connector | SMA(M) |
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Nominal Gain Dbi | 9 dBi @ 698-960MHz 10 dBi @ 1710-2700MHz 11 dBi @ 3400-3800MHz |
| Dimensions | H 260 W 260 |
| VSWR | < 1.5:1 (over 95% of the band) |
| Termination | comes we dual 10m low loss cable (LMR195) terminated with SMA male connectors |
| Construction | Cream ABS |
| Tuned bandwidth | Full. No tuning required |
| Brand | RFI |
Documentation
LTE-XPOL-002-5G Specifications
LTE-XPOL-002-5G Installation Guide
Scope of Supply:
1 x LTE-XPOL-002-5G Antenna with DUAL(2) low loss 10mtr LMR195 cables terminated with SMA male connectors
1 x Pole bracket with backing plate
1 x M6 x 60mm "U" bolt
4 x M6 x 12mm bolts
6x M6 washers
2x M6 nuts
Related Products
RFI Eave/Wall Mount Pole (Hockey Stick)
Availability

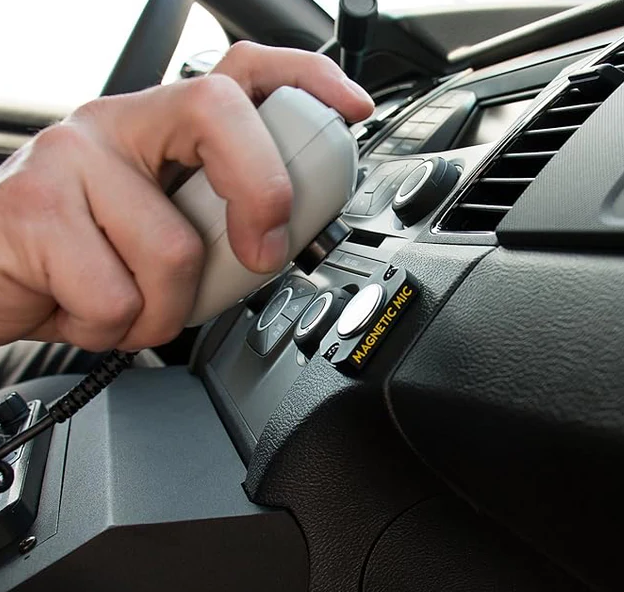

RFI Mag Mic Magnetic Microphone Holder
SKU: MAG-MIC
Magnetic Mic works with virtually all radio systems. It doesn’t matter if your radio system functions with an on-hook/ off-hook setting switches to a private line or scans when hung up—it’s ready for use with your radio system.
Magnetic Mic helps you stay focused..on the road when picking-up & returning your radio microphone to its holder. It’s the easy to install alternative to a conventional metal hand-up clip consisting of a magnetic base piece for your dash or console and has a disk shaped universal adaptor for the microphone itself. Just get the mic close and let it go. The Magnetic Mic does all the work so when you’re finished with the microphone simply get it close to the magnetic base piece and let it go. The magnetic base piece quickly guides your microphone into place. There’s no need to take your eyes off the road to hunt for and fumble with a conventional hang-up clip. Picking up your microphone is just as easy.
Replaces your hang-up clip
Easy to retrofit the standard two-hole mount
Holds the mic magnetically
You stay focused—keep your eyes on the road
Ready to use in minutes
Installs easily in about three minutes of time
Optimizes vehicle setup
Installs anywhere within the driver’s reach
Compatible with your mic
Design to work with all major microphone manufactures
SO SIMPLE AND EASY TO INSTALL…
Works with these and many more radio microphones…

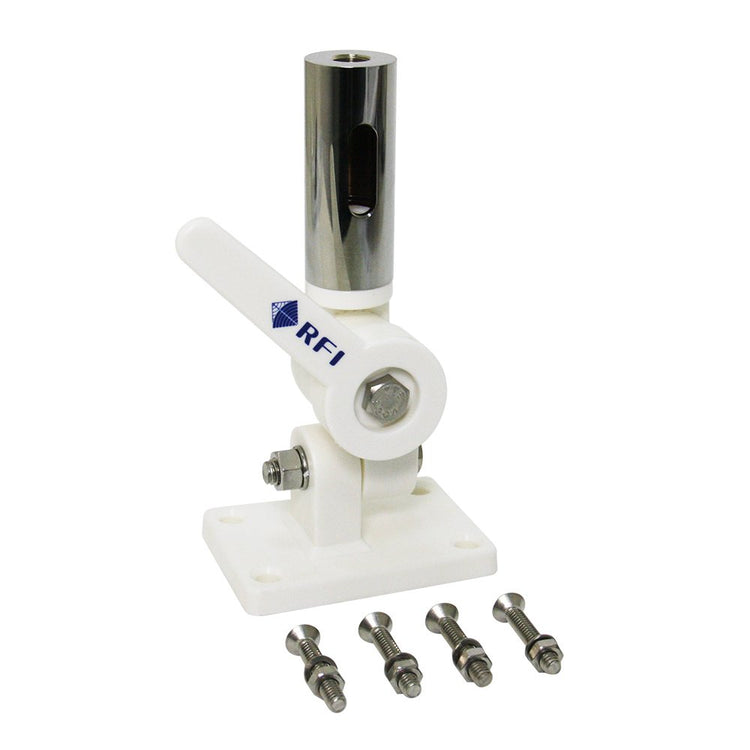

RFI MAM-201 Marine Knock Down Mount for CD Series Antennas
Now in stock
The MAM-201 mount allows antennas to be laid down when not in use. Can be adjusted to accommodate non-level mounting surfaces.
SUITABLE FOR:
1 x MAM-101 Marine Knock Down Mount
1 x MM-001 CD Series Adaptor
Includes 4 x stainless steel mounting bolts nuts & washers
Documentation
Related Products
ALTERNATIVE MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability

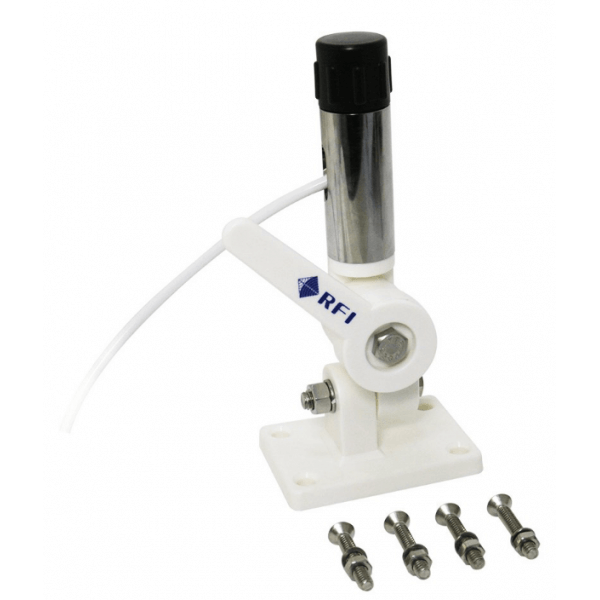

RFI MAM-CDQ Marine/Caravan Knock Down Mount for CDQ Series Antennas
The MAM-CDQ mount allows antennas to be laid down when not in use. Can be adjusted to accommodate non-level mounting surfaces.
SUITABLE FOR:
1 x MAM-101 Marine Knock Down Mount
1 x MM-CDQ CDQ Series Adaptor
Includes 4 x stainless steel mounting bolts nuts & washers
Documentation
Related Products
ALTERNATIVE MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability

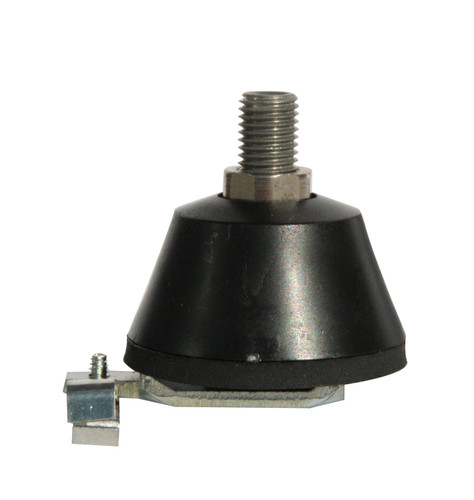

RFI MB10 UHF Base 30mm diam.
UHF mobile base mounts on a bracket or through the roof. A popular model measuring only 30mm diameter. 20mm hole required for blind hole mounting. Available with or without cable.
Availability

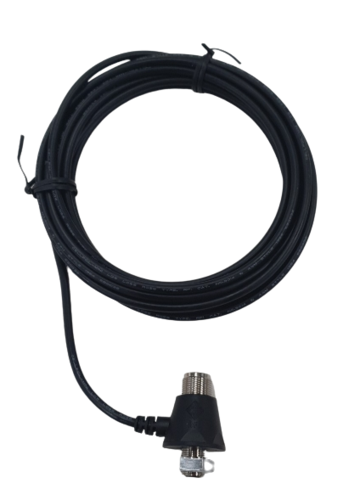

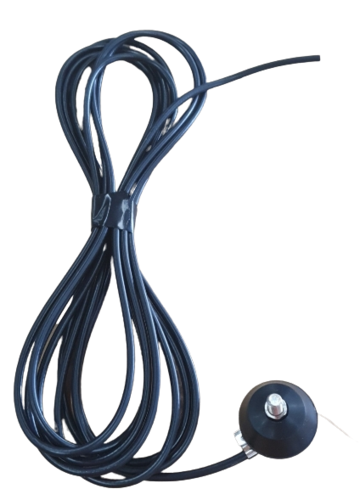

RFI MB10-00-23 UHF Base ; 5m No Connector
RFI MB10-00-23 UHF Base with 5m RG58C/U cable - no connector
UHF mobile base mounts on a bracket or through the roof. A popular model measuring only 30mm diameter. 20mm hole required for blind hole mounting. Available with or without cable.
Availability

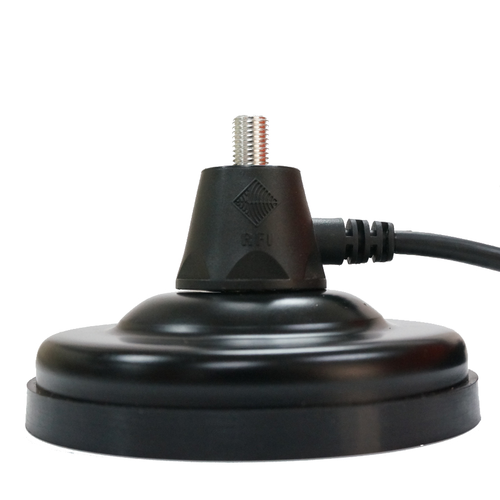

RFI MB9 Magnetic Base; 5m No Connector
Availability

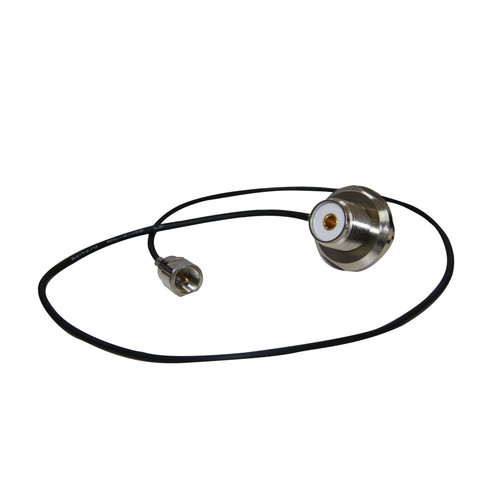

RFI MBC-00-50F MBC Base; 0.5m RG174 FME(M)
Availability

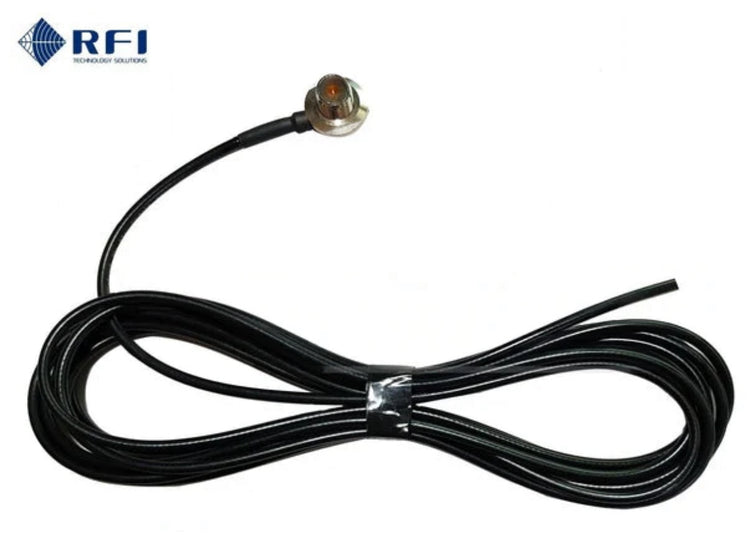

RFI MBC-00-53-10M Base; 10m No Connector
RFI MBC base terminated with 10m RG58C/U cable - no connector.
Availability

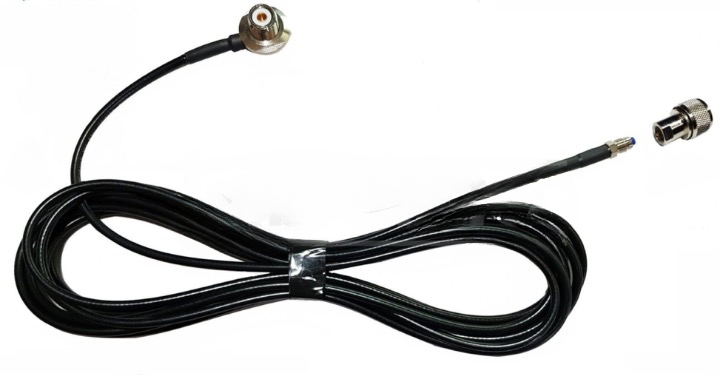

RFI MBC-00-55U MBC Base; 5m RG58 cable terminated with FME(F) & UHF(M) Adaptor
RFI MBC-00-55U MBC Base; 5m RG58 cable terminated with FME(F) & UHF(M) Adaptor
RFI MBC-00-55U Pulse MBC Base; 5m RG58 coax cable terminated with FME(F) & includes UHF(M) Adaptor
RFI MBC Base; 5m RG58 cable terminated with FME(F) connector & supplied with a UHF(M) Adaptor
Availability
RFI MBCM-10M-NC Moulded Base; 10m No Connector
MBC (UHF) base with 10m 9006 cable - no connector
Availability
RFI Omni Directional Antenna Low Profile Stud LTE/4G 698-960 & 1710-2700Mhz
RFI Omni Directional Antenna Low Profile Stud LTE/4G 698-960 & 1710-2700Mhz
RFI Omni Directional Antenna Low Profile Stud LTE/4G 698-960 & 1710-2700Mhz
The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz.
The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. The CSM700 is fitted with a 16mm stud mount incorporating an integrated rubber O-ring seal, and is IP65 rated.d trucks.
Features:
- Polycarbonate radome is ideal for outdoor use
- Attractive, low profile design for maximum overhead clearance
- Stud mounting offers ease of installation in the field
- Ingress protection to IP65
- Available in 2 standard versions:
- With 1.25m cable and FME connector
- Other cable/connector configurations available upon request
Specifications:
| Band | 698-960 MHz / 1710-2170 MHz / 2300-2700 MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 2dBi / 3.5 dBi / 5.0 dBi |
| Power W | 10 |
| Cable and Connector | Either 1.25m RG58 terminated with SMA (M) connector or 5m RG58 with no connector |
| Whip Length mm | 80mm |
| Radome Diameter mm | 50mm |
| Packaging | Clear Bag |
| VSWR | 2.0:1 |
| Height mm | 95mm |
| Mounting | 16mm Threaded Stud |

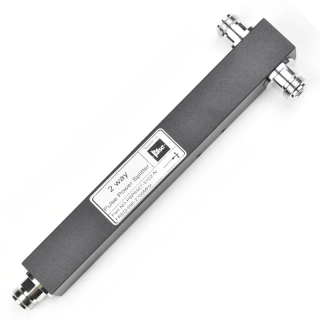

RFI PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W N Type
RFI PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W N Type
RFI Pulse PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W N Type
RFI Pulse Power Dividers / Combiners are used in a variety of RF power dividing and combining applications. Typically used in DAS (Distributed Antenna Systems) for distributing power throughout feeder cable networks.
PSP6927-5102-N Features:
- Low PIM performance
- 150dBc -Broadband performance covering full 698-2700MHz
- Suitable for use with analogue or digital RF communications.
Specifications
| Splits | 2 |
| PIM 3rd Order 2x43dBm | <150dBc |
| Finish | Black - Painted |
| Connector Types All Termiantion Ports | N (F) |
| Power Rating Watts | 300W |
| Operational Temperature Range | -25° C to +75° C |
| Connector | N(F) |
| Frequency Range | 698 - 2700 |
| Weight [kg] | 0.5 |
| Component Type | Splitter/Combiner |
Documentation
Availability
