Security

Packed with features

• 180-degree wide-angle lens gives you a complete picture
• Motion detection feature automatically captures events and sends alerts
• Built-in microphone and speaker for two-way audio communication
• Full HD 1920 x 1080 resolution for detailed video
• IR LEDs let you see up to 5m (16ft.) in complete darkness
• Record video clips and images to a microSD card for backup

Set up in seconds...

Follow a few simple steps in the Apple HomeApp to instantly see and hear everything that is happening in your home.

Features

• 4MP, 1/3” CMOS image sensor,low illuminance, high image definition
• Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
• H.265 coding, high compression ration, low bit rate
• Built-in IR LED, max IR distance: 40 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tempering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
• Max. 256 GB SD card · 12V DC/POE power support · IP67 protection

System Overview

With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function , complying to the standards of IP67.

Functions

Smart(H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

DHI-NVR4104

• Smart H.265+/H.265/Smart H.264+/H.264

• Max 80Mbps Incoming Bandwidth

• Up to 8MP Resolution for Preview and Playback

• Up to 2ch@4K/8ch@1080P decoding

• HDMI/VGA simultaneous video output

• Support IPC UPnP, 4PoE ports

System Overview

Dahua NVR4104-4KS2 is introduced as the first Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.

4K Resolution

4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Intelligent Video System

Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data – Facial Detection, People Counting, and Heat Map – from IP cameras with built-in Intelligent Business Analytics.

ANR (Automatic Network Replenishment Technology)

Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

DMSS

The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere!

Features

• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
• H.265 coding, high compression ration, low bit rate
• Built-in IR LED, Max IR distance: 40 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
• Max. 256 GB SD card · 12V DC/POE power support · IP67 protection

System Overview

With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colourful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function, complying to the standards of IP67.

Functions

Smart(H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with a strong light source, you can also get clear images.

Starlight

Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colourful video. Even in the environment of min. illumination, the technology can guarantee a good image effect.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It is dust-proof, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to an outdoor environment with unstable voltage.

DHI-NVR4108

• Smart H.265+/H.265/Smart H.264+/H.264

• Max 80Mbps Incoming Bandwidth

• Up to 8MP Resolution for Preview and Playback

• Up to 2ch@4K/8ch@1080P decoding

• HDMI/VGA simultaneous video output

• Support IPC UPnP, 4PoE ports

System Overview

Dahua NVR4108-4KS2 is introduced as the first Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.

4K Resolution

4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Intelligent Video System

Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data – Facial Detection, People Counting, and Heat Map – from IP cameras with built-in Intelligent Business Analytics.

ANR (Automatic Network Replenishment Technology)

Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

DMSS

The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere!

Package content:

1 x 8ch PoE NVR-4108HS-8P-4KS2 NVR

1x Surveillance HD-4TB installed

8x HDW2431TP-ZS-S2 4MP Motorised Turret Cameras

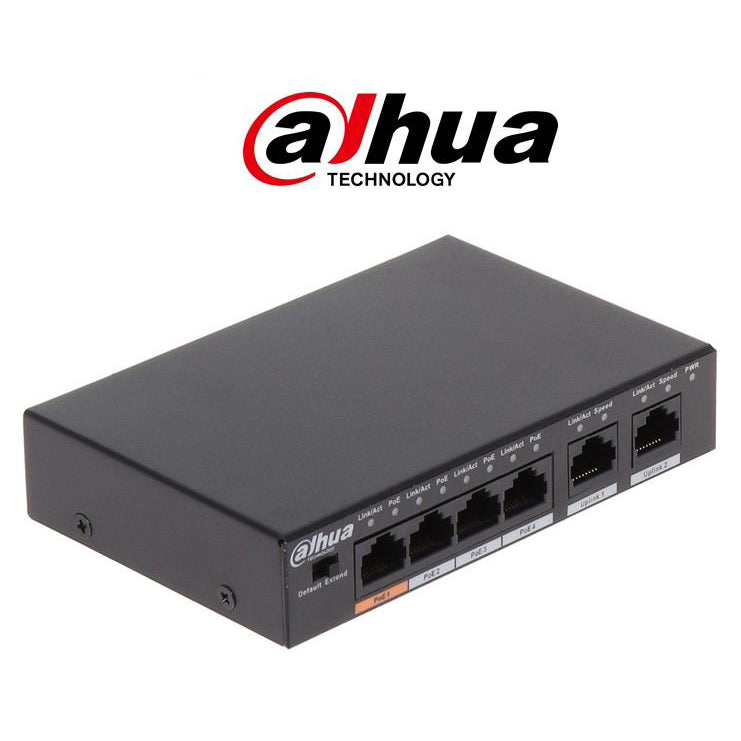

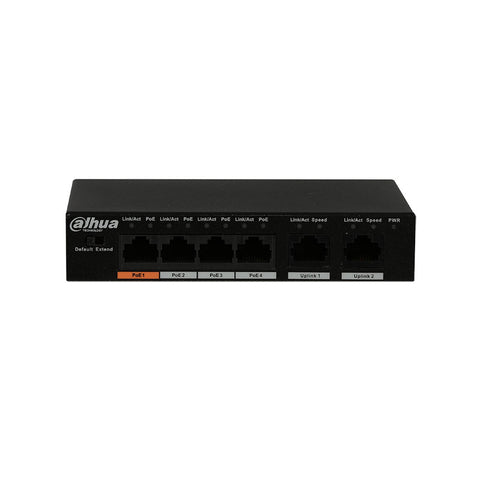

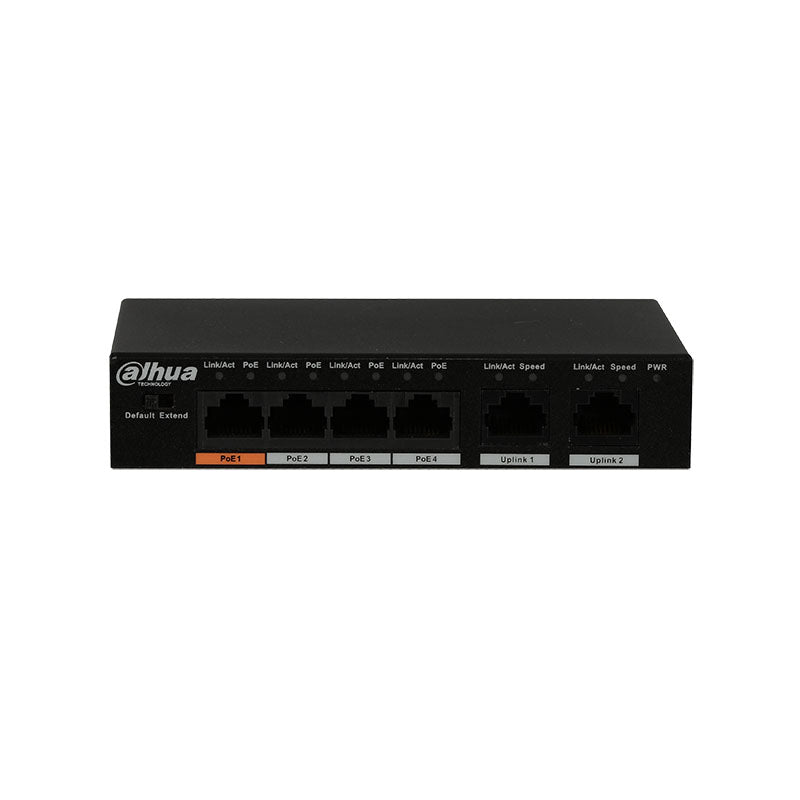

Dahua Security CCTV 4-Port Fast Ethernet PoE Switch

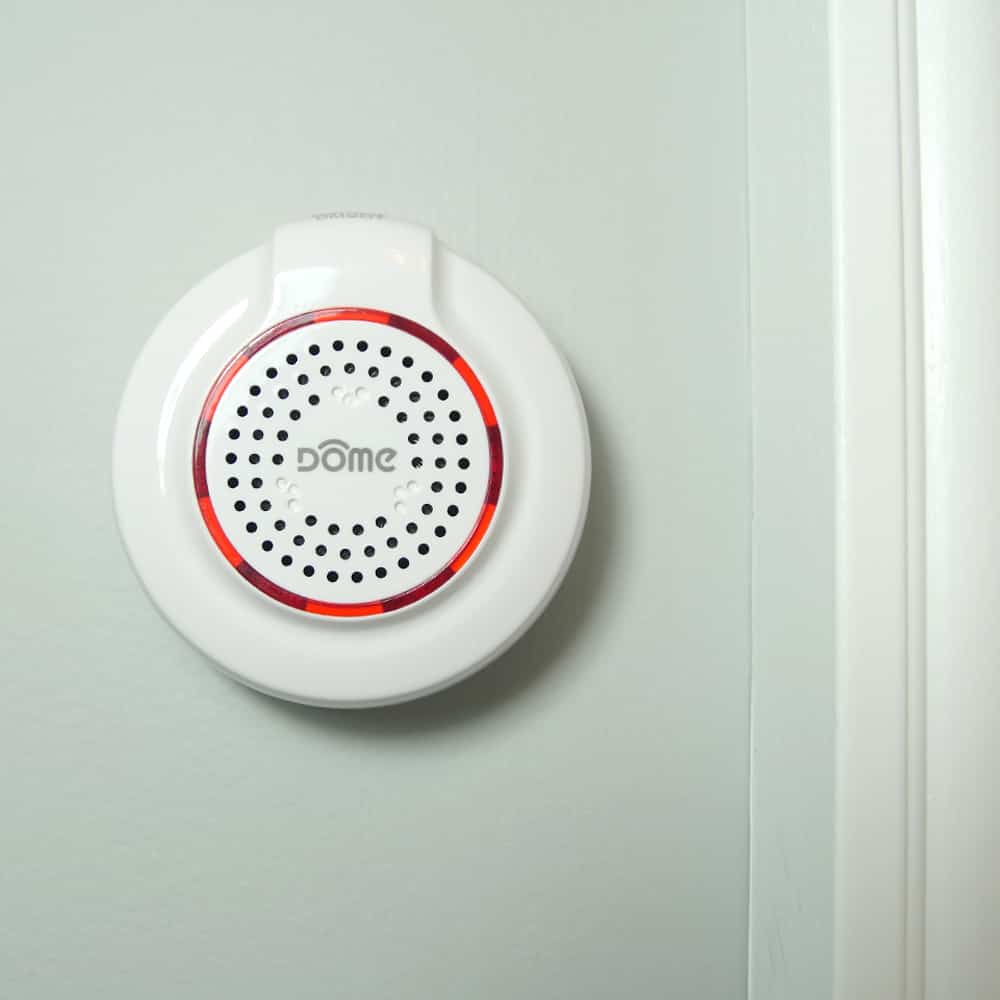

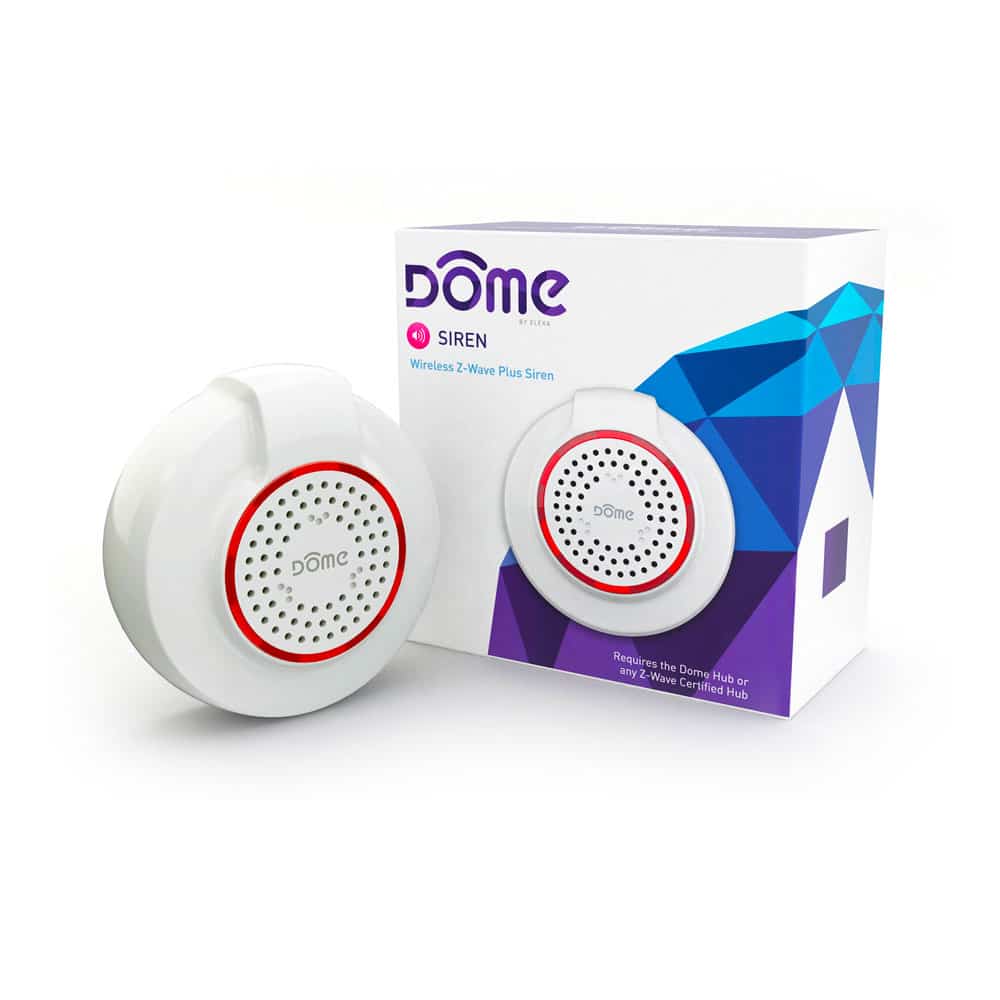

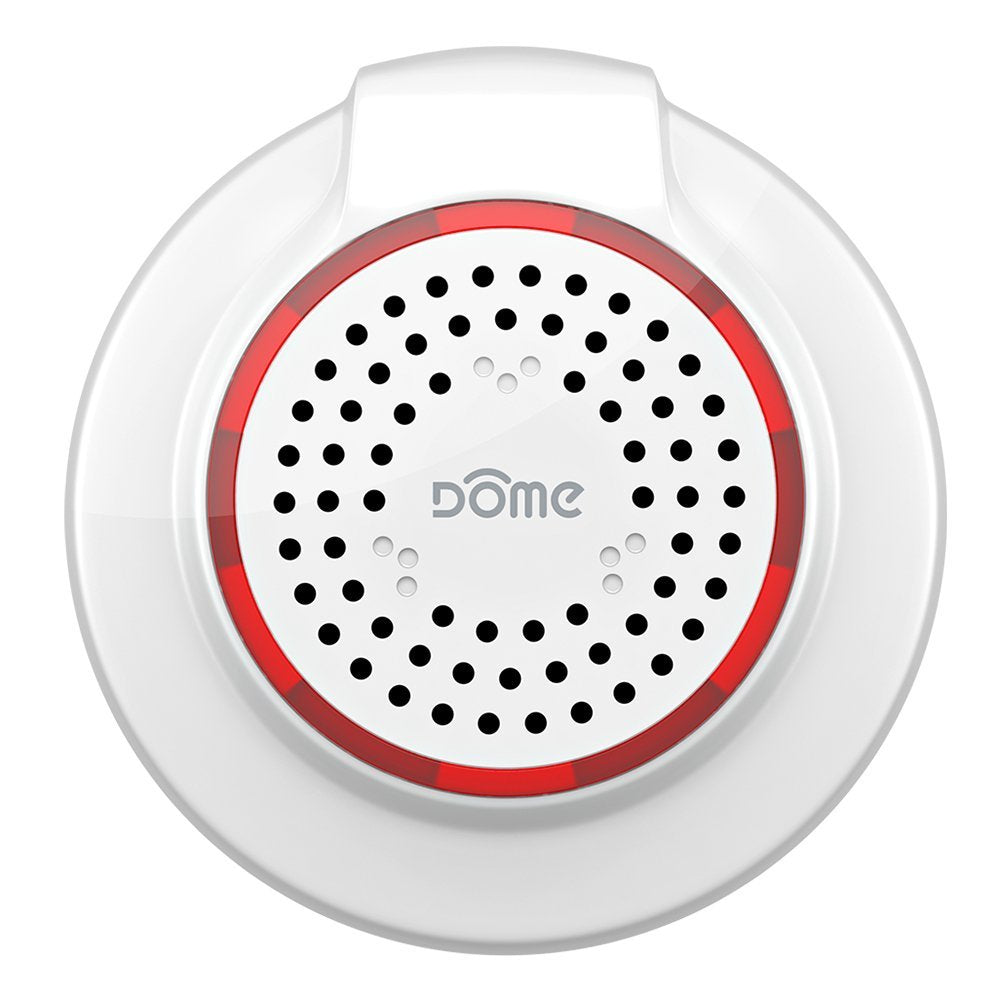

The DOME Z-Wave Siren is a versatile Z-Wave siren designed to alert you to more than just intruders. Release the power of your Z-Wave home security system with a siren that firmly reminds you something’s amiss or blares when trouble’s coming. The Dome Home Automation Wireless Z-Wave Battery Powered Home Security Siren works with your other security hub’s components to alert you when a door is ajar, there’s someone on your property or you have a home invasion. No need to look at your phone to know when it’s time to take action. Hear the signal and heed the call. The Dome Home Automation Battery-Powered Siren updates you with your choice of three volume levels and you can choose specific chimes for various notifications. Configure your siren to quietly let you know when your teen has left the building or has returned. Make sure you’re alerted if your bedroom window is opened at night. The siren and flashing LED lights can be set up to clue you in on doors that are open when they shouldn’t be. Install it easily without wires, anywhere, and its low footprint renders it almost invisible. Use with most any Z-Wave Hub including: Vera, Fibaro HC2, Wink, Home Seer, SmartThings, Harmony and more. Secondary Chimes, volume control and advance configuration settings my not be available through all smart Hubs. Visit Dome's How-to page for more information.

AirBox

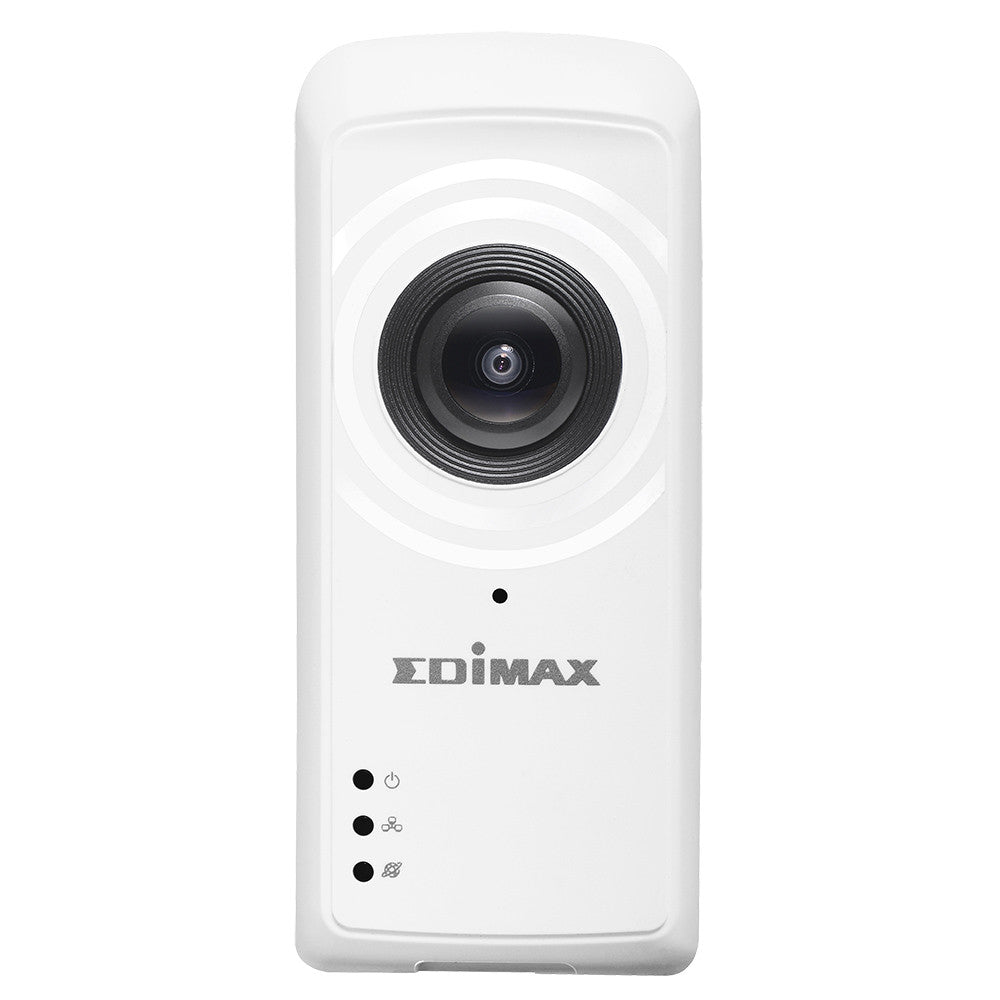

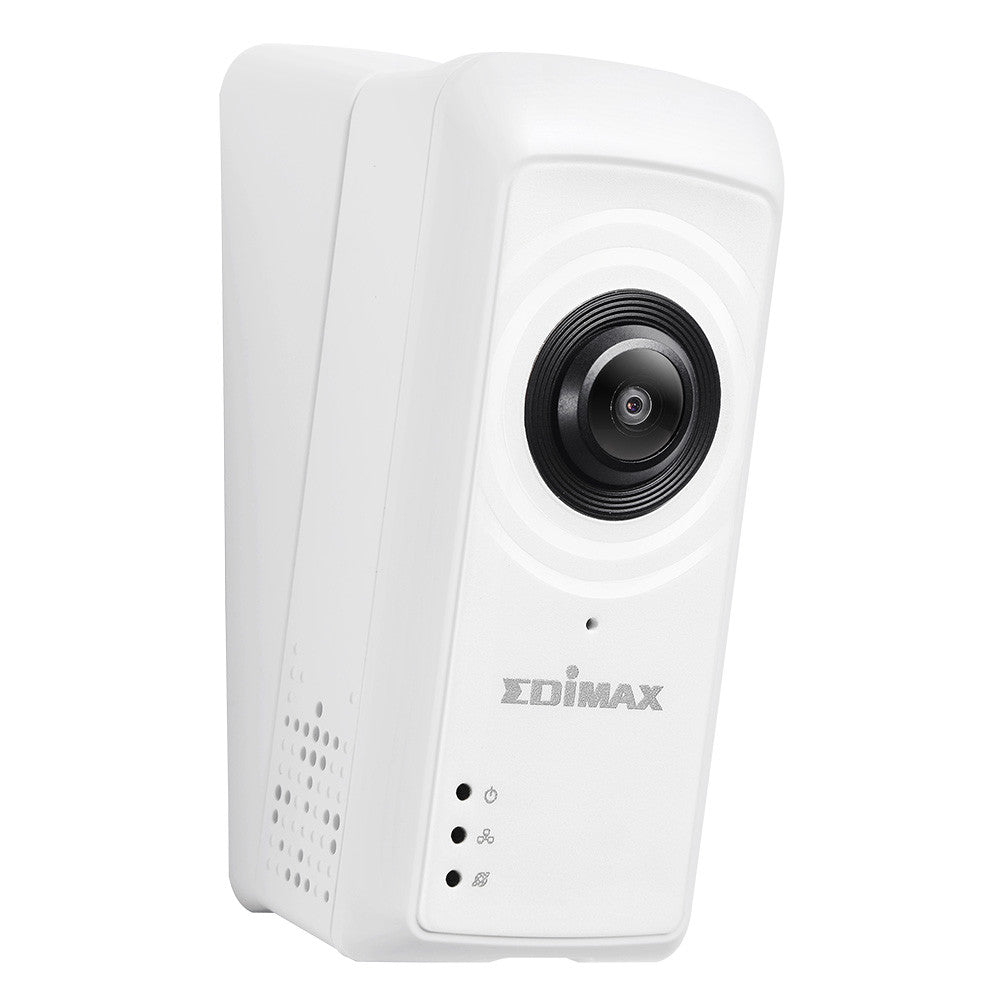

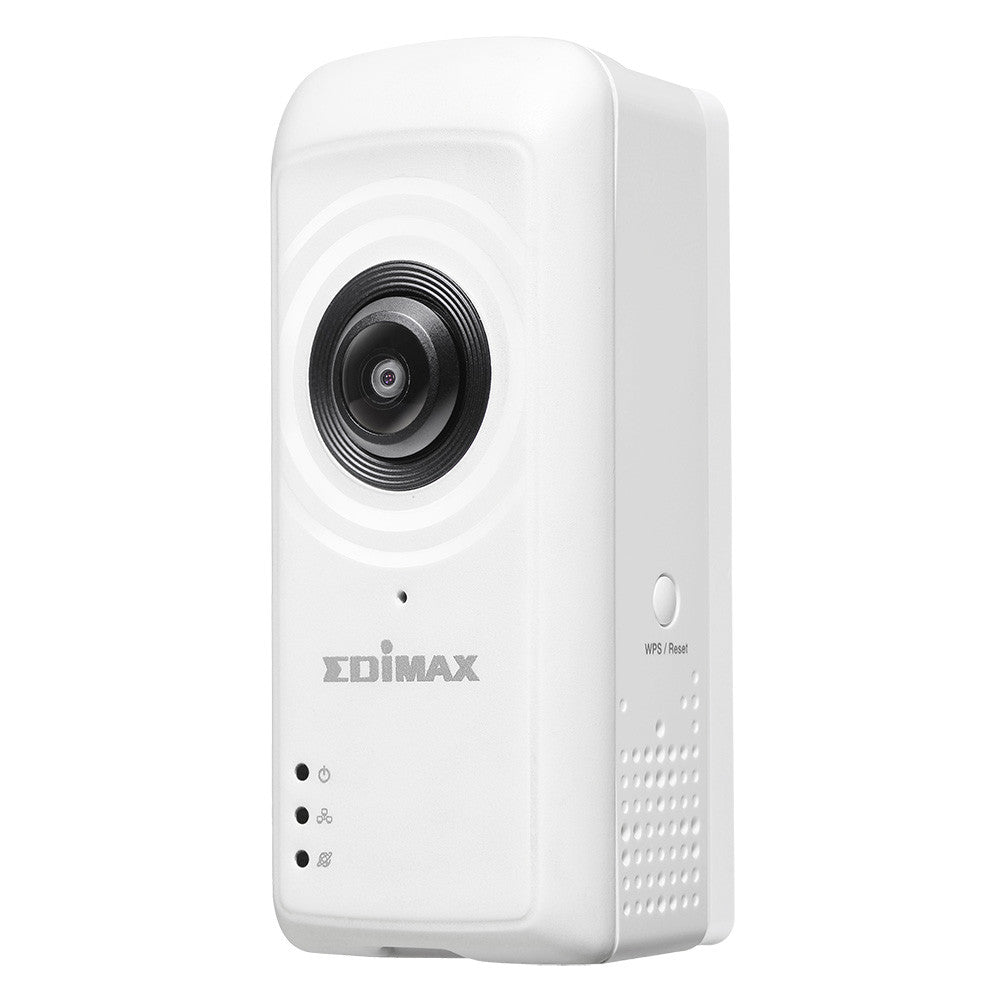

The Edimax IC-5150W Fisheye network camera gives you wider, 180-degree panoramic views for more efficient security and monitoring in your home, shop or factory without the blind spots associated with traditional standard lens network cameras. And with Edimax Plug-n-View technology, there’s no complicated setup so you can connect the camera to the cloud without any hassle and monitor remotely from a smartphone, tablet or laptop.

With a built-in microphone, sound and motion detection system and microSD/SDHC card slot, the camera is well equipped to protect your property as well as fully customizable. Motion detection can be configured according to user-defined areas, and together with sound detection and sound-triggered recording offers a powerful security system that’s always on alert to capture anything suspicious. And for installation and monitoring, the intuitive Wi-Fi user interface makes everything a breeze. See the big picture in 1080p Full HD and never miss a thing.

180^o Panoramic View Covers More with Less
Designed with a 180-degree wide-angle panoramic lens for better, wider views and without the limitations of blind spots and awkward angles that are found with traditional Wi-Fi cameras. Native, built-in dewarping flattens images and videos into a single usable view in different directions that would otherwise need multiple cameras, cutting bandwidth and storage costs. Get more value with your security budget with a fisheye camera that has the capability to provide the same coverage as 2 - 4  standard cameras.

1080p Full HD Images and Videos
High-quality clear and crisp imaging at 1080p Full HD (1920 x 1080) with a 2 megapixel CMOS sensor and recording at 30 frames per second. A wide F2.0 lens covers a horizontal viewing angle of 180-degree.

Native Dewarping with “Normal" View
Built-in dewarping and image distortion reduction to convert images or videos to a "normal" view, for better usability and easy monitoring and playback.

Free Cloud Storage Recording
Integrate and save recordings and events directly to the cloud instead of local physical devices for real-time remote backup.

ePTZ Control for Rich Detail
Digital pan, tilt & zoom on areas of interest for better focus and rich detail while still recording the bigger picture.

Wide Dynamic Range (WDR)
Equipped with a high-performance image sensor and Wide Dynamic Range (WDR) feature to enable high-quality imaging and recoding in more detail under low and poor light or high contrast conditions.

Motion Detection Triggered Recording
The powerful built-in motion detection system with pre-defined detection regions offers peace of mind that you will capture any suspicious activity. When motion is detected, the network camera will produce video footage of the event immediately – storing the data on a microSD/SDHC card or sending it automatically via email or ftp

Sound Detection Triggered Recording
Featuring sound detection capabilities and built-in microphone. When sound is detected, the network camera will take video footage of the event immediately in the same manner as with motion detection, and store the files locally on a microSD/SDHC card or send via email or ftp. Integrated sound offers a further level of security than motion-detection and visual imaging alone, providing critical real-time or post-event information about a situation, particularly in scenarios where events occur outside the camera’s field of vision. The sounds of breaking windows, doors or anything else suspicious can still be registered even in situations where the event can’t be seen.

Push Notifications & Video Alerts
Push notifications are triggered by motion or sound detection, and when a detection system is triggered, the camera additionally sends video alerts to email or microSD card. If the camera ever goes offline, push notifications are also sent when the camera comes back online to keep users informed about any unusual activity.

Plug-n-View for 24/7 Easy Remote Monitoring
Edimax Plug-n-View technology makes it easy for you to keep an eye on your home, garage, shop, factory or other assets wherever you go. With Plug-n-View technology, you can connect your network camera to the cloud in a few simple steps and access it remotely with a smartphone, tablet, or computer no matter where you are.

microSD/SDHC Card Slot for Local Storage
A built-in microSD/SDHC card slot supports cards up to 32GB for local storage and backup.

KEY FEATURES


• 180-Degree Panoramic View to eliminate blind spots and provide wall-to-wall coverage equivalent to 2 - 4 standard cameras.
• Full HD 1080p Video ensures rich detail and crisp image quality for streaming and recording.
• Native Dewarping and image distortion reduction converts images or videos to a "normal" view for better usability and playback.
• Free Cloud Storage Recording to integrate and save recording and events directly to the cloud.
• ePTZ Digital Pan, Tilt & Zoom to focus on areas in rich detail while still recording the bigger picture.
• Wide Dynamic Range (WDR) to capture and record in high-quality and more detail under low and poor light conditions.
• Multi-Area Motion & Sound Detection triggers recording and sends to email or ftp.
• Push Notifications with Video Alerts when motion or sound is detected.
• Plug-n-View for 24/7 Remote Monitoring with free EdiView II app on iPhone®, iPad® or Android® or EdiView software for computers.
• microSD/SDHC Card Slot for local storage.
• Wireless & Ethernet Connection for flexible placement and compatible with IEEE 802.11b/g/n products.
• Easy Setup with smart EdiLife mobile app setup & hardware WPS support.

SOFTWARE FEATURES

• Easy remote monitoring via iPhone, iPad, Android, PC & Mac
• High-speed H.264 & MJPEG video compression
• Motion & sound detected video to microSD/SDHC card, ftp or email
• Pre- & post-recording upon detected motion
• Viewer software to access 16 network cameras simultaneously
• Manual/scheduled/cycle recording

SPECS
FUNCTIONS

•Easy remote monitoring via iPhone, iPad, Android, PC & Mac
•180 degree (H), 142 degree (V) & 206 degree (D) viewing angle
•Supports dynamic DNS service
•Built-in microphone
•Motion/sound detection recording and alerts to microSD/SDHC card, email and FTP
•microSD/SDHC card slot for local storage
•Multi-view mode
•Free cloud storage for real time remote backup

VIDEO

•High-speed H.264 & MJPEG video compression
•1920 x 1080 up to 30 fps
•1280 x 720 up to 30 fps
•640 x 480 up to 30 fps
•320 x 240 up to 30 fp

STANDARDS

•Fast Ethernet IEEE 802.3/802.3u
•Wireless IEEE 802.11b/g/n

MEMORY

•8MB flash
•64MB SDRAM

DIMENSIONS

•95mm(H) x 40mm(W) x 30mm(D)

MANAGEMENT

•EdiView Finder (Windows/Mac)
•16-channel viewer
•Web management interface
•Firmware upgradable
•iPhone & iPad viewer app
•Android viewer app

VIDEO SETTINGS

•Resolution: Full HD (1920 x 1080), HD (1280 x 720), VGA (640 x 480), QVGA (320 x 240),
•Frame rate: 5, 10, 15, 20, 24 or 30 fps

RF OUTPUT POWER

•11b: 16~18dBm
•11g: 14~16dBm
•11n: 11~13dBm

OPERATING CONDITIONS

•0-40° Celsius
•20-80% (non-condensing)

INTERFACE

•Ethernet (RJ-45) port
•Power jack
•Reset/WPS button
•Internal antenna
•microSD/SDHC card slot
•Microphone
•USB 2.0 port
•LED indicators: Internet, LAN/Wi-Fi LNK/ACT, Power

SUPPORTED PROTOCOLS

•IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP, ARP, DNS, PPPoE

POWER

•12V DC x 1A

ACCESSORY

•Flat wall-mount kit x 1
•Tilt wall-mount kit x 1

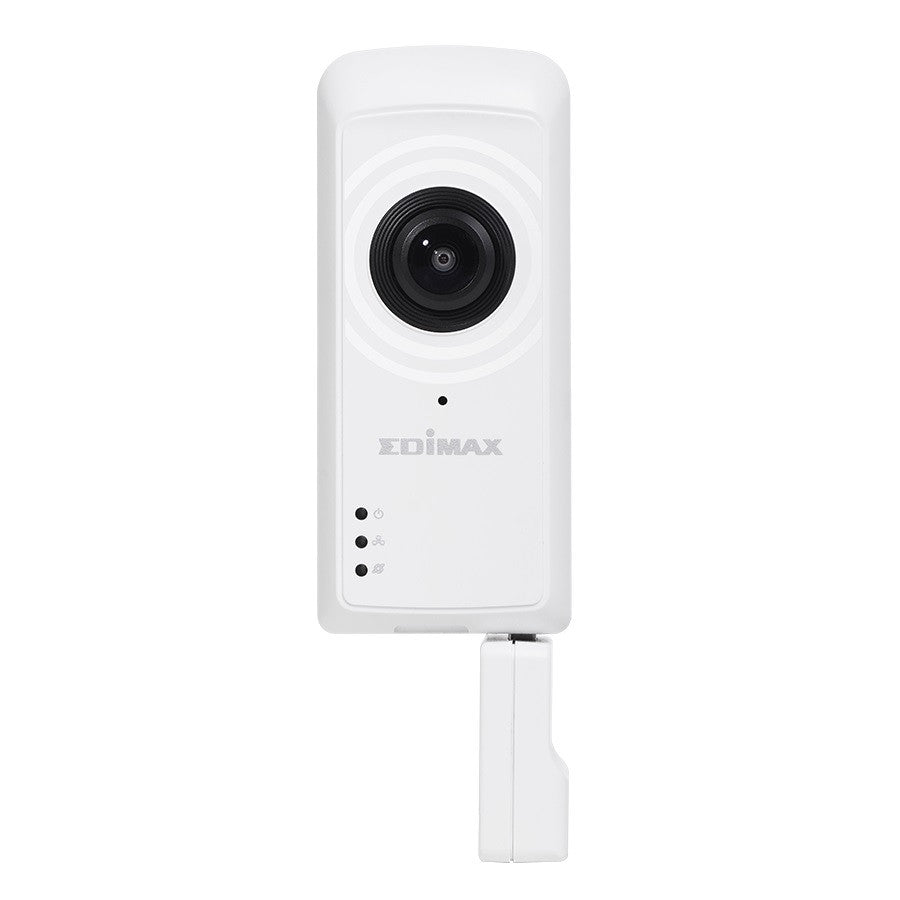

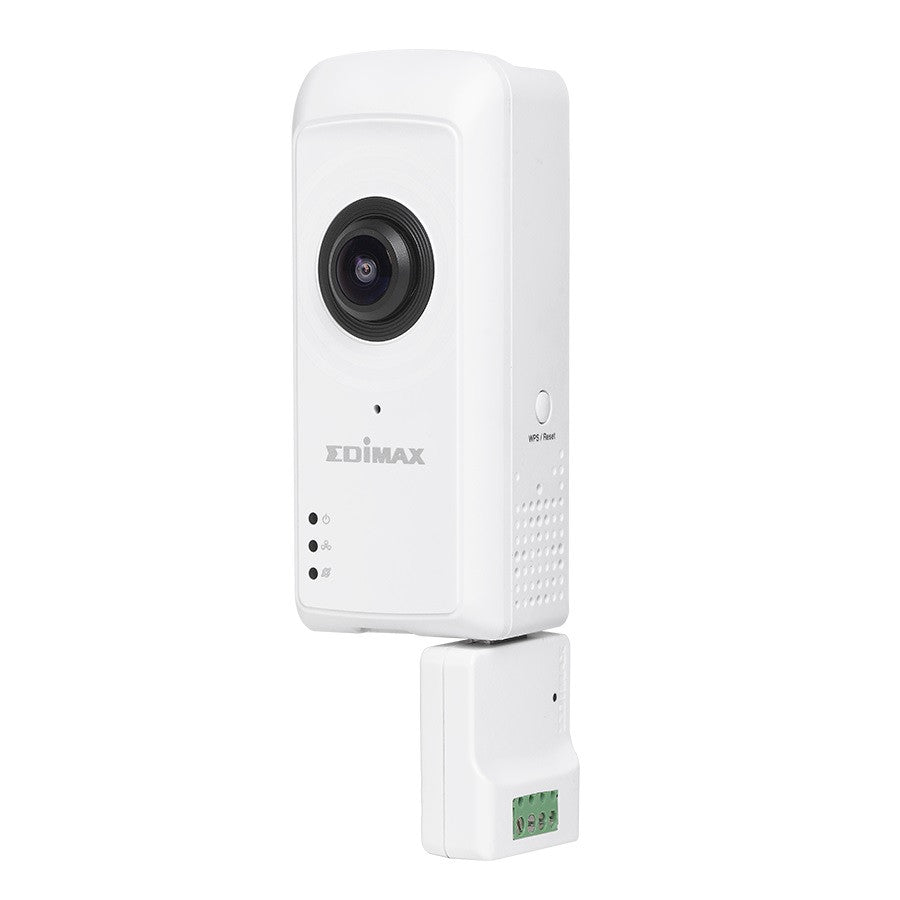

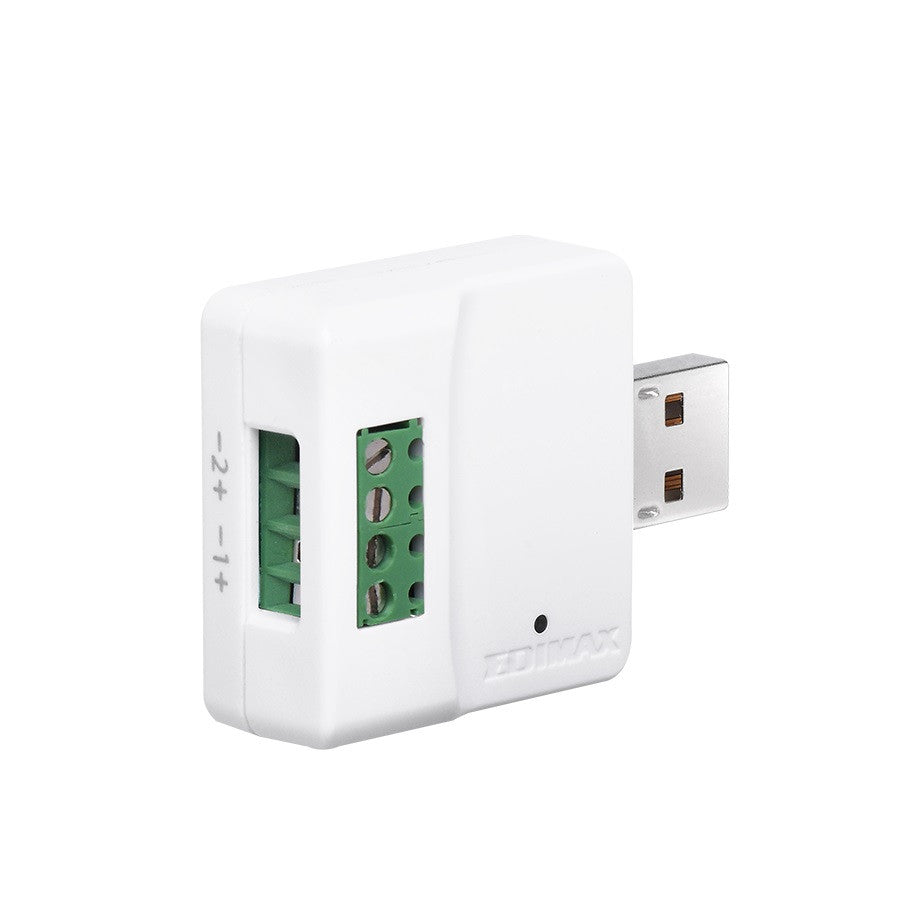

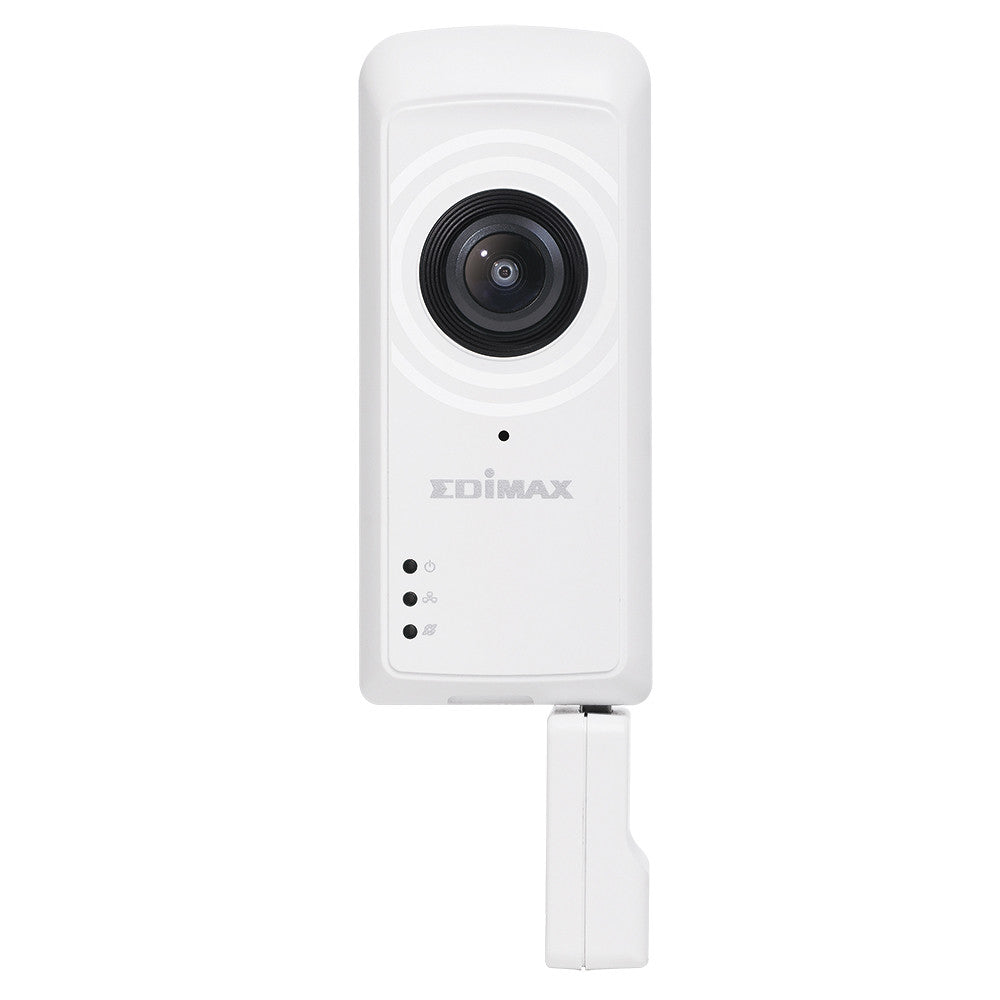

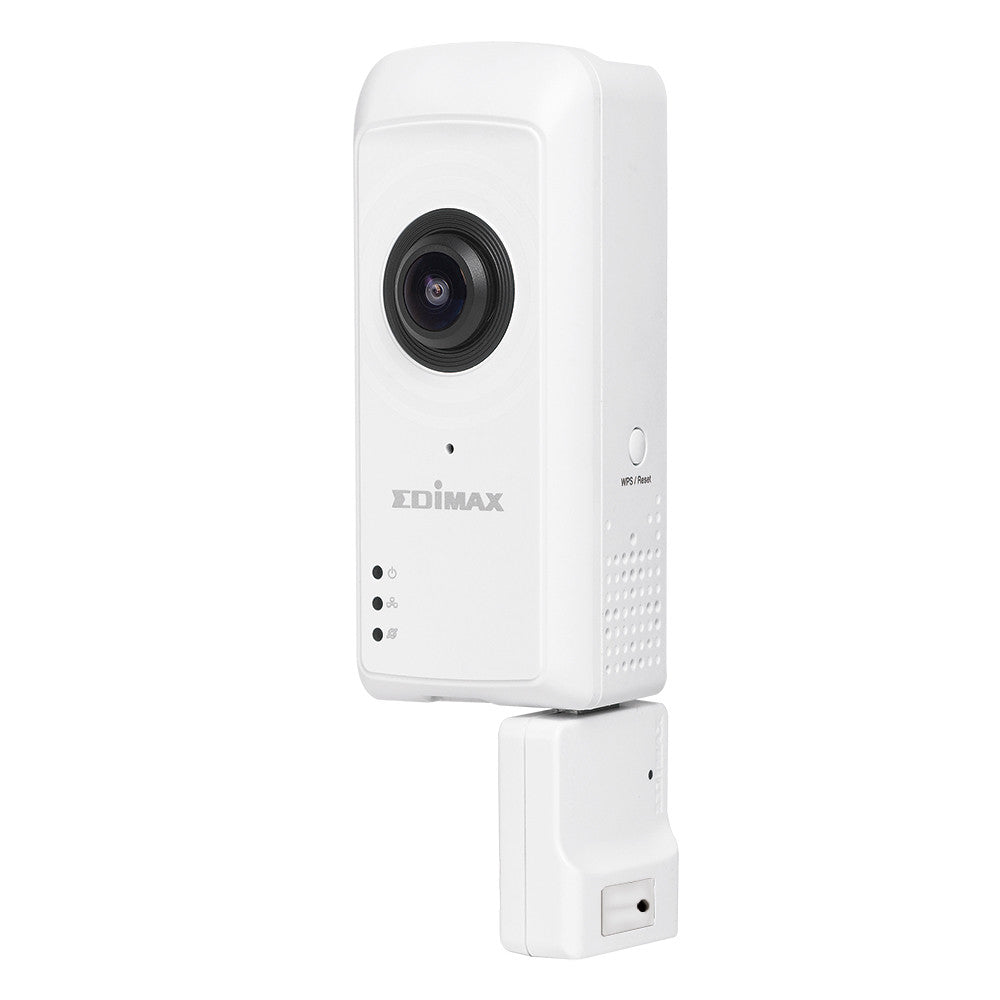

The Edimax IC-5160GC is a cloud camera designed for garages that can connect to a garage door motor to open and close the door. There’s a built-in smart geo-fencing feature that works with Google Maps and reminds you of monitoring your garage door open or close. Modern day home security that’s always connected, alert & available on your smartphone.

A Smartphone Becomes a Door Controller

Most of people daily use garage door as main entrance. To prevent burglars from breaking into the house, it is so important to make sure the garage door open or close when you are away.

IC-5160GC lets you no waste of time to drive back if you not sure closed the garage door after leaving home. Just remotely control the garage door with your smartphone from anywhere and offer you fully peace-of-mind and no distractions on vacation or business trip.

Compatible With Up To 2 Garage Doors

No need to buy another garage opener even if you own 2 garages. IC-5160GC is compatible with up to 2 garages that helps you control garage doors at the same time on one app with your smartphone.

Smart Geo-fencing
Manually or automatically control your garage door. Smart Geo-fencing can set a virtual fence around your garage, so you can open or close your garage door automatically when you enter or leave, as well as control manually.

Secure Your Property
No worries about your new car or if someone left the garage open. You can check the garage to make sure it’s secure while you’re abroad at any time. Push notification reminders also help.

180˚ Panoramic View
Wider viewing angle than traditional Wi-Fi cameras, without blind spots. IC-5160GC provides a 180-degree panoramic view for an excellent field-of-vision across an entire garage, without limitations and blind spots. It also can be focused on areas in detail with high-quality video streaming. Clearly see your loved one – kids, pets or the elder - in every moment to offer you a great peace-of-mind.

Smart EdiLife

IC-5160GC cloud garage camera works with the free EdiLife app enables to create virtual keys to be a controller. You can use your samrtphone as a garage opener. In addition, EdiLife app adds other values for you, such as receive push notifications, view the real-time video and the event log, and more. Now available for Android and iOS.

SPECS

• 131.57 mm(H) x 40.8mm(W) x 39.32mm(D)

CAMERA

• Min Illumination: 1.0 Lux
• Sensor: 1/3" CMOS, 3M pixels
• Lens: 1.30mm / F2.5
• Viewing Angle: Panoramic 180 degrees (H), 142 degrees (V) & 206 degrees (D)
• Zoom: 4x Digital

CONNECTIVITY

• IEEE 802.3/802.3u
• IEEE 802.11 b/g/n , 1 internal Wi-Fi antenna

VIDEO

• H.264 & M-JPEG dual coded video compression
• Max Resolution:
  • 1920*1080 1080P (H.264)
  • 1280*720 720P (M-JPEG)
• Frame rate: 30fps (1080P/720P/VGA/QVGA)

AUDIO

• Built-in microphone

MANAGEMENT

• EdiLife: free mobile app for iPhone, iPad & Android
• EdiView Finder: web management interface fro Windows/Mac
• 16-channel viewer
• Firmware upgradable

FEATURES

• Motion & sound detection trigger recording and alerts to microSD/SDHC card, email and FTPSupports 64G microSD/SDHC card slot for local storageExtend free cloud storage to personal accounts or other 3rd party storage options

POWER

• Camera: 12V DC/1A

OPERATING CONDITONS

• 0–40°C

The Ideal Smart Home Starter Pack

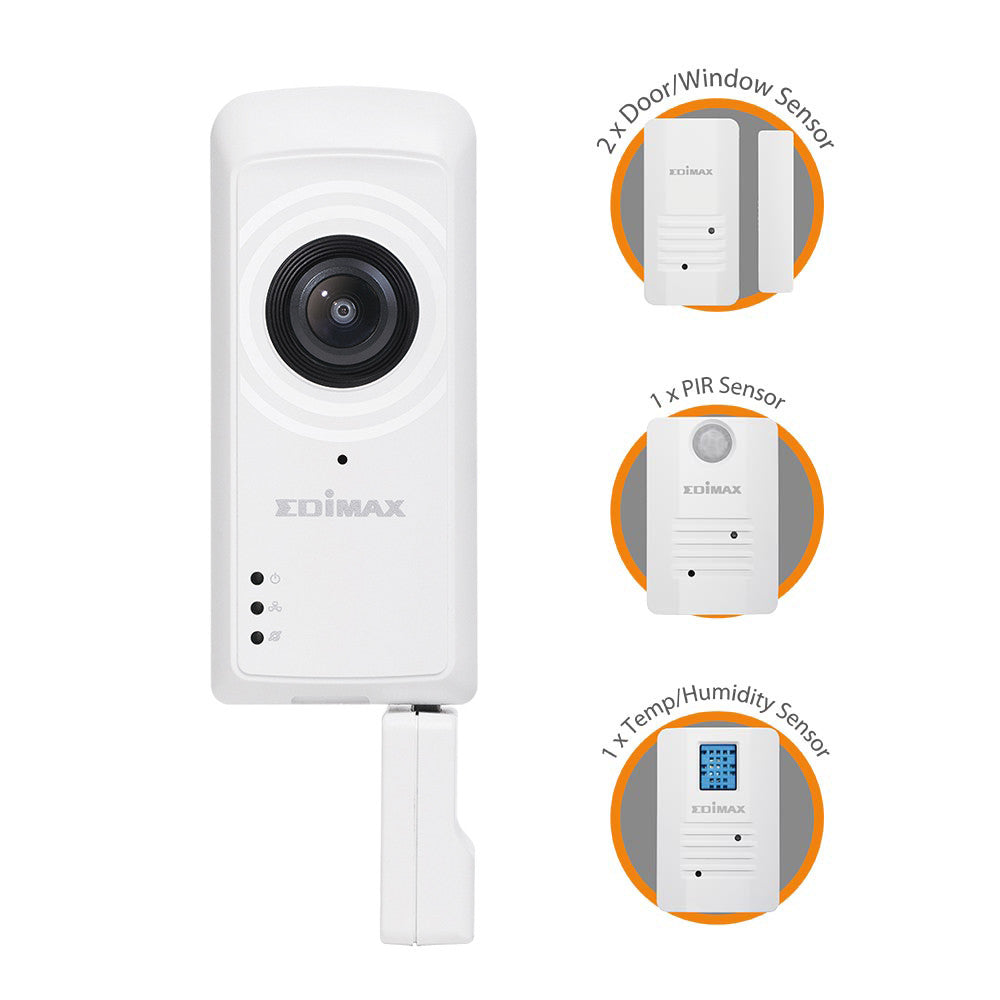

The IC-5170SC integrates a Full HD Wi-Fi fisheye camera with two door/window sensors, one PIR heat-based motion sensor and a temperature & humidity sensor. It can see, sense & secure your property and instantly show you real-time status and events around your house on your smartphone. And with the free EdiLife app, any activity at home can be monitored when you’re not there. The IC-5170SC is simply the best all-in-one Smart Home Sensor Kit you’re looking for.

Affordable Home Automation
Universal compatibility with any Wi-Fi router so you don’t have to install another home center or hub to manage your smart devices. Easily attach the sensors and connect to the gateway automatically, and let the free EdiLife app take care of the rest. Remote-monitoring, accurate detections of environment changes and instant notifications and alerts.

Full HD Wi-Fi Fisheye Cloud Camera
Cover Everything with Intelligent Security
Offering wider angle views than conventional Wi-Fi cameras, the IC-5170SC’s fisheye camera can cover your front door, garage or a whole room without surveillance blind spots. Compared with installations of other cameras on the market, the IC-5170SC not only slashes the cost of devices, storage space and bandwidth – but provides more convenience to work with multiple environment sensors to watch and secure your properties at the same time. It’s effective regardless of whether you’re living in a small apartment or a mansion.

Door & Window Sensors
Instant Alerts when Doors and Windows are Open or Closed

Built-in reed switch works with 2.4G RF and connects to your existing home Wi-Fi network, with a slim design that’s ideal for narrow jamb doors and windows. Make sure your doors and windows are shut so that pets can’t escape and valuables are safe or you can even use the sensors on closet doors and drawers. With the convenience of the IC-5170SC you’ll be informed with video alerts when your loved ones arrive or leave home. No worries about leaving a back door ajar or the side windows open at night, and get immediate warnings when the door or windows are opened by exterior forces.

PIR Motion Sensor
For Accurate & Automatic Detection

The Passive Infrared (PIR) Sensor is a highly precise sensor that detects motion via infrared radiation caused by temperature changes – such as when a person or animal passes by – and sends push notification to your smartphone. It’s designed to protect your house from intruders and avoid false alerts from movement such as shadows, street lights or branches swaying in the breeze.

Temperature & Humidity Sensor
Makes your home more comfortable for Loved Ones
The IC-5170SC’s dual temperature and humidity sensor keep you aware of microclimate changes in your environment. People often receive daily weather reports to choose clothes for warm or cold weather outside but don’t know much about indoor conditions. With better awareness of temperature and humidity levels inside, you can be much more comfortable at home and prevent the family from discomfort or health issues caused by dry air or moisture problems. An indoor sensor is an excellent tool to monitor and manage the temperature and humidity inside your home.

The sensor can also be easily fitted into any space where temperature and humidity levels are important to prevent damage to items. You can protect plant, leather, toys and computer, communications or consumer electronics from excessive heat, cold or humidity with the remote monitoring and alerts capability of the sensor.

One App for Everything

Works with the free EdiLife app to provide live views and real-time notifications of events triggered by the multi-environment sensors. In addition, EdiLife offers a range of other benefits such as push notifications, video and events logs, and more.

Edimax Cloud

Wherever there’s an Internet connection you can always connect with the IC-5170SC using your smartphone, thanks to Edimax Cloud Service. It’s no problem where you are, just check out your house from the app anytime you want.

Flexible Storage Options

Recordings from the IC-5170SC can be saved directly to microSD, SDHC, NAS, Google Drive or Dropbox – flexible options for you to save video on the cloud or local storage. Save events directly to your NAS or cloud storage instead of local physical devices for real-time remote backup.

SPECS
Dimension

• 131.57 mm(H) x 40.8mm(W) x 39.32mm(D)
• Door/Window Sensor: 66 x 33.6 x 25 mm
• PIR Motion Sensor: 66 x 44 x 25 mm
• Temperature & Humidity Sensor: 66 x 44 x 25 mm

Camera

• Min Illumination: 1.0 Lux
• Sensor: 1/3" CMOS, 3M pixels
• Lens: 1.30mm / F2.5
• Viewing Angle: Panoramic 180 degrees (H), 142 degrees (V) & 206 degrees (D)
• Zoom: 4x Digital

Connectivity

• IEEE 802.3/802.3u
• IEEE 802.11 b/g/n , 1 internal Wi-Fi antenna
• 2.4GHz RF

Video

• H.264 & M-JPEG dual coded video compression
• Max Resolution:
  • 1920*1080 1080P (H.264)
  • 1280*720 720P (M-JPEG)
• Frame rate: 30fps (1080P/720P/VGA/QVGA)

Audio

• Built-in microphone

Management

• EdiLife: free mobile app for iPhone, iPad & Android
• EdiView Finder: web management interface fro Windows/Mac
• 16-channel viewer
• Firmware upgradable

Features

• Motion & sound detection trigger recording and alerts to microSD/SDHC card, email and FTP

• Supports 64G microSD/SDHC card slot for local storage. Extend free cloud storage to personal accounts or other 3rd party storage options

Operating Conditions

• 0–40°C

Power

• Camera: 12V DC/1A
• Sensors: AAA batteries.

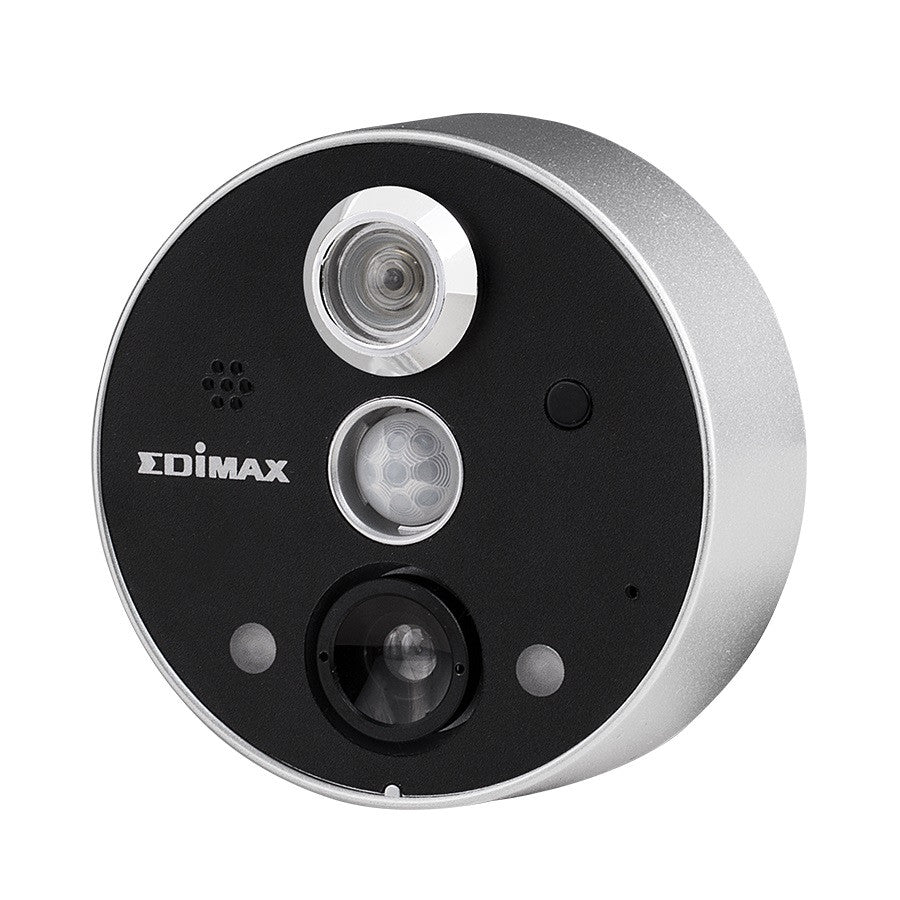

• 24/7 easy remote monitoring.
• Fits securely to door peepholes and features push notification alerts.
• PIR, sound or motion detection triggered snapshots and recording.
• \See and answer your door and speak to visitors from anywhere.

Live view and two-way audio
Built-in high-quality microphone and speaker for two-way voice communication, so you can view & talk with whoever’s there from anywhere.

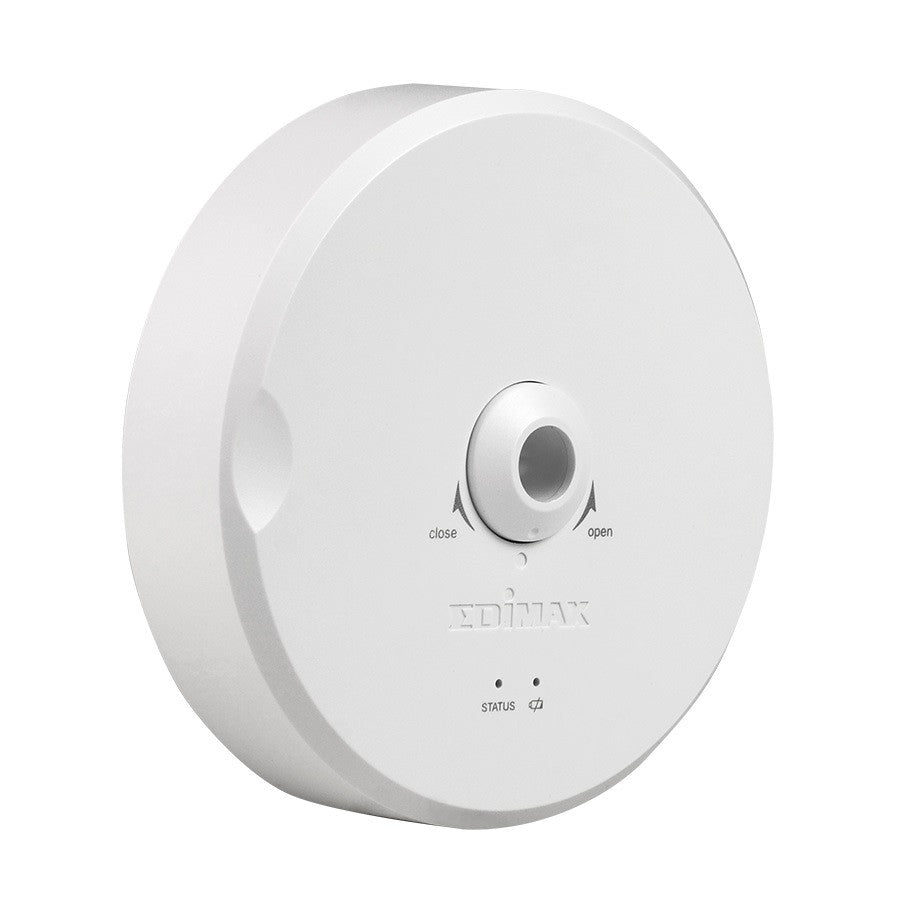

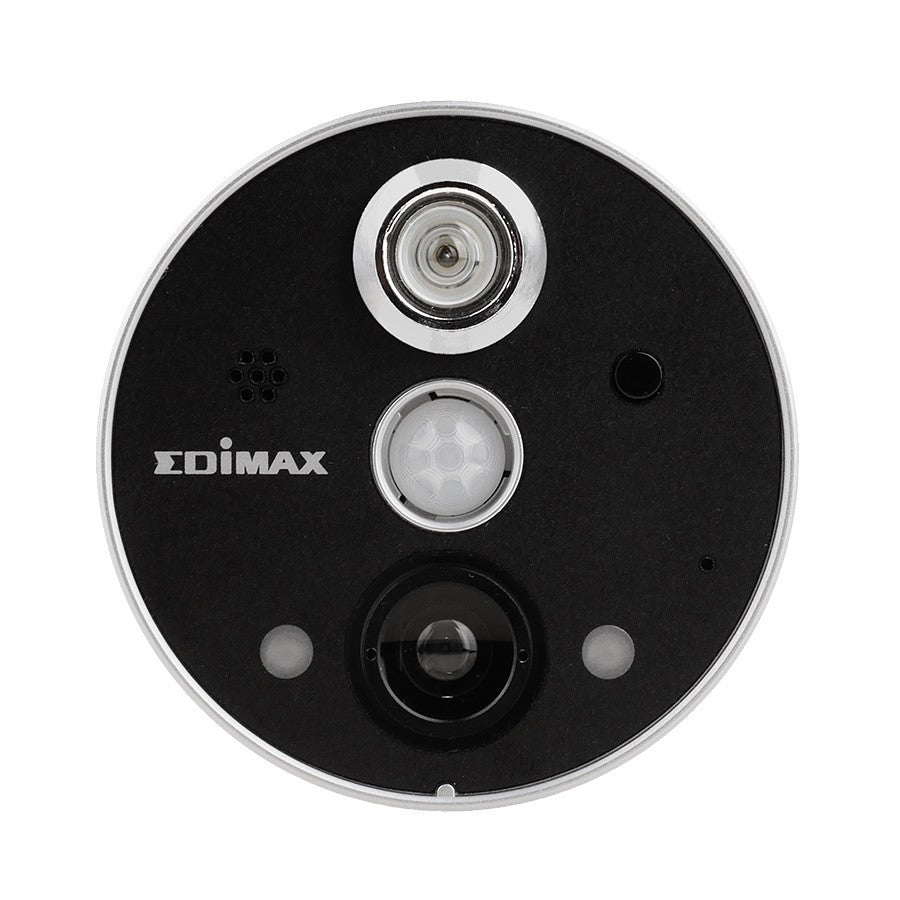

Hassle Free DIY Installation - Unique design fits any door thickness

• Digital view or peephole view at the same time.
• Installation has never been so easy. Just a few DIY steps and clicks on your smart phone.

SPECS
DIMENSIONS

• Camera: Oudoor Unit: Φ120 x 32.5mm(D), Indoor Unit: Φ75 x 25.5mm(D)
• Wireless Receiver: 105mm(H) x 30.5mm(W)x 21mm (D)

CAMERA

• Min Illumination: Daylight < 5 Lux to turn on IR light, 0 Lux when IR on
• Sensor: 1/6.5" CMOS
• Lens: 2.59mm / F2.8
• Viewing Angle: Digital 90° / Peephole 150°
• Night View: IR LED * 2, upto 3 meters (1.5M for clear image)

CONNECTIVITY

• IEEE 802.3/802.3u
• 2.4G FHSS / 1 detachable antenna

VIDEO

• MJPEG video compression
• 640 x 480 up to 15 fps / 320 x 240 up to 30 fps
• Resolution: VGA (640 x480), QVGA (320 x 240)
• Frame rate: 5, 10, 15, 20, 24 or 30 fps

AUDIO

• Built-in microphone & speaker
• Two-way audio

MANAGEMENT

• EdiLife: free mobile app for iPhone, iPad & Android
• EdiVeiw Finder: web management interface fro Windows/Mac
• Firmware upgradable

FEATURES

• PIR sensor, motion/sound detection triggered recording and alerts to MicroSD/SDHC card, email and FTP
• Supports 64G microSD/SDHC card slot for local storage
• Extend free cloud storage to personal accounts or other 3rd party storage options

POWER

• Wireless Receiver- 12VDC/1A
• Camera: AA Battery x 4

OPERATING CONDITIONS

• 0–40°C, Humidity: 20–80% RH (non-condensing)

• 24/7 easy remote monitoring.
• Fits securely to door peepholes and features push notification alerts.
• PIR, sound or motion detection triggered snapshots and recording.
• See and answer your door and speak to visitors from anywhere.

Live view and two-way audio
Built-in high-quality microphone and speaker for two-way voice communication, so you can view & talk with whoever’s there from anywhere.

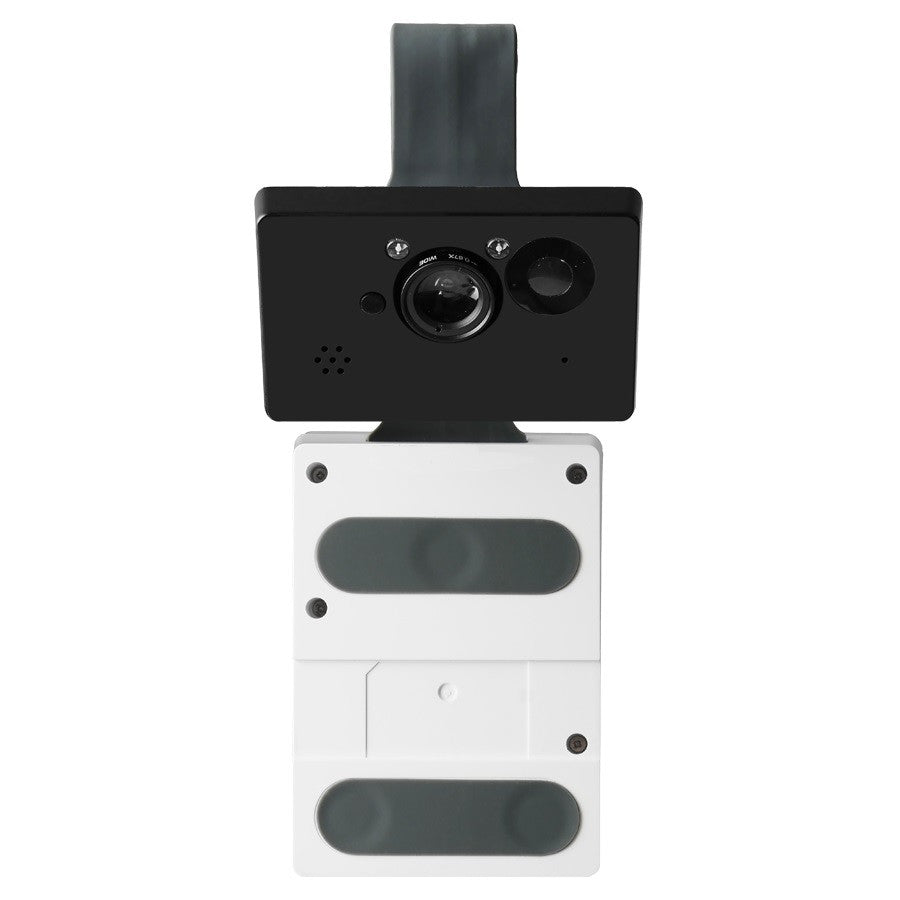

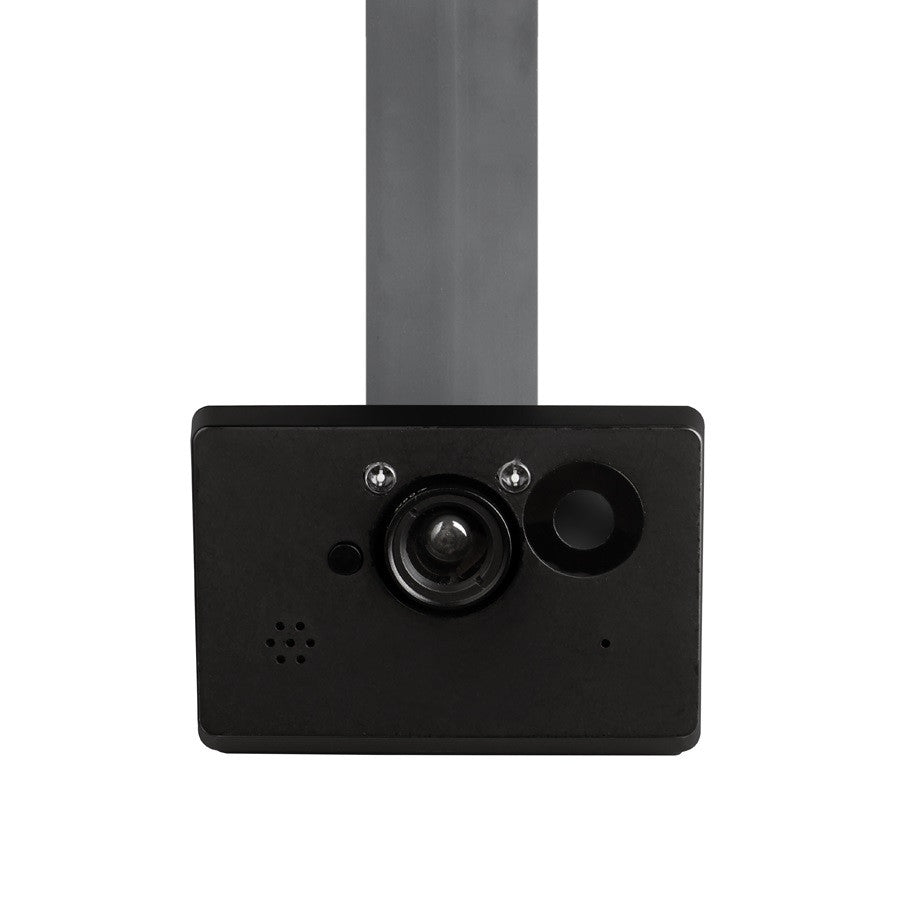

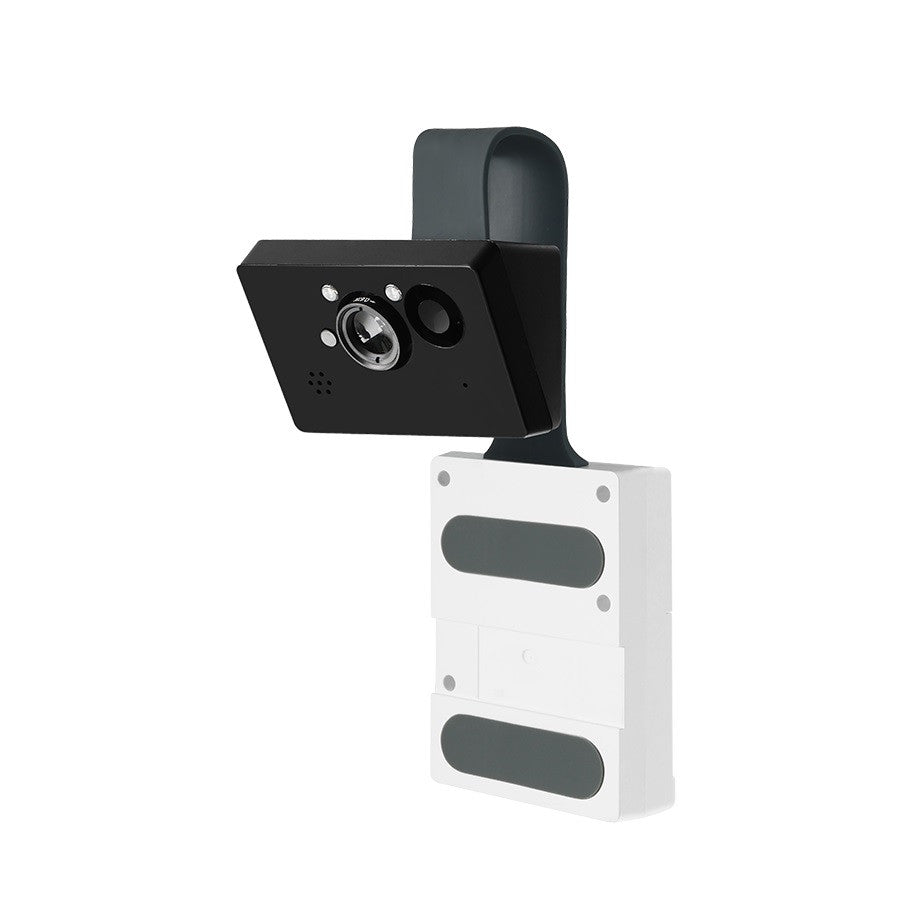

Screwless & Wireless - Installation has never been so easy

• DIY for your own surveillance without installation fees or monthly charges.
• Just hook and attached over the door with ease.
• Easy smartphone setup. Just pair the free EdiLife app with the IC-6230DC to watch a live stream in no time.

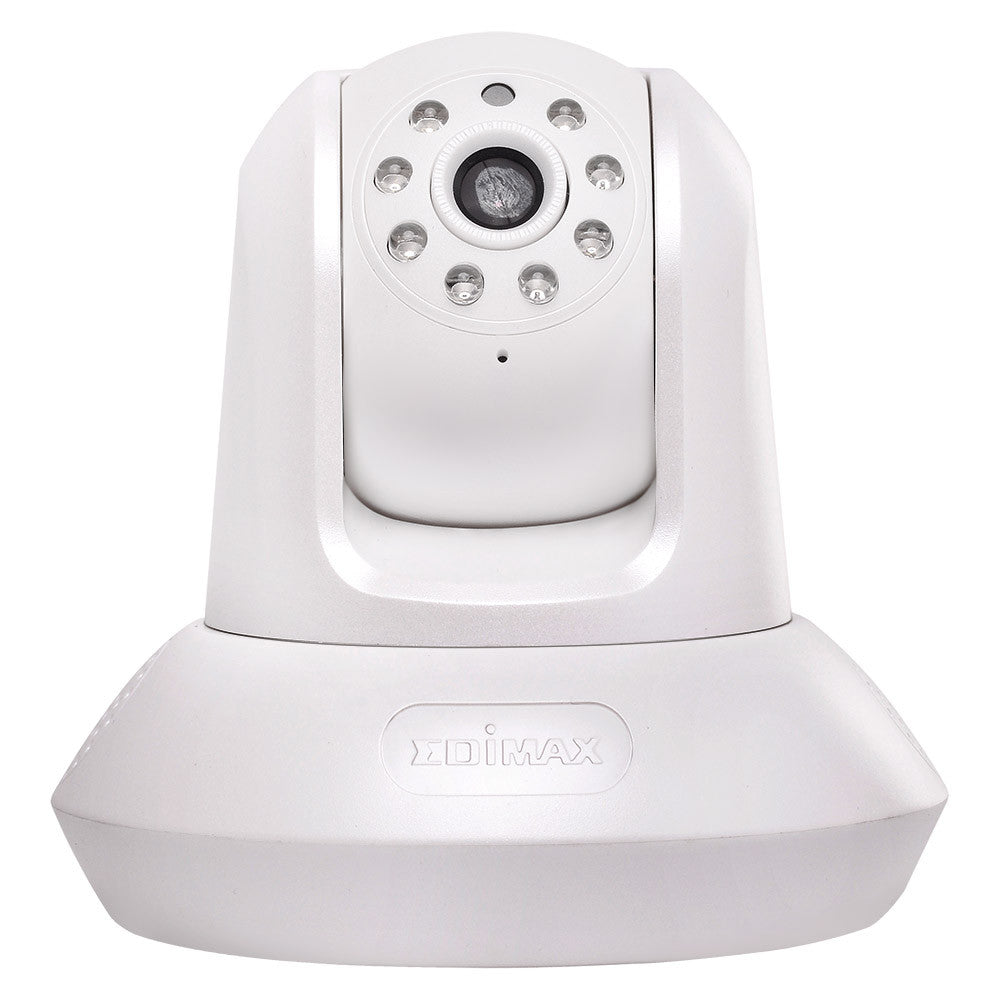

The Edimax IC-7112W 720p HD Pan and Tilt Wi-Fi network camera is a versatile monitoring device ideal for monitoring your home, shop or factory during the daytime and at night. With Edimax Plug-n-View technology, no complicated setup is required and you can easily connect the camera to the cloud and monitor remotely from a smartphone, tablet or laptop.

The IC-7112W features a motion detection system and a microSD/SDHC card slot. Motion triggered recording ensure that you capture any unusual activity and the wireless user interface allows for easy installation and monitoring. And with the EdiLife smartphone app, IC-7112W will be the part of Edimax smart home solution.

Plug-n-View for Easy 24/7 Remote Monitoring
Edimax Plug-n-View technology makes it easy for you to keep an eye on your yard, garage, shop, factory or other assets wherever you go. With Plug-n-View technology you can connect your network camera to the cloud in a few simple steps and access it remotely with a smartphone, tablet, or computer no matter where you are.

Night Vision
With a light sensor, image sensor and eight infrared LEDs the IC-7112W is well equipped to meet indoor security and surveillance needs - even in low-light and night-time conditions. And with automatic ICR (IR Cut Filter Removal), infrared light is filtered out during the day time (while allowed to pass at night) ensuring exceptional video color quality at all times.

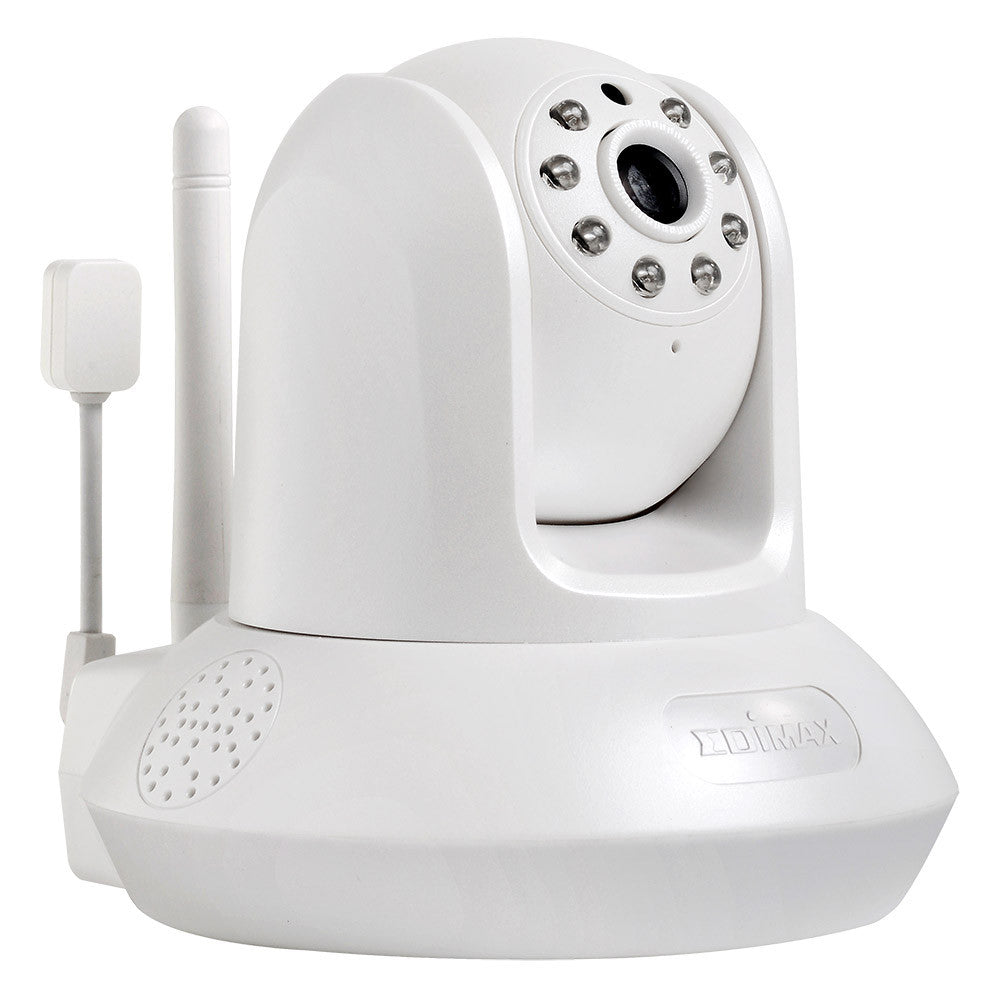

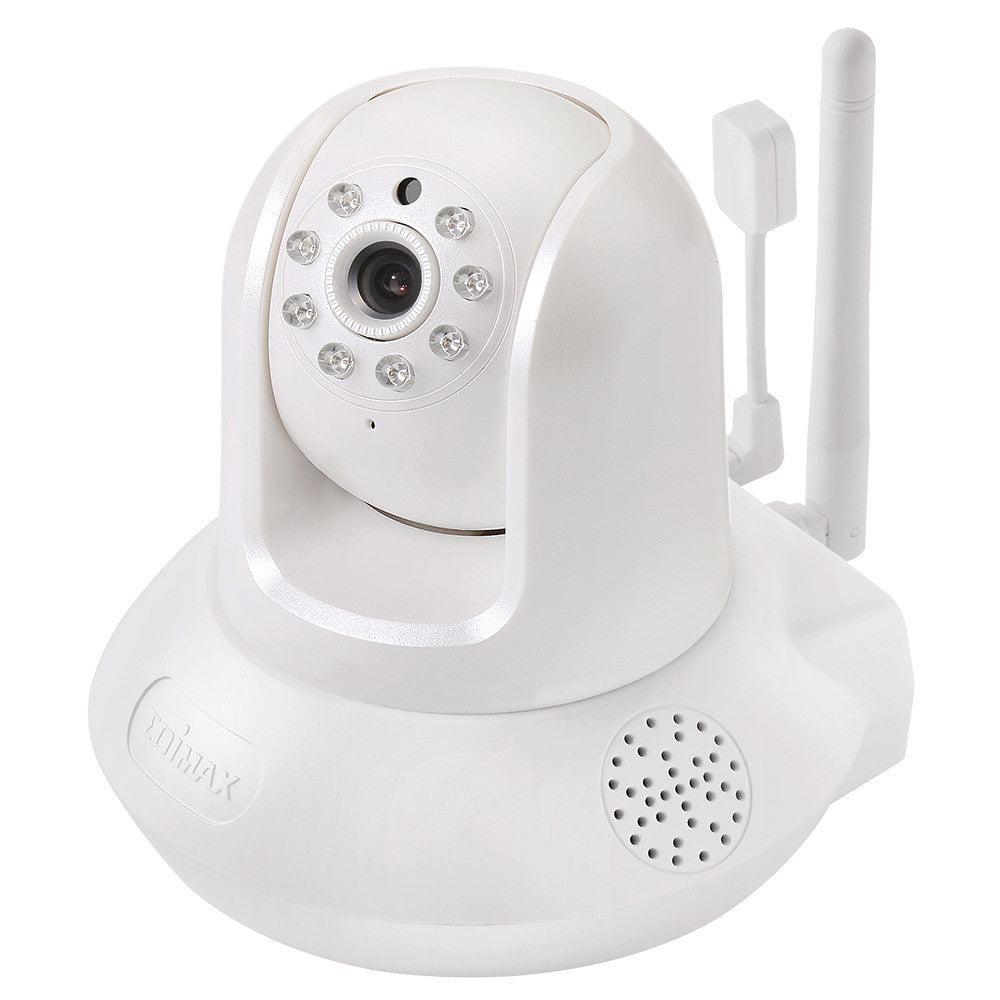

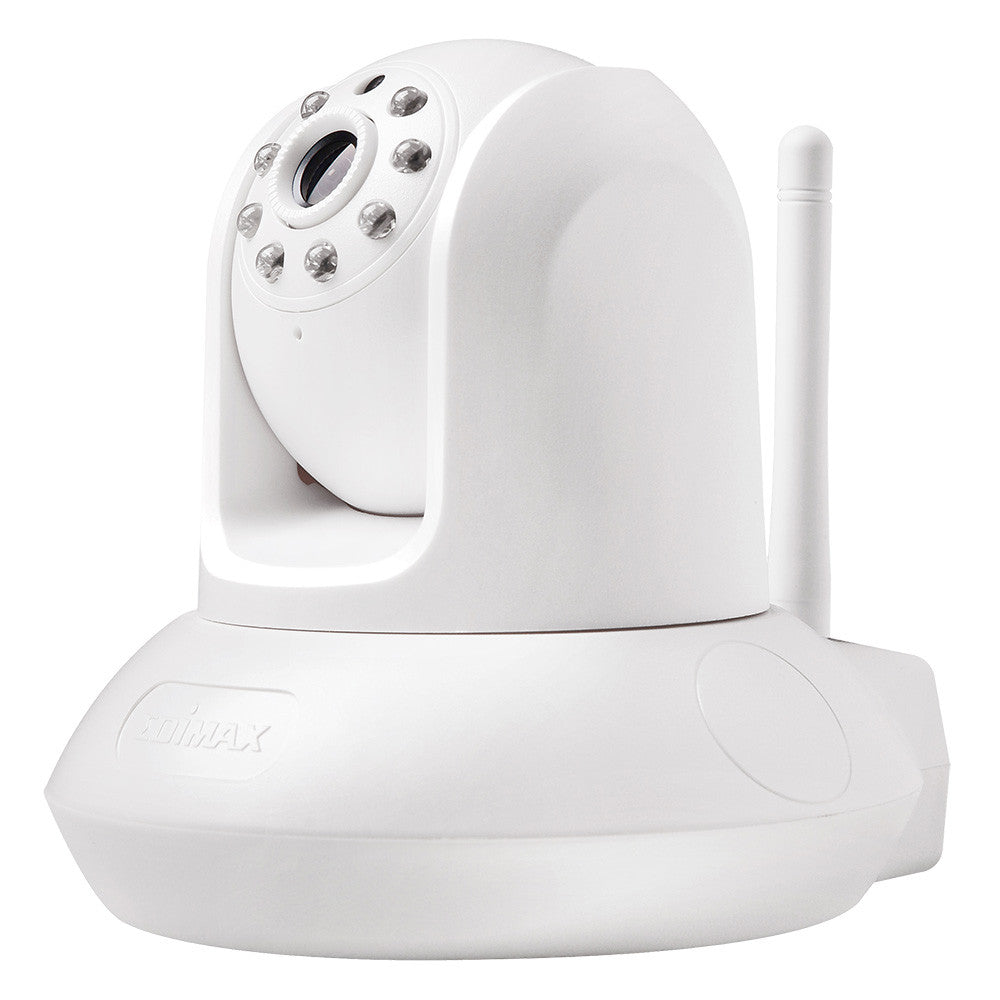

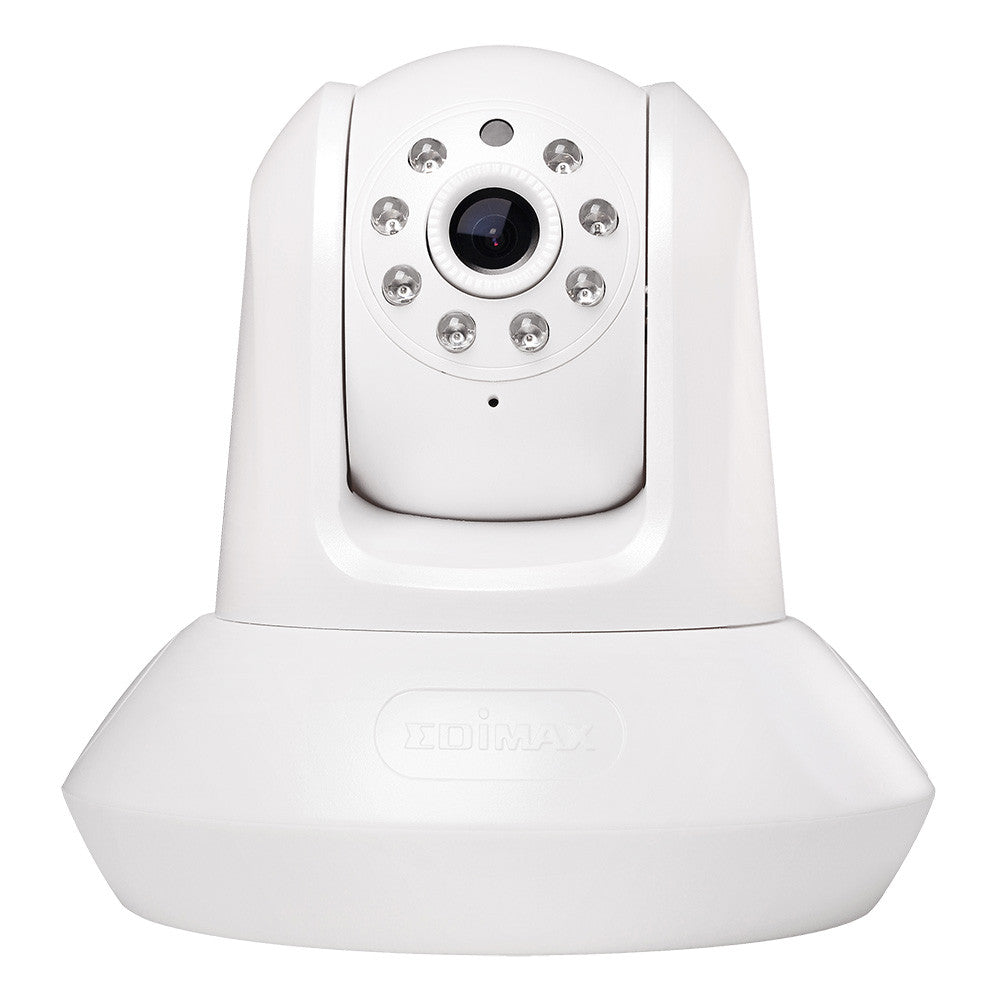

The Edimax IC-7113W 720p HD Pan and Tilt Wi-Fi network camera is a versatile monitoring device ideal for monitoring your home, shop or factory during the daytime and at night. With Edimax Plug-n-View technology, no complicated setup is required and you can easily connect the camera to the cloud and monitor remotely from a smartphone, tablet or laptop.

The IC-7113W features a motion & sound detection system, two-way audio, built-in microphone & speaker, built-in selectable lullabies, temperature & humidity sensor and a microSD/SDHC card slot. Motion and sound-triggered recording ensure that you capture any unusual activity and the wireless user interface allows for easy installation and monitoring. And with the EdiView II smartphone app, the fully-featured IC-7113W enables your smartphone or tablet to transform into a baby or mobile monitor.

​Plug-n-View for Easy 24/7 Remote Monitoring
Edimax Plug-n-View technology makes it easy for you to keep an eye on your yard, garage, shop, factory or other assets wherever you go. With Plug-n-View technology you can connect your network camera to the cloud in a few simple steps and access it remotely with a smartphone, tablet, or computer no matter where you are.

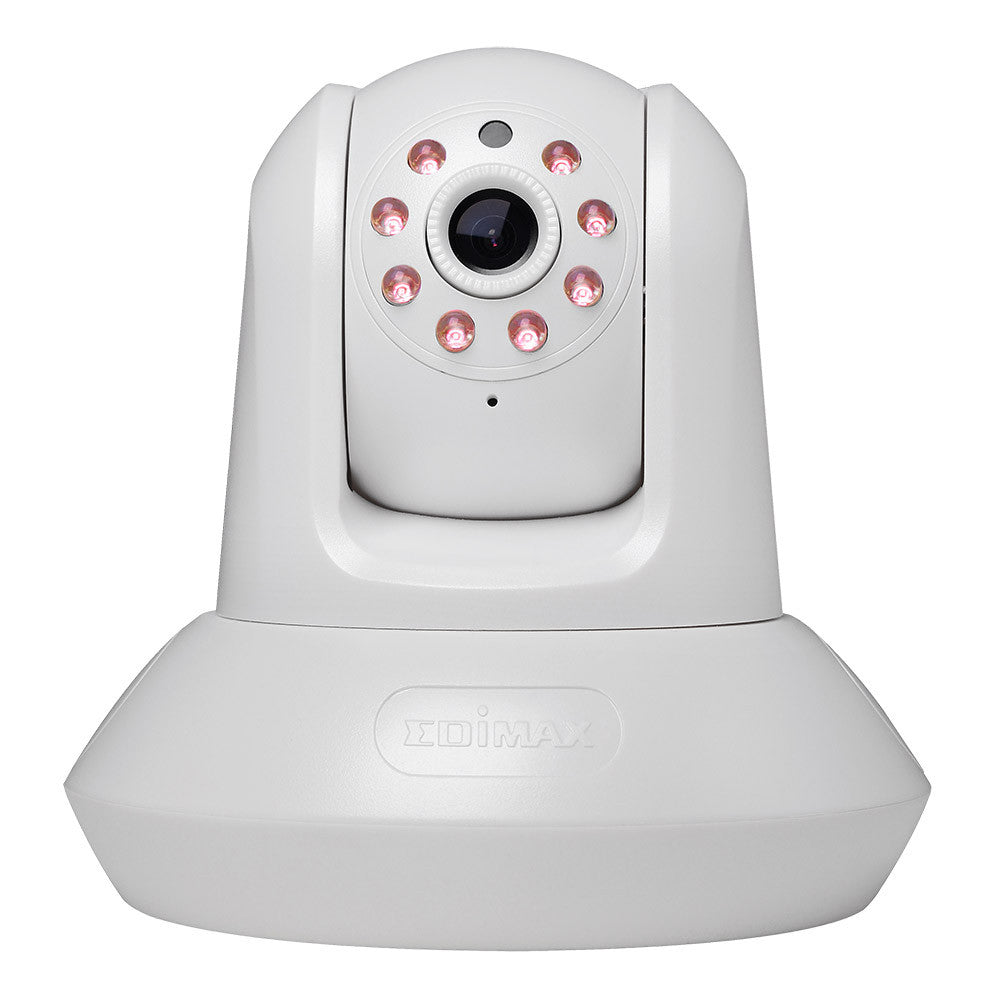

Night Vision
With a light sensor, image sensor and eight infrared LEDs the IC-7113W is well equipped to meet indoor security and surveillance needs - even in low-light and night-time conditions. And with automatic ICR (IR Cut Filter Removal), infrared light is filtered out during the day time (while allowed to pass at night) ensuring exceptional video color quality at all times.

Motorized Pan & Tilt
With the ability to pan ±355 degrees and tilt ±120 degrees, the IC-7113W gives you a wider viewing angle than the average network camera. You can control the camera’s pan and tilt remotely via a web browser and smartphone app.

Motion Detection Triggered Recording
The powerful built-in multi-area motion detection system ensures that you have evidence of any unusual activity. You can pre-define multiple areas in the monitored range for motion detection; and when motion is detected in the specified areas, the network camera will produce video footage of the event immediately – storing the data on a microSD/SDHC card or sending it automatically to email or FTP.

Sound Detection Triggered Recording
The IC-7113W also features sound detection capabilities with a built-in microphone. When sound is detected, the network camera will take video footage of the event immediately in the same manner as with motion detection, and store the files locally on a microSD/SDHC card or send to email and FTP. Integrated sound offers a furthur level of security than motion-detection and visual imaging alone, providing critical real-time or post-event information about a situation, particularly in scenarios where events occur outside the camera’s field of vision. The sounds of baby crying, dog barking, breaking windows, doors or anything else suspicious can still be registered even in situations where the event can’t be seen.

Push Notifications with Video Alerts
Push notifications are triggered by sound or motion detection, and when a detection system is triggered the IC-7113W additionally sends video alerts to email or microSD card. If the camera ever goes offline, push notifications are also sent when the camera comes back online to keep users informed about any unusual activity

Two-Way Audio
The network camera incorporates a speaker and microphone for two-way audio support, so you can remotely communicate at the camera’s location such as comforting a baby with mom’s voice or activating a deterrent alarm - a vital, cost-saving and potentially even life-saving additional security tool. The speaker volume can be controlled by the smartphone app or web-based UI.

Acoustic Echo Cancellation
The IC-7113W’s Acoustic Echo Cancellation feature ensures crisp and clear sound quality during two-way audio communications. Industry standard echo-cancelling technology usually found in telephony and VoIP systems provides a new level of sound quality for home network cameras and allows you to listen, talk and communicate remotely with the camera’s location without sound quality issues causing interruptions or difficulty. When trusted with home security or checking on your child, the IC-7113W performs at the highest level and lets your hear exactly what’s going on.

Built-In Lullaby
Play the built-in lullaby using the smartphone app or web-based UI to soothe your child to sleep. Additional lullabies, songs, bedtime stories, or even a pre-stored recording of mom’s voice on the external microSD card can also be played through the network camera speaker to the kids. The speaker volume can be controlled by the smartphone app or web-based UI.

Temperature & Humidity Detection and Alerts
Built-in temperature and humidity sensors can sense the surrounding environment and provide a live view of the environment’s status in the smartphone app or web-based UI. When the temperature or humidity is too high or too low, the network camera can also send out alerts through smartphone push notifications or emails, ensuring the most comfortable environment for you and your family.

High Quality Videos
The IC-7113W is built with a wide F2.0 lens which covers an impressive diagonal viewing angle of 78 degrees. With a megapixel CMOS sensor, the network camera is able to capture 720p (1280 x 720) videos at 30 frames per second.

MicroSD/SDHC Card Slot for Local Storage
A built-in microSD/SDHC card slot supports cards up to 32GB for local storage and backup.

• Easy remote monitoring via iPhone, iPad, Android, PC & Mac
• High-speed H.264 & MJPEG video compression
• Push notifications with video alerts when motion & sound is detected, for better awareness than snapshots alone
• Push notifications for temperature & humidity alerts when above or below preset levels
• Save event videos to microSD card, FTP or email
• Pre & post-recording on motion detection
• Viewer software to access 16 network cameras simultaneously
• Manual, scheduled or cycled recording

SPECS
FUNCTIONS

•Easy remote monitoring via iPhone, iPad, Android, PC & Mac
•Pan ±355 degrees and tilt ±120 degrees viewing angle
•Supports dynamic DNS service
•IR filter embedded
•Built-in microphone and speaker for two-way audio
•Motion/sound detection recording and alerts to microSD/SDHC card, email and FTP
•Built-in lullaby
•MicroSD/SDHC card slot for local storage

VIDEO

•High-speed H.264 & MJPEG video compression
•1280 x 720 up to 30 fps
•640 x 360 up to 30 fps
•320 x 176 up to 30 fp

STANDARDS

•Fast Ethernet IEEE 802.3/802.3u
•Wireless IEEE 802.11b/g/n

MEMORY

•8MB flash
•128MB SDRAM

DIMENSIONS

•128mm(L) x 112mm(W) x 116mm(H)

MANAGEMENT

•EdiView Finder (Windows/Mac)
•16-channel viewer
•Web management interface
•Firmware upgradable
•iPhone & iPad viewer app
•Android viewer app

VIDEO SETTINGS

•Resolution: HD (1280 x 720), VGA (640 x 360), QVGA (320 x 176),
•Frame rate: 5, 10, 15, 20 or 30 fps

RF OUTPUT POWER

• 11b: 16~18dBm
  •11g: 14~16dBm
  •11n: 11~13dBm

OPERATING CONDITIONS

•0-40° Celsius
•10-90% (non-condensing)

INTERFACE

•Ethernet (RJ-45) port
•Power jack
•Reset/WPS button
•Antenna x 2 (1 external & 1 internal)
•MicroSD/SDHC card slot
•Light sensor
•Microphone
•Speaker
•Temperature and humidity sensor
•IR LEDs: 8
•LED indicators

SUPPORTED PROTOCOLS

•IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP, ARP, DNS, PPPoE

IR LEDs

•IR LEDs for night illumination up to 15 feet

POWER

•12V DC x 1A

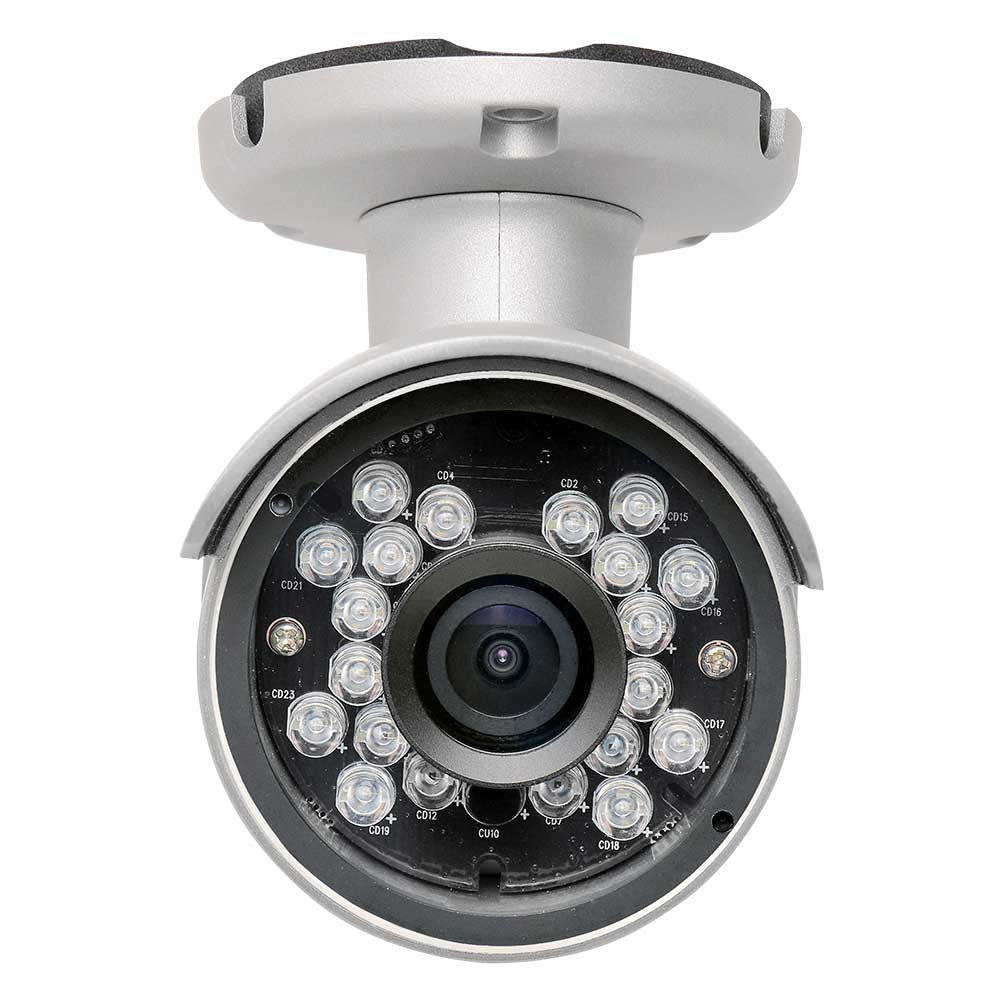

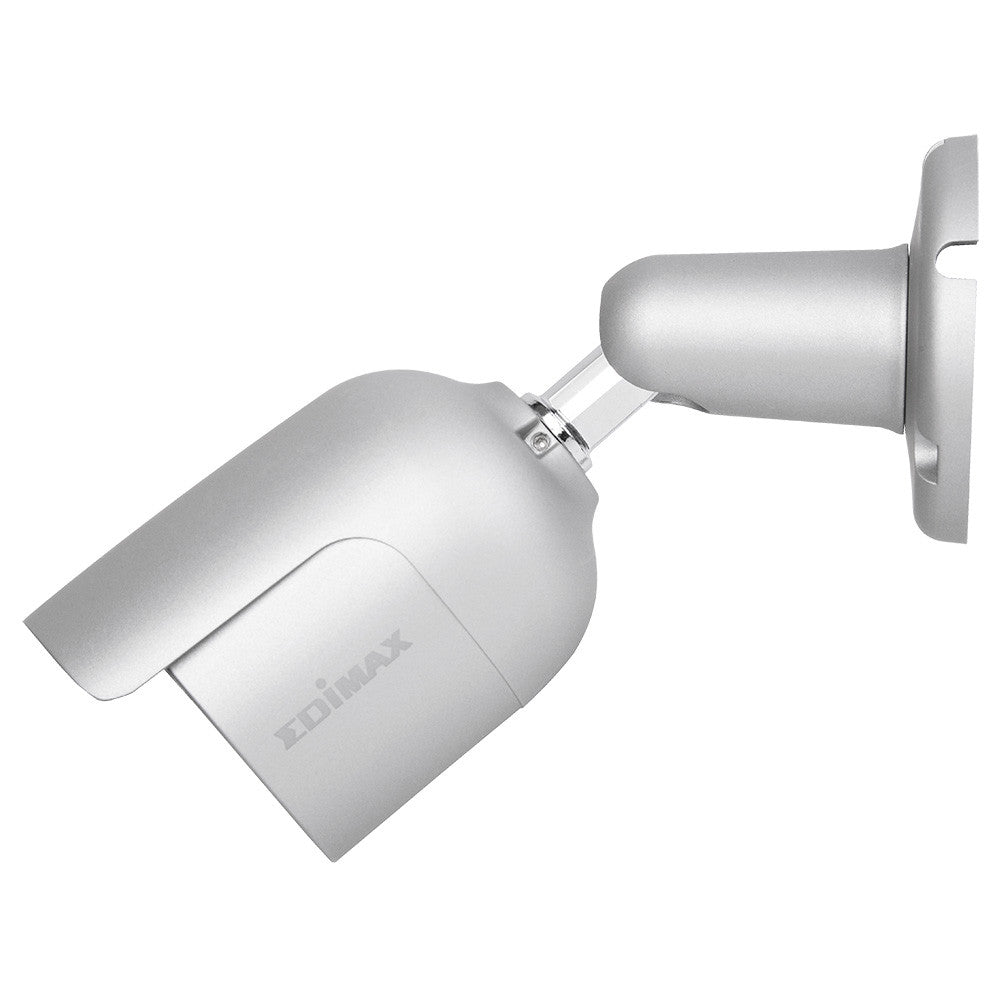

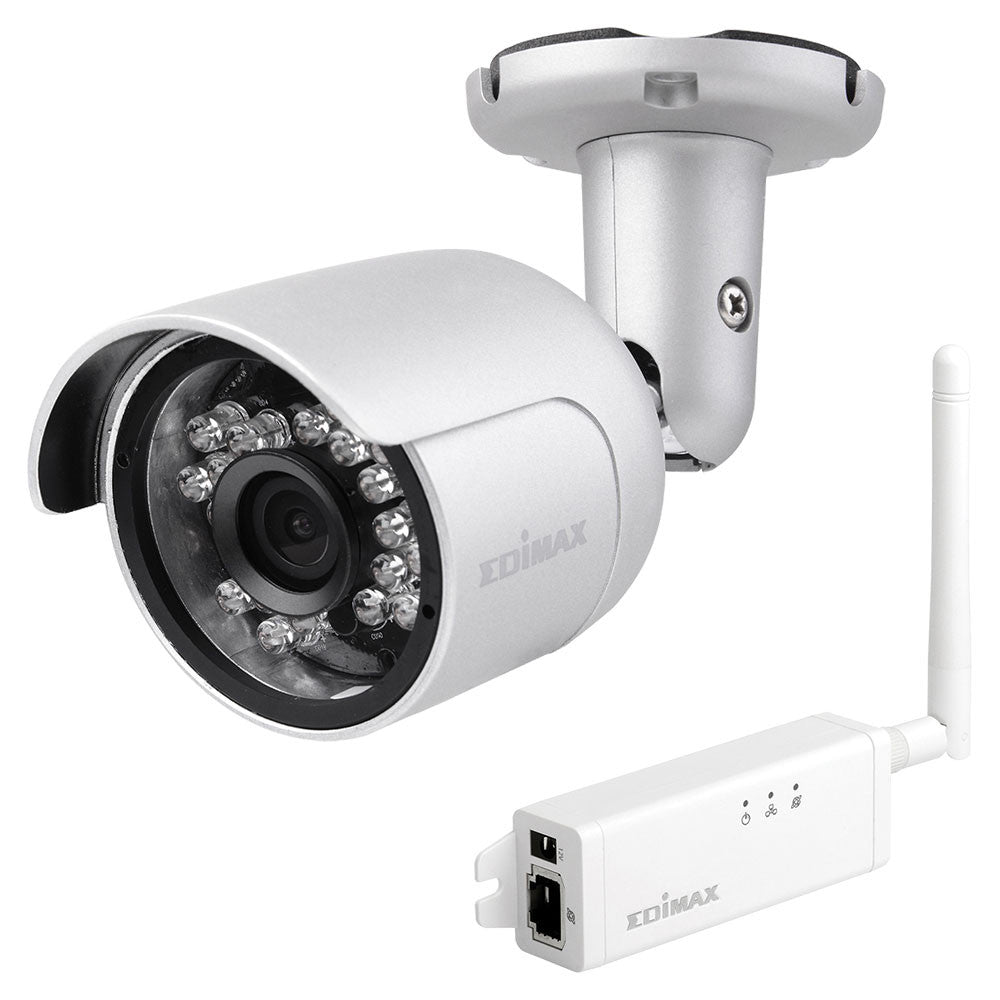

The Edimax IC-9110W is an innovative outdoor network camera with a unique two-piece design featuring an outdoor network camera and an indoor Wi-Fi unit, providing freedom to place the camera anywhere you need. It’s a versatile monitoring device ideal for monitoring your home, shop or factory during the daytime or at night. With Edimax Plug-n-View technology, no complicated setup is required and you can easily connect the camera to the cloud and monitor remotely from a smartphone, tablet or laptop.

The IC-9110W additionally features a motion detection system and a built-in a microSD/SDHC card slot. Motion detection can be configured according to user-defined areas. Motion-triggered recording ensures that you capture any illicit or suspicious activity and the wireless user interface allows for easy installation and monitoring.

Innovative Outdoor Network Camera with Indoor Wi-Fi Unit
The smart and secure design includes an indoor Wi-Fi unit to connect to your router, and an outdoor camera which connects to the indoor Wi-Fi unit with just a single cable. This allows for greater freedom when placing your camera outside. And it’s IP-66 rated for water & dust resistance with an anti-cut bracket. The indoor main unit also features a microSD card slot for storage.

Plug-n-View for 24/7 Easy Remote Monitoring
Edimax Plug-n-View technology makes it easy for you to keep an eye on your yard, garage, shop, factory or other assets wherever you go. With Plug-n-View technology, you can connect your network camera to the cloud in a few simple steps and access it remotely with a smartphone, tablet, or computer no matter where you are.

Night Vision
With a light sensor, image sensor and 20 infrared LEDs, the IC-9110W is well equipped to meet outdoor security and surveillance needs - even in low-light and night-time conditions. And with automatic ICR (IR Cut Filter Removal), infrared light is filtered out during the day time (while allowed to pass at night) ensuring exceptional video color quality at all times.

Motion Detection Triggered Recording
The powerful built-in motion detection system with pre-defined detection regions, offers peace of mind that you will capture any illicit activity. The network camera will produce video footage of the event immediately – storing the data on a microSD/SDHC card or sending it automatically via email or ftp.
