Description:
- 5 x 10/100Mbps (4 x PoE) ports
- IEEE 802.3at and IEEE 802.3af PoE
- PoE power budget 58W
- Up to 30 watts per PoE ports
- 4 kV surge protection for PoE ports
- IEEE 802.3x flow control support
- Plug-and-play installation
- 1 Gbps switching fabric
- 448 Kbits RAM Data Buffer
- 1K MAC address entries
- Sturdy metal enclosure
- 132 mm x 93.3mm x 27.6mm, 0.299kg
Hikvision DS-7204HUHI-K1 4CH Turbo HD H.256+ 4K Digital Network Video Recorder
From $438.00
Unit price perHikvision DS-7204HUHI-K1 4CH Turbo HD H.256+ 4K Digital Network Video Recorder
From $438.00
Unit price perDescription:
• H.265+/H.265/H.264+/H.264 encoding
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• 5MP@12fps/4MP@15fps/3MP@18fps/1080p@25fps
• Connectable H.265+/H.265/H.264+/H.264 IP cam
• Up to 5 MP resolution for recording
• HDMI, VGA output
• 1 SATA interfaces, Up to 8TB HDD
• Long distance transmission over UTP/coaxial
• 4-ch synchronous playback
• 315 x 242 x 45 mm, 1.16 kg
• with options of Surveillance HDD from 1TB to 8TB
Hikvision DS-7208HUHI-K2 8CH Turbo HD H.256+ Digital Network Video Recorder
From $502.00
Unit price perHikvision DS-7208HUHI-K2 8CH Turbo HD H.256+ Digital Network Video Recorder
From $502.00
Unit price perDescription:
* H.265+/H.265/H.264+/H.264 encoding
* Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
* 5MP@12fps/4MP@15fps/3MP@18fps/1080p@25fps
* Connectable H.265+/H.265/H.264+/H.264 IP cam
* Up to 5 MP resolution for recording
* 4K HDMI, VGA output
* 2 SATA interfaces, Up to 8TB HDD
* Long distance transmission over UTP/coaxial
* 8-ch synchronous playback
* 315 x 242 x 45 mm, 1.16 kg
* Various Surveillance recording capacity HDD
Hikvision DS-7216HUHI-K2 16CH Turbo HD H.256+ Digital Network Video Recorder
From $925.00
Unit price perHikvision DS-7216HUHI-K2 16CH Turbo HD H.256+ Digital Network Video Recorder
From $925.00
Unit price perDescription:
* H.265+/H.265/H.264+/H.264 encoding
* Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
* 5MP@12fps/4MP@15fps/3MP@18fps/1080p@25fps
* Connectable H.265+/H.265/H.264+/H.264 IP cam
* Up to 5 MP resolution for recording
* 4K HDMI, VGA output
* 2 SATA interfaces, Up to 16TB HDD
* Long distance transmission over UTP/coaxial
* 16-ch synchronous playback
* 380 x 320 x 48 mm, 1.78 kg
* Various Surveillance recording capacity HDD

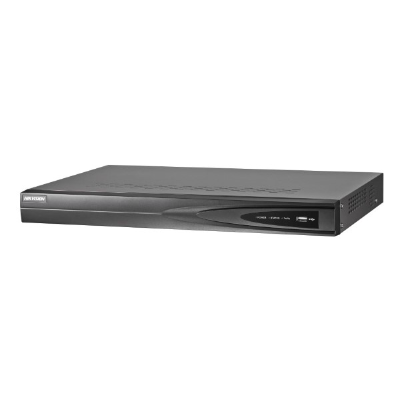

Description:
* Third-party network cameras supported
* Up to 8 Megapixels resolution recording
* Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
* 4-ch network cameras can be connected with 40M incoming bandwidth
* Support dual-os to ensure high reliablility of system running
* 1 SATA HDD Interface
* Plug & Play with up to 4 independent PoE network interfaces
* Support various VCA detection alarm and VCA search
* Support H.265/H.264/MPEG4 video formats
* 315 × 240 × 48 mm
* Various Optional recording capacity HD storage
Description:
* Third-party network cameras supported
* Up to 12 Megapixels resolution recording
* Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
* 8-ch network cameras can be connected with 80M incoming bandwidth
* 2 SATA Interface
* Support dual-os to ensure high reliablility of system running
* Plug & Play with up to 4 independent PoE network interfaces
* Support various VCA detection alarm and VCA search
* Support H.265/H.264/MPEG4 video formats
* 380 × 290 × 45 mm
* Various Surveillance recording capacity HDD

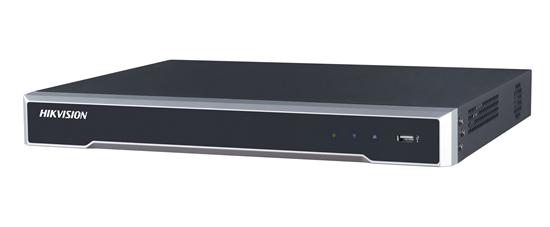

Description:
* Third-party network cameras supported
* Up to 12 Megapixels resolution recording
* Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
* 16-ch network cameras can be connected with 160M incoming bandwidth
* 2 SATA Interface
* Support dual-os to ensure high reliablility of system running
* Plug & Play with up to 4 independent PoE network interfaces
* Support various VCA detection alarm and VCA search
* Support H.265/H.264/MPEG4 video formats
* 380 × 290 × 45 mm
* Various Surveillance recording capacity HDD
Description:
* Third-party network cameras supported
* Up to 12 Megapixels resolution recording
* Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
* 32-ch network cameras can be connected with 256M incoming bandwidth
* 4 SATA Interface
* Support dual-os to ensure high reliablility of system running
* Plug & Play with up to 16 independent PoE network interfaces
* Support various VCA detection alarm and VCA search
* Support H.265+/H.264+/h.264/MPEG4 video decoding formats
* 1.5U, 445 x 400 x 71mm, ≤5 Kg
* Various Surveillance recording capacity HDD

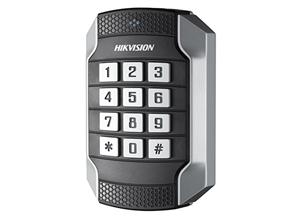

Description:

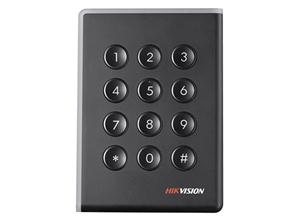

* Reads Mifare IC-S50 card, with keypad, Supports RS485 and Wiegand(W26/W34) protocol;
* Power: 12VDC, 500ma, 6W
* Tamper-proof alarm, Dust-proof, IP 65, Vandal Proof, IK10, Applied for 86 & 120 Gang Box

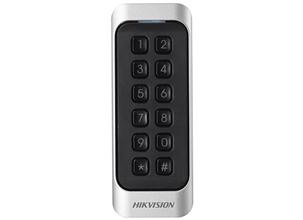

Description:
* Reads Mifare IC-S50 card, with keypad, Supports RS485 and Wiegand (W26/W34) protocol;
* Power: 12VDC, 200ma, 2W
* Tamper-proof alarm, Dust-proof, IP 64, Applied for 86 & 120 Gang Box.
Description:
* Reads Mifare IC-S50 card, with keypad, Supports RS485 and Wiegand (W26/W34) protocol;
* Tamper-proof alarm, Dust-proof, IP 64, Applied for 86 & 120 Gang Box.

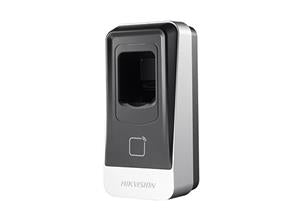

Description:
* Reads Mifare IC-S50 card, Fingerpint(capacity: 5000), Supports RS485(HIK private),IP65
* Wall mounting with screws. The Gang Box is not supported.

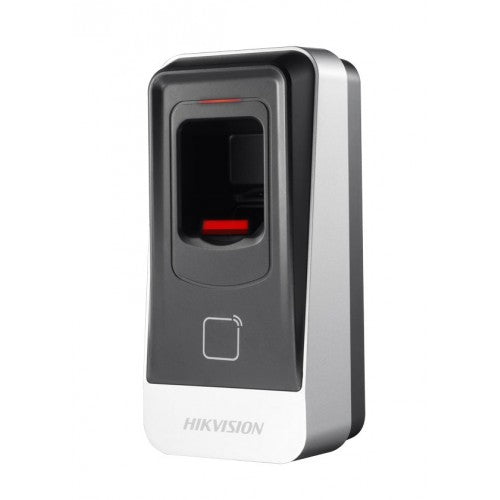

Hikvision DS-K1201MF Biometric Fingerprint Reader with Inbuilt Card Reader.
The Hikvision DS-K1201MF Fingerprint and card reader, designed with a 32 bit high-speed processor, contains the optical fingerprint recognition module. It communicates with Hikvision access controller via the RS-485 protocol. And a built-in tamper-proof module helps to protect the card reader from malicious damage. The protective level is IP65, which is suited for outdoor installation.
- A group of encrypted code data for the security of fingerprint storage. (Stores an encrypted template, not a fingerprint Image)
- Supports RS485 communication with 19200bps-N-8-1 transmission rate.
- Supports Mifare card reading (DS-K1201MF)
- Card reading range ≤50mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time: 1:1≤1s, 1:1000≤1s; FRR≤0.01%, FAR≤0.001%
- Communication circuit is designed with optical coupling isolation and noise suppression function
- Build-in buzzer for status indication
| System Parameters | ||
|---|---|---|
| Comparison Mode: | 1:1/1:N | |
| Comparison Time: | 1:1≤1s; 1:3000≤1.5s | |
| Fingerprint Module: | Optical, Red Backlight | |
| FRR (False Rejection Rate): | ≤0.01% | |
| Card Reading Distance: | Mifare Card:≤50 mm | |
| FAR (False Accept Rate): | ≤0.001% | |
| Card Reading Mode: | Mifare Reading Module | |
| Fingerprint Capacity: | 5,000 | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | RS-485 | |
| Transmission Rate: | 19200bps-N-8-1 | |
|
General |
||
|---|---|---|
| Mounting Method: | Surface Mounting | |
| Alarm: | Tamper Alarm × 1 | |
| Power Supply: | 12VDC | |
| Prompt: | Buzzer | |
| LED Indicator: | Power Indicator; Status LED Indicator | |
| Protection Level: | IP 65 | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |
| Dimensions (L×W×H): | 62mm × 132mm × 44mm (2.44" × 5.20" × 1.73") | |
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Tamper-proof function.

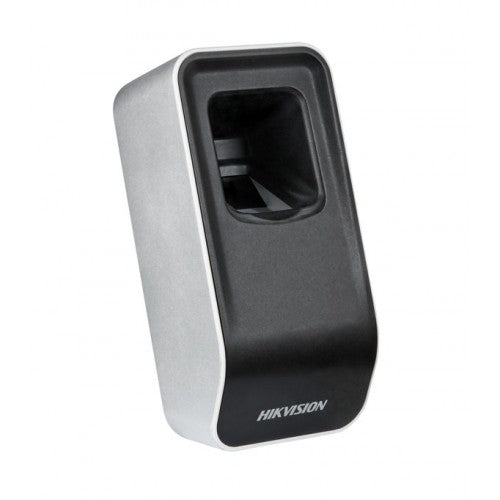

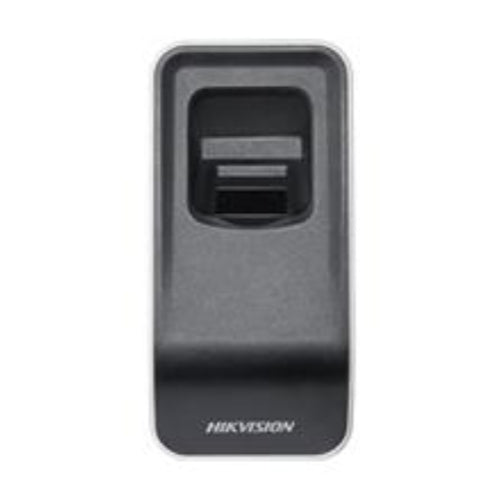

Hikvision Fingerprint Recorder supports living fingerprint registration and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.
| System Parameters | ||
|---|---|---|
| Operation System: | Windows XP, Windows7, and Windows 10 | |
| Fingerprint Template Size: | 256 × 288 (pixel) | |
| Fingerprint Module: | Optical, Red Backlight | |
| Resolution: | 508 dpi | |
| Device Interfaces | ||
|---|---|---|
| USB Interface: | USB2.0 | |
|
General |
||
|---|---|---|
| CPU: | 32bit MCU | |
| Working Voltage: | 5 VDC, 200mA | |
| Dimensions (L×W×H): | 100mm × 48mm × 35mm (3.9” × 1.9” × 1.4”) | |
| Working Humidity: | 20% to 80% (Non-Condensing) | |
| Working Temperature : | -30°C to +70°C (-22°F to 158°F) | |

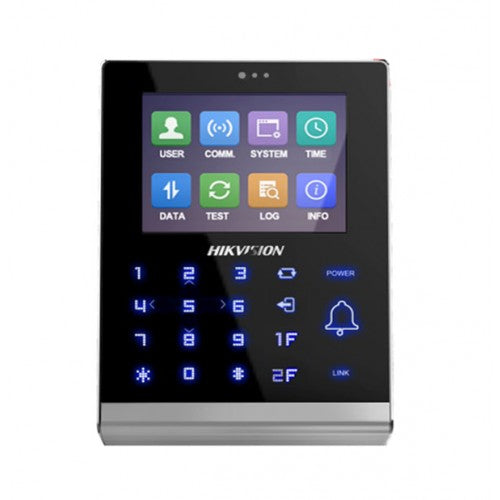

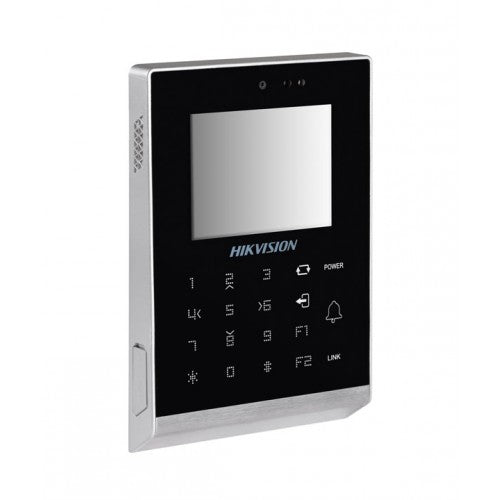

DS-K1T105 is a series of standalone access control terminal, designed with a 2.8-inch LCD display screen. It supports two network communication methods (TCP/IP, and Wi-Fi), and supports offline operation. It also includes 2MP HD camera for logging images of all access attempts.
- Supports Local activation
- Supports communicating with 4 control clients simultaneously; Supports uploading real-time events
- Gets offline events: Avoids events losing
- Touch mode and blue light display technique for keypad
- Stand-alone settings for the terminal
- 2.8-inch LCD display screen to display the time, the date, etc
- Max. 100,000 valid card No., and Max. 300,000 access control events storage
- Communication via wired network (TCP/TP) or Wi-Fi
- Face detection and picture capturing function implemented by built-in 2MP camera
- Supports multiple door opening modes (card, card + password, exit button, etc.)
- Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
- Supports Mifare card reading
- 2.8-inch LCD display screen to display the time, the date, etc
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
Can be programmed via keypad on the terminal or programmed and managed by iVMS4200 Software.
| System Parameters | ||
|---|---|---|
| Card Reading Frequency: | Mifare Card (DS-K1T105M/M-C): 13.56MHz | |
| Valid Card/ Swiping Record: | 100,000 Cards and 300,000 Swiping Card Records | |
| Operation System: | Linux | |
| Storage: | 256M Storage | |
| Card Reading Mode: |
Supports Mifare card reading, including card No. reading & writing function (DS-K1T105M/M-C) |
|
| Built-in Micro SD Card: | Max.32G | |
| Camera: | 2MP | |
| Processor: | ≥1GHz, 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Accessible Card Reader: | Card Reader | |
| Communication Mode: | TCP/IP, Wi-Fi, RS-485, and Wigand 26/34 (under the card reader mode only) | |
| Output Interface: | Lock Relay × 1, Alarm Relay × 1 | |
| Transmission Rate: | TCP/IP, WIFI: 10/100Mbps Self-adaptive, RS-485: 19200 bps-N-8-1 |
|
| Input Interface: | Tamper Alarm × 1, Exit Button × 1, Door Sensor × 1, Alarm Input × 2 | |
|
General |
||
|---|---|---|
| LCD Screen: | 320×240 LCD-TFT Display Screen | |
| Working Current: | 500mA ( without Locks) | |
| Key Board: | Keyboard (Back light) | |
| Power Supply: | 12VDC | |
| Audio: | Loudspeaker | |
| LED Indicator: | Power/Status | |
| Certification: | CE, FCC | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 122mm × 82mm × 23mm (4.8'' × 3.2'' × 0.9") | |
| Weight: | 280g (9.88lb) | |
DS-K1T500S is a video access control terminal, which is equipped with HD camera (2 MP/1080p). It supports multiple advanced technologies including face detection, smart card recognition, two-way intercom audio, remote live view, picture capture, video recording through NVR, and so on.
Access Can be granted via either Card or QR code.
- Brushed metal surface
- Communication via TCP/IP and Wi-Fi
- Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, Included)
- Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card (SD Card Sold Seperatly)
- QR code authentication; Generates QR code via iVMS-4200 client software or other systems
- Two way-audio
- Open door remotely via iVMS-4200 client software
- Max. 50,000 cards No., Max. 200,000 access control event records
- Supports Mifare card reading
- Multiple authentication modes: QR code or card
- Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
| System Parameters | ||
|---|---|---|
| Micro SD Card: | Max. 128G | |
| Storage: | 50,000 cards 200,000 events |
|
| Card Reading Distance: | ≥2cm | |
| Card Reading Mode: | Mifare Card | |
| Video Storage: | Record and Save Video through NVR or Micro SD Card | |
| Camera: | 2MP/1080P, IR Light | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | Terminal Mode: Uplink(TCP/IP), Downlink(RS485) Card Reader Mode: Uplink (Wiegand 26/34, RS-485) |
|
| Output Interface: | Lock × 1, Alarm Output (Doorbell) × 1 | |
| Input Interface: | Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1 | |
|
General |
||
|---|---|---|
| Working Current: | 600mA (max) | |
| Power Supply: | DC 12V/1A | |
| Audio: | Audio Input: Build-in Micro Phone( Sensitivity: -25±3DB) Audio Output: Build-in Loudspeaker(1W) |
|
| Dimensions (L×W×H): | 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61") | |
| Protection Level: | IP 65 | |
| Installation: | Wall Mounting | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |
HIKVISION DS-K1T500SFN Video Access Control Terminal with Fingerprint Recognition Module
$499.00
Unit price perHIKVISION DS-K1T500SFN Video Access Control Terminal with Fingerprint Recognition Module
$499.00
Unit price per
Video Access Control Terminal with Fingerprint Module"
DS-K1T500SFN is a video access control terminal, which is equipped with HD camera (2 MP/1080p) and fingerprint recognition module (supporting 1:1 mode and 1:N mode). It supports multiple advanced technologies including face detection, smart card recognition, two-way intercom audio, remote live view, picture capture, video recording through NVR, and so on.
Access Can be granted via either Card, Fingerprint or QR code.
* Communication via TCP/IP and Wi-Fi
* Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, Included)
* Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card (SD Card Sold Seperatly)
* QR code authentication; Generates QR code via iVMS-4200 client software or other systems
* Two way-audio
* Open door remotely via iVMS-4200 client software
* Max. 50,000 cards No., Max. 200,000 access control event records
* Supports Mifare card reading
* Multiple authentication modes: QR code, card, fingerprint, card + fingerprint.
* Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
| System Parameters | ||
|---|---|---|
| Fingerprint Recognition Duration: | ≤ 1.5s | |
| Micro SD Card: | Max. 128G | |
| Storage: | 50,000 cards 200,000 events |
|
| FRR (False Rejection Rate): | ≤0.01% | |
| Card Reading Distance: | ≥2cm | |
| FAR (False Accept Rate): | ≤0.001% | |
| Card Reading Mode: | Mifare Card | |
| Video Storage: | Record and Save Video through NVR | |
| Camera: | 2MP/1080P, IR Light | |
| Fingerprint Recognizer: | Optical Fingerprint Recognizer Module | |
| Fingerprint Capacity: | 5,000 | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | Terminal Mode: Uplink(TCP/IP), Downlink(RS485) Card Reader Mode: Uplink (Wiegand 26/34, RS-485) |
|
| Output Interface: | Lock × 1, Alarm Output (Doorbell) × 1 | |
| Input Interface: | Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1 | |
|
General |
||
|---|---|---|
| Working Current: | 600mA (max) | |
| Power Supply: | DC 12V/1A | |
| Audio: | Audio Input: Build-in Micro Phone( Sensitivity: -25±3DB) Audio Output: Build-in Loudspeaker(1W) |
|
| Dimensions (L×W×H): | 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61") | |
| Protection Level: | IP 65 | |
| Installation: | Wall Mounting | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |
Description:
* Video Access Control Terminal
* Built-in Mifare card reading module
* 2 Mega pixels camera;
* Storage with 50,000 cards, 3,000 fingerprints and 200,000 access control events;
* Supports two-way audio intercom, remote live view, video recording through NVR, Fingerprint Module;
* Uplink Communication: TCP/IP, RS-485, WIFI
* Downlink Communication: RS-485, Wiegand(W26/W34)
* Supports SD card
* IP65, DC12V/1A, 78(W)x 218(H)x 41(D)mm
