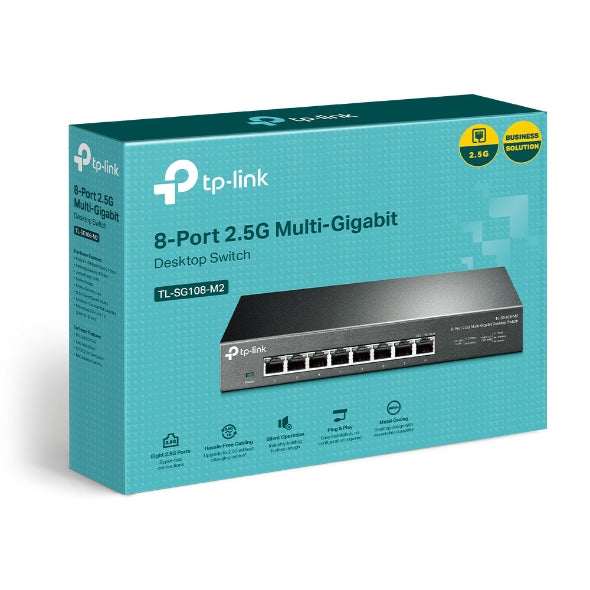

TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch/Up To 40G Switching Capacity/Connects 2.5G NAS/Server/2.5G WiFi 6 AP/4K Video/Wall Mountable/5YW

TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch • Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices; and provide up to 40 Gbps of switching capacity. • Super-Fast Connections. Provides super-fast connections to 2.5G NAS; 2.5G Server; gaming computer; 2.5G WiFi 6 AP; 4K video; and more. • Ideal for Various Scenarios. Built for LAN parties; home entertainment; small and home offices; and instant transfer for workstations; • Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring; reducing wiring costs and hassle.** • Silent Operation. Industry-leading fanless design ensures silent operation; ideal for any home or business. • Plug and Play. Allows for easy deployment without the need for a technician. • Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

HARDWARE FEATURES Standards and Protocols IEEE 802.3; 802.3u; 802.3ab; 802.3x; 802.1p; 802.3bz Interface 8× 100Mbps/1Gbps/2.5Gbp Ports; Auto-Negotiation; Auto-MDI/MDIX Fan Quantity Fanless External Power Supply External Power Adapter (Output: 12 VDC / 1.5 A) LED Indicator • System Power: 1 • Link/Act Indicators: 8; 1 indicator per port built into each RJ-45 port Dimensions ( W x D x H ) 8.9×5.2×1.4 in (226×131×35 mm) Max Power Consumption 15.65 W Max Heat Dissipation 53.40 BTU/h

PERFORMANCE Switching Capacity 40 Gbps Packet Forwarding Rate 29.8 Mpps MAC Address Table 16 K Packet Buffer Memory 1.5 Mb Jumbo Frame 10 KB

SOFTWARE FEATURES Advanced Features • 802.3X Flow Control • 802.1p/DSCP QoS Transfer Method Store and Forward

OTHERS Certification CE; FCC ;RoHS Package Contents • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2 • Power Adapter • Installation Guide • Rubber Feet Environment • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-c
