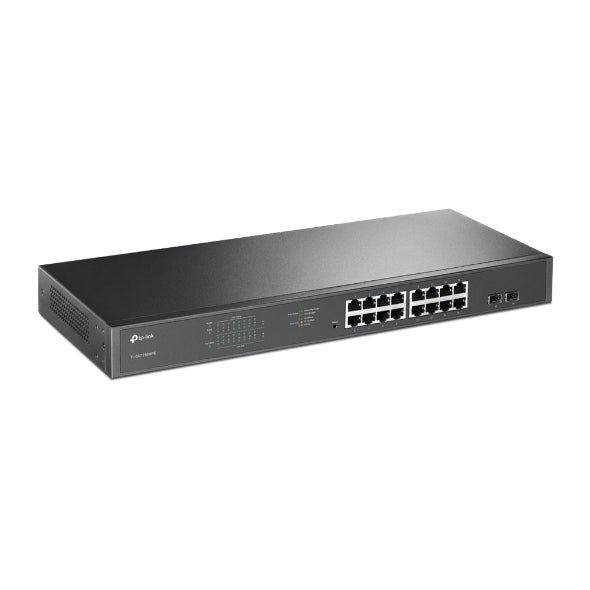

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch/16 Gigabit RJ45 Ports/2 SFP Slots/802.3at/af/192W PoE Power/1U 19-inch Rack-mountable

16 10/100/1000Mbps RJ45 Ports PoE/PoE+ Switch PoE power budget is up to 192W; making it ideal for small to medium business surveillance system Port Priority is able to guarantee the quality of sensitive application like video monitor Intelligent power management can protect the switch from overload QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.

HARDWARE FEATURES Standards and Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x IEEE 802.3af; IEEE 802.3at; IEEE 802.1q; IEEE 802.1p Interface 16 PoE+ 10/100/1000Mbps RJ45 Ports 2 Fiber Ports Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF; SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240V AC; 50/60 Hz Backup Bandwidth 7.2 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W Mac Address Table 8K Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption 18.73 W (220/50Hz. no PD connected) 217.22 W (220/50Hz. with 192W PD connected) Max Heat Dissipation 63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected)

PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 23.8 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB
