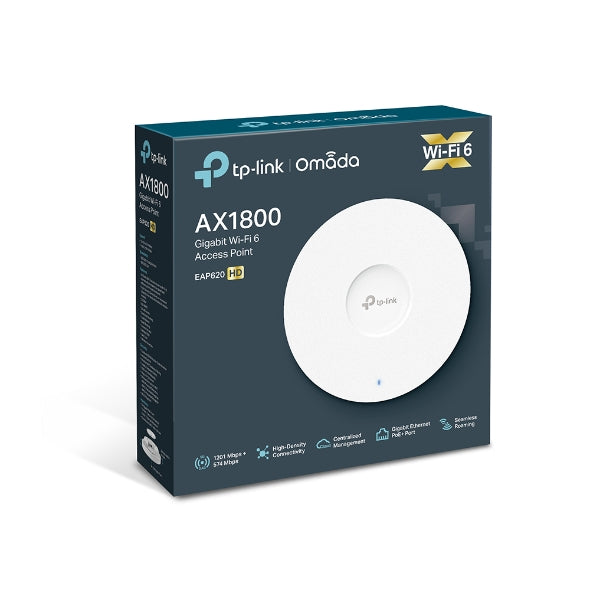

TP-Link EAP620 HD Omada AX1800 Wireless Dual Band Ceiling Mount Access Point/1201Mbps @ 5GHz /OFDMA/MU-MIMO/QoS/Mountable

TP-Link EAP620 HD AX1800 Wireless Dual Band Ceiling Mount Access Point • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.† • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡ • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§; Centralised Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations. • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation. • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher; etc.) and abundant wireless security technologies.

HARDWARE FEATURES Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button Reset Power Supply • 802.3at PoE • 12 V DC Power Consumption • EU: 12 W • US: 13.5 W Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) Antenna Type Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs; 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
