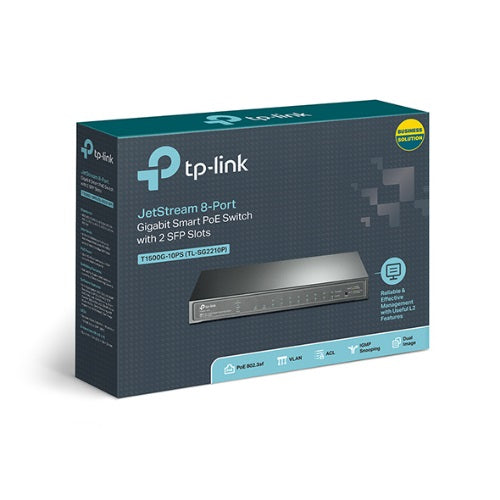

TP-Link SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots L2/L3/L4 QoS and IGMP Snooping WEB/CLI Managed 53W/Fanless/Omada SDN

Features 8 PoE ports; with total PoE power budget of 53W and useful PoE power management features Gigabit Ethernet connections on all ports provide full speed of data transferring Advanced security features include IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm Control; DHCP Snooping; 802.1X; and Radius Authentication L2/L3/L4 QoS and IGMP snooping optimize voice and video applications WEB/CLI managed modes; SNMP; RMON bring abundant management features Dual Firmware Image improves reliability and up-time of your network

ARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE802.3z; IEEE 802.3ad; IEEE 802.3x; IEEE 802.3af; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1x; IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports Port8 obtain power from PoE source (Auto-Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100~240VAC; 50/60Hz External Power Adapter(Output: 48VDC/1.25A) Power Consumption Maximum (PoE on): 64.9W Maximum (PoE off): 9.9W PoE Ports (RJ45) Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W Dimensions ( W x D x H ) 209 * 126 * 26mm Max Power Consumption 9.92W (220V/50Hz with no PD connected) 64.89W (110V/60Hz with 53W PD connected) Max Heat Dissipation 33.85 BTU/h (with no PD connected) 221.40 BTU/h (with 53W PD connected)

PERFORMANCE Bandwidth/Backplane 20Gbps Packet Forwarding Rate 14.9Mpps MAC Address Table 8K Jumbo Frame 9KB
