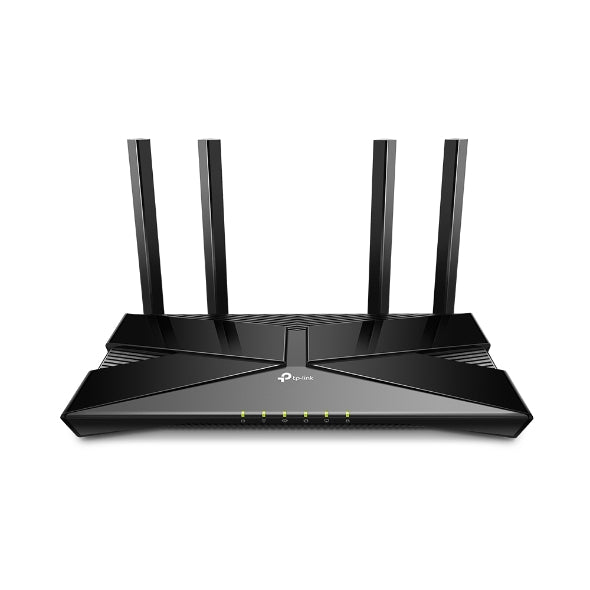

TP-Link Archer AX10 AX1500 Wi-Fi 6 (802.11ax) Router 4x Gigabit Ports (WIFI6)

TP-Link Archer AX10 AX1500 Wi-Fi 6 Router * Wi-Fi 6 Technology—Archer AX10 comes equipped with the Wi-Fi 6 technology for faster speeds greater capacity and reduced network congestion. * Dual-band 1.5 Gbps Speeds—Archer AX10 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band). * Connect Dozens of Devices—More simultaneous connections and reduced latency with OFDMA and MU-MIMO. * Broader Coverage—4 Antennas and Beamforming technology focus signal towards individual clients for broader coverage. * Full Gigabit Ports—Take full advantage of broadband speeds up to 1 Gbps. * Easy Setup—Finish your network upgrade in minutes with Tether app. * Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Warranty Period: 3-Year

HARDWARE FEATURES Processor 1.5 GHz Triple-Core CPU Memory 256 MB RAM 16 MB Flash Interface 1 × 1000/100/10 Mbps WAN Port 4 × 1000/100/10 Mbps LAN Ports Button WPS/Wi-Fi On/Off Button Reset Button Power On/Off Button External Power Supply 12 V/5 A Dimensions ( W x D x H ) 10.2 × 5.3 ×1.5 in. (260.2 × 135.0 × 38.6 mm) Antenna 4× Fixed Omni-Directional Antennas

WIRELESS FEATURES Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz Frequency 5 GHz and 2.4 GHz Signal Rate 1201 Mbps (5 GHz 11ax) 300 Mbps (2.4 GHz 11n) Compatible with 802.11a/b/g/n/ac Wi-Fi standards Reception Sensitivity

5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm

2.4 GHz: 11g 6Mbps:-91dBm 11a 54Mbps:-74dBm 11n HT20_MCS0:-90dBm 11n HT20_MCS7:-73dBm 11n HT40_MCS0:-88dBm 11n HT40_MCS7:-70dBm

Transmit Power CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) Wireless Functions Enable/Disable Wireless Radio Guest network OFDMA Wireless Security 64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK encryptions
