RFI COL8199 5G LTE 8.5dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black 1730mm
Estimated delivery between October 20 and October 22.
RFI COL8199 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 1730mm
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.

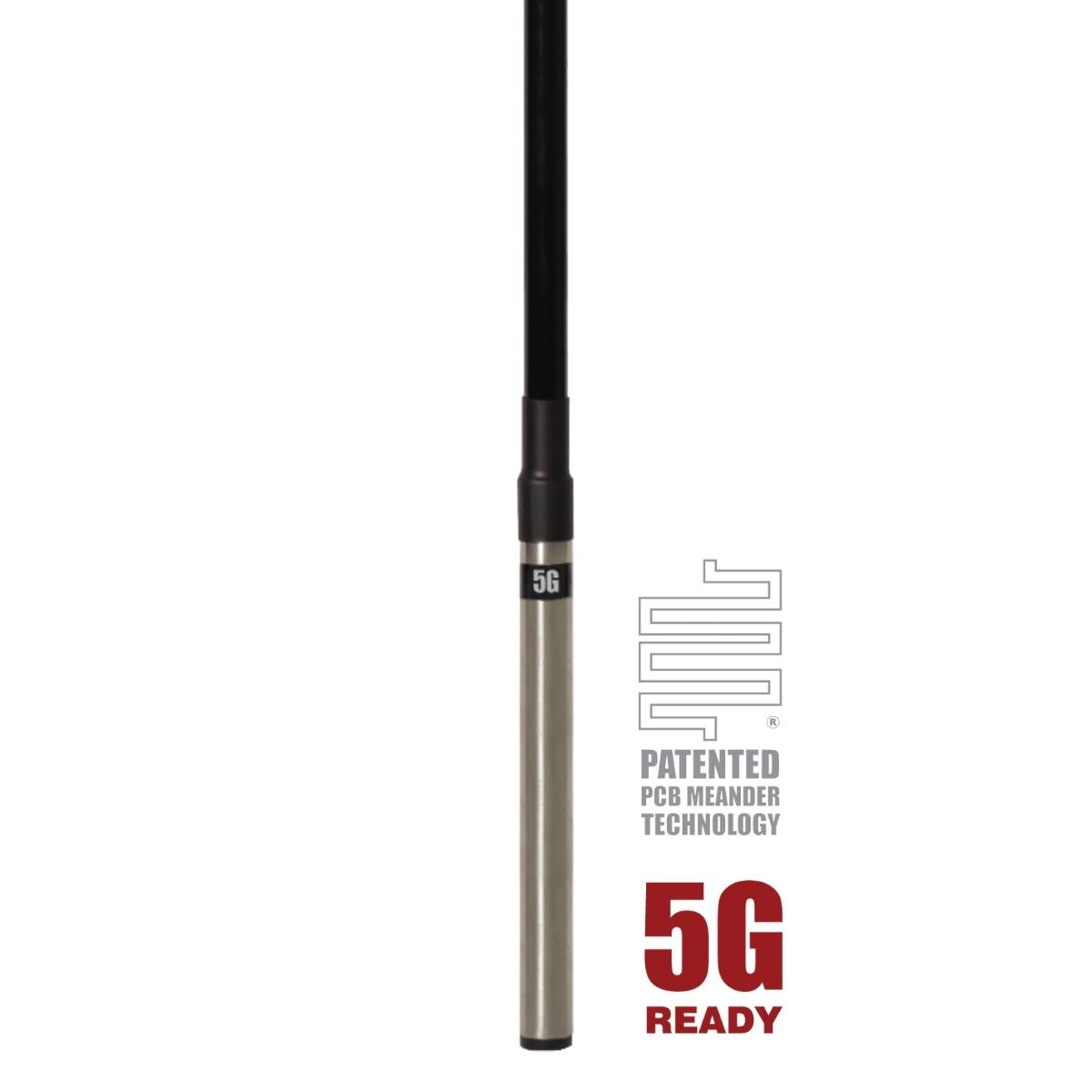

The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Cable And Connector | 10m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 8.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Mounting area | 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied) |
| Construction | Black radome 200 x 19mm S/S mounting tube |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 1730mm |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the COL8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as COL8195 - 965mm
