RFI LTE-MAGS-3M-SMA TE SISO Magnetic Base Antenna 698-2700Mhz
Estimated delivery between October 20 and October 22.

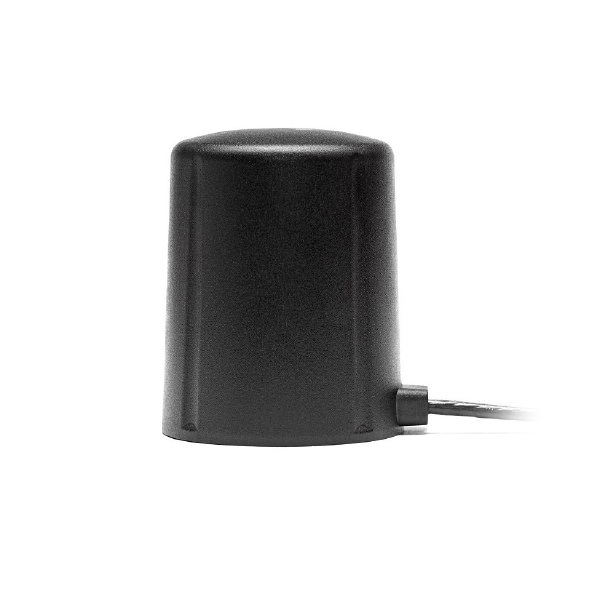

RFI LTE-MAGS-3M-SMA TE SISO Magnetic Base Antenna 698-2700MHZ - 3M Cable with SMA Male
The LTE-MAGS Series of magnetic wideband cellular antenna delivers stable omni-directional gain across all common 4G & 3G global cellular bands from 698 MHz to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not require changing antennas when deploying from most major markets worldwide such as 4G to 3G. The strong magnetic base is extremely robust and uses high-quality rare earth magnets for a secure magnetic mount to any metal surface.
Features:
Magnetic mount
High performance
Ground plane dependent
IP69K
Specifications
| Frequency: | 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz |
| Band | SISO LTE |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 1.8dBi / 3.1dBi / 2.9dBi (peak) |
| Power W | 25 |
| Packaging | Clear Bag |
| VSWR | <3.0:1 |
| Cable Type / Length | 1 x 3m RG174 |
| Termination | 1 x SMA male connectors |
| Mounting | Magnetic |
| Operating Temperature °C | -40 to +85 |
| Ingress Protection Rating | IK69K |
Documentation
LTE-MAGS-3M-SMA Product Data Sheet
