Ubiquiti PoE+ Adapter (30W), Power UniFi PoE+ Devices,Reduce Dependency On PoE Switch Power,Provide A Gigabit LAN Connection (Renamed From U-PoE-AT)

$39.00

Estimated delivery between August 22 and August 24.

Minimum of 1 / increment of 1

DESCRIPTION

Ubiquiti PoE+ Adapter (30W)

SKU: U-PoE+

Tech Specs:

Dimensions :      93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight:              156 g (5.5 oz)
Power Cable:      Included
Output Voltage: 48V DC @ 0.65A
Rated Voltage:   100–240V AC at 50/60Hz
Gigabit LAN Port :     ✓
2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)

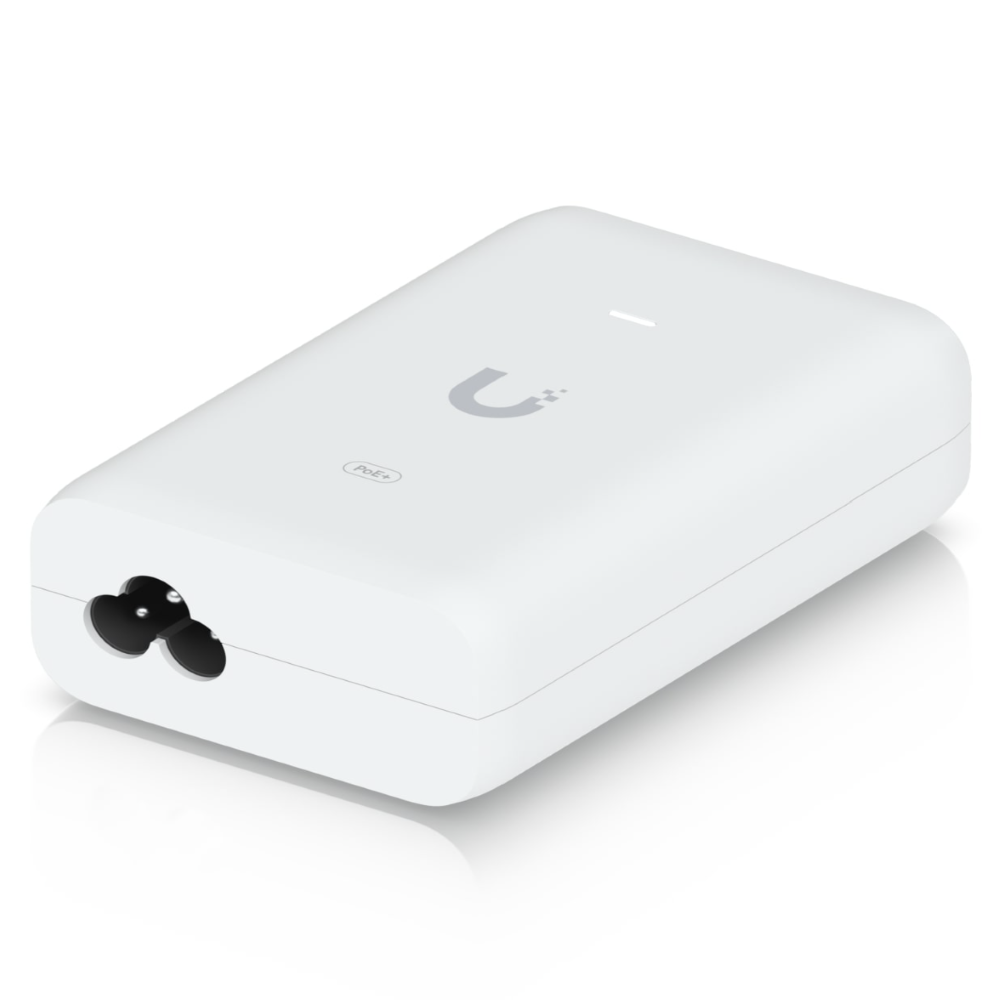

AC Connector:    IEC-320 C6
Clamping Protection:  11V Data, 60V power

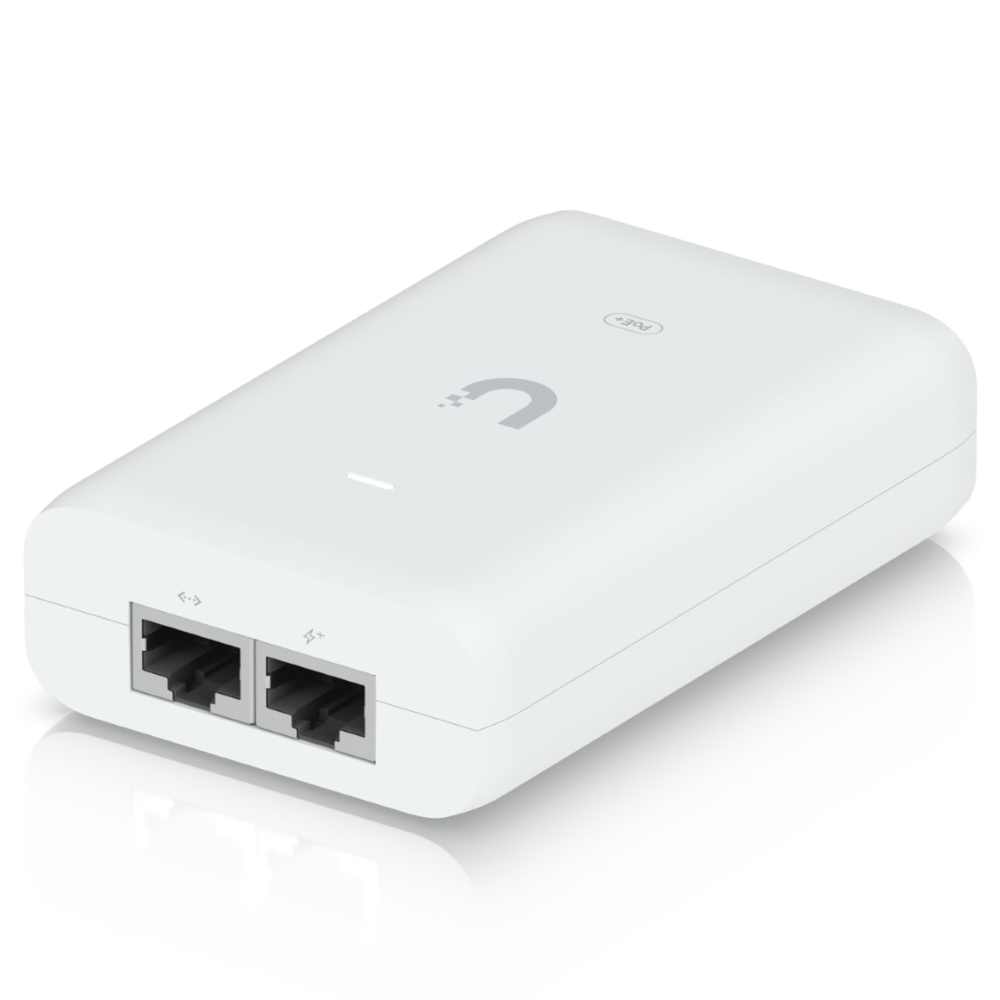

Data In / PoE:    RJ45 Shielded Socket
Input Current:    0.75A Max.
Inrush Current:  <100A peak at 26°C
Efficiency:          87%
Switching Frequency: 70 kHz Max.
Output Ripple:          1% Max.
Line Regulation:        ≤ 3%
Load Regulation:       ≤ 5%
Max. Surge Discharge: 1500A (8/20 μs) power
Peak Pulse Current:      36A (10/1000 μs) data
Response Time:           <1 ns
Shunt Capacitance:     <5 pF data
Surge Protection:        Difference and common mode
Ambient Storage Temperature:  -30 to 70°C (-22 to 158° F)
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity:   10 to 95% noncondensing
NDAA Compliant:    ✓

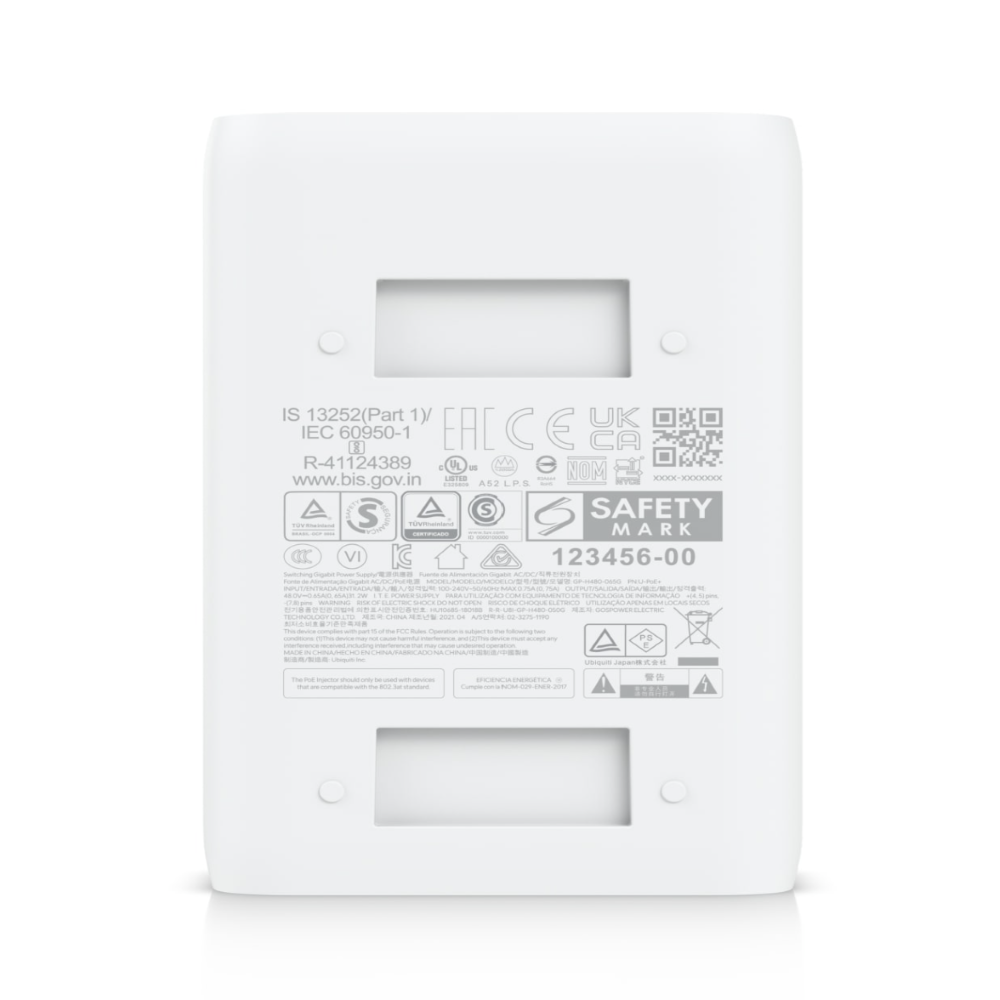

Certifications:  CE, FCC, IC, UL, CCC



Description:
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Features:
•Delivers up to 30W of PoE+
•Surge, peak pulse, and overcurrent protection
•Contains RJ45 data input, AC cable with earth ground, and PoE+ output
•LED indicator for status monitoring
•Note. Replacement of U-POE-at
•Compatibility: UVC-AI-DSLR, UVC-AI-DSLR-LD, UVC-AI-Pro, UVC-AI-Pro-White, UTP-TouchMax, UTP-TouchMax-White, UTP-G3-Touch-Wall, UA-Ultra, U6-IW, UDB-Pro, U6-LR, UVC-G5-PTZ, UVC-G5-PTZ-B
