Sort by:
@49/41
Warranty Period: 5-Year
@105
* BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).† * 1× 2.5G port unlocks the full potential of Wi-Fi 7. * 160 MHz bandwidth enables many more simultaneous transmissions.‡ * Multi-RUs ensure the high performance of your network.‡ * Advanced Functions: Centralised management Mesh and Seamless Roaming.
Warranty Period: 5-Year
@56/48
@28/21
@19/14
@16/12
Warranty Period: 3-Year
@28/21

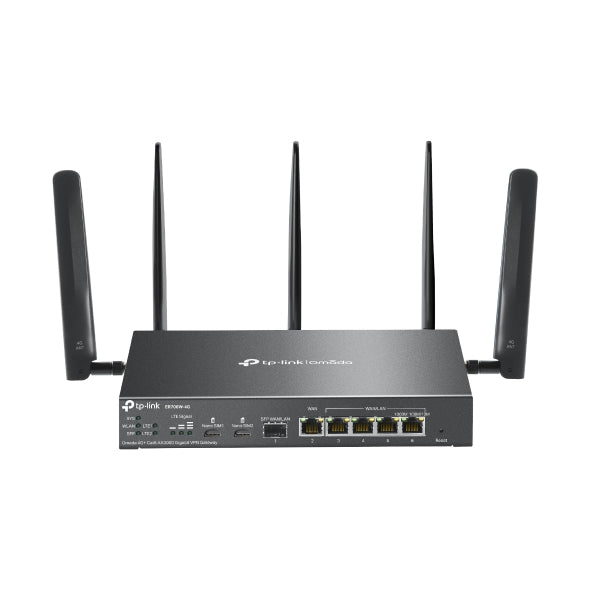

* Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)** Centralized Cloud Management and Intelligent Monitoring. * Centralised Management: Cloud access and Omada app for ultra convenience and easy management. * Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity. * Up to 4 WAN Ports: 1 gigabit SFP WAN port 1 gigabit RJ45 WAN port 2 gigabit WAN/LAN ports optimize bandwidth usage. * Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec 50× OpenVPN* 50× L2TP and 50× PPTP VPN connections. * Abundant Security Features: Advanced firewall policies DoS defense IP/MAC/URL filtering and more security functions protect your network and data.
HARDWARE FEATURES Standards and Protocols * IEEE 802.3 802.3u 802.3ab * TCP/IP DHCP ICMP NAT PPPoE SNTP HTTP DNS IPsec PPTP L2TP Interface * 1 Fixed Gigabit SFP WAN Port * 1 Fixed Gigabit RJ45 WAN Port * 2 Fixed Gigabit RJ45 LAN Ports * 2 Changeable Gigabit RJ45 WAN/LAN Ports Network Media * 10BASE-T: UTP category 3 4 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) * 100BASE-TX: UTP category 5 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) * 1000BASE-T: UTP category 5 5e 6 cable (Max 100m) Button Reset Button Power Supply 100–240 V~50/60 Hz Flash SPI 4MB + NAND 128MB DRAM 512MB LED PWR SYS SFP WAN Speed Link/Act Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
@58/50
@11/26
5 10/100Mbps RJ45 ports With four PoE ports transfers data and power on one single cable Working with IEEE 802.3af compliant PDs expands home and office network Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 58W for all PoE ports Requires no configuration and installation
HARDWARE FEATURES Interface 5 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter(Output: 48VDC / 1.25A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 58W Mac Address Table 2K Switching Capacity 1Gbps Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) Transmission Distance Store-And-Forward Max Power Consumption 63.51W (max. with 58w PD connected) 1.70W (max. no PD connected)
What This Product Does TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets where you wish to fix devices such as APs IP Cameras or IP Phones etc.
Power over Ethernet 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
@15/11
HARDWARE FEATURES Interface * 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A) Packet Forwarding Rate 0.8928 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–4 * Power Supply: 67 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1.2 Gbps Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) Max Power Consumption * 1.9 W (220 V / 50 Hz no PD connected) * 74 W (220 V / 50 Hz with 67 W PD connected) Max Heat Dissipation * 6.48 BTU/h(no PD connected) * 252.34 BTU/h(with 67 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * Extend Mode Button (Ports 1–4) * Priority Mode Button (Ports 1–2) * Mac Address Auto-Learning and Auto-Aging * IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC CE RoHS Package Contents * TL-SF1006P * Power Adapter * Installation Guide Environment * Operating Temperature: 0–40 ℃ (32–104 ℉) * Storage Temperature: -40–70 ℃ (-40–158 ℉)
@18/13
@11/25
HARDWARE FEATURES Interface * 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A) Packet Forwarding Rate 1.3392 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–8 * Power Supply: 65 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1.8 Gbps Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) Max Power Consumption * 3.6 (220/50 Hz. no PD connected) * 77.08 (220/50 Hz. with 65 W PD connected) Max Heat Dissipation * 12.28 BTU/h (no PD connected) * 262.84 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * Extend Mode Button (Ports 1–4 and Ports 1–8 Up to 250 m PoE power supply and data transmission) * Priority Mode Button (Ports 1–2) * Isolation Mode Button (Ports 1–8) * Mac Address Auto-Learning and Auto-Aging * IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
@19/14
5 10/100/1000Mbps RJ45 ports With four PoE ports transfers data and power on one single cable Working with IEEE 802.3af compliant PDs expands home and office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 56W for all PoE ports Requires no configuration and installation
HARDWARE FEATURES Interface * 5× 10/100/1000Mbps RJ45 Ports * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–4 * Power Supply: 65 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption * 4.29 W (220/50 Hz. no PD connected) * 74.24 W (220/50 Hz. with 65 W PD connected) Max Heat Dissipation * 14.63 BTU/h (no PD connected) * 253.16 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Advanced Features * Compatible With IEEE 802.3af/at Compliant PDs * Mac Address Auto-Learning And Auto-Aging * IEEE 802.3x Flow Control * 802.1p/DSCP QoS * IGMP Snooping
@21/17
HARDWARE FEATURES Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 1 Physical Security Lock No Power Supply 100-240VAC 50/60Hz PoE+ Ports(RJ45) Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 126W Backbound Bandwidth 16Gbps Mac Address Table 4K Buffer Size 1.5Mbits Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 9.89W(220V/50Hz. no PD connected) 140.67W(110V/60Hz. with 126W PD connected) Max Heat Dissipation 33.74BTU/h(no PD connected) 492.56BTU/h(with 126W PD connected ) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Transfer Method Store-And-Forward
OTHERS Certification FCC CE RoHS Package Contents TL-SG1008MP Power Cord Installation Guide Rackmount Kit Rubber Feet
@42/35
@44/37
HARDWARE FEATURES Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF SMF Fan Quantity Fanless Physical Security Lock Yes Power Supply External Power Adapter(Output: 53.5VDC / 1.31A) Backup Bandwidth 20 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W Mac Address Table 4K Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) Max Heat Dissipation 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Transmission Method Store-And-Forward OTHERS Certification CE FCC RoHS Package Contents TL-SG1210P Power Adapter Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
@30/24
Warranty Period: 3-Year
@44/37
