Provides a 3dBi gain for 698-2700 MHz

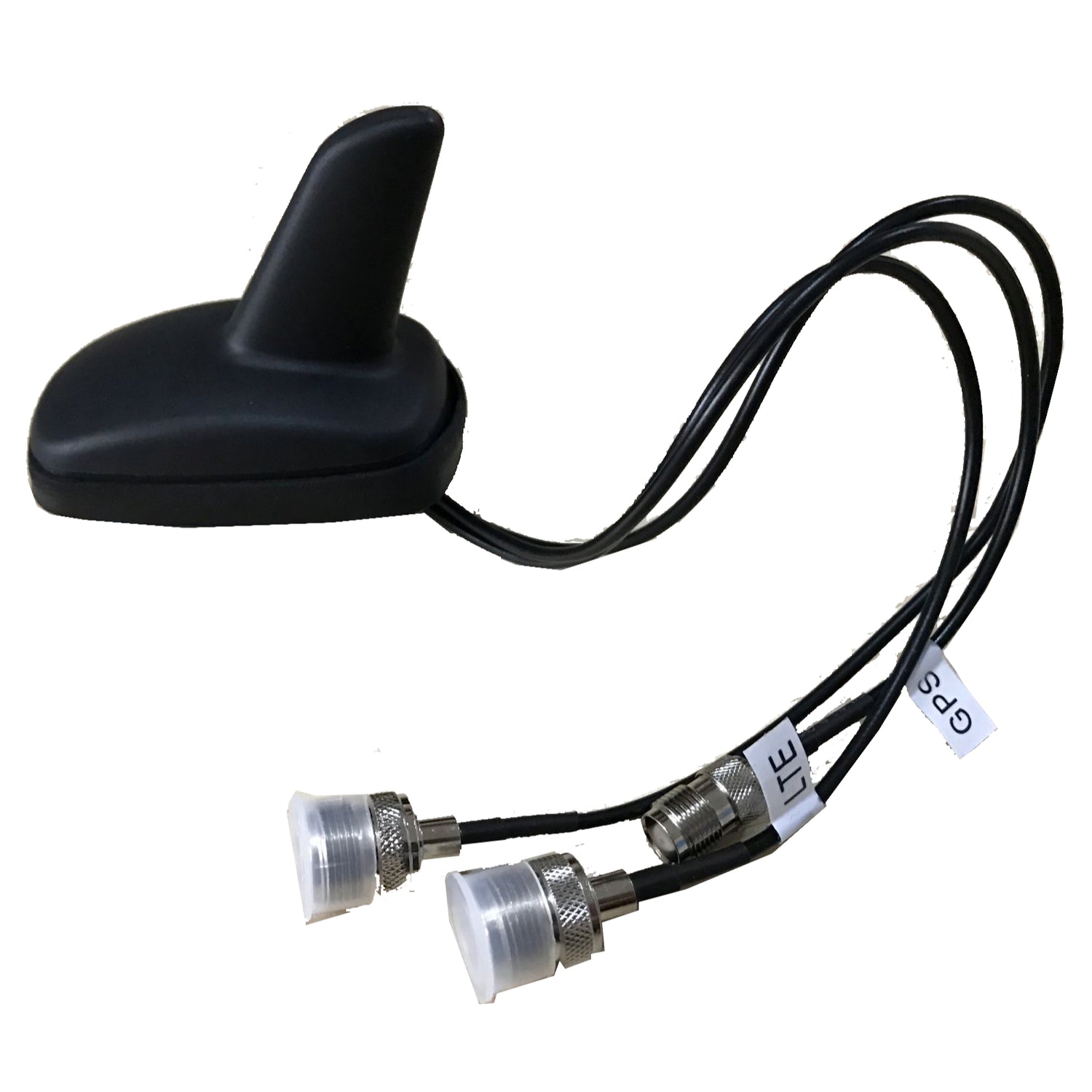

The ANT-BH-SF-100 screw mount Shark Fin Transit Antenna covers GPS/4G/WiFi requirements and is designed for maximum performance and versatility for telematics applications, emergency service vehicles fleet monitoring and asset tracking.

Features:
• Supports 698 – 2700 MHz suitable for all mobile carriers
• IP67 rated
• RoHS Compliant
• Mounting includes thread bolt mount and permanent adhesive
• Antenna has dimensions 83x54x83mm

ELECTRICAL SPECIFICATIONS

Frequency Range: GPS - 1575.42 MHz ±3 MHz / WiFi - 2400-2438 / 5700-5800 MHz / LTE - 698-960 MHz / 1710-2700 MHz
Impedance: 50 Ω
VSWR: LTE - 2.0: 1 / GPS - 2.0:1
Gain: GPS - 5 dBi / LTE - 3 dBi / WiFi - 3 dBi
Polarisation WiFi: GPS - RHCP / LTE - Linear / WiFi - Linear
Max Input Power: 50W

MECHANICAL SPECIFICATIONS

Dimensions: 85 x 54 x 83 mm
Weight: 180g
Operating Temperature: -40°C to +85°C
Connector: GPS: TNC-Female / LTE: N-Female / WiFi: N-Female
Cable: GPS: RG174 250mm / 3G/4G: RG174 300mm / WiFi: RG174 350mm
Material: ABS
Antenna Colour: Black
RoHS Compliant: Yes
Waterproof: IP67

• FEATURES

  • 10 dBi gain across lower bands 698-960 MHz
  • 11 dBi gain across upper bands 1710-2700 MHz
  • Lightweight, compact design
  • Mounting clamp included
  • 30 cm tail with pre-terminated N Female connector
  • Optional: Supplied with 10 m of RG58 cable with SMA Male connectors
  • Great cost effective antenna.

  The Blackhawk wideband antenna is a fantastic little antenna providing good performance with a lightweight, low-cost design. There's plenty of situations where a big, solid metal antenna is necessary, but also plenty where something quick and small can be just as useful. This antenna is great for areas where indoor signal is weak, and only a simple antenna on the roof is enough to give a fantastic improvement.




  The antenna is simple and effective, it might not last as long as a fully welded yagi, or our Backhawk LPDA, but it's a great antenna for temporary installations or those travelling who need something compact.




  Mounting is made simple with a mast down-tilt bracket and U-Bolts. This enables you to mount the antenna on a flat surface or a pole.

ELECTRICAL SPECIFICATIONS

MECHANICAL SPECIFICATIONS

Cable Optional: 6m/10m/15m/20m

LSFH-240 CABLE N MALE – SMA MALE

This cable is low smoke halogen, to reduce the amount of toxic and corrosive gas emitted during combustion or fire.

Choose your own cable length: 6m, 10m, 15m, 20m.

• Ideal for connecting Blackhawk antennas to any Cel-Fi units.

THB Bury Ladekabel Lightning iPhone - Take&Talk, Active Cradle, System 8, 9, CC9068, CC9058, CC9048

Description:

The MFI lightning connector charging cable adds to the existing cables in the range like the 2mm Nokia, Apple 30pin and Mini USB as optional cables for purchase in addition to the micro USB cable that is included with the Universal Cradle. MFi ap

Compatibility:

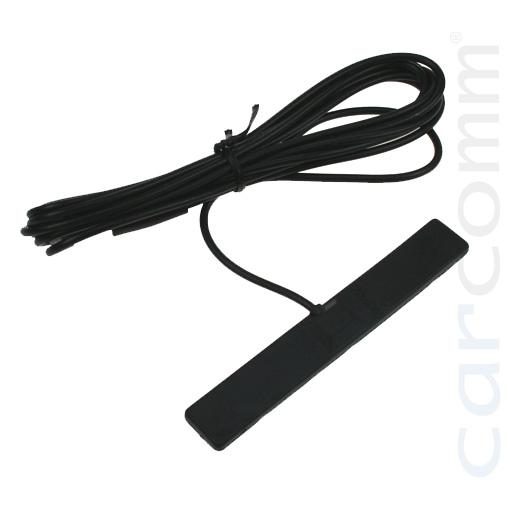

Carcomm CIGF-918 Quad Band On-Glass Internal Antenna 3G+4G+4GX

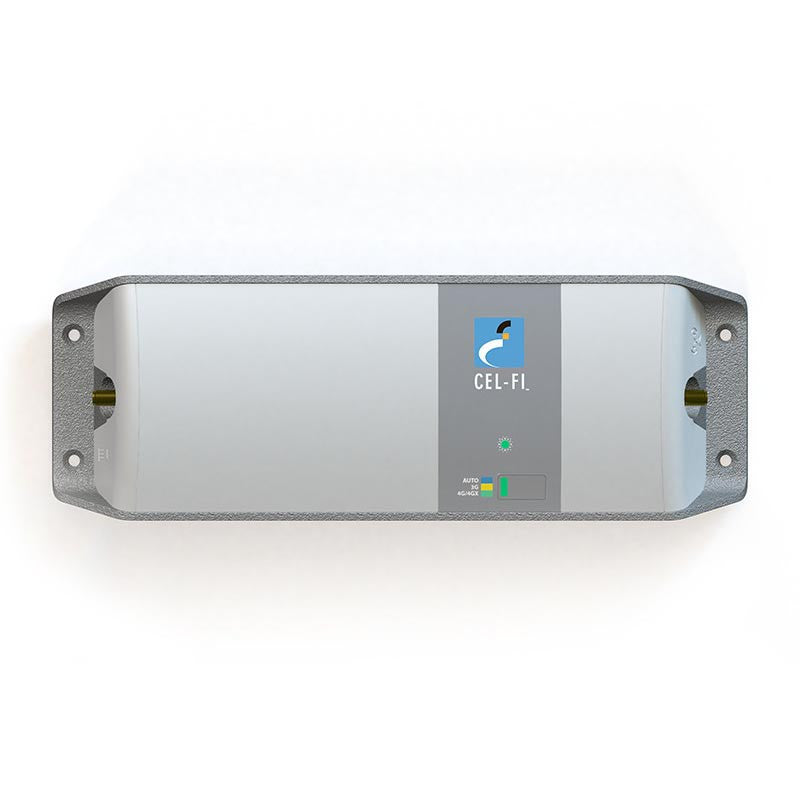

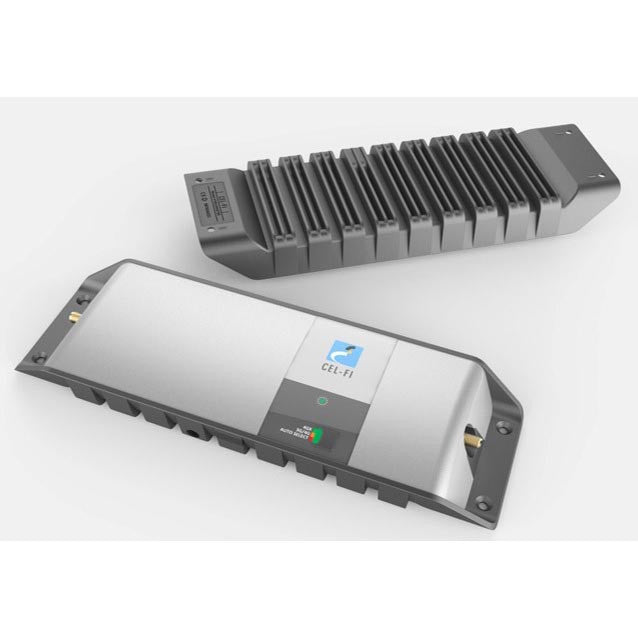

The Cel-Fi GO Telstra Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading up to 100 dB  system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54/Nema 4 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, and boats.

• 3G / 4G / 4GX Voice and Data
• Multi-Band Support
• Indoor / Outdoor IP54 Rated
• Network Safe
• Configuration for Mobile or Stationary version via Wave app

Cel-Fi is the only consumer mobile phone repeater that has been widely approved by all mobile carriers in Australia. Currently approved for use on the Telstra mobile networks, Cel-Fi is a new type of mobile enhancement device called a Smart Repeater. There are other non-compliant consumer repeaters that appear to be from Australia, buying non Cel-Fi repeaters may result in large fines and loss of the equipment.

What is a Smart Repeater?

A Smart Repeater is a new type of mobile phone repeater that is designed to complement an existing mobile network and not interfere with its operation. It does this by monitoring the base station levels in real time, only repeating the signal of one particular carrier and having inbuilt protection to ensure it does not overload or interfere with network operation. Cel-Fi is currently the only Smart Repeater in existence.

FEATURES

- Designed for building and site
- 70dB of system gain
- Includes external and internal antennas
- Locked to Telstra's Mobile Network
- ACMA and Carrier approved
- Band Selection Button

SUPPORTED NETWORKS
Telstra, Aldi Mobile, Boost Mobile, Woolworths Connect

How to setup the unit?
1. Install the External Donor Antenna
2. Install the Internal Server Antenna
3. Mount the GO unit
4. Connect the Donor and Server Antennas to the GO unit
5. Apply power to the Cel-Fi Go

How to activate the unit?
1. Download the WAVE App from the Apple or Android store
Run the App next to the Cel-Fi and it will connect via Bluetooth. Power up GO and connect using WAVE App to register
2. Once connected it will pop up with the registration form to complete. Note this form is much shorter than the original web-based form
3. Complete and submit the form
4. The unit will now be active within 30 seconds

IMPORTANT: Internet access is required to run the WAVE app

Specifications

Optional Antenna Packages

Repeater only no antenna Pack includes :

- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead

T5-4M-SMA internal server antenna

Pack includes :

- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
- 1x T5-4M-SMA Internal Server Antenna with 4m cable SMA male

CSM700 Low Profile BLACK DONOR antenna 800mm +T5-4M-SMA internal server antenna

 Pack includes :

- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
- 1x T5-4M-SMA Internal Server Antenna with 4m cable SMA male
- 1x RFI CSM700-5M-SMA Low Profile Black Donor Antenna with 5M cable SMA(M) only 80mm high

CDR8195-B (6.5dBi) BLACK DONOR antenna 930mm +T5-4M-SMA internal server antenna

Pack includes :

- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
- 1x T5-4M-SMA Internal Server Antenna with 4m cable SMA male
- 1x CDR-7195-B Black Donor Antenna with 5m cable FME female
- 1x A-88 FME male to SMA male adaptor

CDQ8195-B  (6.5dBi) BLACK DONOR antenna 970mm +T5-4M-SMA internal server antenna

Pack includes :

- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
- 1x T5-4M-SMA Internal Server Antenna with 4m cable SMA male
- 1x CDQ8195-B Black Donor Antenna with 5M cable SMA male 970mm long

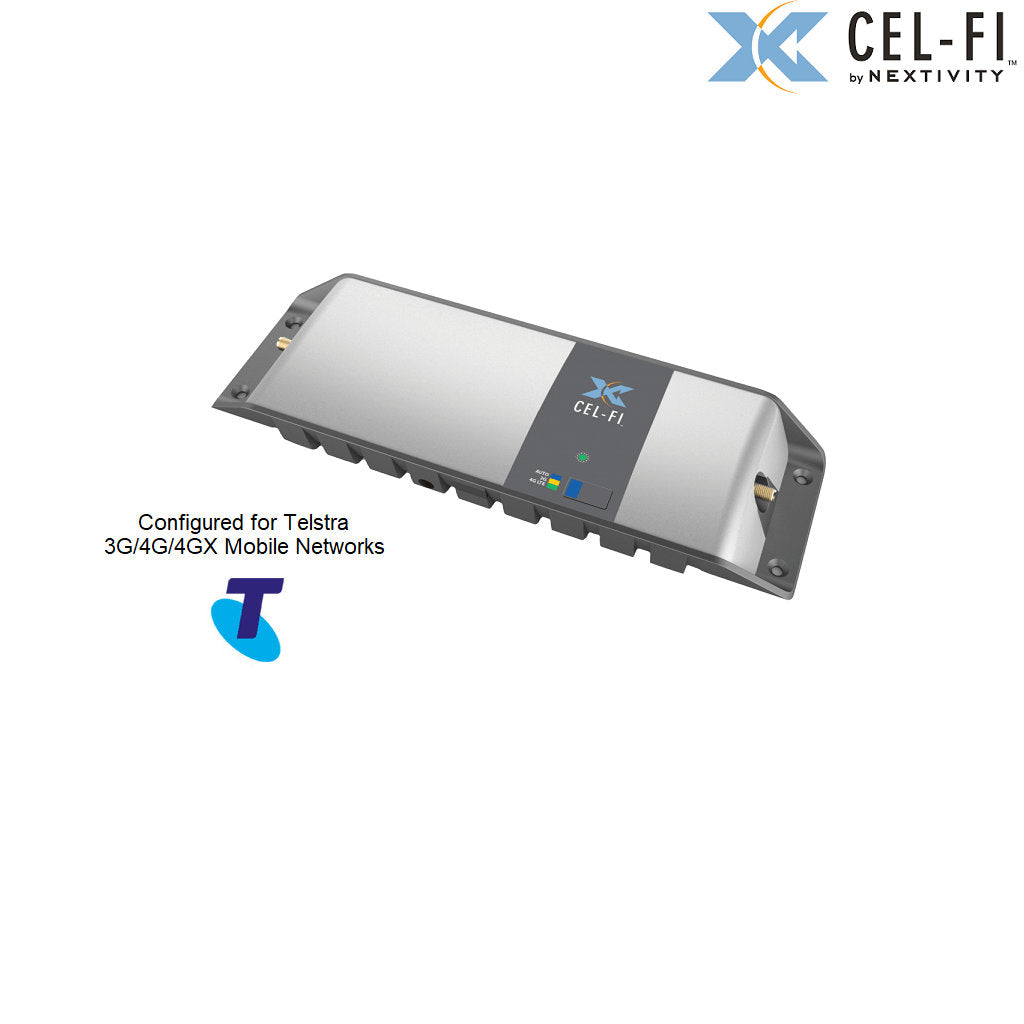

The Cel-Fi GO Telstra Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading up to 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54/Nema 4 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, and boats.

• 3G / 4G / 4GX Voice and Data
• Up to 15,000 ft² (1,500 m²) of Coverage
• Multi-Band Support
• Indoor / Outdoor IP54 Rated
• Network Safe
• Configuration for Mobile or Stationary version via Wave app

Cel-Fi is the only consumer mobile phone repeater that has been widely approved by all mobile carriers in Australia. Currently approved for use on the Telstra mobile networks, Cel-Fi is a new type of mobile enhancement device called a Smart Repeater. There are other non-compliant consumer repeaters that appear to be from Australia, buying non Cel-Fi repeaters may result in large fines and loss of the equipment.

What is a Smart Repeater?

A Smart Repeater is a new type of mobile phone repeater that is designed to complement an existing mobile network and not interfere with its operation. It does this by monitoring the base station levels in real time, only repeating the signal of one particular carrier and having inbuilt protection to ensure it does not overload or interfere with network operation. Cel-Fi is currently the only Smart Repeater in existence.

FEATURES

- Designed for building and site
- 100dB of system gain
- Includes external and internal antennas
- Locked to Telstra's Mobile Network
- ACMA and Carrier approved
- Band Selection Button

SUPPORTED NETWORKS
Telstra, Aldi Mobile, Boost Mobile, Woolworths Connect, plus many more

How to setup the unit?
1. Install the External Donor Antenna
2. Install the Internal Server Antenna
3. Mount the GO unit near power outlet
4. Connect the Donor and Server Antennas the GO unit
5. Apply power to the Cel-Fi Go

How to activate the unit?
1. Download the WAVE App from the Apple or Android store
Run the App next to the Cel-Fi and it will connect via Bluetooth. Power up GO and connect using WAVE App to register
2. Once connected it will pop up with the registration form to complete. Note this form is much shorter than the original web-based form
3. Complete and submit the form
4. The unit will now be active within 30 seconds

IMPORTANT: Internet access is required to run the WAVE app

Specifications

Optional Antenna Packages

Repeater only, no antenna Pack includes :

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack

LPDA  11dBi LPDA7030 Yagi antenna bundle pack includes :

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna - 10m cable

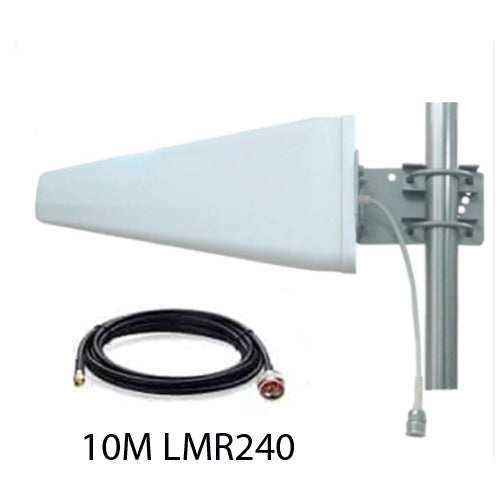

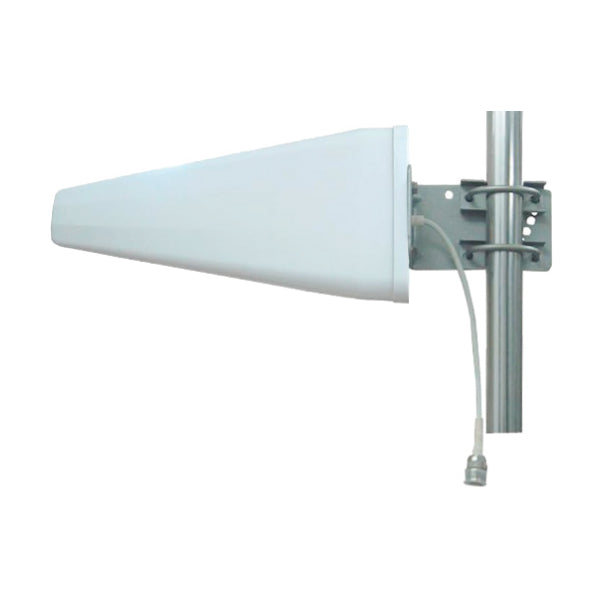

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)

Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers

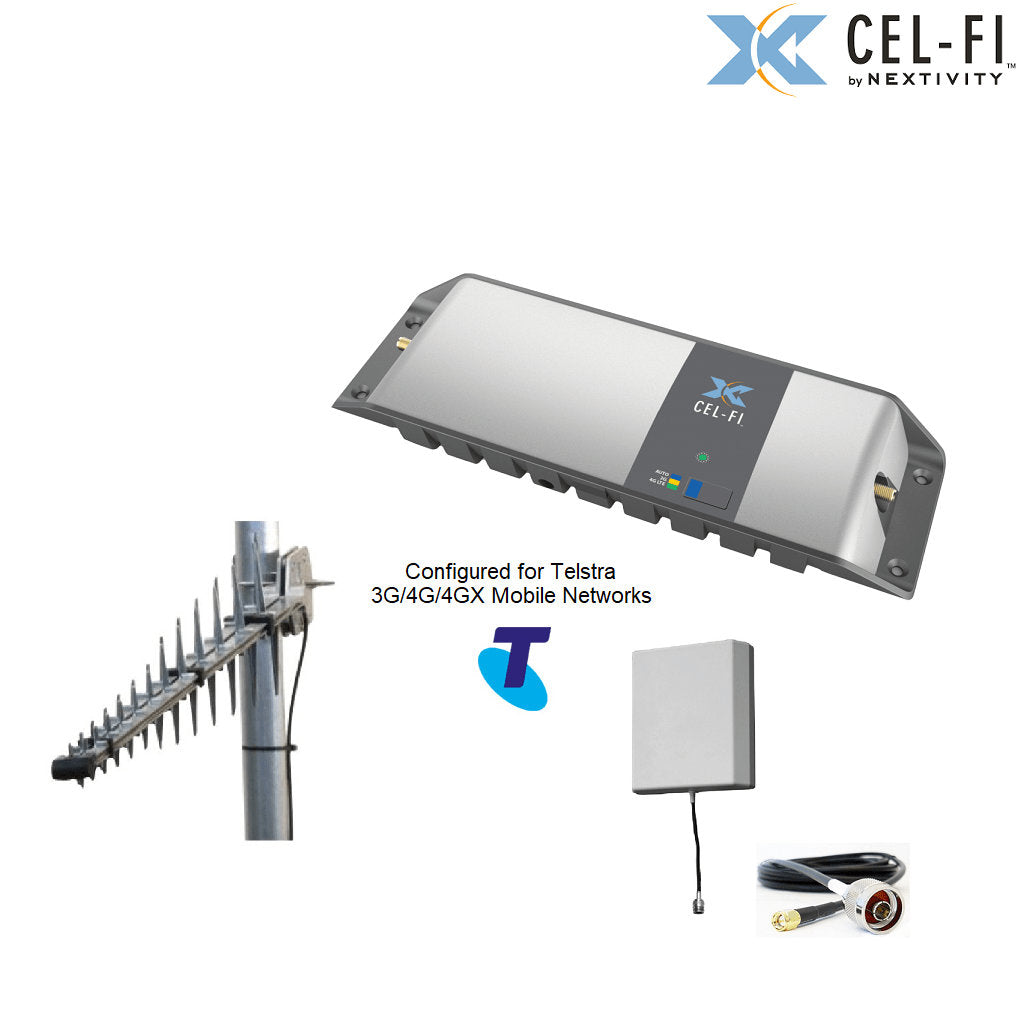

LPDA-CPL  11dBi LPDA7030 + 8dBi CPL6927 antenna bundle pack inclues :

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna - 10m cable
- 1x CPL6927-SMA LTE 8dBi Directional Panel Antenna 698-2700MHz - 10m cable

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)

Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers

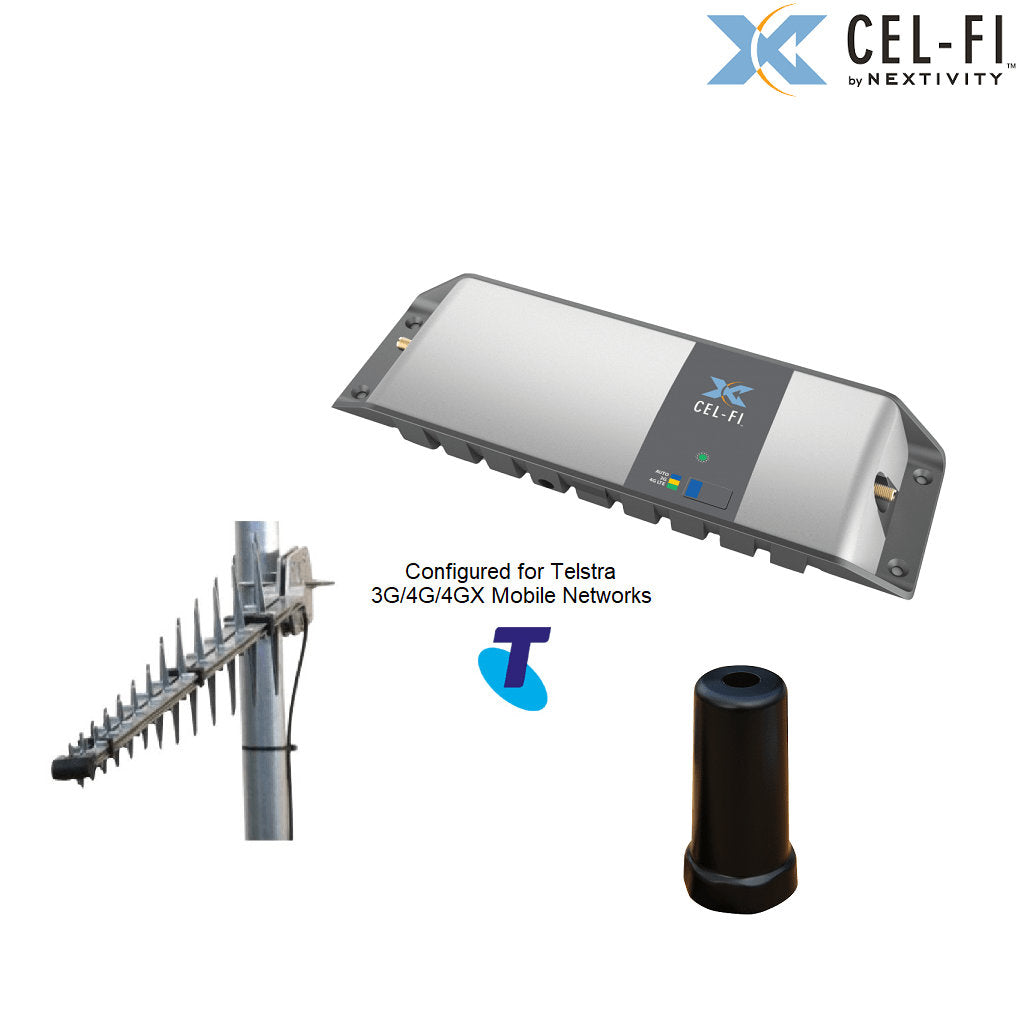

 LPDA-CSM 11dBi LPDA7030 + 5dBi CSM700 antenna bundle pack includes :

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna - 10m cable
- 1x RFI CSM700-5M-SMA LTE Cellular stud mount with 5m RG58 cable.

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)

Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers

LPDA-MAGS 11dBi LPDA7030 + 3dBi LTE-MAGS antenna bundle pack includes:

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna -10m cable
- 1x RFI LTE 3dBi SISO Magnetic base antenna (698-2700MHZ) 3m cable with SMA

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)

Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers

 COL 6.5dBi Collinear Cellular Base antenna bundle pack includes:

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI COL7195-B Collinear Cellular Base Antenna - Black - 10m cable

 COL-CSM 6.5dBi Collinear + 5dBi CSM700 antenna bundle pack includes:

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI COL7195-B Collinear Cellular Base Antenna - Black - 10m cable
- 1x CSM700-5M-SMA LTE Cellular stud mount with 5m RG58 cable

 COL-CPL 6.5dBi Collinear + 8dBi CPL6927 antenna bundle pack includes:

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI COL7195 Collinear Cellular Base Antenna - Black - 10m cable
- 1x CPL6927-10-SMA LTE Directional Panel Antenna 698-2700MHz - 10m cable

COL-MAGS 6.5dBi Collinear + 3dBi LTE-MAGS antenna bundle pack includes:

- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI COL7195-B Collinear Cellular Base Antenna - Black - 10m cable
- 1X LTE-MAGS-3M-SMA SISO Magnetic base antenna (698-2700MHZ) 3m SMA cable

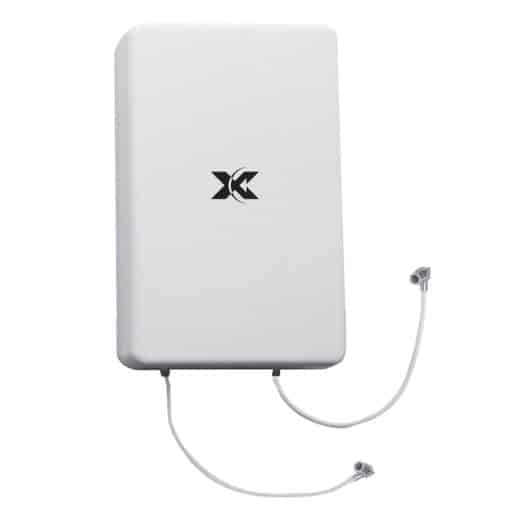

The Cel-Fi MIMO Panel Antenna is the only authorized indoor/outdoor antenna for Cel-Fi QUATRA.

FEATURES

• MIMO (LTE)
• Dual polarization (vertical/horizontal) design
• QMA quick-release connector
• Wideband coverage (700 “ 2700MHz)
• Low VSWR
• Aesthetically pleasing low profile housing

Cel-Fi AntennaBoost integrates the Cel-Fi MIMO Panel Antenna with the Cel-Fi WAVE Platform to provide the best donor signal in the industry. The antenna connects to the Cel-Fi QUATRA Network Unit or Coverage Unit with QMA (quick connect) cables. Nextivity ™s proprietary 8-position dial base enables the antenna to be rotated in 45-degree increments for best performance managed with real-time data from the Cel-Fi WAVE Platform Antenna Position Test.

@135/92

@110/76

@131/90

@82/59

@107/75

Description::

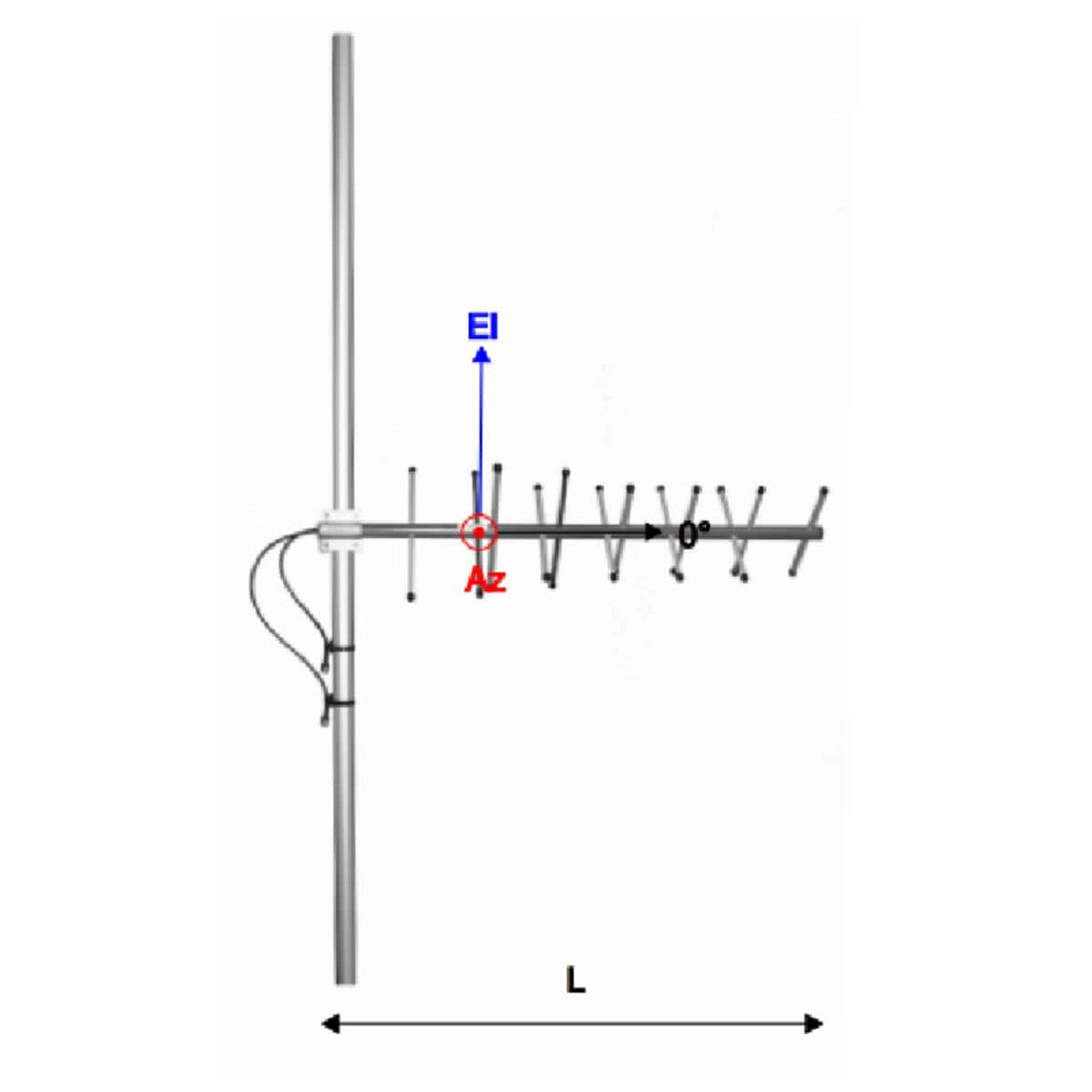

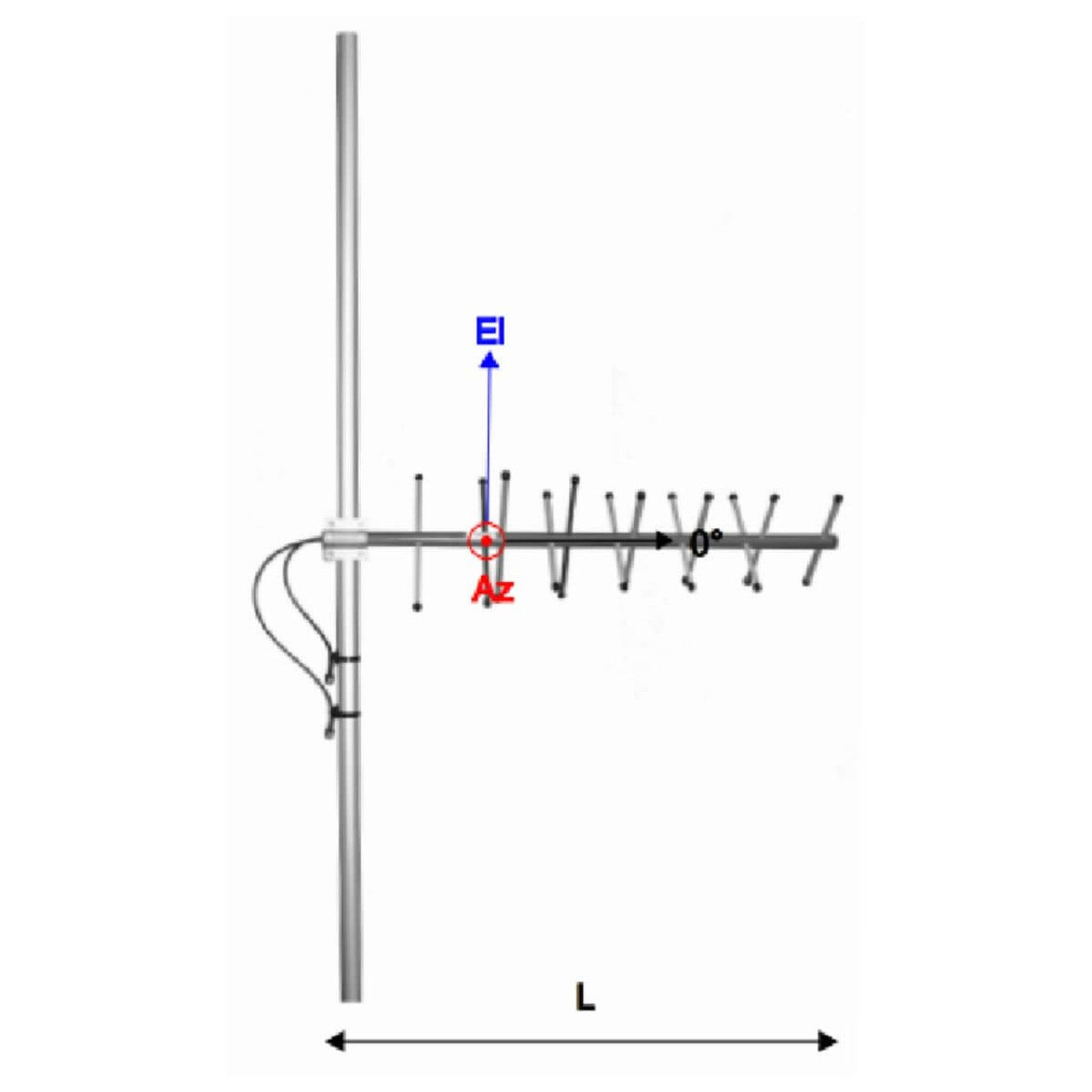

Enhance your communication network with the CA930X++ Cross-Polarized Yagi Antenna from ComAnt®. This high-performance antenna is designed to provide exceptional signal clarity and durability making it an ideal choice for both urban and remote environments.

Key Features

• Cross-Polarized Design: Ensures superior signal reception and transmission by reducing multipath interference.
• Dual Feed: Supports dual feed for enhanced signal strength and reliability.
• Wide Frequency Range: Operates across multiple frequency bands including 380-410 MHz 405-440 MHz 440-475 MHz 703-803 MHz 791-862 MHz 830-890 MHz and 880-960 MHz.
• High Gain: Delivers 10 dBi gain enhancing signal strength and reach.
• IP67 Rated: Offers robust protection against dust and water ensuring reliable performance in harsh conditions.
• Durable Construction: Built with UV-resistant ABS/FG and copper-coated aluminium the antenna withstands extreme weather conditions.
• Easy Installation: Comes with an aluminium alloy bracket and stainless steel V-bolts for secure and straightforward mounting.
• Lightning Protection: DC-short circuited design for enhanced lightning protection.
• Integrated Impedance Compensation: Ensures optimal signal performance with minimal loss.

@111/77

Description::

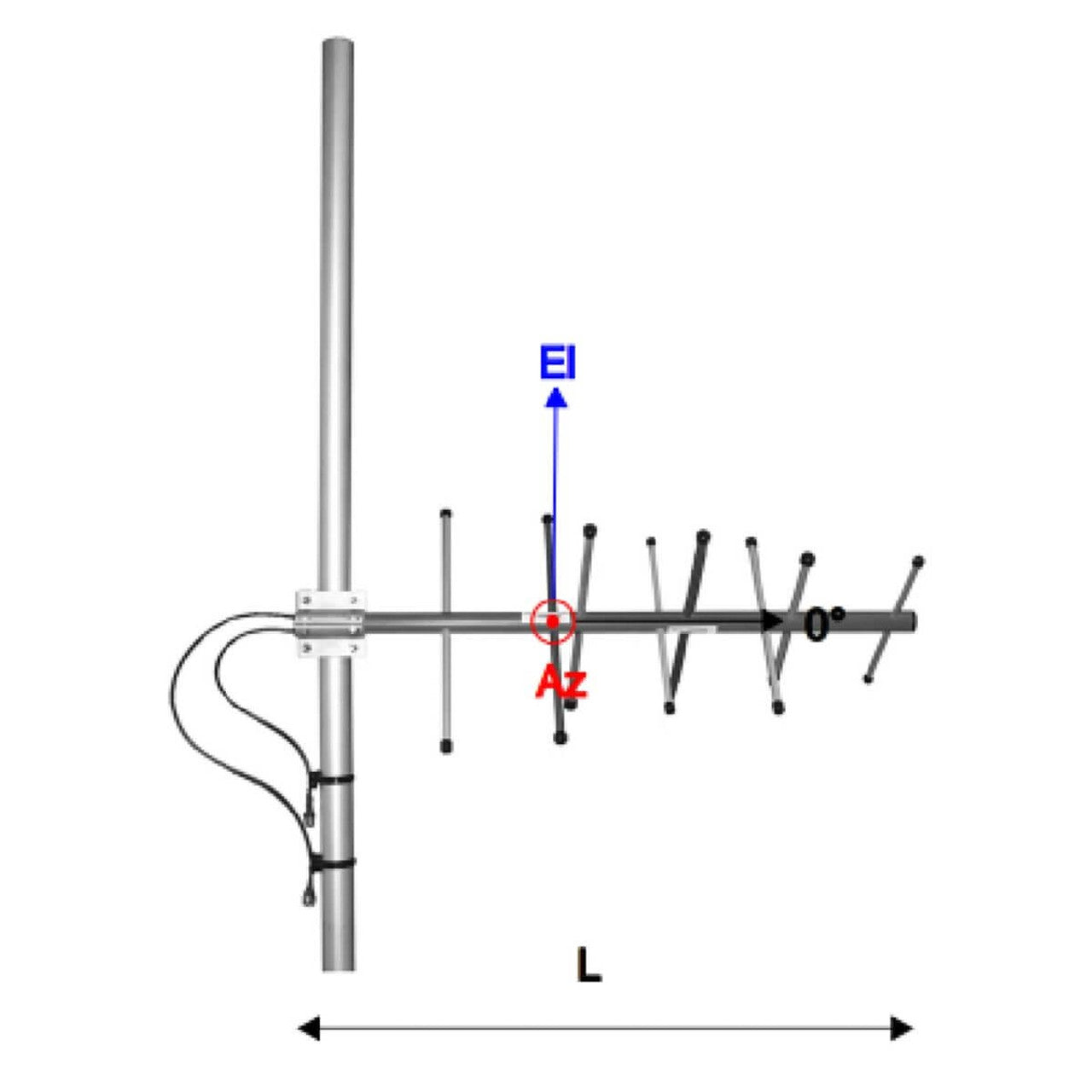

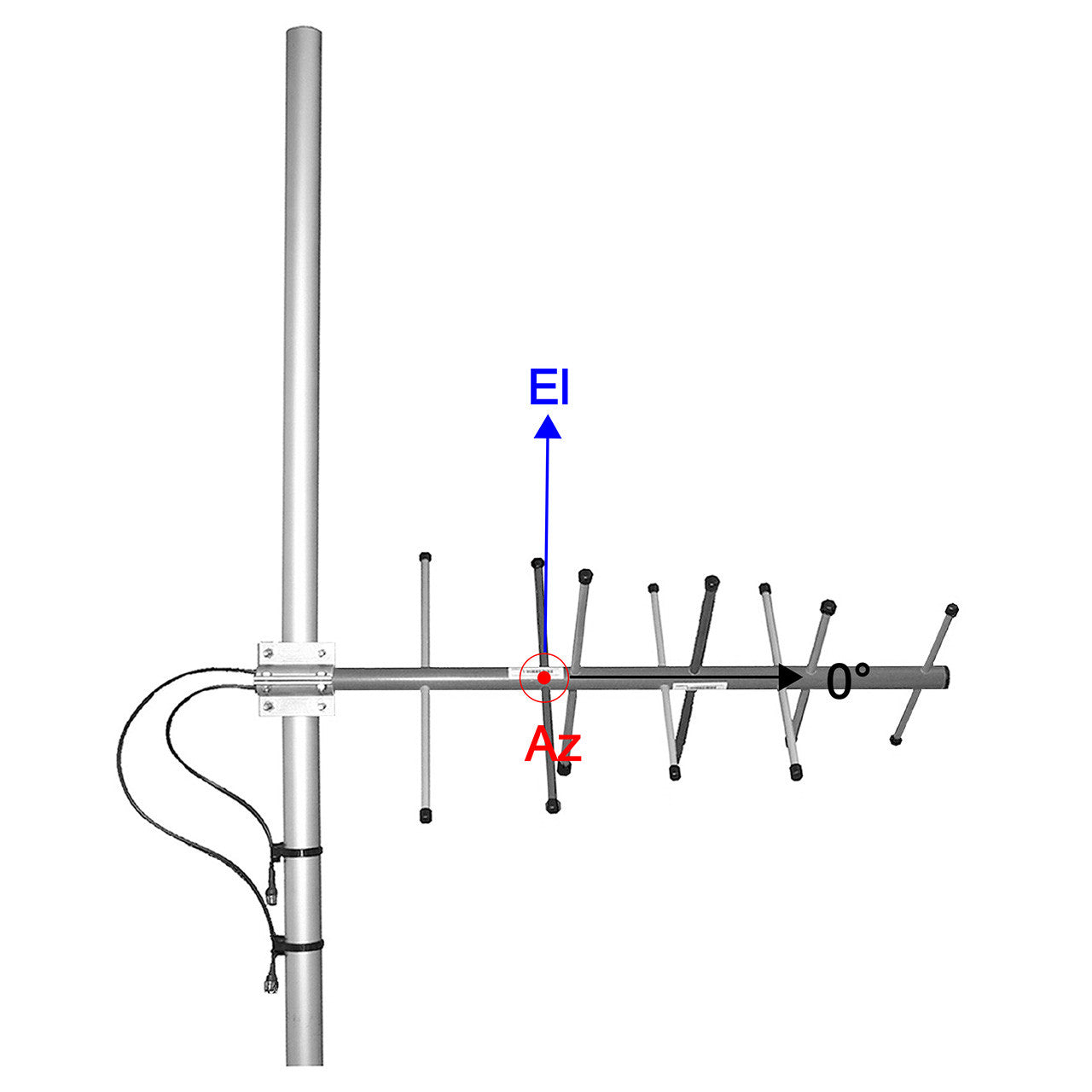

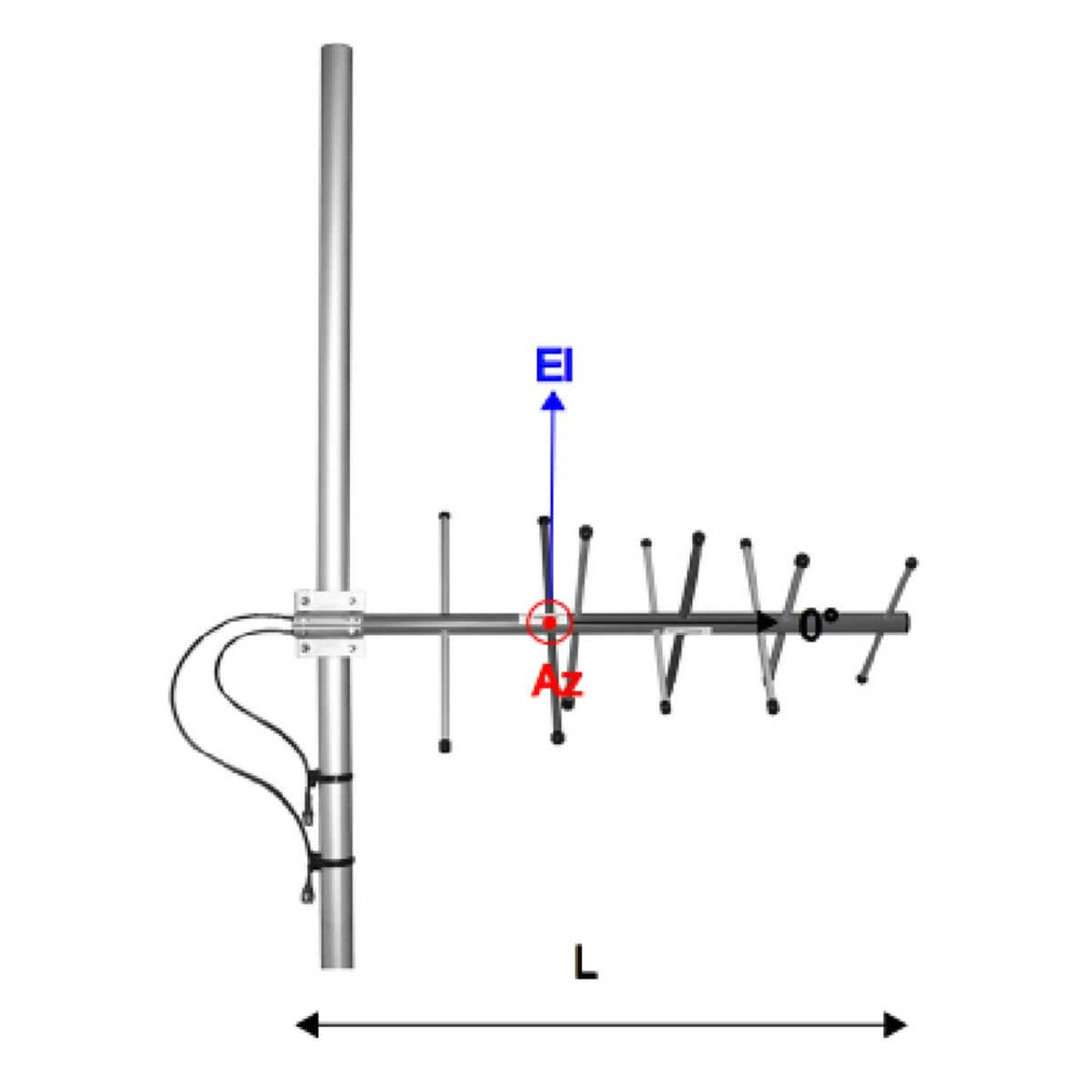

Enhance your communication network with the CA930X+ Cross-Polarized Yagi Antenna from ComAnt®. This high-performance antenna is designed to provide exceptional signal clarity and durability making it an ideal choice for both urban and remote environments.

Key Features

• Cross-Polarized Design: Ensures superior signal reception and transmission by reducing multipath interference.
• Dual Feed: Supports dual feed for enhanced signal strength and reliability.
• Wide Frequency Range: Operates across multiple frequency bands including 380-410 MHz 405-440 MHz 440-475 MHz 703-803 MHz 791-862 MHz 830-890 MHz and 880-960 MHz.
• High Gain: Delivers 8 dBi gain enhancing signal strength and reach.
• IP67 Rated: Offers robust protection against dust and water ensuring reliable performance in harsh conditions.
• Durable Construction: Built with UV-resistant ABS/FG and copper-coated aluminium the antenna withstands extreme weather conditions.
• Easy Installation: Comes with an aluminium alloy bracket and stainless steel V-bolts for secure and straightforward mounting.
• Lightning Protection: DC-short circuited design for enhanced lightning protection.
• Integrated Impedance Compensation: Ensures optimal signal performance with minimal loss.

@91/65

Description::

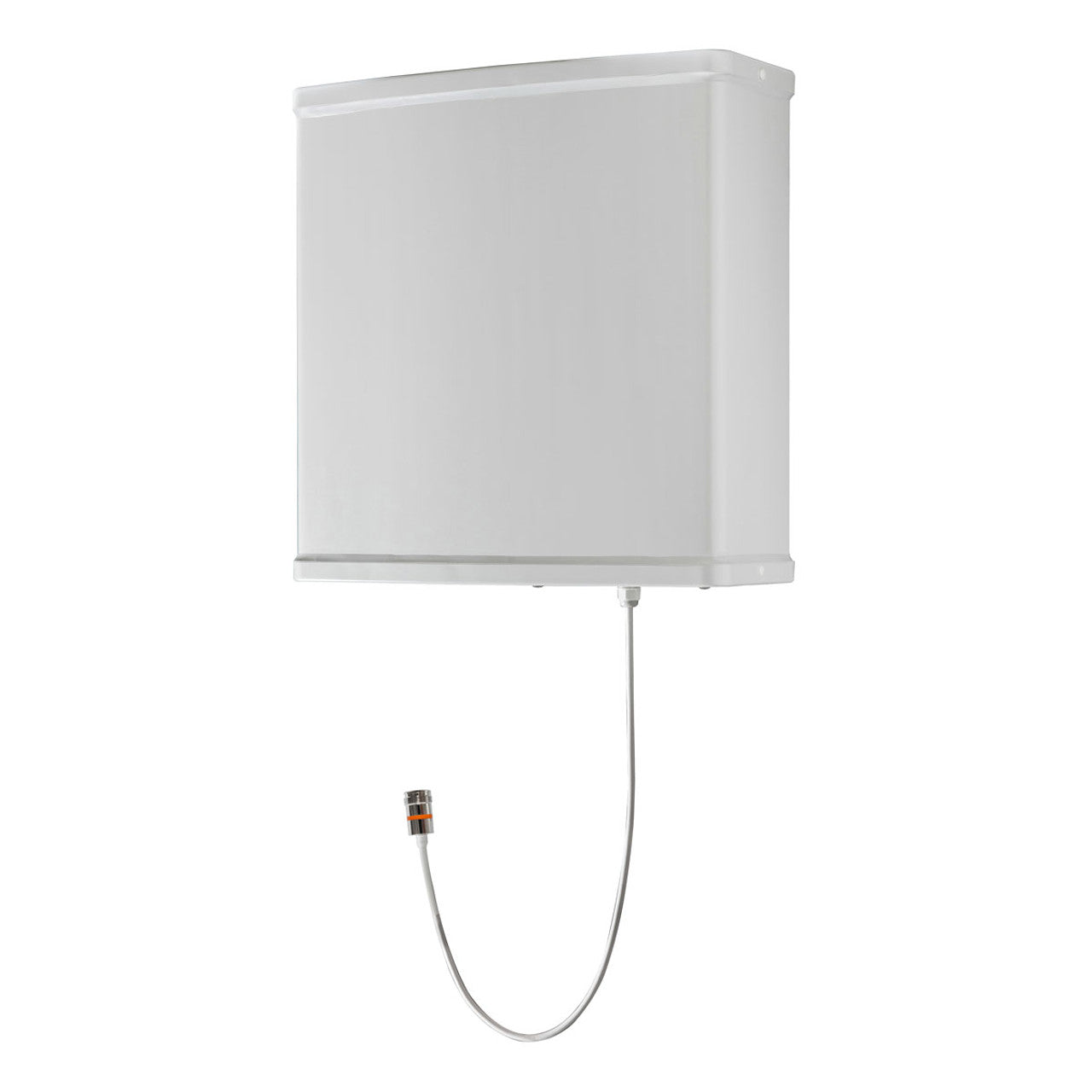

CommScope CMAX-D-43-UW-I53 Low PIM Directional In-building Antenna 617-6000MHz

Introducing the CommScope CMAX-D-43-UW-I53 Low PIM Directional In-building Antenna 617-6000MHz. Crafted to BigCommerce standards it offers:

• Low PIM design for clear signals
• Wide 617-6000MHz frequency range
• Directional performance for focused coverage
• Durable build for indoor environments
• Easy installation and compatibility with various systems. Elevate your in-building connectivity effortlessly.

Specification:

@83/60

Description::

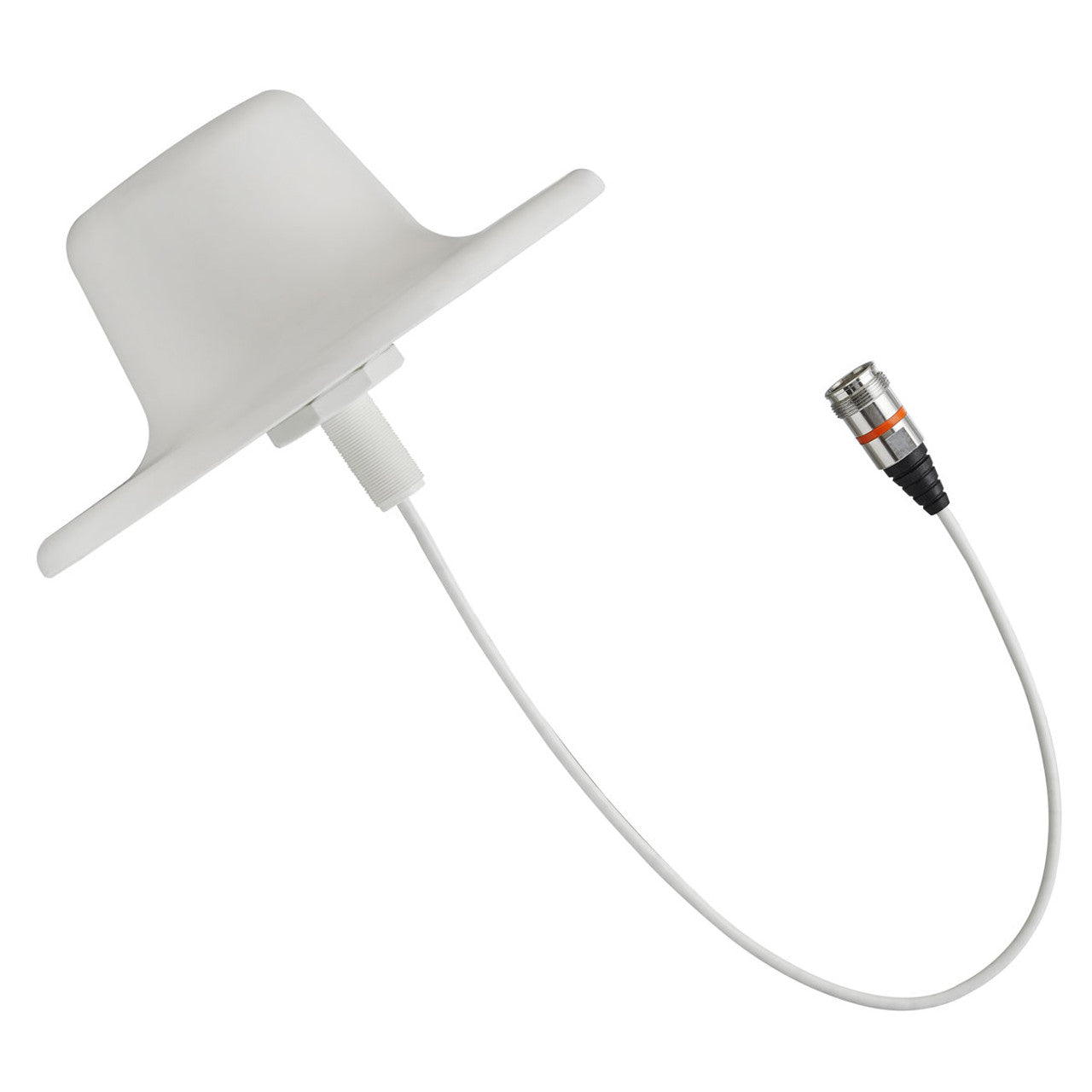

CommScope CMAX-O-43-UW-153 Cell-Max™ Low PIM Omni In-building Antenna 617–6000 MHz

Introducing the CommScope CMAX-O-43-UW-153 Cell-Max™ Low PIM Omni In-building Antenna designed to boost indoor cellular coverage across a wide frequency range of 617–6000 MHz.

Key Features

• Low PIM design for clear voice calls and fast data.
• Omni-directional coverage for consistent signal strength.
• High gain for optimal performance in challenging environments.
• Durable construction for long-term reliability.
• Easy installation with seamless integration meeting BigCommerce standards. Upgrade your in-building cellular network effortlessly with CommScope's superior connectivity solution.

Specification:

@15/31
