Description::

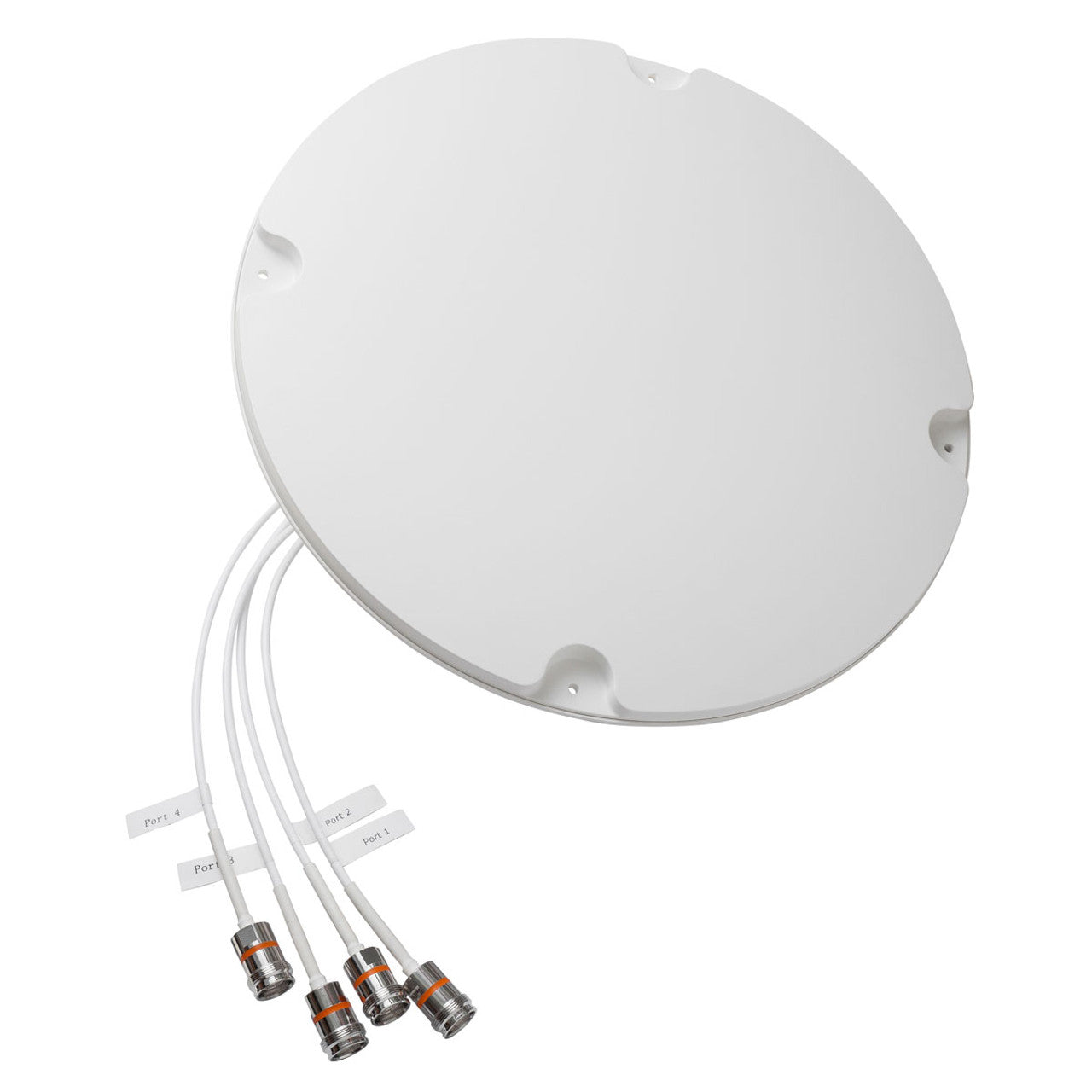

CommScope CMAX-OMF8-43-UWI53 Cell-Max™ Low PIM Omni MIMO In-building Antenna

Introducing the CommScope CMAX-OMF8-43-UWI53 Cell-Max™ Low PIM Omni MIMO In-building Antenna. Designed to meet BigCommerce standards it offers:

Key Features

• Wide Frequency Range: 617 MHz to 6000 MHz coverage.
• Low PIM Design: Minimal interference for crystal-clear signals.
• Omni-directional Coverage: Consistent signal strength in all directions.
• MIMO Support: Enhanced data speeds and network capacity.
• Compact and Sleek: Modern design for seamless integration.
• Durable Construction: Rugged build for long-lasting performance.
• Easy Installation: Streamlined deployment for minimal disruption.

Specification:

@21/41

Description::

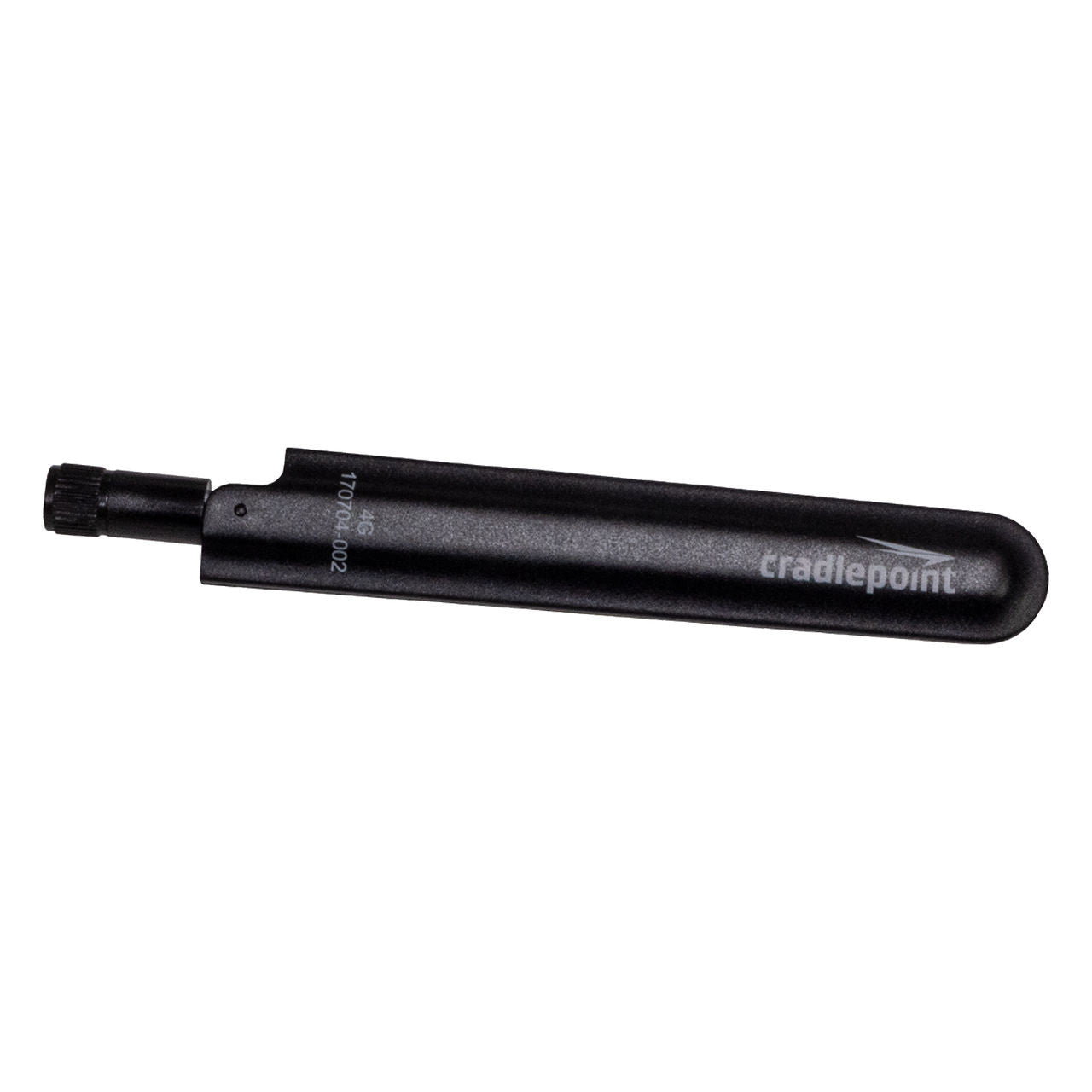

CradlePoint 170704-002 Cellular Antenna Black Mini 600 MHz – 6 GHz SMA for IBR1700/IBR900 AER2200 IBR600C/IBR200

• Length = 140 millimeters
• Gain: 2dBi for 698 – 960 MHz
• Gain: 3dBi for 1700 – 2700 MHz

CradlePoint 170704-002 Cellular Antenna Black Mini 600 MHz – 6 GHz SMA for IBR1700/IBR900 AER2200 IBR600C/IBR200 PRODUCT COMPATIBILITY: With used with 600M 150M 10M modems in the following routers:

• AER2200 Series
• IBR1700 Series
• IBR900 Series
• IBR600C Series
• IBR200 Series

@3/11

Description::

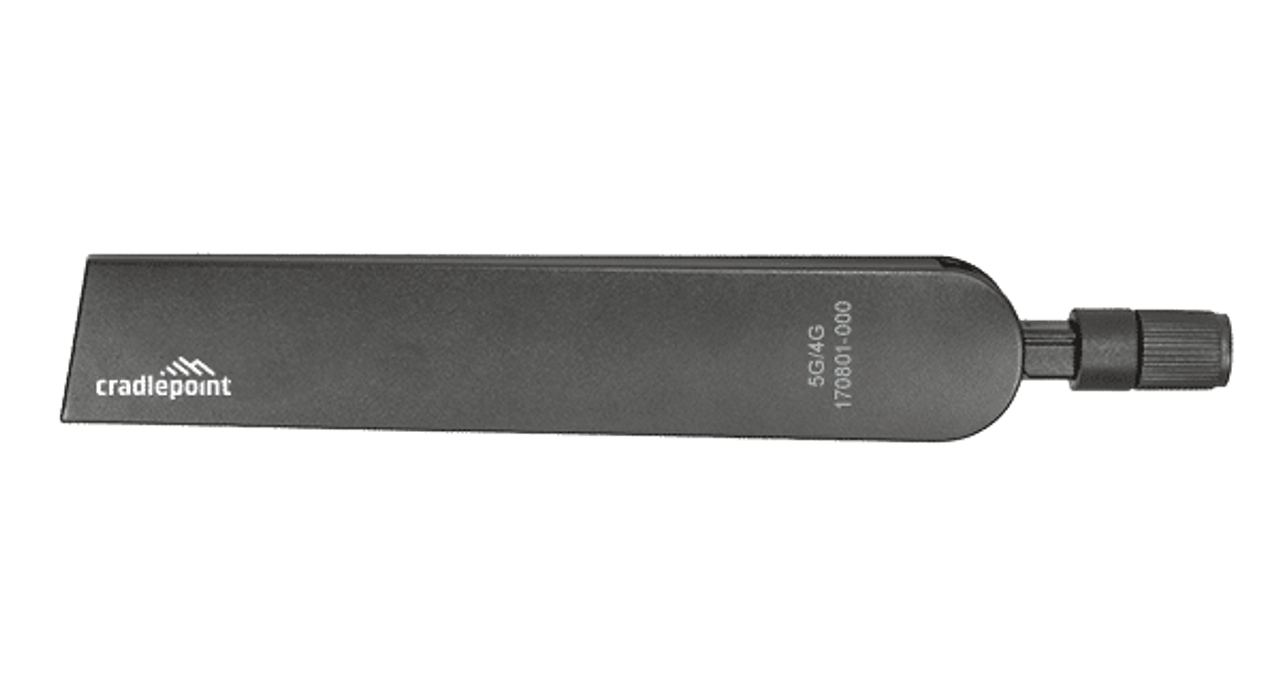

CradlePoint 170801-000 Cellular Antenna Charcoal 600 MHz – 6 GHz SMA for IBR1700/IBR900 AER2200 E300/E3000 MC400

@4/12

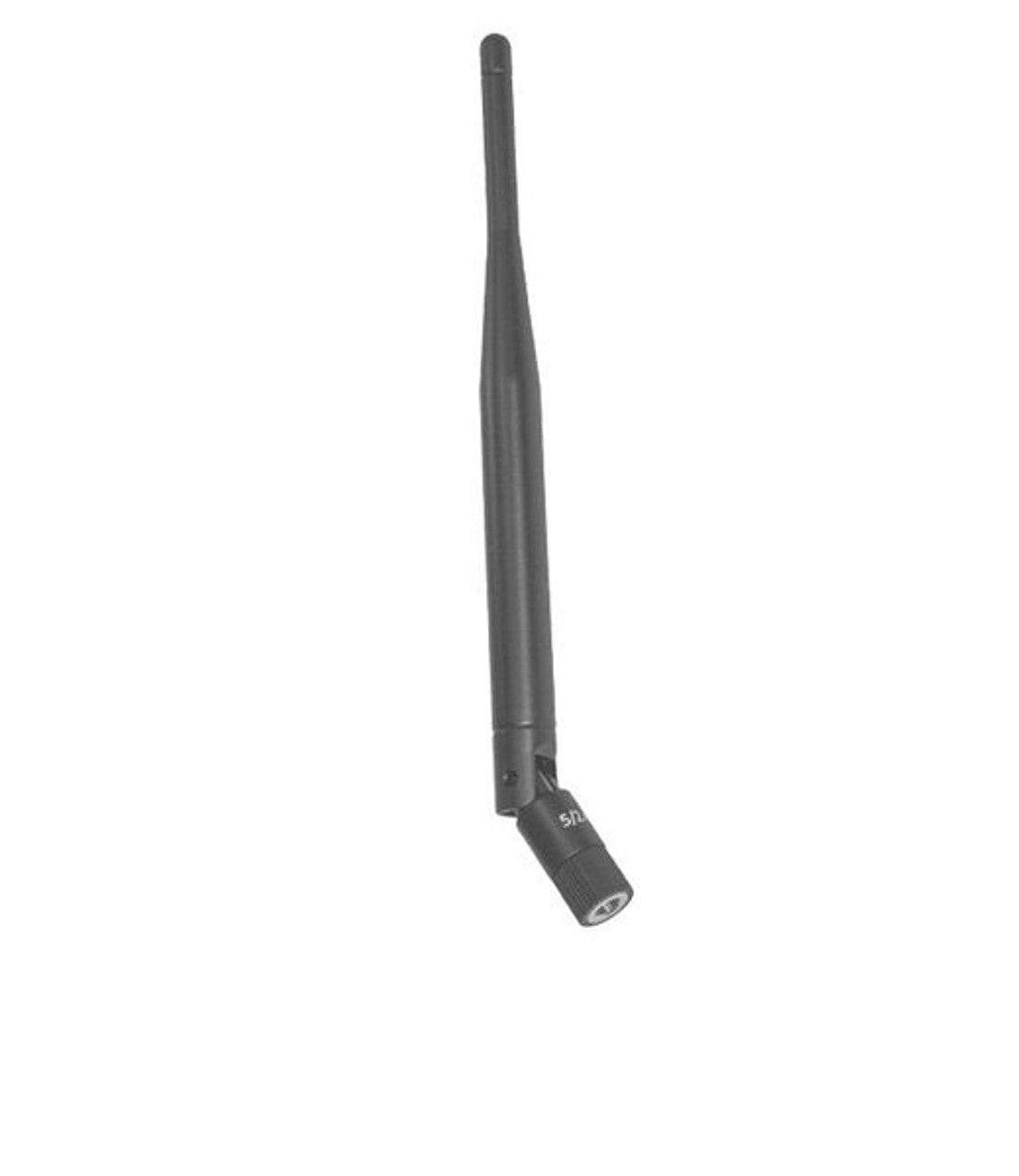

Description::The CradlePoint 170836-000 WiFi Antenna is a high-performance omnidirectional dipole WiFi antenna that is ideal for dual-band wireless communication in the 2.4 GHz and 5 GHz frequency ranges. Durable and lightweight it fits the E3000  AER2200  IBR1700  IBR900  IBR600C  IBR650C  IBR200 and R500 router endpoints with the standard RP-SMA connector. It operates in the 2400 - 2500 MHz and 5150 - 5850 MHz frequency ranges and offers 50-ohm impedance and linear polarization. It is compliant with IEEE 802.11a 802.11b 802.11g 802.11n and 802.11ac wireless standards. A right-angle knuckle allows it to be positioned for the best reception.

@3/11

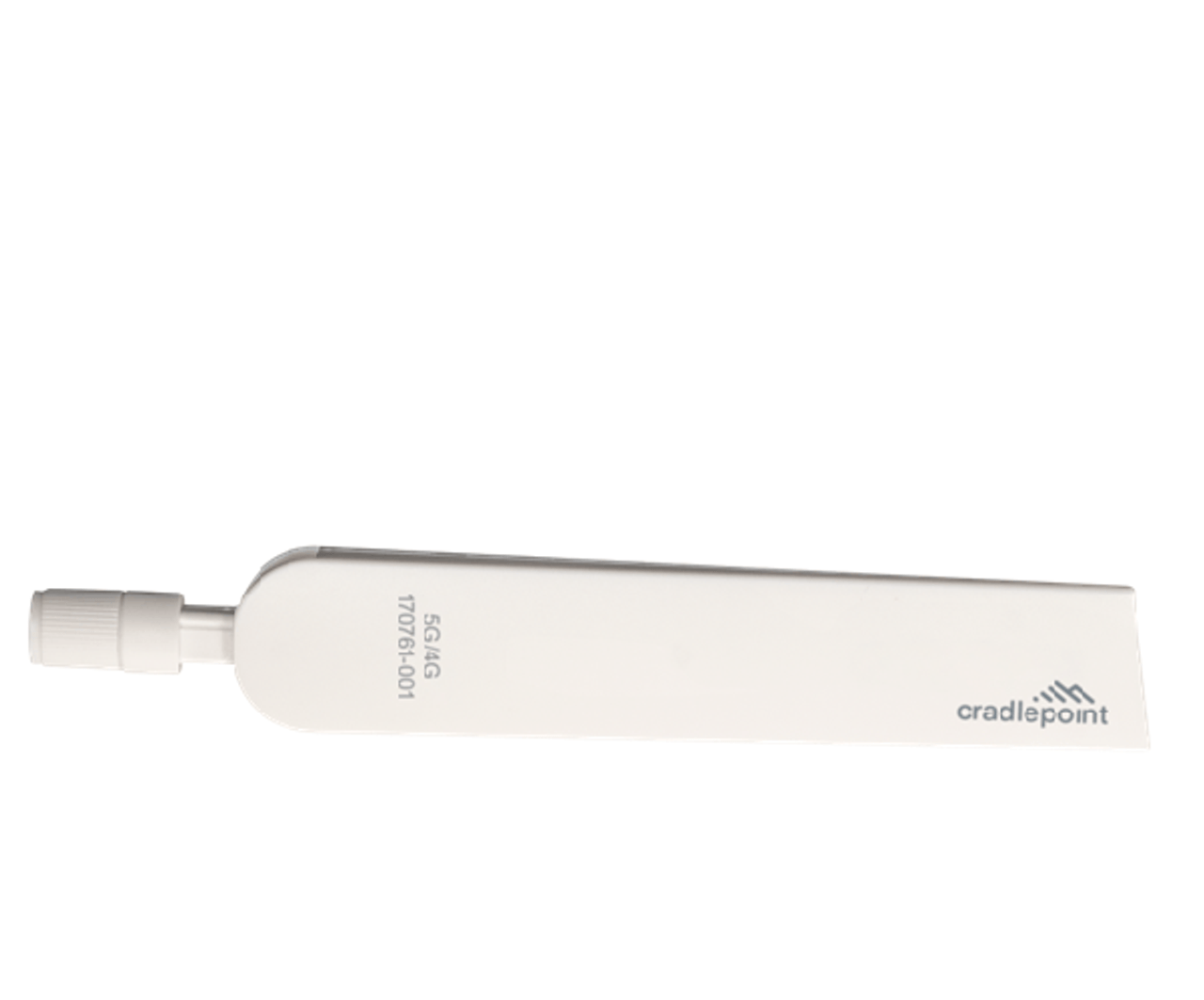

Description::The Cradlepoint Cellular Antenna in White is designed to operate within the frequency range of 600 MHz to 6 GHz this high-gain antenna delivers robust signal reception and transmission capabilities for optimal network efficiency. Engineered with SMA compatibility it seamlessly integrates with Cradlepoint CBA850 W1850 and W2000 devices making it an ideal choice for a wide range of applications including industrial enterprise and remote deployments. APPLICATIONS:

• Enterprise Connectivity: Ideal for enterprises requiring high-speed and reliable connectivity the Cradlepoint Cellular Antenna enhances the performance of wireless routers and provides seamless data transmission for critical applications.
• Industrial IoT Deployments: The antenna is a perfect fit for industrial IoT deployments offering robust connectivity and increased data throughput supporting real-time data monitoring and remote management.
• Remote Locations: Whether it's for remote offices construction sites or off-grid applications the Cradlepoint Cellular Antenna ensures constant connectivity enabling seamless communication and data exchange.
• Public Safety and Emergency Services: In public safety and emergency scenarios the antenna serves as a vital communication link allowing first responders to stay connected and coordinate efficiently.

FEATURES:

• Wide Frequency Range: The Cradlepoint Cellular Antenna covers an extensive frequency spectrum from 600 MHz to 6 GHz providing comprehensive network coverage and excellent performance across multiple frequency bands.
• High-Gain Performance: Equipped with high-gain capabilities this antenna significantly boosts signal strength enabling reliable data transmission and reception even in low-signal areas.
• SMA Connector: Featuring an SMA (SubMiniature version A) connector the antenna ensures secure and efficient connectivity with compatible Cradlepoint routers and modems facilitating a straightforward installation process.
• MIMO (Multiple-Input Multiple-Output) Support: The antenna supports MIMO technology enhancing data throughput and overall network capacity by utilizing multiple antennas for simultaneous data transmission.
• Efficient Radiation Pattern: With its well-designed radiation pattern the Cradlepoint Cellular Antenna offers optimized signal coverage reducing interference and improving signal quality.
• Ruggedized Design: Built to withstand challenging environmental conditions the antenna boasts a ruggedized design ensuring reliable performance in extreme temperatures high winds and other demanding scenarios.
• Versatile Mounting Options: The antenna provides flexibility in mounting allowing for installation on walls poles or other structures and adapting to various deployment scenarios.

@4/12

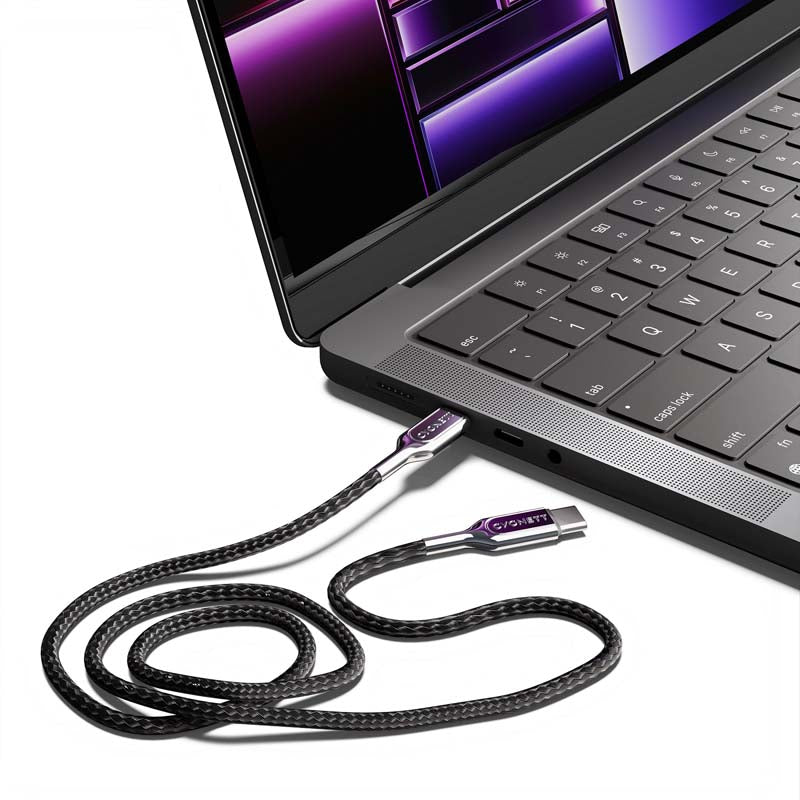

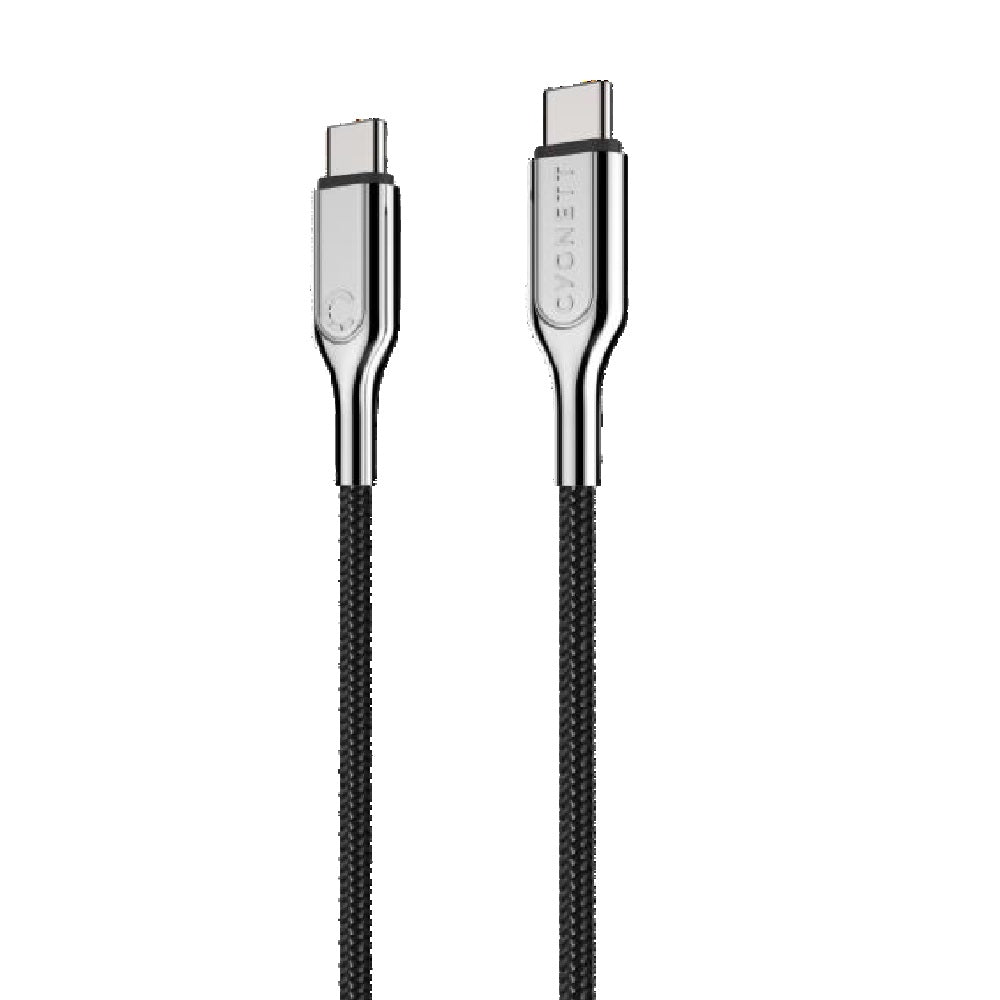

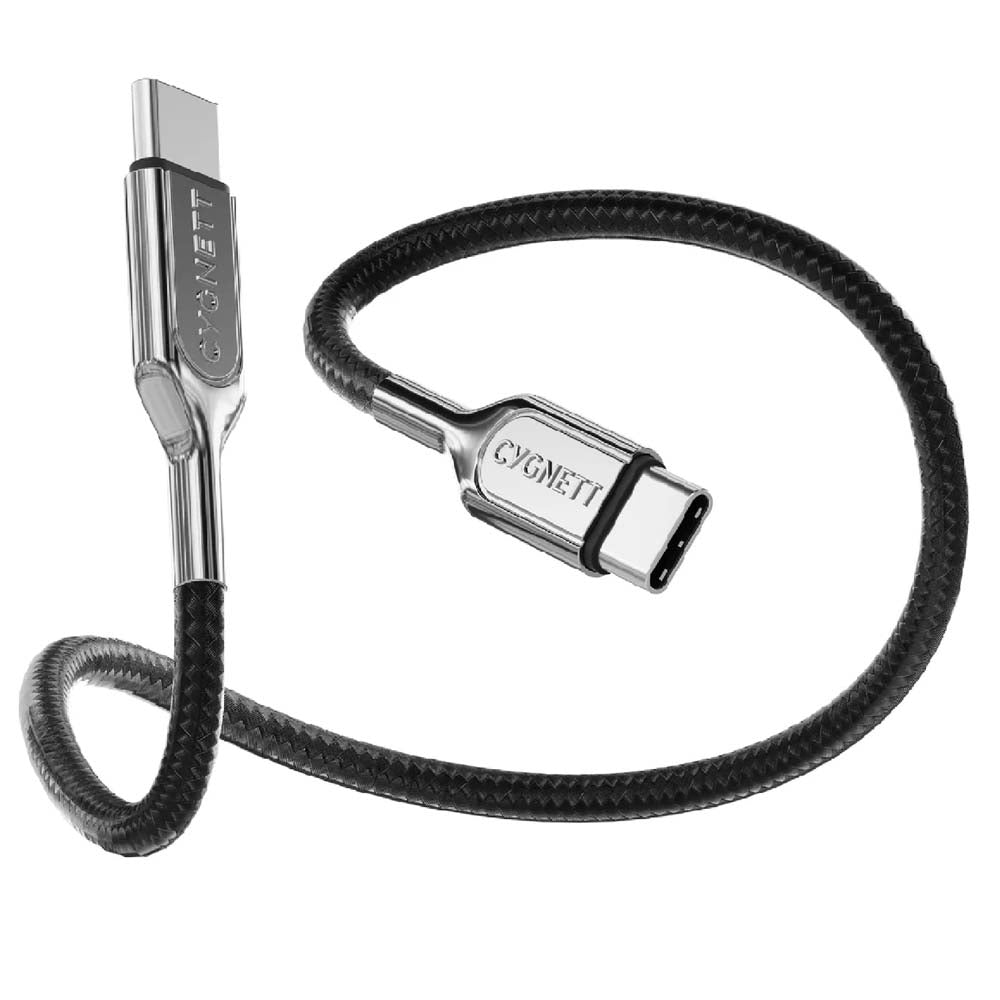

Cygnett Armoured Pro 240W USB-C to USB-C (4.0) Cable (1M) - Black (CY4543PCCCC)

Cygnett 1m Armoured Pro USB 4.0 240W USB-C to USB-C Cable, Up to 40GBPs Data Transfer Speed, 8K Video Output, DuPont Kevlar Aramid Fibre, Double Braided Nylon

Phone and laptop USB-C charging wattage is continuing to increase and a cable outputting only 100w won't be enough to power many high-power laptops or future devices. With this cable, we will be first in the market to offer a cable that can charge at 240w and can offer flagship USB 4.0 40GBPs data transfer speeds - providing the best of both worlds.

USB 4.0 (40GBPs Data Transfer Speed)
The worlds current fastest data transfer speed up to 40GBPs. Reduce wait time and improve your productivity with Cygnett's Armoured Pro Cable.

240W Charging
Market leading performance. Investing in an Armoured Pro cable future-proofs your setup ensuring compatibility with all current and future high-powered devices.

8K Video Output
USB 4.0 can also output up to 8k video, making this cable not only capable of high charging and data transfer, but capable of providing the best-in-class video output experience for pro users.

For the Pro User
These cables are aimed creative professionals, studio environments, video editors, graphic designers, 3D artists, photographers, gamers or anyone who needs to transfer large amounts of data quickly (USB 4.0), display high resolution video (8K) or charge their pro device (240W).

Double Braided Nylon
Our most robust cable design the exterior double braiding allows the cable to resist abrasion whilst maintaining flexibility for ease of use. The cable connectors forged from a metallic alloy provide a refined aesthetic and superior scratch resistance.

Specifications
USB 4.0 (40GBPs transfer speed).
240W Power delivery.
Supports 8K video displays.
Metallic alloy finish.
Double braided nylon.
DuPont Kevlar aramid fibre.
5 years warranty.

What's in the box
USB-C to USB-C Cable
Warranty Card.

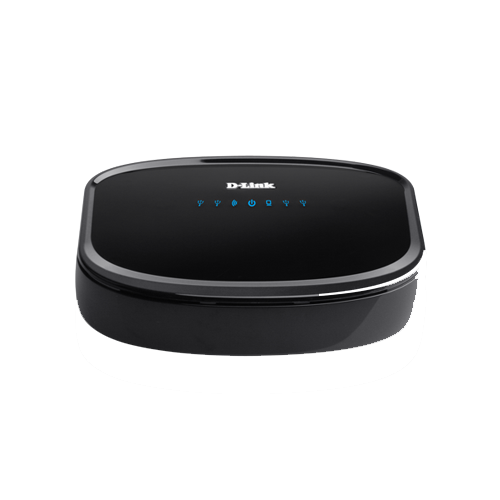

D-Link’s DWR-921 4G LTE Router allows you to access worldwide mobile broadband networks from anywhere in the world. Once connected, you can transfer data, stream media, and browse the Internet. Simply insert your USIM card and share your 3G/4G Internet connection through a secure wireless network or by using any of the four Ethernet LAN ports.


Fast Mobile Internet
The 4G LTE Router lets you connect to your 3G/4G mobile connection with fast downlink speeds of up to 150 Mbps and uplink speeds up to 50 Mbps, giving you the speed you need for fast, responsive Internet access. Surf the web with ease and stream music and video over the Internet to your PCs and mobile devices.


Secure Wired and Wireless Connections
The DWR-921 utilises dual-active firewalls (SPI and NAT) to prevent potential attacks across the Internet. WPA/WPA2 wireless encryption keeps your wireless network secure and your traffic safe, allowing you to securely share your 3G/4G connection without worrying about unauthorized users accessing your network.


Easy to Set Up and Use
Set up your network in minutes; the DWR-921 comes equipped with an easy-to-follow setup wizard to get you up and running right away. Older wireless devices such as 802.11g/b clients are compatible with the 4G LTE Router, helping you get started without issues. This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is unavailable.

DWR-921

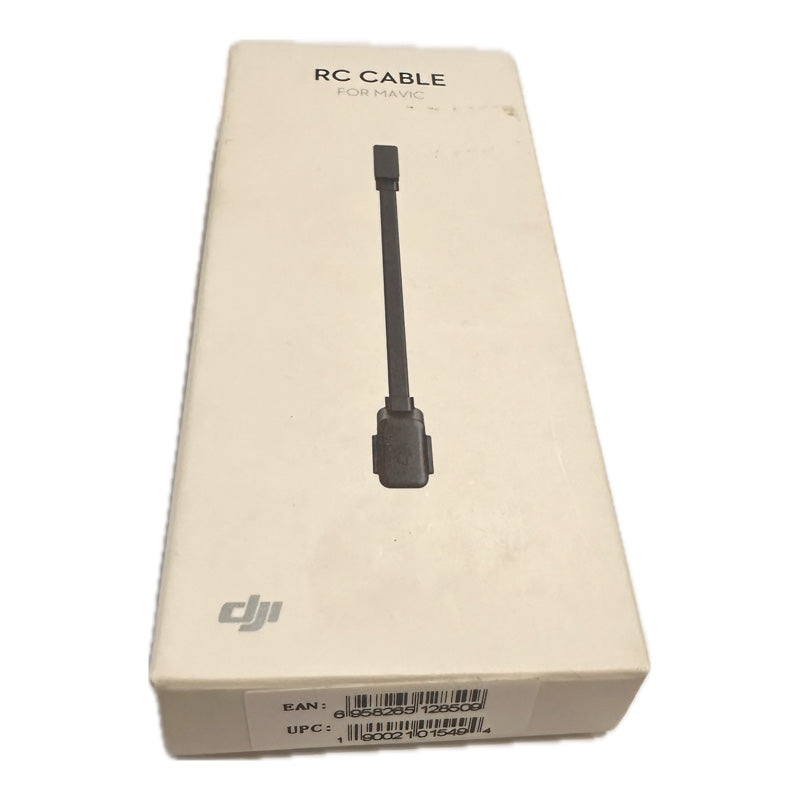

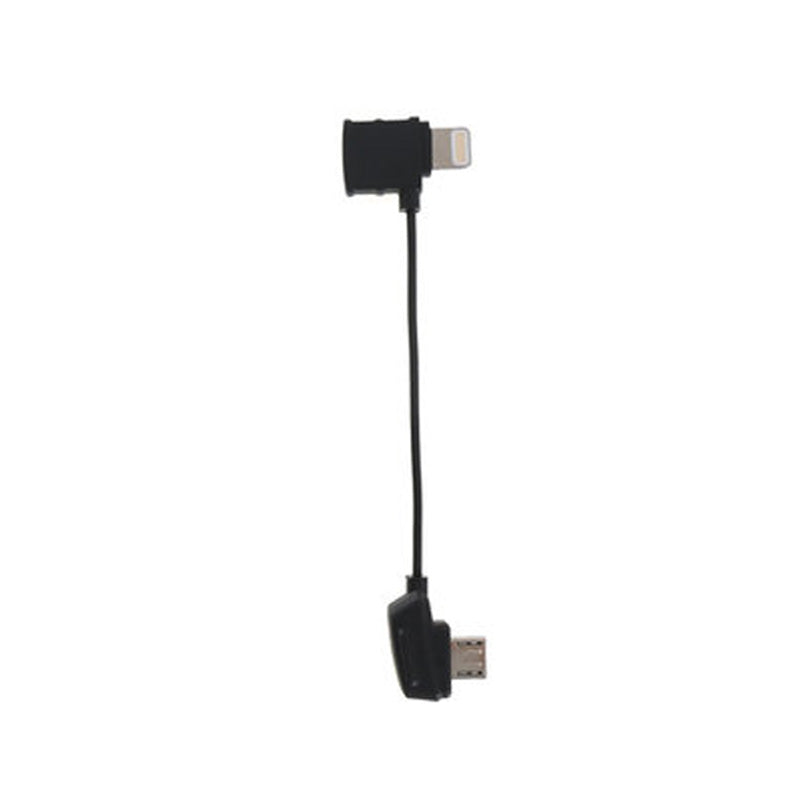

This cable is used to connect your Mavic remote controller to a mobile device via the Lightning port.

What This Product Does
The DPR-2000 Multi-port Wireless G Print Server is ideal for office, school and business deployments. It provides four high-speed USB printer connections from a single device and supports the print, scan and fax capabilities of multifunction equipment. This print server offers the easiest and most cost-effective way to share your printers and equipment across a wired or wireless network.

Share USB Printers and Multifunction Equipment
The DPR-2000 Multi-port Wireless G Print Server lets you share up to four USB printers among your office workers across a wired or wireless network. With four USB 2.0 ports, this print server can create up to four printer connections from any workstation, so users can send documents from their PC to the networked printers to print. In addition, it also supports the scan and fax functions of multifunction equipment, so users can send faxes directly from their computers, or scan images without having to attach scanners to their PC. If you plan to cluster together multiple printers or multifunction equipment at a central place, this print server can reduce costs and simplify installation.

High Performance and Ease of Use
Equipped with a powerful CPU and a large buffer RAM, the DPR-2000 performs operations quickly and efficiently. All devices attached to it can print, scan, and fax at the same time, giving you the performance of four separate single-port print servers at a fraction of the cost. For wireless connections, an integrated Wi-Fi Protected Setup (WPS) function allows you to set up a secure connection from this print server to your wireless router or access point, and then on to all wireless users, in a matter of minutes.

Access Security and Multiple OS Support
The DPR-2000 provides the necessary security by allowing the administrator to configure user access right to the network printers and equipment. It supports a wide range of network operating systems, including Windows, Mac OS, Linux and Unix. Operation is completely transparent, so users can enjoy hassle-free performance, flexibility and compatibility.

Remote Printing Support
The DPR-2000 supports the Internet Printing Protocol (IPP), enabling remote users to output files to their office printers even when they are away from the office. This print server also provides network administrators with critical information about the networked printers so they can monitor the printers’ operation in a timely manner.

SPECS
LAN Type

• 10/100 / Wireless LAN


Wireless LAN

• Yes

Number of LAN Connections

• 1

Wireless Speed

• 54 Mbps

Wireless Standards

• N/A

Aprox Wireless Range (m)

• N/A

Other Connectors

• 4 x USB 2.0

Security

• WEP (128 bit)
• WEP (64 bit)
• WPA
• WPA2

The EN-9320TX-E is a 10 Gigabit Ethernet PCI Express Server Adapter designed for the high-speed PCI Express bus architecture. This meets the high-performance requirements such as large file transfers and HD video editing, which utilizes high-performance shared storage system to have improved server efficiency and network performance. Connecting the EN-9320TX-E with the RJ45 cable, your system instantly upgraded to superior performance in fast and reliable10Gbps high-speed.

The EN-9320TX-E is an ideal selection to upgrade your server or workstation as the high-performance, low-power consumption and better-quality solution to complement the requirements of low latency, high bandwidth, high-throughput and cost-effective Gigabit Ethernet Adapter.

10GbE Superior Network Speed

Equipped with a 10 Gigabit RJ45 interface, the EN-9320TX-E can provide 10 times better performance than existing Gigabit transmissions.​

Advanced Features & Security
The EN-9320TX-E features 802.1Q Virtual LAN (VLAN) tagging for Ethernet frames providing network management with a flexible and more secure environment. Moreover the card supports advanced features for best performance such as 16K Jumbo Frame and IEEE 802.3x Flow Control.​

Cost Effective and Easy Migration 10G Adapter
The Cost-effective solution of 10Gbps high-speed adapter on 10 Gigabit network connection – offering full compatibility to 10/5/2.5/1Gbps and 100Mbps networking standards and existing copper network.

Key Features

• PCI Express rev.2.0 specification x 4 interface
• 10 Gigabit throughput with 100-meter UTP cable
• Backward compatible with 1000Bast-T, 100 Base-TX network
• 16K jumbo frames
• IP, TCP, UDP checksum offloading
• Reduced CPU utilization and improved though
• Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS
• Low profile bracket included

Application Diagrams

Other 10GbE Products

Web Smart Switch XGS-5008

SFP + PCI Express Adapter EN-9320SFP+

SFP + Module MG-10G Series

SPECS
Hardware

Attachment interface

• PCI Express Rev. 2.0 Specification x4 Interface

Media Interface

• RJ-45 Connector

Jumbo Frame

• 16K Bytes

LED Indicators

• LNK / ACT Per Port

Typical Power Consumption

• 4 Walls

Software
OS Compatibility

• Windows Server 2012 R2, Server 2012, Server 2008R2, Server 2016
• Windows 10, Windows 8.1, Windows 7 (32/64-bit)
• Linux 4.x, 3.x, Linux 2.6.x (32/64-bit)
• Mac OS X 10.10.X (Yosemite)
• Mac OS X 10.11.x (EL Captain)
• MAC OS Sierra (10.12.x)
• VMware ESXi 6.0, 5.5, 5.1
• Microsoft Hyper-V
• Linux KVM
• Oracle VirtualBox ​

Environment
Temperature

• Operating: 0 - 50 ℃
• Storage: -40 - 85℃

Humidity (Non-condensing)

• Operating: 5 - 95%
• Storage: 5 - 95%

Physical Characteristic
Dimensions (WxD)

• 82 x 62mm

Weight

• 45g

Standards Compliance
Standards and Protocols

• IEEE 802.3ae: 10Gbps Ethernet
• IEEE 802.3x: Flow Control and Back Pressure
• IEEE 802.2ad: Link Aggregation
• IEEE 802.1Q VLAN support
• RFC2819 RMON MIB statistics

Certifications

• FCC, CE

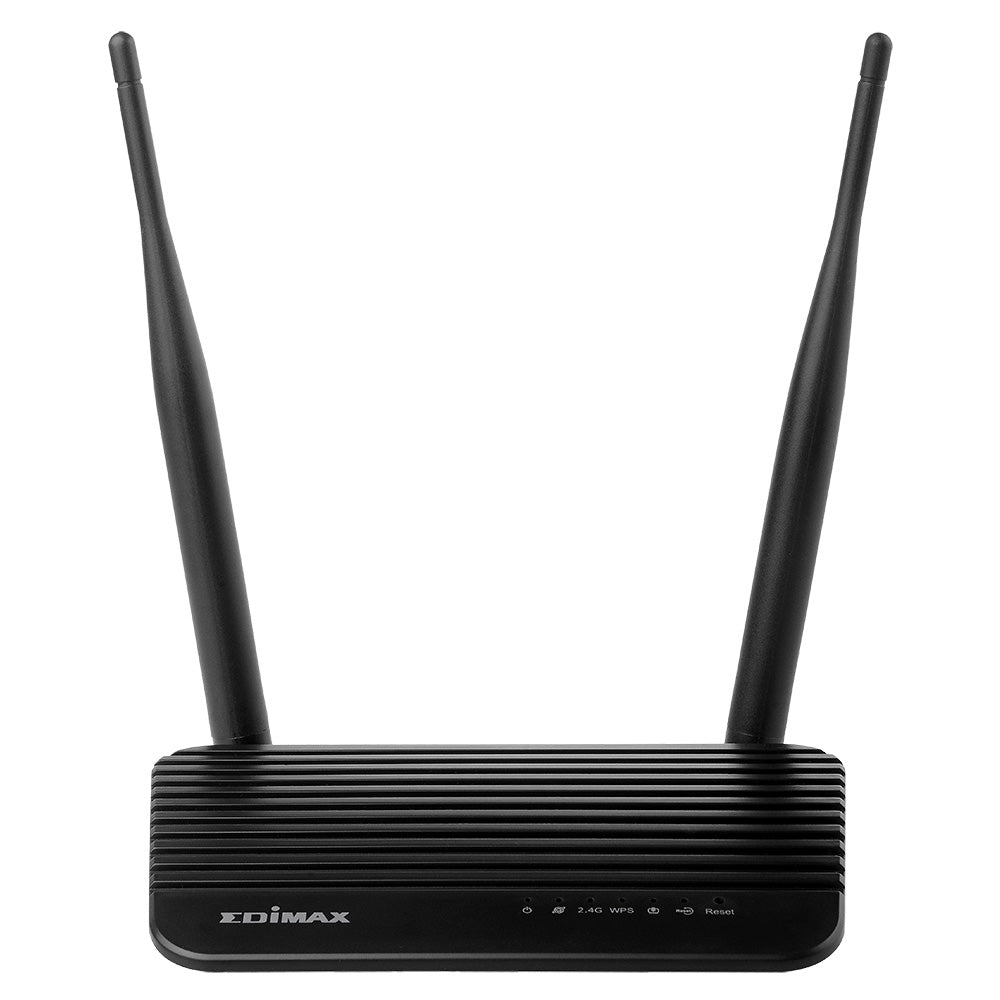

5-in-1 N300 Wi-Fi Router, Access Point, Range Extender, Wi-Fi Bridge & WISP

The BR-6428nS V4 is a 300Mbps high-speed 5-in1 multi-function Wi-Fi solution which supports IEEE 802.11b/g/n standards and provides significantly improved coverage with the High-gain antenna. Operating as a router, access point, range extender, Wi-Fi Bridge or WISP, the BR-6428nS V4’s flexibility meets the demands of any networking applications. The smart iQ Setup wizard makes setup and installation as easy as a few clicks. Impressive performance and a competitive price make the BR-6428nS V4 a cost-effective solution for home or small office environments.



5-in-1 Wi-Fi Router, Access Point, Range Extender, Wi-Fi Bridge and WISP
The BR-6428nS V4 can work as router, access point, range extender, Wi-Fi Bridge or WISP. Just configure the mode you need for your network environment using the smart iQ Setup wizard.

Switch mode using the smart iQ setup wizard on any device with a web browser, no CD required.
*Mobile device setup requires iOS 4.0 or Android 4.0 and above

Smart iQ Setup
Features iQ Setup for smart, automatic and quick installation with no CD required

Edimax’s Revolutionary iQoS

iQoS is Edimax’s solution for a quicker, easier, and more effective way to manage Internet bandwidth. While Quality of Service (QoS) functionality is a common feature in routers across the market, typically only advanced users have the knowledge required to set up the complex parameters. Edimax though has redesigned QoS with user-friendliness and accessibility in mind. A simple and intuitive user interface allows users to arrange bandwidth priority settings in just a few clicks. With iQoS, you can enjoy gaming, video streaming,

VoIP applications and BT clients at the same time without the usual nightmare of lag and interruptions.

An original, efficient and effective means of managing your Internet bandwidth.

Multi-SSID & VLAN Support*

Multi-SSID enables users to configure up to five separate SSIDs in order to group and manage users according to your requirements.
*Access point mode only

​

Guest Network*

Supports a guest network to provide connectivity while isolating guests from your primary network.
*Router mode only​

APPLICATION DIAGRAM

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.

SPECS

FUNCTIONS

• ​Supports router, access point, range extender, wireless bridge and WISP modes
• Guest Wi-Fi network in router mode
• Up to 5 SSIDs in AP mode
• IGMP proxy and IGMP snooping
• DDNS and DHCP
• Port triggering for special applications
• Virtual server and DMZ hosting
• MAC/IP filter and URL blocking
• iQoS for smart bandwidth management
• ​Static routing
• UPnP architecture
• VPN pass-through (IPSec/PPTP)
• Wi-Fi schedule control
• Fault tolerance firmware upgrade

HARDWARE INTERFACE

• ​1 x RJ-45 Fast Ethernet WAN port
• 4 x RJ-45 Fast Ethernet LAN port
• LED indicators: power, WAN, Wireless, WPS, new firmware notice and firmware upgrade status
• 2 x High-gain antennas
• WPS/Reset button

MANAGEMENT & INSTALLATION

• ​Multi-language user interface
• Supports remote management
• System status and security log
• Firmware upgradable
• Smart iQ Setup, no CD required

WAN

• ​Supports WISP connection mode
• Supports RJ-45 cable/xDSL modem
• Supports DNS Proxy
• WAN protocol: PPPoE, Static IP, Dynamic IP, PPTP and L2TP

SECURITY

• ​NAT/NAPT IP sharing
• 64/128-bit WEP encryption and WPA-PSK and WPA2-PSK security
• DHCP server/client
• QoS for critical operations
• SPI anti-DoS firewall

OUTPUT POWER & RECEIVE SENSITIVITY

Output Power

• ​11b (11Mbps): 20±1.5dBm
• 11g (54Mbps): 18±1.5dBm
• 11n (20MHz, MCS7): 18±1.5dBm
• 11n (40MHz, MCS7): 18±1.5dBm

Receive Sensitivity

• 11b(11Mbps): ‐85±2dBm
• 11g (54Mbps): ‐68±2dBm
• 11n(20MHz, MCS7): ‐68±2dBm
• 11n(40MHz, MCS7): ‐68±2dBm

MEMORY

• 4MB NOR Flash
• 32MB SDRAM

HUMIDITY & TEMPERATURE

• ​10-90% (non-condensing)
• 0-40°C

POWER ADAPTER

• DC 5V, 1A

DIMENSIONS

• 145mm x 88mm x 24mm

WEIGHT
       •140g

PACKAGE CONTENT

• Broadband router (main body, 1 pcs)
• Quick Installation Guide (1 pcs)
• One CD-ROM (Including the Setup Wizard, Multi-languages Quick Installation Guide and User Manual)
• 5V DC power adapter (1 pcs)
• Ethernet Cable

  HARDWARE INTERFACE

.

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.

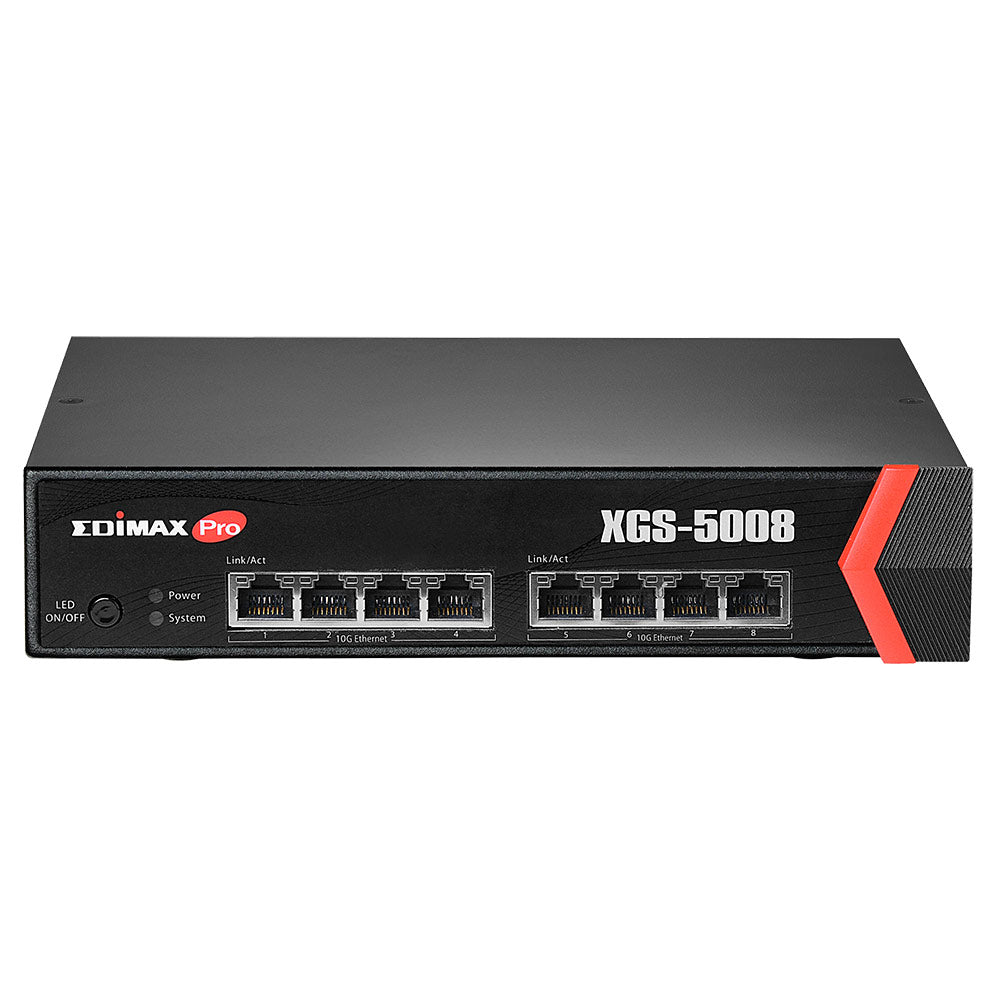

The Edimax Pro GS-5008 is a web-smart switch with 8-port 10GbE. High-speed 10GbE networks are no longer a platform that only large enterprises can afford. The increasing adoption of 10GbE NIC adapters by server and storage vendors is opening up the opportunity for 10GbE connectivity deployment for customers of all sizes – and the XGS-5008 features standard 1U rack-mount brackets for integration with the most widely-used mounting systems on the market. The XGS-5008 is a superb choice to boost your network environment’s performance and efficiency.

Smart Tools for Improved Network Efficiency
The XGS-5008 features smart network monitoring tools that allow for improved network efficiency. Security and management features include bandwidth control and VLAN (IEEE 802.1Q VLAN tagging and port-based VLAN). Using its web-based interface, administrators can set up VLANs to segregate traffic and configure link aggregation settings to create fat traffic pipelines. Additionally, these features offer extra protection on the network edge and the password-protected configuration interface can be accessed remotely.

Leverage Existing Infrastructure
A simpler and cost effective upgrade path to 10-Gigabit Ethernet thanks to backwards compatibility with Fast Ethernet and Gigabit networks using existing Cat 5e. Simply upgrade to Cat 6a and-above cabling to leverage 10GbE connectivity, with Cat 6 twisted pair networks also able to benefit from and leverage 10GbE Copper over shorter distances of up to 37M (with AXTLK) or 55M (without AXTLK). With an existing network infrastructure running Cat 6a or Cat 7 cabling, customers can benefit from higher-grade copper wiring than Cat 5e – supporting higher bandwidth requirements for 10GbE Copper up to 100m using RJ45 connectors.

Extend Support for Converged Environments
Increasing demand for bandwidth that supports intensive applications, with growing data consumption and widespread server/storage visualization adoption, is driving network bottlenecks upwards so much that 10 Gigabit solutions are more critical than ever before. The rise in video and mobile data alone is straining Gigabit networks as more devices, users and content demand bandwidth. Over 90 percent of servers are now shipping with 10GbE port options, with data usage growing almost double every two years. 10GbE delivers an affordable price point for SMBs and larger enterprises with constantly evolving networking demands. Servers, workstations, storage and switching can now leverage the potential of 10GbE easier than ever before.

Key Features

• Elight 10 Gigabit Ethernet ports
• Auto fault-detection on over/under current & voltage
• Access Control List (ACL) Support
• Switch capacity: 160Gbps & Forwarding rate: 119Mpps
• Supports IEEE802.1p QoS with 8 priority queues
• IEEE 802.1 Q-based VLAN for network segmentation to improve performance and security
• Supports IPv4/IPv6 network operation
• 16K MAC address table and jumbo frame support up to 9KB
• 1U rack-mount/desktop steel case

APPLICAITON DIAGRAM

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.

SPECS
Hardware

Ports

• 8 x RJ45 10GbE ports
• 1 x RJ45 console port
• 1 x 12VDC power connector

Transmission Method

• Store and forward

Buttons

• Reset Button
• LED ON/OFF

LED Indicators

• Power
• System
• Per Port: Link/Act
• PoE: Act/Status
• Per Unit: Power

Power Input

• 12 VDC / 3.5A 100-240VAC 50/60hz

Total Power Budget

• 24W

Dimensions (LxWxH)

• 210 × 160 × 44 mm

Weight

• 1.04Kg

Performance
Switching Capacity

• 160Gbps

Forwarding Rate

• 119Mpps

MAC address

• 16K

Buffer Memory

• 16M

Jumbo Frames

• 9KB

Filtering / Forwarding Rates

• 10000Mbps port – 14,880,000pps
• 1000Mbps port – 1,488,000pps
• 100Mbps port - 148,800pps
• 10Mbps port - 14,880pps

Smart Features
VLAN

• Up to 16 VLANs and 4094 VLAN IDs
• 802.1Q tag-based VLAN
• Port-based VLAN

Port Trunking

• Support Trunk-Static trunk up to 4 trunk groups

Mirror

• Port mirroring both on ingress and egress traffic

IGMP Snooping

• IGMP v1/v2 snooping

QoS

• Port-based QoS,
• IEEE802.1p QoS,
• 4 Priority Queues,
• scheduling algorithm

 Management

• User Interface: Web-based management/ CLI (Command Line Interface)
• User Account: Login account configuration
• Firmware Upgrade: Firmware upgrade by WEB
• Loop detection
• Cable diagnostics

Security

• Rate limit: Rate limit on ingress and egress traffic
• Storm control
• Access control

Environment
Temperature

• Operating: 0 ~ 50℃
• Storage: -40 ~ 70℃

Humidity (Non-condensing)

• Operating: 10 ~ 90%
• Storage: 5 ~ 90%

Standards Compliance

Standards

• IEEE 802.3 10BaseT Ethernet
• IEEE 802.3u 100BaseTX Fast Ethernet
• IEEE 802.3ab 1000BaseT Gigabit Ethernet
• IEEE 802.3z 1000BASE-X Gigabit Ethernet
• IEEE 802.3an 10GBase-T 10 Gigabit Ethernet
• IEEE 802.3x Full-duplex and flow control
• IEEE 802.1Q Virtual LANs VLANs
• IEEE 802.1P QoS Port-Based
• IEEE 802.3az Energy-Efficient Ethernet

Certifications

• FCC Class A, CE

The EW-7822ULC is a AC1200 USB adapter that can pair with an 11ac Wave 2 MU-MIMO router. It upgrades your older laptop or PC to a MU-MIMO device and runs selectable dual-band Wi-Fi at speeds up to 300Mbps on 2.4GHz and 867Mbps on 5GHz.

Ultra-Speed With 802.11ac
The EW-7822ULC runs ultra-speed 802.11ac Wi-Fi that’s almost three times faster than 802.11n. Upgrade your laptop or PC to sport 802.11ac Wi-Fi so you can enjoy online video streaming and multiple data transfers at the fastest speeds.

Dual-Band Experience
Experience better performance and greater flexibility for your laptop with dual-band connectivity.
Either the 2.4GHz or 5GHz frequency band can be selected with top speeds at 300Mbps and 867Mbps respectively.

Surf the internet and check emails on the longer-range 2.4GHz band, or use the high-speed 5GHz band for online gaming and YouTube or Netflix HD streaming.

11ac Wave 2 Compliant MU-MIMO
The latest 11ac Wave 2 MU-MIMO (Multi-User - Multiple Input Multiple Output) technology runs four streams and serve multiple devices simultaneously, for the fastest speeds and uninterrupted Wi-Fi connectivity to all devices.

Traditional SU-MIMO
Single device at a time

11ac Wave 2 MU-MIMO
Multiple devices at the same time

MU-MIMO for Non-Stop Streaming
Instantly upgrades your older laptop or PC to the latest 11ac Wave 2 speeds with MU-MIMO functionality. Everyone in the room can enjoy smooth surfing, streaming and gaming at the same time when the EW-7822ULC is successfully paired with a MU-MIMO router.

• 11ac Wave 2 MU-MIMO offers up to 3x faster Wi-Fi speeds
• High performance for mobile speed and range
• Online streaming without interruptions and buffering from other devices

Beamforming Wi-Fi
The EW-7822ULC’s beamforming enables your Wi-Fi signal to be targeted at your adapter for a stronger, more reliable and efficient Wi-Fi connection when it paired with any beamforming router. Meanwhile, beamforming generates directional-targeted Wi-Fi signals, instead of standard Wi-Fi which radiates outwards. This means better audio quality and HD video streaming as you explore your digital wonderland.

Small. Travel-size for laptops
Featuring a nano, lightweight design that can be plugged into any type of laptop for more mobility and convenience. It’s so tiny that it feels like nothing to carry around, and can always be with your laptop.

• Fits your laptop perfectly
• Doesn’t block other USB ports
• Easy portability and won’t fall out of your laptop

SPECS
Hardware

Interface

• 1 x USB 2.0 Type A
• 1 x Link/Activity LED

Antenna

• Internal Antennas x 2 (2T2R)

Dimensions

• 7.1 (H) x 14.9 (W) x 20 (D) mm ​

Wireless

Standards​

• 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
• 5GHz: IEEE 802.11ac, 802.11a, 802.11n

Frequency

• 2.4000 - 2.4835GHz
• 5.150 - 5.825GHz
• FCC: Band 1:  5.150~5.250(GHz)
• Band 4:  5.745~5.850(GHz)
• CE:   Band 1: 5.150~5.250(GHz)

Output Power

• 2.4GHz:

11b(11M): 8±1.5dBm
11g(54M): 7±1.5dBm
11n(20MHz, MCS7): 6±1.5dBm
11n(40MHz, MCS7): 6±1.5dBm

• 5GHz:

11a(54M): 7±1.5 dBm
11n(20MHz, MCS7): 6±1.5 dBm
11n(40MHz, MCS7): 6±1.5dBm
11ac(80MHz, VHTMCS9): 4±1.5dBm

Operating Range

• 11a: 6/9/12/24/36/48/54Mbps
• 11b: 1/2/5.5/11Mbps; 11g: 6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-07, up to 144Mbps
• 11n (40MHz): MCS0-07, up to 300Mbps
• 11ac (80MHz): VHTMCS0-9, up to 867Mbps

Security

• WEP 64/128-bit, WPA, WPA2
• Software WPS Configuration

Others

Package Contents​

• Quick Installation Guide
• CD (Multi-Language Quick Installation Guide & Setup Wizard)

System Requirements

• Windows 7/8/8.1 or above
• Mac OS 10.9 or above

Environment

• Operating Temperature: 32~104°F (0~40°C)
• Storage Temperature: -4~140°F (-20~60°C)
• Operating Humidity: 0~90% (NonCondensing)
• Storage Humidity: Max. 95% (NonCondensing)

The extraordinary growth in the number of wireless devices found in modern homes has seen a huge increase in demand for wireless speed, range and bandwidth. This continuing trend away from wired connections to wireless communication and the ever-increasing throughput demands of new Wi-Fi devices and applications—including Internet TVs, computers, tablets and smartphones—drives the requirements in today’s homes for high-performance, reliable Wi-Fi to unprecedented levels. To meet the connectivity needs of homes and businesses alike, Edimax has launched the BR-6478AC dual-band 802.11ac router: featuring the latest 11ac draft standard for extraordinary improvements in the speed, reliability and quality of wireless communications.

Next-Generation Wireless Networking
The Edimax BR-6478AC router supports the next generation IEEE 802.11ac wireless standard, meaning higher data rates in the 5GHz band. With 300Mbps speeds in the 2.4GHz band and 867Mbps speeds in 5GHz, the BR-6478AC is ideal for HD video streaming and large file transfers. The router is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices.

5-in-1 Router, Access Point, Range Extender , Wireless Bridge and WISP
The BR-6478AC V2 can work as router, access point, range extender, wireless bridge or WISP. Just configure the mode you need for your network environment using the smart iQ Setup wizard.

Concurrent Dual-Band Wi-Fi & Gigabit Ethernet Connectivity
The Edimax BR-6478AC router provides simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility of use. Additionally, the BR-6478AC router features four gigabit LAN ports and one gigabit WAN port, offering data rates of up to a staggering 1000Mbps for users with the need for maximum network performance. With gigabit Ethernet connectivity, the BR-6478AC can provide users a fast and smooth media streaming or network gaming experience.

Smart iQ Setup
Features iQ Setup for smart, automatic and quick installation with no CD required.

Edimax’s Revolutionary iQoS
iQoS is Edimax’s solution for a quicker, easier, and more effective way to manage Internet bandwidth. While Quality of Service (QoS) functionality is a common feature in routers across the market, typically only advanced users have the knowledge required to set up the complex parameters. Edimax though has redesigned QoS with user-friendliness and accessibility in mind. A simple and intuitive user interface allows users to arrange bandwidth priority settings in just a few clicks. With iQoS, you can enjoy gaming, video streaming, VoIP applications and BT clients at the same time without the usual nightmare of lag and interruptions. An original, efficient and effective means of managing your Internet bandwidth.

Guest Network*
Supports a guest network to provide connectivity while isolating guests from your primary network.
*Router mode only

WPS (Wi-Fi Protected Setup) Button & Built-In WLAN On/Off Switch
The Edimax BR-6478AC allows users to build secure connections with WPS enabled wireless devices simply by pressing the WPS button - there is no need for the hassle of complex set up and configuration procedures. And with the built-in WLAN on/off switch users can also easily switch on/off the wireless connection without logging into the user interface – an easy way to save electricity when it is not in use.

VPN Access for Privacy & Security
Built-in Virtual Private Network (VPN) support for easy VPN access on all your devices. VPNs enable you to access secure, remote networks from anywhere and can offer privacy and security online. Log in to your work/school network remotely or avoid geoblocking, protect privacy on public Wi-Fi and bypass Internet censorship.

Home Users: Avoid regional restrictions and access geo-blocked content such as Netflix or iPlayer from anywhere. Ensure your privacy and anonymity online and defeat censorship and other location-based content restrictions. You can also remotely access your home network when you’re away, and use your encrypted VPN for security when out and about using potentially unsafe public Wi-Fi hotspots.

Small Office Users: Enable your employees to access company resources remotely such as email, documents saved on the company server and any programs/systems when they are outside the office.

Multi-Function USB Port
Connect a USB hard-drive and enjoy your own private cloud storage. Keep content on your central storage and access it from any device on your network, such as movie and TV streaming to PCs or smart TVs, or for regular backups of vital data. With the built-in VPN function you can even access your network remotely when you’re away from home. It can also be used with an FTP server or printer, so any devices on your network can print over your Wi-Fi.

SPECIFICATIONS
FUNCTIONS

• Supports router, access point,  Wi-Fi range extender, Wi-Fi Bridge & WISP modes
• Supports Open VPN Server for private network with high security & flexible
• DNS proxy for filtering and monitoring illegal DNS traffic
• Guest network
• Up to 10 SSIDs (2.4GHz x 5 and 5GHz x 5) with VLAN support in AP mode
• IGMP proxy and IGMP snooping
• DDNS and DHCP
• Port triggering for special applications
• Virtual server and DMZ hosting
• MAC/IP filter and URL blocking
• iQoS for smart bandwidth management
• Static routing
• UPnP architecture
• Wi-Fi schedule control

HARDWARE INTERFACE

• 1 x RJ-45 10/100/1000Mbps gigabit WAN port
• 4 x RJ-45 10/100/1000Mbps gigabit LAN port
• LED indicators: Power, Internet, WLAN, USB
• 2 x Dual-band antennas
• Reset/WPS button
• 1 x USB 2.0 port

MANAGEMENT

• Multi-language user interface
• Supports remote management
• System status and security log
• Fault tolerance firmware upgradable
• Auto firmware upgrage
• Auto restart while malfunction (Watch Dog)
• Smart iQ Setup, no CD required
• Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup).

WAN

• WAN protocol: PPPoE, static IP, dynamic IP, PPTP and L2TP
• Supports WISP connection mode

MEMORY

• 8MB NOR Flash
• 64MB RAM

HUMIDITY & TEMPERATURE

• 10-90% (non-condensing)
• 0-40oC

POWER ADAPTER

• DC 5V, 2A

DIMENSIONS & WEIGHT

• 196mm x 114mm x 36mm

To meet today’s high-speed connectivity needs, Edimax has launched the BR-6288ACL dual-band 802.11ac router with the latest 11ac standard for extraordinary improvements in the speed, reliability and quality of wireless communications.  It’s a 5-in-1 dual-band Wi-Fi router with an easy 3-step setup using a smartphone app or web-based smart iQ setup, which meets all of your Wi-Fi demands and is the first product of its kind to feature a green, power-saving TX power switch to adjust the Wi-Fi signal strength. The smartphone app and web-based interface also support auto firmware upgrade and the sleek design provides a unique, space-saving aesthetic which blends with any interior and delivers wide-reaching Wi-Fi coverage.

​11ac The Latest High-Speed Wireless Networking
The Edimax BR-6288ACL router supports the latest  IEEE 802.11ac wireless standard, meaning higher data rates in the 5GHz band. With 150Mbps speeds in the 2.4GHz band and 433Mbps speeds in 5GHz, the BR-6288ACL is ideal for HD video streaming and large file transfers. The router is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices.

Concurrent Dual-Band Wi-Fi Connectivity
The Edimax BR-6288ACL router provides simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility of use.

Smartphone App & Smart iQ Setup
Features smartphone app setup or web-based setup for quick, automatic installation with no CD required, to get your product up and running without any difficult configurations or hassle. The smartphone app and web-UI also feature a new automatic firmware update function.

Auto Firmware Upgrade
Don’t worry about downloading new firmware files and keeping your router up to date. The BR-6288ACL supports auto firmware upgrade through the smartphone app and web-UI, so you can check the firmware status and upgrade to the latest version quickly and automatically – minimum fuss required.

Green Wi-Fi TX Power Switch
Featuring a new hardware slide switch to easily adjust between normal and green TX power (the strength of the Wi-Fi signal).  In normal mode the device transmits with maximum TX power for wide coverage in large homes. But if you only need Wi-Fi in your room or inside a smaller house, you can switch to green mode to reduce TX power to less than 75% and reduce energy usage by up to 30%.

Edimax’s Revolutionary iQoS
iQoS is Edimax’s solution for a quicker, easier, and more effective way to manage Internet bandwidth. While Quality of Service (QoS) functionality is a common feature in routers across the market, typically only advanced users have the knowledge required to set up the complex parameters. Edimax though has redesigned QoS with user-friendliness and accessibility in mind. A simple and intuitive user interface allows users to arrange bandwidth priority settings in just a few clicks. With iQoS, you can enjoy gaming, video streaming, VoIP applications and BT clients at the same time without the usual nightmare of lag and interruptions. An original, efficient and effective means of managing your Internet bandwidth.

The next generation 802.11ac wireless standard is set to revolutionize Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your wireless device to dual-band 802.11ac with the fastest possible USB 2.0 connectivity for blistering Wi-Fi speeds on the interference free 5Ghz frequency band.

Next Generation Wi-Fi Standard
The Edimax EW-7811UTC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433Mbps at 5GHz - almost three times as fast as 802.11n. Upgrade PCs and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.

Dual-Band Connectivity
Enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW-7811UTC provides connectivity for the 2.4GHz band at speeds of 150Mbps or 5Ghz band at speeds of 433Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

Download and Stream Anywhere
Use the EW-7811UTC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

Compact & Convenient
Designed for efficiency and performance, the mini-sized adapter is lightweight, sleek and portable. Incorporating 11ac technology into users’ lifestyles and unlocking a new world of potential Wi-Fi applications, the low-profile mini-adapter sits almost unnoticed in any USB drive and travels with your laptop wherever your lifestyle takes it.

Wi-Fi Protected Setup (WPS) Button
The EW-7811UTC has a one-click Wi-Fi Protected Setup (WPS) button to help you set up and activate a secure wireless network in a snap.

Application Diagrams

SPECS
Hardware

• 1 x USB 2.0 Type A

•   1x Hardware WPS Button

• 1 x Link/Activity LED

Output Power

• 2.4GHz

11b (11Mbps): 17dBm±1.5dBm
11g (54Mbps): 15dBm±1.5dBm
11n (20MHz, MCS7): 14dBm±1.5dBm
11n (40MHz, MCS7): 14dBm±1.5dBm

• 5GHz

11a (54Mbps): 14dBm±1.5dBm
11n (20MHz, MCS7): 13dBm±1.5dBm
11n (40MHz, MCS7): 13dBm±1.5dBm
11ac (80MHz, MCS7): 12dBm±1.5dBm

LED

• Link/Activity

Standards

• 2.4GHz: IEEE 802.11b, 802.11g, 802.11n

• 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

Installation

• Easy setup wizard

• Hardware WPS Button for Easy Wireless Connections

Security

• WEP 64/128-bit, WPA, WPA2, 802.1x

• Hardware & Software WPS Configuration

Dimensions

• 40 (H) x 16 (W) x 7 (D) mm

Frequency Band

• 2.4000 - 2.4835GHz (subject to local regulations)

• 5.150 - 5.825GHz (subject to local regulations)

Operation Range

• 11a: 6/9/12/24/36/48/54Mbps
• 11b: 1/2/5.5/11Mbps
• 11g: 6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-7 (up to 72Mbps)
• 11n (40MHz): MCS0-7 (up to 144Mbps)
• 11ac (80MHz): MCS0-9 (up to 433Mbps)

Temperature & Humidity

• Max. 95% (non-condensing)
• 32 - 104°F (0 - 40°C)

Smartphones, tablets and laptop computers are everywhere, and they all rely on one thing - fast Wi-Fi. TVs, games consoles, security cameras, lighting and an ever-growing range of household appliances are all becoming network-connected devices and high-performance, reliable Wi-Fi is essential in modern homes for the things people use every day. The Edimax EW-7208APC dual-band 802.11ac access point meets the connectivity needs of homes and small businesses alike.  Featuring the latest, high-speed 11ac standard for noticeable improvements in Wi-Fi speed and performance, triple antennas for expansive coverage, easy setup and advanced features such as VLAN support, and multiple SSIDs, the EW-7208APC is an all-in-one solution to equip your home network for today and tomorrow’s Wi-Fi demands.

11ac Wireless Networking
The Edimax EW-7208APC supports IEEE 802.11ac wireless standard, meaning higher data rates in the 5GHz band. With 300Mbps speeds in the 2.4GHz band and 433Mbps speeds in 5GHz, the EW-7208APC is ideal for HD video streaming and large file transfers. The access point is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices.

Concurrent Dual-Band Wi-Fi Connectivity
The Edimax EW-7208APC access point provides simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility for your network devices.

Three Antennas For Better Wi-Fi Performance
Employing three external detachable antennas, the EW-7208APC provides powerful 2.4GHz and 5GHz dual-band signal strength and enhances Wi-Fi range, providing signal penetration through walls and floors across your home or office.

5-in-1, Access Point, Range Extender, Wireless Bridge, Wi-Fi Router and WISP
The EW-7208APC can work as an access point, range extender, wireless bridge, Wi-Fi router or WISP. Just configure the mode you need for your network environment using the smart iQ Setup wizard.

Smart iQ Setup
Features iQ Setup for smart, automatic and quick installation with no CD required.

Multi-SSID & VLAN Support*
Multi-SSID enables users to configure up to eight separate SSIDs (2.4GHz x 4 and 5GHz x 4) in order to group and manage users according to your requirements. In addition, each SSID can be assigned a different VLAN ID, so users with multiple VLANs can manage the network access level of each SSID – ensuring security and protecting confidential or critical network resources.
*Access point mode only

Eliminate Wi-Fi Dead Zones & Double Wi-Fi Coverage
Switch the EW-7208APC to range extender mode to extend Wi-Fi coverage to dead zones which your existing Wi-Fi signal can’t reach. Increase the signal coverage of your Wi-Fi network for better performance on your Wi-Fi devices.
*Range extender mode only
