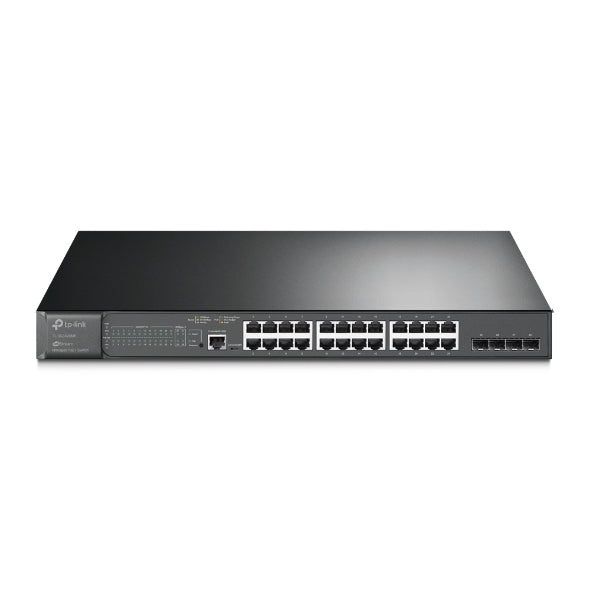

* 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. * 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*. * Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)** Centralized Cloud Management and Intelligent Monitoring. * Centralised Management: Cloud access and Omada app for ultra convenience and easy management. * Static Routing: Helps route internal traffic for more efficient use of network resources. * Robust Security Strategies: IP-MAC-Port Binding ACL Port Security DoS Defend Storm control DHCP Snooping 802.1X Radius Authentication and more. * Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. * Standalone Management: Web CLI (Console Port Telnet SSH) SNMP RMON and Dual Image bring powerful management capabilities
HARDWARE FEATURES Interface * 24× 10/100/1000 Mbps RJ45 Ports * 4× 10G SFP+ Slots * 1× RJ45 Console Port * 1× Micro-USB Console Port Fan Quantity 2 Power Supply 100-240 V AC~50/60 Hz Dimensions ( W x D x H ) (440 × 330 × 44 mm) Mounting Rack Mountable Max Power Consumption 34.4 W (110V/60Hz) ( no PD device connected) 465.8 W (110V/60Hz) ( with 384 W PD device connected) Max Heat Dissipation 117.38 BTU/h (110 V/60 Hz) (no PD device connected) 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)
PERFORMANCE Switching Capacity 128 Gbps Packet Forwarding Rate 95.23 Mpps MAC Address Table 16 K Jumbo Frame 9 KB
Quality of Service * 8 priority queues * 802.1p CoS/DSCP priority * Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR * Bandwidth Control - Port/Flow based Rating Limiting * Smoother Performance * Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
@102
Warranty Period: 5-Year
@101
Warranty Period: 5-Year
@111
HARDWARE FEATURES Interface * 48× 10/100/1000 Mbps RJ45 Ports * 4× Gigabit SFP Slots * 1× RJ45 Console Port * 1× Micro-USB Console Port Fan Quantity Fanless Power Supply 100-240 V AC~50/60 Hz Dimensions ( W x D x H ) 17.3×8.7×1.7 in (440×220×44 mm) Mounting Rack Mountable Max Power Consumption 32.8 W (220 V/ 50 Hz) Max Heat Dissipation 111.91 BTU/h (220 V / 50 Hz) PERFORMANCE Switching Capacity 104 Gbps Packet Forwarding Rate 77.4 Mpps MAC Address Table 16 K Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service * 8 priority queues * 802.1p CoS/DSCP priority * Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR * Bandwidth Control - Port/Flow based Rating Limiting * Smoother Performance * Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
@107

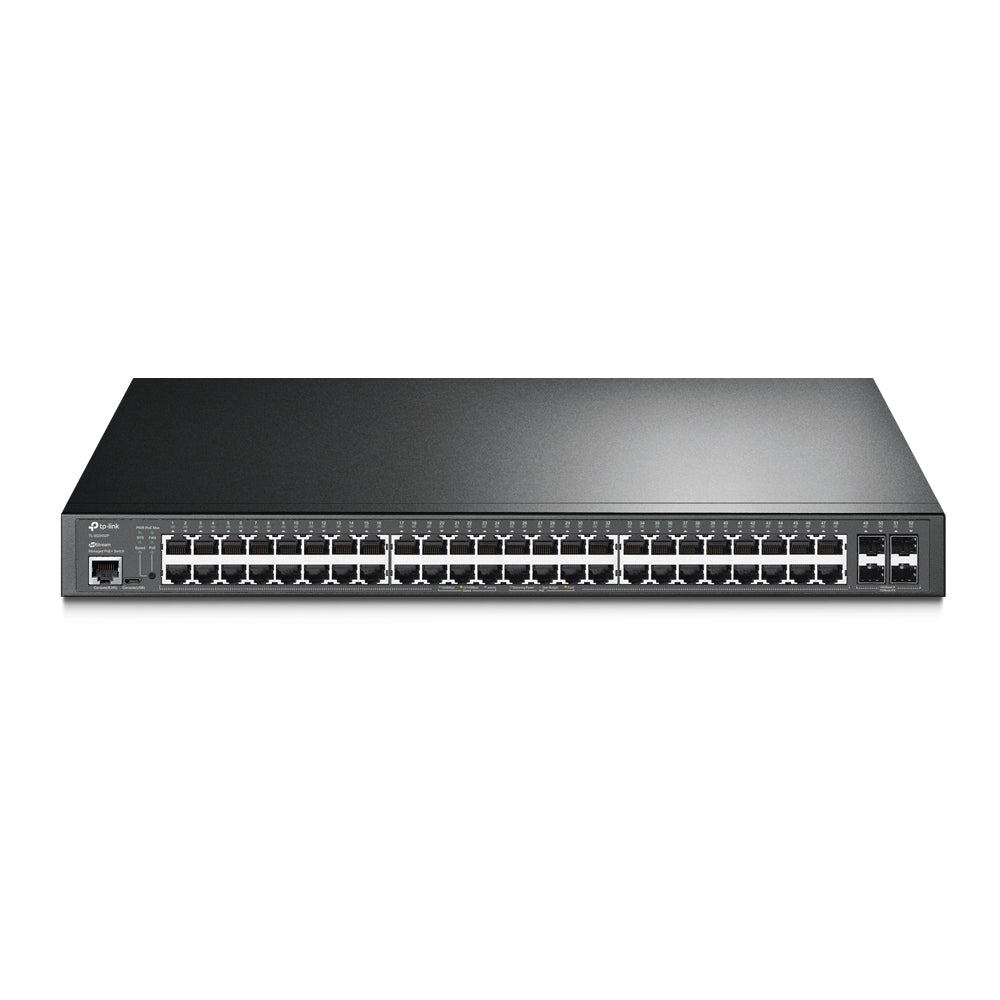

384 W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*. Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)** Centralized Cloud Management and Intelligent Monitoring. Centralised Management: Cloud access and Omada app for ultra convenience and easy management. Static Routing: Helps route internal traffic for more efficient use of network resources. Robust Security Strategies: IP-MAC-Port Binding ACL Port Security DoS Defend Storm control DHCP Snooping 802.1X Radius Authentication and more. Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. Standalone Management: Web CLI (Console Port Telnet SSH) SNMP RMON and Dual Image bring powerful management capabilities.
HARDWARE FEATURES Interface * 48× 10/100/1000 Mbps RJ45 Ports * 4× Gigabit SFP Slots * 1× RJ45 Console Port * 1× Micro-USB Console Port Fan Quantity 3 Power Supply 100-240 V AC~50/60 Hz PoE+ Ports(RJ45) * Standard: 802.3at/af compliant * PoE+ Ports: 48 Ports up to 30 W per port * Power Budget: 384 W Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) Mounting Rack Mountable Max Power Consumption 52.53 W (110 V/60 Hz) (no PD connected) 485.4 W (110 V/60 Hz) (with 384 W PD connected) Max Heat Dissipation 179.13 BTU/hr (110 V/60 Hz) (no PD connected) 1656.19 BTU/hr (110 V/60 Hz) (with 384 W PD connected) PERFORMANCE Switching Capacity 104 Gbps Packet Forwarding Rate 77.4 Mpps MAC Address Table 16 K Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service * 8 priority queues * 802.1p CoS/DSCP priority * Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR * Bandwidth Control - Port/Flow based Rating Limiting * Smoother Performance * Action
@106
@110
@114

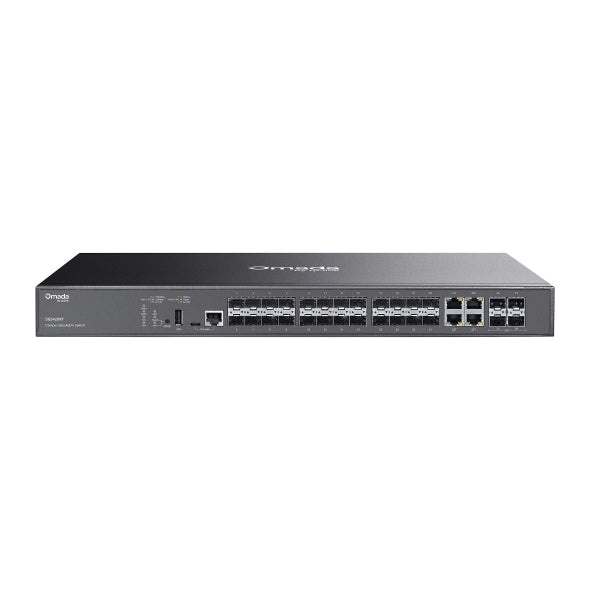

TP-Link SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots(OS)
TP-Link SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots(OS)
@107
TP-Link SG5452X Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots(OS)
TP-Link SG5452X Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots(OS)
Warranty Period: 5-Year
@115
@114
@103
Multi-mode MiniGBIC module Applied to T3700G-28TQ TL-SG5412F/TL-SG5428 TL-SL5428E TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P TL-SL3428/TL-SL3452 TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452 TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
What This Product Does The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Features Supports full-duplex Plug-and-Play Supports Pull-or-Plug with power on switches Power: internal power from switches Suitable Products: TL-SG5428 TL-SL5428E TL-SG3210/3216/3424/3424P TL-SL3428/3452 TL-SG2216/2424 TL-SL2210WEB/2218WEB/2428WEB/2452WEB TL-SL1351 and MC220L
Supports full-duplex Plug-and-Play Supports Pull-or-Plug with power on switches Power: internal power from switches Suitable Products: TL-SG5428 TL-SL5428E TL-SG3210/3216/3424/3424P TL-SL3428/3452 TL-SG2216/2424 TL-SL2210WEB/2218WEB/2428WEB/2452WEB TL-SL1351 and MC220L
MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3z CSMA/CD TCP/IP Wave Length 850nm Power Supply 3.3V Safety & Emission FCC CE Cabel Multi-mode Fiber Fiber Type 50/125μm or 62.5/125μm Multi-mode Max. Cable Length 550m Data Rate 1.25Gbps Port Type LC/UPC Environment Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
@13/26
TP-Link SM311LS Gigabit SFP module Single-mode MiniGBIC LC interface Up to 10km distance
$60.95
Unit price perTP-Link SM311LS Gigabit SFP module Single-mode MiniGBIC LC interface Up to 10km distance
$60.95
Unit price perUp to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber) Compatible with all SFP ports on TP-Link products including JetStream switches and media converter MC220L. Work with MC210CS with a single-mode fiber connection
@12/26
@13/26
@13/26
SFP+ CABLE Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing Data Rate 10 Gbps Cable Length 3 m
@14/11
JetStream 8-Port 10GE SFP+ L2+ Managed Switch 10G Lightning-Fast Connections: 8× 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)* Centralized Cloud Management and Intelligent Monitoring. Centralised Management: Easy and convenient management with cloud access and Omada app. Static Routing: Route internal traffic for the efficient use of network resources. Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding ACL Port Security DoS Defend Storm control DHCP Snooping 802.1X and Radius Authentication. Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping. Standalone Management: Web CLI (Console Port Telnet SSH) SNMP RMON and Dual Image bring powerful management capabilities HARDWARE FEATURES Interface * 8× 10GE SFP+ Slots * 1× RJ45 Console Port * 1× Micro-USB Console Port Fan Quantity Fanless Power Supply 100-240 V AC~50/60 Hz Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption 15.46 W (220 V / 50 Hz) Max Heat Dissipation 52.75 BTU/hr (220 V / 50 Hz) PERFORMANCE Switching Capacity 160 Gbps Packet Forwarding Rate 119.04 Mpps MAC Address Table 32 K Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service * 8 priority queues * 802.1p CoS/DSCP priority * Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR * Bandwidth Control - Port/Flow based Rating Limiting * Smoother Performance * Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark L2 and L2+ Features * Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups containing 8 ports per g
@105
* 16× Full 10 Gbps SFP+ Slots - Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity * Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management * Abundant L2 and L2+ Features - Supports a complete lineup of L2 and L2+ features including Static Routing enterprise-level QoS IGMP Snooping and more * Robust Security Strategies - Helps protect LAN area investment with integrated IP-MAC-Port Binding ACL Port Security 802.1X Authentication and more * Robust Hardware Design - Its fanless design ensures silent operation while its durable metal casing and up to 45 ℃ operation temperature ensures reliability
General Interface 8 10GE SFP+ Slots 16 10GE SFP+ Slots Console 1 RJ45 Console Port 1 Micro-USB Console Port Flash 32 MB DRAM 256 MB Port Standard IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae: 10 Gigabit Ethernet over fiber
Performance Switching Capacity 160 Gbps 320 Gbps Packet Forwarding Rate 119.04 Mpps 238.08 Mpps MAC Address Table 32K Packet Buffer 16 Mbit 24 Mbit Transmission Method Store and Forward Number of IP Interfaces 16 Number of Static Routers 48 (IPv4 IPv6) Jumbo Frame 9 KB
Physical & Environment Dual Redundant Power Supply - 2 Fixed AC Power Supply Power Supply 100-240 V AC~50/60 Hz Max Power Consumption 15.46 W (220 V/50 Hz) 32.74 W (220 V/50 Hz) Max Heat Dissipation 52.75 BTU/hr (220 V/50 Hz) 111.71 BTU/hr (220 V/50 Hz) Standby Power Consumption 5.91 W (110 V/60 Hz) 13.33 W (110 V/60 Hz)
Dimensions (W x D x H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) Fan Quantity Fanless 1 Installation Rack Mountable
