@10/16

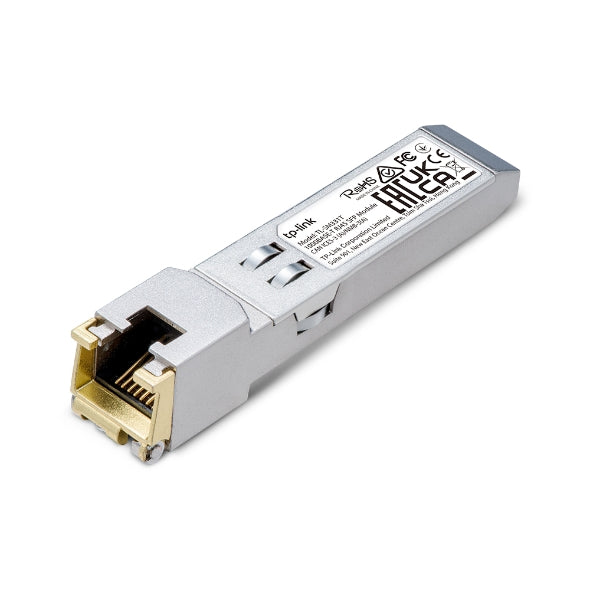

• Support 1000BASE-T Operation in Host Systems • Support TX Disable function • For 100m Reach Over UTP Cat 5e or above Cable • Hot-Pluggable SFP Footprint Features • Commercial Product Operating Temperature Range: 0-70°C • Compliant with IEEE Std 802.3-2002 • Fully Metallic Enclosure for Low EMI • Low Power Dissipation (0.5 W Typical; 0.8 W Max)
PACKAGE CONTENTS Package Contents • 1000BASE-T RJ45 SFP Module TL-SM331T • Installation Guide
HARDWARE FEATURES Hot Swappable Yes
TRANSCEIVER Standards and Protocols IEEE 802.3-2002 Power Supply 3.3V Max. Cable Length 100m (Cat 5e or above) Data Rate 1.25 Gbps Port Type 1× 1000 Mbps RJ45 Port Safety & Emission FCC; CE Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉)
@5/15

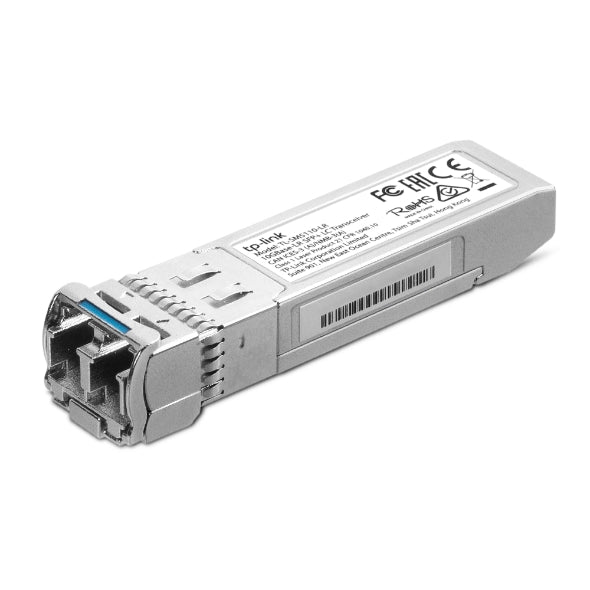

• Single-mode SFP+ LC Transceiver • Hot-Pluggable with maximum flexibility • Supports Digital Diagnostic Monitoring (DDM) • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) • Compatible with switches with 10G SFP+ ports; like JetStream TL-SG3428X; TL-SG3428XMP; and more.
HARDWARE FEATURES DDM Yes SFP-MSA Yes Hot Swappable Yes
TRANSCEIVER Standards and Protocols IEEE 802.3ae; TCP/IP Wave Length 1310 nm Power Supply 3.3V Fiber Type 9/125um Single-Mode Max. Cable Length 10 km Data Rate 10 Gbps Port Type LC Duplex Safety & Emission FCC; CE Environment Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH; Non-Condensing Storage Humidity: 5–90% RH; Non-Condensing
Product Width (W) mm 122.5 Product Depth (D) mm 81.5 Product Height (H) mm 38.5 Product Weight Kg 0.06
@7/15

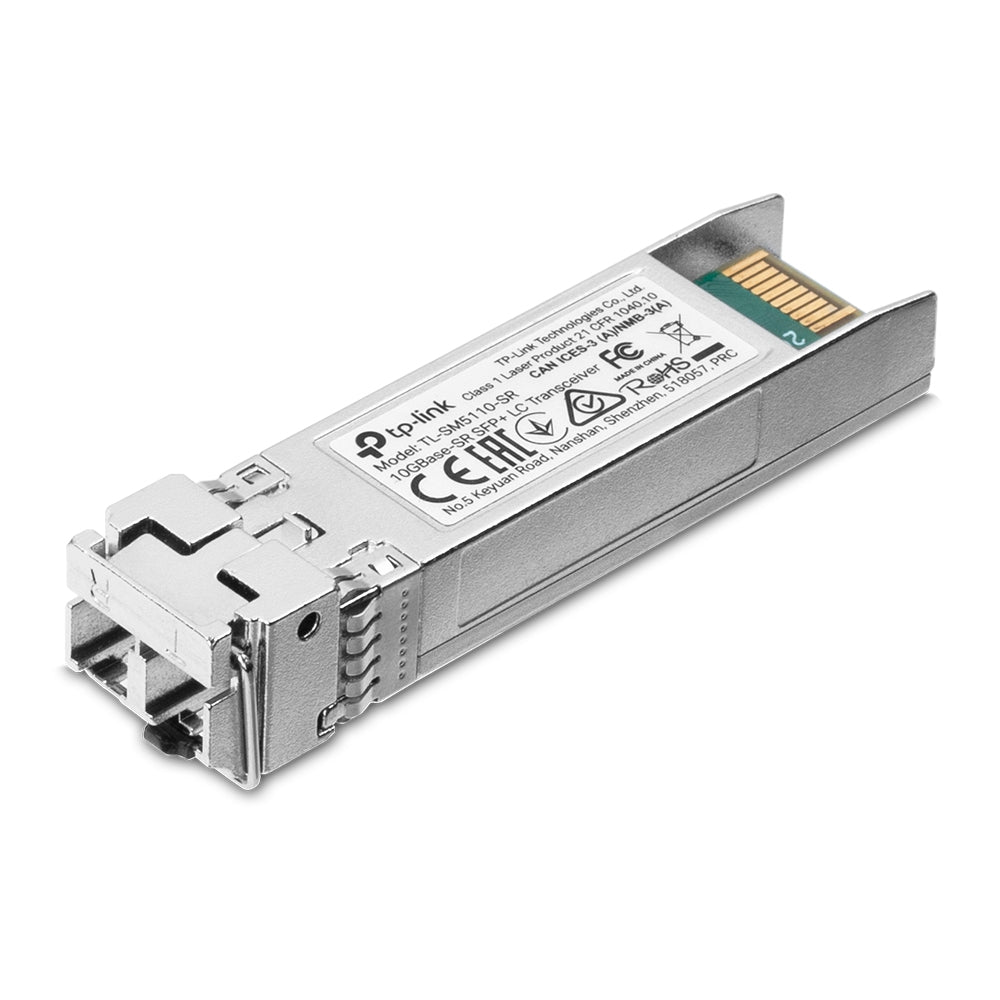

Multi-mode SFP+ LC Transceiver Hot-Pluggable with maximum flexibility Supports Digital Diagnostic Monitoring (DDM) Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) Compatible with switches with 10G SFP+ ports; like JetStream TL-SG3428X; TL-SG3428XMP; and more.
What This Product Does The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex; 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
HARDWARE FEATURES DDM Yes SFP-MSA Yes Hot Swappable Yes TRANSCEIVER Standards and Protocols IEEE 802.3ae; TCP/IP; SFF-8472 Wave Length 850nm Power Supply 3.3V Fiber Type 50/125um or 62.5/125um Multi-mode Max. Cable Length 300m (OM3) Data Rate 10Gbps Port Type LC/UPC Safety & Emission FCC; CE Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
@6/16
SFP+ CABLE Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing Data Rate 10 Gbps Cable Length 1 m
@6/16

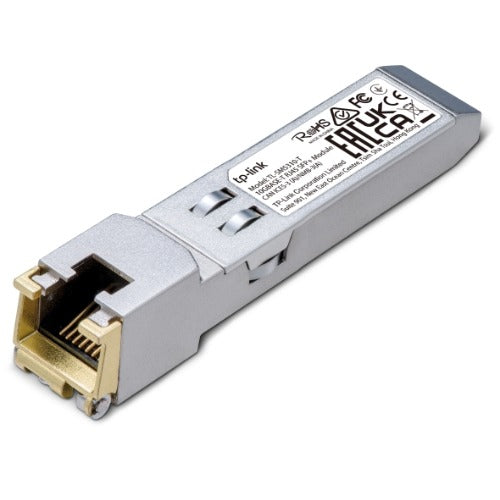

• Support 10GBASE-T; 5GBASE-T; 2.5GBASE-T; 1000BASE-T; and 100BASE-TX • Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above) • Support DDM (Temperature and Voltage) • Hot-Pluggable SFP+ Footprint Features • Support TX Disable function • Commercial Product Operating Temperature Range: 0-70°C • Fully Metallic Enclosure for Low EMI
PACKAGE CONTENTS Package Contents • 10G BASE-T RJ45 SFP+ Module TL-SM5310-T • Installation Guide
HARDWARE FEATURES Hot Swappable Yes
TRANSCEIVER Standards and Protocols IEEE Std 802.3; 802.3ab; 802.3bz; 82.3an Power Supply 3.3V Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m) 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) 10GBASE-T: UTP cat.6a or above (max. 30m) Data Rate 10.3 Gbps Port Type 1× 10G RJ45 Port Safety & Emission FCC; CE; RoHS Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉)
@8/15

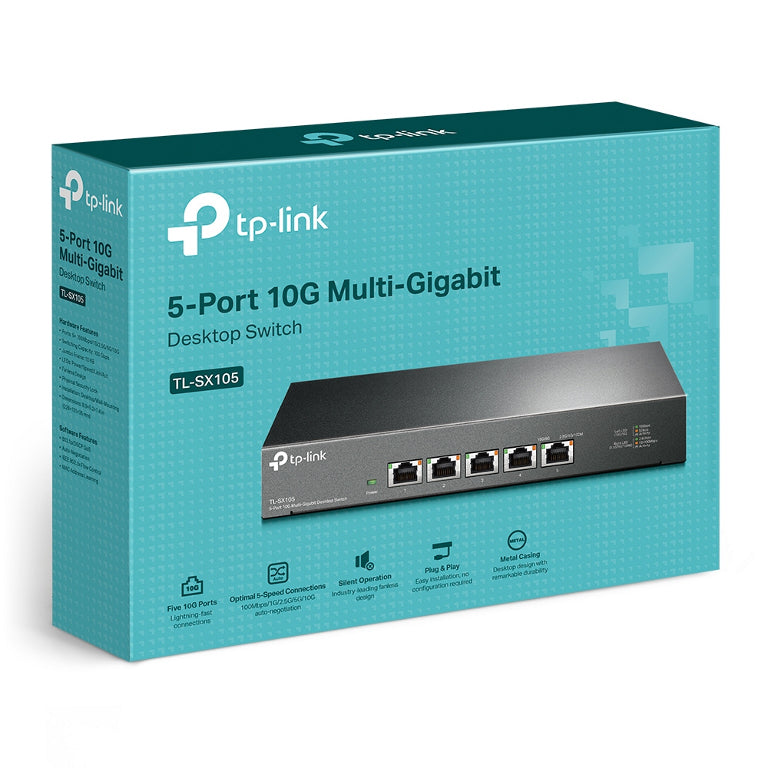

5-Port 10G Desktop Switch Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices and provide up to 100 Gbps of switching capacity. Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS; Server; 10G PCIe Adapter/ NIC; gaming computer; 2.5G/5G/10G WiFi 6 AP; 8K video; and more. Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties; home entertainment; small and home offices; and workstations. Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Silent Operation. The revolutionary fanless design ensures unprecedented silent operation; ideal for any home or business. Durable Metal Casing. Durable metal casing; desktop/wall-mounting; and professional heat dissipation design are well suited for different environments. Plug and Play. Allows for easy deployment without the need for a technician.
HARDWARE FEATURES Standards and Protocols IEEE 802.3; 802.3u; 802.3ab; 802.3x; 802.1p; 802.3an; 802.3bz Interface 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports; Auto-Negotiation; Auto-MDI/MDIX Fan Quantity Fanless External Power Supply External Power Adapter (Output: 12 VDC / 2.0 A) LED Indicator • System Power: 1 • Link/Act Indicators: 5; 1 indicator per port built into each RJ-45 port Dimensions ( W x D x H ) 8.9×5.2×1.4 in (226×131×35 mm) Max Power Consumption 21.4 W PERFORMANCE Switching Capacity 100 Gbps Packet Forwarding Rate 74.4 Mpps MAC Address Table 32 K Packet Buffer Memory 2 Mb Jumbo Frame 10 KB SOFTWARE FEATURES Advanced Features • 802.3X Flow Control • 802.1p/DSCP QoS Transfer Method Store and Forward OTHERS Certification CE; FCC ;RoHS Package Contents • 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105 • Power Cord • Install
@42/37

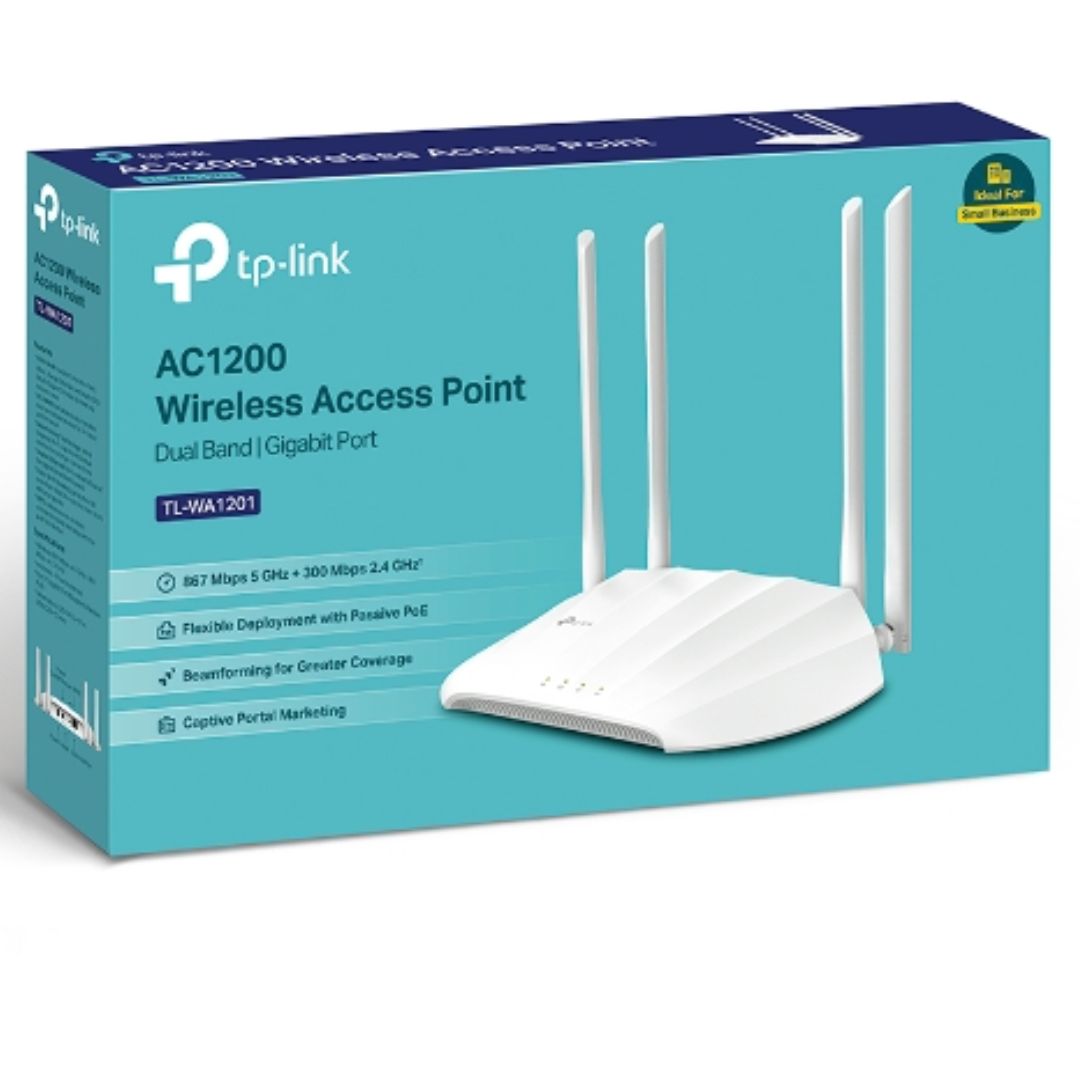

HARDWARE FEATURES Interface 1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE) Button Power On/Off Button; WPS Button; Reset Button External Power Supply 12V/1.5A Wireless Standards IEEE802.11b/g/n 2.4 GHz; IEEE 802.11ac/n/a 5 GHz Dimensions ( W x D x H ) 225×145.5×37 in (400×255×72 mm) Antenna Type 4 Fixed High Performance Antennas WIRELESS FEATURES Frequency 2.4 GHz and 5 GHz Signal Rate 867 Mbps at 5 GHz; 300 Mbps at 2.4 GHz Reception Sensitivity 5 GHz: 11a 6 Mbps: -95 dBm; 11a 54 Mbps: -81 dBm 11ac VHT20(MCS0): -94 dBm; 11ac VHT20(MCS8): -71 dBm 11n HT40(MCS0): -91 dBm; 11n HT40(MCS7): -71 dBm 11ac VHT80(MCS0): -88 dBm; 11ac VHT80(MCS9): -63 dBm
2.4 GHz: 11g 54Mbps: -78 dBm 11n HT20(MCS0): -92 dBm; 11n HT20(MCS7): -74 dBm 11n HT40(MCS0): -88 dBm; 11n HT40(MCS7): -72 dBm Transmit Power CE: <20dBm(2.4GHz); <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz&5GHz) Wireless Modes Access Point; Range Extender; Client; Multi-SSID Wireless Functions Enable/Disable Wireless Radio; WDS Bridge; WMM; Wireless Statistics; Wireless Multicast Forwarding; DHCP Server; Access Control Wireless Security 64/128-bit WEP; WPA/WPA2; WPA-PSK/WPA-PSK2 encryptions DHCP Server; DHCP Client List Quality of Service WMM Advanced Functions Captive Portal OTHERS Certification CE; FCC; RoHS Package Contents Wireless Access
@9/16
@13/19
Warranty Period: 3-Year
@15/19
HARDWARE FEATURES Interface 1× 10/100 M Ethernet Port(RJ45) Support Passive PoE Button Power On/Off Button; WPS Button; Reset Button External Power Supply 9VDC / 0.6A Wireless Standards IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Dimensions ( W x D x H ) 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm) Antenna Type 2 Fixed Omni-Directional Antennas WIRELESS FEATURES Frequency 2.4 GHz Signal Rate 300 Mbps at 2.4 GHz Reception Sensitivity 11g 6Mbps: -90dBm 11g 54Mbps: -77dBm 11n HT20 MC7: -73dBm 11n HT40 MC7: -70dBm Transmit Power CE: <15dBm; FCC: <20dBm Wireless Modes AP Mode Multi-SSID Mode Client Mode Range Extender Mode Wireless Functions Enable/Disable Wireless Radio; WMM; Short GI; AP Isolation; Wireless Statistics; Throughput Monitor Wireless Security WEP; WPA/WPA2; WPA/WPA2-PSK encryptions Quality of Service WMM Management SNMP Advanced Functions Up to 30 meters Passive PoE is supported OTHERS Certification CE; FCC; RoHS Package Contents Wireless Access Point TL-WA801N Power Adapter Passive PoE Power Injector RJ45 Ethernet Cable Quick Installation Guide System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10; MAC OS; NetWare; UNIX or Linux Internet Explorer 11; Firefox 12.0; Chrome 20.0; Safari 4.0; or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) Environment Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90
@6/16

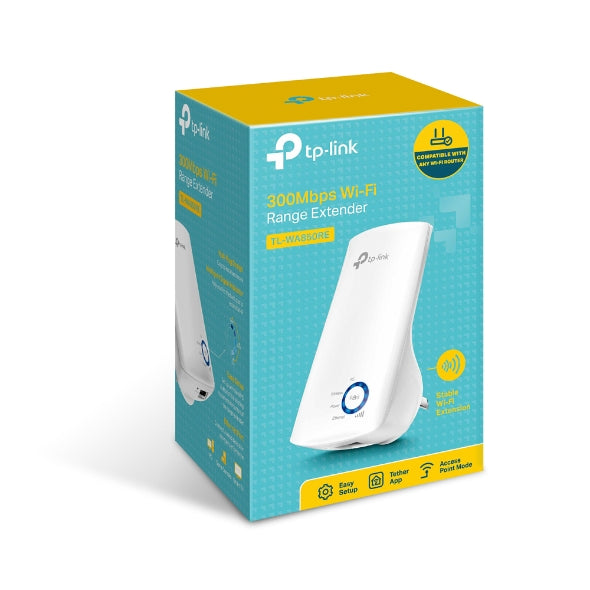

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly Miniature size and wall-mounted design make it easy to deploy and move flexibly Easily expand wireless coverage at a push of Range Extender button Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
HARDWARE FEATURES Plug Type EU; UK; US Interface 1 * 10/100M Ethernet Port (RJ45) Button RE (Range Extender) Button; Reset Button Power Consumption About 3W Antenna 2 * internal Wireless Standards IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) WIRELESS FEATURES Frequency 2.4~2.4835GHz Signal Rate 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Transmit Power < 20 dBm (EIRP) Wireless Modes Range Extender Wireless Functions WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function Wireless Security 64/128/152-bit WEP WPA-PSK / WPA2-PSK OTHERS Certification CE; RoHS Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE RJ-45 Ethernet Cable Resource CD Quick Installation Guide System Requirements Microsoft® Windows® 98SE; NT; 2000; XP; Vista or Windows 7; 8; 10; Mac® OS; NetWare®; UNIX® or Linux. Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
@5/15

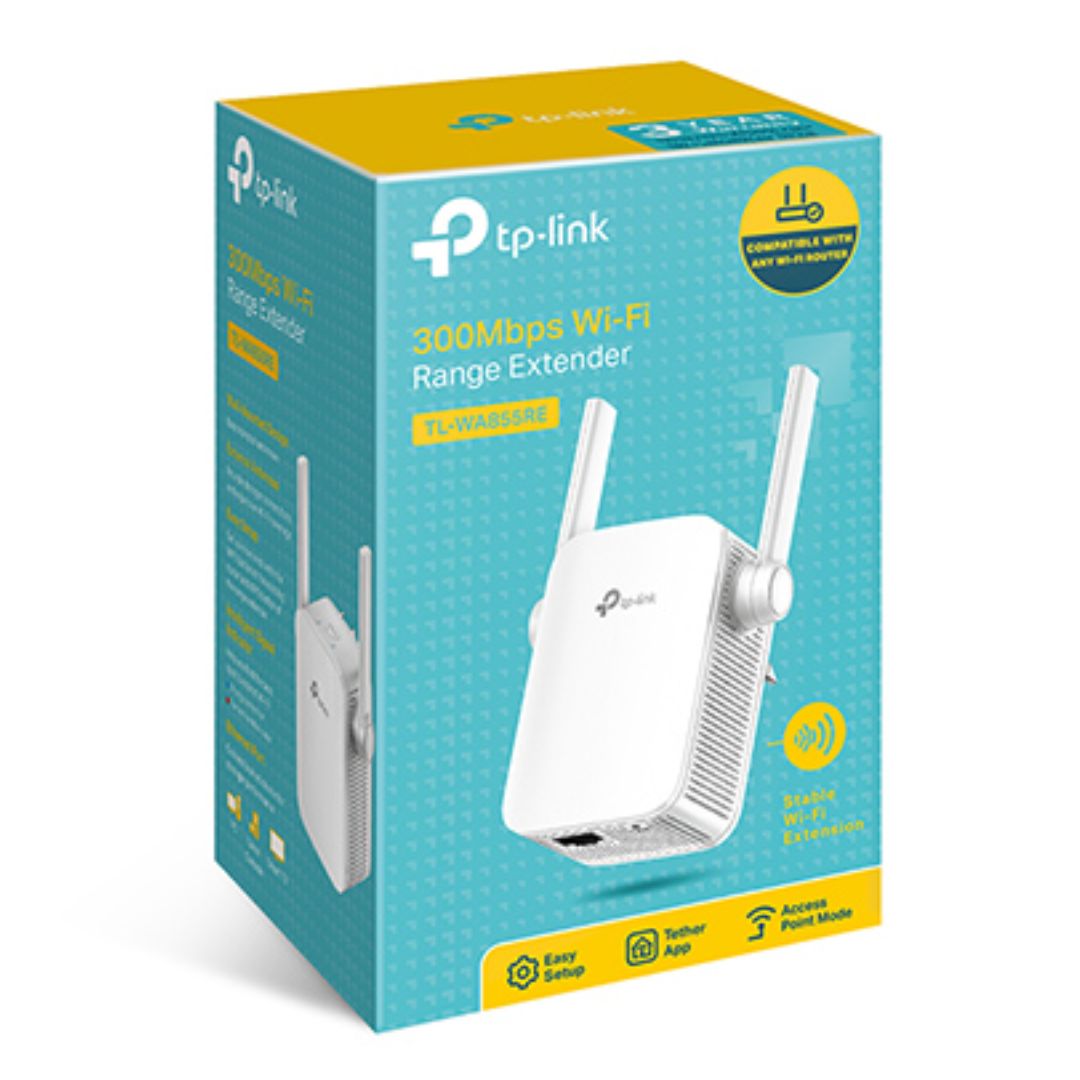

Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity External antennas for faster and more reliable Wi-Fi Supports AP mode which creates a new Wi-Fi Access point Easily expand wireless coverage at a push of the Range Extender button Set the Power Schedule for the range extender for power-saving Tether App allows easy access and management with your mobile devices remotely Works with Any Wi-Fi Router
HARDWARE FEATURES Plug Type AU Interface 1 x 10/100M Ethernet Port (RJ45) Button WPS Button; Reset Button Power Consumption 3.6W Antenna 2 x external Dimensions ( W x D x H ) 3.15 x 3.06 x 3.04 in. (80 x 77.8 x 77.3mm) WIRELESS FEATURES Wireless Standards IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Frequency 2.4~2.4835GHz Signal Rate 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) Reception Sensitivity 270M: <-68dBm@10% PER 130M: <-68dBm@10% PER 108M: <-68dBm@10% PER 54M: <-68dBm@10% PER 11M: <-68dBm@8% PER 6M: <-68dBm@10% PER 1M: <-68dBm@8% PER Transmit Power < 20 dBm (EIRP) Wireless Modes Range Extender/Access Point Wireless Functions Wireless MAC Address Filtering Domain Login Function Transmit Power Control Wireless Security 64/128/152-bit WEP WPA-PSK / WPA2-PSK OTHERS Certification CE; RoHS Package Contents 300Mbps Wi-Fi Range Extender TL-WA855RE Quick Installation Guide System Requirements Microsoft® Windows® 98SE; NT; 2000; XP; Vista or Windows 7; 8; 8.1; 10; Mac® OS; NetWare®; UNIX® or Linux. Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
@5/16

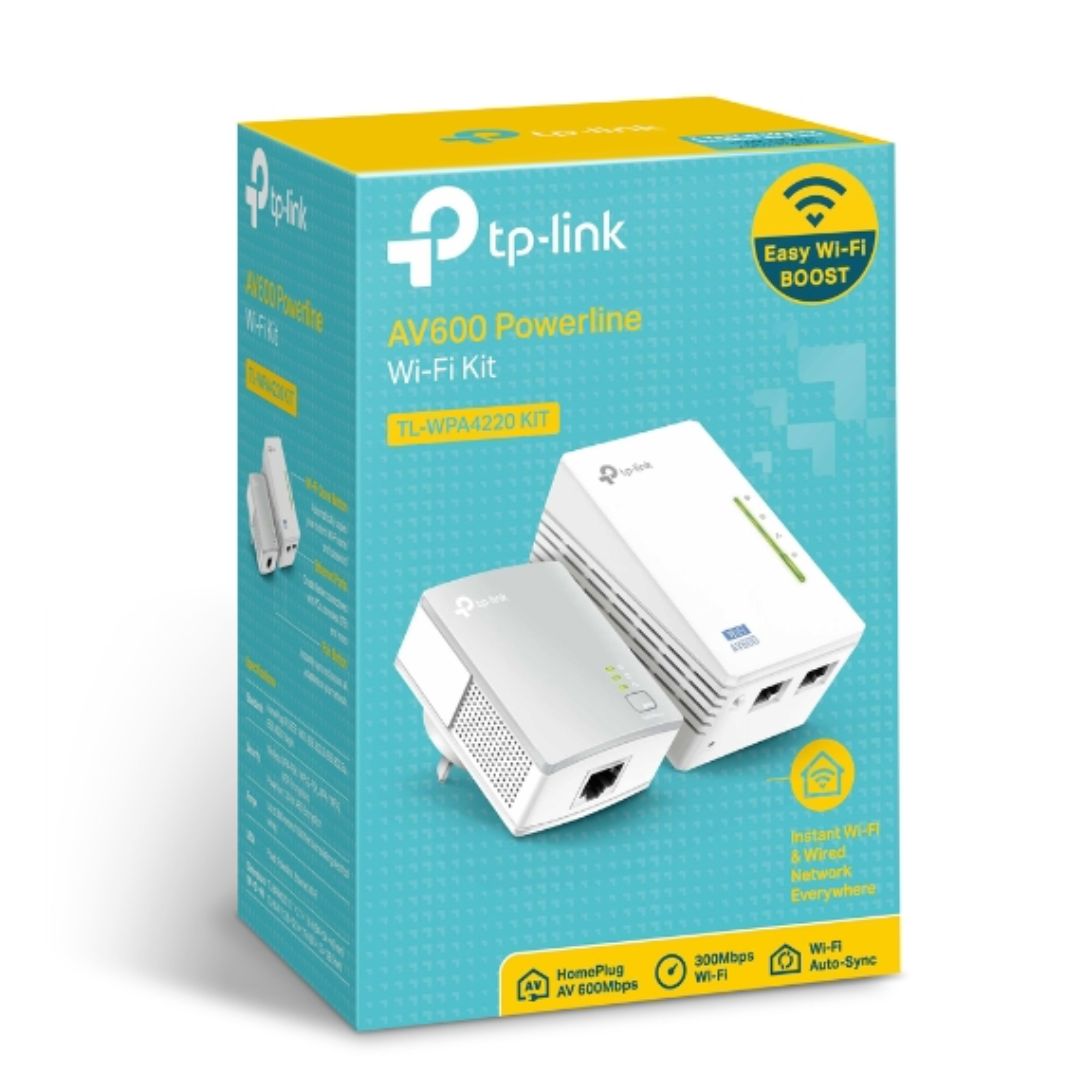

One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring; ideal for lag-free HD or 3D video streaming and online gaming Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
HARDWARE FEATURES Plug Type AU Standards and Protocols HomePlug AV; IEEE802.3; IEEE802.3u; IEEE802.11b/g/n Interface 2*10/100Mbps Ethernet Port Button Pair; Reset; Wi-Fi/Wi-Fi Clone Power Consumption Maximum: 7.608W (220V/50Hz) Typical: 7.216W (220V/50Hz) Standby: 4.610W (220V/50Hz) LED Indicator PWR; PLC; ETH; Wi-Fi/Wi-Fi Clone Dimensions ( W x D x H ) TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm) TL-PA411: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm) Range 300 Meters over electrical circuit WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Wireless Security 64/128-bit WEP / WPA / WPA2;WPA-PSK / WPA2-PSK Advanced Functions Enable/DisableWireless Radio;WMM; Wireless Statistics Transmission Power CE:<20dBm(2.4GHz) FCC:<30dBm SOFTWARE Modulation Technology OFDM (PLC) Encryption Powerline Security: 128-bit AES Wireless Security: WEP; WPA/WPA2; WPA-PSK/WPA2-PSK Encryption OTHERS Certification CE; RoHS Package Contents Package Contents: ● AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA411 ● Ethernet Cable × 2 ● Quick Installation Guide Certification: CE; RoHS System Requirements Windows 2000/XP/2003/Vista; Windows 7/8; Mac; Linux
@12/18

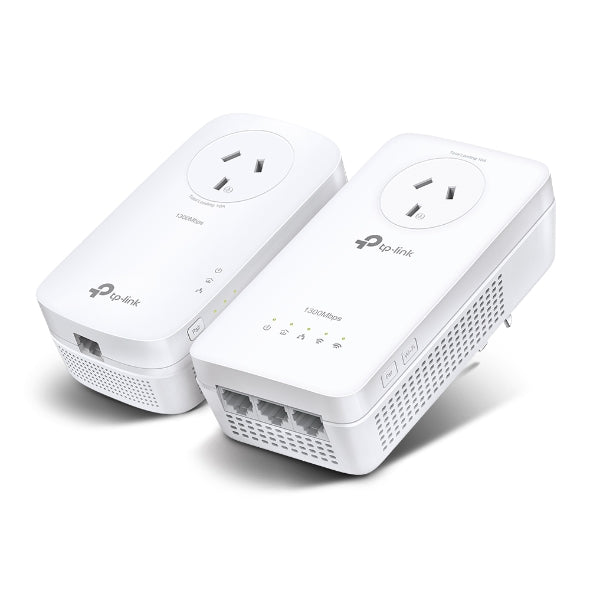

• HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps* • AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz* • OneMeshTM - Works with your OneMeshTM router to form a unified mesh network for seamless streaming while moving around your home • 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability • One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network • Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button; uniformly sync settings such as SSID; password; Wi-Fi Schedule and LED Schedule for all network devices • Plug and Play - Set up your powerline network and start enjoying fast; seamless wired/wireless connections in minutes • Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket • 3 × Gigabit Ports - Provide secure wired networks for desktops; smart TVs or games consoles
HARDWARE FEATURES Plug Type AU Standards and Protocols HomePlug AV2; IEEE 1901; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.11b/g/n (2.4 GHz) Interface 3 Gigabit Ethernet Ports; 1 Power Socket Button Pair; LED On/Off; Wi-Fi; Reset Power Consumption TL-WPA8631P: Maximum: 13W; Typical: 11W TL-PA8010P: Maximum: 4.9W; Typical: 4.6W LED Indicator Power; Powerline; Ethernet; Wi-Fi (2.4 GHz); Wi-Fi (5 GHz) Dimensions ( W x D x H ) TL-WPA8631P: 75 × 42 × 152 mm TL-PA8010P: 72 × 42 × 131 mm Range Up to 300 meters over existing electrical wiring Compatibility Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters Transmission Speeds Powerline: up to 1300 Mbps Ethernet: 10/100/1000 Mbps
@24/27

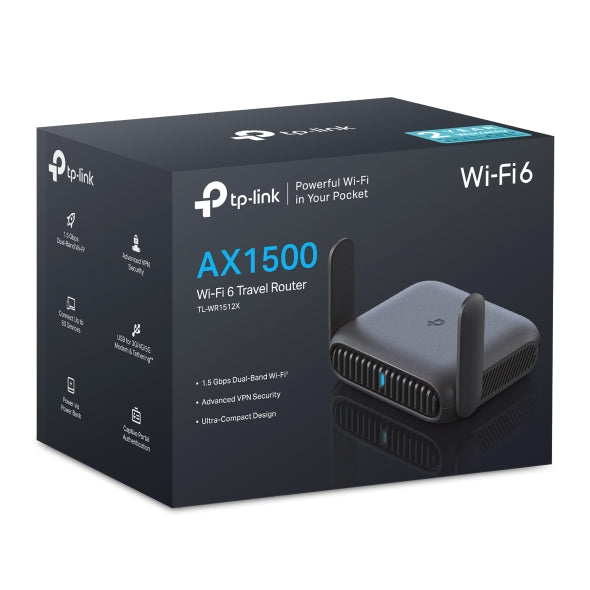

•Faster Dual-Band AX1500 Wi-Fi 6: Experience next-level speeds up to 1.5 Gbps (1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz); perfect for lag-free AR/VR gaming; seamless 4K streaming; and crystal-clear video conferencing.†‡
•Full Gigabit Ports for Reliable Connections: 1× Gigabit WAN port + 1× Gigabit LAN port provide reliable; warp-speed connections for high-intensive wired devices such as your smart TV; game console; NAS; and more. △
•Ultra-Portable; Travel-Ready Design: Engineered for life on the go; TL-WR1512X features a compact; lightweight build that fits easily into your travel bag—ideal for business trips or vacations.
•Flexible Wi-Fi Anywhere; Anytime: With versatile modes including Router; USB Tethering; 3G/4G/5G USB Modem; Hotspot; Access Point; Range Extender; and Client; TL-WR1512X enables flexible Wi-Fi setup for homes; hotel stays; and travel.
•Effortless File Sharing On the Trip: By plugging an external USB hard disc into the router; you can easily share files between connected devices.
•24/7 Secure Surfing with VPN Encryption: Supporting OpenVPN and WireGuard®; TL-WR1512X can keep your network private and secure from anywhere in the world; whether you‘re working remotely abroad; or browsing on the public Wi-Fi.
•Power It with a [5V PD] Power Bank(Without Battery): With a Type-C interface; you can flexibly turn it into a mobile router with a [5V PD] power bank.**•
Warranty Period: 3-Year
@13/19
@22/26

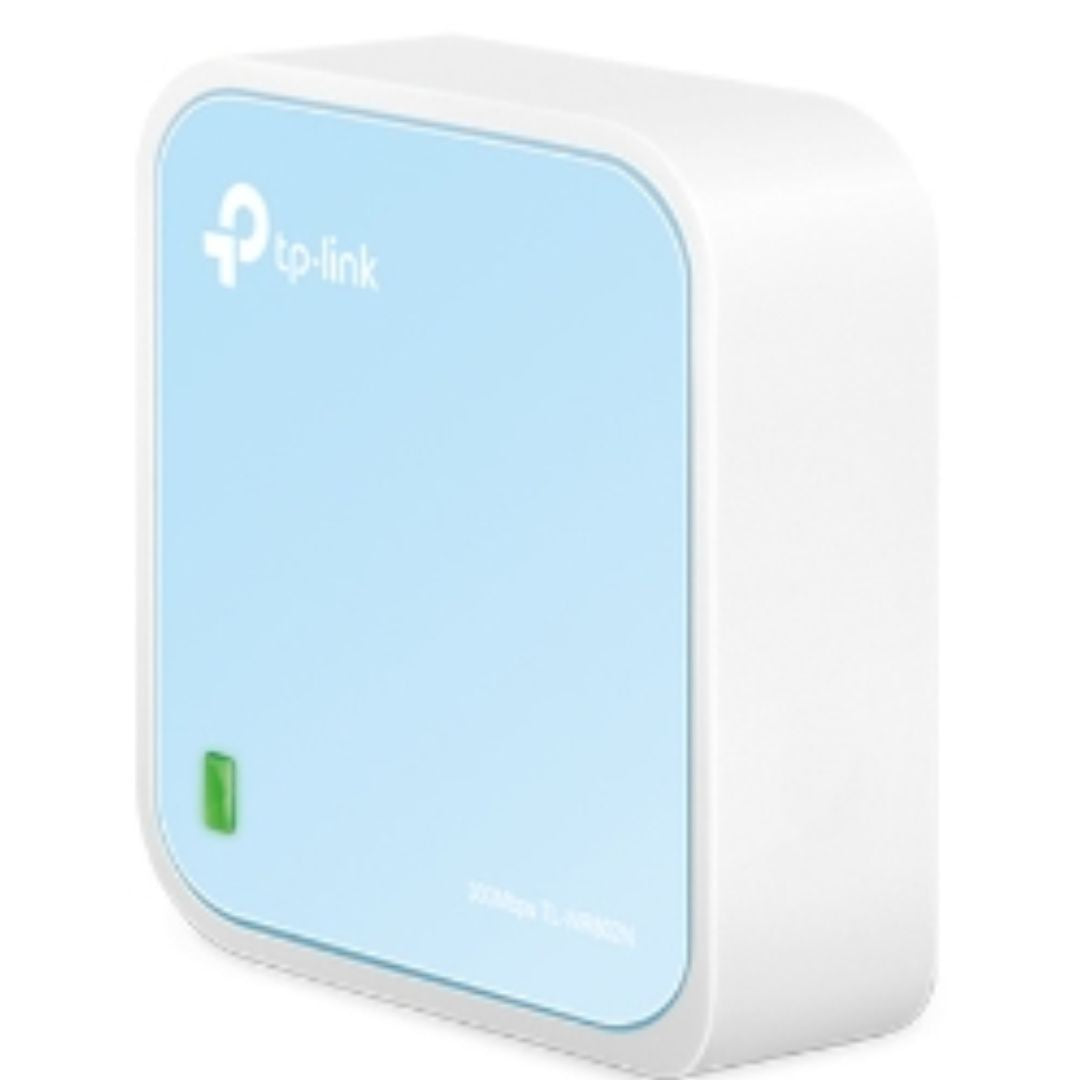

300Mbps wireless data rates is ideal for video streaming; online gaming and Internet calling Pocket-size – Ideal for home and travel use Supports Router; Repeater; Client; AP and hotspot operation modes Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation Easy installation in minutes
HARDWARE FEATURES Interface 1 10/100Mbps WAN/LAN Port 1 Micro USB Port 1 Reset Button Wireless Standards IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Dimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm) Antenna Type On-Board WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -65dBm@10% PER 130M: -70dBm@10% PER 108M: -82dBm@10% PER 54M: -73dBm@10% PER 11M: -82dBm@8% PER 6M: -86dBm@10% PER 1M: -90dBm@8% PER Transmit Power CE: <20dBm(2.4GHz) FCC: <30dBm Wireless Modes Router Mode; Repeater Mode; Client Mode; AP Mode; WISP Router Mode Wireless Functions Enable/Disable Wireless Radio; WMM; Wireless Statistics Wireless Security 64/128/152-bit WEP; WPA/WPA2; WPA-PSK/WPA2-PSK SOFTWARE FEATURES Quality of Service WMM; Bandwidth Control WAN Type Dynamic IP/Static IP/PPPoE/ PPTP/L2TP Management Access Control Local Management Remote Management DHCP Server; Client; DHCP Client List; Address Reservation Port Forwarding Virtual Server; Port Triggering; UPnP; DMZ Dynamic DNS DynDns; Comexe; NO-IP VPN Pass-Through PPTP; L2TP; IPSec (ESP Head) Access Control Local Management Control; Host List; Access Schedule; Rule Management
