48 10/100/1000Mbps RJ45 ports Innovative energy-efficient technology saves power up to 18% Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case
What This Product Does
The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable; easy-to-use switch without the complexity of management; the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity 2 Power Supply 100-240VAC; 50/60Hz Power Consumption Maximum: 29.8W (220V/50Hz) Dimensions ( W x D x H ) 17.32*8.7*1.73 in.(440*220*44 mm) PERFORMANCE Switching Capacity 96Gbps Packet Forwarding Rate 71.4Mpps MAC Address Table 8K Buffer Memory 16Mb Jumbo Frame 10KB Transfer Method Store-and-Forward
OTHERS Certification FCC; CE; RoHS Package Contents 48-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
@44/39

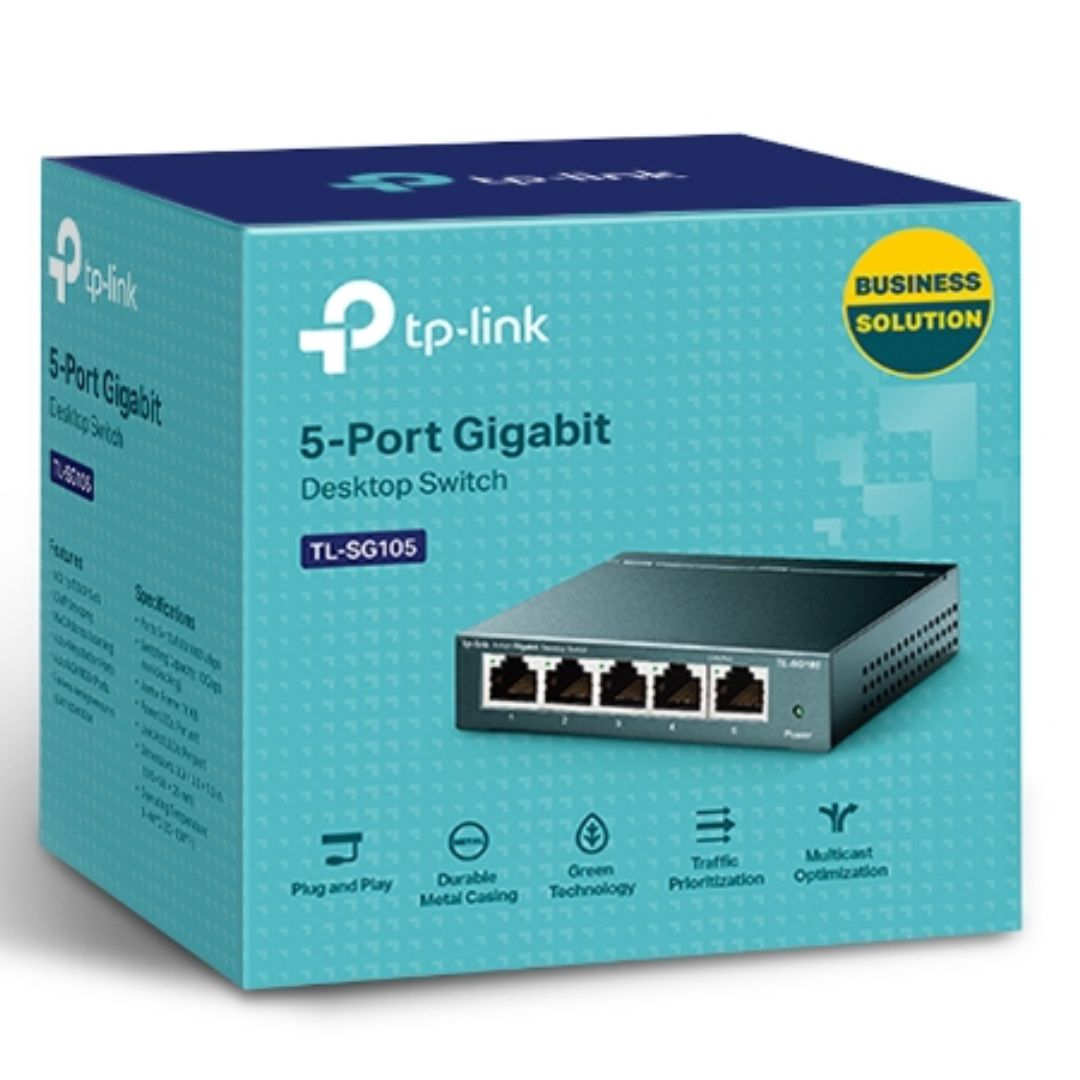

5-Port 10/100/1000Mbps Desktop Switch 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX Plug and play; no configuration needed Supports 802.1p/DSCP QoS and IGMP Snooping functions Durable metal casing; desktop/wall-mounting options; and a fanless design IEEE 802.3x flow control provides reliable data transfer Green Ethernet technology reduces power consumption
HARDWARE FEATURES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x; IEEE 802.1p Interface 5× 10/100/1000 Mbps; Auto-Negotiation; Auto-MDI/MDIX Ports Fan Quantity Fanless External Power Supply External Power Adapter (Output: 5 V DC / 0.6A) LED Indicator System Power Link/Act indicators per port built into each RJ-45 port Dimensions ( W x D x H ) (100 x 98 x 25 mm) Max Power Consumption 2.3 W (220 V/ 50 Hz) Max Heat Dissipation 7.83 BTU/h
PERFORMANCE Packet Forwarding Rate 7.4 Mpps MAC Address Table 2K Packet Buffer Memory 1 Mb Jumbo Frame 16 KB
SOFTWARE FEATURES Advanced Features Green Technology 802.3X Flow Control 802.1P/DSCP QoS (for V2 and later version) IGMP Snooping Transfer Method Store and Forward
OTHERS Certification CE; FCC; RoHS Package Contents 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Environment Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
@5/15

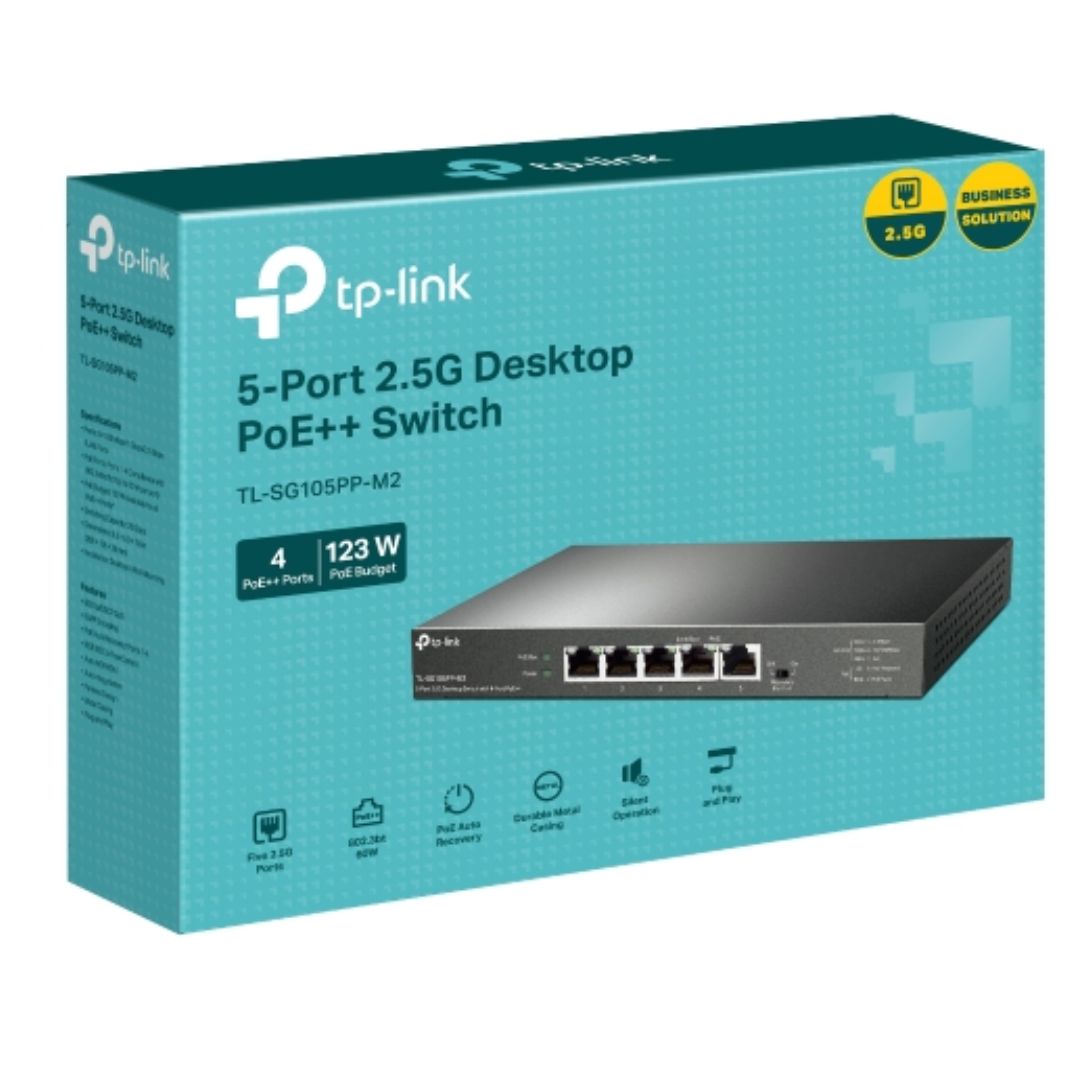

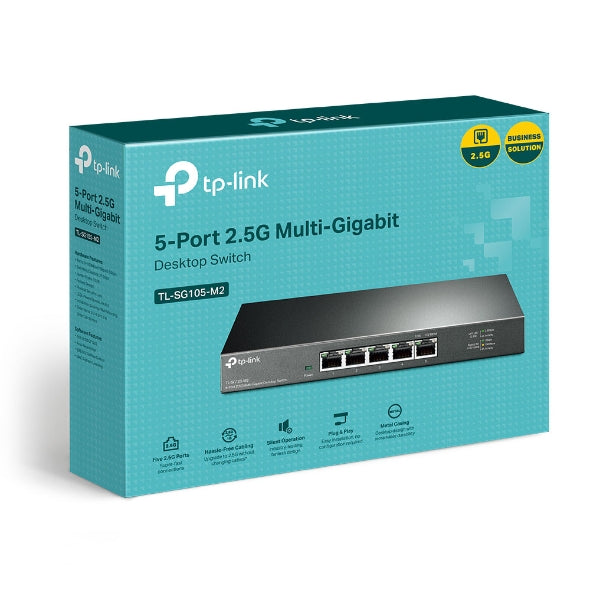

• Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices and provide up to 25 Gbps of switching capacity. • Super-Fast Connections. Provides super-fast connections to 2.5G NAS; 2.5G Server; gaming computer; 2.5G WiFi 6 AP; 4K video; and more. • Ideal for Various Scenarios. Built for LAN parties; home entertainment; small and home offices; and instant transfer for workstations; • Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring; reducing wiring costs and hassle.** • Silent Operation. Industry-leading fanless design ensures silent operation; ideal for any home or business. • Plug and Play. Allows for easy deployment without the need for a technician. • Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
HARDWARE FEATURES Standards and Protocols IEEE 802.3; 802.3u; 802.3ab; 802.3x; 802.1p; 802.3bz Interface 5× 100Mbps/1Gbps/2.5Gbp Ports; Auto-Negotiation; Auto-MDI/MDIX Fan Quantity Fanless External Power Supply External Power Adapter (Output: 12 VDC / 1 A) LED Indicator • System Power: 1 • Link/Act Indicators: 5; 1 indicator per port built into each RJ-45 port Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm) Max Power Consumption 12.11 W Max Heat Dissipation 41.32 BTU/h
PERFORMANCE Switching Capacity 25 Gbps Packet Forwarding Rate 18.6 Mpps MAC Address Table 16 K Packet Buffer Memory 1.5 Mb Jumbo Frame 10 KB
SOFTWARE FEATURES Advanced Features • 802.3X Flow Control • 802.1p/DSCP QoS Transfer Method Store and Forward
OTHERS Certification CE; FCC ;RoHS Package Contents • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 • Power Adapter • Installation Guide • Rubber Feet Environment • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-c
@9/16

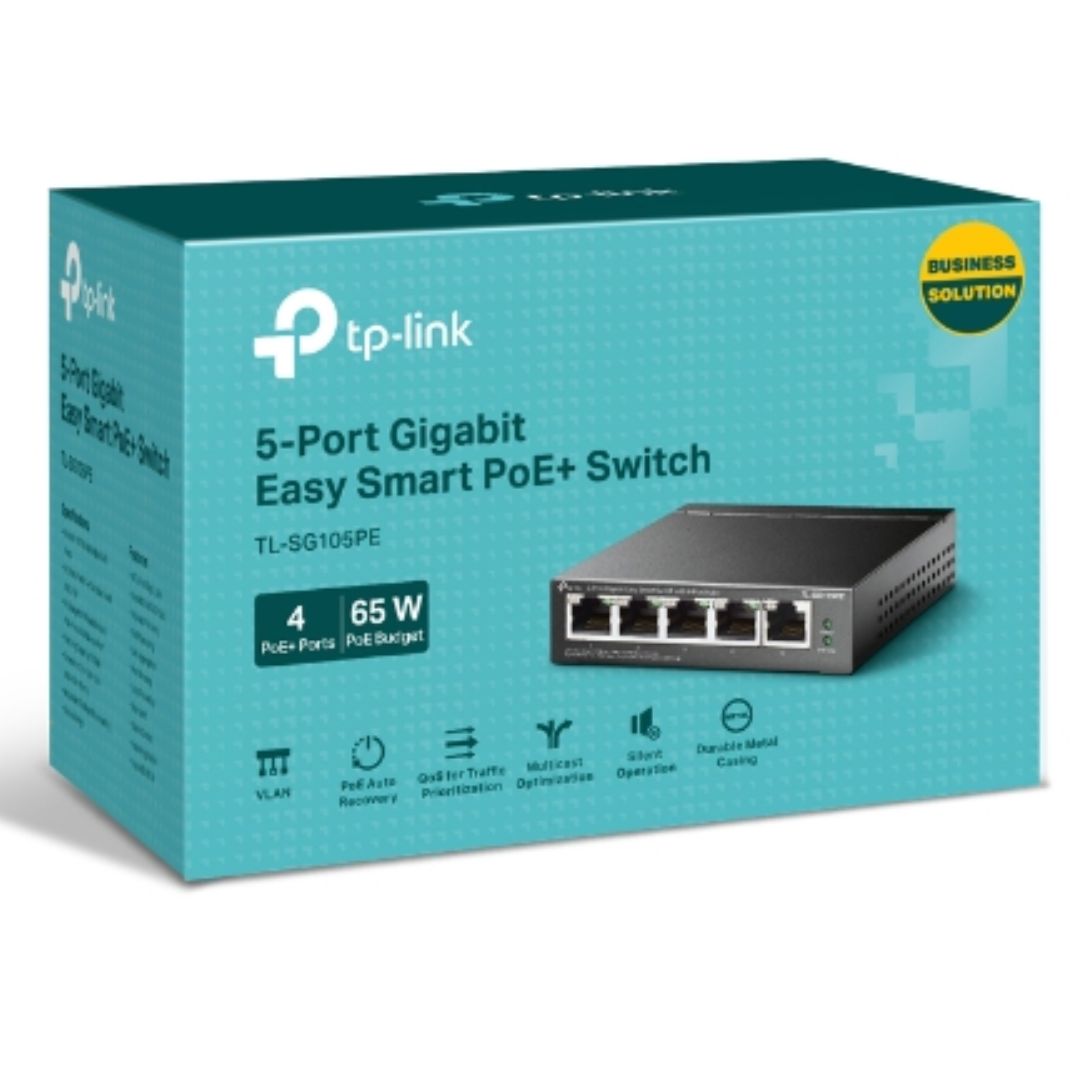

HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3x; IEEE 802.1q; IEEE 802.1p; IEEE 802.3at Interface Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 65 W Max Power Consumption 4.52 W (220V/50Hz with no PD connected) 75.16 W (220V/50Hz with 65 W PD connected) Max Heat Dissipation 15.41 BTU/h (with no PD connected) 256.30 BTU/h (with 65 W PD connected)
PERFORMANCE Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps MAC Address Table 2 K Packet Buffer Memory 1.5 Mb Jumbo Frame 16 KB
SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Management Web-based GUI
@9/16
Warranty Period: 5-Year
@20/25
@6/16

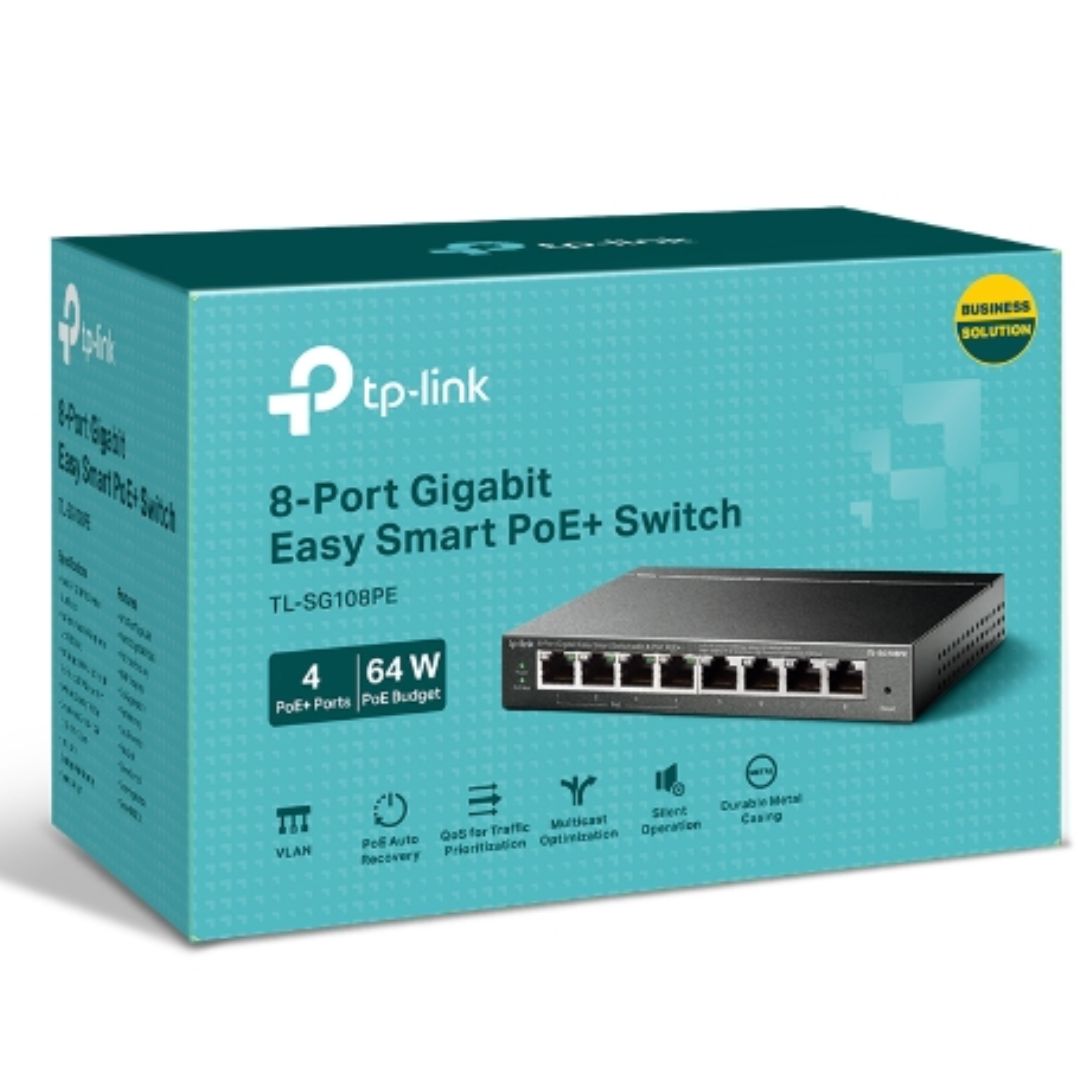

8 10/100/1000Mbps RJ45 ports With 4 PoE ports; data and power can be transferred on one single cable Provides network monitoring; traffic prioritization and VLAN features Simple network set-up on top of plug-and-play connectivity Web-based user interface and Easy Smart Configuration Utility simplify configuration
What This Product Does The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports; represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices; such as wireless access points (APs); IP cameras; and IP phones. Through its web-based user interface and management utility; the TL-SG108PE offers a variety of useful features; including network monitoring; trafc prioritization; and enhanced QoS. Additionally; with port-based; tag-based and MTU VLAN; TL-SG108PE can improve security and meet more network segmentation requirements.
HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3x; IEEE 802.1q; IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 48VDC / 1.25A) Power Consumption Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz) PoE+ Ports(RJ45) Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W
PERFORMANCE Switching Capacity 16Gbps Packet Forwarding Rate 11.9Mpps MAC Address Table 4K Packet Buffer Memory 1.5Mb
@11/16

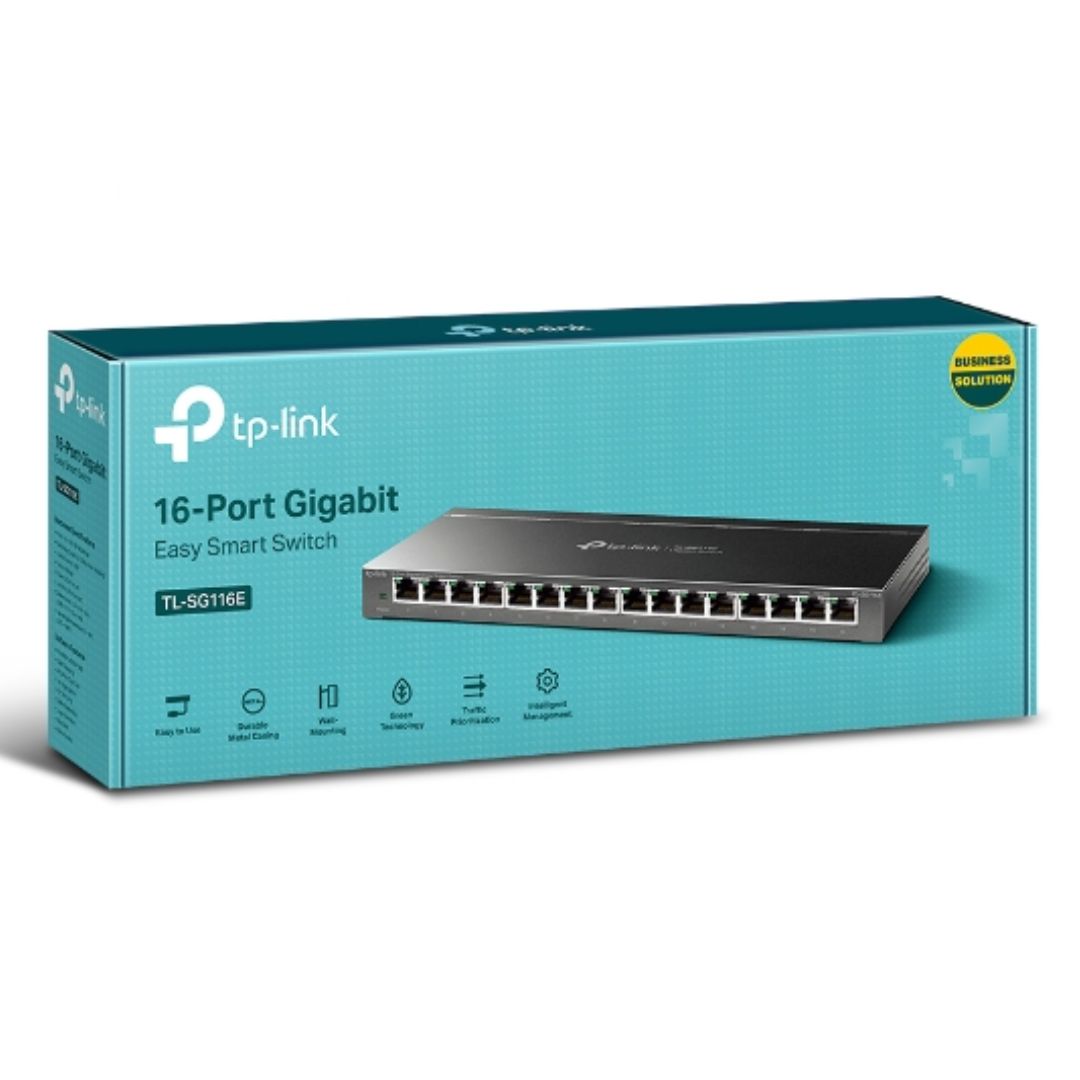

16 10/100/1000Mbps RJ45 ports Plug and play; with no configuration required Durable metal casing of superior quality and professional appearance Intelligent management via a web user interface and downloadable utility Green technology reduces power consumption
HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x; IEEE 802.1q; IEEE 802.1p Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 9VDC/0.6A) Power Consumption Maximum: 9.27W (220V/50Hz) Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm) PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.81Mpps MAC Address Table 8K Packet Buffer Memory 4.1Mb Jumbo Frame 9KB
SOFTWARE FEATURES Quality of Service Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Transmission Method Store-And-Forward
@11/16

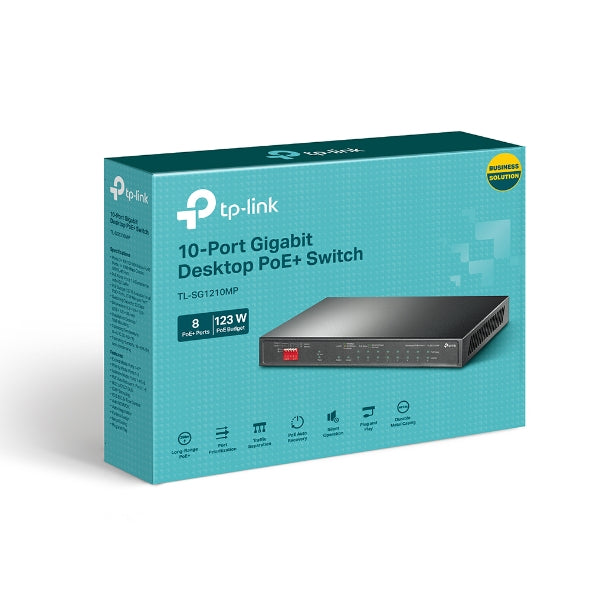

• 9× gigabit RJ45 ports; and 1× gigabit combo SFP/RJ45 Port • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W* • Compliance with IEEE 802.3af/at PoE+; the switch supports PoE Power up to 30 W for each PoE port • Up to 250 m data and power transmission range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications • Isolation Mode allows one-click client traffic separation for higher security and performance • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery. • Plug and play with no configuration required • Fanless design reduces power consumption and works silently in its location
HARDWARE FEATURES Interface • 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A) Packet Forwarding Rate 14.88 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W Mac Address Table 4K Jumbo Frame 16 KB Switching Capacity 20 Gbps Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption • 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected) Max Heat Dissipation • 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4; Up to 250 m PoE power supply and data tra
@17/23

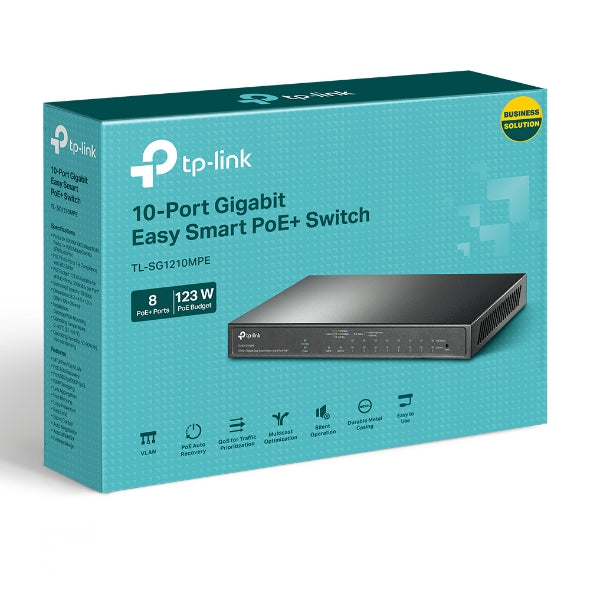

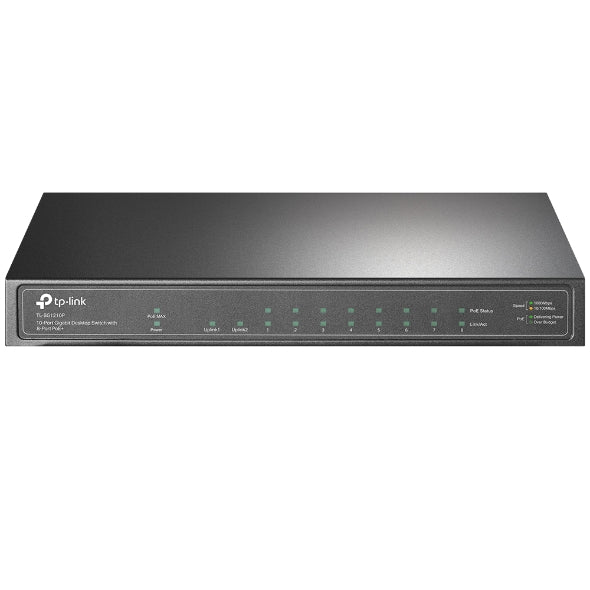

• 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port; the switch can transfer data and power via one single cable • Supports PoE power up to 123 W for all PoE ports* • Provides network monitoring; traffic prioritisation; VLAN features; and PoE Auto Recovery • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and Easy Smart Configuration Utility simplify configuration • Fanless design lowers energy consumption and eliminates operating noise
HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3x; IEEE 802.1q; IEEE 802.1p; IEEE 802.3at; IEEE 802.3z Interface 9× 10/100/1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 123 W Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption 7.66 W (220V / 50Hz with no PD connected) 141.54 W (220V / 50Hz with 123 W PD connected) Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected) 482.65 BTU/h (220V / 50Hz with 123 W PD connected) PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps MAC Address Table 4 K Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Agg
@19/24
HARDWARE FEATURES Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF; SMF Fan Quantity Fanless Physical Security Lock Yes Power Supply External Power Adapter(Output: 53.5VDC / 1.31A) Backup Bandwidth 20 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W Mac Address Table 4K Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) Max Heat Dissipation 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Transmission Method Store-And-Forward OTHERS Certification CE; FCC; RoHS Package Contents TL-SG1210P; Power Adapter; Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
@12/18
Warranty Period: 5-Year
@20/25

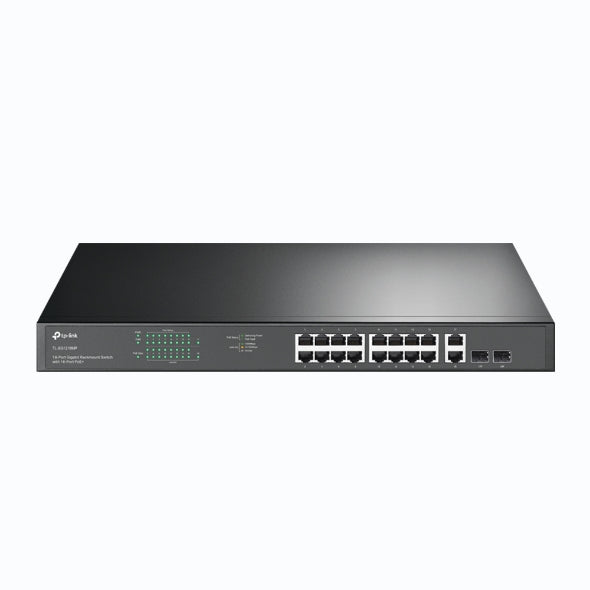

HARDWARE FEATURES Standards and Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3af; IEEE 802.3at; IEEE 802.1q; IEEE 802.1p Interface • 16× PoE+ gigabit RJ45 ports • 2× gigabit non-PoE RJ45 ports • 2× combo gigabit SFP slots Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF; SMF Fan Quantity 2 Physical Security Lock Yes Power Supply 100–240 VAC; 50/60 Hz PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W Dimensions ( W x D x H ) 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption • 21.4 W (220/50 Hz. no PD connected) • 286.64 W (220/50 Hz. with 250 W PD connected) Max Heat Dissipation • 72.97 BTU/h (no PD connected) • 977.44 BTU/h (with 250 W PD connected)
PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 26.78 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • 802.1p/DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Jumbo Frame 10 KB
@28/30

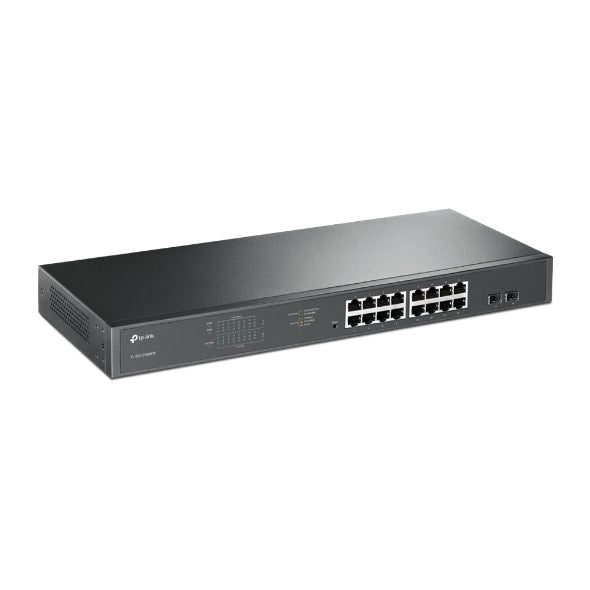

HARDWARE FEATURES Standards and Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x IEEE 802.3af; IEEE 802.3at; IEEE 802.1q; IEEE 802.1p Interface 16 PoE+ 10/100/1000Mbps RJ45 Ports 2 Fiber Ports Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF; SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240V AC; 50/60 Hz Backup Bandwidth 7.2 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W Mac Address Table 8K Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption 18.73 W (220/50Hz. no PD connected) 217.22 W (220/50Hz. with 192W PD connected) Max Heat Dissipation 63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected)
PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 23.8 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB
@31/31

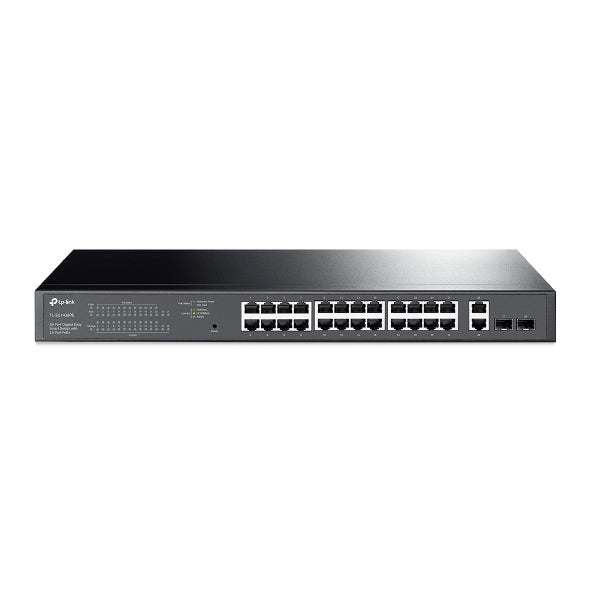

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
• 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots • PoE power budget is up to 250 W*; making it ideal for small to medium business surveillance systems • Priority Mode helps to guarantee the quality of sensitive application like video monitoring • PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV • Intelligent power management can protect the switch from overload
HARDWARE FEATURES Standards and Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x IEEE 802.3af; IEEE 802.3at; IEEE 802.1q; IEEE 802.1p Interface 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF; SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240V AC; 50/60 Hz PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) Mounting Rack Mountable Max Power Consumption 27 W (220/50Hz. no PD connected) 304.7 W (220/50Hz. with 250 W PD connected) Max Heat Dissipation 92.07 BTU/h (no PD connected) 1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE Switching Capacity 56 Gbps Packet Forwarding Rate 41.7 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB
SOFTWARE FEATURES Quality of Service Support Port-based 802.1p/DSCP priority
@37/35

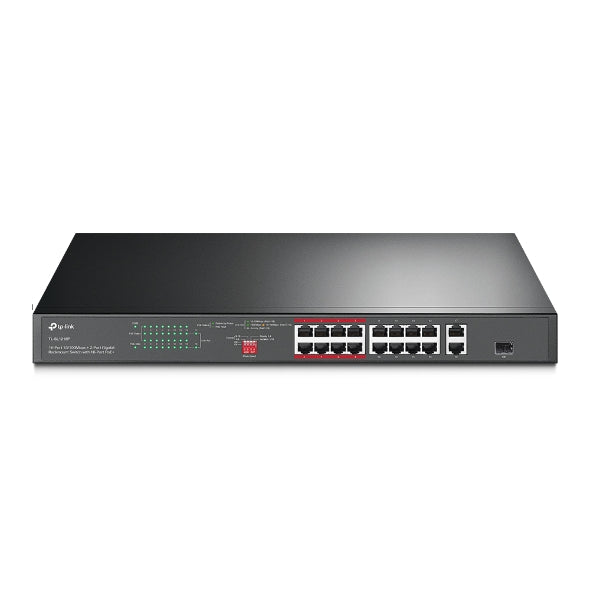

16 PoE+ 10/100Mbps RJ45 ports; 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots Up to 250m data and power transmission under extend mode specially designed for surveillance system Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports Easy to use; with no configuration and installation needed
HARDWARE FEATURES Interface 16 PoE+ 10/100Mbps RJ45 Ports 2 10/100/1000Mbps RJ45 Ports 2 Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF; SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240V AC; 50/60 Hz Backup Bandwidth 7.2 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W Mac Address Table 8K Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) Max Power Consumption 18.7 W (no PD connected) 217.2 W (with 192W PD connected) Max Heat Dissipation 63.9 BTU/h (no PD connected) 741.2 BTU/h (with 192W PD connected)
SOFTWARE FEATURES Advanced Features Compatible with IEEE 802.3at/af compliant devices Port Priority Mode Extend Mode (Up to 250m PoE power supply and data transmission) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control Transmission Method Store-And-Forward
@31/31
HARDWARE FEATURES Interface • 16× PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 1× Combo Gigabit SFP Slot Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF; SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100–240V AC; 50/60 Hz PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 150 W Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Max Power Consumption • 12.71 W (220/50Hz. no PD connected) • 172.8 W (220/50Hz. with 150 W PD connected) Max Heat Dissipation • 43.34 BTU/h (no PD connected) • 589.25 BTU/h (with 150 W PD connected)
PERFORMANCE Switching Capacity 7.2 Gbps Packet Forwarding Rate 5.36 Mpps MAC Address Table 8K Jumbo Frame 10 KB
SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control Transmission Method Store-And-Forward
@26/28

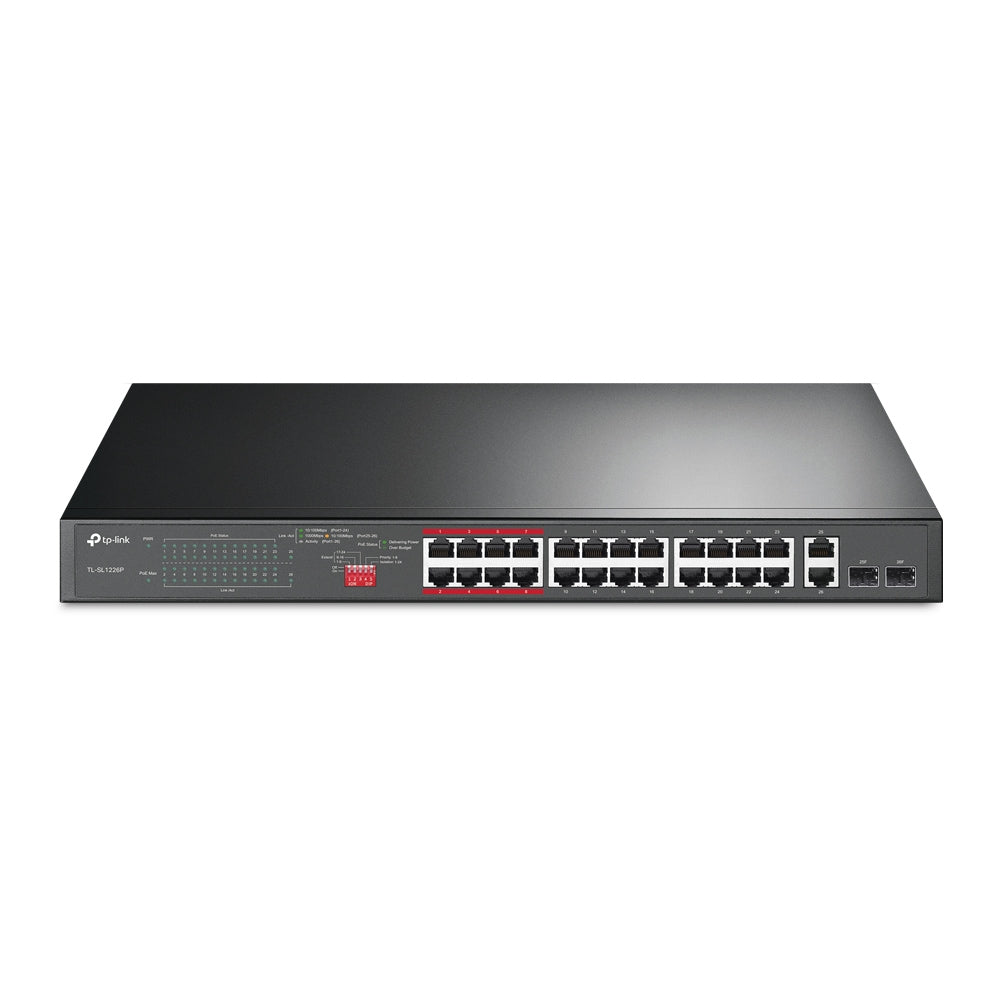

HARDWARE FEATURES Interface 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF; SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240 VAC; 50/60 Hz Backup Bandwidth 8.8 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W Mac Address Table 8 K Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Max Power Consumption 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) Max Heat Dissipation 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected)
SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control
