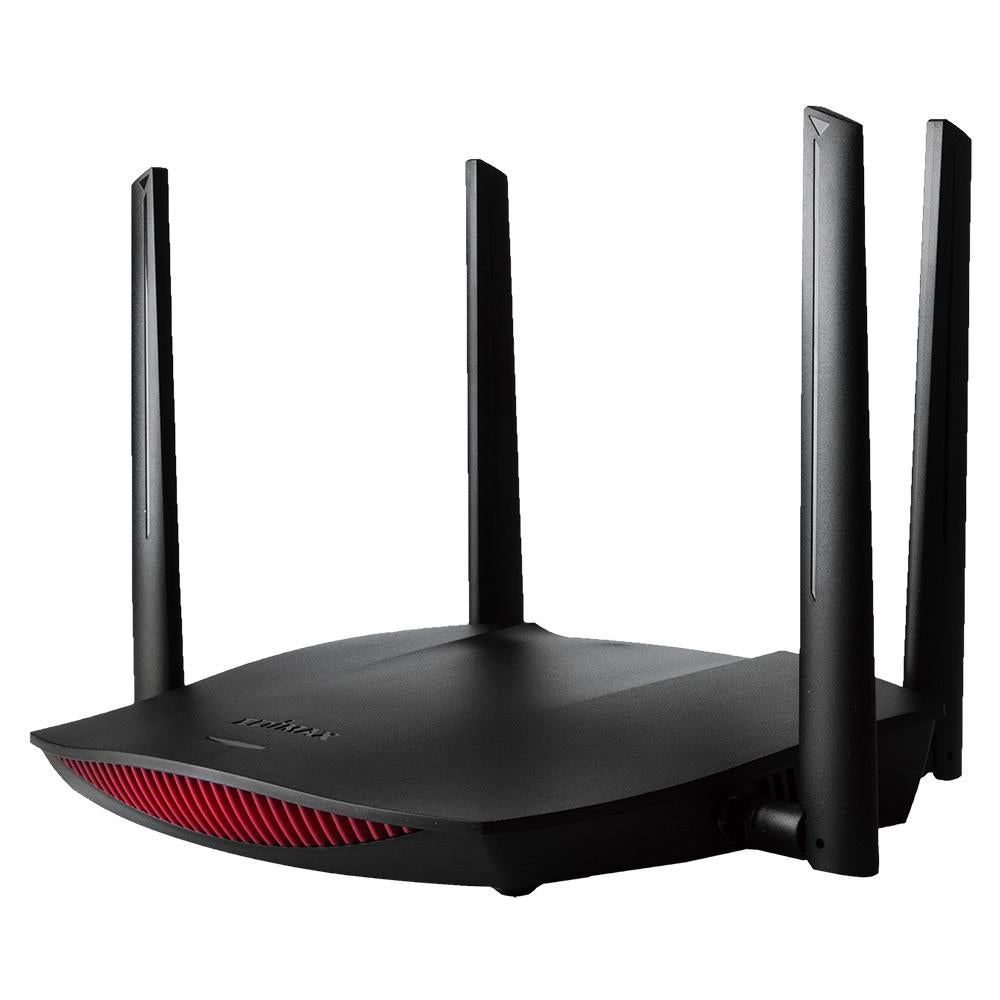

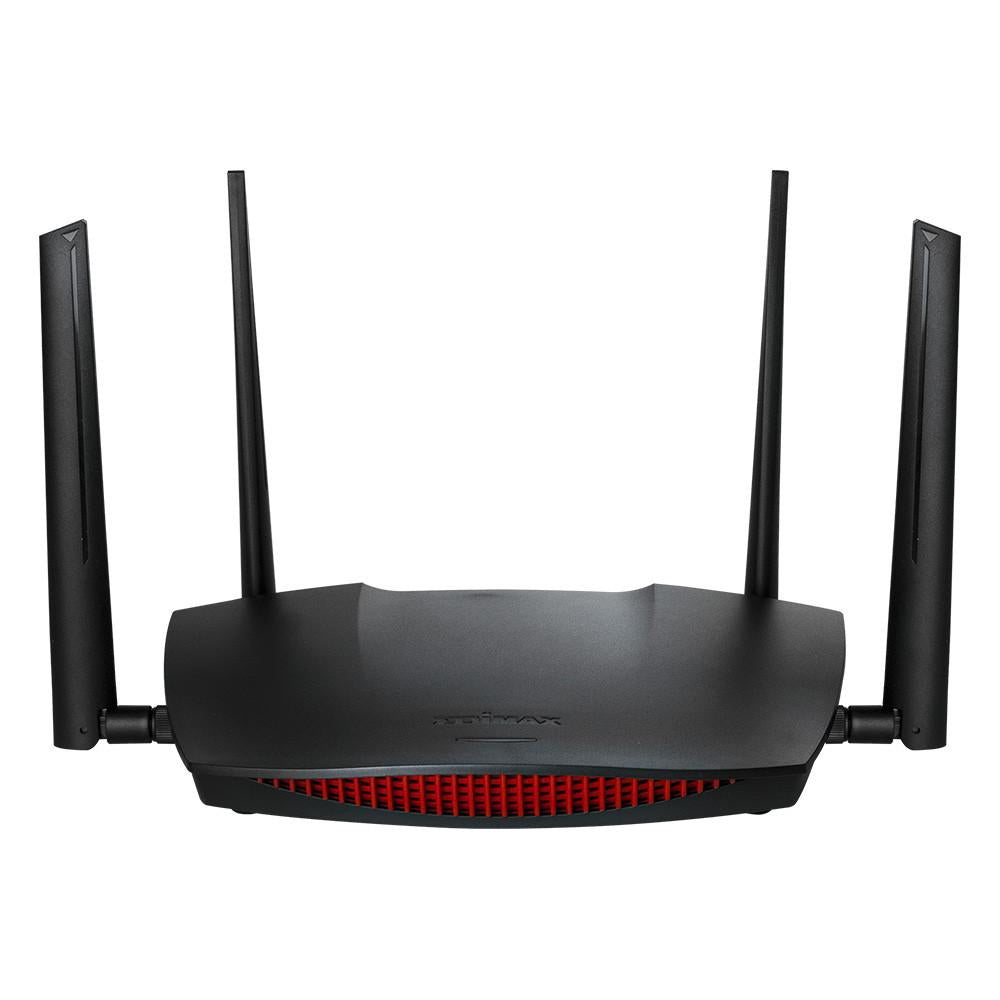

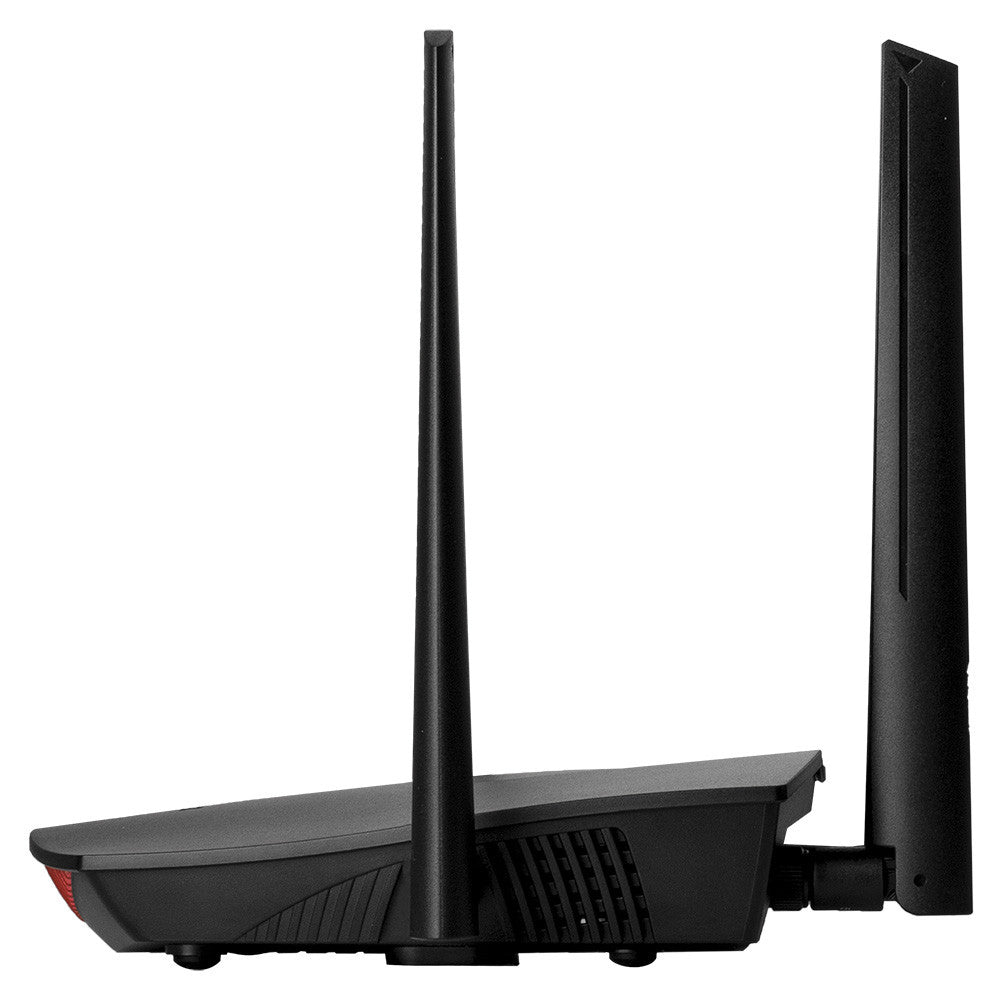

For anyone who’s experienced video streaming interruptions or online gaming lag, the Edimax Gemini RG21S is designed to ensure games and movies run smooth and fast. With the latest 11ac Wave 2 technology and a host of other features the RG21S offers enormous improvements in Wi-Fi speed, quality and reliability. Featuring AC2600 high speed Wi-Fi and MU-MIMO technology for simultaneous connections to multiple devices, as well as smart-roaming support – the Gemini RG21S brings better performance, lower latency and super dependable high-speed Wi-Fi for your movies and games.

It’s an ultra-fast 802.11ac Wi-Fi router with dual-band data rates of 1733Mbps at 5GHz and 800Mbps at 2.4GHz perfect for smooth 4K streaming and lightning fast file transfers. MU-MIMO (Multiple User - Multiple Input Multiple Output) technology serves multiple devices simultaneously and is ideal for busy networks, providing better efficiency and less buffering. And with Edimax add-on roaming devices, the RG21S’s smart roaming function automatically detects and switches your device to the best available Wi-Fi signal – for a seamless Wi-Fi experience as you move around your home.

AC2600 Super High-Speed Wi-Fi
Next generation Wi-Fi router with 802.11a/b/g/n/ac standards and speeds of up to 800Mbps at 2.4GHz and 1733Mbps at 5GHz. Upgrade your home Wi-Fi to super high-speed 802.11ac and enjoy faster video streaming, online gaming and data transfers.

Multi-Device Efficiency
MU-MIMO (Multiple User - Multiple Input Multiple Output) technology serves multiple devices simultaneously instead of one at a time, for better performance and efficiency on networks with multiple devices. Four streams with blistering 11ac Wave 2.

Smarter Wi-Fi Roaming
A seamless connection while you move around your home without hassle of switching SSIDs (network name). Your extender and router use the same SSID for seamless roaming* that automatically switches your Wi-Fi device to the best signal. (*Use with an Edimax Gemini RE11S add-on extender for always-connected Wi-Fi.)

Flexible Concurrent Dual-Band Connectivity
Providing simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility of use and the best of both worlds.

SPECS

Interface

• 1 x RJ-45 10/100/1000Mbps WAN port
• 4 x RJ-45 10/100/1000Mbps LAN port

Button

• WPS/Reset buttons

LED indicator

• Power

Antenna

• 4 x detachable antennas (2 x 2.4GHz and 2 x 5GHz)

Memory

• 16MB NOR Flash
• 64MB RAM

Power Adapter

• DC 12V, 1.5A

Dimensions

• 160(W)mm x 115(D)mm x 31(H)mm

Wireless
Standards

• 802.11 a/b/g/n/ac

Frequency

• 5GHz and 2.4GHz concurrent dual-band

Maximum Data Speed

• 5GHz: 1733Mbps
• 2.4GHz: 800Mbps

Receive Sensitivity

5GHz:

• 11a(6Mbps): ‐89±2dBm
• 11a(54Mbps): ‐72±2dBm
• 11n(20MHz, MCS7): ‐70±2dBm
• 11n(40MHz, MCS7): ‐68±2dBm
• 11ac(80MHz, MCS9): -56±2dBm

2.4GHz:

• 11b(1Mbps): ‐93±2dBm
• 11b(11Mbps): ‐82±2dBm
• 11g (6Mbps): ‐90±2dBm
• 11g (54Mbps): ‐72±2dBm
• 11n(20MHz, MCS7): ‐70±2dBm
• 11n(40MHz, MCS7): ‐68±2dBm



Output Power

5GHz:

• 11a(6Mbps): 17±1.5dBm
• 11a(54Mbps): 15±1.5dBm
• 11n(20MHz, MCS7): 15±1.5dBm
• 11n(40MHz, MCS7): 15±1.5dBm
• 11ac(80MHz, MCS9): 14±1.5dBm

2.4GHz:

• 11b (1Mbps): 17±1.5dBm
• 11b (11Mbps): 17±1.5dBm
• 11g (6Mbps): 17±1.5dBm
• 11g (54Mbps): 15±1.5dBm
• 11n (20MHz, MCS7): 15±1.5dBm
• 11n (40MHz, MCS7): 15±1.5dBm

Guest Network

• 5GHz guest network × 1
• 2.4GHz guest network × 1

Security

• 64/128-bit WEP, WPA and WPA2 security
• Hardware & software WPS configuration
• QoS for critical operations, SPI anti-DoS firewall

Software Features

Management

• Multi-language user interface
• Remote management, access control
• System status and security log
• Firmware upgradable
• Smart iQ Setup, no CD required

WAN

• Protocol: PPPoE, Static IP, Dynamic IP, PPTP and L2TP
• Supports WISP connection mode
• Supports RJ-45 cable

iQoS

• Intelligent Quality of Service for smart bandwidth management, WMM

VPN Pass-Through

• IPSec, PPTP

Port Forwarding

• Virtual Server, IGMP Proxy, UPnP, DMZ

DHCP

• Server, Client, DHCP Client List, Address Reservation

Dynamic DNS

• DynDns, DHS, Zoneedit

Access Control

• IP/Mac Filter

Firewall Security

• DoS, SPI Firewall, IP Address Filter

Protocols

• Supports IPv4 and IPv6

Guest Network

• 5GHz guest network x 1, 2.4GHz guest network x 1

SSID

• Up to 4 SSIDs (2.4GHz x 2 and 5GHz x 2) in Wi-Fi router mode (Each mode with 1 main SSID and 1 guest SSID)
• Up to 10 SSIDs (2.4GHz x 5 and 5GHz x 5) in access point modem (Each band with 1 main SSID and 4 multiple SSIDs)

Schedule

• Wi-Fi scheduling

Operation Mode

• Wi-Fi router or access point

Environmental Condition

• Operating humidity: 10-90% (non-condensing)
• Operating temperature: 32 - 104°F (0 - 40°C)

System Requirement

• Cable or xDSL Internet connection (RJ-45 cable modem or RJ-45 ADSL modem)
• Computer (with Fast Ethernet adapter or wireless adapter) running Windows, Mac OS or Linux
• Smartphone, tablet or laptop running iOS 4 or Android 4 and above
• Web browser (Internet Explorer, Google Chrome, Firefox, Opera or Safari)

Package Content

• RG21S Wi-Fi router
• Quick installation guide
• CD-ROM (including setup wizard, multi-language quick installation guide and user manual)
• Power adapter
• Ethernet cable

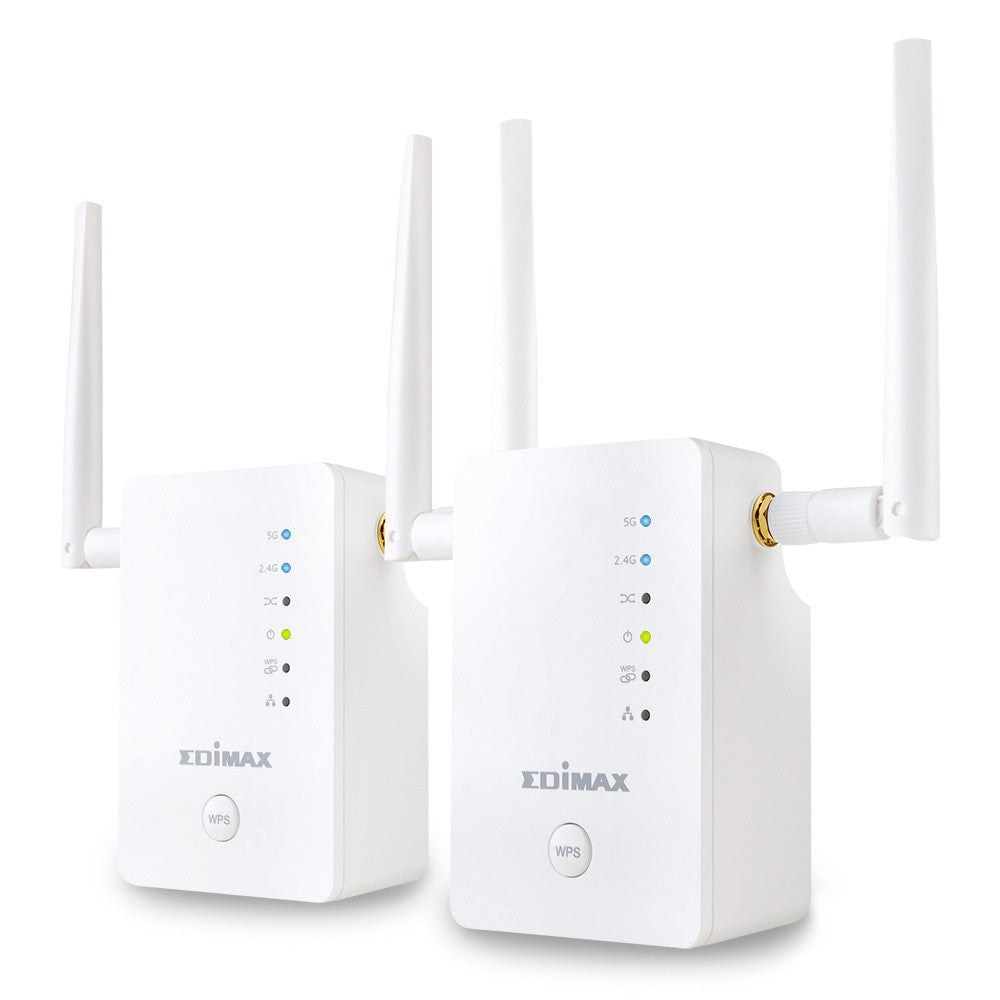

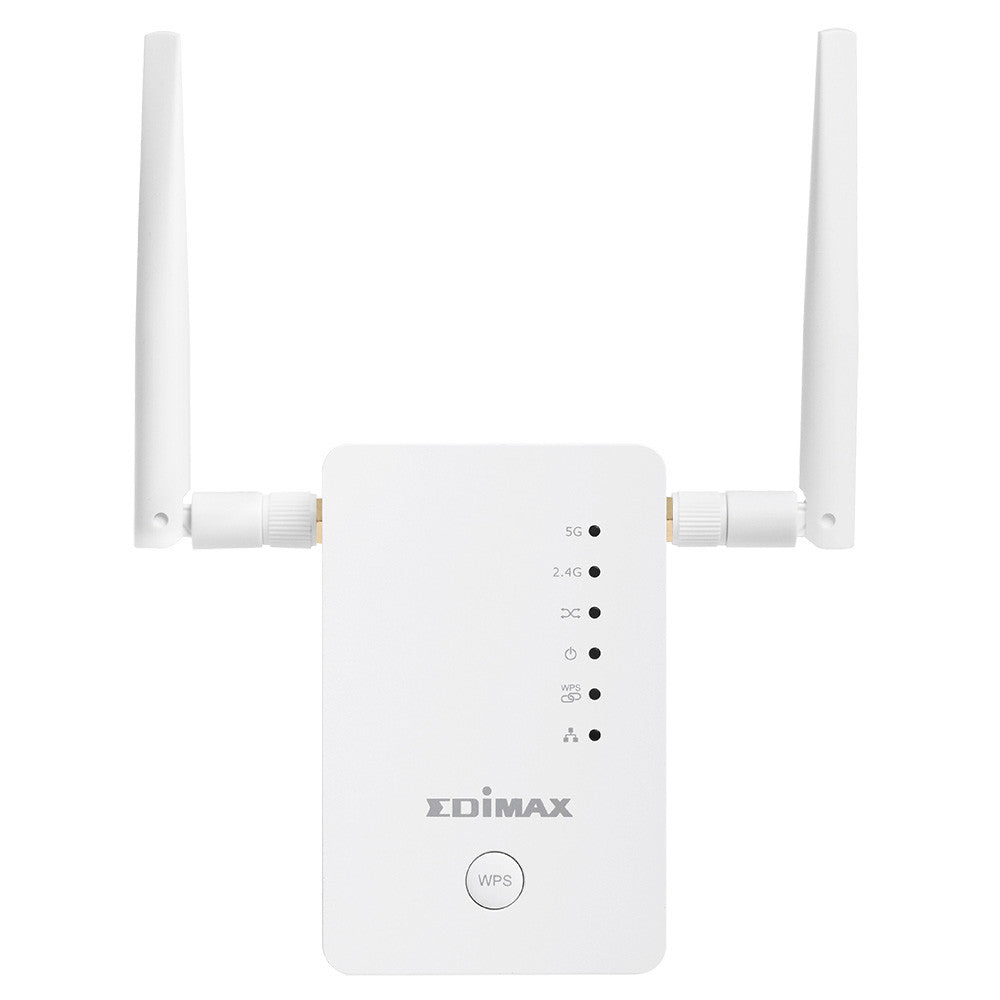

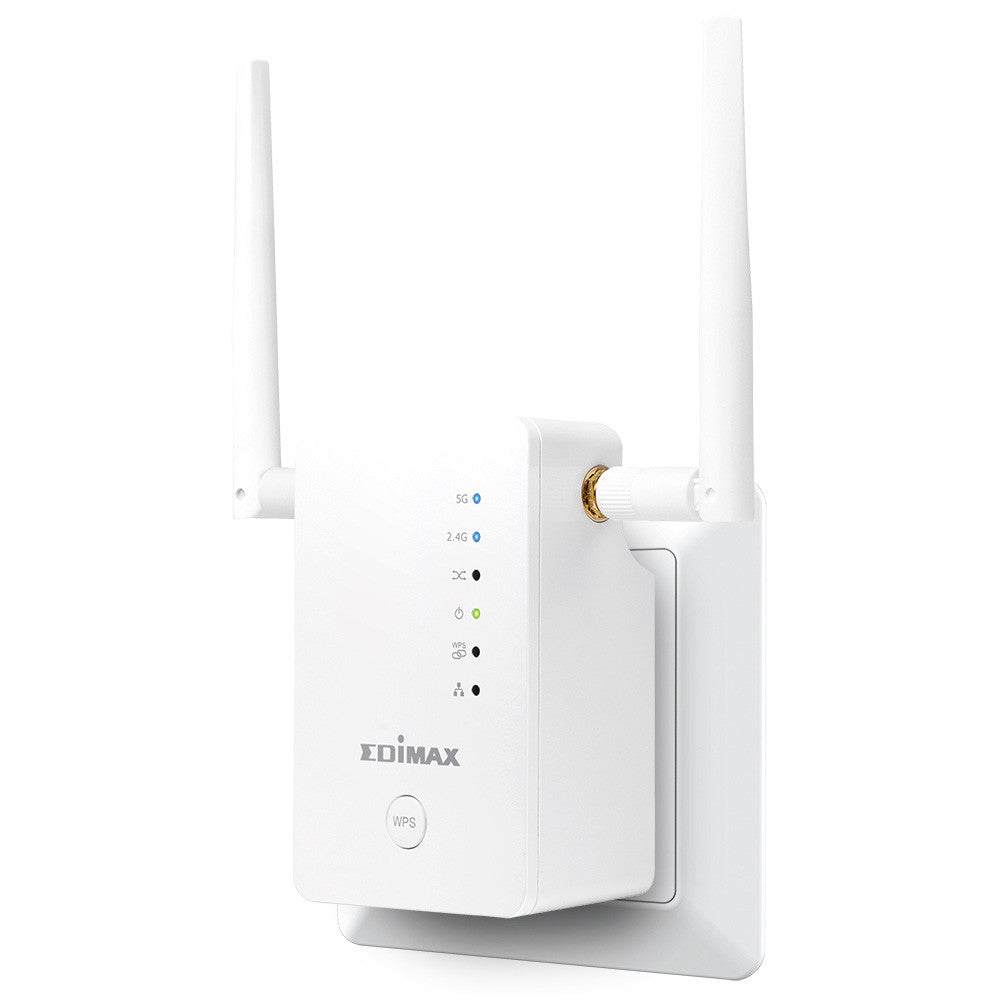

The Gemini RE11 Home Wi-Fi Roaming Kit contains two RE11S AC1200 dual-band Wi-Fi extenders designed to upgrade and extend your Wi-Fi without replacing your existing router. The two RE11S extenders build an intelligent Wi-Fi roaming mesh network with a single SSID (network name). They automatically detect and switch your device to the best available Wi-Fi signal for a more natural, seamless experience. You can move freely in your home without signal drops or switching between SSIDs.
​
Designed for fast and reliable home Wi-Fi, the Gemini RE11 Kit features 802.11ac supercharged speed. Just plug and play to instantly upgrade an 11n network to dual-band 11ac wireless with speeds up to 1200Mbps (300Mpbs on 2.4GHz + 867Mbps on 5GHz) – ideal for video streaming. Additionally, designed for easy home Wi-Fi, the RE11S is a 3-in-1 device that can function as a Wi-Fi Extender, Access Points or Wi-Fi Bridge depending on your home Wi-Fi requirement. And it works with any router – easy!


Smarter Wi-Fi with a Single Network
Fast, reliable roaming for a seamless connection while you move around your home. No hassle with switching SSIDs (network name). The RE11S uses the same SSID and automatically switch intelligently.

Stronger Signal for Connected Homes
RE11S extenders keep detecting the Wi-Fi signal quality for your Wi-Fi devices, and ensure they’re always connected to the best Wi-Fi signal.

Faster 802.11ac Speeds Ideal for Streaming
Upgrade your single-band 2.4GHz Wi-Fi to 802.11ac dual-band Wi-Fi with 5GHz ideal for video streaming. Get the latest 11ac technology with high-speed capacity up to 1200Mbps (N300 + AC867Mbps), and extend both 2.4GHz and 5GHz wireless connections at the same time.

Easy Plug & Play Upgrade for Your Home 11n Router to 11ac
Just plug in the Edimax RE11S to upgrade your single-band 2.4GHz Wi-Fi to dual-band with better coverage, without replacing your router and with zero configuration required. *AP mode only.

Smart 3-in-1 Wi-Fi Extender, Access Point and Wi-Fi Bridge
The RE11S can work as Wi-Fi extender, access point or Wi-Fi bridge. Just configure the mode you need for your network environment using the smart iQ Setup wizard and enjoy surfing the web.

Smart iQ Setup
Features user-friendly browser-based iQ Setup for smart, automatic and quick installation. iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection in a few seconds.
*Wi-Fi Extender mode only.

Universal Compatibility, Works with Any Wi-Fi Router
Universal compatibility and easy web-based iQ Setup for quick and easy installation.

Detachable Antenna
Designed with a detachable 3dBi dual-band antenna, to provide flexibility and high performance connections for your wireless network.

Green Wi-Fi Power Switch
Featuring a new hardware switch to adjust between normal and green Wi-Fi transmit power (the strength of the Wi-Fi signal), or switch off the power with one click. If you only need Wi-Fi in a smaller house, you can switch to green mode to reduce power by 75% and conserve energy.

Friendly Signal-Strength Indicator
Designed with a signal strength LED which lets you see the Wi-Fi signal strength received from the router* and guides you to find the best setup location.
*Wi-Fi Extender or Wi-Fi bridge mode only.

APPLICATION DIAGRAM

SPECS
Frequency Band

• 2.4GHz
• 5GHz

Management

• 16-language user interface
• Upgradable firmware

Installation

• Multi-Language iQ Setup (browser interface)
• Hardware WPS Button

Humidity

• 10-90% (Non-condensing)

Dimensions

• 59 (W) x 91 (H) x 40 (D) mm (power plug & antennas are excluded)

Wireless Standards & Data Rates

• IEEE 802.11 ac (up to 867Mbps)
• IEEE 802.11 n (up to 300Mbps)
• IEEE 802.11 a (up to 54Mbps)
• IEEE 802.11 g (up to 54Mbps)
• IEEE 802.11 b (up to 11Mbps)

Security

• 64/128-bit WEP,WPA-PSK and WPA2-PSK encryption
• 802.1 x authentication, User access control (in access point mode)
• WPS (Wi-Fi Protected Setup)

Antenna

• 2 x External Detachable antennas

Temperature

• 0 ~ 40°C (32-104°F)

Hardware Interface

• 1 x 10/100/ 1000Mbps Ethernet LAN port
• 1 x Slide Switch
• 1 x WPS button
• 2 x External Detachable Antennas
• LEDs: 5GHz, 2.4GHz, Signal Indicator, Wireless, Power, WPS, LAN
• 1 x AC plug (EU,UK,US or AU)

System Requirements

• Existing wireless home network (2.4GHz/5GHz) for Wi-Fi extender/Wi-Fi bridge mode, or cable/DSL modem router for access point mode

• Computer with IEEE802.11ac/a/b/g/n Wi-Fi  capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version)

Power Adapter

• Built in AC100-240V, 0.16A 50-60Hz power module

Package Contents

• Two RE11S Wi-Fi range extenders

• ​One Ethernet cable

• Quick installation guide

• CD with multi-language QIG and user manual

• Access key card

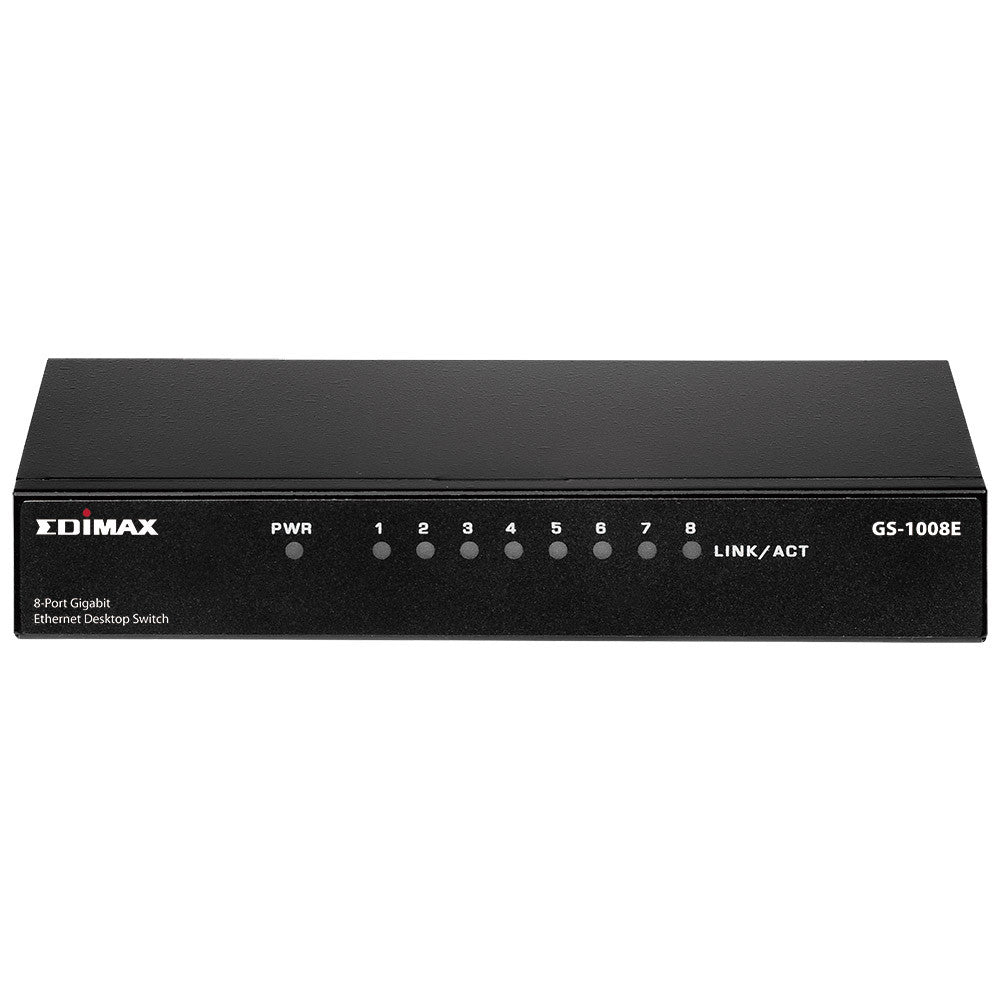

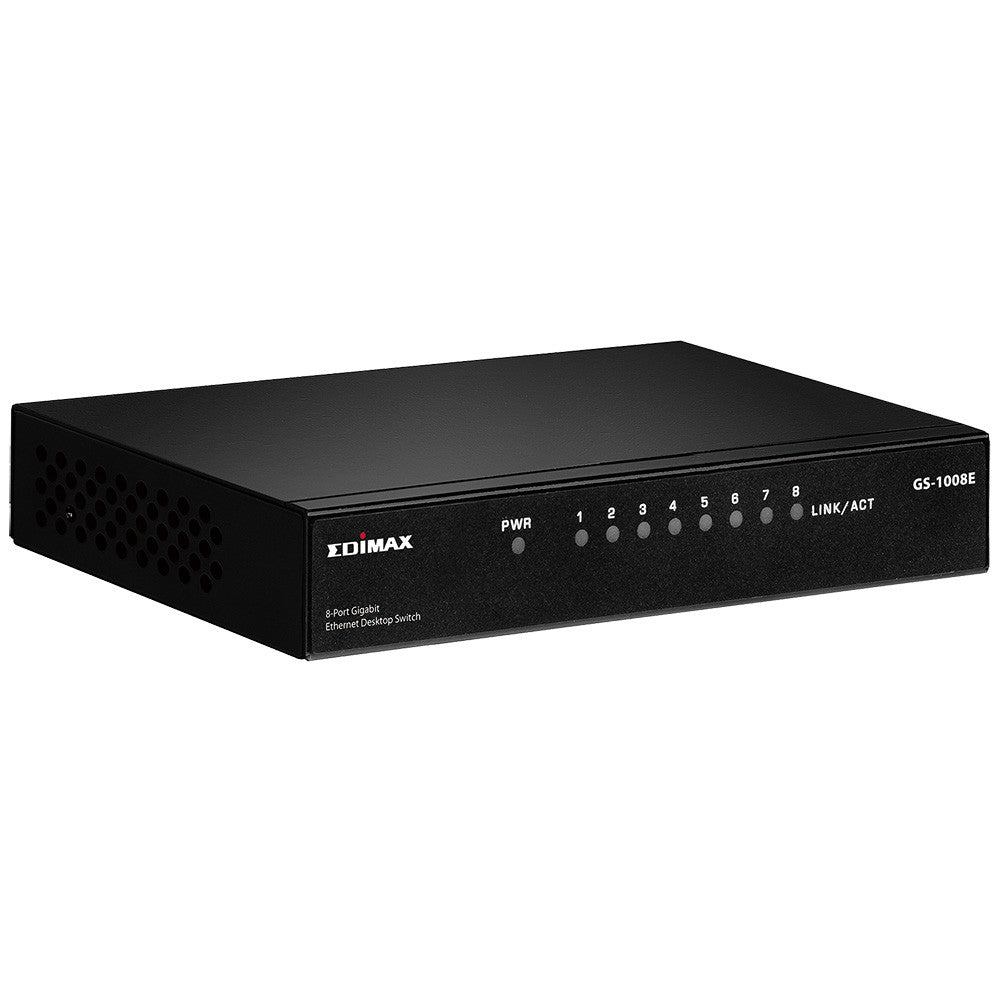

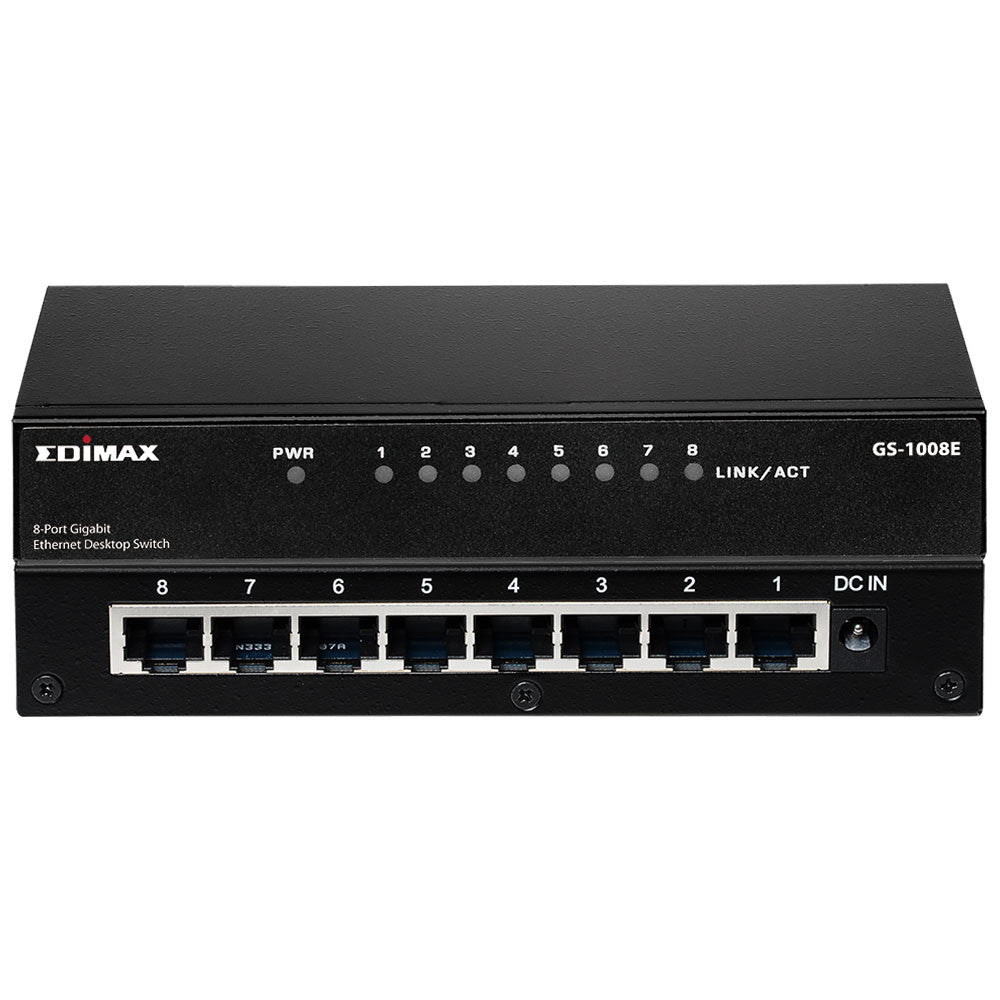

The GS-1008E is 8-port gigabit desktop switch is designed to enhance network performance while maintaining a compact form factor. It boasts outstanding performance and high efficiency, while its store and forward packet-switching technology offers reliable data transfer ideal for network connectivity in the SOHO environment. The GS-1008E is designed with a metal casing and offers an easy, cost-effective gigabit Ethernet solution for users looking to extend home networks and fulfill their online gaming, multimedia transfer and streaming needs. A superb choice to boost your network performance and efficiency.

Supports High-Speed Networking and Jumbo Frames
Expand your Gigabit network. With Gigabit speed, the GS-1008E brings high-flexibility and high-bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time when transferring large files. 9K jumbo frames are also supported to improve network utilization in large files transfer.

Plug & Play, No Installation Required
Just plug Ethernet enabled devices into the switch. Data can be transmitted through existing standard Cat-5e Ethernet cables with no additional cables or configuration required.

High Performance
Supports auto-negotiation non-blocking wire speed, auto-MDI/MDI-X and store and forward architecture to give you the maximum speed and highest performance possible for each device connected to your network.

• Auto-Negotiation

• Non-Blocking Wire Speed

• Supports Auto-MDI/MDI-X

•  Supports Store and Forward Architecture

Power Saving with IEEE Energy Efficient Ethernet (EEE) Compliance
Along with the Fast Ethernet speeds critical for next-generation network applications, the GS-1008E offers environmental efficiency. To comply with the IEEE802.3az standard, the GS-1008E provides power-saving functionality to reduce energy consumption and save costs:

• Inactive Link Detection

• Cable Length Detection

Fan-less Design
Fan-less design provides quiet operation and helps to extend the device’s lifetime in office spaces - the perfect solution for small business and SOHO office deployments.

SPECS
Ports

• 8 RJ-45 10/100/1000Base-T ports

Transmission Method

• Store and forward

LED Indicators

Per port

• Link/Act

Per unit

• Power

Fan

• Fanless

Power Input

• 12V DC, 1A, external power adapter

Power Consumption

• 3.2W (Max.)

Dimensions (L x W x H)

• 121 × 75 × 26 mm

Performance
Switching Capacity

• 16Gbps

MAC Address

• 8K

Buffer Memory

• 128Kb

Jumbo Frames

• 9KB

Filtering/Forwarding Rates

• 1000Mbps port - 1,488000pps

• 100Mbps port - 148,800pps

• 10Mbps port - 14,880pps

Environment

Temperature

Operating

• 0 ~ 40℃

Storage

• -40 ~ 70℃

Humidity (Non-condensing)

Operating

• 10 ~ 90%

Storage

• 5 ~ 95%

Standards Compliance
Standards

• IEEE 802.3 10BaseT Ethernet

• IEEE 802.3u 100BaseTX Fast Ethernet

• IEE 802.3ab 1000BaseT Gigabit Ethernet

• IEEE 802.3x Full-duplex and flow control

• IEEE 802.3az Energy efficient Ethernet

This CAT7 Ethernet Cable follows the 10GbE BASE-T standard and with an ultrafast speed of up to 600MHz so you can connect to your LAN/WAN segments and networking gear at max speeds. The Shielded Twist Pair (STP) design and gold plated connectors closely protects the cable from external Electro-Magnetic Interference (EMI) for optimised signal quality. The clip protector keeps the RJ45 connector from unwanted snags while routing the cable.

Please note, your network speed is determined by many factors, which include the cable, router, switch, other network components, and also service provider.

High Performance

Designed for use with 10 Gigabit Ethernet, provides performances of up to 600MHz and speeds of up to 10Gbps.

Interference Elimination

The CAT7 Ethernet cable is terminated with 2 shielded gold plated RJ45 connectors. Multi-protection mechanism significantly improves noise resistance and interference elimination.

Gold Plated

Built with 50 Micron Gold Plated RJ45 Connectors & Contact Pins. Gold is a natural conductor when used on connectors and contacts, it achieves greater performance through better connectivity and less signal loss providing up to 20% more efficiency.

Slim and Flat

The CAT7 cables slide under the carpet without raising it or showing that it is under there to improving your home or office, can make it easy to fit between spaces, which are perfect camouflage underneath, carpets, walls, or even behind furniture.

Features

Cable Type

• CAT7 4-Pair STP 100% Bare Copper

Connector

• Gold Plated RJ45 (8P8C)

Cable Performance

• Up to 600MHz

Transmission Rate

• 10 Gigabit

Conductor Gauge

• 32AWG

Suze

• Width 7.4mm x Thickness 2.4mm (approx)

Certification

• ISO/IEC 11801; RoHS;

Backward Compatible

• CAT5e, CAT6, CAT6A



This CAT7 Ethernet Cable follows the 10GbE BASE-T standard and with an ultrafast speed of up to 600MHz so you can connect to your LAN/WAN segments and networking gear at max speeds. The Shielded Twist Pair (STP) design and gold plated connectors closely protects the cable from external Electro-Magnetic Interference (EMI) for optimised signal quality. The clip protector keeps the RJ45 connector from unwanted snags while routing the cable.

Please note, your network speed is determined by many factors, which include the cable, router, switch, other network components, and also service provider.

High Performance

Designed for use with 10 Gigabit Ethernet, provides performances of up to 600MHz and speeds of up to 10Gbps.

Interference Elimination

The CAT7 Ethernet cable is terminated with 2 shielded gold plated RJ45 connectors. Multi-protection mechanism significantly improves noise resistance and interference elimination.

Gold Plated

Built with 50 Micron Gold Plated RJ45 Connectors & Contact Pins. Gold is a natural conductor when used on connectors and contacts, it achieves greater performance through better connectivity and less signal loss providing up to 20% more efficiency.

Slim and Flat

The CAT7 cables slide under the carpet without raising it or showing that it is under there to improving your home or office, can make it easy to fit between spaces, which are perfect camouflage underneath, carpets, walls, or even behind furniture.

Features

Cable Type

• CAT7 4-Pair STP 100% Bare Copper

Connector

• Gold Plated RJ45 (8P8C)

Cable Performance

• Up to 600MHz

Transmission Rate

• 10 Gigabit

Conductor Gauge

• 32AWG

Suze

• Width 7.4mm x Thickness 2.4mm (approx)

Certification

• ISO/IEC 11801; RoHS;

Backward Compatible

• CAT5e, CAT6, CAT6A

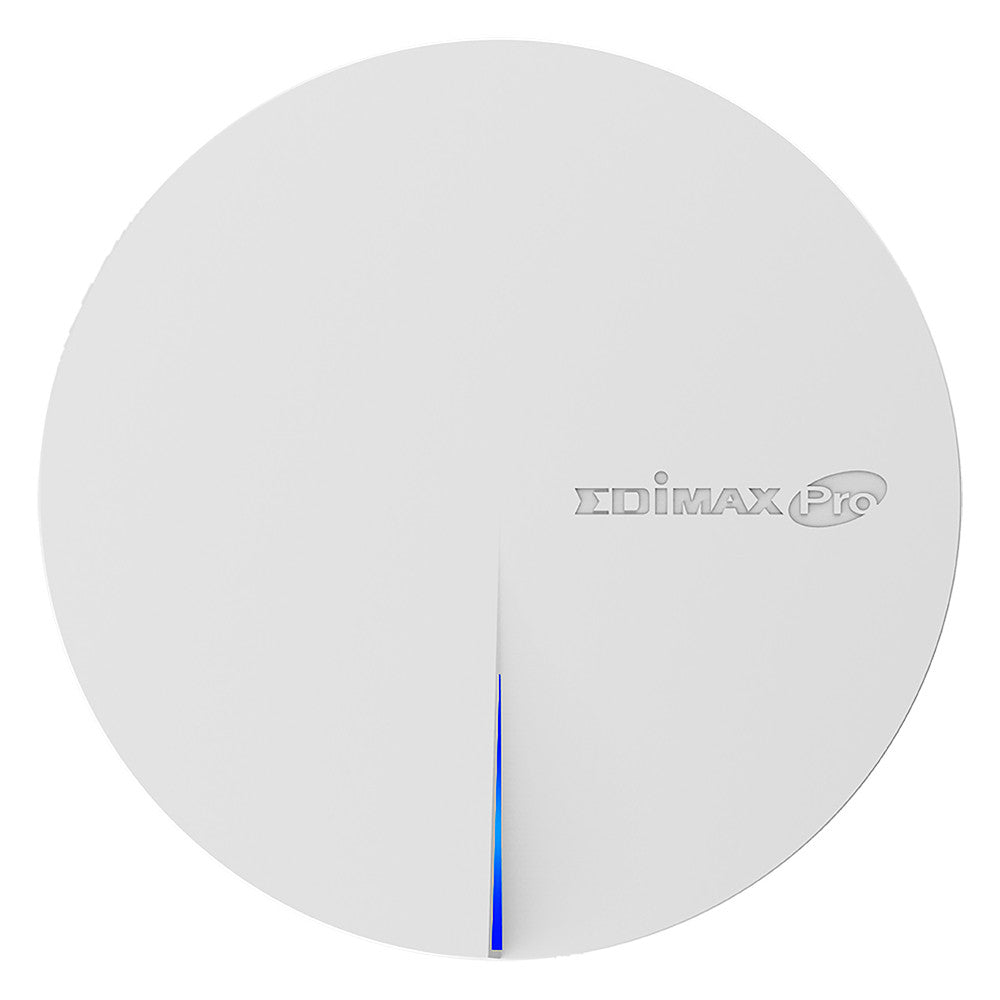

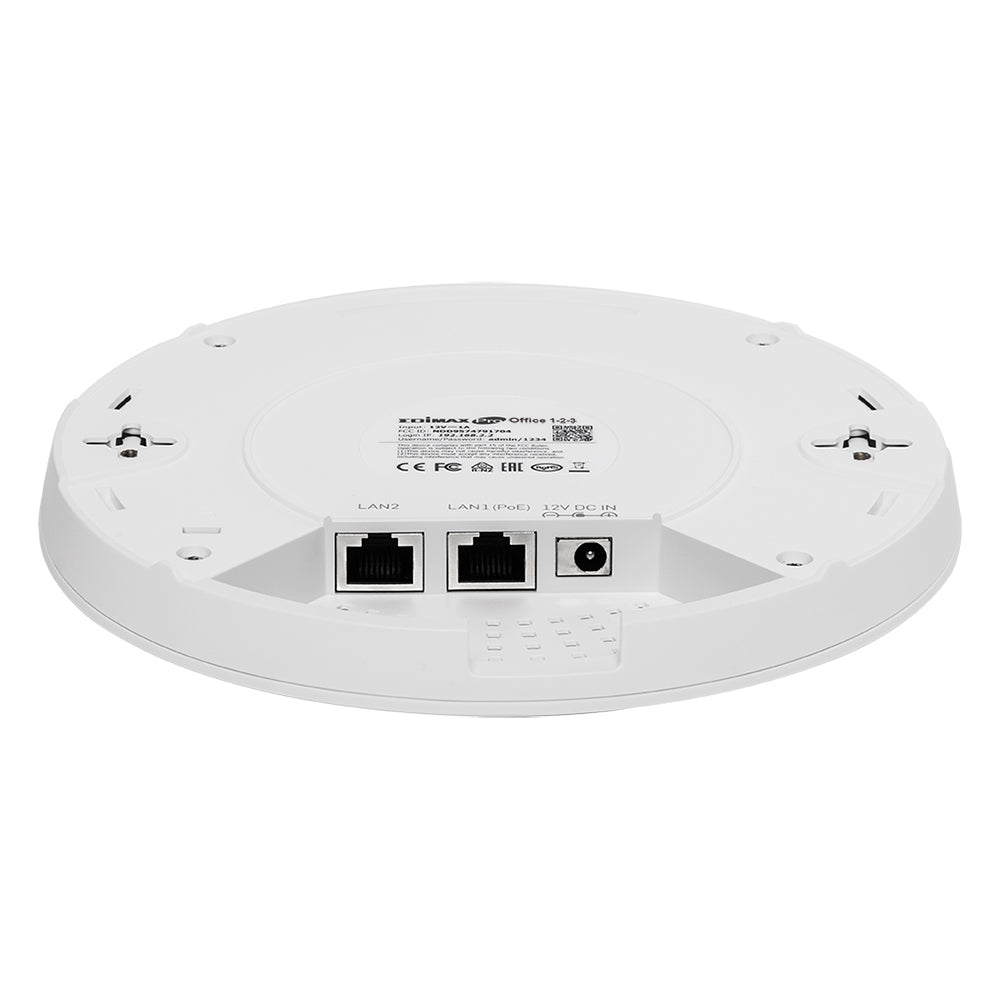

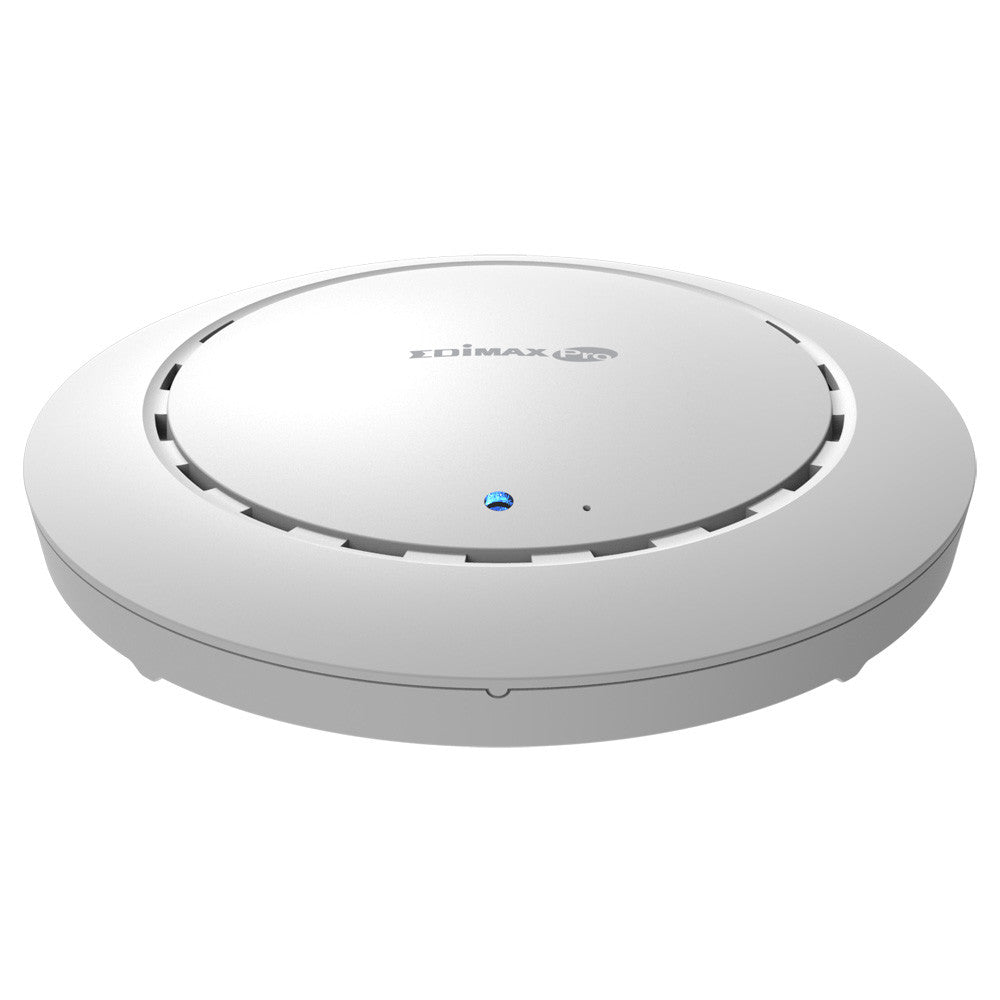

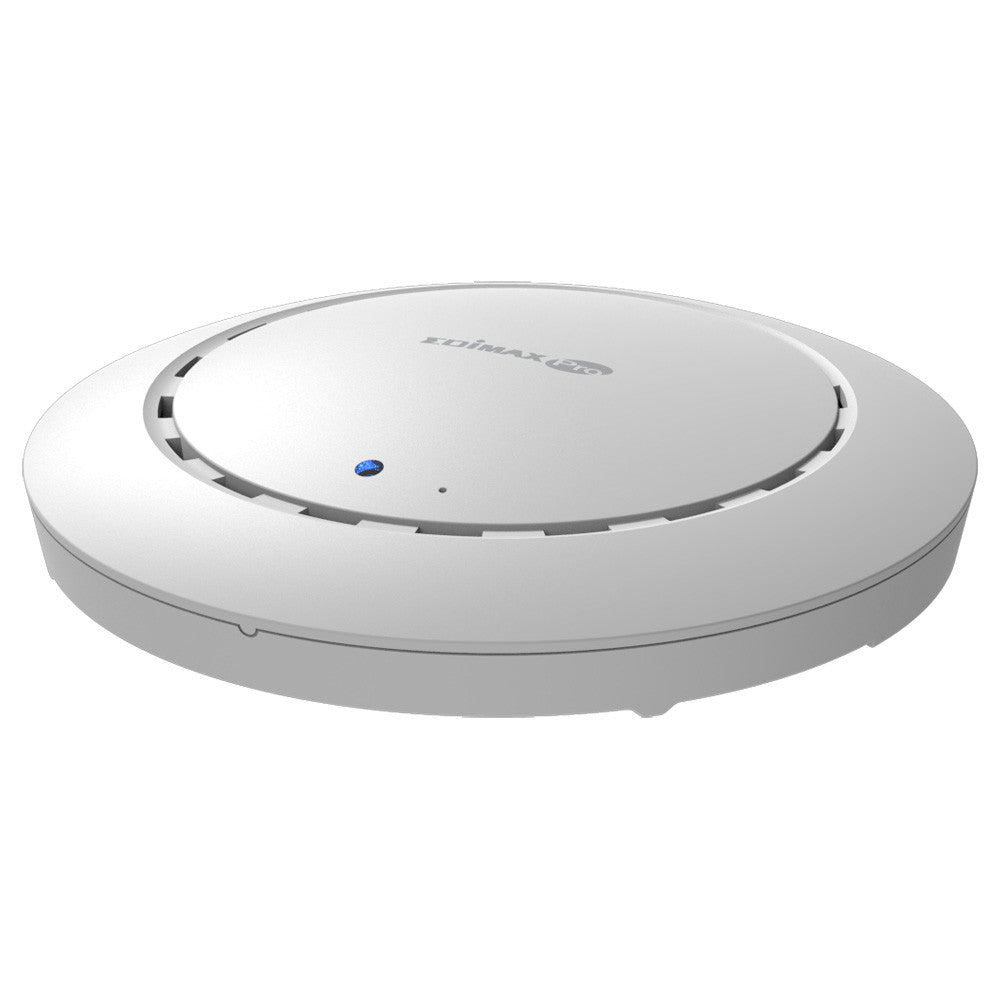

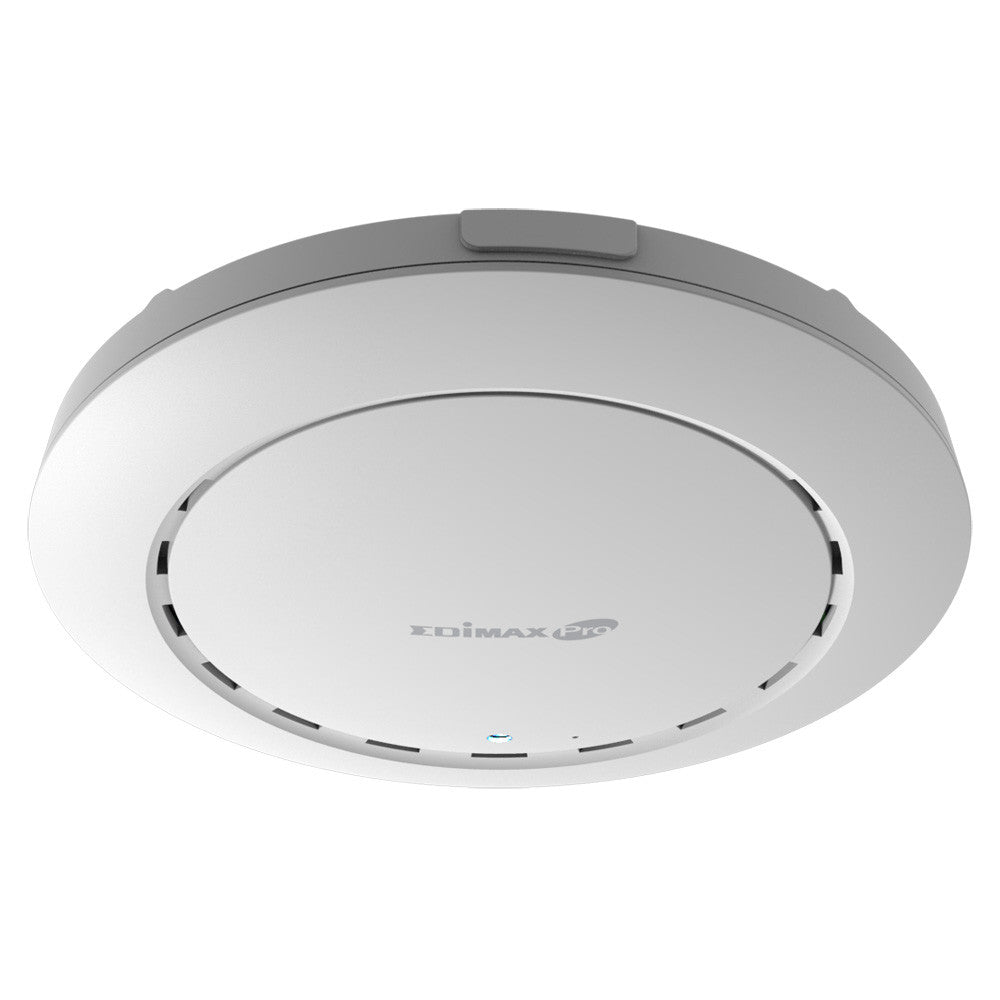

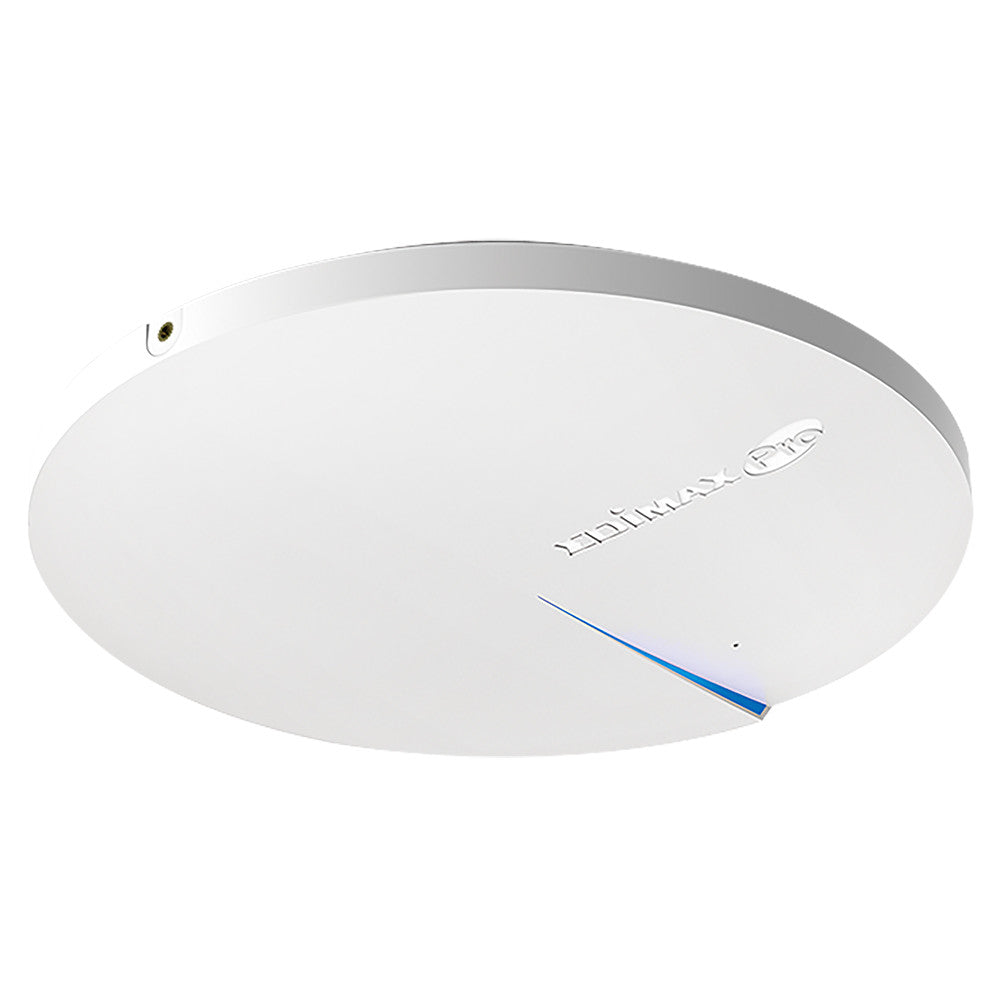

Premium Solution with Super-High Speed AC1750 for Elite Performance

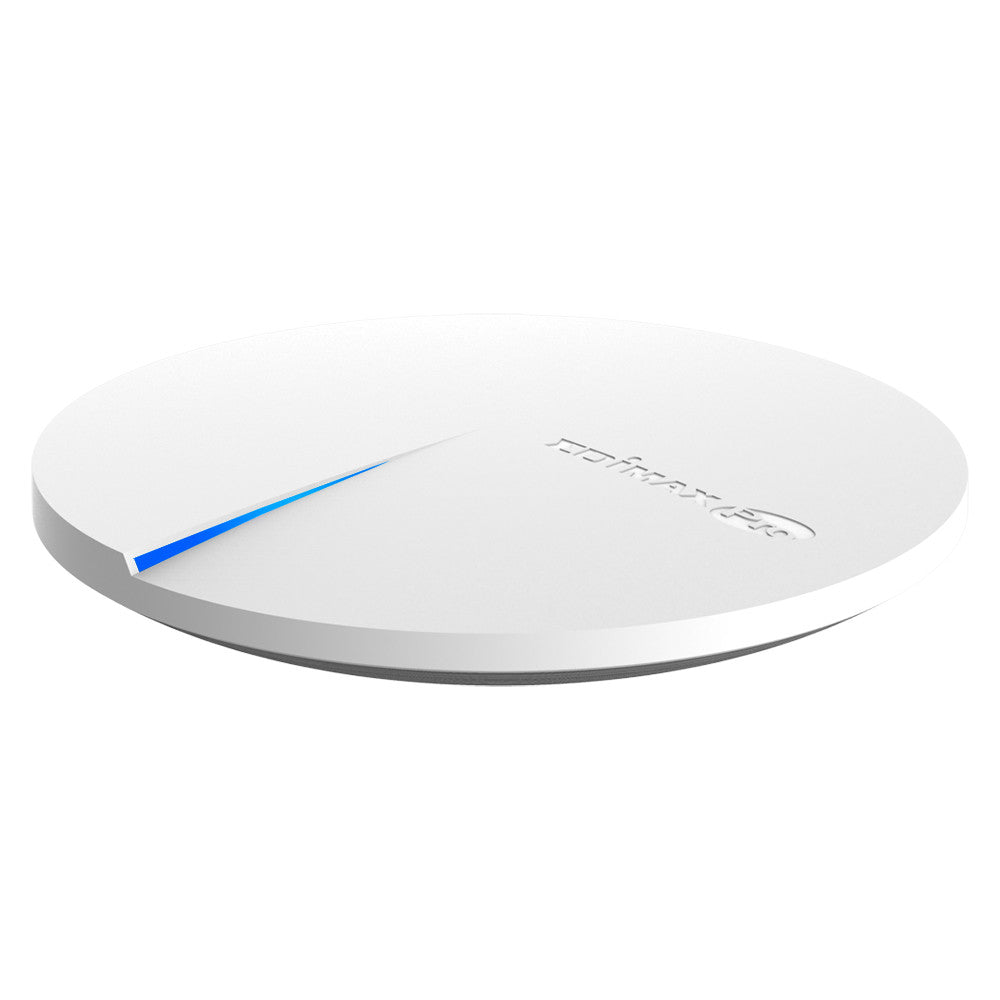

The CAP1750 is a powerful wireless solution designed to meet the needs of modern mainstream businesses with the latest IEEE 802.11ac technology for wireless speeds up to 1750Mbps. Industrial-grade performance and build quality combined with user-friendly operation, super-fast wireless speed, an extensive feature set and a practical, ceiling-mount design make an ideal dual-band solution for enterprise environments.
Premium Solution with Super-High Speed AC1750 for Elite Performance

The CAP1750 is a powerful wireless solution designed to meet the needs of modern mainstream businesses with the latest IEEE 802.11ac technology for wireless speeds up to 1750Mbps. Industrial-grade performance and build quality combined with user-friendly operation, super-fast wireless speed, an extensive feature set and a practical, ceiling-mount design make an ideal dual-band solution for enterprise environments.

For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. High-density capacity for up to 100 simultaneous users is ideal for BYOD workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.

KEY FEATURES


• 802.11AC Dual-Band High Speed: IEEE 802.11ac concurrent dual-band  with 1750Mbps wireless speed.
• Easy Installation: Ceiling-mount & T-rail mount design with easy installation kit.
• Compact & Durable Housing: Ultra slim design with UL94-5VB flame-retardant plastic housing.
• Designed for High Density Usage: Supports up to a hundred users simultaneously, ideal for crowded environments and BYOD (Bring Your Own Device) workplaces.
• Multiple SSIDs for Security Management: Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, user groups, customers or guests.
• Fast Roaming: Roams smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications.
• Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.
• Seamless Mobility: 1.5x greater coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments.
• Power over Ethernet: Supports IEEE 802.3at PoE as well as included power adapter.
• Built-In RADIUS Server: With management for up to 256 user accounts.
• Business Environments: Mainstream choice for SMBs. Suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
• Central Management: Edimax Pro Network Management Suite (NMS) , easy and Intuitive web-based central management suite, supports AP array architecture.

High Performance Design with High-Speed 1750Mbps Dual-Band 11ac
State-of-the-art IEEE 802.11ac wireless technology delivers the Giga-fast  Wi-Fi speeds that today’s fast-moving modern business environments demand. And simultaneous 2.4GHz & 5GHz dual-band coverage means maximum flexibility for mobile-centric business productivity applications. Speeds up to 450Mbps on the 2.4GHz band and 1300Mbps on the 5GHz band can handle even the most bandwidth intensive tasks, perfect for audio, video and voice applications and significantly faster than traditional 802.11n Wi-Fi. Additionally Edimax Pro series products feature other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability. Durable, robust and ready for business environments.​

​Wide Coverage & Multiple SSIDs
With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where it’s needed the most. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with up to 32 separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.

BYOD Solutions & High Density Networking
Bring Your Own Device (BYOD) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. Employees are using their own smartphones, tablets and laptops with the latest cloud-connected productivity apps to get things done, and traditional 2.4GHz is crowded, so most of these devices need or support high-speed 5GHz Wi-Fi. And in offices, hotels, schools or other densely populated environments, access points need to cope with a high volume of users connecting to the network at any time, whether it’s customers or employees. Edimax Pro solutions support the latest 802.11ac 2.4GHz & 5GHz dual-band Wi-Fi along with high-density capacity to support up to a hundred users simultaneously, ideal for BYOD workplaces and a large number of wireless devices.

Seamless Mobility
Typical wireless access points can effectively cover a 25m – 30m radius under normal usage. Now with the technological advances in Edimax Pro access points, we can extend effective coverage approximately 1.5x further, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization.

Hotels, Offices, Schools and Hospitals
Edimax Pro series access points, with high-speed 11ac high-density networking for up to 100 simultaneous users, are ideal for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, conventions or anywhere with large-scale network use, with safety and effectiveness guaranteed.

Rogue AP Detection & Wireless Isolation
Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.

Easy and Intuitive Central Network Management Suite (NMS)
Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system. Company MIS departments can plan and manage Edimax Pro access points’ powerful functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.

AP Array
Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the central management of a group of access points. NMS can be installed on one access point and support up to 8 Edimax Pro access points with no additional wireless controller required, reducing costs and facilitating efficient remote AP management. Access points can be deployed and configured according to requirements, creating a network powerful network architecture which can be easily managed and expanded in the future, with an easy to use interface and a full range of functionality for company MISs.

​
Easy Installation Kit
Ceiling-mount & T-rail mount design with easy installation kit.


SPECS
LAN Interface

• Giga x 1

USB

• USB 2.0 x 1 (Optional Ethernet Adapter for 2nd LAN)

PoE

• 802.3at

Antenna
Type

• 6 x Built-In PIFA (3 x 2.4GHz, 3 x 5GHz)


Gain

• 4.38dBi (2.4GHz), 5.34dBi (5GHz) Max

Power
DC

• 12V / 2A

• 802.3at (PoE Injector Optional)


Dimensions

• 20.8 (D) x 3.15 (H) cm

Power Consumption (Full Loading)

• 15W; 19.2W (With USB)

Mounting

• Ceiling

LED Indicator

• Power LED


• Dig LED

Environmental Conditions
Use PoE Switch

• Operating Temperature: 0°C (32°F) to 50°C (122°F)


Storage Temperature

• -20°C (-4°F) to 60°C (140°F)

Use Power Adapter

• Operating Temperature: 0°C (32°F) to 40°C (104°F)

Storage Temperature

• -20°C (-4°F) to 60°C (140°F)

Operating Humidity

• 90% or Less

Storage Humidity

• 90% or Less

Power Saving

• 802.3az

Housing

• UL94-5VB Flammability Rating Plastic

Internal Buzzer

• Y

WIRELESS
Standard

• 802.11 a/b/g/n/ac Concurrent Dual-Band

No. of Radios

• 2

Receiver Sensitivity

• ≤ -93dBm

Certification

• CE / FCC

Fast Roaming

• Y

Number of SSIDs

• 16 (2.4GHz) + 16 (5GHz)

PERFORMANCE
Maximum Data Speed

• 450 + 1300Mbps

Concurrent Clients

• Up to 50 Per Radio

RF SPECIFICATONS
Frequency Band

• Radio Ⅰ: 802.11b/g/n 2.412~2.484(GHz)

• Radio Ⅱ: 802.11a/n/ac 5.18~5.24(GHz), 5.745~5.825(GHz)
  (The supported frequency band is restricted by local regulations.)

Operation Channels

• 2.4GHz : US/Canada 1-11; 2.412~2.462GHz
                   Europe 1-13; 2.412~2.472GHz
                   Japan 1-14; 2.412~2.484GHz

• 5GHz : Country dependent for the following ranges:
                US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
                                       Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
                Europe: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)

 Encryption

• WEP / WPA / WPA2

Wireless L2 Isolation

• Y

Station Isolation

• Y

IEEE 802.1x Authenticator

• Y

EAP Authentication

• PEAP

Hidden SSID

• Y

MAC Address Filter

• Y

Wireless STA

• Y

Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS))

• Y

SOFTWARE
Wireless Mode

• AP / WDS AP / WDS Bridge / Repeter

802.1q VLAN

• Y (VID = 1-4095)

Spanning Tree

• RSTP

QoS

• WMM (802.11e)

• Max Associated Station No.

Pass-Through

• IPv6 and VPN (PPTP, L2TP/IPsec)

DSCP (802.1p)

• Y

Multicast Rate up to 54Mbps

• Y

MANAGEMENT
Deployment

Standalone

• AP mode

Master AP mode

• Can manage 16 Edimax Pro APs

Managed AP mode

• Be managed by Edimax Pro AP Controller (APC500) or Edimax Pro Master AP

Configuration

• HTTP / HTTPS

• SNMP v1, v2c, v3

• CLI (Telnet, SSH)

RADIUS Server

• Built-In

Auto-Channel

• Y

Private MIB

• Y

Mounting Bracket

• Ceiling-Mount Bracket Kit

Power Adapter

• 12V / 2A Power Adapter

Optional Accessories

• EU-4306   USB 3.0 Gigabit Ethernet Adapter

• GP-101IT   IEEE802.3at PoE Injector

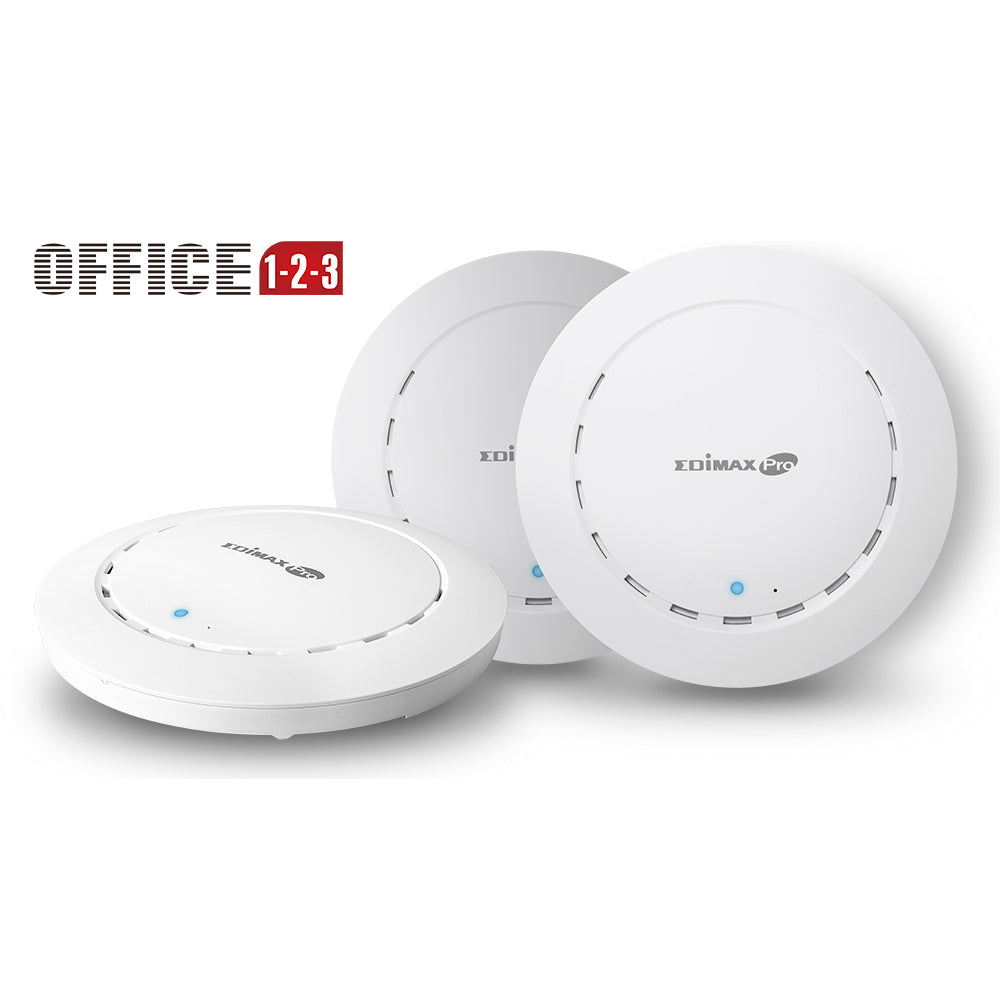

Simple and Secure Wi-Fi System for SMB Office

• Dedicated Office Wi-Fi: Designed for high-density offices for 100 employees or less.
• Easy Setup, Self-Managed & Pre-Configured Wi-Fi System: Three pre-configured APs with self-managed functions for easy setup.
• Secure & Separated Wi-Fi Networks: Three separate Wi-Fi networks by default – office, guest and Wi-Fi device – secure Wi-Fi network.
• Maximized Cost Efficiency: No need for server or controller software and no extra license fee.
• Expandable Wi-Fi System: Includes three AC1300 ceiling mount APs and is expandable with CAP1300 Office +1 AP or OAP1300 Office +1 AP, up to a total of 16 APs.
• Flexible PoE Deployment: Supports IEEE 802.3at and IEEE 802.3af PoE for flexible network deployment.
• High-Speed 802.11ac Wave 2 & Efficient MU-MIMO: Serves multiple devices simultaneously to enhance connected devices capacity.
• High-Performance Wi-Fi: Features with Beamforming AirTime Fairness (ATF), Band Steering.
• Built-In RADIUS Server: Manages up to 256 user accounts.


Get Office 123 APP (IP Finder) from:

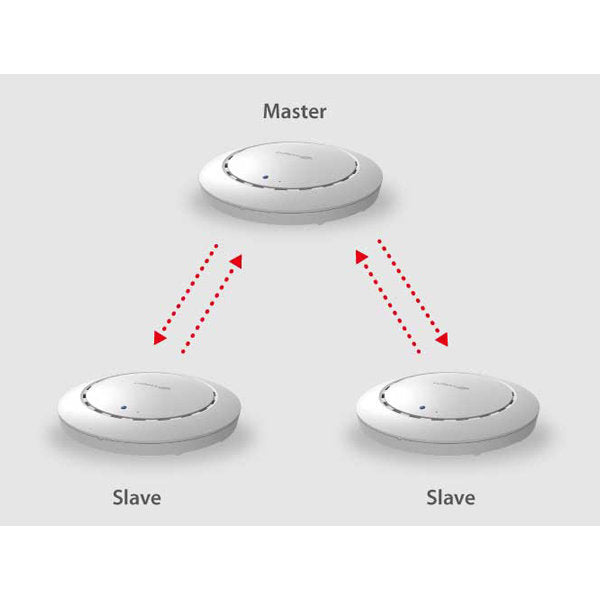

Easy Setup, Self-Managed & Pre-Configured Wi-Fi System

The Office 1-2-3 Office Wi-Fi System starter kit comes with three pre-configured access points that can communicate between themselves with self-managed functions for easy setup.

License-Free Intuitive UI, Simple yet Powerful

Built-in with the AP management software, no need for server or controller software and no extra license fee. The dedicated icon-based user interface of Office 1-2-3 can easily walk you through the entire process of setting up the Wi-Fi networks.

Secure & Separated 3 Wi-Fi Networks

By default, each AP has three Wi-Fi networks: office, guest and device networks. For Wi-Fi network security, each network has its own secure authentication.

Three Easy Ways of Authentication

Office networks use radius function that works like Wi-Fi access key. Enter the password once and it will remember. Each employee will have his/her own Wi-Fi access key.

Guest networks use SMS authentication and captive portal login. Administrators can print out account tickets for the guests and setup expiry time.

Device networks use access control list for equipment that are unable to enter account information.

E-MAP and Wireless Scheduling

Featuring E-MAP shows wireless coverage and statgus of your APs and Wireless Scheduling lets network manager define when to provide Wi-Fi services to the guest, office or device networks.

Optimal Wi-Fi Performance

Featuring with 11ac Wave 2 MU-MIMO, Beamforming, AirTime Fairness, Band Steering improved Wi-Fi range, reliability and performance.



Dedicated Office Wi-Fi System for SMBs

Suitable for a wide range of office applications such as the working area, meeting room, open spece, lobby and others.

Easy Setup

Get your office Wi-Fi up and running in minutes!

Powerful Mainstream Solution For Modern Businesses

The CAP1200 is a powerful wireless solution designed to meet the needs of modern mainstream businesses with the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps. Industrial-grade performance and build quality combined with user-friendly operation, super-fast wireless speed, an extensive feature set and a practical, ceiling-mount design make an ideal dual-band solution for enterprise environments.

For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. High-density capacity for up to 100 simultaneous users is ideal for BYOD (Bring Your Own Device) workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.


KEY FEATURES


• 802.11AC Dual-Band High Speed: IEEE 802.11ac concurrent dual-band  with 1200Mbps wireless speed.
• Easy Installation: Ceiling-mount & T-rail mount design with easy installation kit.
• Compact & Durable Housing: Ultra slim design with UL94-5VB flame-retardant plastic housing.
• Designed for High Density Usage: Supports up to a hundred users simultaneously, ideal for crowded environments and BYOD (Bring Your Own Device) workplaces.
• Multiple SSIDs for Security Management: Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, user groups, customers or guests.
• Fast Roaming: Roams smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications.
• Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.
• Seamless Mobility: 1.5x greater coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments.
• Power over Ethernet: Supports IEEE 802.3af PoE as well as included power adapter.
• Built-In RADIUS Server: With management for up to 256 user accounts.
• Business Environments: Mainstream choice for SMBs. Suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
• Central Management: Edimax Pro Network Management Suite (NMS) , easy and Intuitive web-based central management suite, supports AP array architecture.

High Performance Design with High-Speed 1200Mbps Dual-Band 11ac
State-of-the-art IEEE 802.11ac wireless technology delivers the Giga-fast  Wi-Fi speeds that today’s fast-moving modern business environments demand. And simultaneous 2.4GHz & 5GHz dual-band coverage means maximum flexibility for mobile-centric business productivity applications. Speeds up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band can handle even the most bandwidth intensive tasks, perfect for audio, video and voice applications and significantly faster than traditional 802.11n Wi-Fi. Additionally Edimax Pro series products feature other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability. Durable, robust and ready for business environments.​


​Wide Coverage & Multiple SSIDs
With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where it’s needed the most. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with up to 32 separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.


BYOD Solutions & High Density Networking
Bring Your Own Device (BYOD) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. Employees are using their own smartphones, tablets and laptops with the latest cloud-connected productivity apps to get things done, and traditional 2.4GHz is crowded, so most of these devices need or support high-speed 5GHz Wi-Fi. And in offices, hotels, schools or other densely populated environments, access points need to cope with a high volume of users connecting to the network at any time, whether it’s customers or employees. Edimax Pro solutions support the latest 802.11ac 2.4GHz & 5GHz dual-band Wi-Fi along with high-density capacity to support up to a hundred users simultaneously, ideal for BYOD workplaces and a large number of wireless devices.


Seamless Mobility
Typical wireless access points can effectively cover a 25m – 30m radius under normal usage. Now with the technological advances in Edimax Pro access points, we can extend effective coverage approximately 1.5x further, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization.


Hotels, Offices, Schools and Hospitals
Edimax Pro series access points, with high-speed 11ac high-density networking for up to 100 simultaneous users, are ideal for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, conventions or anywhere with large-scale network use, with safety and effectiveness guaranteed.

Rogue AP Detection & Wireless Isolation
Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.


Easy and Intuitive Central Network Management Suite (NMS)
Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system. Company MIS departments can plan and manage Edimax Pro access points’ powerful functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.

AP Array
Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the central management of a group of access points. NMS can be installed on one access point and support up to 8 Edimax Pro access points with no additional wireless controller required, reducing costs and facilitating efficient remote AP management. Access points can be deployed and configured according to requirements, creating a network powerful network architecture which can be easily managed and expanded in the future, with an easy to use interface and a full range of functionality for company MISs.

Easy Installation Kit
Ceiling-mount & T-rail mount design with easy installation kit.

SPECS
LAN Interface



• Giga x 1

Antenna
Type

• 4x Built-In PIFA (2x.4GHz, 2x 5GHz)

Gain

• 2.82dBi (2.4GHz), 4dBi(5GHz) Max

Power
DC

• 12V/1A

Dimensions

• 17.6(D) x 3.2 (H) cm

Power Consumption(Full Loading)

• 11W

Mounting

• Ceiling

WPS/Reset

• Y

LED Indicator

• POWER LED
• DIAG LED

Environmental Conditions
Operating Temperature

• 0°C (32°F) to 40°C (104°F)

Storage Temperature

• -20°C (-4°F) to 60°C (140°F)

Operating Humidity

• 90% or Less

Storage Humidity

• 90% or Less

Power saving

• 802.3az

Internal Buzzer

• Y

Housing

• UL94-5VB Flammability Rating

Wireless
No.Of Radios

• 2

Receiver Sensitivity

• ≤ -95dBm

Certification

• CE / FCC

Fast Roaming

• Y

Number of SSIDs

• 16 (2.4GHz) + 16 (5GHz)

Performance
Maximum Data Speed

• 300 + 867Mbps

Concurrent Clients

• Up to 50 Per Radio

RF SPECS
Frequency Band



• Radio Ⅰ: 802.11b/g/n 2.412~2.484(GHz)

• Radio Ⅱ: 802.11a/n/ac 5.18~5.24(GHz), 5.745~5.825(GHz)

(The supported frequency band is restricted by local regulations.)

Operation Channels

• 2.4GHz : US/Canada 1-11; 2.412~2.462GHz

                 Europe 1-13; 2.412~2.472GHz
                 Japan 1-14; 2.412~2.484GHz

• 5GHz : Country dependent for the following ranges:

               US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
                                    Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
               Europe: Band 1:36, 40, 44, 48; 5.745~5.825(GHz)

Security
Encryption

• WEP/WPA/WPA2

Wireless L2 Isolation

• Y

Station Isolation

• Y

IEEE 802.1 x Authenticator

• Y

EAP Authentication

• PEAP

Hidden SSID

• Y

MAC Address Filter

• Y

Wireless STA

• Y

Rouge AP Detection (w/Edimax Pro Network Management Suite (NMS))

• Y

Software
Wireless Mode

• AP/WDS AP/WDS Bridge

Spanning Tree

• RSTP

QoS

• WMM (802.11e)
• Max Associated Station No.

Pass-Through

• IP6 and VPN(PPTP, L2TP/IPsec)

DSCP

• Y

Multicast Rate up to 54Mbps

• Y

Management
Deployment

• Standalone

• Managed by Edimax Pro NMS

Configuration

• HTTP / HTTPS

• SNMP v1, v2c, v3

• CLI (Telnet, SSH)

RADIUS Server

• Built-In

Auto-Channel

• Y

Private MIB

• Y

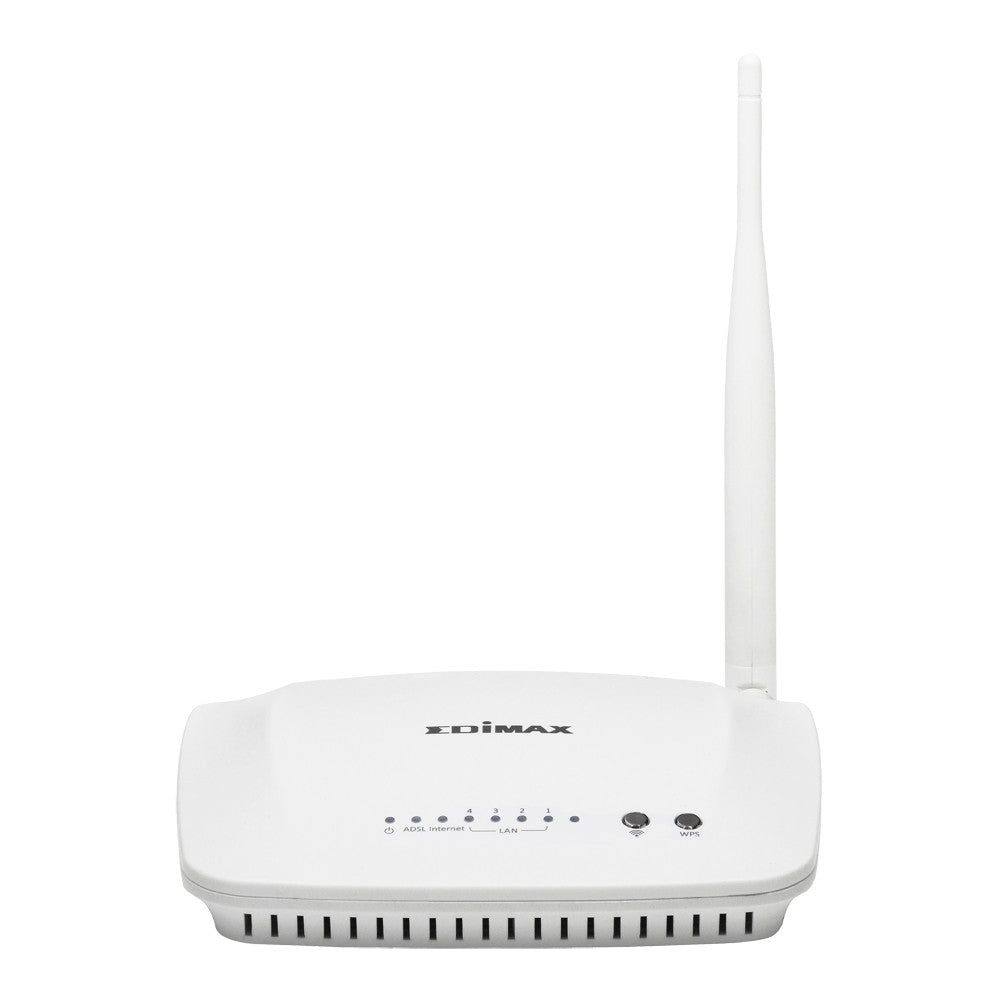

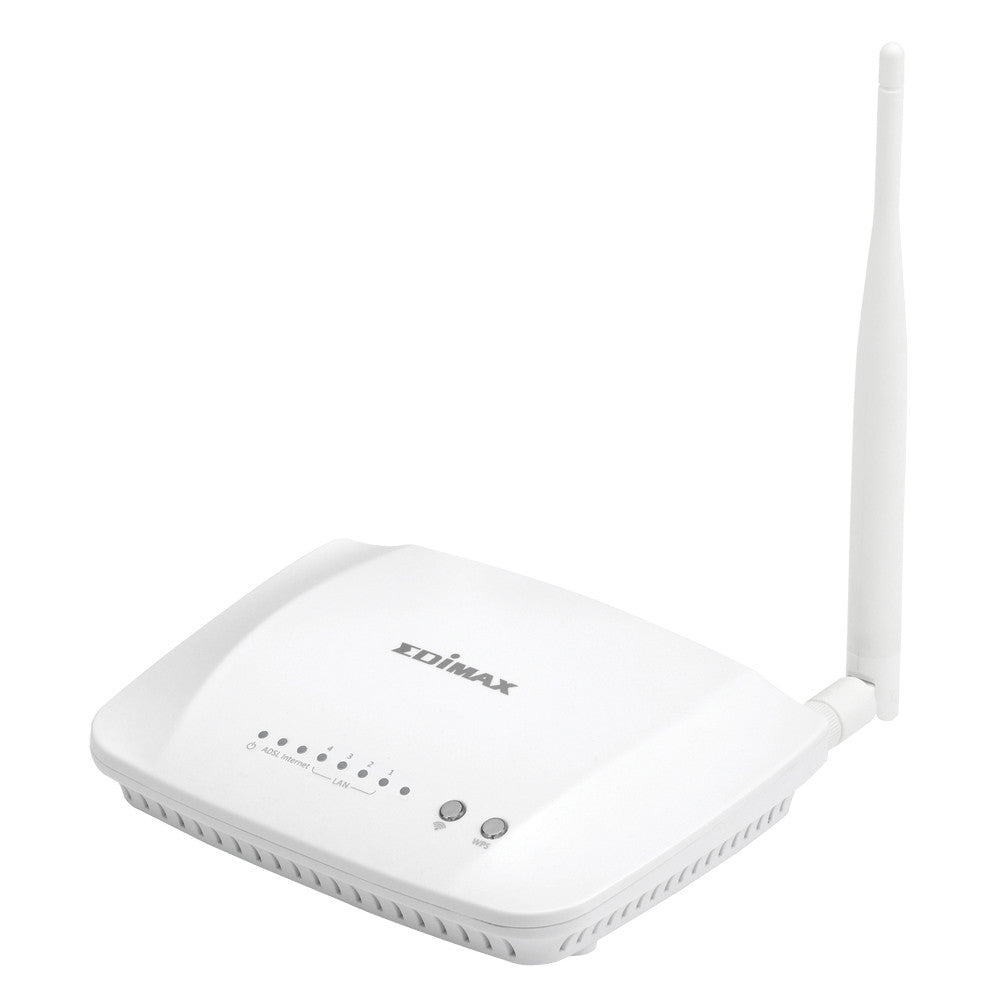

150Mbps Wireless ADSL2/2+ Modem Router
The Edimax AR-7188WnA/B is a high performance router that provides full ADSL2+ capability and superb reliability as a cost-effective networking solution for homes and small businesses. Compatible with the next generation wireless standard 802.11n, and with advanced MIMO technology, the AR-7188WnA/B provides up to 3 times better data transmission rates (up to 150Mbps) .

Wi-Fi Protected Setup (WPS)
Wi-Fi Protected Setup is a quick and convenient method of establishing wireless connections between compatible devices. Set up a wireless network in less than a minute with just a couple of clicks of a button or easily add new Wi-Fi devices to an existing network.

Built-in ADSL2/2+ Modem and Annex M Technology
Share any ADSL, ADSL2 or ADSL2+ Internet connection to all wired and wireless network clients (up to 253 clients), and support G.992.5 ADSL2+ Annex M Technology to improve downstream speeds up to 24Mbps and upstream speeds up to 1Mbps.

Multi-language Setup Wizard
A unique and convenient multi-language setup wizard is provided on the included CD-ROM. Select your language and follow a few simple steps to setup the router and configure the Internet connection, password, SSID and wireless security.

Virtual Server and DMZ
Built-in virtual server and DMZ functions are featured to provide maximum security for applications which require open ports such as online games, VoIP phones or web servers.



SPECS

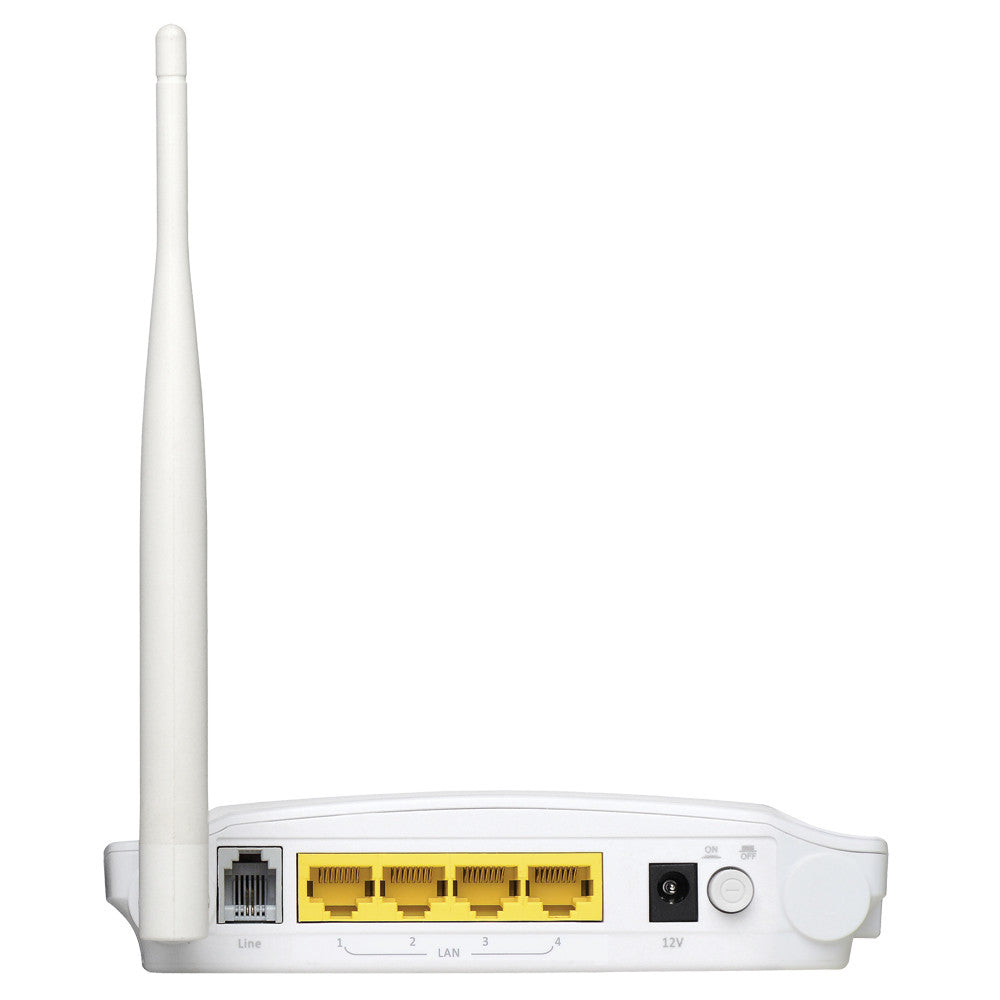

Hardware Interface

•1 x RJ-11 WAN-port
•4 x RJ-45 Fast Ethernet LAN ports
1 x Reset button for factory default settings
•1 x WPS button
•1 x WLAN button
•1 x 5dBi antenna
•Power on/off button
•LED indicators: power, ADSL, LAN 1–4, WLAN, WPS

Management

Web based configuration
•Web page/XMODEM/FTP/TFTP firmware upgrade
•Command-line interface via serial port, telnet or SSH
•Universal Plug and Play (UPnP)
•WAN Management Protocol (TR-069)
•Date/time update from SNTP time server

Output Power

•11n: 14±1.5dBm
•11g: 15±1.5dBm
•11b: 16±1.5dBm

ADSL Features

Annex A, B,I, J, L & M
•ANSI T1.413i2
•ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite)
•ITU G.992.3 ADSL2 (G.dmt.bis), ITU G.992.4 (G.lite.bis)
•ITU G.992.5 (G.dmt.bisplus), ITU G.994.1 (G.hs)
•ITU G.995.1, ITU G.996.1, ITU G.997.1
•Power saving mode, L3 to L0 initialization
•Supports multiple PVCs
•Supports traffic shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
•Supports OAM F4/F5 loop-back, AIS, and RDI OAM cells
•UNI 3.1/4.0 permanent virtual circuits

Wireless Features

Compatible with IEEE 802.11b,IEEE 802.11g and IEEE 802.11n
•Supports auto channeling
•1T1R mode with 150Mbps PHY rate for both transmitting and receiving
•Legacy and high throughput modes
•20MHz/40MHz Bandwidth
•Supports 64/128-bit WEP, 802.1x, WPA and WPA2 wireless security
•Multiple BSSID support
•Wireless frequency range: 2400–2483 MHz ISM band
•802.1x authentication

Routing Features

•Routing (TCP/IP/UDP/ARP/ICMP)
•802.1D MAC Bridge
•RIP v1 (RFC1058), RIP v2 (RFC1723)
•IGMP Snooping (V1/V2/V3)
•IGMP Proxy (V1/V2)
•VLSM (RFC1878)
•RFC 1877 PPP IPCP Extensions for Name Server Address
•RFC 1877 PPP IPCP Extensions for Name Server Addresses (limited to DNS addresses unless the device supports NetBIOS)
•RFC 0791 IP Fragmentation
•IETF RFC 0919, IETF RFC 0922, IETF RFC 2644 IP Broadcast

Frequency & Modulation

2400–2484 MHz
•802.11b: CCK, DQPSK, DBPSK
•802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
•802.11n: 64QAM, 16QAM, QPSK, BPSK

Humidity & Temperature

Operating: 0 to 40°C
•Storage: -40 to 70°C
•Operating: 10 to 90% RH (Non-condensing)
•Storage: 5 to 95% RH (Non-condensing)

Memory

•2 MB NOR Flash
•8 MB SDRAM

Dimension & Power

•115 x 110 x 28 mm
•12V DC, 0.5A

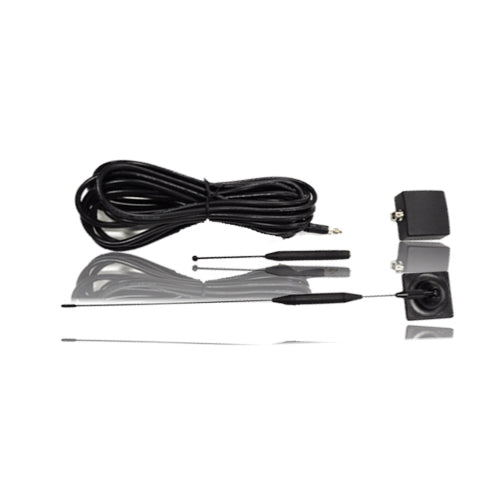

External On-Glass Antenna 5dB Gain 700/850/900/1800/2100MHz 5dB Gain

 Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

Features:

• Twin Pack Whips
• Frequency Covered- GSM 900/ 1800MHz; 3G & 4G 2100MHz, 700MHz, 850MHz
• FME Connection
• Whip 1 length 31 cm
• Whip 1 Gain 5dBi
• Whip 2 length 14 cm
• Whip 2 Gain 1dBi
• Cable length 495cm

Boost your mobile signal. Note for this product to be effective it must be purchased in conjunction with a hard-wired car kit fitted which can be fitted with an antenna.

Features

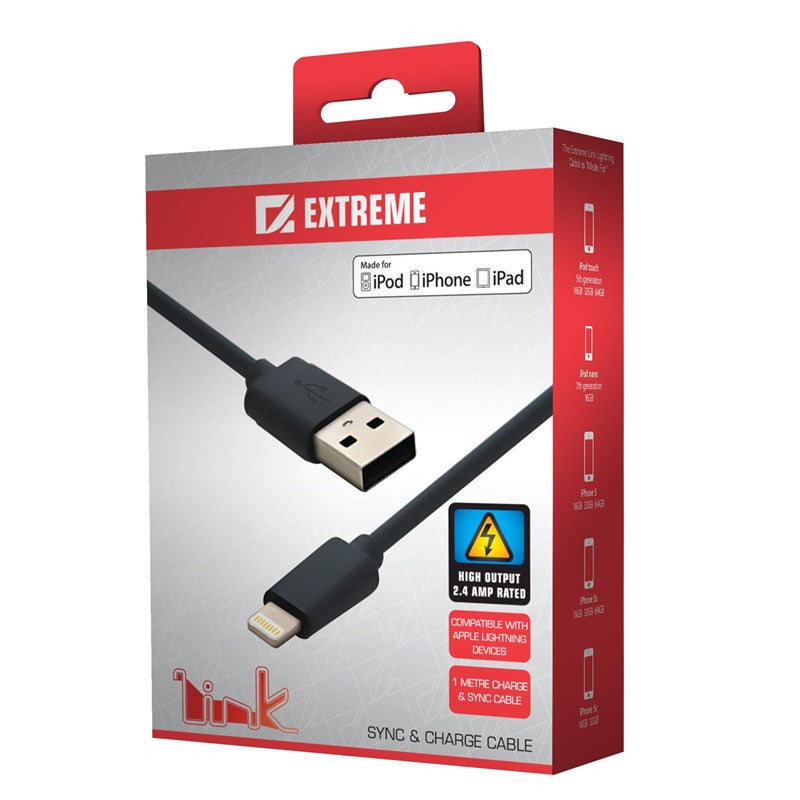

Charge or sync your Apple device with the Extreme Link Lightning Cable. The Link Cable can plug directly into your computers USB port or can be used in unison with any USB Charger. This cable is high output - 2.4 Amp rated Apple MFI Approved. This is compatible with all Apple Lightning Devices and features a 1m Charge n Sync Cable that is tangle resistant with optimal Data transfer tactile finish. 2 Year FREE Replacement Warranty - see inside product packaging for further details.

Charge and sync your Apple device with the Extreme Link Lightening Cable.

Specifications

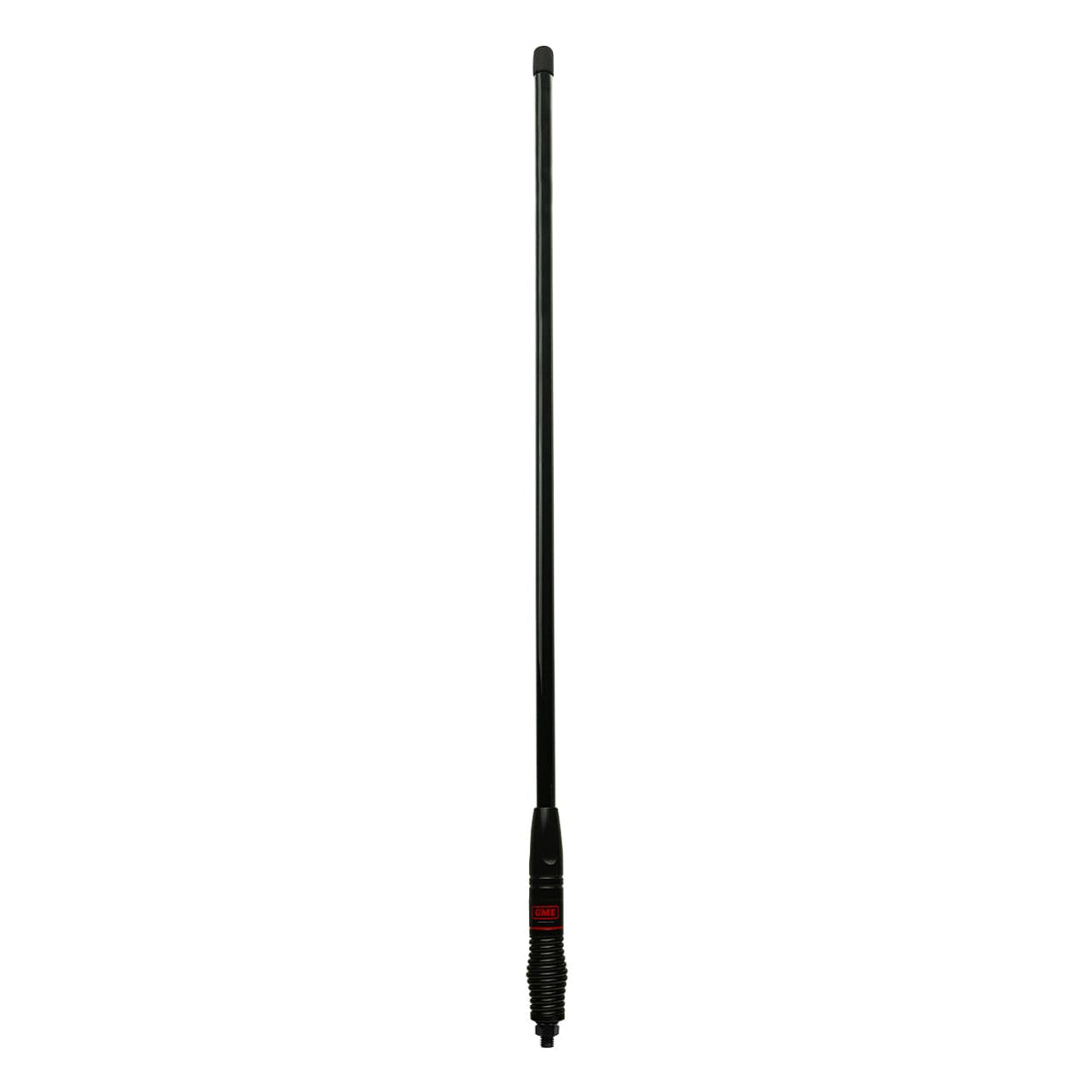

Designed to cater to diverse needs the new AT3700B Cellular antenna by GME is perfect for 4WD agriculture and heavy vehicle users. It's a true multi-band antenna ready for 5G and tailored for the harsh Australian landscape.

Description::

Crafted for 4WD agriculture and heavy vehicle users. This 5G-ready ground-independent antenna ensures superior LTE coverage across diverse frequency bands (690-960 / 1710-2170 / 2300-2700 / 3400-3800MHz).

With a lightweight 915mm design it suits bracket or bull bar mounting offering quick installations with its pre-terminated SMA connection. GME's commitment to local manufacturing guarantees top-notch quality tailored for the demanding Australian landscape. Stay connected seamlessly in any terrain with the AT3700B Cellular Antenna.

Designed to cater to diverse needs the new AT3700B Cellular antenna by GME is perfect for 4WD agriculture and heavy vehicle users. With coverage across 690-960 / 1710-2170 / 2300-2700 / 3400-3800MHz bands it's a true multi-band antenna ready for 5G. Ground-independent and lightweight at 915mm it's ideal for bracket or bull bar mounting.

The antenna comes with a 4.5-meter pre-terminated coax cable with an SMA connection ensuring quick and simple vehicle installation. GME's commitment to local manufacturing ensures the highest quality in communications equipment tailored for the harsh Australian landscape.

Key Features:

• 16mm Parallel Black Fibreglass Radome
• Medium Duty Spring Base
• Fixed Whip and Base
• Ground Independent Design
• 5G Ready
• Pre-terminated SMA Connection
• Frequency Range - 690-960 / 1710-2170 / 2300-2700 / 3400-3800MHz
• Coax Cable Length – 4.5m
• Nominal Gain - 6.5 / 4.5 / 6 / 6.5 dBi
• Length: 915mm
• 1 year warranty

@16/32

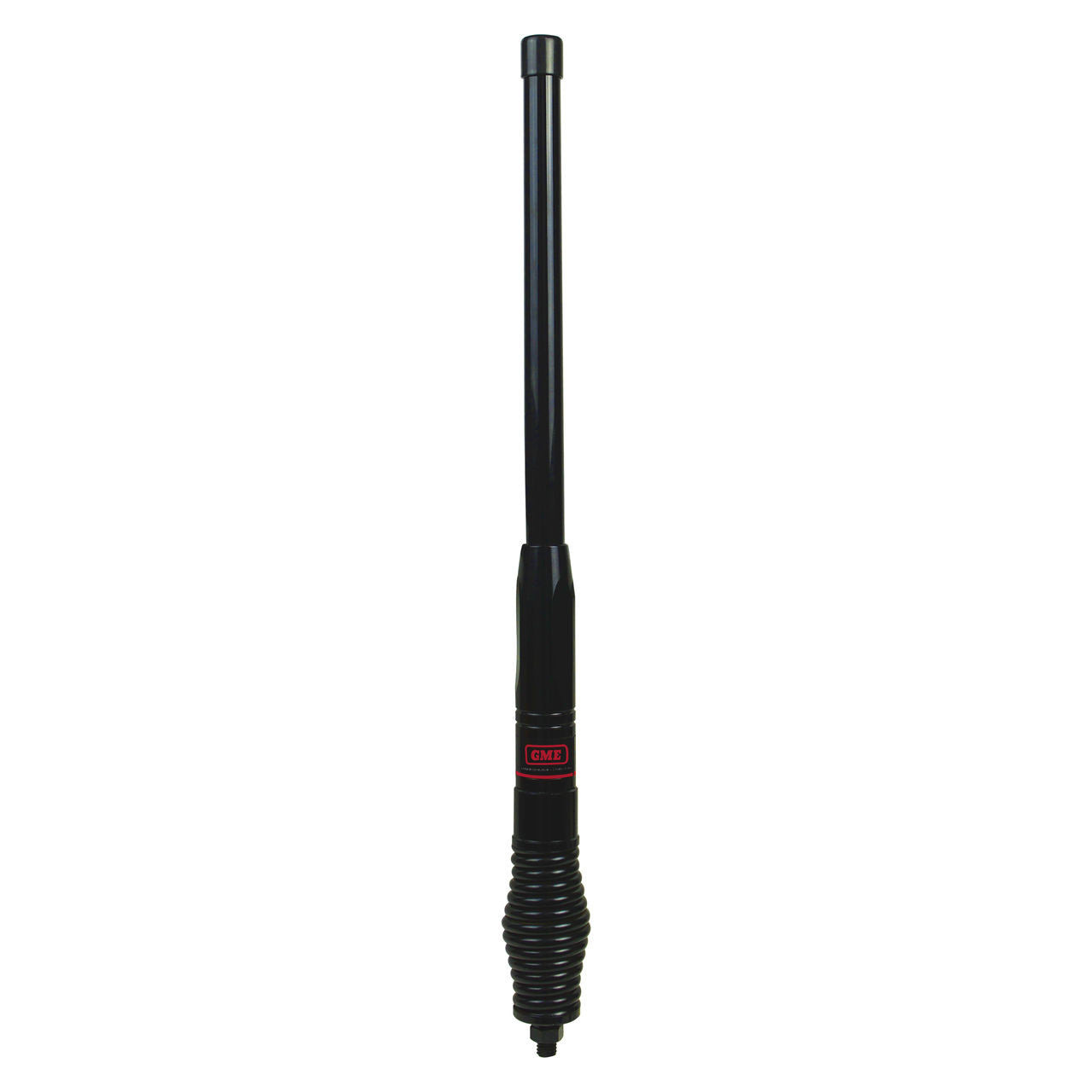

GME AT4704BA 4G Bullbar Antenna: Heavy-duty spring base ground-independent 580mm length 2.5-5 dBi gain SMA connector covers 700-2100MHz. Includes whip & base.

Description::

The GME AT4704BA 4G Spring-Mount Bullbar Antenna is a reliable and rugged antenna designed to provide exceptional multi-band cellular coverage in the Australian market. With a focus on innovation and performance this antenna utilizes a combination of a durable mechanical design borrowed from the AE4700 series and an advanced PCB electrical circuit.

Covering an extensive range of frequencies from 700MHz to 2200MHz including crucial bands like 700MHz 850MHz 900MHz and 1800-2100MHz the AT4704BA stands out as a true multi-band cellular antenna. This means that you can enjoy seamless LTE coverage across various mobile phone networks ensuring reliable connectivity even in areas with challenging network conditions.

GME AT4704BA Key Features:

• Black Fibreglass Radome
• Heavy Duty Spring Base
• Ground Independent Design
• Pre-terminated SMA Connector
• Covers 700 850 900 1800-2100MHz
• 2.5 - 5 dBi Gain
• Length: 580mm

The features of the GME AT4704BA antenna make it a standout choice for those seeking a robust and high-performance solution. With a heavy-duty spring base for stability and durability a ground-independent design for optimal signal reception and a pre-terminated SMA connector for easy installation this antenna is built for excellence.

Additionally the antenna offers a gain ranging from 2.5 to 5 dBi ensuring strong signal strength and comes with a length of 580mm housed in a sleek black fibreglass radome for added protection.

In the box you will find the multi-band cellular antenna whip along with the heavy-duty spring base and lead assembly featuring an SMA connector providing you with everything you need to set up and start enjoying enhanced cellular coverage with the GME AT4704BA 4G Spring-Mount Bullbar Antenna.

GME Celluar Antennas with Powertec CEL-FI Mobile Signal Booster Overview Video

Specification:

Model	AT4704BA
Band	3G /4G
Frequency	700-800-900 / 1800-2100MHz
VSWR	<2.5:1
Nominal Gain (dBi)	2.5dBi (700-900) / 5dBi (1800-2100)
Input Power (w)	10
Impedence (Ω)	50
Polarisation	Vertical
H Plane	360˚
Cable Type	Low Loss RG58
Cable Length (m)	4.5
Cable Termination	SMA
Tuning	Fixed
Grounding	Ground Independent
Length (mm)	580
Mechanical Construction	Tapered Black Fibreglass Radome
Spring	631 Stainless Heavy Duty Black Spring
Suggested Installation/Mounting	Bull Bar Tab or Heavy Duty Bullbar Mounting Brackets
Mounting	12” UNC Threaded Stud and Nut
Packaging	Display Bag
Shipping Weight (kg)	1.5
Shipping Dimensions (mm)	400 (D) x 750 (H) x 100 (W)
Country of Origin	Australia

@23/44

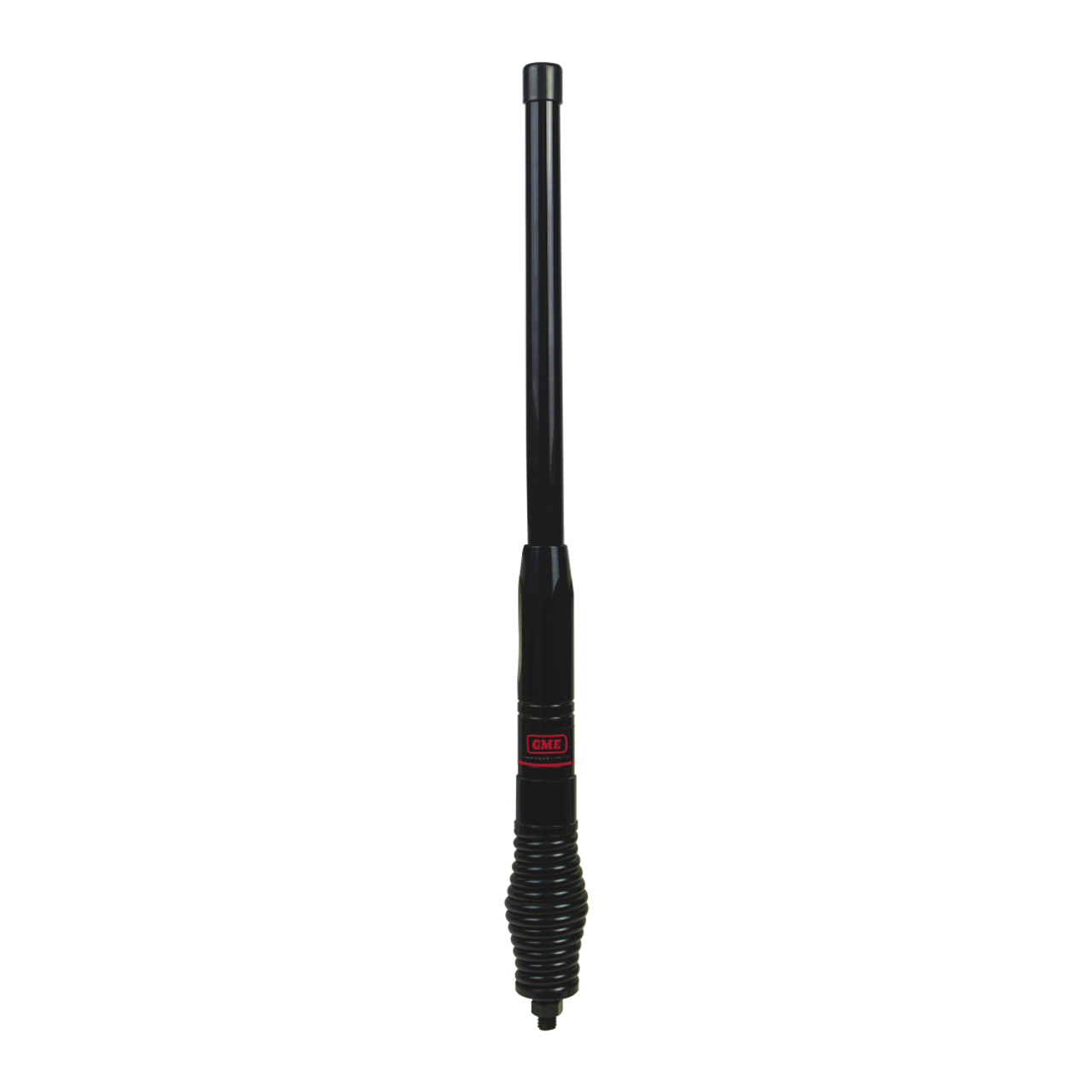

Stay connected with the GME AT4714BA multi-band cellular antenna offering 4.5dBi gain and 5G readiness. Durable design ensures reliable performance in all environments.

Description::

Reliable Mobile Coverage with Rugged Construction and Advanced Circuitry

Building on the trusted design of the AE4700 UHF series this antenna delivers robust 4G/5G performance across multiple frequency bands. Designed to perform in Australia’s toughest conditions it integrates a precision PCB circuit for optimal efficiency. It includes a 5m low loss coaxial cable for flexible installation and minimal signal degradation. Whether installed on vehicles or fixed sites it ensures improved LTE connectivity where mobile signals are weak. Made in Australia it stands for quality durability and consistent communication.

Key Features

• Multi-band Compatibility: Covers 690–960 MHz 1710–2700 MHz and 3400–3800 MHz for full 5G support.
• 4.5dBi Gain: Provides strong signal amplification to enhance cellular coverage in remote and urban areas.
• Rugged Construction: Based on the AE4700 design it ensures long-lasting durability in harsh environments.
• Advanced PCB Circuit: Features cutting-edge electrical design for superior performance and network reliability.
• Sleek Appearance: Finished in black for a clean and professional look on any installation point.
• Compact 580mm Length: Offers a lower-profile design without compromising performance.
• Australian-Made Quality: Locally manufactured to ensure high standards of design and durability.

Reliable mobile signal boost for vehicles homes or rural installations.

@25/47

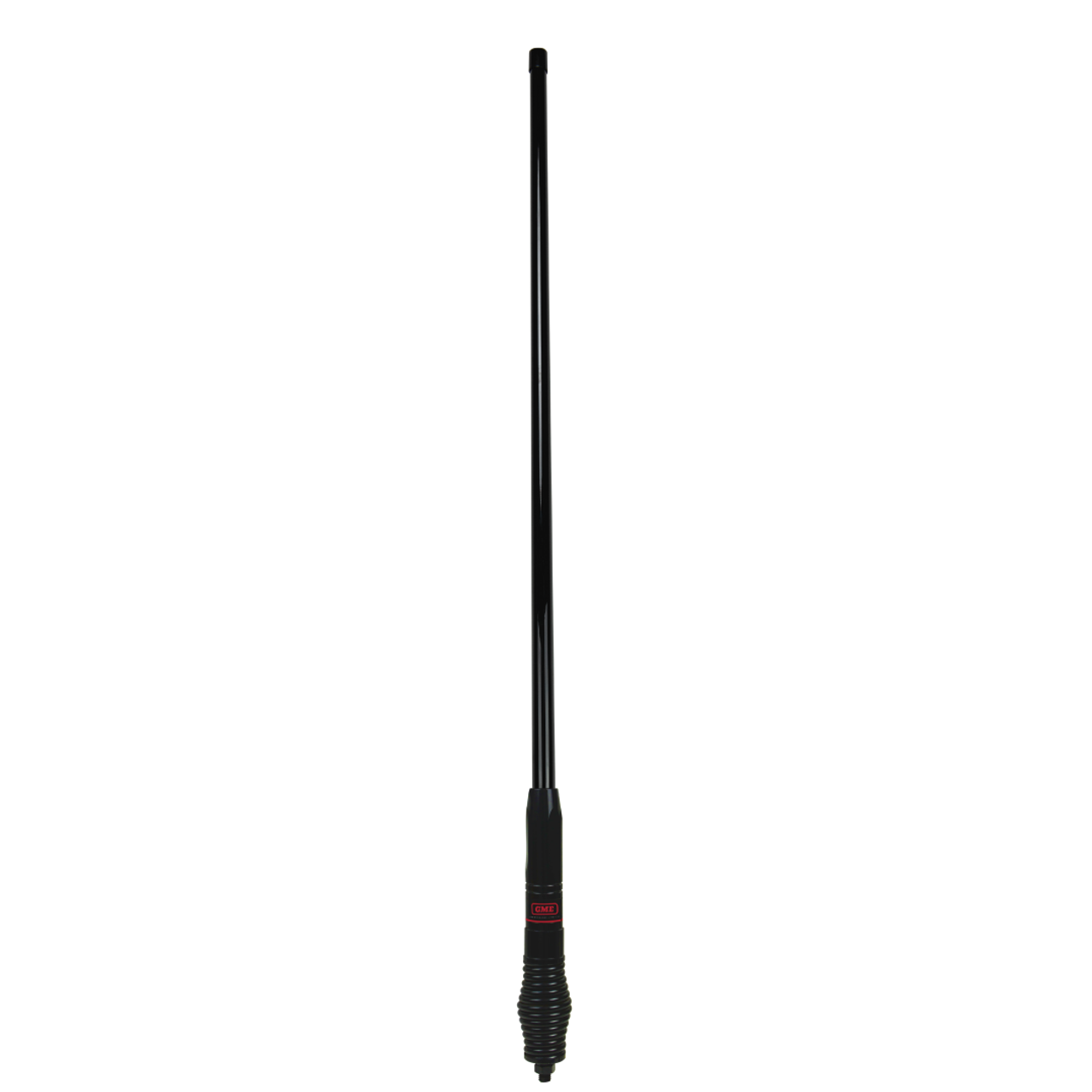

The GME AT4715BA is a high-performance multi-band 4G/5G antenna. With a 7dBi gain on the low bands and a 1200mm length this antenna is well suited to urban and rural communications.

Description::

Advanced Multi-band Cellular Antenna Designed for 4G and 5G Connectivity with Enhanced Durability and Performance

Building on the rugged reliability of the AE4700 series the AT4700 series introduces an advanced PCB electrical circuit raising the bar for multi-band cellular antennas in Australia. The AT4714 and AT4715 models support frequencies across 690-960 MHz 1710-2700 MHz and 3400-3800 MHz ensuring full 5G compatibility. Offering exceptional LTE coverage these antennas guarantee reliable connections even in remote or low-signal areas. Designed and manufactured locally in Sydney GME’s specialised team focuses on creating durable high-performance antenna products for the harsh Australian environment.

Key Features

• Supports 3G/4G/5G for comprehensive connectivity.
• Black Fibreglass Radome for added durability.
• Heavy Duty Spring Base with detachable whip for easy installation and durability.
• Ground Independent Design for enhanced performance.
• Pre-terminated SMA Connector for simple integration.
• Frequency Range: 700-960/1710-2170/2300-2690/3400-3800 MHz.
• Coax Cable Length: 4.5m for versatile setup.
• Nominal Gain: 7dBi (700-900 MHz) 2.5dBi (1710-2700 3400-3800 MHz).
• Length: 580mm for compact efficient coverage.

Includes

• Antenna Whip (AW4715BCEL).
• Heavy Duty Spring Base & Lead Assembly with SMA Connector (AS004BSCEL).

@29/53

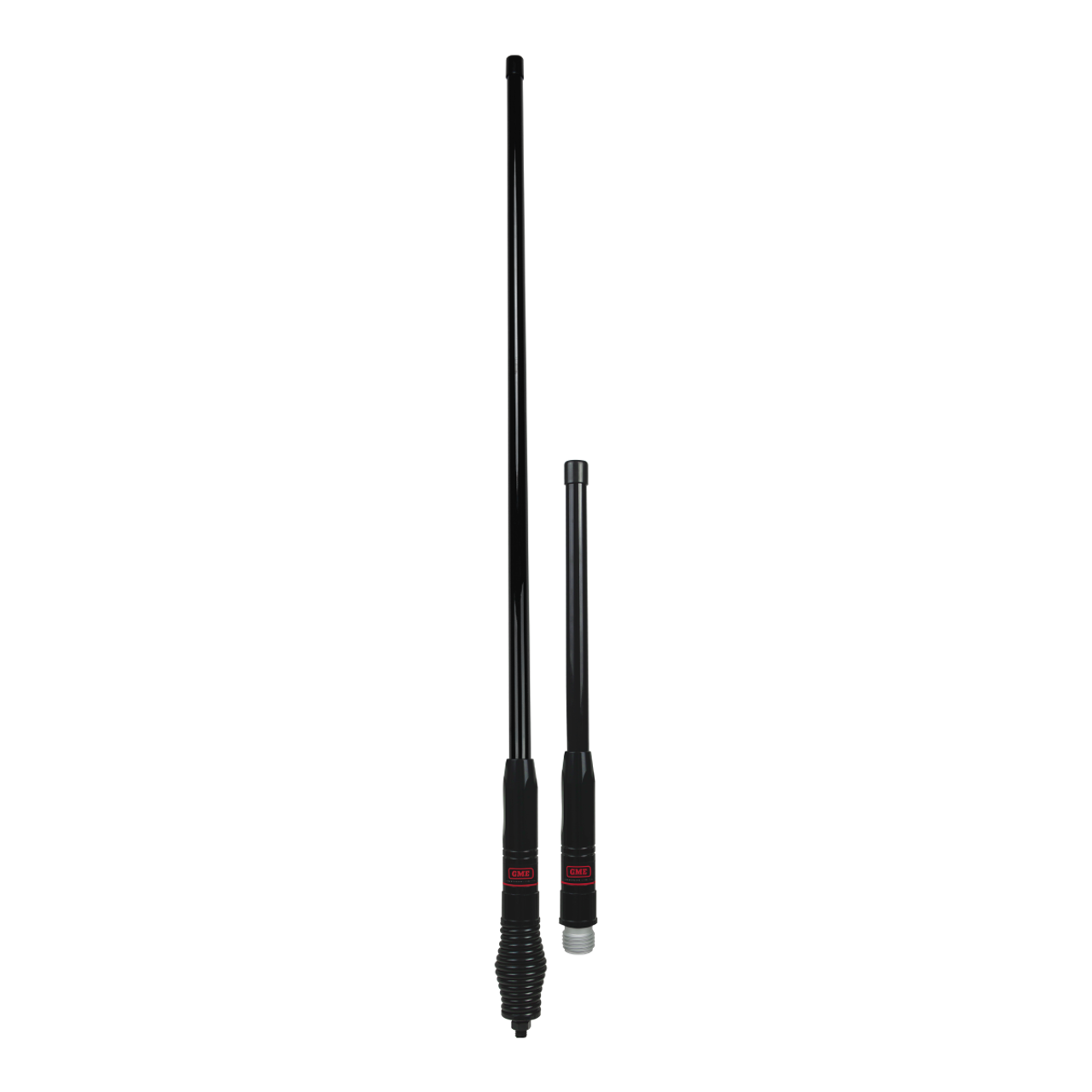

The GME AT4715BATP Multi-band Cellular All Terrain Antenna Twin Pack is the ultimate solution for those who require reliable and robust cellular connectivity across urban rural and remote outback environments.

Description::

Designed with versatility in mind this twin pack includes two high-performance antennas that cover multiple frequency bands including 5G. Whether you're exploring remote locations working in rugged terrain or simply need uninterrupted connectivity on the go the AT4715BATP twin pack delivers exceptional performance ensuring you stay connected wherever you are.

Key Features:

• Multi-band Coverage: Supports a wide frequency range including 690-960 MHz 1710-2700 MHz and 3400-3800 MHz making it fully compatible with 5G networks.
• All Terrain Design: Engineered to perform in the harshest environments offering reliable connectivity whether you're in remote areas dense forests or urban settings.
• Low and High Gain: Provides enhanced signal strength and extended coverage ensuring clear and stable communication across all supported bands regardless of the terrain type.
• Durable Construction: Built to withstand the challenges of off-road adventures and extreme conditions with a rugged design that ensures longevity and reliability.
• Twin Pack: Includes two antennas offering versatility in urban/rural application and height restrictions around carparks/garages.

Specifications:

• Frequency Range: 690-960 MHz / 1710-2700 MHz / 3400-3800 MHz
• Heavy Duty Spring Base
• Detachable Whip
• Antenna Length: 680mm & 1200mm
• Impedance: 50 Ohms
• Colour: Black
• Connector: SMA Male
• Mounting Bracket: Not Included
• Cable Length: 5m Low Loss Coaxial Cable (Each Antenna)

In the box
Antenna Whip (AW4714BCEL)
Antenna Whip (AW4715BCEL)
Heavy Duty Spring Base & Lead Assembly - SMA Connector (AS004BSCEL)

@37/66

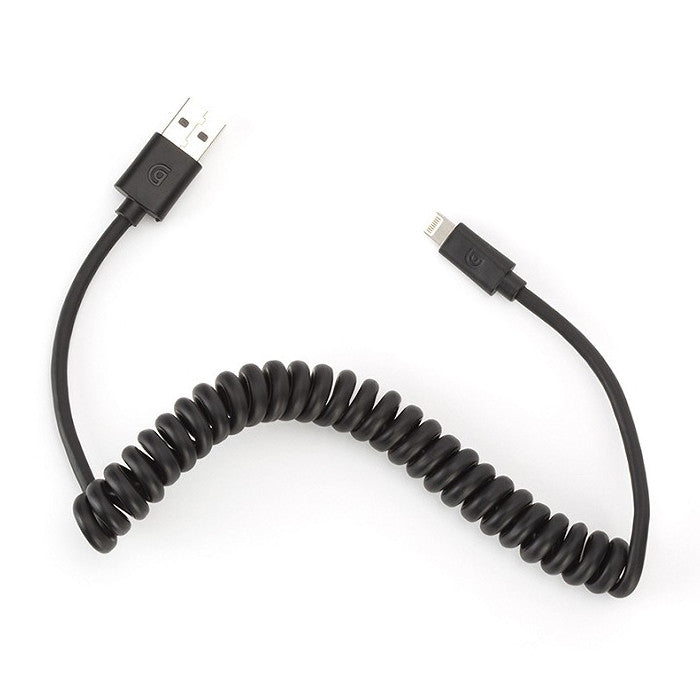

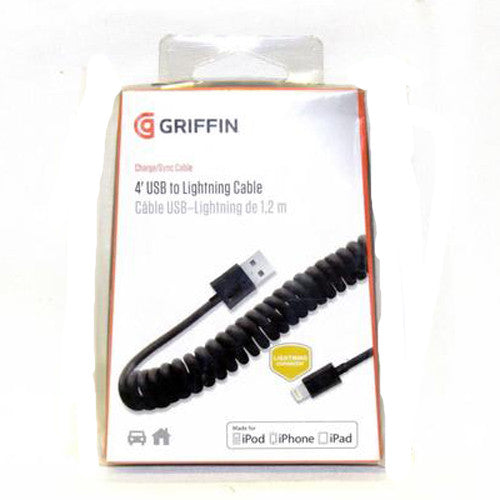

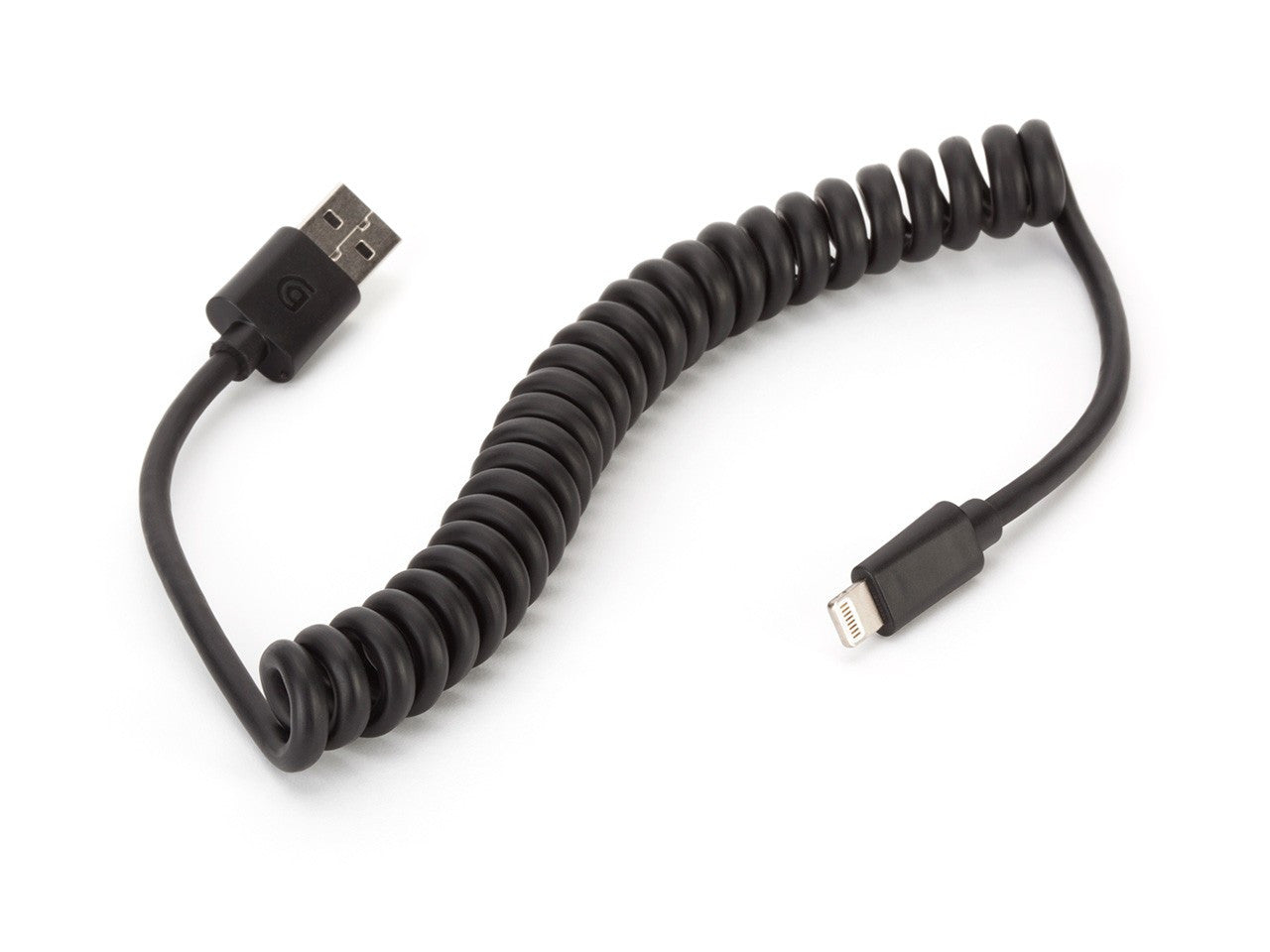

Apple MFI Certified lightning Car Charging Cable

• 4' coiled USB-to-Lightning cable - the best choice for charging in your car.

BEND TESTING

Between 3000 and 10,000 180° and 360° bends ensures cables will stand up to years of hard use and abuse.

PULL TESTING

Static and dynamic load testing ensures no broken leads or frayed cables under daily rigorous use.

SAFETY TESTING

Safety tested and certified to all applicable standards: UL, CE, RoHS, Reach, California Energy Commisssion, California Prop 65 (lead).

Features

• Made for iPhone-certified
• Full-size USB Type-A connection to your computer to charge, sync or transfer data
• Lightning Connector to your device
• Use with Griffin PowerBlock and PowerJolt chargers, or as an extra charging cable for car, office or anywhere else
• Don't get caught cable-less; carry an extra in your bag or backpack to charge and sync on the go

Compatibility

• iPhone 5
• iPhone 5c
• iPhone 5s
• iPhone 6 / 6s
• iPhone 6 Plus / 6s Plus
• iPhone 7
• iPhone 7 Plus
• iPad 4th gen.
• iPad Air / Air 2
• iPad mini / mini 2 / mini Retina / mini 4
• iPad New 2017
• iPod nano 7th gen.
• iPod touch 5th gen.

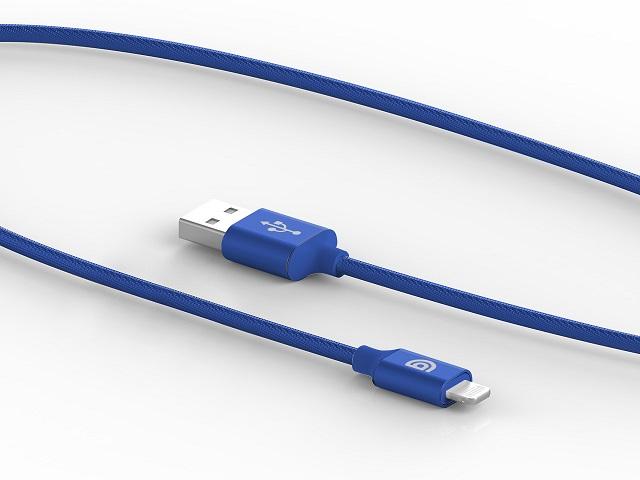

Griffin USB to Lightning Cable Premium 5ft Blue
