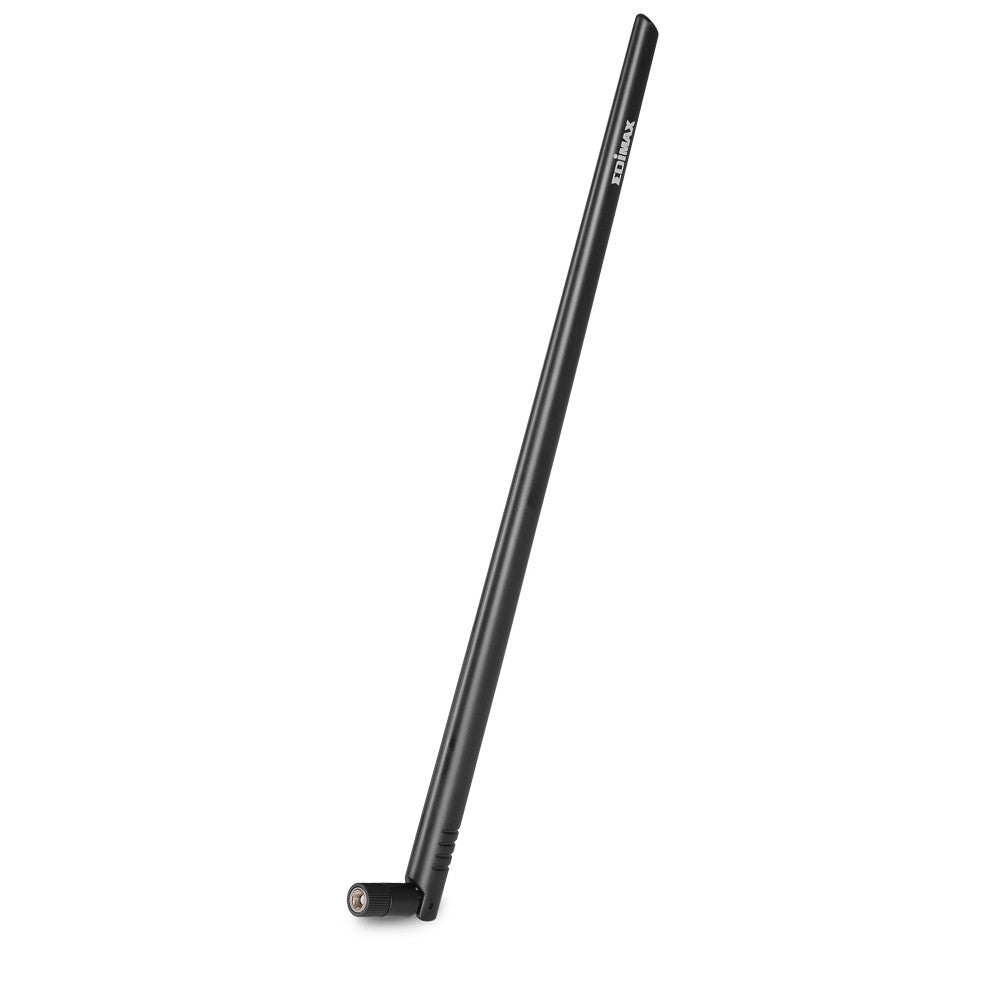

The Edimax EA-IO9D is a high performance 9dBi omni-directional antenna, designed to improve the wireless network signal and coverage in your home and office.

Wireless signal and distance improvement
When connected to a wireless access point or router, the EA-IO9D increases the wireless coverage area. The antenna also improves the transmission range when the antenna is connected to a wireless adaptor.

9dBi high gain performance antenna
The antenna is capable of rotating 360º.

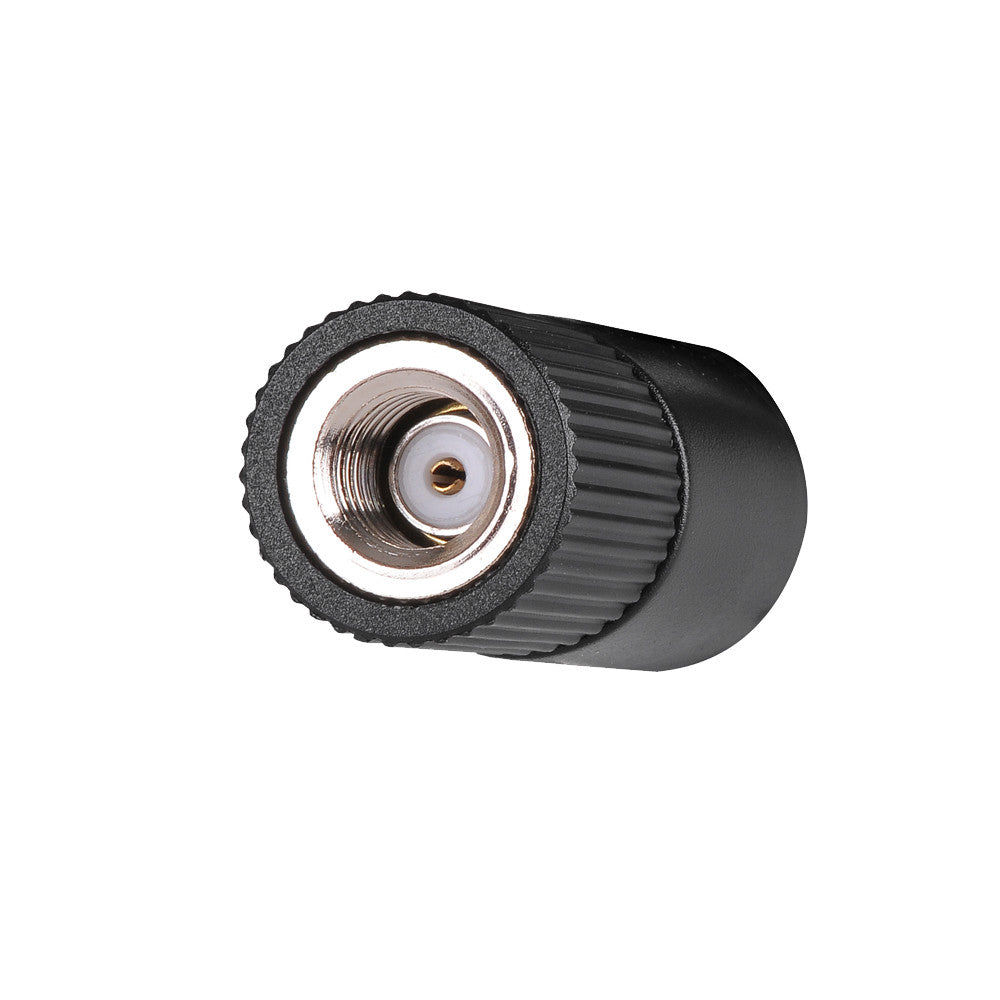

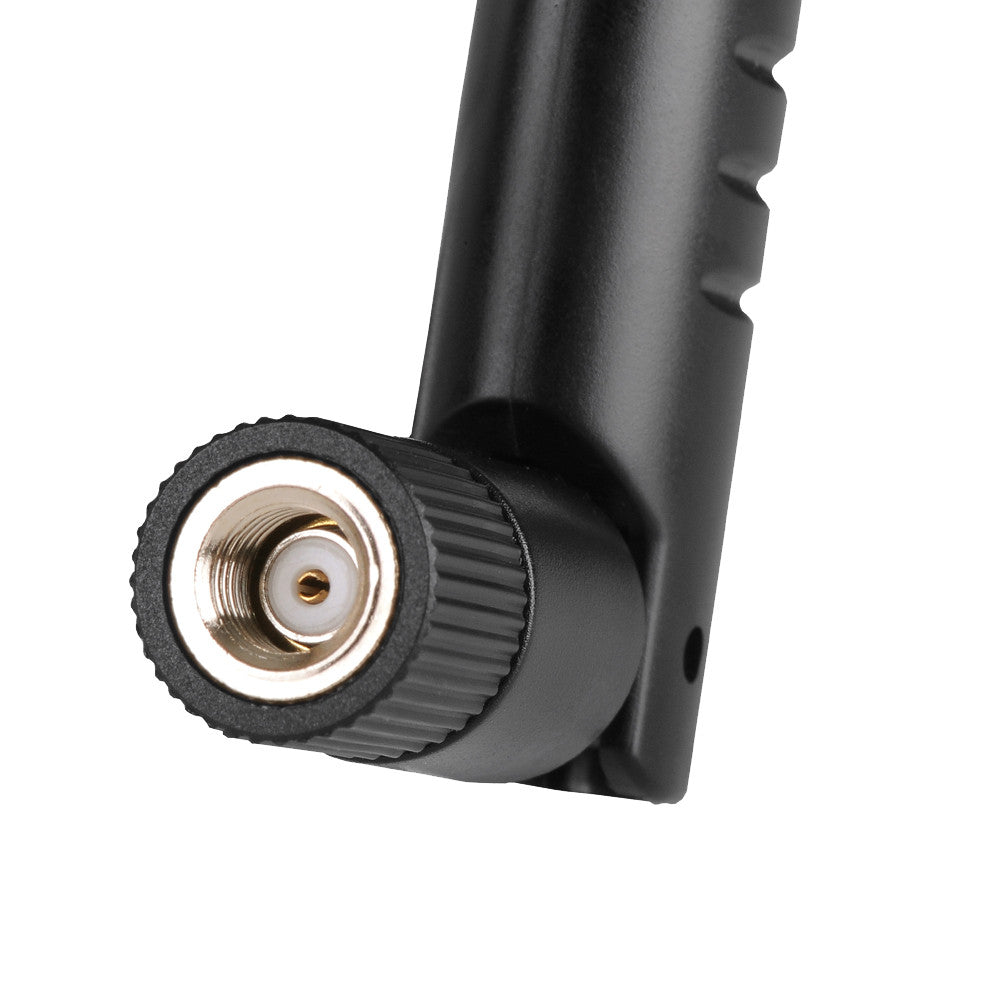

Universal RP-SMA connector for flexible connections
The antenna is not only compatible with Edimax devices, but also with most wireless devices equipped with a RP-SMA interface.

Signal transmission in all directions
The antenna is omni-directional so it transmits and receives signals from all directions. It is the best solution for radial coverage.

No software or driver needed
All you have to do is to unscrew the original antenna from your device and replace it with the EA-IO9D. The antenna starts to work as soon as it is put into position.

Hardware interface

• •9dBi RP-SMA detachable antenna

• •RP-SMA connector

Polarization

• •HPBW/ horizontal: 360 degrees

• •HPBW/ vertical: 15 to 20 degrees

Standard & Frequency Band

• •IEEE802.11b/g/n

• •2400-2500MHz

ANTENNA SPEC

•  VSWR (Voltage Standing Wave Radio) : 2.0 : 1 Max

•   Impedance: 50 Ohms

• •Power handling 2 W (c w)

DIENSION

•  Antenna : OD 13 x 375mm

PEAK GAIN

•  9dBi

RADIATION PATTERNS

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

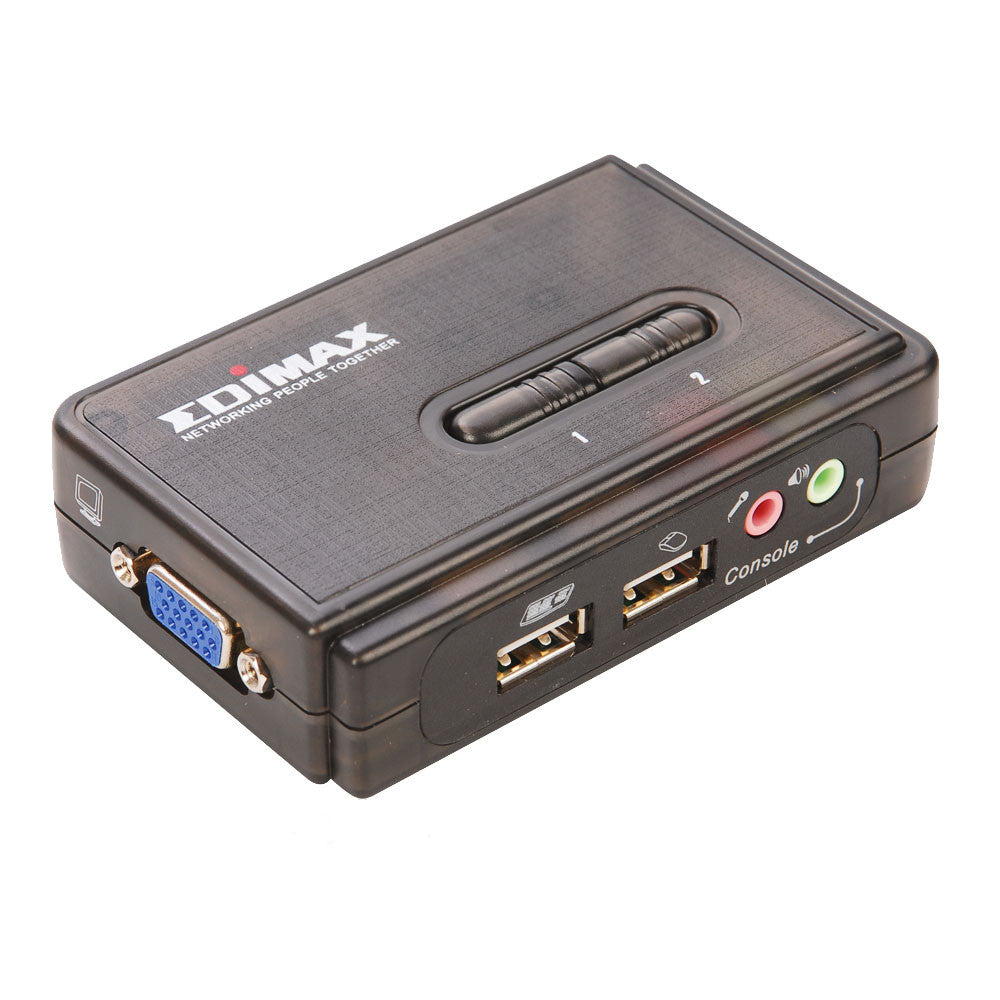

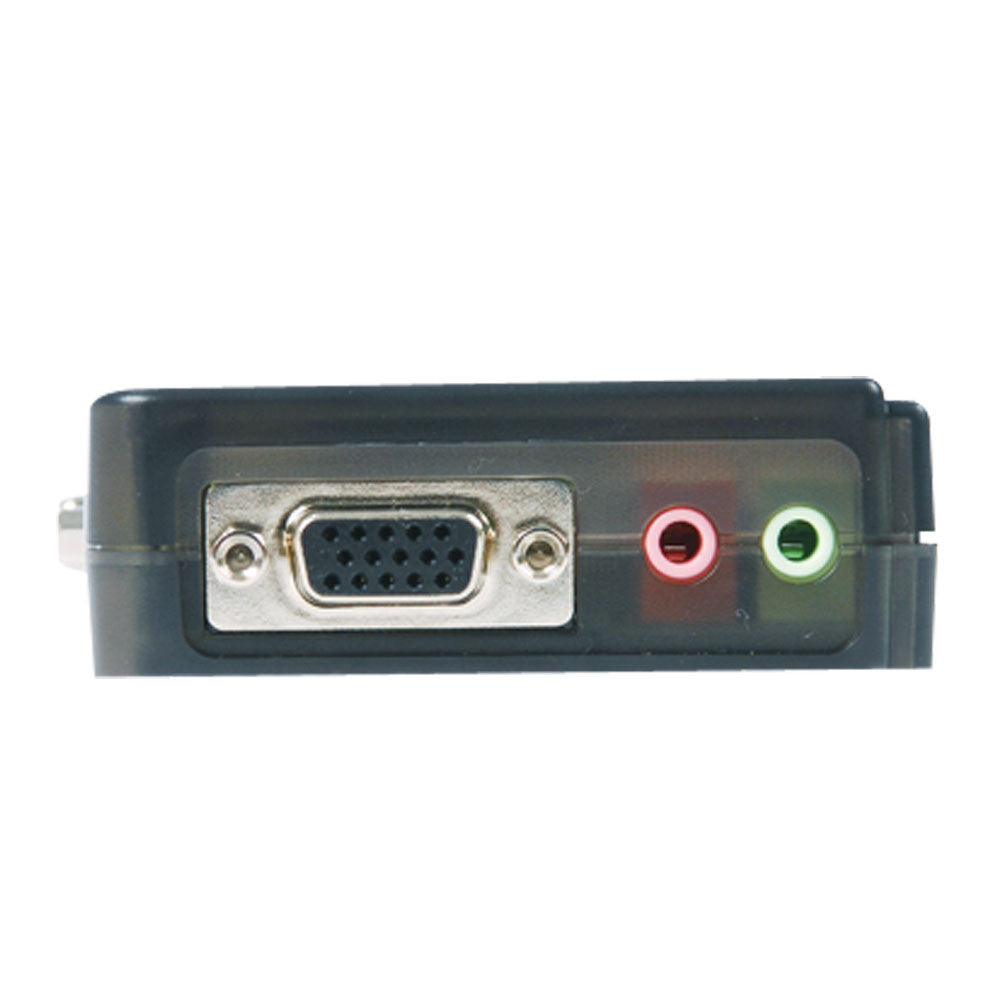

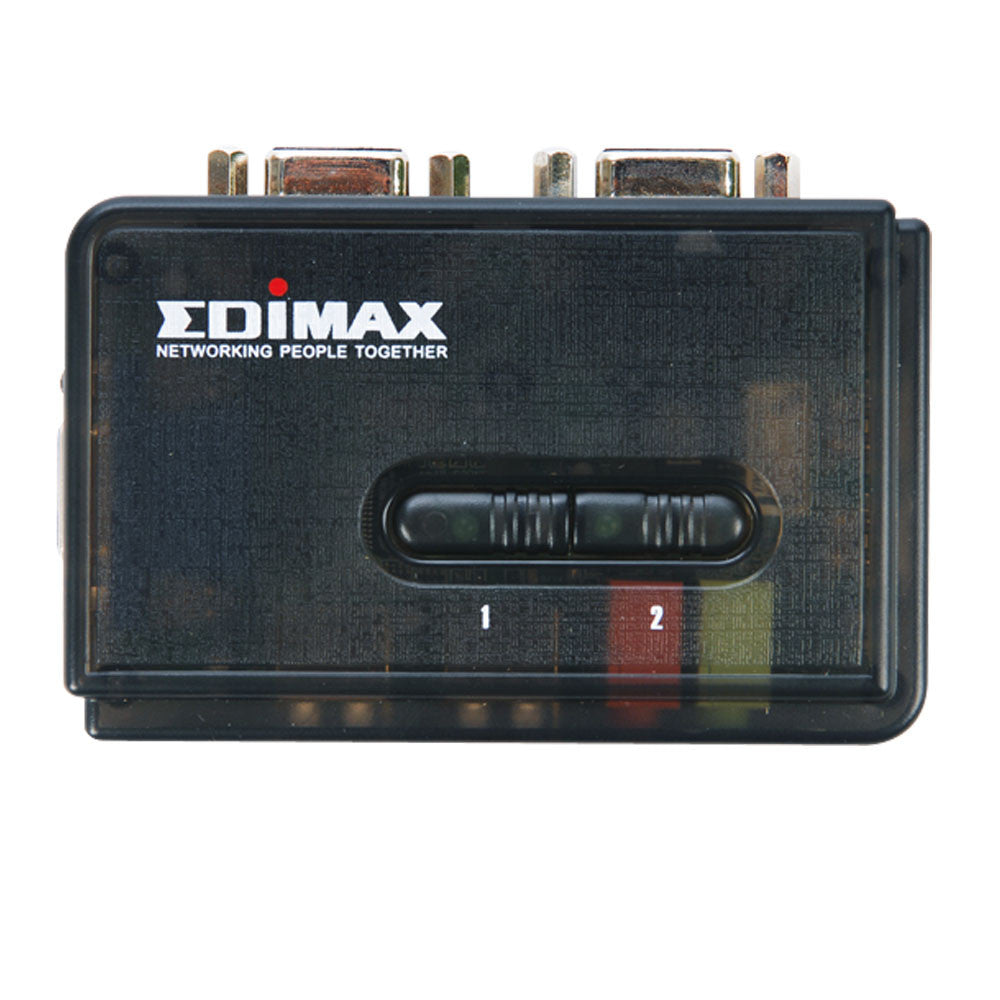

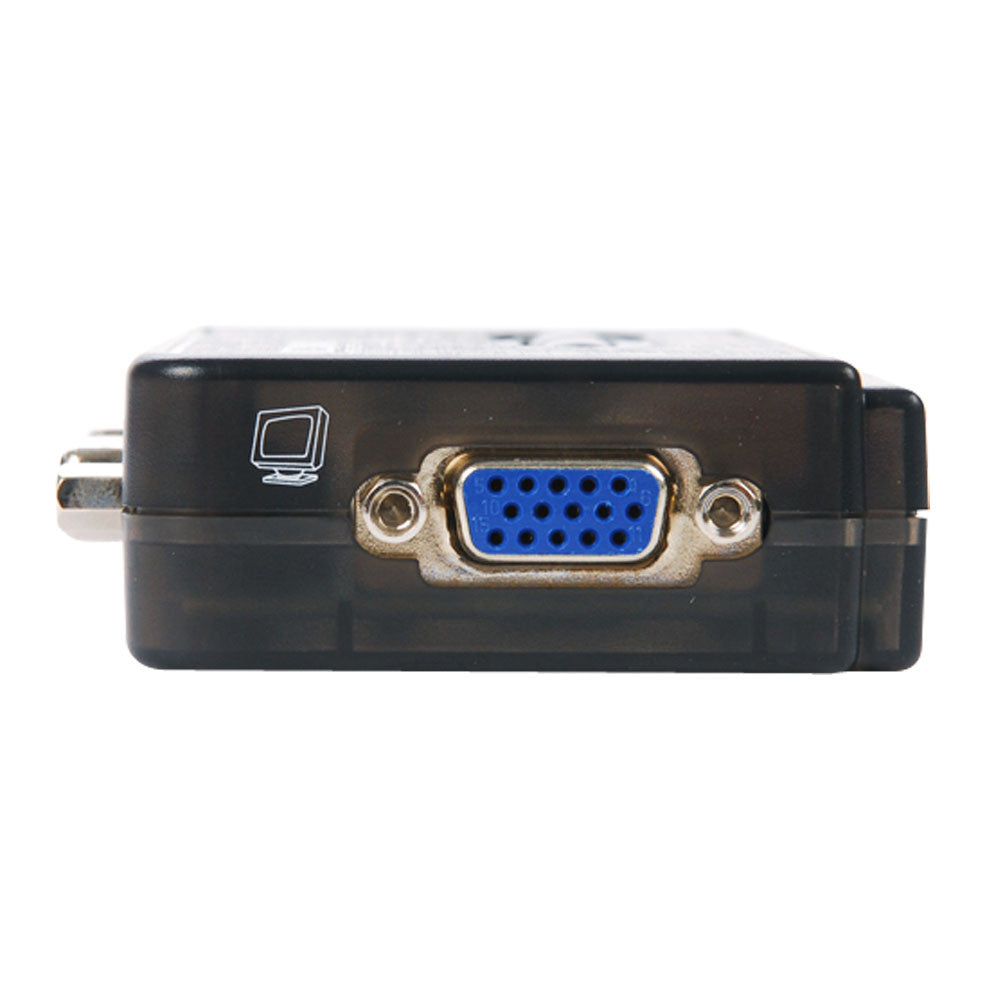

SPECS
Max PC Connections

• 2

• 2 x HDB 15-pin female (integrated with USB)
• 2 x USB Type Mini B ( for audio & Mic)

Console Side Connection

• 2 x USB Type A
• 1 x HDB 15-pin female
• 1 x Audio 3.5mm jack
• 1 x Mic 3.5mm jack

PC Selection

• Hot keys/ push buttons/ switching sofrware

PC Port LED

• 2

Connection Cables

• 2 x detachable sim USB KVM Combo cable

Audio Cabies

• 2 x audio / Mic Cables (USB Mini B 3.5mm jack)

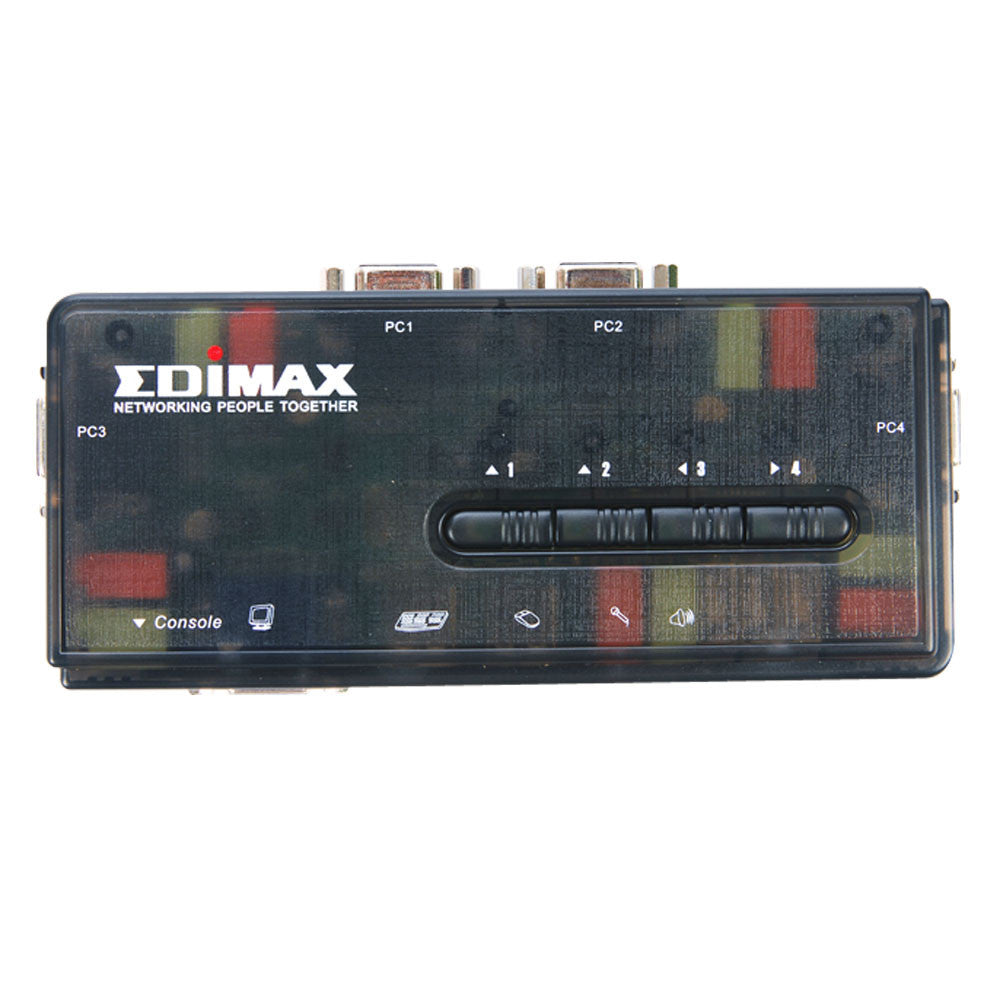

SPECS

Max PC Connections

• 4

PC Side Connection

• 4 x HDB 15-pin female (integrated with USB)
• 4 x 3.5mm audio jack
• 4 x 3.5mm mic jack

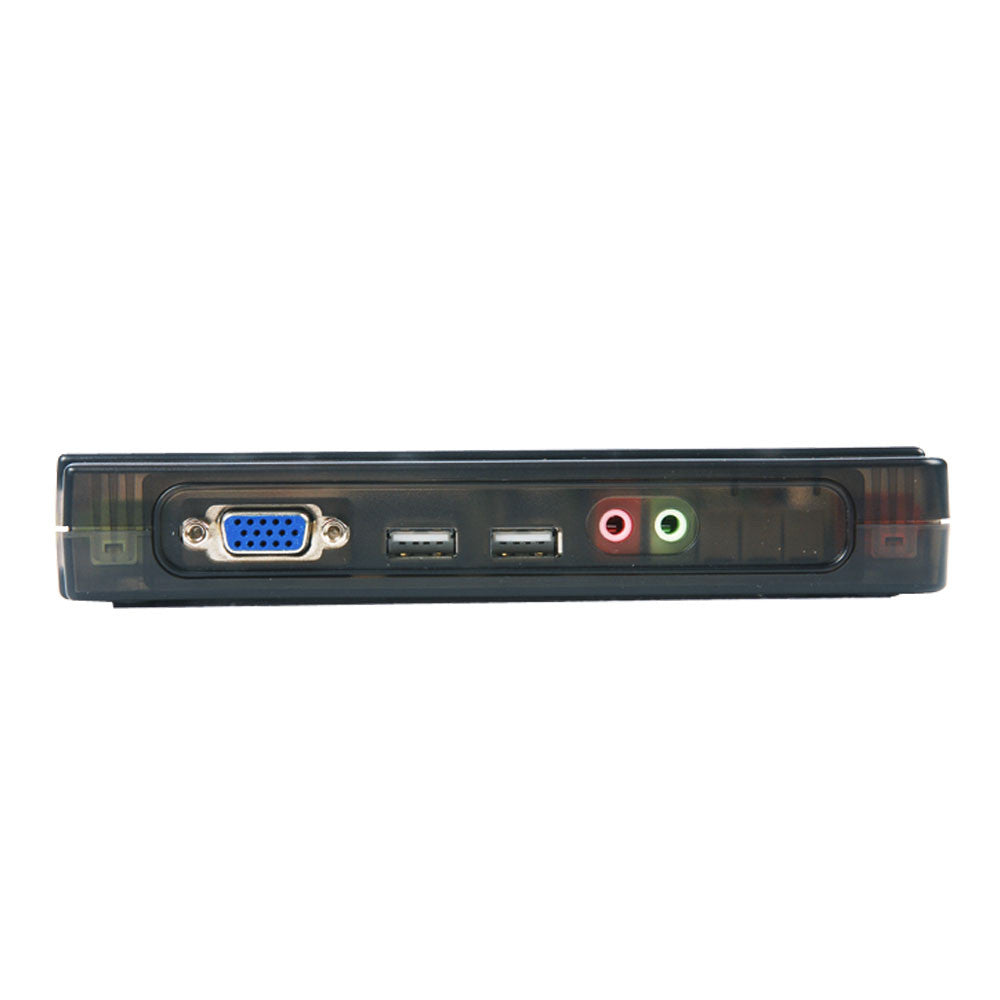

Console Side Connection

• 2 x USB Type A (Keyboard & Mouse)

• 1 x HDB 15-pin female

• 1 x Audio 3.5mm jack

• 1 x Mic 3.5mm jack

PC Selection

• Hot Keys / Push Buttons / Switching Software

PC Ports LED

• 4

Connection Cables

• 4 x detachable slim USB KVM Combo Cable

Audio Cables

• 4 x Audio / Mic Cables

Scan Intervals

• 10~60" (with an increment of 5”)

Max. Resolution

• 2048 x 1536

Max. Bandwidth

• 350MHz

Dimension

• 164 x 72 x 26mm

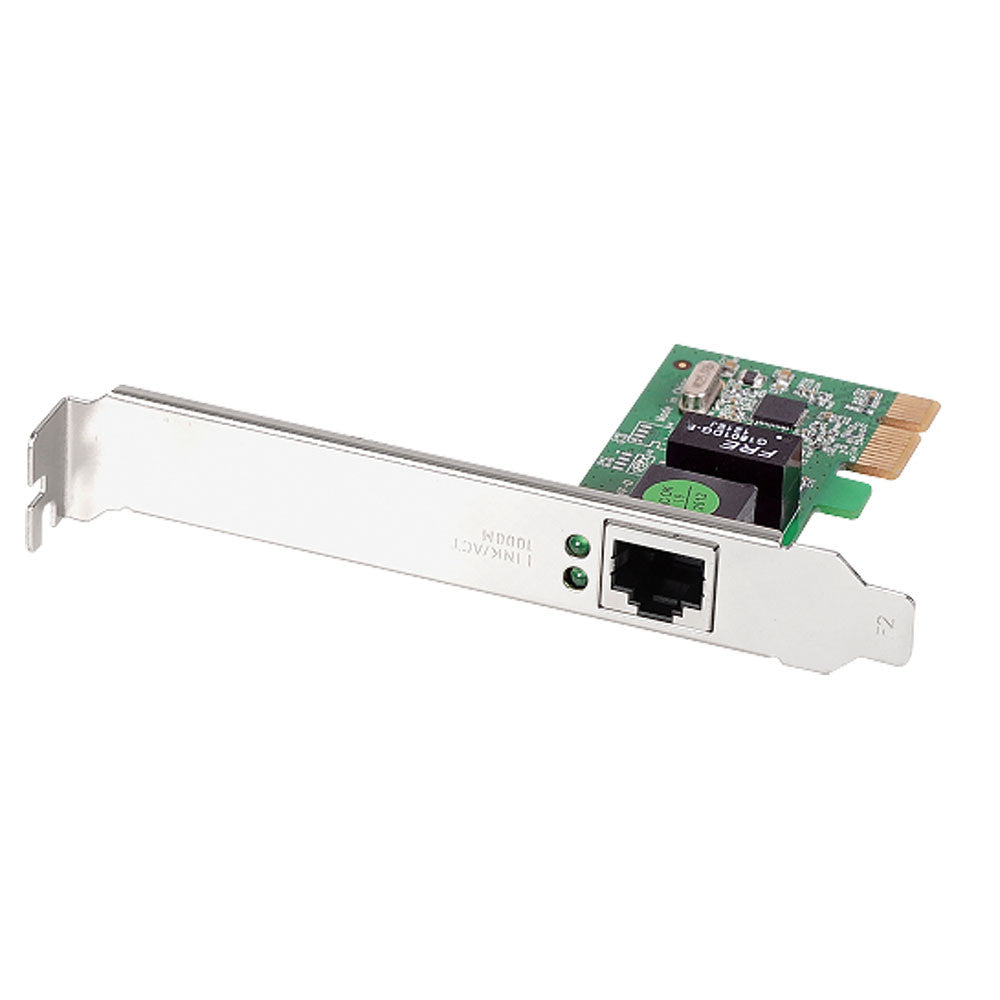

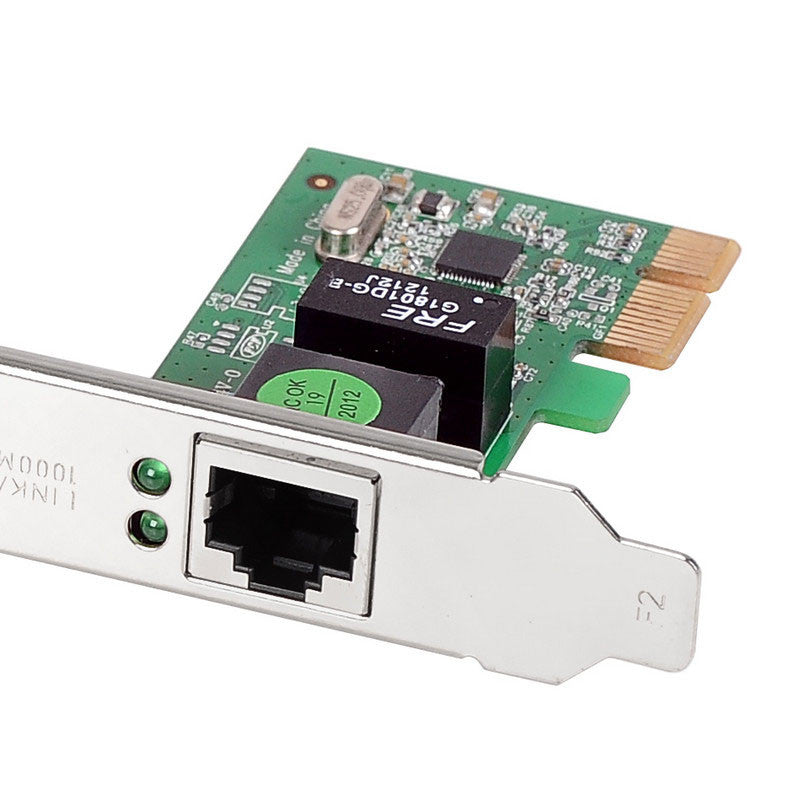

The EN-9260TX-E network adapter for PCs with PCI Express slots offers the latest technology in power management and Gigabit Ethernet network connectivity capability. The EN-9260TX-E’s full bandwidth capability boasts a robust 1000Mbps capability through the PCI Express bus architecture. There’s no need to purchase a new switch or broadband router since the adapter’s auto-negotiation feature works with your existing switch, broadband router or hub to provide the highest network speed available (10/100 or 1000 Mbps). The adapter’s automatic full duplex capability further increases bandwidth and eliminates packet collisions by allowing data to flow in both directions at the same time.

First-class Reliability
The EN-9260TX-E’s exceptional chipset offers increased bandwidth and more functionality than other standard PCI network adapters. The adapter is specifically designed to carry the full bandwidth capacity of the PCI Express bus of 2.5 Gbps, thus eliminating collisions and latencies that exist with current 32 and 64 bit PCI bus architectures.

Ease of Installation & Configuration
The EN-9260TX-E offers ease and flexibility of installation and configuration of the adapter through Plug & Play technology. Simply place the adapter into the PCI Express slot in your PC and then turn on the PC; plug-n-play automatically detects the new device. The adapter is fully compatible with Ethernet, Fast Ethernet, and Gigabit Ethernet networks and the adapter’s 10/100/1000 Mbps auto negotiation ports eliminate any need for manual switching. Best of all, the adapter is supported by all major operating systems including Vista and Linux OS.

User-friendly Setup CD Wizard and Driver*
To facilitate network connectivity, the EN-9260TX-E includes a user-friendly setup CD wizard. Its user interface simplifies driver installation for immediate use of the device.

SPECS
Hardware Interface

• PCI Express Interface
• One 10/100/1000 Mbps LAN port

Installation Kit

• Setup Wizard program with Driver setup

System Requirements

• CPU: Pentium III 1G above or similar
• Memory size: 256MB RAM
• One CD-ROM drive
• Hard Disk: Min. of 100MB disk space
• One available PCI express slot
• OS: Novell 5.X/6.X, Windows 98/ME/NT4.0/2000/XP/Vista/7/8, Linux 2.4.x
  OS

Dimensions

• 64x39 mm

Complied Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,

• IEEE802.3x, 802.1q, 802.1p, 802.3az

Chipset

• Realtek RTL8168E Single Chip

Bus Architecture

• PCI V 2.3/2.2/2.1, 32-bit, 66/33MHz

LED Indicators

• Link /ACT
• 1000M

Humidity

• Operating: 10~90%RH (non-condensing)
• Storage: 5 to 95% RH (non-condensing)

Temperature

• Operating: 0~40℃
• Storage: -40~70℃

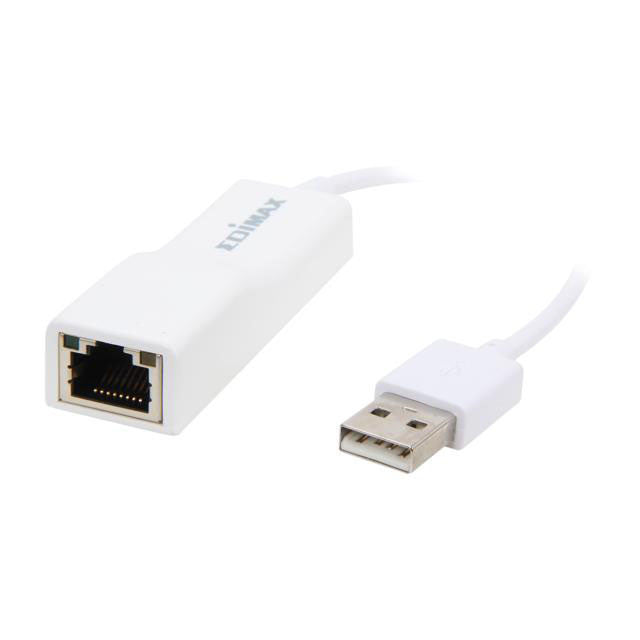

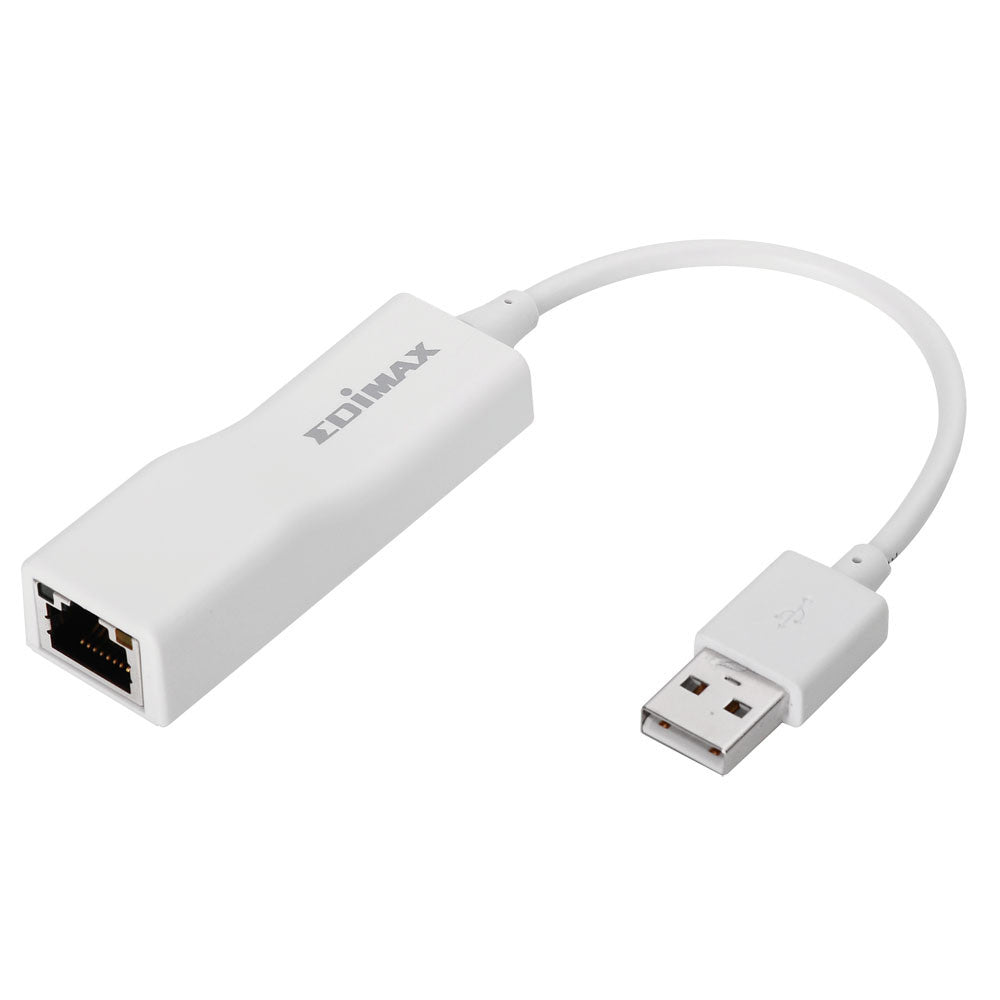

The Edimax EU-4208 is a compact USB Fast Ethernet adapter for an Ultrabook or Macbook Air with no Ethernet ports, or for desktop and notebooks that need an additional Fast Ethernet port. It’s an ideal portable accessory or replacement network adapter, and with full 10/100Mbps Fast Ethernet USB 2.0 performance, it’s faster than most wireless connections. Connect to a 10/100Mbps network from a USB enabled desktop or notebook, save costs and replace an old or broken internal network card, or use it as an additional network interface for high-speed peer-to-peer file sharing. No external power adapter is required and the green, energy-saving design minimizes power usage when the device is idle.

Ideal for Ultrabooks
Designed to give Fast Ethernet connectivity to your Ultrabook, Macbook Air or any computer without an Ethernet port. Simply plug the adapter into a USB 2.0 port and instantly utilize a stable 10/100Mbps Ethernet connection. The EU-4208 is also a quick and convenient way to add Ethernet connectivity to a desktop computer without the hassle of internal installation. It’s backward compatible with USB 1.1 and works with Microsoft Windows 2000/XP/Vista/7/8/8.1, Linux and Mac OS X 10.x.

 USB 2.0 for Full 10/100Mbps Ethernet Performance
Compared to USB 1.1 adapters which only offer 12Mbps transmission speeds, the EU-4208 is designed with the USB 2.0 standard which supports data transfer speeds up to 480Mbps, ensuring full 10/100Mbps Ethernet performance without any compromise.

Compact Design & Power over USBT
he Edimax EU-4208 features a compact design, making it easy to use in a crowded workspace. And with power over USB support, the EU-4208 works without the need for an additional power adapter.

Low Power Consumption
The Edimax EU-4208 is designed to use power efficiently and prevent unnecessary waste of power. It can dynamically adjust its power supply for reduced power usage in idle mode and low traffic conditions.

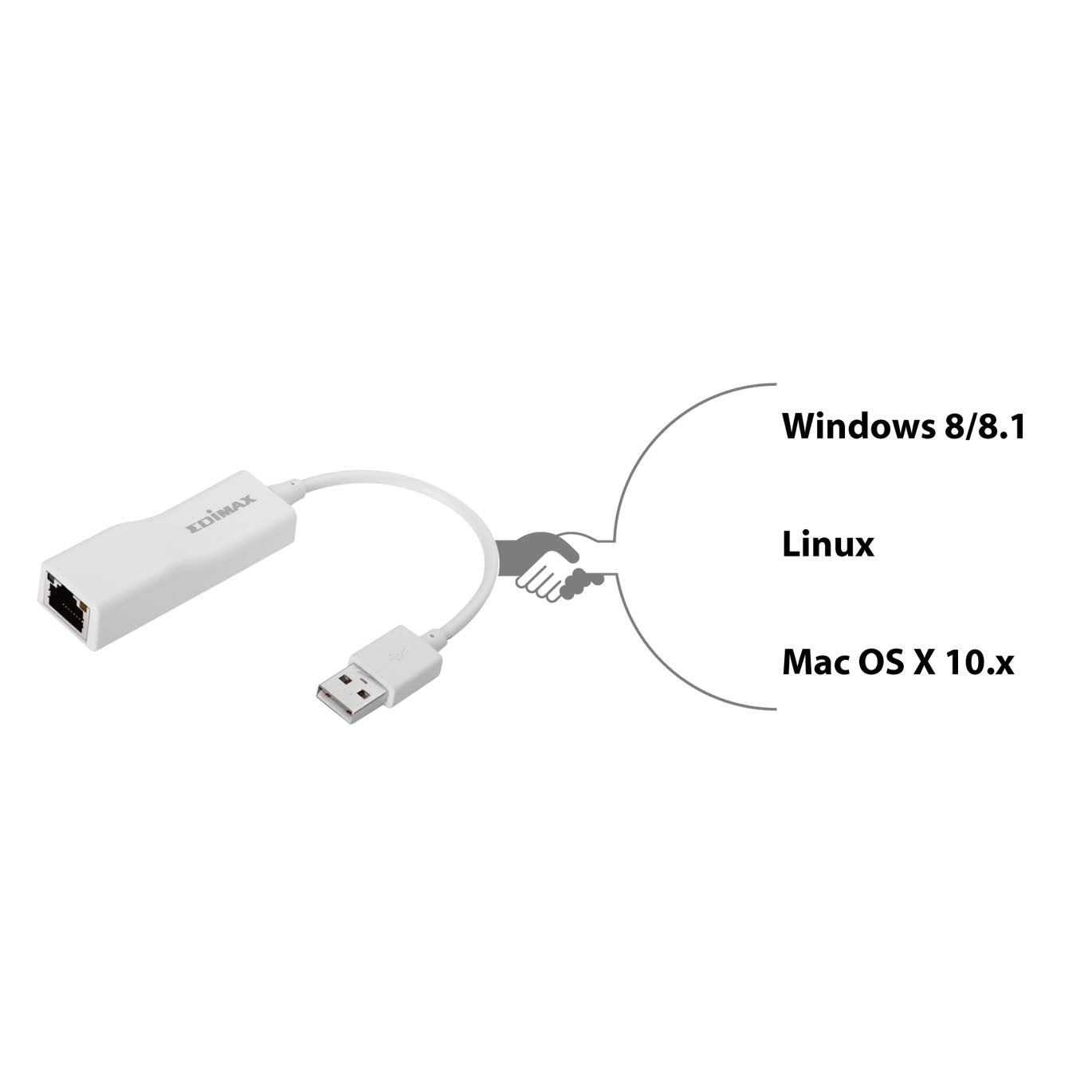

Windows 8.1 & Mac OS X 10.x
Full compatibility with Windows 8.1 and Mac OS X 10.x for hassle-free use with brand new devices and future-proof peace of mind.

APPLICAITON DIAGRAMS

SPECS
Hardware

• 1 x USB 2.0 (USB 1.1 backward compatible)

• 1 x RJ-45 10/100Mbps LAN port

• Power and link LED indicators

Power Consumption

• 600mW (full loading)

• 46.1mW (idle with remote wake up)

• 0.7mW (idle without remote wake up)

Operating system

• Windows 2000, XP, Vista, 7, 8, 8.1

• Linux

• Mac OS X 10.x

Standards

• IEEE 802.3

• IEEE 802.3u

Power management

• Idle mode (remote wake up enabled)

• Idle mode (remote wake up disabled)

Dimensions

• 66 x 22 x 15 mm (L x W x H)

RAM

• Embedded 20KB SRAM for RX and 20KB SRAM for TX packet buffering

Operating Temperature

• 0-70 degrees Celsius

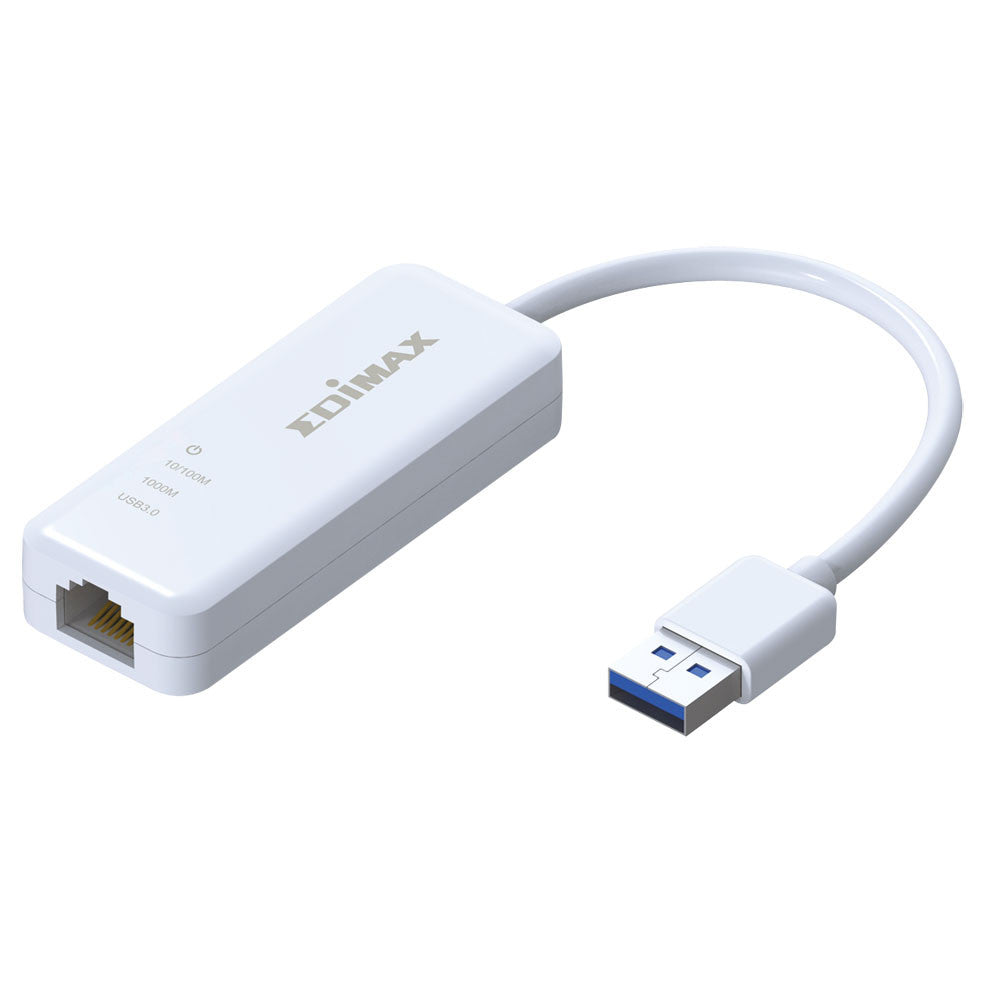

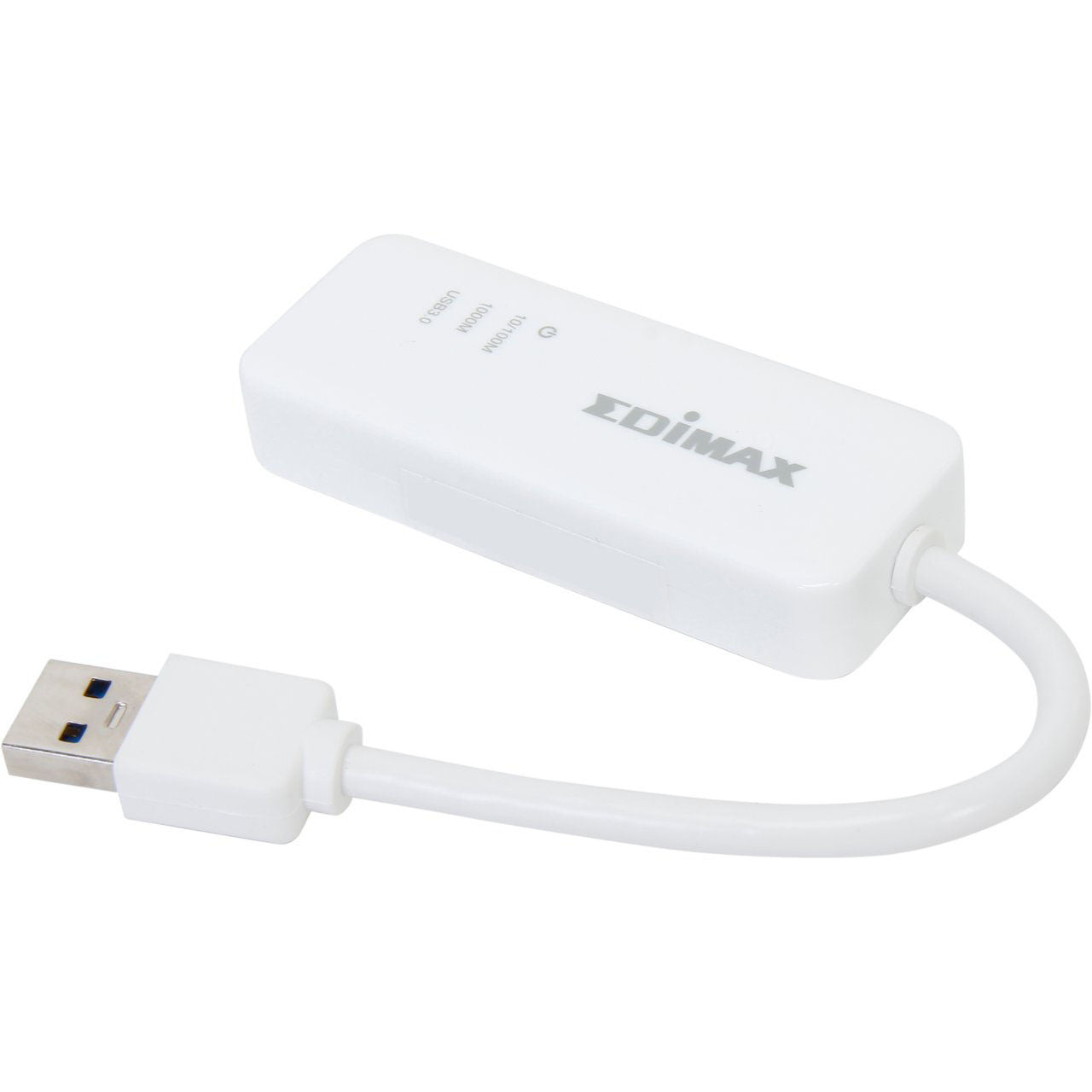

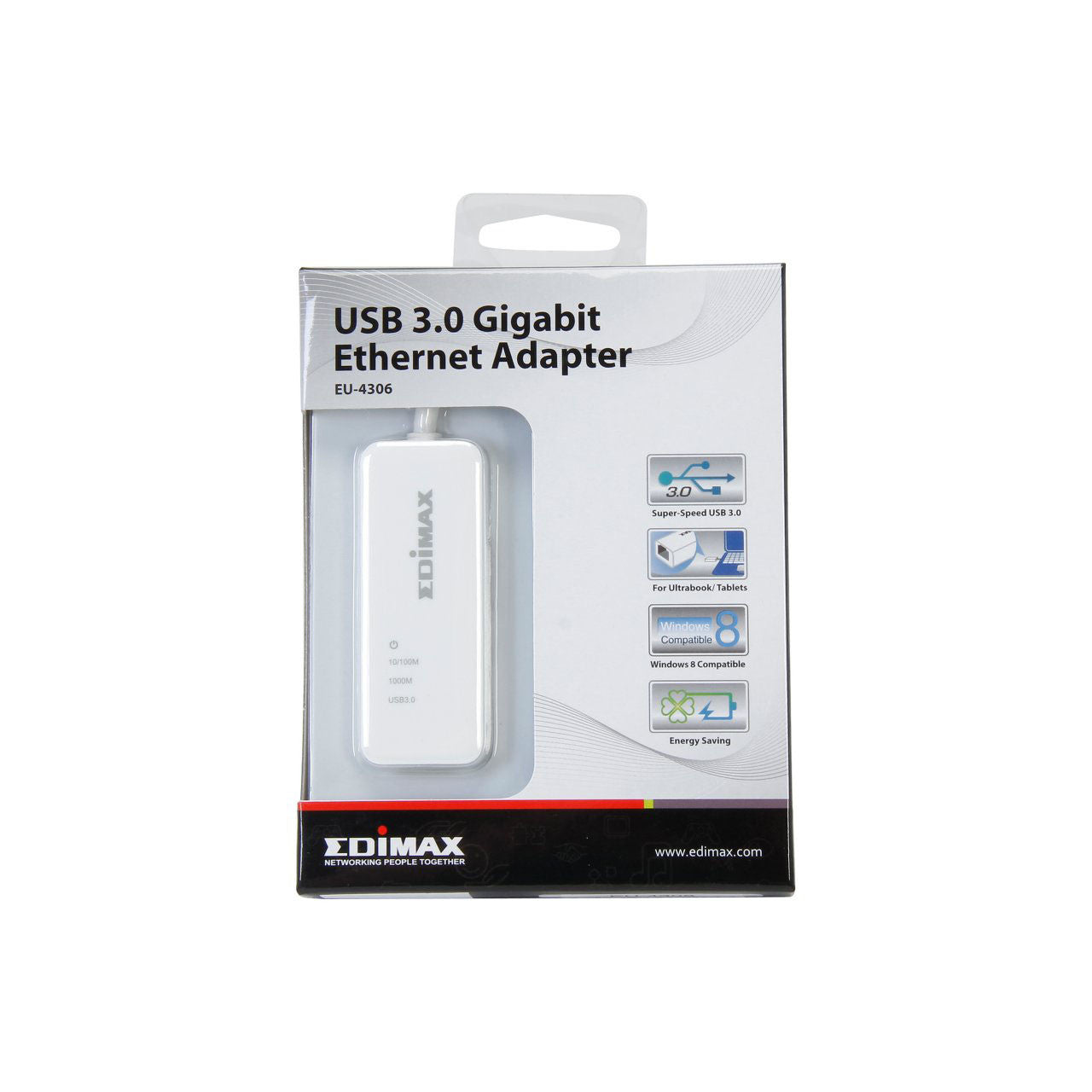

With speeds up to 5Gbps, USB 3.0 is fast becoming the new standard in data-transfer technology for PCs and laptops. However, some computers only feature 10/100 Ethernet ports while Macbook Airs and often Ultrabooks don’t feature Ethernet ports at all. Existing USB 2.0 Gigabit Ethernet adapters are limited by the USB 2.0 maximum data rate of 480Mbps while our USB 3.0 adapter can reach speeds of 5Gbps.  Upgrade existing 10/100 Ethernet connectivity to super-fast Gigabit speeds or introduce USB 3.0 true Gigabit Ethernet connectivity to an Ultrabook or Macbook Air.

USB 3.0
The EU-4306 supports USB 3.0, the newest specification of the USB standard which specifies a maximum data transmission speed of 5Gbps. Up to ten times faster than the existing USB 2.0 standard which is restricted to a maximum speed of 480Mbps, USB 3.0 enables the full capacity of 10/100/1000Mbps Gigabit Ethernet to be reached through an existing USB port with no need to install a Gigabit Ethernet card.

Ideal for Ultrabooks
For Ultrabooks or a Macbook Air with no Ethernet port, use the USB 3.0 Gigabit Ethernet adapter for simple plug-and-play Gigabit Ethernet network connection capability. Take the compact, portable EU-4306 wherever you take your laptop and ensure you stay connected to fast, reliable Gigabit Ethernet whenever you need. Provide Gigabit Ethernet connectivity for desktops, laptops, game consoles or home network appliances.

Supports Jumbo Frames
Support for jumbo frames can offer dramatic improvements in network performance and raise effective bandwidth. Jumbo frame are Ethernet frames (data packets) of up to 4000 bytes per frame, in comparison with standard, significantly smaller 1500 byte Ethernet frames. Using larger frames means that fewer frames are sent across the network which improves CPU cycles and bandwidth. For some applications, especially those typical of Gigabit Ethernet use such as large file transfers, the result is greatly increased network performance.

Power Saving
The EU-4306 incorporates a power saving feature to reduce power consumption by up to 35% when there is no Ethernet activity, reducing costs and contributing to a better environment.

Windows 8.1 & Mac OS X 10.x
Full compatibility with Windows 8.1 and Mac OS X 10.x for hassle-free use with brand new Windows 8.1 and Mac OS X 10.x devices and future-proof peace of mind.

APPLICATION DIAGRAM

SPECS
Hardware

• 1 x USB 3.0 type A, male

• 1 x RJ-45 10/100/1000Mbps LAN port

• LED indicators: Power, 10/100M, 1000M, USB3.0

Power Consumption

• 165mA @5.0VDC (USB Bus Powered)

Dimensions

• 73.2 x 28 x 13.6 mm (L x W x H)

Standards

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3ab

• IEEE 802.3az

• IEEE 802.1x/q

Storage Temperature

• -10-80 degrees Celsius

Supported OS

• Windows XP/Vista/7/8/8.1

• Mac OS 10.6/10.7/10.8

• Linux kernel 3.x/2.6.x

Operating Temperature

• 0-40 degrees Celsius

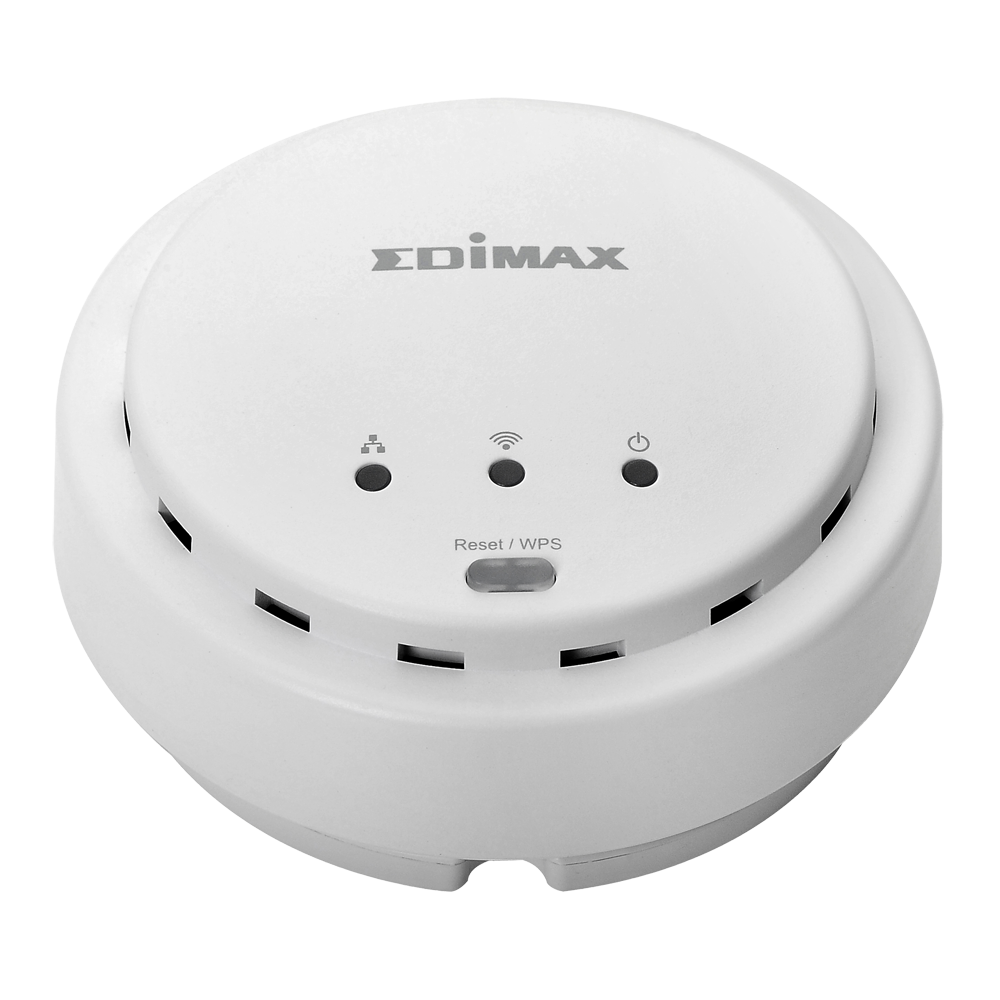

300Mbps Max. Wi-Fi Speed
This Edimax wireless access point is a high-speed solution that complies with IEEE 802.11b/g/n standards. The latest wireless MIMO (multiple-input and multiple-output) technology is built into this access point to broaden its Wi-Fi coverage and to eliminate dead spots within the signal range. When it is connected to IEEE 802.11n wireless devices, this Edimax wireless access point can reach Wi-Fi speeds of up to 300Mbps.

600mW High Power Output
The EW-7428HCn’s massive power output provides a colossal Wi-Fi range of up to 10,000 square meters* – ideal for vast environments such as airports, hotels, schools or warehouses. (*Power is limited up to 20dBm in Europe due to CE regulations.)

WDS Bridge Mode (Repeater Mode)
The WDS (Wireless Distributed System) function let this access point acts as a wireless LAN access point and repeater at the same time. Users can use this feature to build up a large wireless network in a large space like airports, hotels and schools . This feature is also useful when users want to bridge networks between buildings when it is impossible to deploy network cable connections between these buildings.

Wi-Fi Protected Setup (WPS) Button
The Edimax EW-7428HCn features a convenient WPS button. Users can set up an encrypted wireless connection simply by pressing the WPS button on this access point and the client device. This one-press WPS button helps users set up a secure wireless network in less than a minute.

Optional Power Supply
The Edimax EW-7428HCn integrates a PoE PD module, and also provides a power jack for a regular power adapter. Users can connect the access point to either a PoE Switch or a power adapter for the power supply.


Designed with the Latest Green WLAN Technology
With the latest green WLAN technology, the EW-7428HCn is able to dynamically adjust its power supply according to the amount of network activity. By supplying only the amount of power needed, this router allows for high networking performance while maintaining minimum power consumption.

User Group Management
Up to 5 SSIDs, making it possible to divide clients into different wireless user groups with different wireless security settings.


iQ Setup: No CD Required
iQ Setup is an intelligent feature that ensures a quick and headache-free setup process. You can choose the operation mode according to your needs and complete setup in just a few minutes. User can easily complete the installation without the software CD. This is useful when users are using ultra-compact laptops without the CD/DVD drives.

APLICATION DIAGRAMS

• Connect the access point to the root router with iQ Setup
• Get high quality Wi-Fi throughout your home/office

Designed to be conveniently ceiling mounted: The ceiling mounted access point can be mounted on office ceilings and easily blends in home and business environments.

Home Application:

Business Application:

SPECS
Product

• N300 High Power Ceiling Mount
• Wireless Range Extender/Access Point

Hardware

• 1 x 10/100Mbps LAN port
• 1 x WPS button
• 1 x Power jack
• 2 x Internal antenna

Standards

• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.3af

Frequency Bands

• 2.40 - 2.4835GHz (subject to local regulations)

Date Rates

• 11b: 1/2/5.5/11Mbps
• 11g: 6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-7, up to 144Mbps
• 11n (40MHz): MCS0-7, up to 300Mbps

Output Power

• 11b@11Mbps: 26+/-1.5dBm
• 11g@54Mbps: 24+/-1.5dBm
• 11n (20MHz)@MCS15: 23+/-1.5dBm
• 11n (40MHz)@MCS15: 23+/-1.5dBm


(power is limited to 20dBm in Europe due to CE regulations)

Security

• WEP encryption 64/128 bit
• WPA pre-shared key (WPA-TKIP, WPA2-AES, WPA/WPA2 mixed)
• WPA radius
• 802.1x authentication
• Hidden SSID
• Multiple SSIDs, up to 5 sets with wireless group and security
• AP isolation
• MAC address filtering

Scheduling

• LED on/off
• Wireless radio on/off
• Self reboot

QoS

• WMM

Configuration

• Brwoser-based configuration interface
• Telnet

Power

• 5V DC, 2A

Dimensions

• 46 (H) x 105 (W) x 105 (L) mm

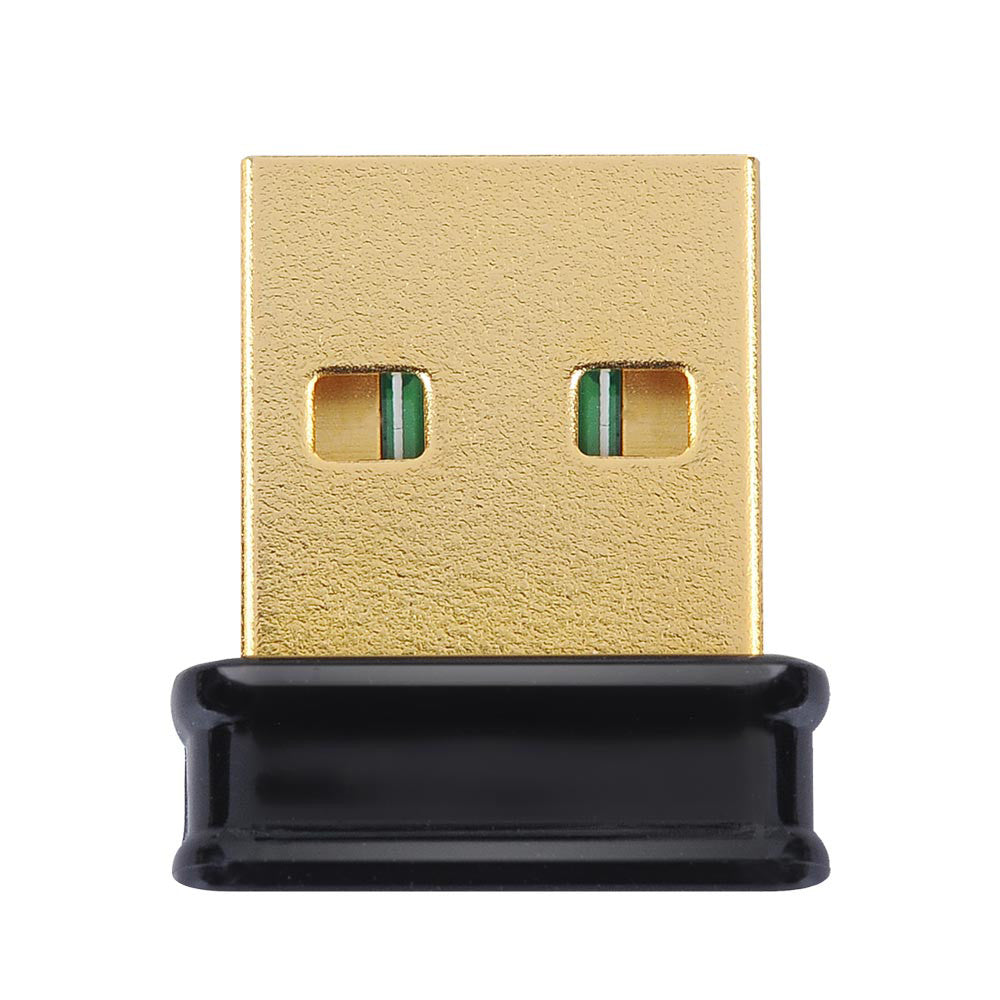

The EW-7611ULB is a nano-sized 2-in-1 combo USB Wi-Fi adapter with Bluetooth 4.0 that supports Wi-Fi up to 150Mbps and allows users to connect to all the latest Bluetooth devices such as mobile phones, tablets, mice, keyboards, printers and more. Supporting the latest Bluetooth 4.0 version with Bluetooth Smart Ready, the EW-7611ULB offers ultra-low power consumption with Bluetooth Low Energy (BLE) while transferring data or connecting devices. And with a tiny nano-size design you can easily plug it in without blocking any surrounding USB ports, for both Wi-Fi and Bluetooth connectivity at the same time.

11n Wi-Fi Speed up to 150Mbps
Complies with wireless IEEE802.11b/g/n standards for Wi-Fi data transmission rates up to 150Mbps when connected to a 802.11n device.

Bluetooth 4.0 & Bluetooth 3.0+HS (High Speed) up to 24Mbps
8 times faster data transmission up to 24Mbps with support for Bluetooth 4.0. And fully backwards compatible with Bluetooth 3.0+HS and Bluetooth 2.1+EDR for wireless communication with almost all Bluetooth-enabled mobile phones, tablets, mice, keyboards, printers and more.

Energy Saving with Green WLAN & Bluetooth Low Energy (BLE)
Smart transmission power control to adjust transmission output by distance and CPU offload to help reduce  power consumption when wireless is idle. The adapter doesn’t only provide the best wireless technology in the world, but cares for the environment - and your pocket - by saving on electric bills.


Supports WPS (Wi-Fi Protected Setup)
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. The adapter supports software WPS-compatible configuration so your wireless network can be immediately secured with WPS-compatible routers or access points.

Easy Setup Wizard
The included multi-language easy setup wizard and friendly UI will walk you through configuring the EW-7611ULB on your Wi-Fi network.

Compact and Portable Design
Currently the smallest Wi-Fi and Bluetooth 4.0 combo USB adapter on the market. The compact design of EW-7611ULB is convenient to carry for mobile users and the snug fit protects from accidentally snapping the adapter out of place.

SPECS
Hardware

• USB 1.0/2.0 Type A Port

• Internal Antenna

• Link/Activity LED

Data Rate

• 11b: 1/2/5.5/11Mbps

• 11g: 6/9/12/24/36/48/54Mbps

• 11n (20MHz): MCS0-7 (up to 72Mbps)

• 11n (40MHz): MCS0-7 (up to 150Mbps)

• Bluetooth : up to 24Mbps

Security

• WEP 64/128-bit, WPA, WPA2, 802.1x

• Software WPS configuration

System Requirements

• Windows 7/8/8.1/10

• Linux & Mac OS

Standard

• IEEE 802.11b, 802.11g, 802.11n
• Bluetooth 4.0 BLE/4.0 Dual Mode
• Bluetooth 3.0+HS
• Bluetooth 2.1 & 3.0

Output Power

• 11b:16 ±1.5dbm
• 11g:14 ±1.5dbm
• 11n:12 ±1.5dbm

Installation

• Multi-language easy setup wizard with auto run configuration

Dimensions

• 7.1(H) x 14.9(W) x 18.5(D) mm

Frequency Bnad

• Wi-Fi: 2.4000~2.4835GHz (Industrial Scientific Medical Band)

• Bluetooth: 2.4~2.4835GHz unlicensed ISM band

Receive Sensitivity

• 11n(20MHz)@MCS7: -64dBm±2dBm
• 11n(40MHz)@MCS7: -64dBm±2dBm
• 11g@54Mbps: -65dBm±2dBm
• 11b@11Mbps: -79dBm±2dBm

Temperature & Humidity

• Operating : 10~90% (Non Condensing)

          Storage : Max. 95% (Non Condensing)

• Operating : 32~104°F (0~40°C)

          Storage : -4~140°F (-20~60°C)

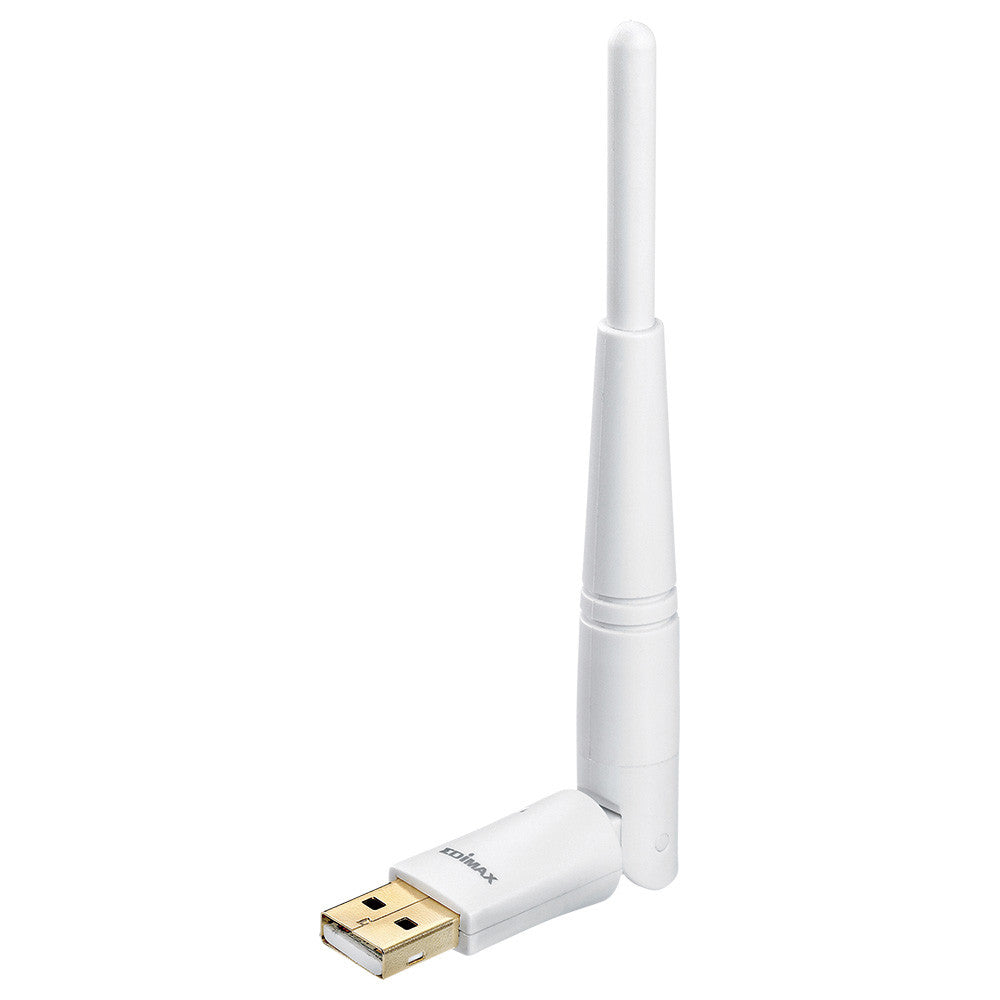

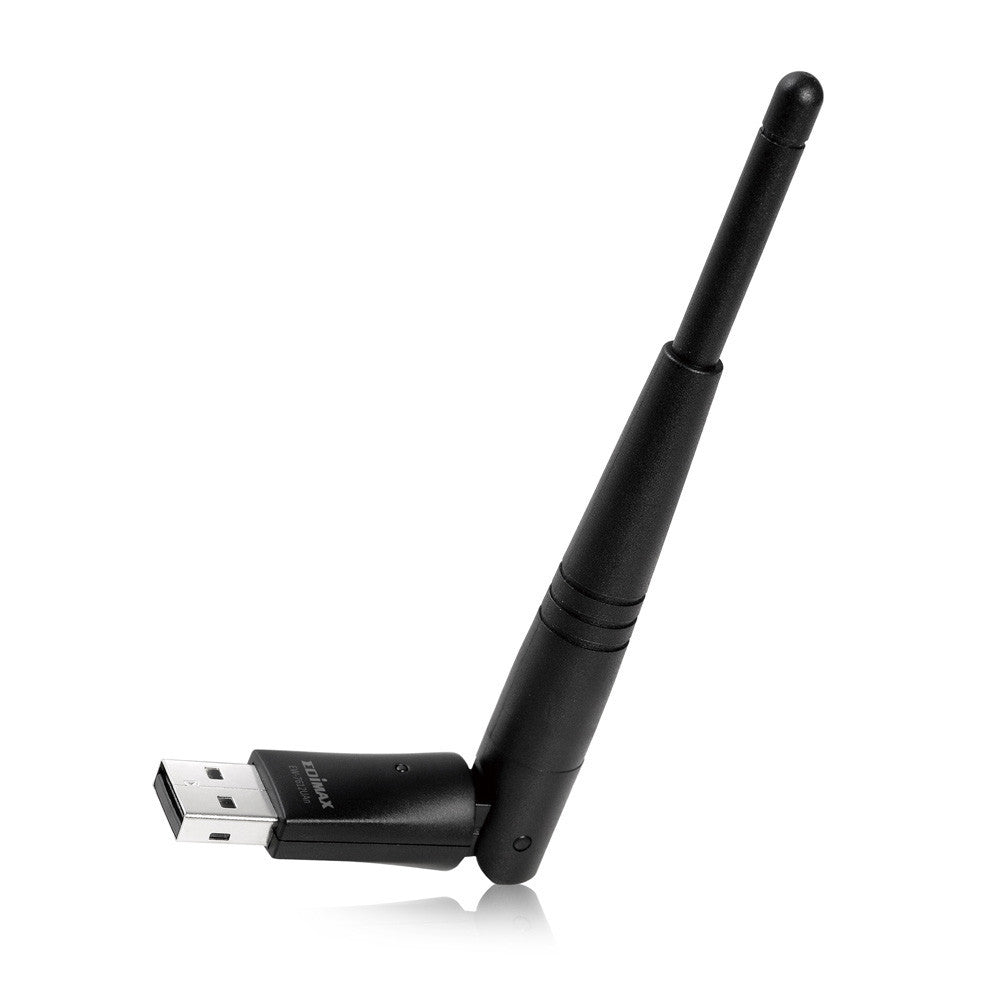

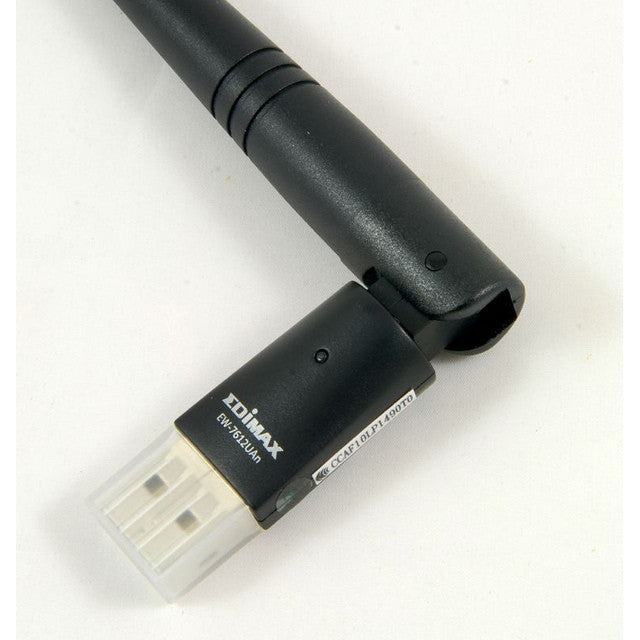

Simply plug your new Edimax EW-7612UAn USB adapter into your computer's USB port, and you can enjoy high-speed wireless network access in just a few seconds. This wireless USB adapter provides a quick and simple way to add or upgrade the wireless connectivity of your desktop, laptop, or notebook computer. You can enjoy transfer rates as high as 300Mbps* when your Edimax EW-7612UAn USB adapter is connected to wireless 802.11n-compatible devices.

Wireless 802.11n Standard (data rates up to 300Mbps*)
Edimax EW-7612UAn has an extended wireless coverage and a higher data transfer rate. It is equipped with the latest wireless technology, which enables it to eliminate wireless dead spots while extending its wireless coverage by 4 times. The EW-7612UAn USB adapter is compatible with IEEE802.11b/g/n wireless standards, and is capable of transferring data at up to 300Mbps when connected to 802.11n wireless devices. The wireless technology in the Edimax EW-7612UAn USB adapter also extends its wireless signal distance, and provides more reliable wireless connections than traditional IEEE802.11b/g wireless networks.

Features a Hardware WPS (Wi-Fi Protected Setup) Button
Wi-Fi Protected Setup (WPS) is a new technology designed to establish a secure wireless network in a fast and easy way. If the wireless device you wish to connect supports WPS, the Edimax EW-7612UAn USB adapter will be able to establish a secure, encrypted WPA data connection with it. All you need to do is press the button, and you are set to go. The Edimax EW-7612UAn USB adapter supports both hardware (button) and software (web page) WPS.

Features Multi-Language EZmax Setup Wizard*
Edimax EW-7612UAn includes an EZmax setup wizard—a setup application available in 16 languages, which will assist you in connecting your new EW-7612UAn USB adapter with wireless networks in no time.

Built-in 3dBi Antenna and Hardwire USB Cable for Improved Wireless Performance
EW-7612UAn not only has a built-in 3dBi high gain antenna, it is also bundled with a free hardwire USB cable for improved wireless performance. When using EW-7612UAn with the hardwire USB cable, it provides better wireless performance at no extra cost.

APPLICAITON DIAGRAM

• Plug the mini wireless adapter into your computer.
• Setup the wireless connection by running EZmax wizard.
• Connect to 802.11b/g/n wireless access point or wireless broadband router.

The next generation 802.11ac wireless standard is set to revolutionize Wi-Fi. Super-speed 802.11ac  5GHz USB adapter upgrades your network device to 802.11ac with the super-fast  Wi-Fi speeds up to 433Mbps on the interference-free 5Ghz frequency band.

SPECS

Hardware

• 1 x USB 2.0 Type A

• 1 x Link/Activity LED

Output Power

• 5GHz

• 11a (54Mbps): 13dBm±1.5dBm

• 11n (20MHz, MCS7): 12dBm±1.5dBm

• 11n (40MHz, MCS7): 12dBm±1.5dBm

• 11ac (80MHz, MCS9): 11dBm±1.5dBm

LED

• Link/Activity

Standards

• 5GHz: IEEE 802.11ac, 802.11a, 802.11n

INSTALLATION

• Easy setup wizard for Windows XP/Vista/7/8/8.1 and MAC Drivers Installation

SECURITY

• WEP 64/128-bit, WPA, WPA2, 802.1x

FREQUENCY BNAD

• 5.150 - 5.825GHz (subject to local regulations)

OPERATING RANGE

• 11a: 6/9/12/24/36/48/54Mbps;

• 11n (20MHz): MCS0-7 (up to 72Mbps)

• 11n (40MHz): MCS0-7 (up to 144Mbps)

• 11ac (80MHz): MCS0-9 (up to 433Mbps)

TEMPERATURE & HUMIDITY

• Max 95% (non-condensing)

• 32 - 104°F (0 - 40°C)

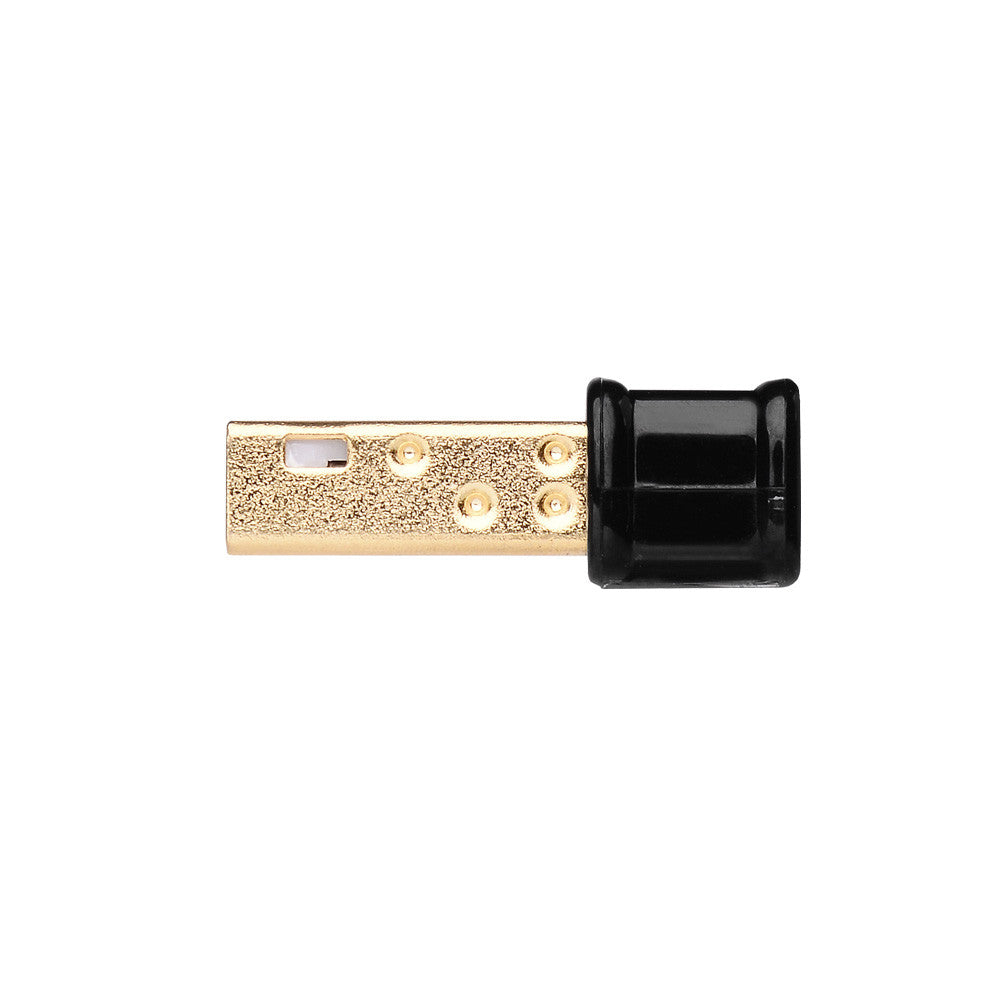

The next generation 802.11ac wireless standard is set to revolutionize Wi-Fi. Super-speed 802.11ac  5GHz USB adapter upgrades your network device to 802.11ac with the super-fast Wi-Fi speeds up to 433Mbps on the interference-free 5Ghz frequency band.

Next Generation Wi-Fi Standard
The Edimax EW-7711MAC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433Mbps at 5GHz - almost three times as fast as 802.11n. Upgrade PCs and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.

5GHz Connectivity
Enjoy a better, smarter wireless experience with the super-fast, interference-free 5GHz frequency band. At speeds of up to 433Mbps, the EW-7711MAC is great for online gaming, video streaming or other bandwidth-intensive tasks which are too much for the standard 2.4GHz Wi-Fi frequency to handle. As the world’s first dedicated 11ac 5GHz adapter, the EW-7711MAC unlocks a new world of intelligent Wi-Fi performance and applications, future-proofing your laptop to communicate and sync with the next wave of 11ac-ready smartphones and tablets.

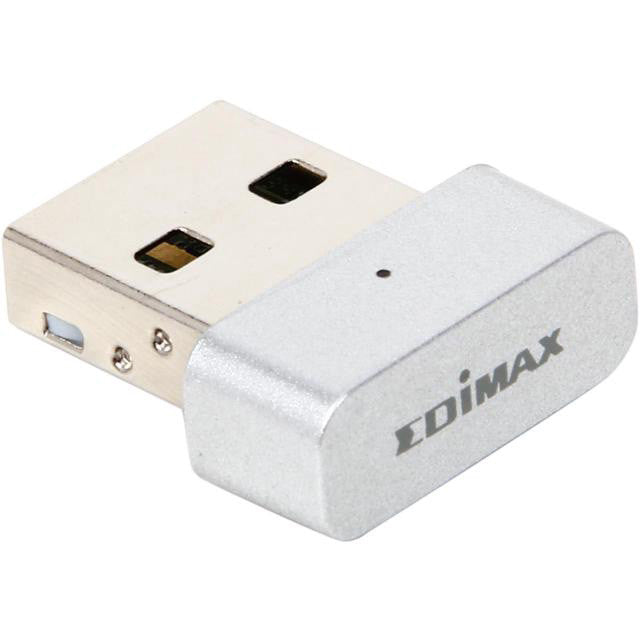

Nano, Stylish, And Minimal Design
The EW-7711MAC AC450 Wireless USB Upgrade Adapter ‘s Nano design is perfect design for mobility and convenience for you to take the advantage of 11ac 5GHz super-fast speed anywhere.  With it’s stylish and minimal design, the EW-7711MAC perfectly fits your MacBook and Ultrabook as part of it’s original design.

Download and Stream Anywhere
Use the EW-7711MAC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

 APPLICATION DIAGRAMS

SPECS

Hardware

• 1 x USB 2.0 Type A

• 1 x Link/Activity LED

Output Power

• 5GHz

• 11a (54Mbps): 13dBm±1.5dBm

• 11n (20MHz, MCS7): 12dBm±1.5dBm

• 11n (40MHz, MCS7): 12dBm±1.5dBm

• 11ac (80MHz, MCS9): 11dBm±1.5dBm

LED

• Link/Activity

Standards

• 5GHz: IEEE 802.11ac, 802.11a, 802.11n

INSTALLATION

• Easy setup wizard for Windows XP/Vista/7/8/8.1 and MAC Drivers Installation

SECURITY

• WEP 64/128-bit, WPA, WPA2, 802.1x

FREQUENCY BNAD

• 5.150 - 5.825GHz (subject to local regulations)

OPERATING RANGE

• 11a: 6/9/12/24/36/48/54Mbps;

• 11n (20MHz): MCS0-7 (up to 72Mbps)

• 11n (40MHz): MCS0-7 (up to 144Mbps)

• 11ac (80MHz): MCS0-9 (up to 433Mbps)

TEMPERATURE & HUMIDITY

• Max 95% (non-condensing)

• 32 - 104°F (0 - 40°C)

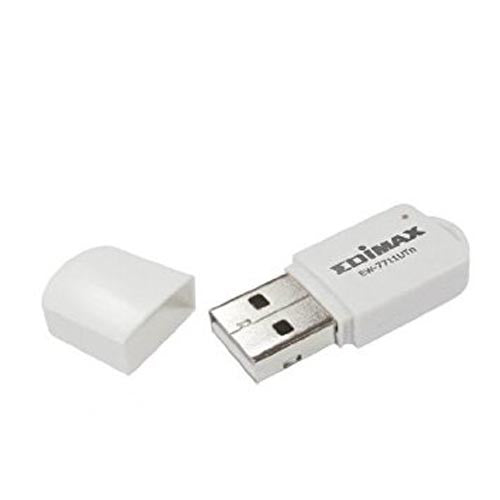

The EW-7711UAn is a high-gain USB Wi-Fi adapter which provides a simple and easy way to add or upgrade wireless connectivity to your desktop or notebook computer. This adapter supports fast data rates up to 150 Mbps when connecting with typical 802.11n Wi-Fi routers. Just plug it into your computer’s USB port for quick and easy Wi-Fi.

802.11n Wireless with Data Rates up to 150Mbps
Built with the latest Wi-Fi technology and complies with wireless 802.11b/g/n standards.

WPS (Wi-Fi Protected Setup) Button
The adapter supports both software and hardware based WPS, with a built in WPS button. WPS is a quick, easy and secure way to setup wireless connections with devices such as your wireless router. Simply push the WPS button on both devices and a Wi-Fi connection will automatically be established with robust WPA data encryption and authentication.

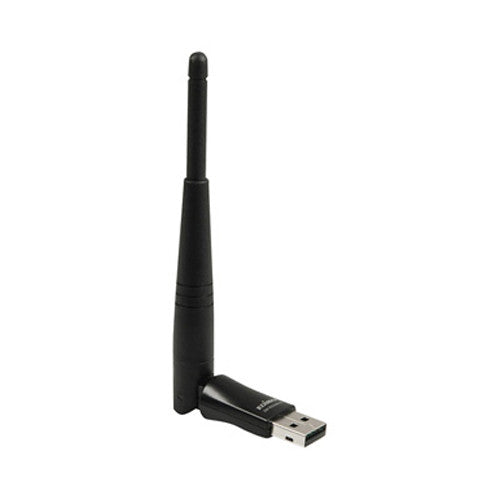

Portable and Compact Design with Adjustable 3dBi High-Gain Antenna
The EW-7711UAn features an adjustable 3dBi high-gain antenna to provide better wireless stability and range.

USB Cable for More Flexibility
Includes a USB cable to give more freedom to connect the adapter to your computer and find better Wi-Fi coverage.

Applicaiton Diagram

SPECS
HARDWARE

• 1 x USB 2.0 type A

• 1 x Hardware WPS button

• 1 x Link/Activity LED

OUTPUT POWER

• 11b (11Mbps): 17dBm±1.5dBm

• 11g (54Mbps): 14dBm±1.5dBm

• 11n (20MHz, MCS7): 14dBm±1.5dBm

• 11n (40MHz, MCS7): 14dBm±1.5dBm

LED

• Link/Activity

DIMENSIONS

• 15(H) x 15(W) x 155(D) mm

STANDARDS

• IEEE 802.11b/g/n

INSTALLATION

• Multi-Language easy setup wizard

• Hardware WPS button for easy wireless connections

SECURITY

• WEP 64/128-bit, WPA, WPA2

• Hardware & software WPS configuration

FREQUENCY BAND

• 2.4000~2.4835GHz (industrial scientific medical band)

OPERATING RANGE

• 11b: 1/2/5.5/11Mbps;

• 11g: 6/9/12/24/36/48/54Mbps;

• 11n (20MHz): MCS0-7 (up to 72Mbps)

• 11n (40MHz): MCS0-7 (up to 150Mbps)

TEMPERATURE & HUMIDITY

• Operating: 32 - 104°F (0 - 40°C)

• Storage:-4~140°F (-20 - 60°C)

• Max 95% (non-condensing)

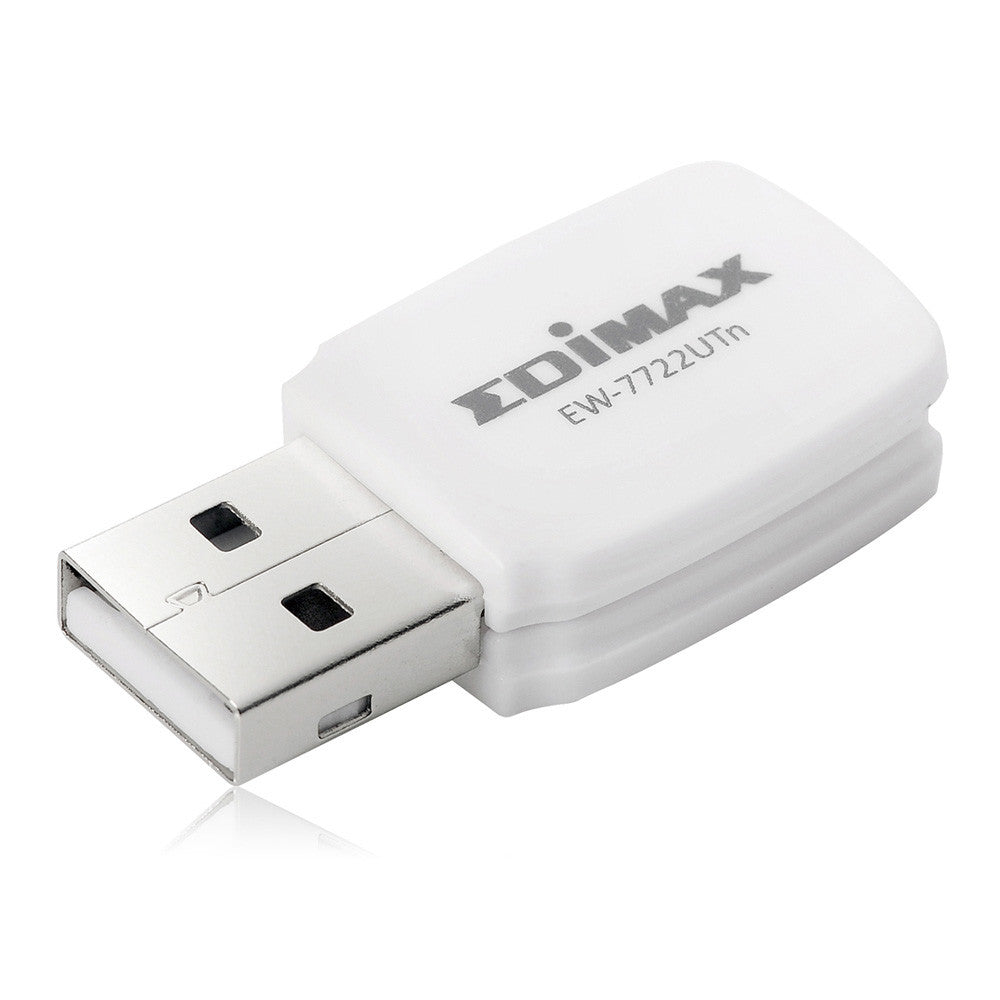

Enjoying high-speed wireless network access is as simple as plugging the Edimax EW-7722UTn into your computer's USB port. This mini wireless USB adapter is a quick and easy way to add or upgrade the wireless connectivity of your desktop, laptop, or notebook computer. You can enjoy data rates of up to 300Mbps when the Edimax EW-7722UTn is connected to 300Mbps wireless 802.11n standard devices.

Wireless 802.11n Standard (data rates up to 300Mbps)
The Edimax EW-7722UTn means increased wireless coverage and higher data transmission rates. The latest wireless technology is built into this device to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7722UTn complies with wireless IEEE 802.11b/g/n standards and can reach data transmission rates of up to 300Mbps when connected to wireless 802.11n devices. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11b/g wireless networks.

Features a Hardware WPS (Wi-Fi Protected Setup) Button
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. If the wireless device you wish to connect supports WPS, the Edimax EW-7722UTn will automatically set up the wireless connection with a robust WPA data encryption and authentication. The Edimax EW-7722UTn wireless USB adapter supports both hardware (push-button) WPS and software WPS configurations.

Features Multi-Language EZmax Setup Wizard*
The Edimax EW-7722UTn includes an EZmax setup wizard—an application available in 16 languages that helps you to quickly connect the adapter to your wireless network.

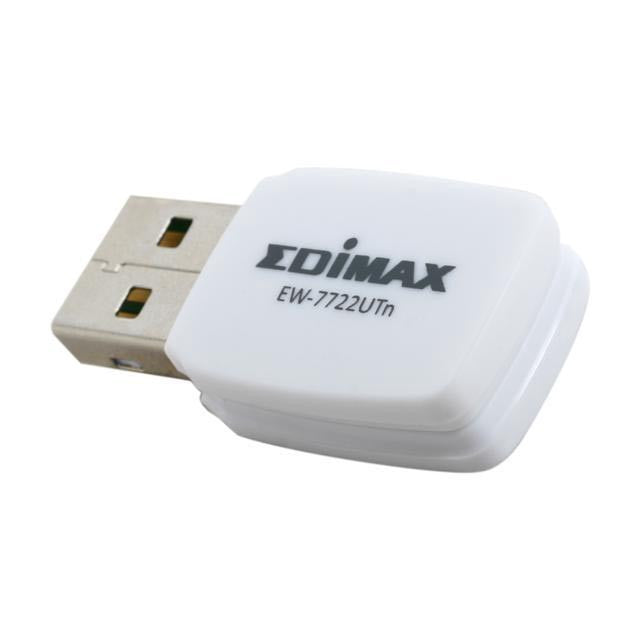

Portable and Compact Design
The Edimax EW-7722UTn is currently the smallest 300Mbps wireless adapter. Its lightweight and compact design makes it ultra-convenient for any mobile user to carry around.

Hardwire USB Cable for Improved Wireless Performance
EW-7722UTn comes with a free hardwire USB cable for improved wireless performance. When using EW-7722UTn with the hardwire USB cable, it provides better wireless performance at no extra cost.

SPECS

HARDWARE INTERFACE

• 1 x USB 1.0/2.0 Type A
• Hardware WPS button
• 2 x Internal Antenna

DATA RATES

• 11b: 1/2/5.5/11Mbps
• 11g:6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-15 (up to 144Mbps)
• 11n (40MHz): MCS0-15 (up to 300Mbps)

WIRELESS SECURITY

• WEP 64/128, WPA, WPA2, 802.1x
• Cisco CCX Support
• Hardware and Software WPS configuration

SYSTEM REQUIREMENTS

• Windows 2000/ XP/ Vista/ 7 / 8

STANDARD

• IEEE802.11b, 802.11g, 802.11n

INSTALLATION

• Multi-language EZmax Setup Wizard

DIMENSIONS

• 9.1(H) x 17.8 (W) x 35.8 (D) mm

OUTPUT POWER

• 11n: 12dBm±1dBm
• 11g: 17dBm±1dBm
• 11b: 17dBm±1dBm

FREQUENCY BAND

• 2.4000~2.4835GHz (Industrial  Scientific Medical Band)

LED

• Link/Activity

HUMIDITY & TEMPERATURE

• Max. 95% (Non Condensing)
• 32~104°F (0~40°C)

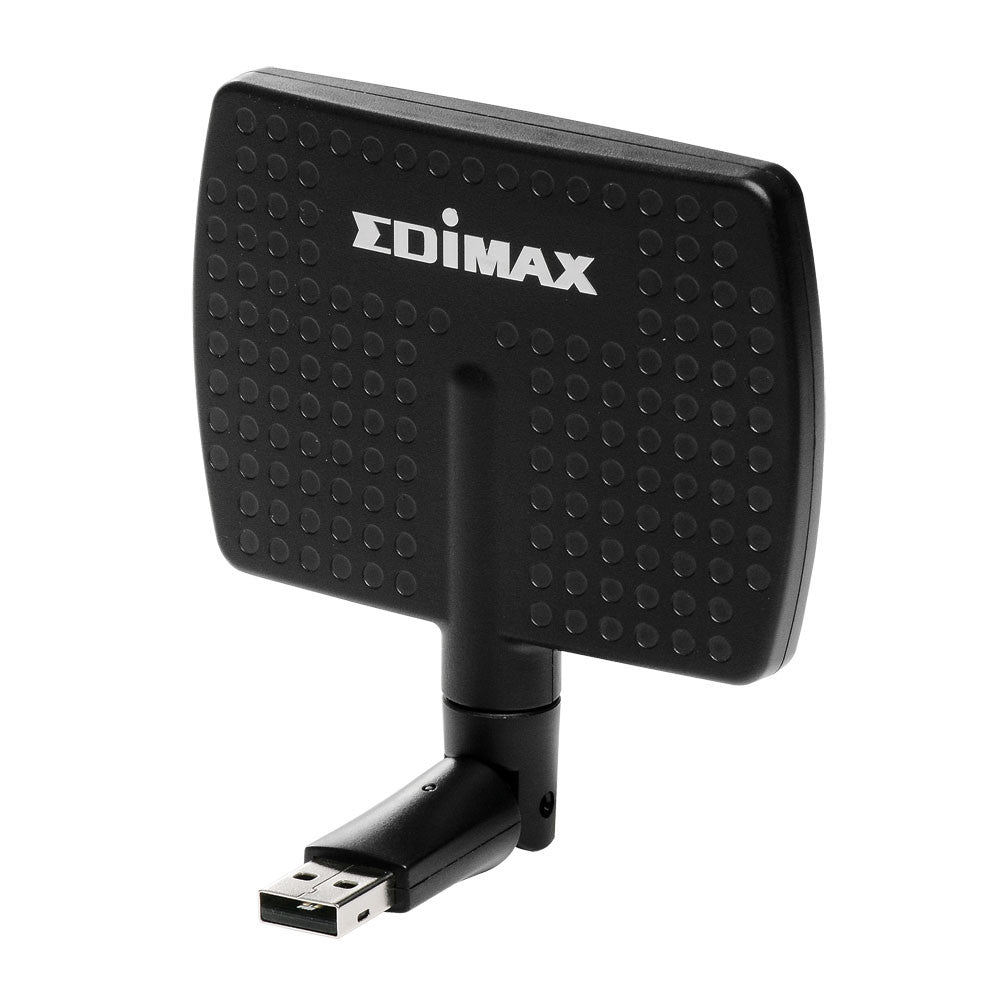

The next generation 802.11ac wireless standard is set to revolutionize Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your wireless device to dual-band 802.11ac with the USB 2.0 connectivity for blistering Wi-Fi speeds on the interference free 5Ghz frequency band. The EW-7811DAC is with a directional high gain, high-performance, and dual band antenna. This antenna can greatly increase the effective wireless operation range of 802.11ac/a/b/g/n wireless devices.

Next Generation Wi-Fi Standard
The Edimax EW-7811DAC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433Mbps at 5GHz - almost three times as fast as 802.11n. Upgrade PC’s and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.

Dual-Band Connectivity
Enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW-7811DAC provides connectivity for the 2.4GHz band at speeds of 150Mbps or 5Ghz band at speeds of 433Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

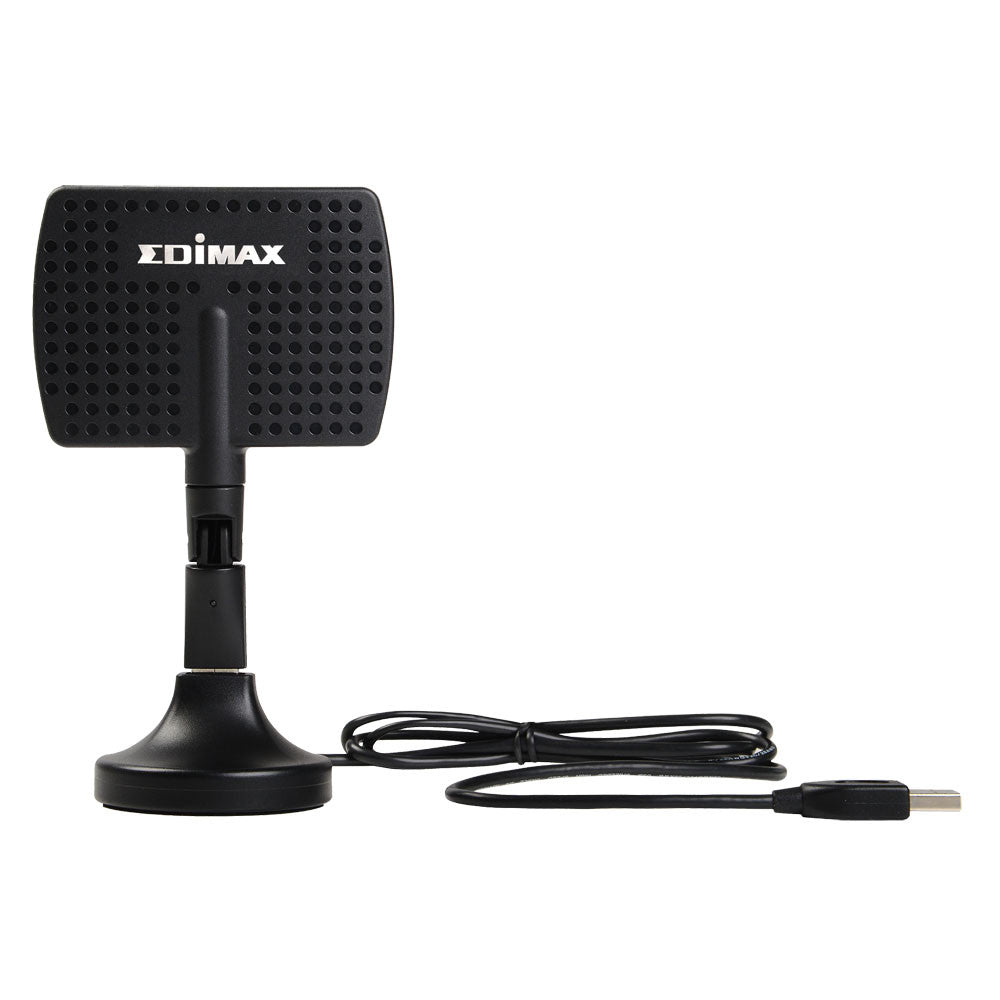

5dBi/7dBi Directional High Gain Antenna
The EW-7811UAC Directional High Gain Antenna, 5dBi (2.4GHz) and 7dBi(5GHz), provides high performance and long distance connections for your wireless network.

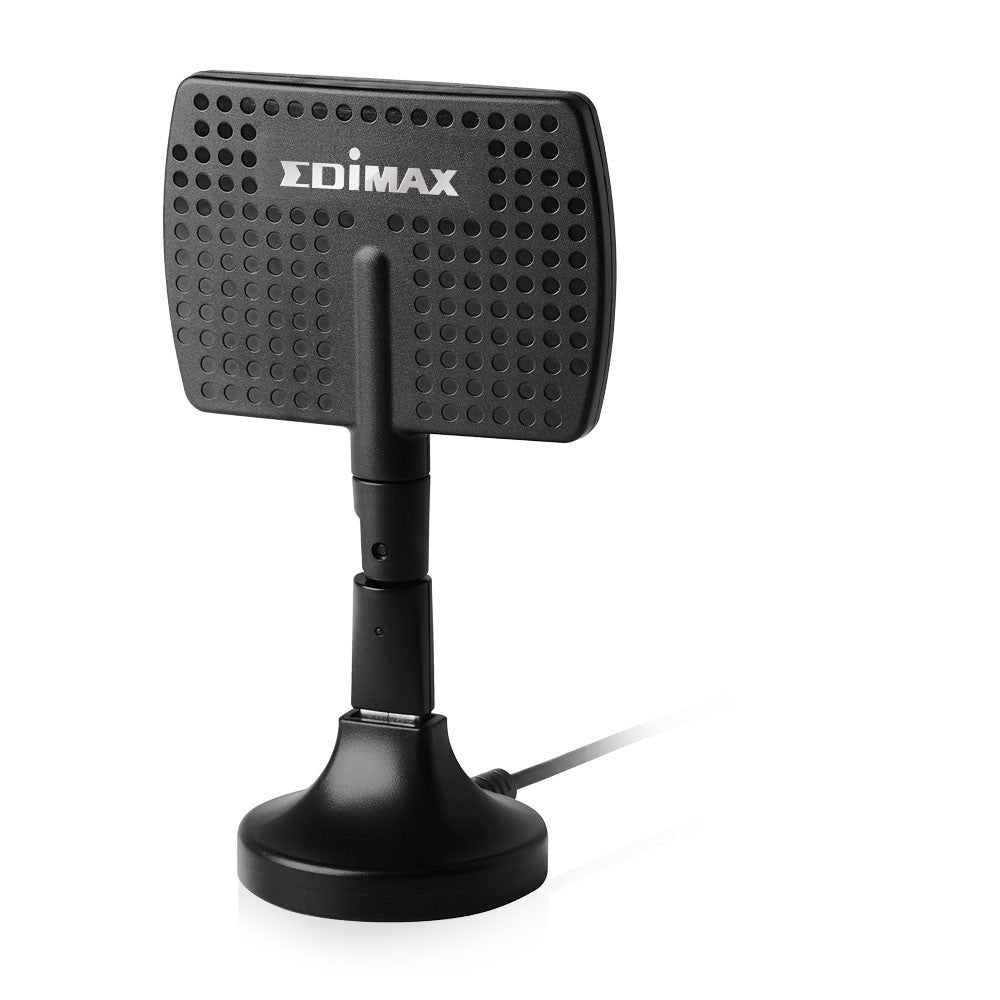

USB Cradle for Enhanced Wireless Signal
The EW-7811DAC comes with a free USB cradle which features a 180-degree adjustable antenna for an improved wireless signal, and a 1.2-meter USB cable for flexible placement. Fine-tune the antenna position for peak performance at no extra cost.

Download and Stream Anywhere
Use the EW-7811DAC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

APPLICATION DIAGRAM

SPECS

Hardware

• 1 x USB 2.0 Type A
• 1 x Hardware WPS Button

• 1 x Link/Activity LED

Output Power

•2.4GHz
11b (11Mbps): 17dBm±1.5dBm
11g (54Mbps): 15dBm±1.5dBm
11n (20MHz, MCS7): 14dBm±1.5dBm
11n (40MHz, MCS7): 14dBm±1.5dBm
•5GHz
11a (54Mbps): 14dBm±1.5dBm
11n (20MHz, MCS7): 13dBm±1.5dBm
11n (40MHz, MCS7): 13dBm±1.5dBm
11ac (80MHz, MCS9): 12dBm±1.5dBm

LED

• Link/Activity

Dimensions & Weight

• 132 (H) x 90 (W) x 15 (D) m
• 36g

SSTANDARDS

• 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
• 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

INSTALLATION

• Multi-Language easy setup wizard
• Hardware WPS Button for Easy Wireless Connections

SECURITY

• WEP 64/128-bit, WPA, WPA2, 802.1x
• Hardware & Software WPS Configuration

FREQUENCY BAND

• 2.4000 - 2.4835GHz (subject to local regulations)
• 5.150 - 5.825GHz (subject to local regulations)

OPERATING RANGE

• 11a: 6/9/12/24/36/48/54Mbps
• 11b: 1/2/5.5/11Mbps
• 11g: 6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-07 (up to 72Mbps)
• 11n (40MHz): MCS0-07 (up to 144Mbps)
• 11ac (80MHz): MCS0-09 (up to 433Mbps)

TEMPERATURE & HUMIDITY

• Max. 95% (non-condensing)

• 32 - 104°F (0 - 40°C)

ACCESSORIES

• 1 x USB cradle with 1.2 meter cable

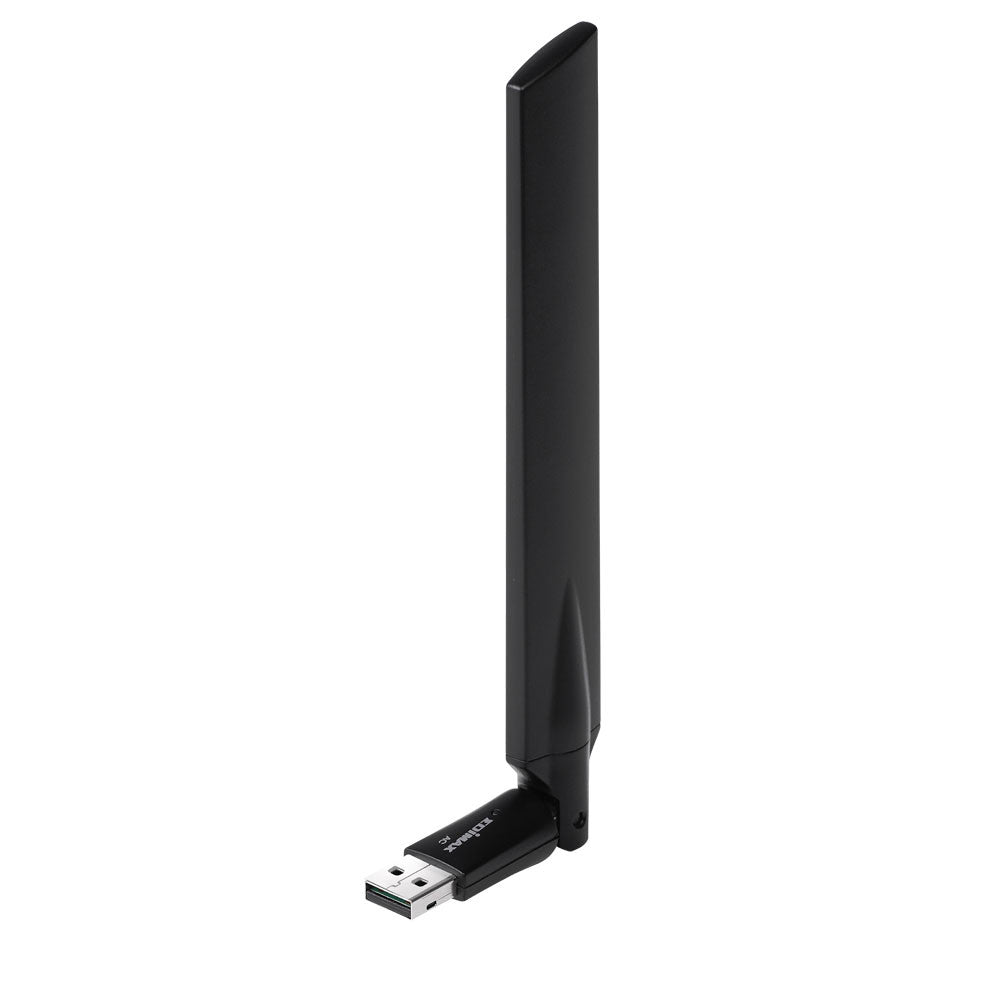

The next generation 802.11ac wireless standard is set to revolutionize Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your wireless device to dual-band 802.11ac with the USB 2.0 connectivity for blistering Wi-Fi speeds on the interference free 5Ghz frequency band. The EW-7811UAC is with a high gain, high-performance, and dual band antenna. This antenna can greatly increase the effective wireless operation range of 802.11ac/a/b/g/n wireless devices.

 Next Generation Wi-Fi Standard

The Edimax EW-7811UAC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433Mbps at 5GHz - almost three times as fast as 802.11n. Upgrade PC’s and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.

Dual-Band Connectivity
Enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW-7811UAC provides connectivity for the 2.4GHz band at speeds of 150Mbps or 5Ghz band at speeds of 433Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

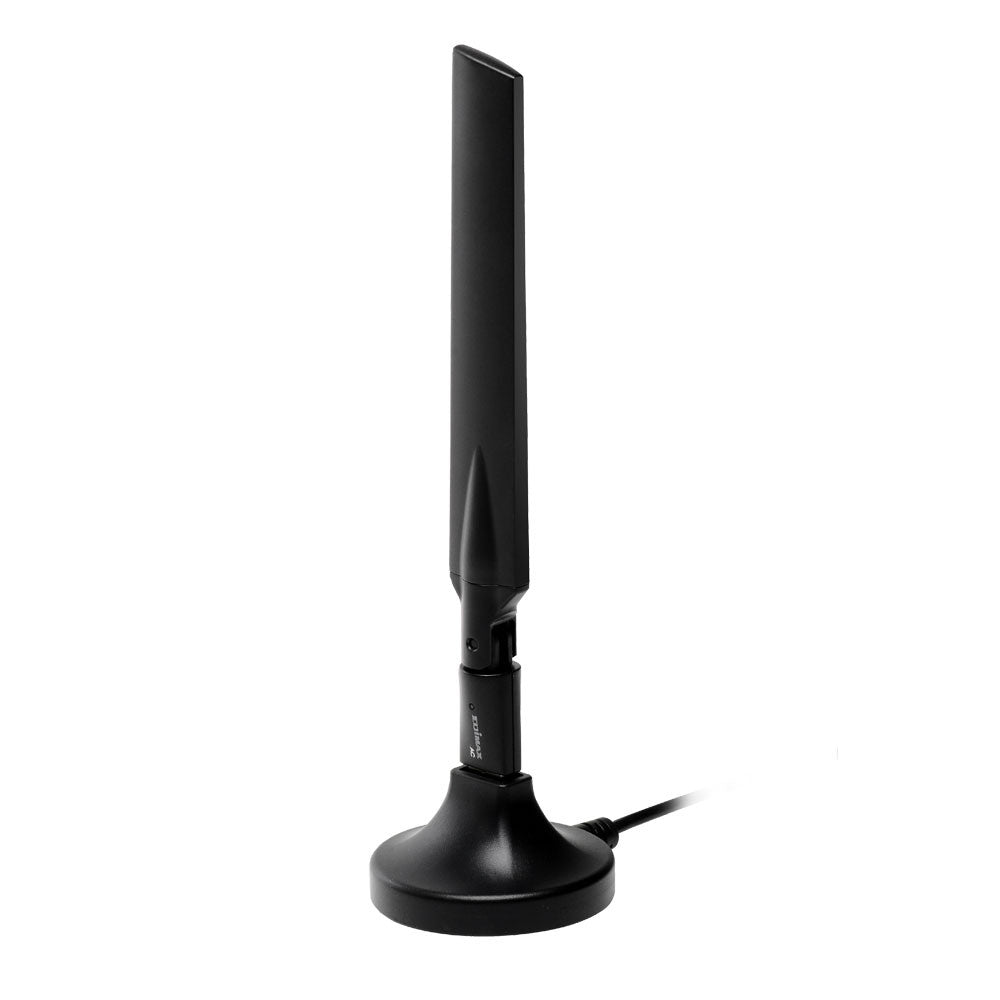

4dBi/6dBi High Gain Antenna
The EW-7811UAC High Gain Antenna, 4dBi (2.4GHz) and 6dBi(5GH), provides high performance and long distance connections for your wireless network.

USB Cradle for Enhanced Wireless Signal
The EW-7811UAC comes with a 1.2 meter cradle for flexible placement. Adjust the antenna position for  peak performance at no extra cost.

Download and Stream Anywhere
Use the EW-7811UAC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

 APPLICATION DIAGRAMS

SPECS

Hardware

• 1 x USB 2.0 Type A

• 1 x Hardware WPS Button

• 1 x Link/Activity LED

Output Power

• 2.4GHz

• 5GHz

LED

• Link/Activity

Standards

• 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
• 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

INSTALLATION

• Multi-Language easy setup wizard
• Hardware WPS Button for Easy Wireless Connections

SECURITY

• WEP 64/128-bit, WPA, WPA2, 802.1x
• Hardware & Software WPS Configuration

FREQUENCY BNAD

• 2.4000 - 2.4835GHz (subject to local regulations)
• 5.150 - 5.825GHz (subject to local regulations)

OPERATING RANGE•11a: 6/9/12/24/36/48/54Mbps

• 11b: 1/2/5.5/11Mbps

• 11g: 6/9/12/24/36/48/54Mbps

• 11n (20MHz): MCS0-07 (up to 72Mbps)

• 11n (40MHz): MCS0-07 (up to 144Mbps)

• 11ac (80MHz): MCS0-09 (up to 433Mbps)

TEMPERATURE & HUMIDITY

• Max. 95% (non-condensing)

• 32 - 104°F (0 - 40°C)

DIMENSIONS

• 190 (L) x 20 (W) x 7 (H) m

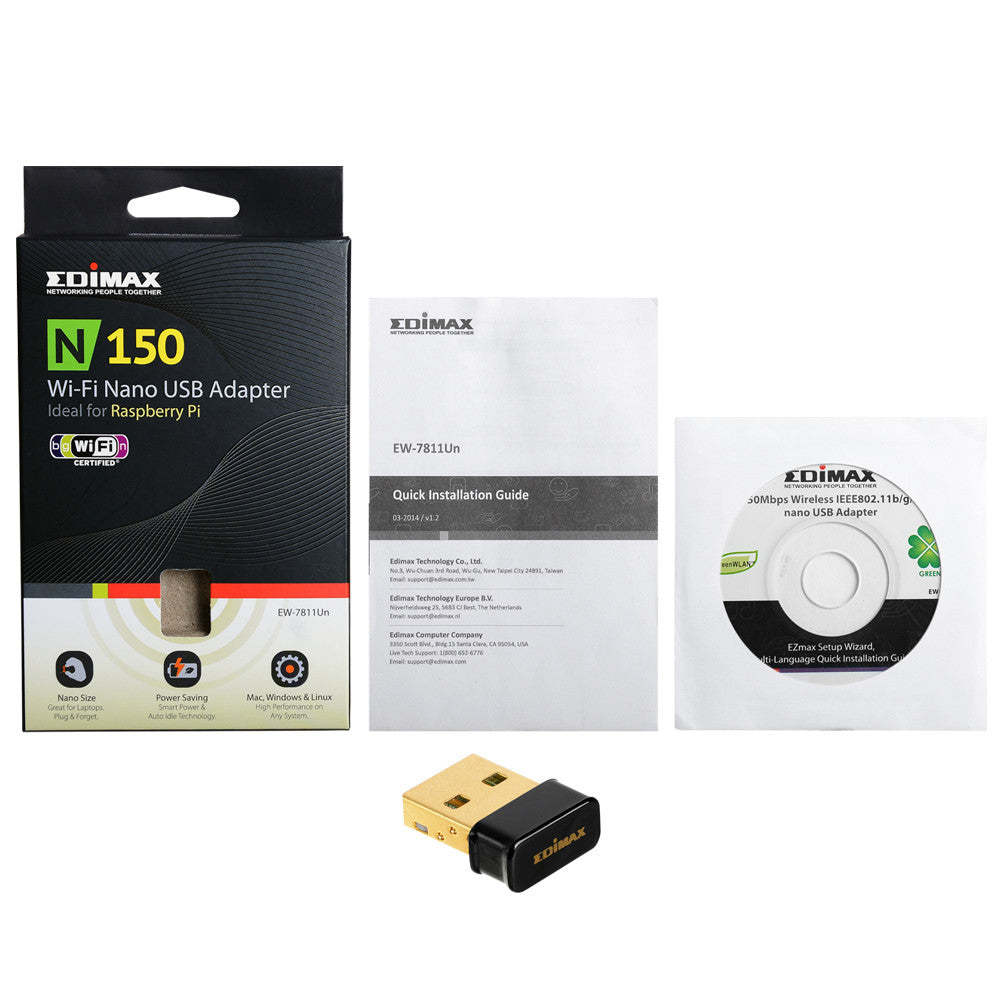

EW-7811Un is a nano USB wireless adapter that supports maximum range and speed. Despite the size, this tiny USB adapter supports higher data rate of up to 150Mbps when connecting with wireless 802.11n device which is 3 times faster than your normally 11g connection. You can just plug it into computer's USB port and enjoy incredible high-speed wireless network access.  This is for sure the trendiest piece of upgrade you can make to your wireless network.

Complies with wireless 802.11n standards with data rate up to 150Mbps
EW-7811Un complies with wireless IEEE802.11b/g/n standards. As being built with the latest wireless technology, the EW-7811Un can increase your wireless coverage up to 3 times as much and greatly help reduce “dead spots” compared to your old 11g adapter.  The transmission data rate can go up to 150Mbps when connected to a 802.11n device, with signal travel further and connection a lot more stable compared to your previous 802.11g network .

Supports Green WLAN
EW-7811Un has adapted a clever protocol  in smart transmission power control.  The adapter smartly adjust transmission output by distance and CPU offload to help reduce  power  consumption when wireless is idle. With the green WLAN technology, the power consumption can be reduced up to 20%  ~ 50%.  The adapter does not just provide you with the best wireless technology in the world, it also  care for  the environment by using less energy and your pocket by saving up on your electric bills.

Supports WPS (Wi-Fi Protected Setup)
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. This wireless USB adapter supports software WPS-compatible configuration. By pressing 2 buttons, your wireless network is immediately secured providing your wireless router will also support this great easy function.

Supports multi-language EZmax setup wizard
The included 16 languages EZmax setup wizard and friendly UI will walk you through configuring EW-7811Un to your wireless network.

Portable and compact design
EW-7811Un is currently the smallest wireless adapter. The compact design of EW-7811Un is convenient to carry  for all mobile users.   It also means you will not be able to accidentally snap your USB adapter anymore as it is hidden very well once it is plugged into the USB port.

APPLICATION DIAGRAM

• Connects the EW-7811Un wireless adapter to your computer.
• Setups the wireless connection by running the multi-language EZmax wizard.
• Connects to 802.11b/g/n wireless access point or broadband router

SPECS
HARDWARE INTERFACE

• 1 USB 1.0/2.0 Type A
• Internal Antenna

DATA RATE

• 11b: 1/2/5.5/11Mbps
• 11g:6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-7 (up to 72Mbps)
• 11n (40MHz): MCS0-7 (up to 150Mbps)

SECURITY

• WEP 64/128, WPA, WPA2, and IEEE802.1x
• Software WPS configuration

SYSTEM REQUIREMENTS

• Windows XP/Vista/7 / 8/8.1
• Linux & Mac OS

STANDARD

• IEEE802.11b, 802.11g, 802.11n

INSTALLATION

• Multi-language EZmax Setup Wizard

OUTPUT POWER

• 11b:17 ± 1.5dbm
• 11g:b:15 ± 1.5dbm
• 11n:14 ± 1.5dbm

RECEIVE SENSITIVITY

• 11n(20MHz)@MCS7: -68dBm±2dBm
  11n(40MHz)@MCS7: -64dBm±2dBm
• 11g@54Mbps: -71dBm±2dBm
• 11b@11Mbps: -81dBm±2dBm

FREQUENCY BAND

• 2.4000~2.4835GHz (Industrial  Scientific Medical Band)

LED & DIMENISONS

• Link/Activity
• 7.1(H) x 14.9 (W) x 18.5 (D) mm

HUMIDITY & REMPERATURE

• Operating : 10~90% (Non Condensing)
  Storage : Max. 95% (Non Condensing)
• Operating : 32~104°F (0~40°C)
  Storage : -4~140°F (-20~60°C)

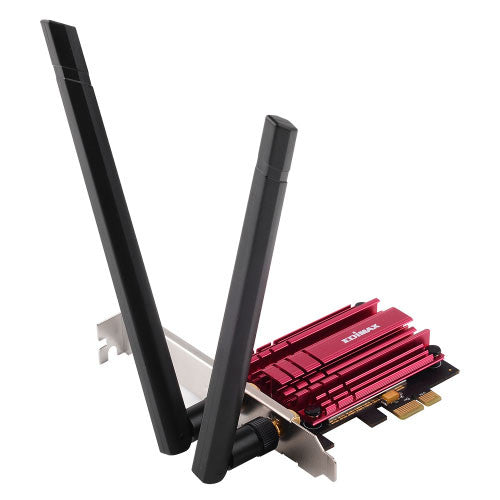

The next generation 802.11ac wireless standard is revolutionizing Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your desktop computer to dual-band 802.11ac with a PCI-E adapter for blistering Wi-Fi speeds on the interference free 5GHz frequency band. The EW-7822PIC features two detachable high gain antennas providing high-performance Wi-Fi coverage. Including an additional magnetic stand to find the best antenna location to optimize wireless operation range and backwards compatible with 802.11a/b/g/n wireless devices.

Super High-Speed AC1200 Wi-Fi
Compatible with the IEEE 802.11ac standard and delivering speeds of up to 867Mbps at 5GHz, almost three times as fast as 802.11n. Upgrade PC’s to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.

Dual-Band Connectivity
Enjoy better performance and greater flexibility for your desktop with dual-band connectivity. The EW-7822PIC provides connectivity for the 2.4GHz band at speeds of 300Mbps or 5GHz band at speeds of 867Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

Ideal for Gaming PCs
The EW-7822PIC  is a perfect upgrade for desktop gaming PCs. Quickly add high performance, long range Wi-Fi ideal for online gaming where connection speeds are critical. Enjoy ultra-fast Wi-Fi connection speeds with a simple PCI-E upgrade.

5dBi High Gain Antenna
High gain antennas provide a high performance long-range connection to your wireless network.

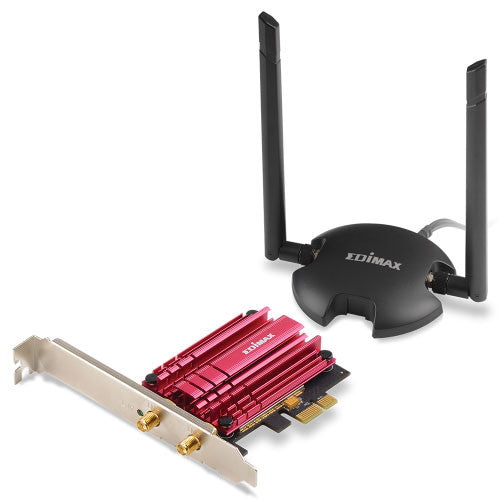

Magnetic Stand for Enhanced Wireless Signal
The EW-7822PIC comes with a free magnetic stand which features two antenna connectors to screw in the detachable antennas and a 1.8 meter cable for flexible placement. Fine-tune the antenna position for peak performance at no extra cost.

Download and Stream Wirelessly
Use the EW-7822PIC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.


APPLICATION DIAGRAM

SPECS
Hardware

• 1 x 1 x PCI-E adapter

• 1 x Link/Activity LED

• 2 x Detachable high gain antennas

Output Power

• 2.4GHz

• 5GHz

11a (54Mbps): 17dBm±1dBm
11n (20MHz, MCS7): 15dBm±1dBm
11n (40MHz, MCS7): 15dBm±1dBm
11ac (80MHz, MCS9): 13dBm±1dBm

LED

• Link/Activity

Standards

• 2.4GHz: IEEE 802.11b, 802.11g, 802.11n

• 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

Installation

• Multi-language easy setup wizard

• Hardware WPS button for easy wireless connections

Security

• WEP 64/128-bit, WPA and WPA2

Dimensions

• 120(L) x 93(W) x 18(H) mm

Frequency Band

• 2.4000 - 2.4835GHz

• 5.745 - 5.825GHz (FCC)

• 5.150 - 5.250GHz (R&TTE)

Operating Data Rate

• 11a: 6/9/12/24/36/48/54Mbps;

• 11b: 1/2/5.5/11Mbps;

• 11g: 6/9/12/24/36/48/54Mbps

• 11n (20MHz): MCS0-15 (up to 144Mbps)

• 11n (40MHz): MCS0-15 (up to 300Mbps)

• 11ac (80MHz): MCS0-9 (up to 867Mbps)

Temperature & Humidity

• Max. 95% (non-condensing)
• 32 - 104°F (0 - 40°C)

Receive Sensitivity

• 2.4GHz

11b (1Mbps): -91dBm±1dBm
11g (6Mbps): -87dBm±1dBm
11n (MCS0): -85dBm±1.5dBm

• 5GHz

11a (6Mbps): -90dBm±1.5dBm
11n (MCS0): -90dBm±1.5dBm
11ac (MCS0): -75dBm±1.5dBm

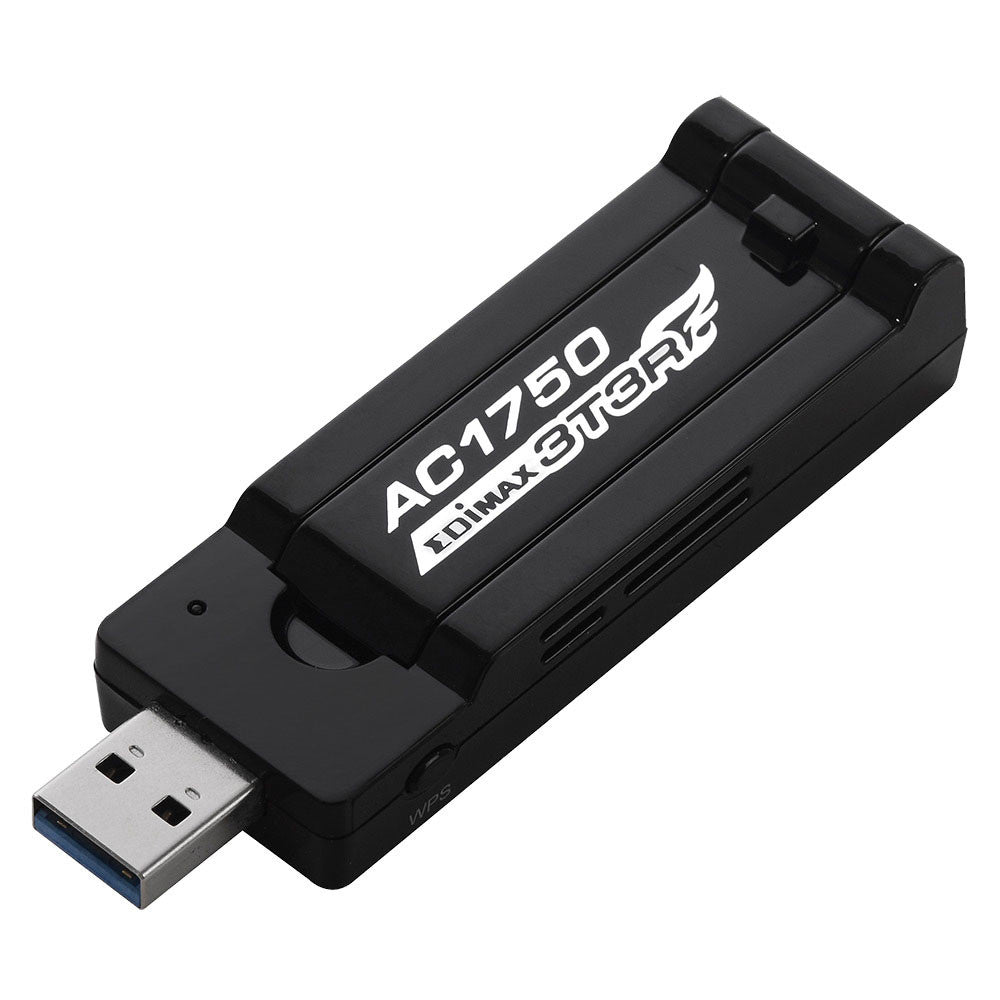

Super-speed 802.11ac dual-band routers are on the market but wireless devices are still stuck with 802.11n technology. Upgrade your wireless device to dual-band 802.11ac with the fastest possible USB 3.0 connectivity for blistering Wi-Fi speeds on the interference free 5Ghz frequency band. The EW-7833UAC’s high performance 3T3R MIMO technology provides super-high speeds up to 1300Mbps and is backwards compatible with 802.11a/b/g/n wireless devices.

Easily Upgrade to Fastest 11ac Wi-Fi
Compatible with the 802.11ac standard and delivering speeds of up to 1300Mbps at 5GHz - almost three times as fast as 802.11n together with USB 3.0 connectivity. Upgrade PC’s and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data at lightning speeds.

Faster Wi-Fi with Beamforming Technology
Beamforming technology involves signal processing algorithms that generate directional signals, focused towards each client. Signals don’t radiate out into the atmosphere, but are concentrated from your router or access point to the target device. With beamforming reception support in your adapter, Wi-Fi performance is dramatically improved with better reliability, range and coverage and less wasted signals.

High Performance 3T3R MIMO Technology
The EW-7833UAC features multiple input, multiple output (MIMO) antenna technology with 3 transmitter antennas and 3 receiver antennas to optimize data speeds for the best wireless performance.

802.11ac Truly Realized with USB 3.0
USB 3.0 is up to 10 times faster than USB 2.0 and specifies a maximum transmission speed of up to 5Gbps. Providing quicker data transmission times, and backwards compatibility with USB 2.0 (which specifies a maximum speed of 480Mbps), USB 3.0 is the new standard in connectivity – enabling devices to achieve the superfast speeds which 802.11ac can provide.

Download and Stream Media
Use the EW-7833UAC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at super speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

Dual-Band Connectivity
Enjoy better performance and greater flexibility for your desktop with dual-band connectivity. The EW-7833UAC provides connectivity for the 2.4GHz band at speeds of 450Mbps or 5GHz band at speeds of 1300Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

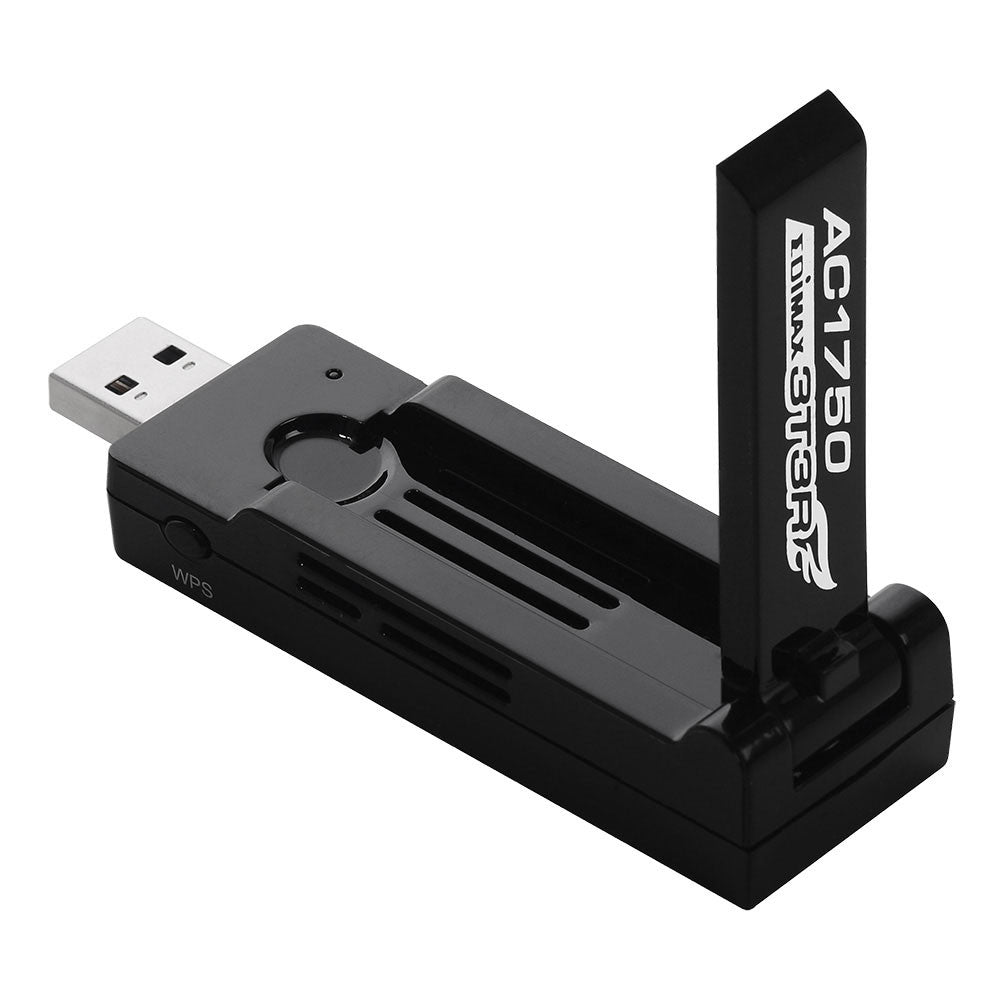

180° Adjustable Foldaway Antenna
The EW-7833UAC’s sleek design features an adjustable foldaway antenna, allowing users to adjust the antenna’s angle for optimum Wi-Fi performance and fold back the antenna to minimize size when it’s not in use.

APPLICATION DIAGRAM

SPECS
Hardware

• 1 x USB 3.0 Type A
• 1 x Hardware WPS Button

• 1 x Link/Activity LED

• 3 x Antennas (3T3R MIMO)

Output Power

• 2.4GHz

11b (11Mbps): 16dBm±1.5dBm
11g (54Mbps): 14dBm±1.5dBm
11n (20MHz, MCS7): 14dBm±1.5dBm
11n (40MHz, MCS7): 12dBm±1.5dBm

• 5GHz

11a (54Mbps): 12dBm±1.5dBm
11n (20MHz, MCS7): 10dBm±1.5dBm
11n (40MHz, MCS7): 10dBm±1.5dBm
11ac (80MHz, MCS7): 9.5dBm±1.5dBm

LED

• Link/Activity

Standards

• 2.4GHz: IEEE 802.11b, 802.11g, 802.11n

• 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

Installation

• Multi-language easy setup wizard

• Hardware WPS button for easy wireless connections

Security

• WEP 64/128-bit, WPA, WPA2, 802.1x

• Hardware & Software WPS Configuration

Dimensions

• 87.1(L) x 27 (W) x 18 (H) mm

Frequency Band

• 2.4000 - 2.4835GHz (subject to local regulations)
• 5.150 - 5.825GHz (subject to local regulations)
    FCC: Band 1: 5.150~5.250(GHz)
            Band 4: 5.745~5.850(GHz)
    CE: Band 1: 5.150~5.250(GHz)

Operating Range

• 11a: 6/9/12/24/36/48/54Mbps
• 11b: 1/2/5.5/11Mbps
• 11g: 6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-15 (up to 223Mbps)
• 11n (40MHz): MCS0-15 (up to 450Mbps)
• 11ac (80MHz): MCS0-9 (up to 1300Mbps)

Temperature & Humidity

• Max. 95% (non-condensing)
• 32 - 104°F (0 - 40°C)
