Networking

Warranty Period: 3-Year

@80/45

Warranty Period: 3-Year

@6/16

@5/15

@5/16

@7/15

Interface USB 3.0 LED Status Dimensions 2.28 × 0.71 × 6.83 in (57.8 × 18 × 173.4 mm) Antenna 2 External High Gain Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n 2.4 GHz; IEEE 802.11a/n/ac 5 GHz Signal Rate 5 GHz: 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) Reception Sensitivity 5 GHz: 11ac VHT80: -62dBm 11ac VHT40: -64dBm 11ac VHT20: -68dBm 11n HT40: -71dBm 11n HT20: -73dBm 11a 54Mbps: -77dBm 2.4 GHz: 11n HT40: -70dBm 11n HT20: -71dBm 11g 54Mbps: -73dBm 11b 11Mbps: -87dBm Transmit Power 5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP) 2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP) Wireless Modes Infrastructure mode Wireless Security WEP; WPA/WPA2; WPA-PSK/WPA2-PSK OTHERS Certification FCC; CE; RoHS Package Contents AC1300 High Gain Wireless Dual Band USB Adapter Quick Installation Guide Resource CD System Requirements Windows 10/8.1/8/7 (32/64 bit) Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

@6/16

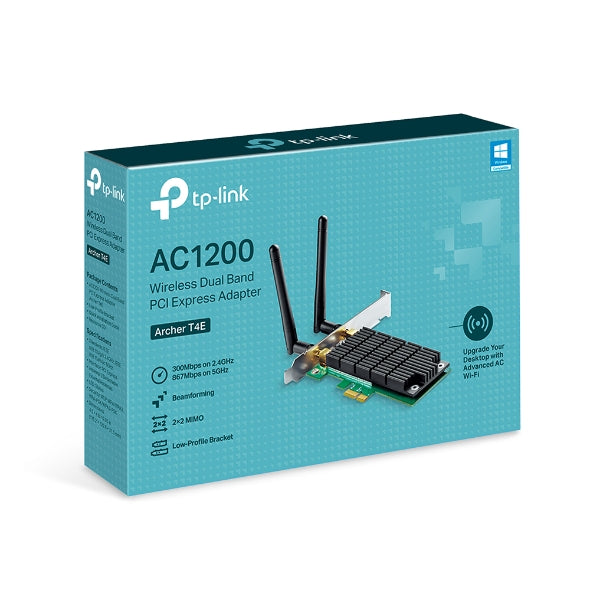

Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band) 802.11ac Dual Band – 3 times faster than the 802.11n standard; perfect for high-intensity network usage Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists Multiple-Size Brackets – Low profile and full height brackets are both provided; suitable for all PCs 2×2 MIMO – Users can easily access a high-speed wireless connection Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

@6/16

Ultra-fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity High gain antennas – Improved range; signal quality and transmission performance MU-MIMO –Delivers highly efficient wireless connection Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0 WPS Button - Easy wireless security encryption at the push of the WPS button

HARDWARE FEATURES Interface USB 3.0 Button WPS button Dimensions ( W x D x H ) 3.64×1.24×0.55 in. (92.47×31.55×13.9mm) Antenna 2 High Gain External Antennas Antenna Type Omni Directional WIRELESS FEATURES Wireless Standards IEEE 802.11ac; IEEE 802.11a; IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Frequency 5GHz 2.4GHz Signal Rate 5GHz 11ac: Up to 867Mbps(dynamic) 11n: Up to 300Mbps(dynamic) 11a: Up to 54Mbps(dynamic) 2.4GHz 11n: Up to 400Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 5GHz： 11a 6Mbps: -91dBm 11a 54Mbps: -77dBm 11nHT20：-74dBm 11nHT40：-71dBm 11ac HT20: -70dBm 11ac HT40: -66dBm 11ac HT80: -62dBm

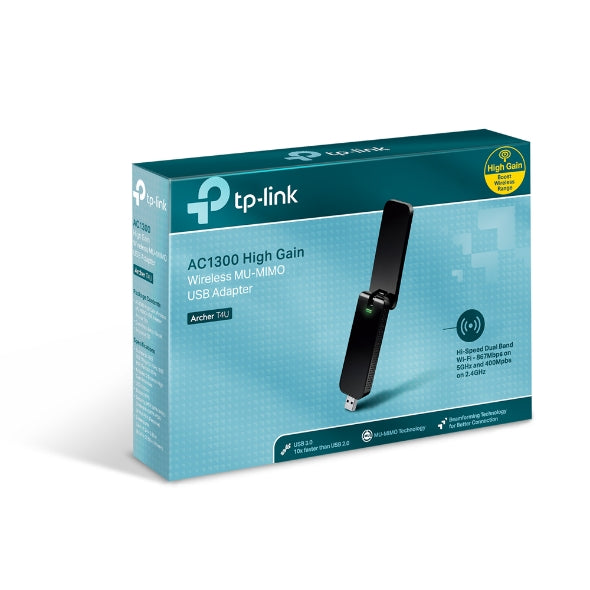

2.4GHz: 11b 11Mbps: -86dBm 11g 54Mbps: -74dBm 11n HT20: -72dBm 11n HT40: -70dBm Transmit Power <20dBm (EIRP) Wireless Modes Ad-Hoc / Infrastructure mode Wireless Security Support 64/128 bit WEP; WPA-PSK/WPA2-PSK Modulation Technology DBPSK; DQPSK; CCK; OFDM; 16-QAM; 64-QAM; 256-QAM OTHERS Certification CE; FCC; RoHS Package Contents AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U Quick Installation Guide Resource CD System Requirements Windows 10/8.1/8/7/XP; Mac OS X 10.9-10.13 Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90

@6/16

HARDWARE FEATURES

Interface USB 3.0 LED Status Dimensions ( W x D x H ) 43 × 13.5 × 78.1 mm (1.69 × 0.53 × 3.07 in) Antenna 2× External High Gain Antennas WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n 2.4 GHz IEEE 802.11a/n/ac 5 GHz Signal Rate 5 GHz: 11ac: Up to 867 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) WLAN Reception Sensitivity 5 GHz: 11ac VHT80: -63 dBm 11ac VHT20: -69 dBm 11n HT40: -71dBm 11n HT20: -74dBm 11a 54Mbps: -76dBm 2.4 GHz: 11n HT40: -68dBm 11n HT20: -70dBm 11g 54Mbps: -74dBm 11b 11Mbps: -86dBm Wireless Modes Infrastructure mode Transmission Power 5 GHz: 20dBm(FCC) / 18dBm(CE) (EIRP) 2.4 GHz : 19dBm(FCC) / 17dBm(CE) (EIRP) SOFTWARE FEATURES

Security WEP; WPA/WPA2/WPA3(Personal/Enterprise); WPA-PSK/WPA2-PSK OTHERS

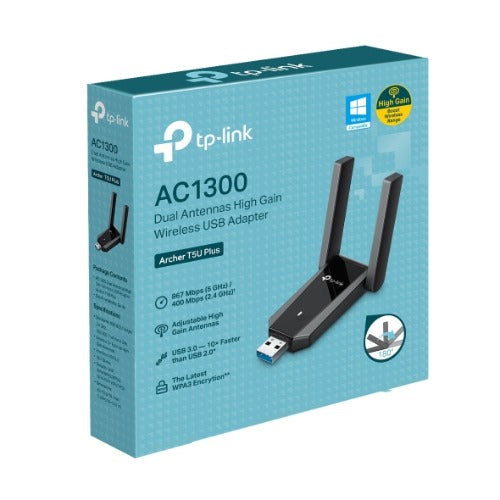

Certification FCC; CE; RoHS Package Content AC1300 Dual Antennas High Gain Wireless USB Adapter Archer T5U Plus Quick Installation Guide System Requirements Supported operating systems include Windows 7/8/8.1/10/11 Environment Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

@7/15

Warranty Period: 3-Year

@12/18

Warranty Period: 3-Year

@11/16

HARDWARE FEATURES

Dimensions ( W x D x H ) 2.83 × 0.94 × 0.42 in (72 × 24 × 10.8 mm) Antenna Internal Antennas WIRELESS FEATURES

Wireless Standards IEEE 802.11a/b/g/n/ac/ax/be WLAN Signal Rate 6GHz: 11be: Up to 2882 Mbps(dynamic) 11ax: Up to 2402 Mbps(dynamic) 5 GHz: 11be: Up to 2882 Mbps(dynamic) 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11be: Up to 688 Mbps(dynamic) 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) Wireless Modes Client Mode; Hotspot Mode Wireless Security WPA/WPA2/WPA3; WPA-PSK/WPA2-PSK OTHERS

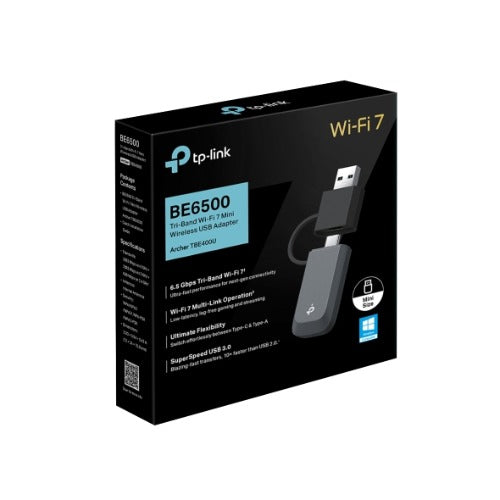

Certification FCC; CE; RoHS Package Content BE6500 Tri-Band Wi-Fi 7 Mini Wireless USB Adapter Archer TBE400U Quick Installation Guide System Requirements Supported operating system: Windows 10/11 (64-bit) Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Warranty Period: 3-Year

@13/19

Warranty Period: 3-Year

@17/23

Warranty Period: 3-Year

@15/19

Warranty Period: 3-Year

@5/15

Warranty Period: 3-Year

@4/15
