Description::

The LPDA-500 is Poynting’s new and improved log-periodic dipole array (LPDA) antenna. The LPDA-500 is a high-gain ultra-wideband uni-directional antenna that operates from 617 to 7200 MHz. The ultra-wideband coverage includes current 5G and future cellular bands as well as Wi-Fi and Wi-Fi 6E bands. The LPDA-500 has consistent high-gain performance across the entire band of operation making the antenna suitable for the deployment of various wireless communication systems. Poyntings previous LPDA has been successfully used in extreme weather environments across the world with close to zero failures with the new LPDA-500 being no different. The LPDA-500 comes standard with a new and improved mounting bracket which can be rotated at 45° intervals. This will allow for ease of installation and the customer will be able to mount multiple LPDA-500 antennas and orientate them in a MIMO configuration i.e. vertical and horizontal or ±45°. Poynting Antennas are well known for designing future-proof antennas and the new LPDA-500 is no different.

LPDA-500 Key Features:

• Futureproof ultra-wideband antenna from 617 - 7200 MHz
• Exceptional high-gain performance over the entire frequency range
• Compatible with 2G 3G 4G and future 5G technologies
• Improves mobile network subscribers's user experience
• Ruggedized design for weather and vandal protection (IP65)
• Deployable in any extreme weather conditions

Video: The Poynting LPDA-500: An ultra-wideband #5G LPDA Antenna

Specification:

@33/60

Description::

Specification:

@19/38

Description::

The Poynting LPDA-92 Antenna is a durable and high performance directional 4G antenna capable of operating on most global 4G frequencies from 700 to 3800 MHz. The antenna provides a modest 11 dBi gain across standard 4G frequencies between the range of 700 and 2700 MHz making it suitable for use in hilly terrain or locations obstructed by vegetation.

The LPDA-92 antenna can also operate on 5G Mid-Band frequencies although only at a low gain (2.3 dBi).

Features:

• Short 300mm cable terminating with N Female
• Futureproof wideband LTE and Wi-Fi antenna covering 690 – 3800MHz
• Compatible with 3G 4G and 5G technologies
• 5G Ready; includes 3.2 GHz to 3.8 GHz CBRS Band
• Water and dust resistant
• Easy alignment with the main beam around 50° wide
• Used in extreme weather environments
• Comes with a bracket U-bolts and fasteners suitable for pole mounting

Specification:

@19/37

Description::

High-Performance Multi-Frequency Antenna for Transportation and Marine Use

The Poynting MIMO-4-17 is a robust 7-in-1 antenna providing extensive frequency coverage from 617 MHz to 7200 MHz. It integrates four MIMO antennas for LTE/5G two dual-band MIMO Wi-Fi antennas and GPS/GLONASS. Designed for commercial and industrial vehicles marine applications and IoT systems it offers future-proof connectivity across multiple radio technologies including LTE 5G and Wi-Fi. Its IP69K-rated weather-resistant build ensures reliable performance in harsh environments.

Key Features

• 7-in-1 Antenna: Combines LTE/5G MIMO Wi-Fi MIMO and GPS/GLONASS.
• Wide Frequency Range: Covers 617 MHz to 7200 MHz for diverse cellular and Wi-Fi use.
• Durable Build: IP69K weatherproof rating for outdoor and marine environments.
• Multiple Mounting Options: Flexible installation for various vehicles and infrastructure.
• Future-Proof: Supports LTE 5G and Wi-Fi technologies across broad frequency bands.

The Poynting MIMO-4-17 antenna is perfect for demanding commercial and industrial applications ensuring high-speed reliable connectivity in challenging environments.

Specification:

@40/71

Description::

The Poynting OMNI-0155 Rhyno Omni-Directional Antenna 703-803Mhz 1.5dBi is a customer-specific antenna that was designed with the new “Rhyno” antenna enclosures. The antenna was specifically designed to cover LTE Band 28 from 703 to 803 MHz using an omnidirectional radiation pattern making it suitable for indoor and outdoor applications. Ideal for fixed installations with smart meter technologies where the antenna will be mounted on either the top or side of the smart meter housings. The new “Rhyno” enclosures ensure that the antenna is ready for easy installation and the antenna is weather resistant with an IP68 rating to ensure that the antenna is protected in the most adverse weather conditions.

Features:

• Omni-directional antenna
• Easy installation pole- or wall mountable
• Stylish and robust design
• Water and dustproof enclosure (IP 68)

Application Areas:

• Smart Utilities: Smart Power Metering Gas & Water Metering
• Smart Buildings: Climate control access control security irrigation
• Smart Environmental & Water Systems
• Warehouses & Logistics systems
• Industrial factory automation and M2M systems
• Farming & Agricultural M2M IoT

Specification:

@10/23

Description::

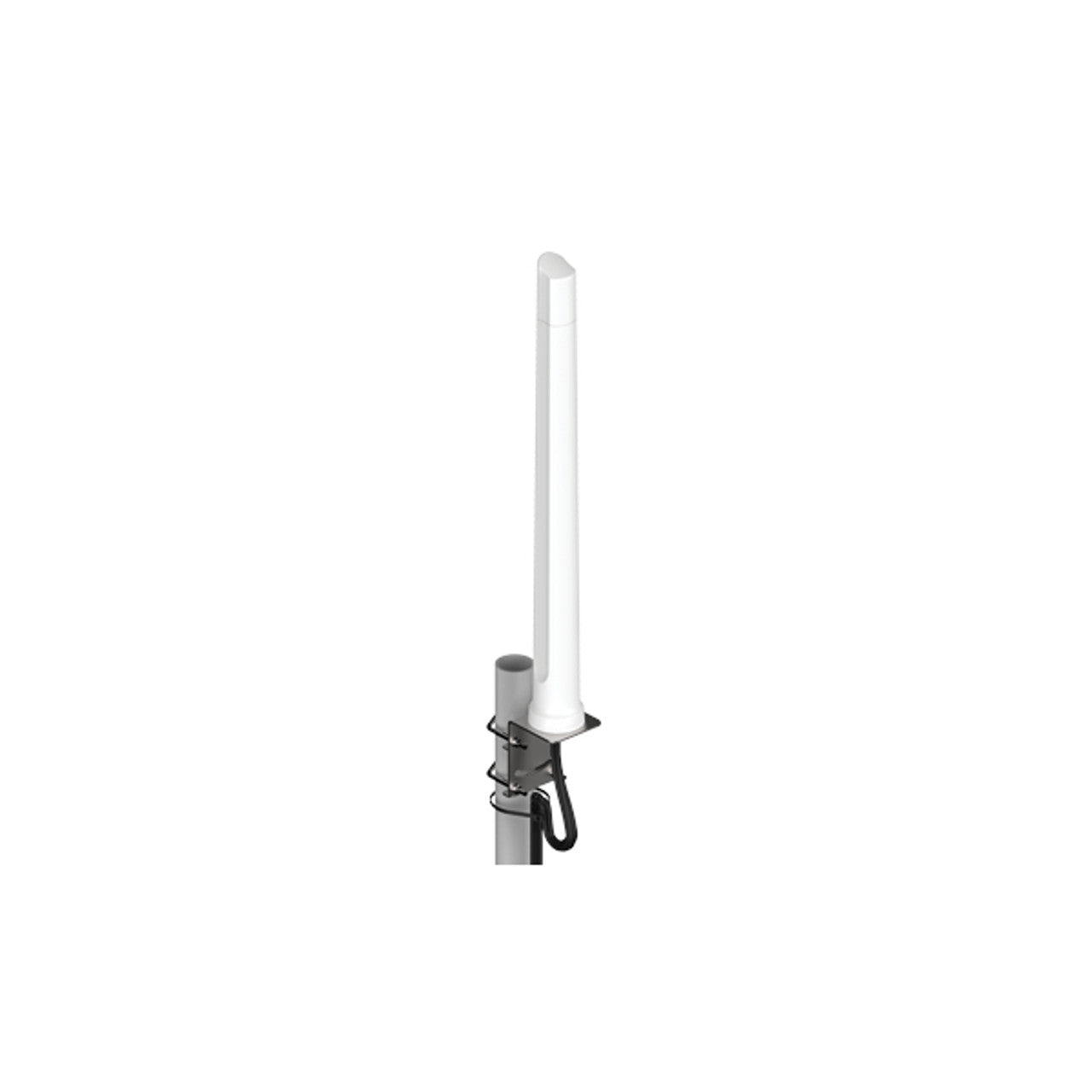

Introducing the OMNI-214 an ultra-wideband omni-directional 4x4 MIMO 5G/LTE antenna covering 617-3800 MHz with a 4dBi gain. Ideal for various industries it features robust IP65 protection ensuring reliable future-proof connectivity in diverse environmental conditions.

The OMNI-214 is a versatile antenna offering exceptional signal reception almost everywhere. Its 4x4 MIMO capability coupled with a balanced gain across frequencies makes it a top choice for urban commercial and agricultural settings. The antenna's design ensures optimal signal distribution making it effective for diverse global use.

Features:

• Ultra-Wideband Coverage: Supports a frequency range from 617 to 3800 MHz covering all contemporary LTE/5G bands.
• 4x4 MIMO Capability: Enhances performance and signal reliability ideal for high-demand network conditions.
• Robust Design: Comes with an IP65-rated enclosure ensuring dust and weather resistance for durability in various environments.
• Omni-Directional Performance: Provides superior pattern control and balanced gain across the entire frequency spectrum.
• Future-Proof Technology: Includes coverage for LTE Band 71 and CBRS bands from 3400 to 3800 MHz ensuring longevity in rapidly evolving cellular networks.

Specification:

@34/61

Description::

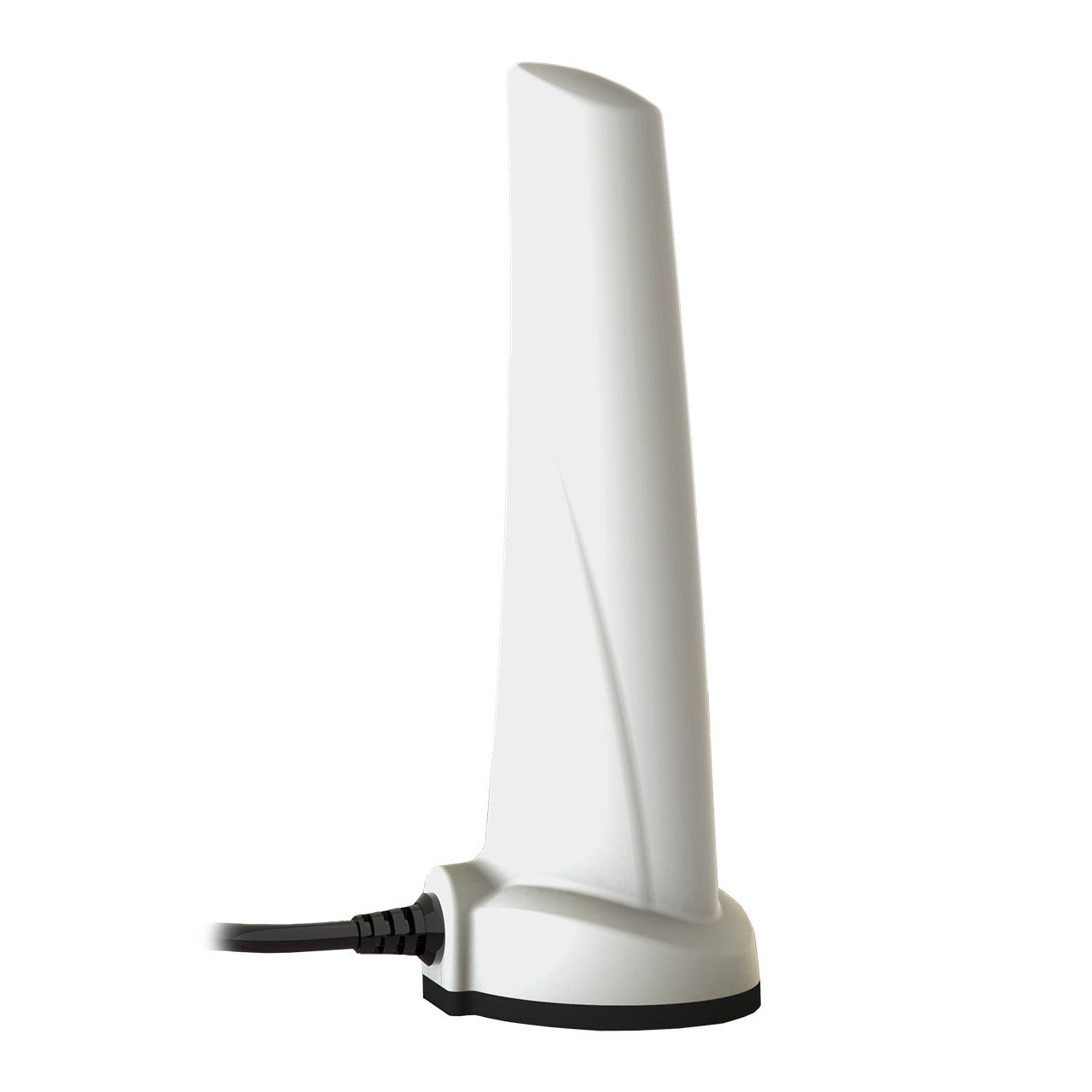

The OMNI-280-02 antenna increases signal reliability ensures higher data throughput for users and provides a stable high quality connection. This improves user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS).

The Poynting Omni-280 Omni-Directional Wideband LTE/5G ready Antenna; 698-3800 MHz 4 dBi provides an innovative solution for the signal enhancement of 4G/3G and 2G networks. It is a unique magnetic wall- or pole-mountable single polarized full LTE band antenna that incorporates an ultra wide band element in a single housing. This antenna is a cost effective solution for enhancing signal reception and throughput.

Features:

• Medium gain omni-directional antenna
• Wideband - covers wide frequency band.
• Magnetic wall or pole mountable
• Lightweight
• Increase system transmission reliability

Applications:

• M2M applications where machines and measurement devices need to be connected for real time monitoring and information transfer
• Utilities for power and water metering
• Security industry where cameras and other security equipment needs to be monitored
• Retail point of sale equipment
• Areas with poor data signal reception (Indoor and Outdoor)

Specification:

@7/17

Description::

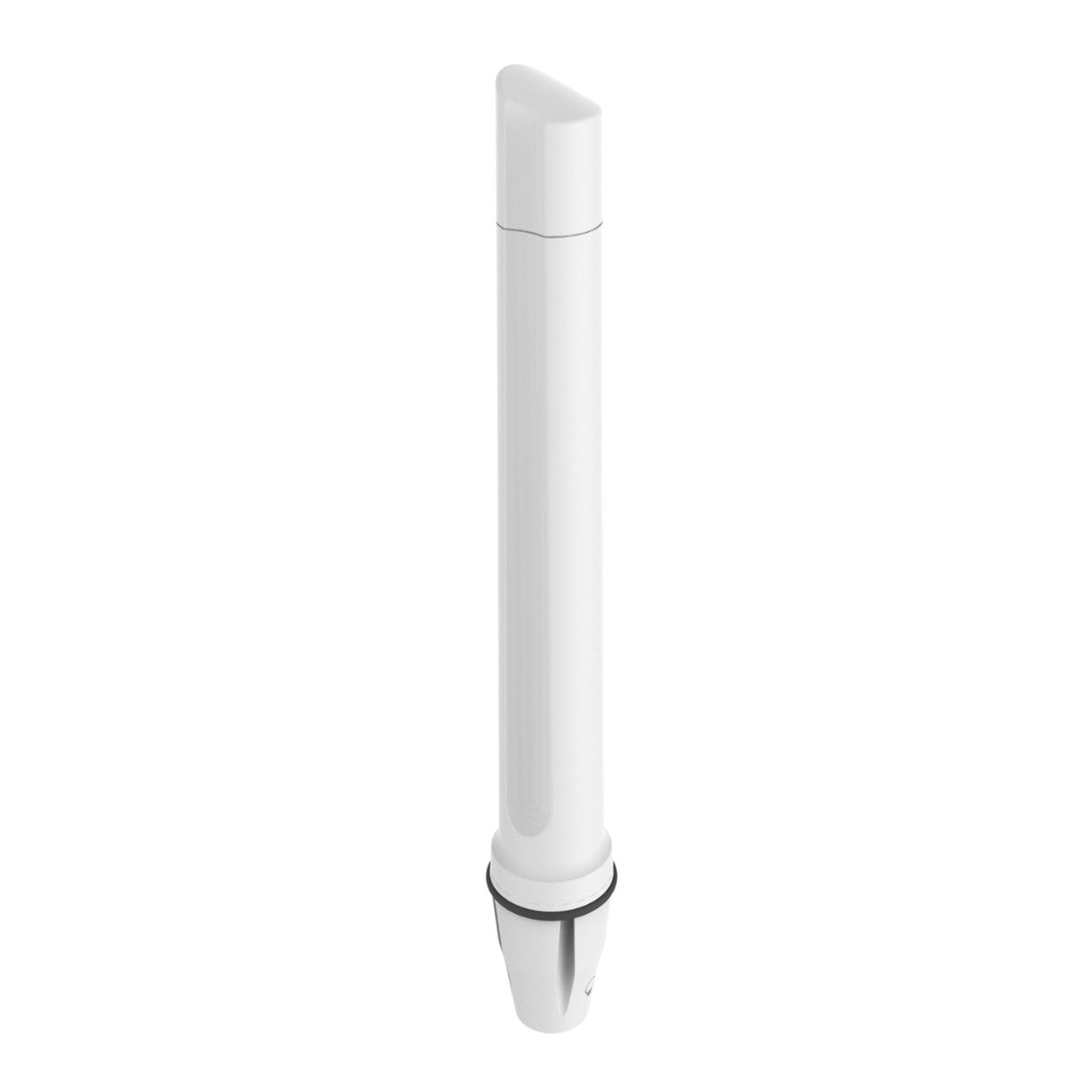

Introducing the OMNI-291 a high-performance omni-directional marine antenna optimized for 450 - 2700 MHz. Boasting a 7dBi gain IP68 rating and resistance to harsh marine conditions it's ideal for marine and coastal applications ensuring robust and reliable LTE connectivity in even the most challenging environments.

Features:

• Wide Frequency Band: Covers 450 - 2700 MHz including LTE & CDMA 450 MHz bands essential for marine applications.
• High Gain: Offers a 7dBi gain ensuring strong signal reception.
• Omni-Directional Performance: Provides superior pattern control across the entire frequency range.
• Robust Design: IP68 rated it is all-weather proof ideal for harsh marine conditions.
• UV and Saltwater Protection: Built to withstand tempestuous weather particularly in marine environments.
• Easy Installation: Includes a standard 1-inch marine adapter bracket for hassle-free mounting.
• Versatile Mounting Options: Supports pole marine and wall mounting.

The OMNI-291 guarantees consistent signal reception making it highly effective along coastlines worldwide. It achieves this through a unique antenna configuration using multiple dipoles and a patented feed network ensuring future-proof performance with coverage of the increasingly popular 450 MHz LTE frequency.

Specification:

@28/52

Description::

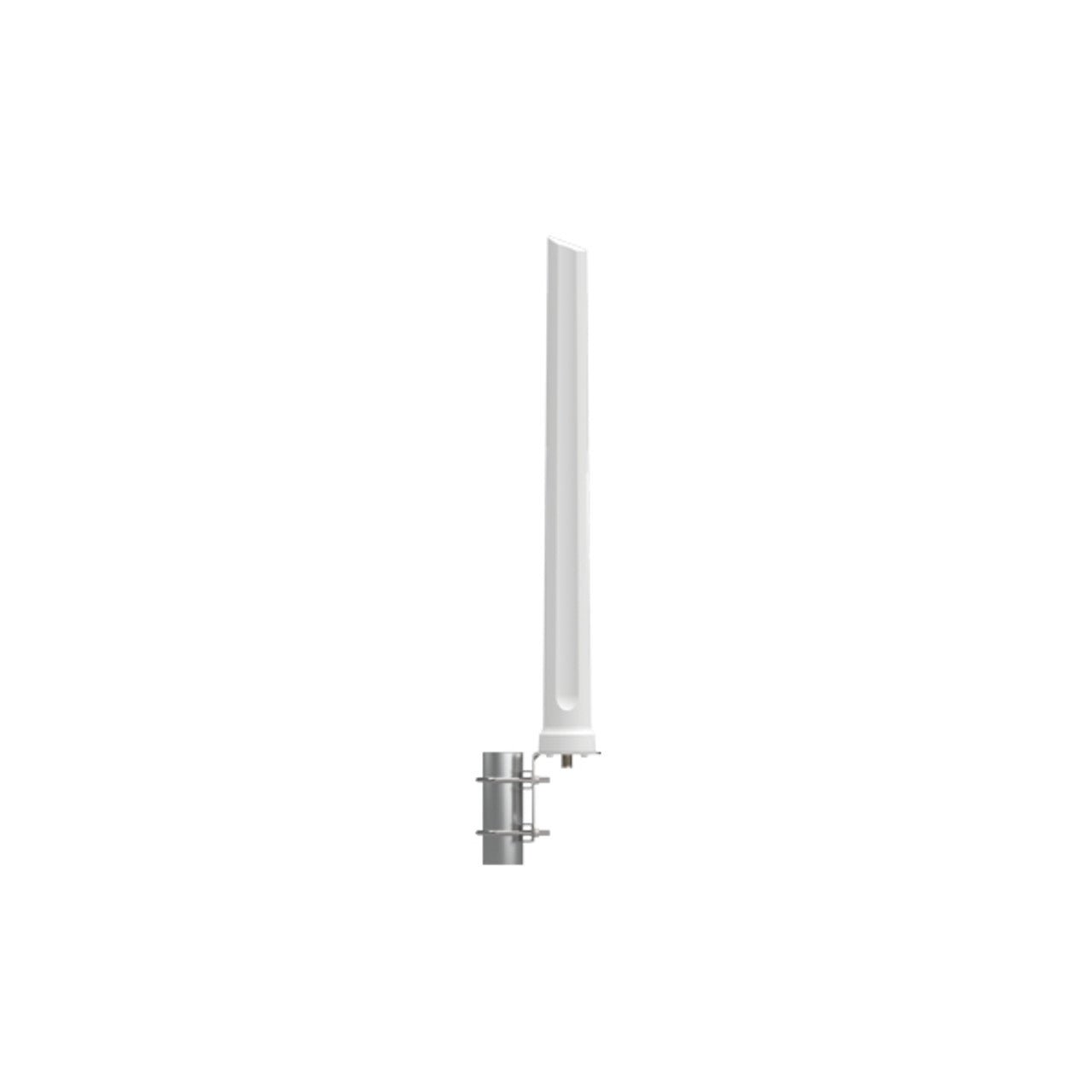

Introducing the OMNI-293 an Omni-Directional Wideband 5G/LTE Antenna spanning 617-3800 MHz with a 9dBi gain. It includes band 71 and 3.5 GHz 5G bands ensuring future-proof performance. With an IP65 rated enclosure it's built to withstand urban rural and industrial environments. Designed to support both current 4G/LTE and future 5G connectivity. It is an ideal solution for urban and rural cellular networks as well as commercial and industrial applications.

The OMNI-293's design ensures superior pattern control across its entire frequency range attributing to its effectiveness as a high-performance antenna. The implementation of multiple dipoles and a patented feed network by Poynting Antennas enhances its capability to provide consistent coverage.

Features:

• High Gain Omni-Directional Antenna: Offers a peak gain of 9dBi ensuring strong and consistent signal strength.
• Wideband Coverage: Operates across 617 - 3800 MHz including band 71 (617 to 698 MHz) and the 3.5 GHz 5G bands.
• Future Proof Design: Its wideband operation makes the antenna suitable for upcoming technological advancements.
• Versatile Applications: Perfectly built for both urban and rural environments catering to a wide range of connectivity needs.
• Robust Build: Comes with a dust and water-resistant enclosure boasting an IP65 rating for durability in various conditions.

Specification:

@27/49

Description::

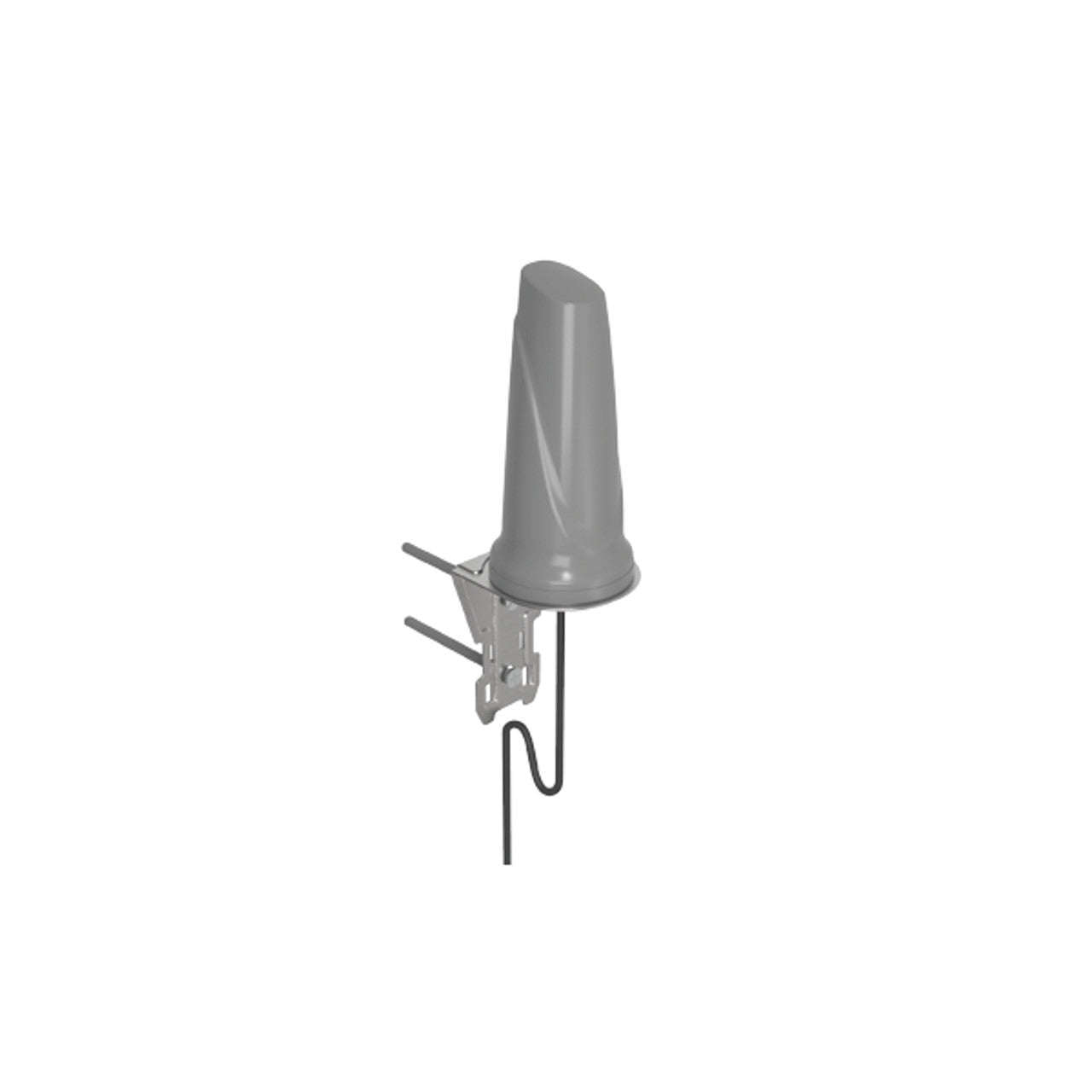

The OMNI-297 wideband cellular antenna operates from 617 to 3800 MHz covering all the contemporary 5G and LTE frequency bands with an additional 2db gain. Constant gain across the entire frequency range improves the LTE performance features such as multi carrier aggregation (CA). The ideal operation for the antenna will be for fixed installations of any cellular bands. It is also ideal for machine to machine (M2M) and internet of things (IoT) applications that communicate through the GSM networks (GPRS/EDGE/3G/HSPA/LTE).

Features:

• Suitable for all 5G networks up to 3800 MHz
• Medium gain omni-directional antenna
• Wall or pole mountable for easy installation
• Vandal and dust ingress protected
• Aesthetically pleasing

Application Areas:

• Machine to machine (M2M) and Internet of things (IoT)
• Poor data signal reception (Indoor or Outdoor)
• Improves slow data transmission connection
• Increases system transmission reliability
• High-end industrial grade router applications
• Improves reception for mobile offices

Specification:

@11/24

Description::

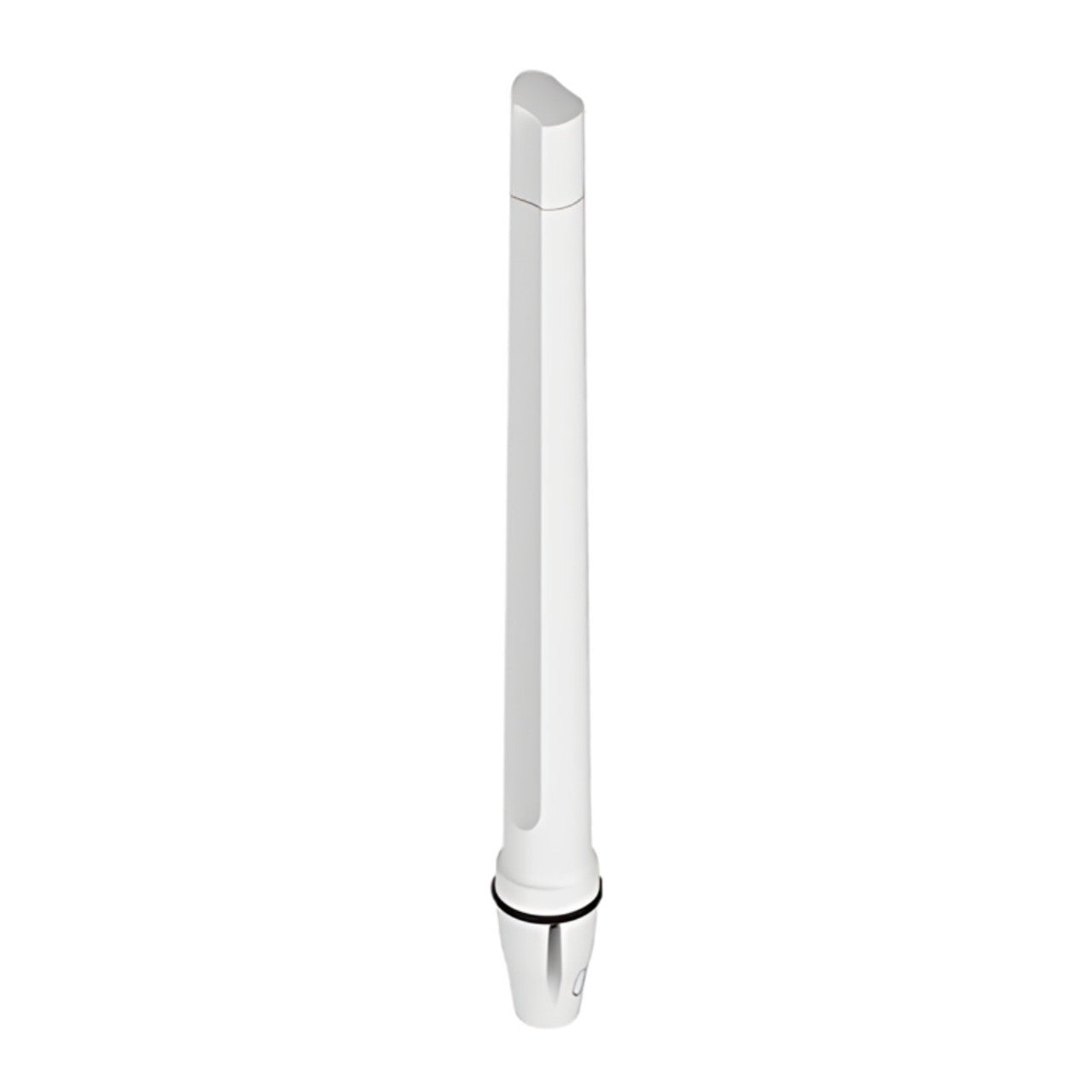

The Poynting OMNI-400 Omnidirectional Marine 4G antenna offers exceptional performance across a broad frequency range of 617 to 2700 MHz. This extensive coverage supports various applications including 4G LTE IoT and M2M communications ensuring reliable connectivity wherever needed.

Key Features:

• 617–960 MHz 1427–1517 MHz and 1710–2700 MHz Frequency Bands
• Linear Vertical Polarisation
• Omnidirectional marine antenna
• IP67 rated
• UV and saltwater resistant
• N-Type (F) Connector

High Gain Performance

With a peak gain of 7.5 dBi in the 1710 to 2700 MHz band the OMNI-400 antenna excels in delivering strong and consistent signal reception. It maintains impressive gain of 4 dBi at 617 to 960 MHz and 6 dBi at 1427 to 1517 MHz making it suitable for diverse communication needs.

Marine-Optimised Design

Specifically engineered for marine environments the OMNI-400 features a durable design with an IP67 rating for water and dust resistance. Its UV and saltwater protection ensures longevity and reliable performance even under harsh maritime conditions.

Durable Construction

Constructed with high-quality ABS radome material and equipped with a standard 1-inch (14 TPI) marine mount the OMNI-400 is built to endure extreme weather and operational stresses. It operates effectively in temperatures ranging from -40 °C to +80 °C and can withstand wind speeds up to 186 km/h.

Easy Installation

The antenna includes a feed-through 1-inch marine standard adapter bracket facilitating straightforward mounting to most marine attachments. Additional mounting options including universal L-brackets and marine-specific brackets are available for versatile installation.

Versatile Applications

The OMNI-400 is ideal for marine vessels yachts boats and ferries as well as for fixed installations in coastal and rural settings. Its omnidirectional pattern ensures consistent coverage and improved signal stability in various environments.

Compliance and Safety

The OMNI-400 meets RoHS 2011/65/EU and ISO 9001:2015 standards guaranteeing safety and environmental compliance. It also adheres to CE regulations reflecting its commitment to high-quality manufacturing and performance.

Specification:

@30/54

@33/59

@31/57

@34/61

@34/61

Description::

Specification:

@50/52
