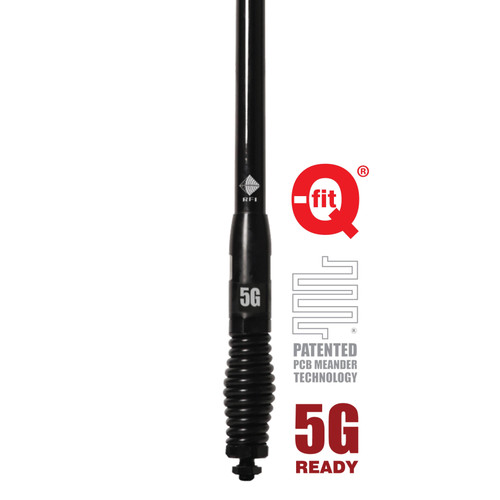

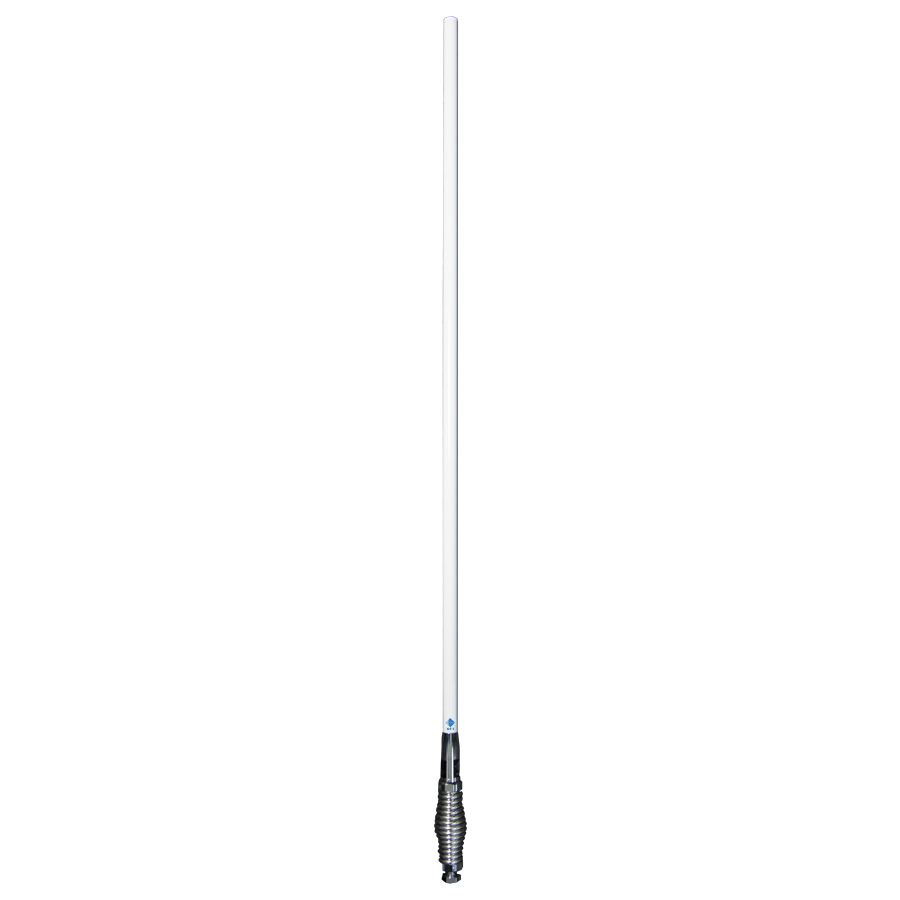

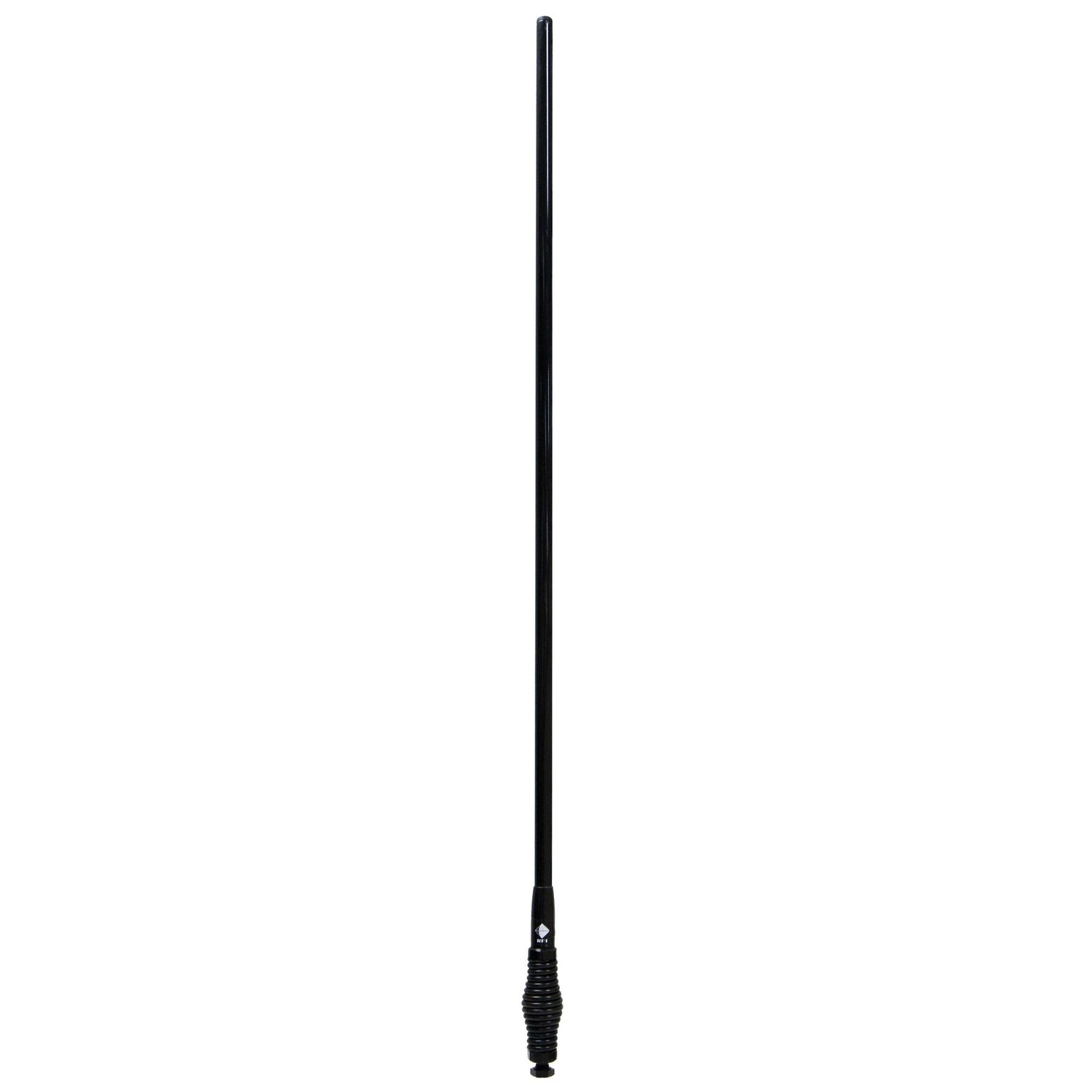

RFI CDR7195 - 4G LTE Cellular Mobile Antenna - 698-2700MHz 930mm - Black/White Chrome Spring
The CDR7195 4G LTE cellular mobile antenna utilises our patented Meander™ flexible PCB radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The CDR7195 sits in between our market leading CD7195 and CDQ7195. It is basically a light duty CDQ7195 (i.e. uses our CD7195 16mm parallel radome and a CD900 Series spring assembly). The CDR7195 whip and be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security
Specifications:
| Frequency: | 698-960, 1710-2170 & 2300-2700MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 6.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 16 |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 930 |
| Mounting | 13mm thread stud & nut |
RFI CDR8194-B 5G Q-Fit LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 667mm
RFI CDR8194-B 5G Q-Fit LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 667mm
RFI CDR8194-B Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA (M) - Black
The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDR8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CDR8100 Series sits neatly in between our lighter duty CD8100 Series & our heavy duty CDQ8100 Series. Includes an integrated spring with threaded stud/nut for easy installation on vehicles . The whip can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710 - 2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 5.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Length [mm] | 667 |
| Brand | RFI |
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CDQ8195-B (removable whip)

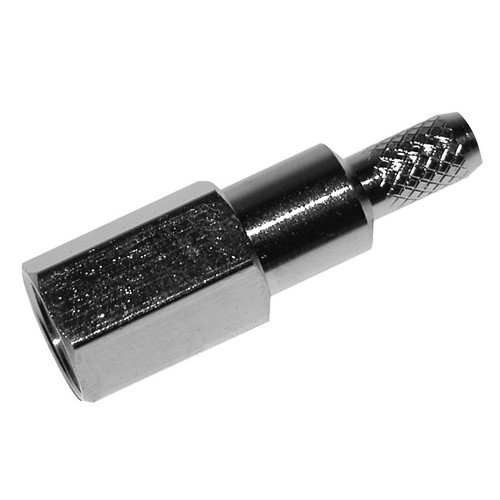

Also available SMA to FME Adapter

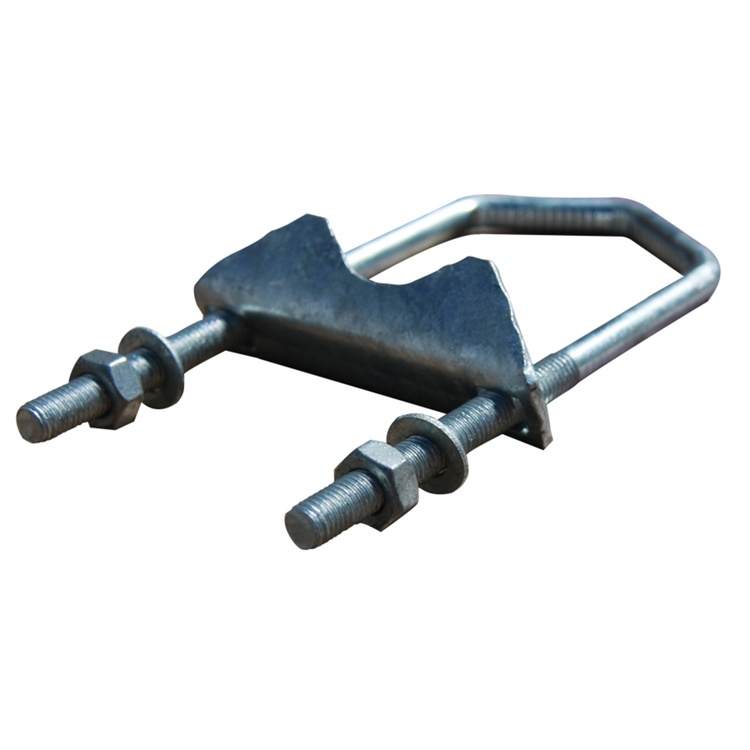

Mounting Bracket Options

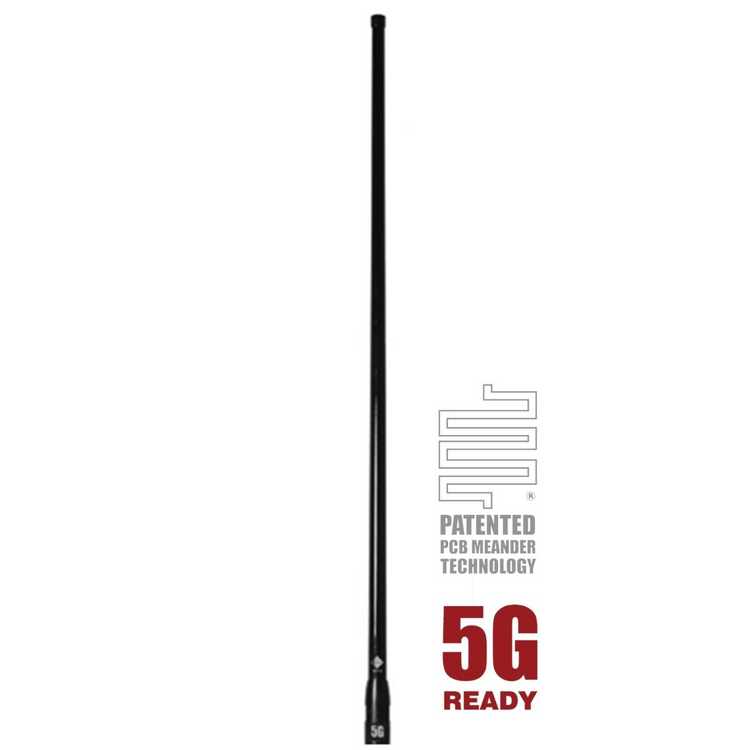

RFI CDR8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDR8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDR8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
Availability

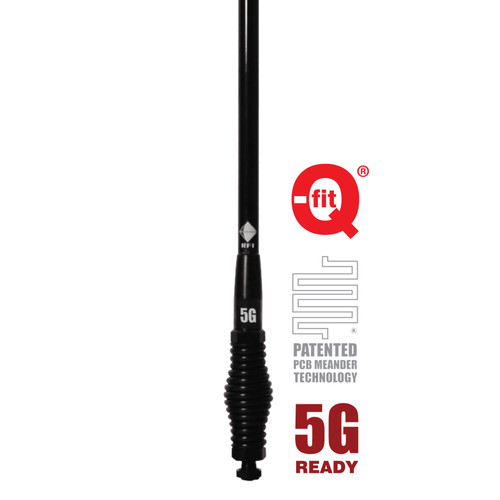

RFI CDR8195-B 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 940mm
RFI CDR8195-B 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 940mm
RFI CDR8195-B Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA (M) - Black 940mm
The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDR8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CDR8100 Series sits neatly in between our lighter duty CD8100 Series & our heavy duty CDQ8100 Series. Includes an integrated spring with threaded stud/nut for easy installation on vehicles . The whip can be removed via the integrated N male connector in the whip and N female connector on the spring ass
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Colour | Black |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698-960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800MHz |
| Length [mm] | 940mm |
| Brand | RFI |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDR8100 Series Technical Data Sheet
View CD8100 Series Specifications Matrix
Related Products
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability
RFI CDR8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDR8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDR8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); Whip Only - Black
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
Availability

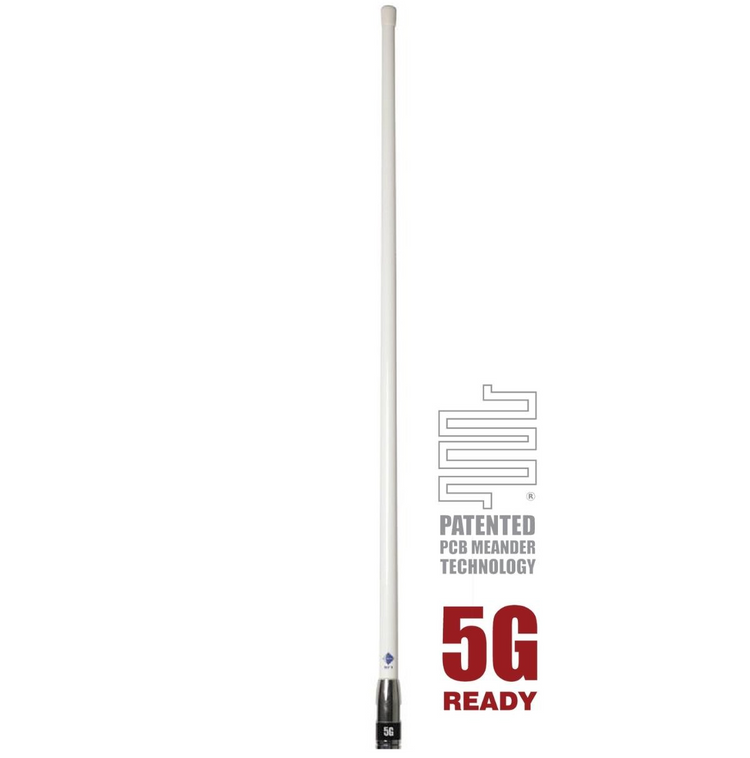

RFI CDR8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
RFI CDR8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
RFI CDR8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
Availability

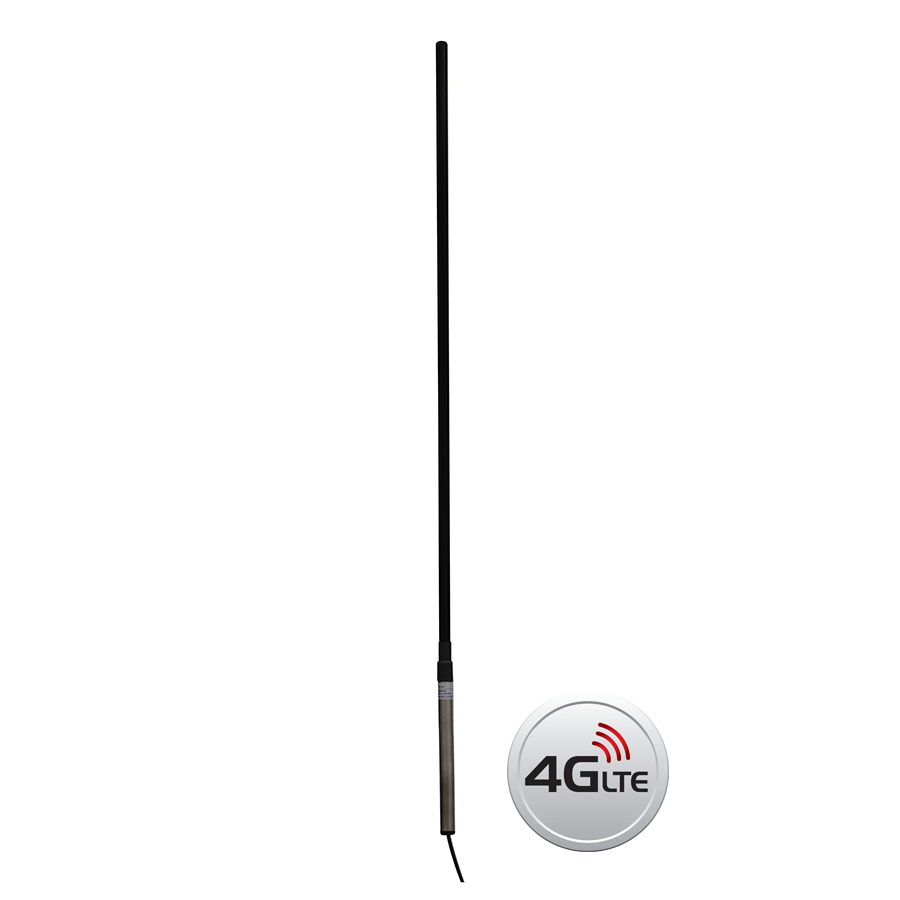

RFI COL7195 Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX - 965mm
RFI COL7195 Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX - 965mm
RFI COL-7195 Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX - 965mm The evolution continues with the release of the COL700 Series 4G LTE cellular Meander™ collinear antenna. The secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
With a 200mm (x 19mm) stainless steel mounting tube, the COL7195 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based colinear design offering teh ultimate in patter and gain stability
- Ideal for all new networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural application
Specifications:
| Frequency: | 698-960, 1710-2170 & 2300-2700 |
| Tunable Bandwidth | Full, no tuning required |
| Nominal Gain dBi | 76.5 @ 698-960MHz / 4.5 @ 1710-2170MHz / 5.5 @ 2300-2700MHz |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 10m 9006 Low Loss Cable Terminated with FME Female Connector & supplied with FME male to SMA male adpator. |
| Construction | Black Radome, 200mm S/S mountingf tube |
| Radome Diameter mm | 15.6 |
| Packaging | Retail Hand Sell |
| Vertical Beamwidth | 25/30/20 |
| Height mm | 965mm |
RFI COL7199 Cellular Collinear Antenna with 200mm S/S Tube SMA connection 3G+4G+4GX 1730mm 8.5dBi
RFI COL7199 Cellular Collinear Antenna with 200mm S/S Tube SMA connection 3G+4G+4GX 1730mm 8.5dBi
RFI COL7199 Cellular Collinear Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX 1730mm 8.5dBi
The evolution continues with the release of the COL700 Series 4G LTE cellular Meander™ collinear antenna. The secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
With a 200mm (x 19mm) stainless steel mounting tube the COL7199 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps which have an adjustment of 27-51mm.
Also available in smaller version (COL7195) - here
Features:
- Patented PCB based collinear design offering the ultimate in patter and gain stability
- Ideal for all new networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural application
Specifications:
| Nominal Gain dBi | 8.5 @ 698-960MHz / 4.5 @ 1710-2170MHz / 5.5 @ 2300-2700MHz |
| Frequency MHz | 698-960 1710-2170 & 2300-2700 |
| Tunable Bandwidth | Full. No tuning required |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Vertical Beamwidth | 15 / 15 / 20 |
| Power W | 10 |
| Construction | Black radome 200mm S/S mounting tube |
| Length mm | 1730 |
| Radome Diameter mm | 15.6 |
| Weight (kg) | .622 |
| Termination | 10m of 9006 low loss cable terminated with SMA connection |
| Mounting Area | 200 x 19 S/S 2 x S/S hose clamps (supplied) |
| Wind Gust Rating km/h | 240 |
Mounting
With a 200mm (x 19mm) stainless steel mounting tube the COL7100 Series is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps which have an adjustment of 27-51mm.
Documentation
View the COL7100 Series Technical Spec Sheet
Related Products
Also available in smaller version (COL7195) - here
Availability

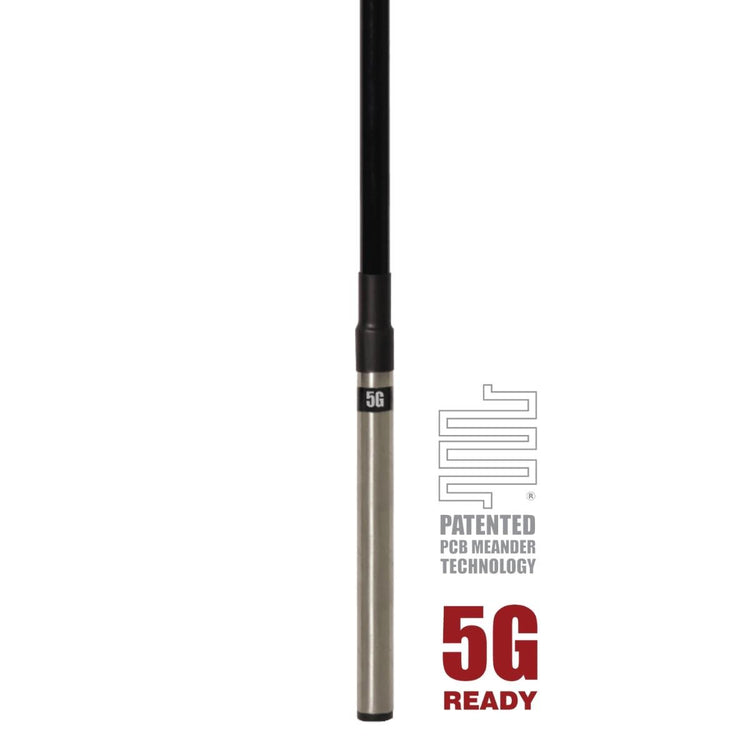

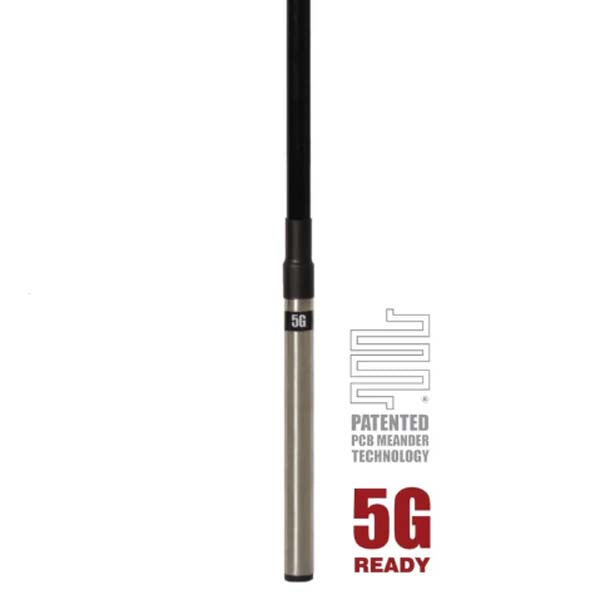

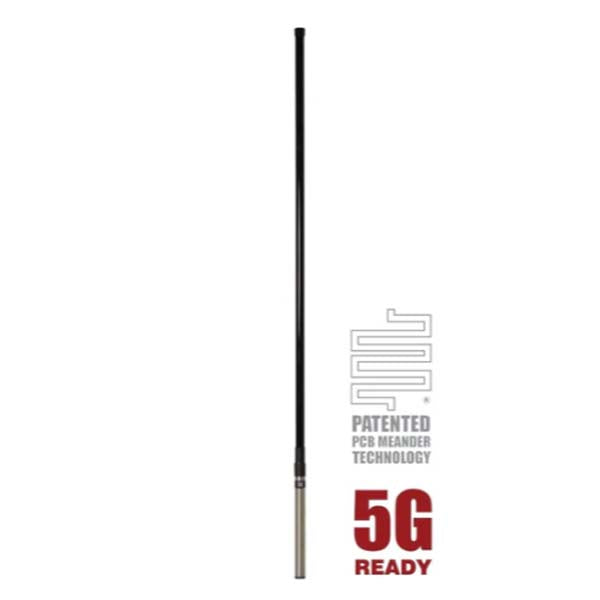

RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Packaging | Retail Hang Sell Pack |
| Cable And Connector | 10m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170, 2300 - 2700, 3400 - 3800, 698-960 |
| Wind Load (Thrust) @ 160km/h N | 240 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Mounting area | 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied) |
| Construction | Black radome, 200 x 19mm stainless steel mounting tube |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Operating Temperature Range [°C] | -45 to +85 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 965mm |
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Packaging | Retail Hang Sell Pack |
| Cable And Connector | 10m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698-960 |
| Wind Load (Thrust) @ 160km/h N | 240 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Mounting area | 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied) |
| Construction | Black radome 200 x 19mm stainless steel mounting tube |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Operating Temperature Range [°C] | -45 to +85 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 965mm |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the COL8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as COL8199 - 1730mm
RFI COL8199 5G LTE 8.5dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black 1730mm
RFI COL8199 5G LTE 8.5dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black 1730mm
RFI COL8199 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 1730mm
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Cable And Connector | 10m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 8.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Mounting area | 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied) |
| Construction | Black radome 200 x 19mm S/S mounting tube |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 1730mm |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the COL8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as COL8195 - 965mm

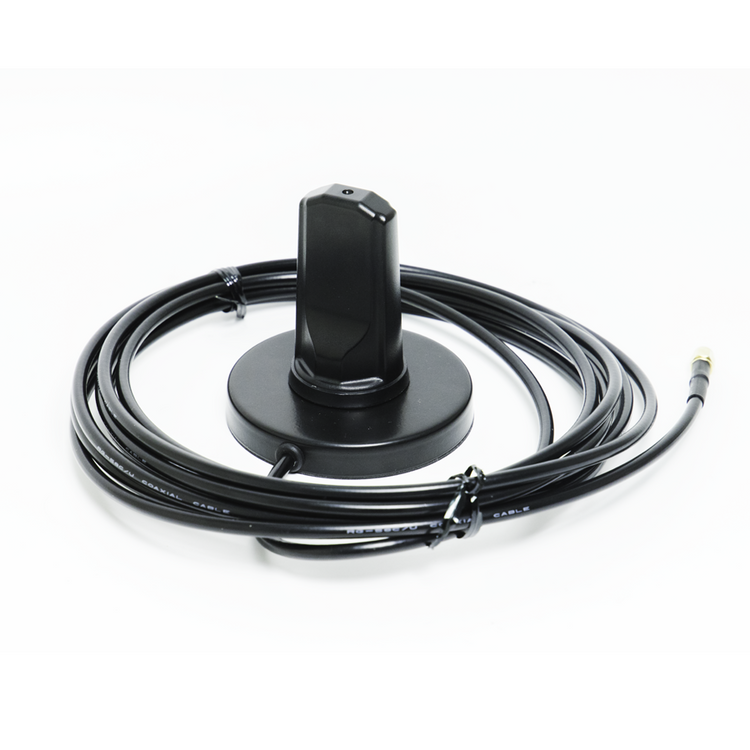

RFI CSM600-MAG-4M-SMA Black Cellular Mobile Antenna with Magnetic Base with 4M RG58 Cable
RFI CSM600-MAG-4M-SMA Black Cellular Mobile Antenna with Magnetic Base with 4M RG58 Cable
RFI CSM600-MAG-4M-SMA Black Cellular Mobile Antenna with Magnetic Base with 4M RG58 Cable terminated with SMA (M)
The CSM600-MAG Series is a compact LTE magnetic base antenna and is ideal cellular applications which a removable or temporary antenna is required. The antenna uses a microstrip design radiator enclosed a an UV stable ABS radome mount on an 84mm magnetic base supplied with 4 metre RG58C/U cable terminated with an SMA male.
It's a compact low-profile omni-directional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698-960MHz and 1710-2700MHz. The antenna features an attractive compact housing that can be used for both indoor/outdoor applications and is IP65 rated.
Key Features:
- Multi-band LTE coverage
- Compact low-profile design
- IP65 rating
Specifications
| Brand | RFI |
| Frequency MHz | 698 - 960 / 1710 - 2170 / 2300 - 2700 |
| Tuned Bandwidth | Full. No tuning required |
| Termination | SMA male connectors |
| VSWR | <2.5:1 |
| Nominal Gain [dBi] | 2.5dBi / 3.3dBi / 4.6dBi (peak) |
| Power [W] | 10 |
| Connector | SMA(M) |
| Band | LTE |
| Packaging | Clear Bag |
| Antenna Type | Omni |
| Antenna Application | Terminal Antenna |
| Antenna Configuration | SISO |
Documentation
CSM600-MAG-4M-SMA Product Data Sheet
Availability

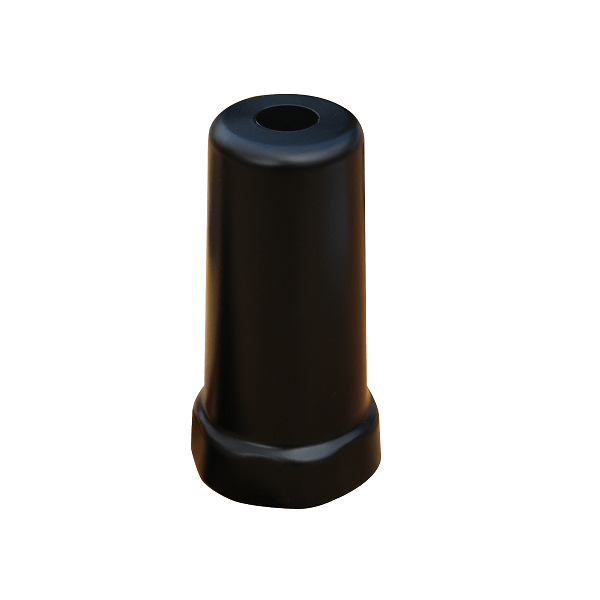

RFI CSM700-5M-SMA Black Cellular Mobile Antenna with SMA connection Stud Mount with 5M RG58 Cable
RFI CSM700-5M-SMA Black Cellular Mobile Antenna with SMA connection Stud Mount with 5M RG58 Cable
RFI CSM700-5M-SMA LTE Cellular Stud Mount with 5M RG58 Cable terminated with SMA connector
The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 3.8GHz. The antenna features an attractive compact housing which can be used in both indoor and outdoor applications. The CSM700 is fitted with a 15.7mmᶲ stud mount (fits a 16mmᶲ hole) incorporating an integrated rubber O-ring seal and is IP65 rated.
Features:
◼Polycarbonate radome is ideal for outdoor use
◼ Attractive low profile design for maximum overhead clearance
◼ Stud mounting offers ease of installation in the field
◼ Ingress protection to IP65
◼ Other cable/connector configurations available upon request
Specifications
| Weight [kg] | 0.17 without cable |
| Height [mm] | 80 |
| Brand | RFI |
| IP Rating | IP65 |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3500-3800 |
| Tuned Bandwidth | Full |
| Construction | UV Stable Black Polycarbonate Radome |
| Radome Diameter Mm | 50 |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 2 / 3 / 5 / 5 |
| Frequency | 698-960 / 1710-2170 / 2300-2700 / 3300-3800 MHz |
| Connector | SMA(M) |
| Cable And Connector | 5.0m RG58 Terminated with SMA(M) |
| Antenna Type | Omni |
| Antenna Application | IoT and M2M Terminal Antenna |
| Frequency Band | Multi-Band 700 to 2700 |
| Antenna Configuration | SISO |
Documentation
CSM700-5M-SMA Product Data Sheet
Availability

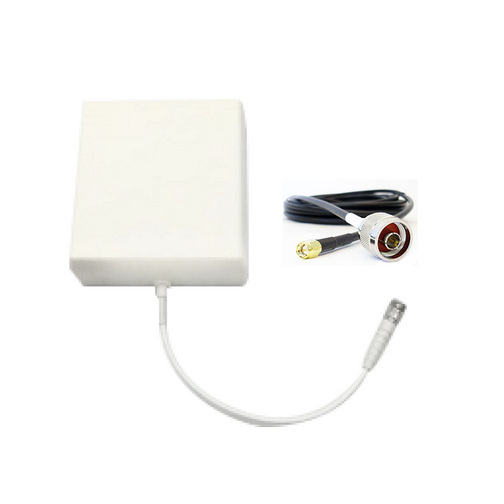

RFI DAS6938-SDP150-N Low PIM SISO Directional Panel Antenna - 698-960MHz&1710-2700Mhz&3300-3800 N(F) + 10.0M cable SMA terminated
The DAS6927-SDP150-N is a PIM rated indoor/outdoor SISO directional panel antenna antenna covering 4G &5G Cellular bands 689-960 MHz 1710-2700MHz & 3300-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
Features:
RFI's Low PIM DAS range is a high performance PIM rated DAS antenna range offering indoor or outdoor panel antennas with great directional beam control and a range of indoor and outdoor Omni directional solutions to suit indoor outdoor requirements with the optional low profile aesthetic. The multi-band capability of each offering covers both 4G and 5G bands including 690-960MHz 1710-2700MHz & 3300-3800MHz therefore eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications.
Features Include:
• Low Profile compact form factor
• IP55 rated • Coverage across multiple cellular and WLAN bands • Ideal for DAS deployment for in-building coverage solutions
• Excellent -150dBc PIM performance
• 1 x 300mm tail terminated with N type female connector
• 5dBi @ 698-960Mhz; 6dBi @ 1710-2700Mhz; 7bBi @ 3300-3800Mhz
This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10
Specifications
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 5/06/2007 |
| Dimensions | 165(L) x 155(W) x 50(H) |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA IP55 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Horizontal Beamwidth | 90 / 80 / 70 |
| Brand | RFI |
| Weight [kg] | 0.33 |
Documentation
DAS6938-SDP150-N_2 Low PIM SISO Directional Panel Antenna
Availability

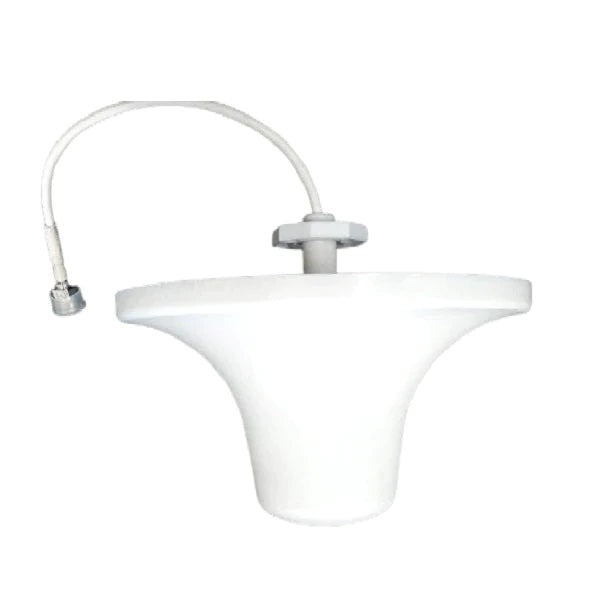

RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz N(F)
The DAS6938-SOC150-N is a PIM rated indoor SISO Omni-directional antenna covering 4G &5G Cellular bands 689-960 MHz 1710-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
Features:
RFI's Low PIM DAS range is a high performance PIM rated DAS antenna range offering indoor or outdoor panel antennas with great directional beam control and a range of indoor and outdoor Omni directional solutions to suit indoor outdoor requirements with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-3800MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -153dBc PIM performance
• 300mm tail terminated with N type female connector*
* This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10
Specifications
| Connector | N(F) |
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 2 / 3 / 4 / 5 |
| Dimensions | 120 x 200 mm |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA IP45 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Width [mm] | 200 |
| Operating Temperature Range [°C] | -40 ~ 70 |
| IP Rating | IP45 |
| Brand | RFI |
| Weight [kg] | 0.3 |
| Height [mm] | 18 |
Documentation
DAS6938-SOC150-N Specifications
Availability

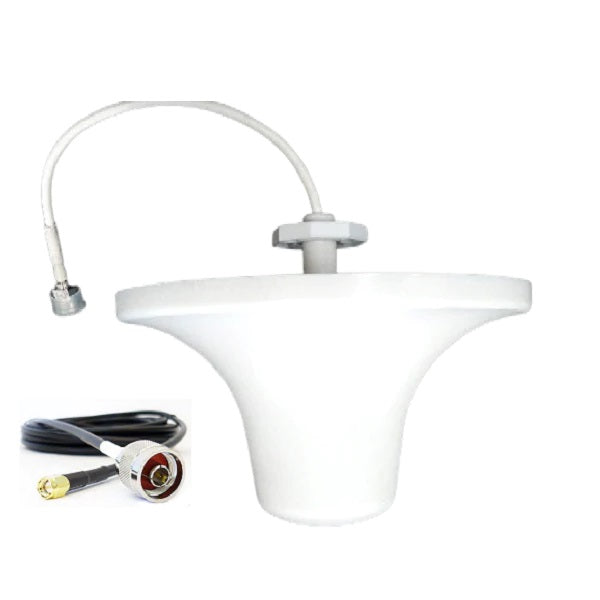

RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz with 10M cable SMA
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz with 10M cable SMA
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz N(F) + 10.0M cable SMA terminated
The DAS6938-SOC150-N is a PIM rated indoor SISO Omni-directional antenna covering 4G &5G Cellular bands 689-960 MHz 1710-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
Features:
RFI's Low PIM DAS range is a high performance PIM rated DAS antenna range offering indoor or outdoor panel antennas with great directional beam control and a range of indoor and outdoor Omni directional solutions to suit indoor outdoor requirements with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-3800MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -153dBc PIM performance
• 300mm tail terminated with N type female connector*
* This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10
Specifications
| Connector | N(F) |
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 2 / 3 / 4 / 5 |
| Dimensions | 120 x 200 mm |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA IP45 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Width [mm] | 200 |
| Operating Temperature Range [°C] | -40 ~ 70 |
| IP Rating | IP45 |
| Brand | RFI |
| Weight [kg] | 0.3 |
| Height [mm] | 18 |
Documentation
DAS6938-SOC150-N Specifications
Availability
RFI FME-120 Pulse FME (M)
FME-120 Features:
A low cost lightweight threaded solution for high vibration installations the FME connector series have gained popularity worldwide in cellular mobile applications and are also known as rotating nipple connectors. They are generally used up to 1.8 GHz and can be mated to a range of adapters to match different connector series in an installation.
FME Nipple crimp male - Nickel plated
| Brand | Pulse |
| Connector | FME(M) |
| Cable Type | RG58 |
| Centre Conductor | Crimp |
| Cable Type Connectors | RG58 |
| Component Type | Connector |
Availability
RFI Galvanised U Bolt; M8 X P1.25 Thread
Galvanised U-Bolt Assembly
Availability
2-3 Days Lead Time
