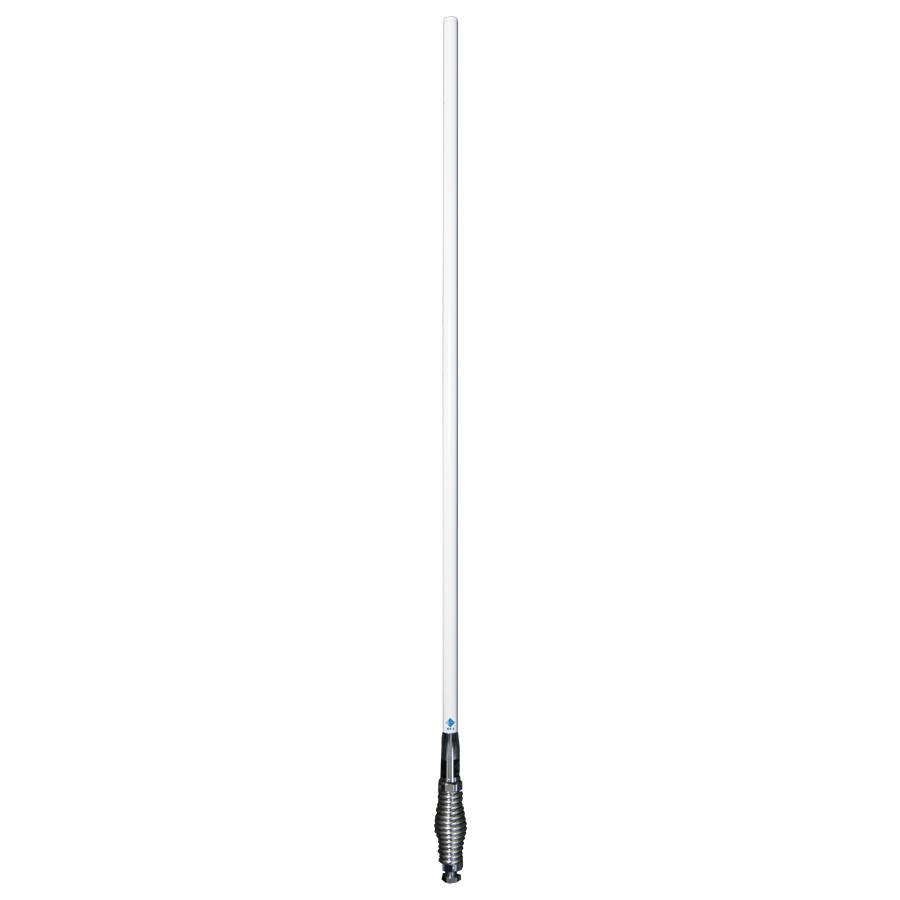

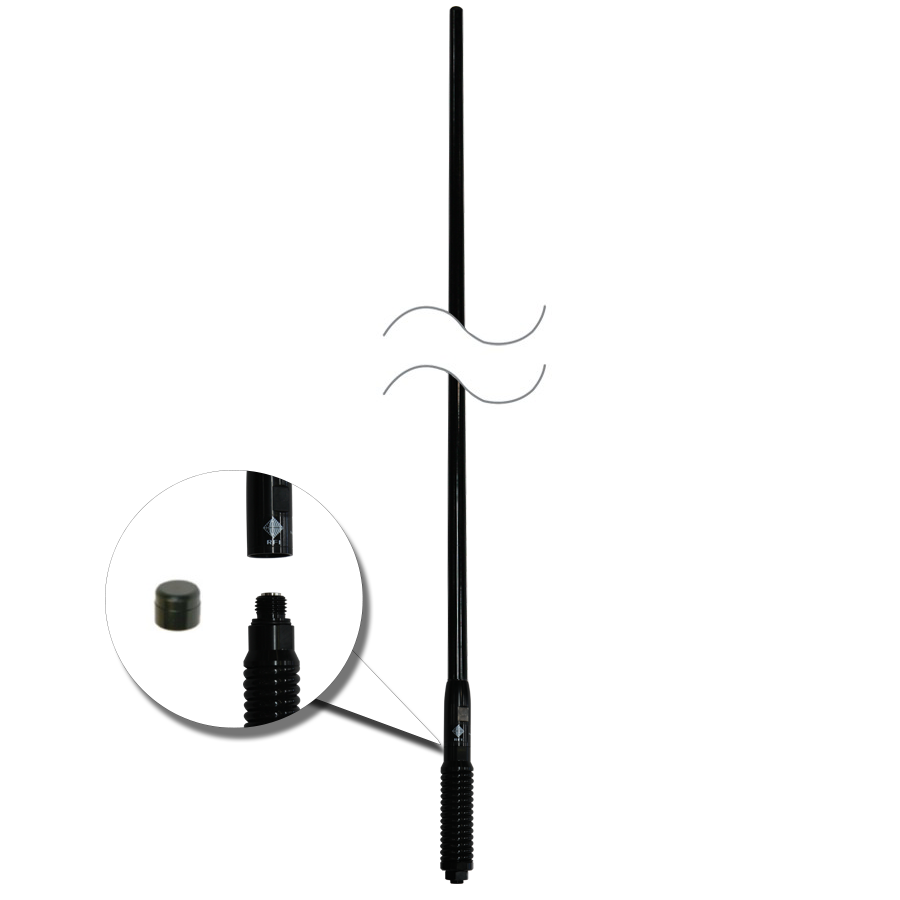

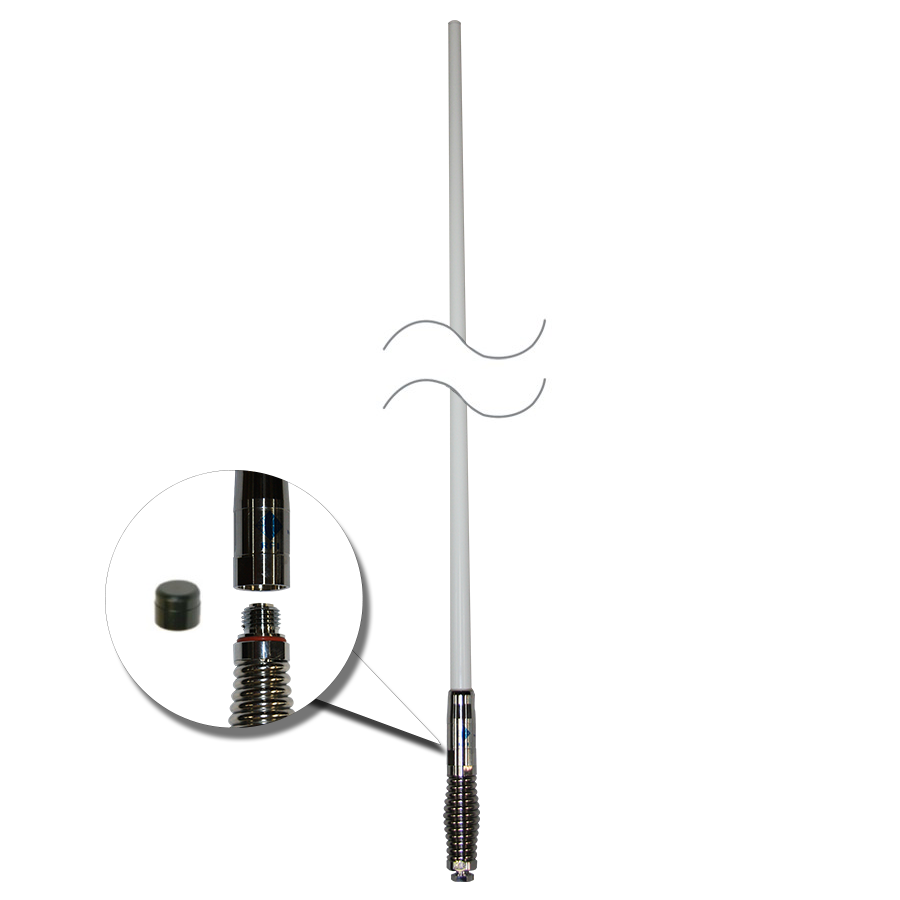

RFI CDQ8000 Q-Fit UHF CB Collinear Antenna - 2080mm
The CDQ8000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy electro polished stainless steel spring, the CDQ8000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 8 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 8 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar |
| Radome Diameter mm | 22.5 - 15.6 |
| Packaging | Clardboard Tube |
| VSWR | <1.5:1 |
| Length mm | 2080 |
| Mounting | Threaded Stud |
RFI CDQ8194-B 5G Q-Fit LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 707mm
RFI CDQ8194-B 5G Q-Fit LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 707mm
RFI CDQ8194-B Q-FIT 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 707mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Colour | Black |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710-2170Mhz 2300-2700Mhz 3400 - 3800Mhz 698-960Mhz |
| Nominal impedance | 50 |
| Power w | 10 |
Nominal Gain dBi |
5.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 707mm |
| Brand | RFI |
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CDQ8195-B (removable whip)
Also available SMA to FME Adapter
Mounting Bracket Options
RFI CDQ8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDQ8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDQ8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
The CDQ8100 Series is our flagship product and is designed for the harsh Australian conditions. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the heavy-duty spring assembly.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Availability

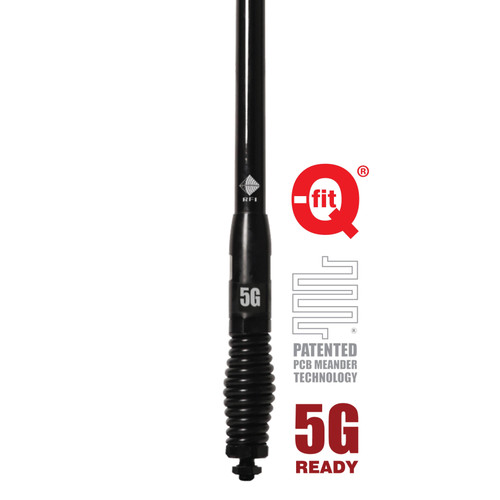

RFI CDQ8195-B 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 975mm
RFI CDQ8195-B 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 975mm
RFI CDQ8195-B Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 975mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Colour | Black |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710-2170 2300-2700 3400-3800 698-960Mhz |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960/1710-2170/2300-2700/3400-3800MHz |
| Length [mm] | 975mm |
| Brand | RFI |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability

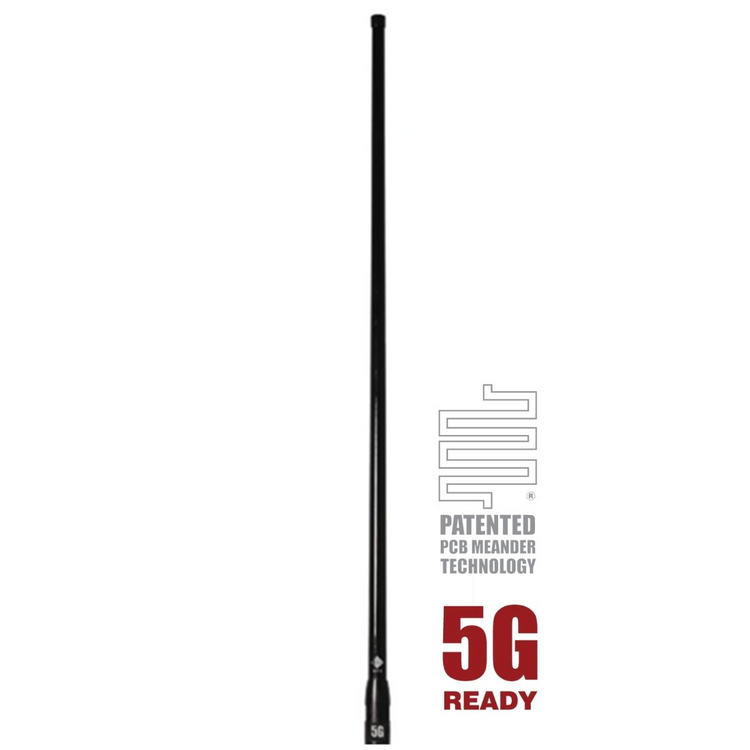

RFI CDQ8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
$263.96
Unit price perRFI CDQ8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
$263.96
Unit price perRFI CDQ8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
The CDQ8100 Series is RFI's flagship cellular antenna range and is designed for the harsh Australian conditions. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the heavy-duty spring assembly.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
-
CDR8194-B - Black whip provides 5.5dBi gain
-
CDQ8194-B - Black whip provides 5.5dBi gain
-
CDR8195-B - Black whip provides 6.5dBi gain
-
CDR8195-W - White whip provides 6.5dBi gain
-
CDQ8195-B - Black whip provides 6.5dBi gain
-
CDQ8195-W - White whip provides 6.5dBi gain
-
CDQ8197-B - Black whip provides 7.5dBi gain
-
CDQ8197-W - White whip provides 7.5dBi gain
-
CDQ8199-B - Black whip provides 8.5dBi gain
-
CDQ8199-W - White whip provides 8.5dBi gain
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
@20/66

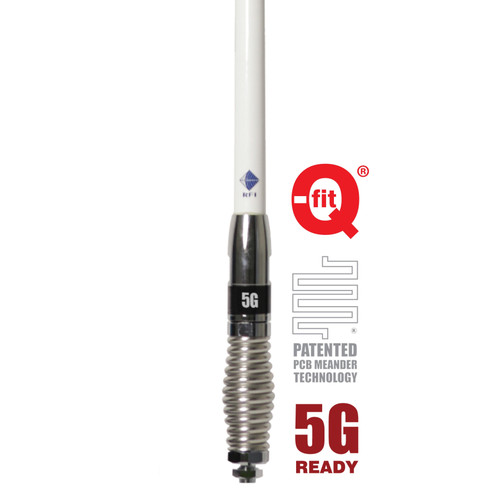

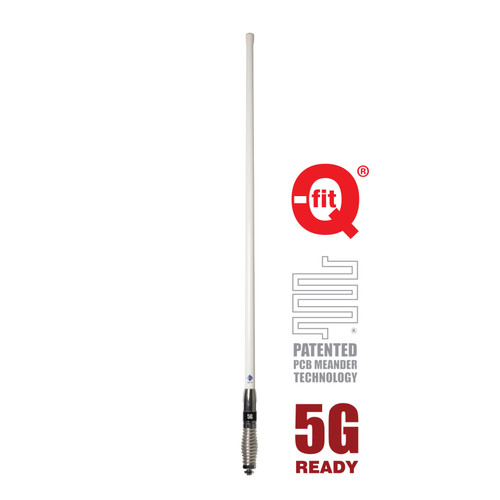

RFI CDQ8195-W 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 975mm
RFI CDQ8195-W 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 975mm
RFI CDQ8195-W Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m Cable terminated with SMA(M) - White Radome/Chrome Spring 975mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Colour | White |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800MHz |
| Length [mm] | 975mm |
| Brand | RFI |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability

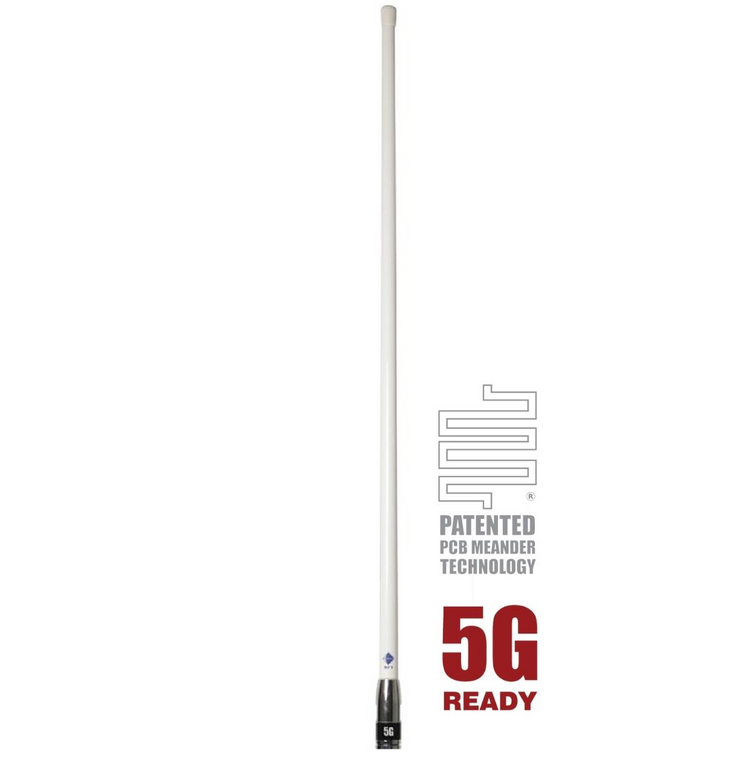

RFI CDQ8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
RFI CDQ8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
RFI CDQ8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
The CDQ8100 Series is our flagship product and is designed for the harsh Australian conditions. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the heavy-duty spring assembly.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Availability

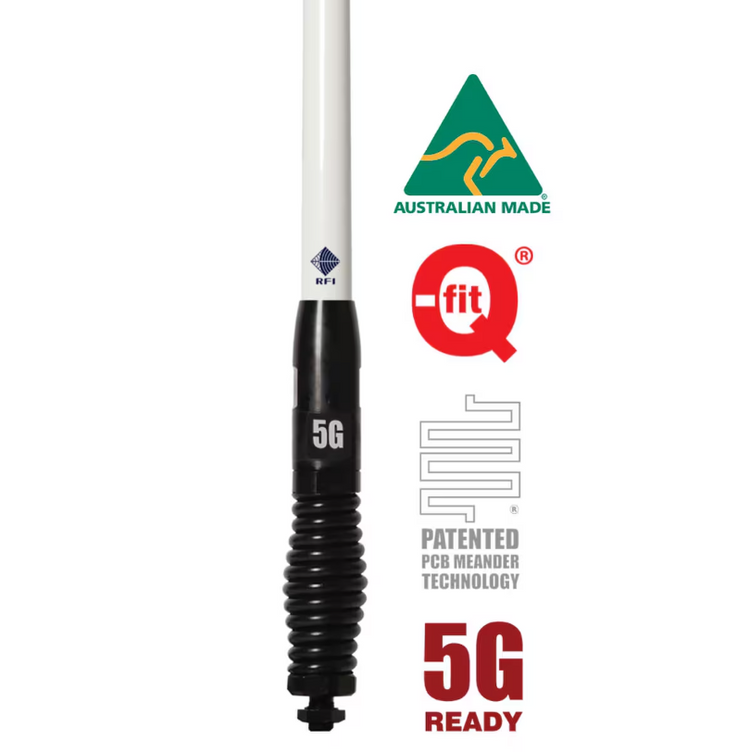

RFI CDQ8195-WB Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m Cable terminated with SMA(M) - White Radome/Black Spring 975mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Colour | White Radome/Black Spring |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 975mm |
| Brand | RFI |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability
RFI CDQ8197 5G RFi Q-Fit LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1211mm
RFI CDQ8197 5G RFi Q-Fit LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1211mm
RFI CDQ8197-B Q-FIT 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1211mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz 2300-2700MHz 3400-3800Mhz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Brand | RFI |
| Mounting | 16mm mounting hole |
| Length [mm] | 1211mm |
| Frequency MHz | 698-960Mhz 1710-2170Mhz 2300-2700MHz 3400-3800Mhz |
| Tuned Bandwidth | Full |
| Radome Diameter Mm | 22.5 - 15.6 Tapered |
| VSWR | <2.5:1 |
| Nominal Gain [dBi] | 7.5 / 4.5 / 5.5 |
| Power [W] | 10 |
| Cable And Connector | 5m of 9006 low loss cable terminated with SMA male connector |
| Packaging | Retail Hang Sell |
| Antenna Type | Collinears Ground Independent Meander Removeable Whip/Replacement Whip Spring Mount |
| Antenna Application | Vehicle Antenna |
| Antenna Features | Multi Band Capable Omnidirectional |
| Frequency Band | Multi-Band 700 to 3800 |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available in White CDQ8195-W
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability
RFI CDQ8197-B-WHIP 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDQ8197-B-WHIP 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDQ8197-B-WHIP 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
The CDQ8100 Series is our flagship product and is designed for the harsh Australian conditions. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the heavy-duty spring assembly.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Availability
RFI CDQ8197-W 5G Q-Fit LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 1211mm
RFI CDQ8197-W 5G Q-Fit LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 1211mm
RFI CDQ8197-W Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 1211mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Brand | RFI |
| Mounting | 16mm mounting hole |
| Length [mm] | 1211mm |
| Frequency MHz | 698-960Mhz 1710-2170Mhz 2300-2700MHz 3400-3800Mhz |
| Tuned Bandwidth | Full |
| Radome Diameter Mm | 22.5 - 15.6 Tapered |
| VSWR | <2.5:1 |
| Nominal Gain [dBi] | 7.5 / 4.5 / 5.5 |
| Power [W] | 10 |
| Frequency Range [MHz] | 1710 - 2170 2300 - 2700 698 - 960 |
| Connector | SMA(M) |
| Cable And Connector | 5m of 9006 low loss cable terminated with SMA male connector |
| Whip Material | Fibreglass radome |
| Packaging | Retail Hang Sell |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Frequency Band | Multi-Band 700 to 3800 |
| Antenna Configuration | SISO |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability
RFI CDQ8199-B 5G Q-Fit LTE 8.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 2080mm
RFI CDQ8199-B 5G Q-Fit LTE 8.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 2080mm
RFI CDQ8199-B Q-FIT 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 2080mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Colour | Black |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710 -2170 2300 - 2700 3400 - 3800 698-960 |
| Nominal impedance | 50 |
| Power w | 10 |
Nominal Gain DBi |
8.5 / 4.5 / 5.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 2080mm |
| Brand | RFI |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability
RFI CDQ8199-B-WHIP 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDQ8199-B-WHIP 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDQ8199-B-WHIP 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
The CDQ8100 Series is our flagship product and is designed for the harsh Australian conditions. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the heavy-duty spring assembly.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Availability
RFI CDQ8199-W 5G Q-Fit LTE 8.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 2080mm
RFI CDQ8199-W 5G Q-Fit LTE 8.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 2080mm
RFI CDQ8199-W Q-FIT 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 2080mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Colour | White |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710 -2170 2300 - 2700 3400 - 3800 698-960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 8.5 / 4.5 / 5.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 2080mm |
| Brand | RFI |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability
RFI CDQ8199-W-WHIP 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
RFI CDQ8199-W-WHIP 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
RFI CDQ8199-W-WHIP 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
The CDQ8100 Series is our flagship product and is designed for the harsh Australian conditions. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the heavy-duty spring assembly.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Availability
RFI CDR5000-B UHF CB Collinear Antenna 930mm -
Black with Black Chrome Spring OR
White with Bright Chrome Spring
The CRD5000 series is a light weight version of our CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises our Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and employs our Q-Fit® removable whip system.
The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
CDR5000-B Features:
• Patented PCB based Meander™ collinear design offering the ultimate performance & robustness.
• 5 dBi gain across the full 477 MHz UHF CB band.
• Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security
• Totally ground plane independent
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5.0m 9006 supplied terminated with an FME female connector and supplied with an FME to UHF adapter |
| Connector: | FME female |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Guard, mirror or bull bar |
| Whip Length mm | 930 |
| Radome Diameter mm | 16 |
| Packaging | Retail style plastic bag with header card |
| VSWR | <1.5:1 |
| Mounting | 13mm threaded stud |
RFI CDR7194-B Black Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 695mm 5.5dBi
RFI CDR7194-B Black Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 695mm 5.5dBi
RFI CDR7194-B 4G LTE Cellular Mobile Antenna with FME connection Q-Fit 698-960 & 1710-2700MHz (All Black) 695mm
The CDR7194 4G LTE cellular mobile antenna utilises our patented Meander™ flexible PCB radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CDR7100 Series antennas sits in between our market leading CD7100 and CDQ7100. It is basically a light duty CDQ7100 (i.e. using our CD7100 15.6mm parallel radome and a CD900 Series spring assemble). The CDR7100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Specifications:
| Frequency: | 698-960 1710-2170 & 2300-2700MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 6.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 16 |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 695 |
| Mounting | 13mm thread stud & nut |
Documentation
RFI CDR7100 Series Technical Data Sheet
Related Products
RFI FME Male to SMA Male Adapter - A-88
This adaptor is the simplest way to connect an antenna with FME connection to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
RFI MK-900 Heavy Duty Magnetic Base with Suction Mount
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability
RFI CDR7194-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 695mm 5.5dBi
RFI CDR7194-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 695mm 5.5dBi
RFI CDR7194-B-SMA 4G LTE Cellular Mobile Antenna with SMA connection Q-Fit 698-960 & 1710-2700MHz (All Black) 695mm
The CDR7194 4G LTE cellular mobile antenna utilises our patented Meander™ flexible PCB radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CDR7100 Series antennas sits in between our market leading CD7100 and CDQ7100. It is basically a light duty CDQ7100 (i.e. using our CD7100 15.6mm parallel radome and a CD900 Series spring assemble). The CDR7100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Specifications:
| Frequency: | 698-960 1710-2170 & 2300-2700MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 6.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with SMA connector |
| Radome Diameter mm | 16 |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 695 |
| Mounting | 13mm thread stud & nut |
Documentation
RFI CDR7100 Series Technical Data Sheet
Related Products
RFI FME Male to SMA Male Adapter - A-88
This adaptor is the simplest way to connect an antenna with FME connection to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
MOUNTING BRACKET OPTIONS
RFI MK-900 Heavy Duty Magnetic Base with Suction Mount
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability
