RFI CD8194-B 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 647mm
RFI CD8194-B 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 647mm
RFI CD8194-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 647mm
he new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
Specifications:
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CDQ8195-B (removable whip)
Also available SMA to FME Adapter
Mounting Bracket Options
RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm
RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm
RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 low loss cable (9006) terminated with SMA male connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Horizontal Beamwidth | Omni-Directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 918mm |
| Operating Temperature Range [°C] | -40 to +85 |
| Brand | RFI |
| Weight [kg] | 0.82 |
Documentation
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability

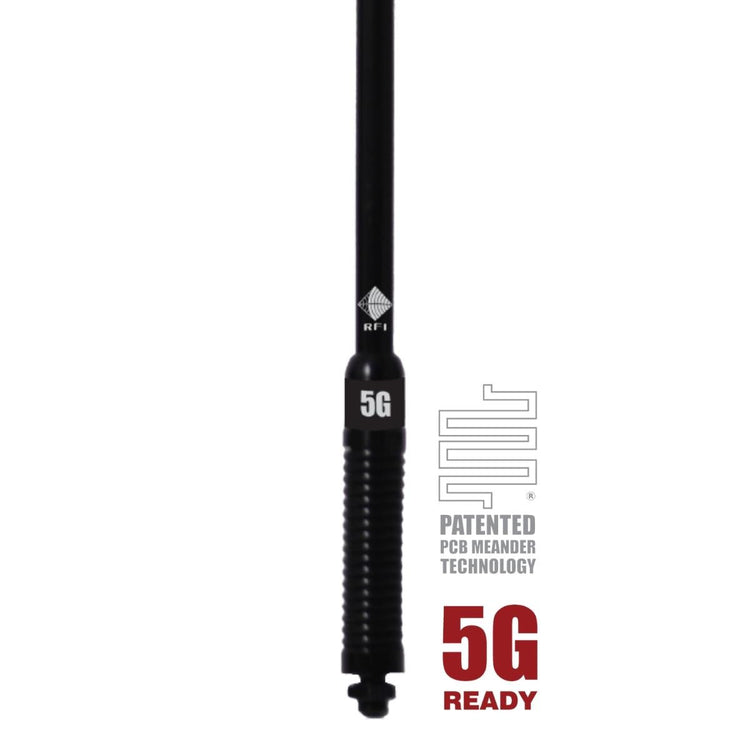

RFI CD8197-B 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1152mm
RFI CD8197-B 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1152mm
RFI CD8197-B 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1152mm
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700 MHz) but now the new 5G LTE band (3400-3800MHz).
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass (Black) |
| Cable And Connector | 5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 7.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Linear |
| VSWR | <2.5:1 |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Length [mm] | 1152mm |
| Brand | RFI |
| Weight [kg] | 0.84 |
| Height [mm] | 1140 |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CDQ8195-B (removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability

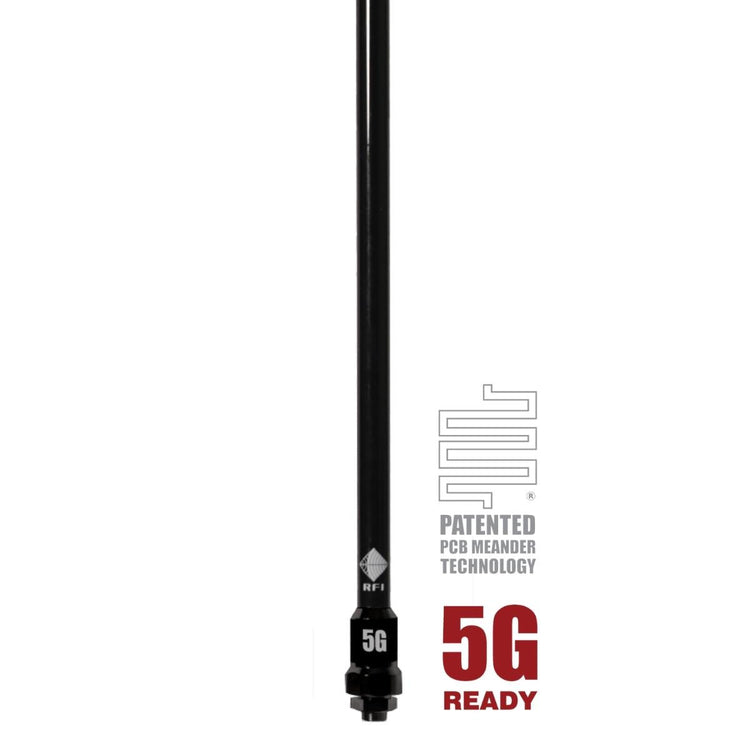

RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 806mm
RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 806mm
RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 806mm
The new CD8200 Series 5G LTE antennas cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) and now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CD8200 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CD8200 Series is designed for fixed mounting using the ½” 26TPI threaded stud & nut.
Key Features:
• Patented PCB based collinear design offering the ultimate in pattern and gain stability.
• Ideal for new 5G LTE networks with true multi-band coverage.
• High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Packaging | Poly Bag |
| Whip Material | Firbeglass |
| Cable And Connector | 5m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698-960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm hole |
| Tuned bandwidth | Full. |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Operating Temperature Range [°C] | -45 to +85 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 806 |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View 8100 Series Specifications Matrix
Availability

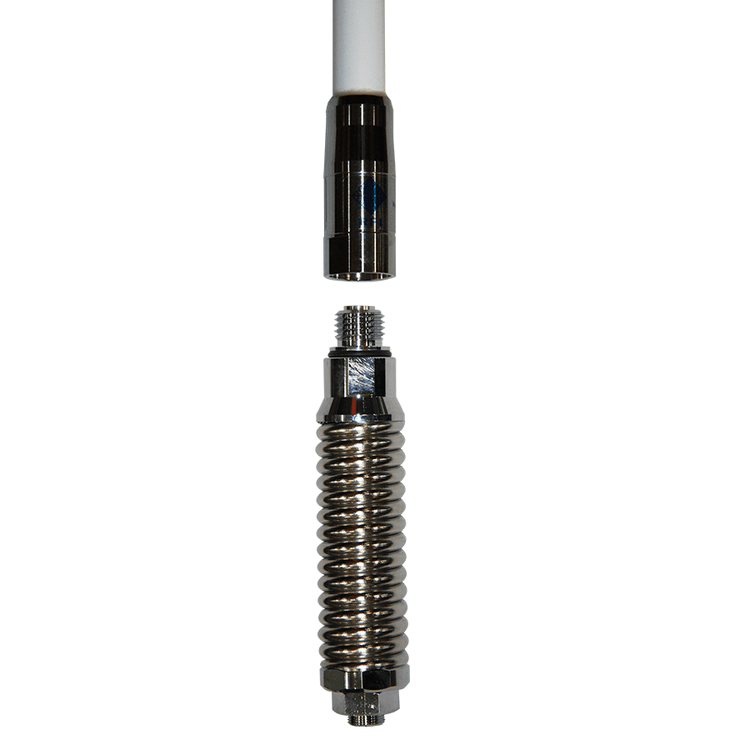

RFI CDQ-7195 Bullbar Mounted Q-Fit Broomstick 3G+4G+4GX Antenna 970mm - Black/White
The outstanding performance of the CDQ7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security
Specifications:
| Frequency: | 698-960 / 1710-2170 / 2300-2700 MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 6.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 22.5 - 15.6 Tapered |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 970 |

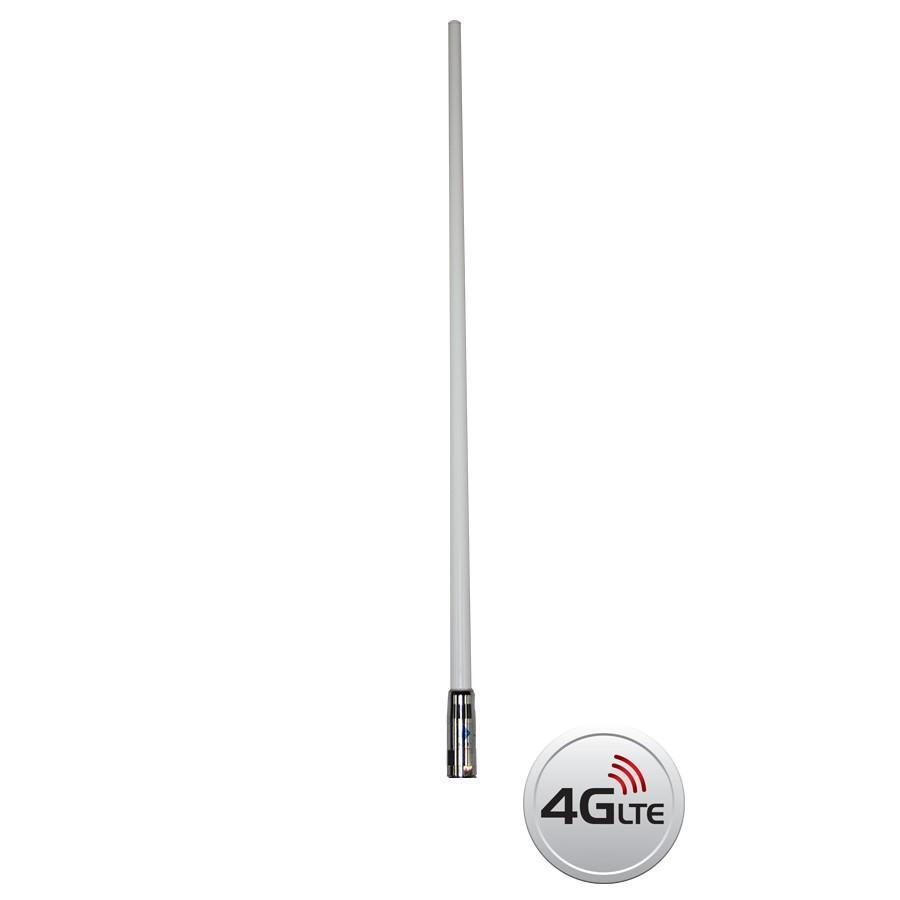

RFI CDQ-7195 WHIP Q-Fit Replacement Whip-Only 3G+4G+4GX Antenna Black/White
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security
RFI CDQ-7197 Bullbar Mounted Q-Fit Broomstick 3G+4G+4GX Antenna Black 1210mm Black/White
In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security.
Specifications:
| Frequency: | 698-960 / 1710-2170 / 2300-2700 MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 7.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 22.5 - 15.6 Tapered |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 1210 |
| Termination | FME female connector |
| Mounting | 16mm mounting hole |

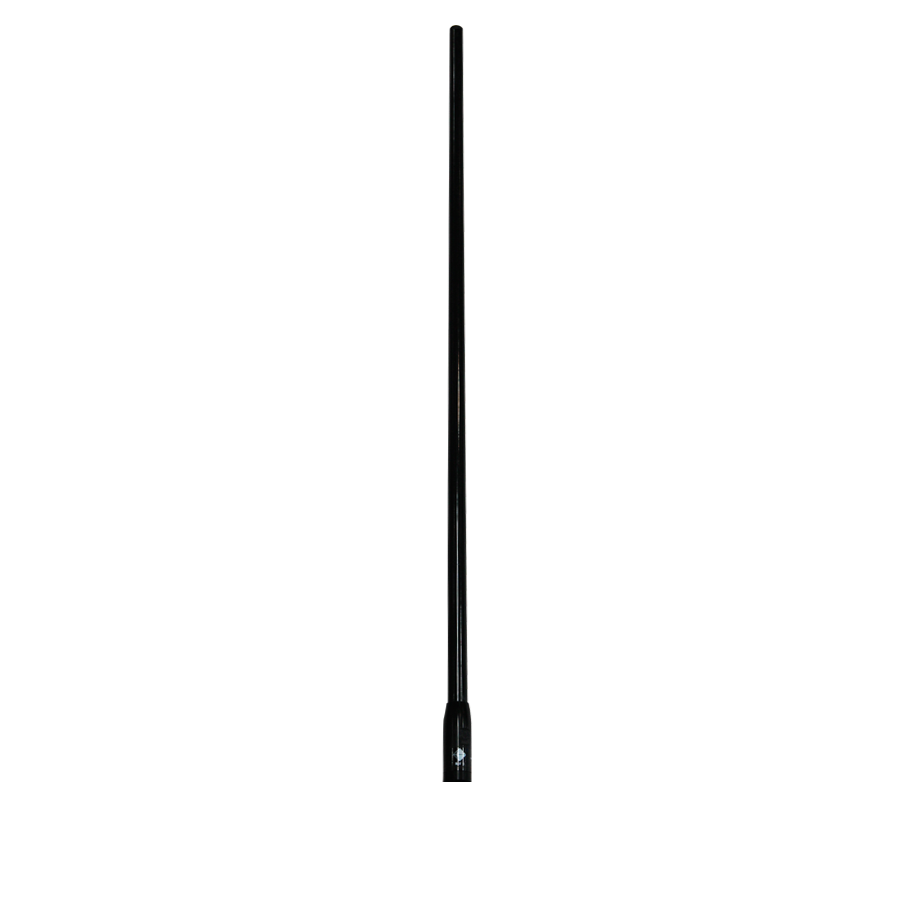

RFI CDQ-7197 WHIP Q-Fit Replacement Whip 3G+4G+4GX Antenna Black/White
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security

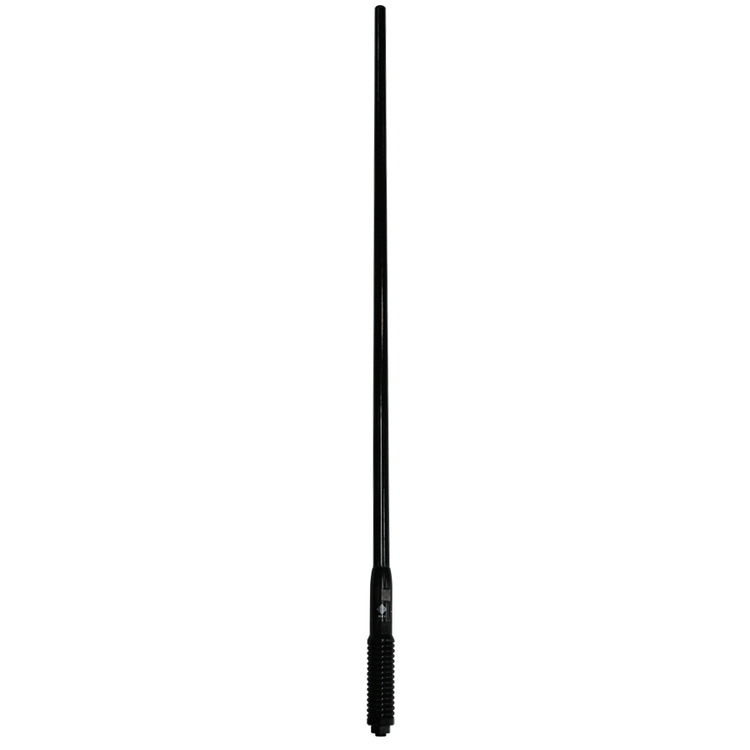

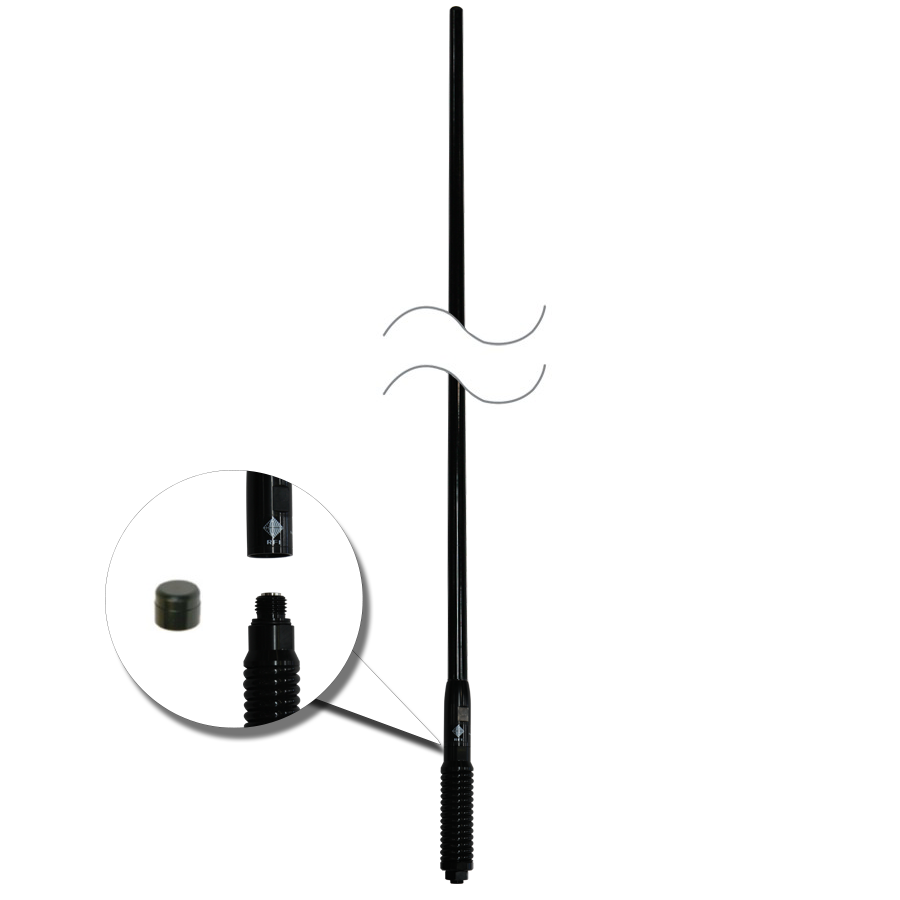

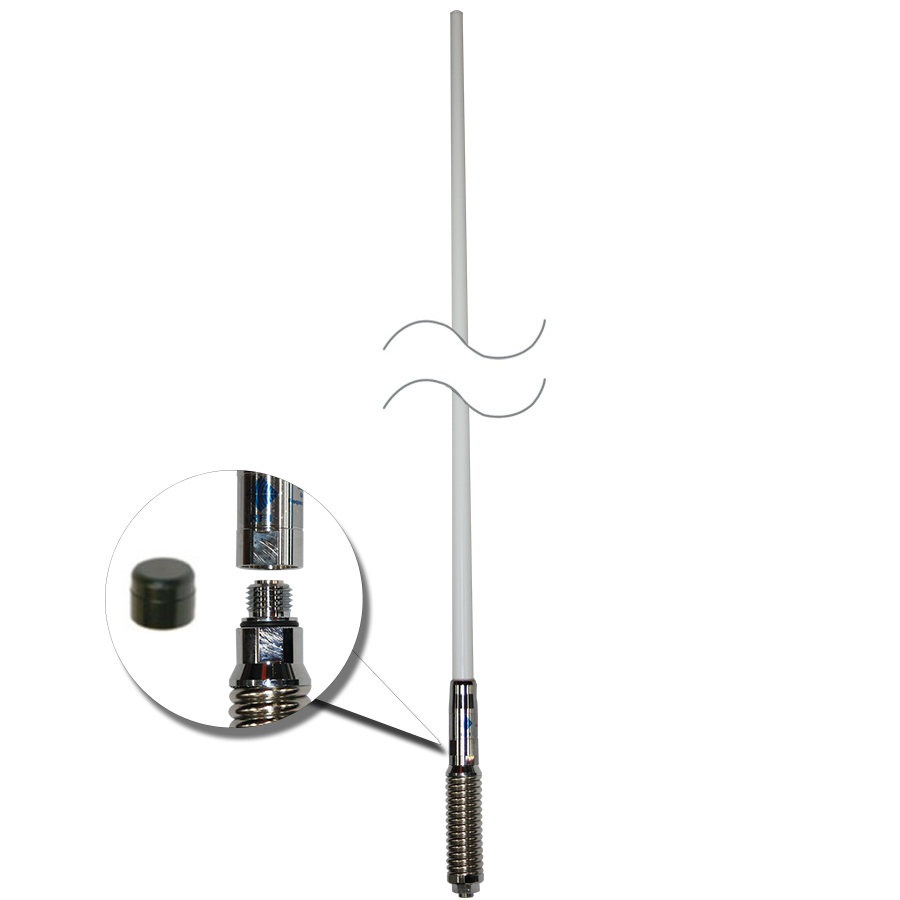

RFI CDQ-7199-B Bullbar Mounted Q-Fit Broomstick 3G+4G+4GX Antenna 2080mm Black/White
The outstanding performance of the CDQ7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
in addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security
Specifications:
| Frequency: | 698-960 / 1710-2170 / 2300-2700 MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 8.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 22.5 - 15.6 Tapered |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 2080 |
| Termination | FME female connector |
| Mounting | 16mm mounting hole |

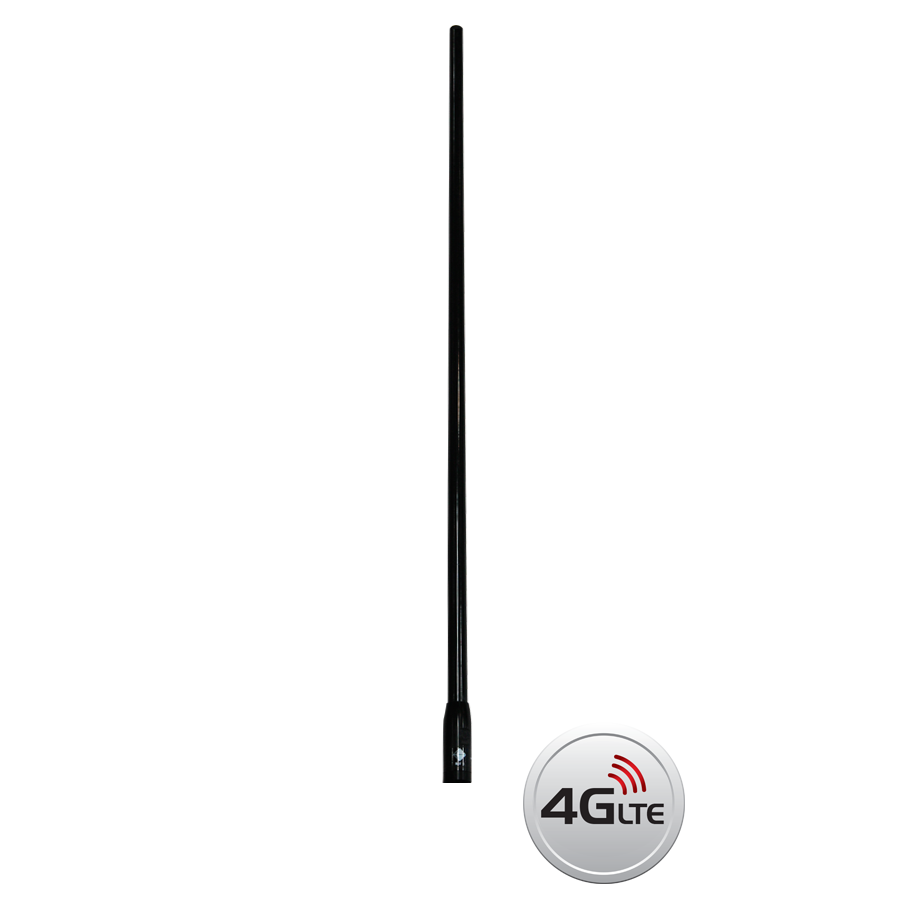

RFI CDQ-7199-B-WHIP Q-Fit Replacement Whip 3G+4G+4GX Antenna Black/White
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security

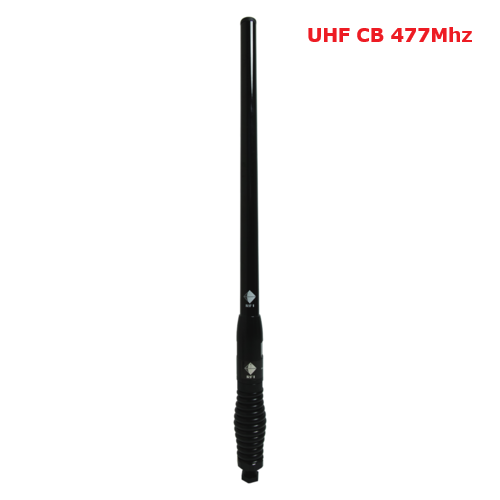

RFI CDQ3000-BL QUICK-FIT UHF 3DBi CB 477mHZ ANTENNA - BLACK 707mm **New Longer Length to match CDQ8194 antenna**
NEW RELEASE - IN STOCK NOW
CDQ3000-BL is a longer version of the RFI CDQ3000 and matches in length with RFI CDQ8194-B mobile phone antenna. The longer version of the CDQ3000 is 707mm long and is based on the hugely successful CDQ5000 antenna and designed to the same revolutionary performance. The secret to this extraordinary performance lies in the use of a unique PCB radiator. The patented Meander™ circuit delivers exceptional consistency in gain and pattern.
The new CDQ3000-BL employs the Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished black stainless steel spring the CDQ3000-BL can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ3000-BL:
Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
3dBi gain across the full 477 MHz UHF CB band.
Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
Ground Independent
- Whip + Black Qi-Fit Spring Length = 707mm
Specifications CDQ3000-BL:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 3 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar guard or roof rack |
| Radome Diameter mm | 22.5 – 18.5 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 707mm |
| Mounting | Black Spring Assembly with threaded stud & nut |
Documentation
Availability

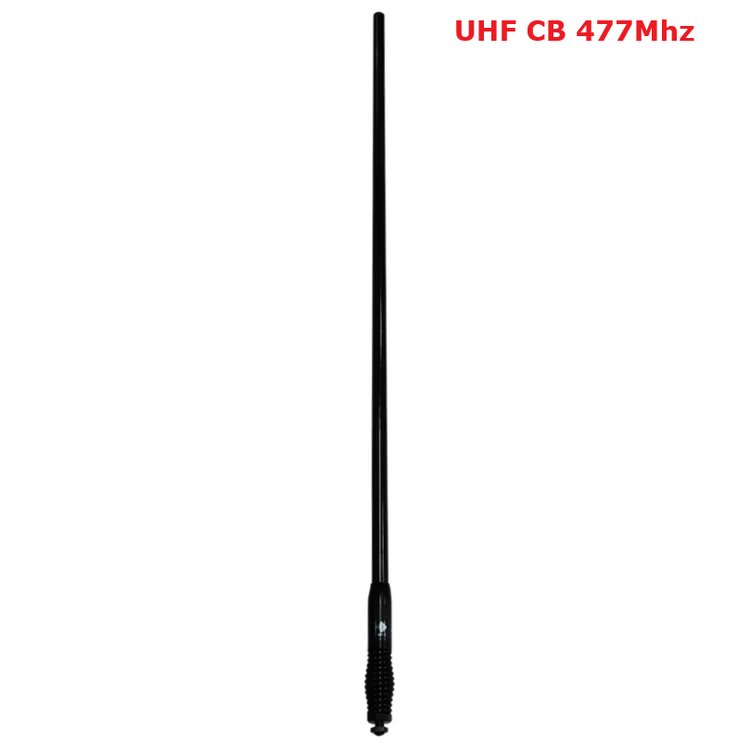

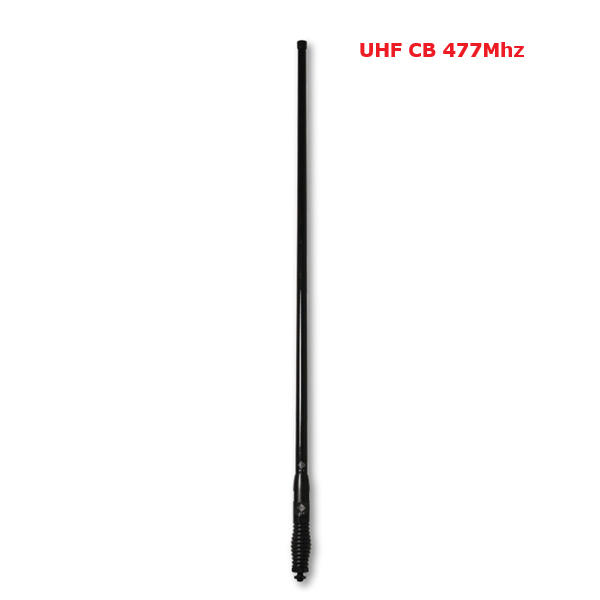

RFI CDQ5000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 976mm
RFI CDQ5000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 976mm
RFI CDQ5000-B Q-Fit UHF CB Collinear Antenna - Black / Black Chrome Spring 976mm
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ5000-B:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specifications:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar |
| Radome Diameter mm | 22.5 - 15.6 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 976mm |
| Mounting | Threaded Stud |
Documentation
Related Products
Also available CDQ5000 in white
MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability
RFI CDQ5000-B-WHIP Q-Fit UHF CB 477mHZ Replacement Antenna Whip-Only - Black/White
This antenna is extremely robust in design with the patented PCB designed radiating element housed in a black fibreglass radome.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
• 5 dB Gain ideal for fringe areas and country applications
• Robust design for heavy duty applications
• Available with GPS sub-assembly on request
• Also available in white - CDQ5000-W-WHIP
• Patented PCB based collinear design offering the ultimate in pattern and gain stability
RFI CDQ5000-BL Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 1210mm
RFI CDQ5000-BL Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 1210mm
RFI CDQ5000-BL Q-Fit UHF CB Collinear Antenna - Black / Black Chrome Spring 1210mm
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ5000-BL:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000-BL) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specifications:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar |
| Radome Diameter mm | 22.5 - 15.6 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 1210mm |
| Mounting | Threaded Stud |
Documentation
Related Products
MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability
RFI CDQ7194-B Black Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 735mm 5.5dBi
RFI CDQ7194-B Black Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 735mm 5.5dBi
RFI CDQ7194-B Black Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 735mm 5.5dBi
The outstanding performance of the CDQ7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features CDQ7194-B :
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security
Specifications CDQ7194-B :
| Frequency: | 698-960 / 1710-2170 / 2300-2700 MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 5.0 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 22.5 - 15.6 Tapered |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 735 |
Documentation
View the CDQ 7100 Series Technical Data Sheet
Related Products
RFI FME Male to SMA Male Adapter - A-88
This adaptor is the simplest way to connect an antenna with FME connection to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
MOUNTING BRACKET OPTIONS
RFI MK-900 Heavy Duty Magnetic Base with Suction Mount
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability
RFI CDQ7195-W-SMA 4G/LTE Q-fit 6.5dBi Antenna 3G+4G+4GX 5m SMA(M) - White 970mm
RFI CDQ7195-W-SMA 4G/LTE Q-fit 6.5dBi Antenna 3G+4G+4GX 5m SMA(M) - White 970mm
RFI CDQ7195-W White Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 970mm 6.5dBi
The outstanding performance of the CDQ7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security
Specifications:
| Frequency: | 698-960 / 1710-2170 / 2300-2700 MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 6.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 22.5 - 15.6 Tapered |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 970 |
Documentation
View the CDQ 7100 Series Technical Data Sheet
Related Products
Also available in Black version...
CDQ-7195-B Black version antenna
RFI FME Male to SMA Male Adapter - A-88
This adaptor is the simplest way to connect an antenna with FME connection to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
MOUNTING BRACKET OPTIONS
RFI MK-900 Heavy Duty Magnetic Base with Suction Mount
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability
RFI CDQ7197-W-SMA 4G/LTE Q-fit 7.5dBi Antenna 3G+4G+4GX 5m SMA(M) - White 1210mm
RFI CDQ7197-W-SMA 4G/LTE Q-fit 7.5dBi Antenna 3G+4G+4GX 5m SMA(M) - White 1210mm
RFI CDQ7197-W-SMA White Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX Antenna 1210mm 7.5dBi
In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security.
Specifications:
| Frequency: | 698-960 / 1710-2170 / 2300-2700 MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 7.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with SMA connector |
| Radome Diameter mm | 22.5 - 15.6 Tapered |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 1210 |
| Termination | FME female connector |
| Mounting | 16mm mounting hole |
Documentation
CDQ 7100 Series Technical Data Sheet
Related Products
CDQ-7197-B Black version antenna
MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability
RFI CDQ7199-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 2080mm 8.5dBi
RFI CDQ7199-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 2080mm 8.5dBi
RFI CDQ7199-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 2080mm 8.5dBi
The outstanding performance of the CDQ7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security.
Specifications:
Frequency: |
698-960 / 1710-2170 / 2300-2700 MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 8.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with SMA connector |
| Radome Diameter mm | 22.5 - 15.6 Tapered |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 2080 |
| Termination | FME female connector |
| Mounting | 16mm mounting hole |
Documentation
View the CDQ 7100 Series Technical Data Sheet
Related Products
CDQ-7199-W White version antenna
MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
Availability
