RFI CD1225-F Stud Mounted Elevated Feed Antenna 824Mhz-896MHz - 470mm

Elevated feed antennas provide high performance in virtually any mounting position. The elevated feed design raises the radiating element above the vehicle roof or other obstructions to provide a strong omnidirectional pattern and high performance for vehicle gutter, fender, boot or magnetic mounting.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

Features:

• Length: 470mm
• Cable: 5m Cellfoam cable
• Cable termination: Unterminated
• Mounting: 14mm Stud Mount
• Finish: Black finish

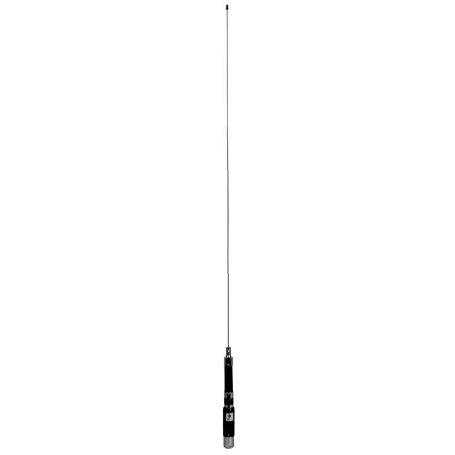

RFI CD17-27-50 VHF Ground Independent Mopole 77 - 85MHz - supplied with MBC Base

The CD17 Series are ground plane independent Mopole™ antennas which provide excellent performance in a “compromise” mounting position. The CD17 also provide an extended bandwidth in a physical arrangement which is ideal for every application from sedans to the heaviest industrial vehicles.

Features:

• Ground independent Mopole™ design allows installation in a variety of mounting locations
• Bandwidth of over 3MHz for VSWR <1.5:1 accommodates most duplex requirements
• High impedance matching transformer allows end feeding of electrical half wave element
• Shortened half wave radiators suit restricted height applications

Length:

Whip = 1500mm (whip + coil/mbc base total length = 1700mm)

NOTE:The CD17 is a highly compressed 1/2 wave antennas and although they function independently of a ground plane perform markedly better if earthed. Earthing via a gutter or mirror style bracket will ensure the best possible field performance.

Check out the RFi CD17 Flyer - click here

Check out the RFi CD17 Installation Guide - click here

RFI Broadband VHF Ground Independent Mopole 148-174 MHz - Whip Only

The CD29 Series antennas provide greater bandwidth coverage without sacrificing antenna performance. Their no tune design eliminates the need to tune in the field hence reducing installation costs and complexity while improving overall coverage of the desired frequencies. The integrated matching circuit is housed in a rugged impact-resistant base for maximum durability with a tapered stainless steel highly flexible whip. The CD29 is designed to interface with standard PL259 (MBC) mobile mounts facilitates existing installation upgrade.

CD29-148174-00 Features:
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible tapered stainless steel whip
- Base is virtually indestructible

DESIGNED & MANUFACTURED IN AUSTRALIA.

Package dimesion: 76*10*10 CM

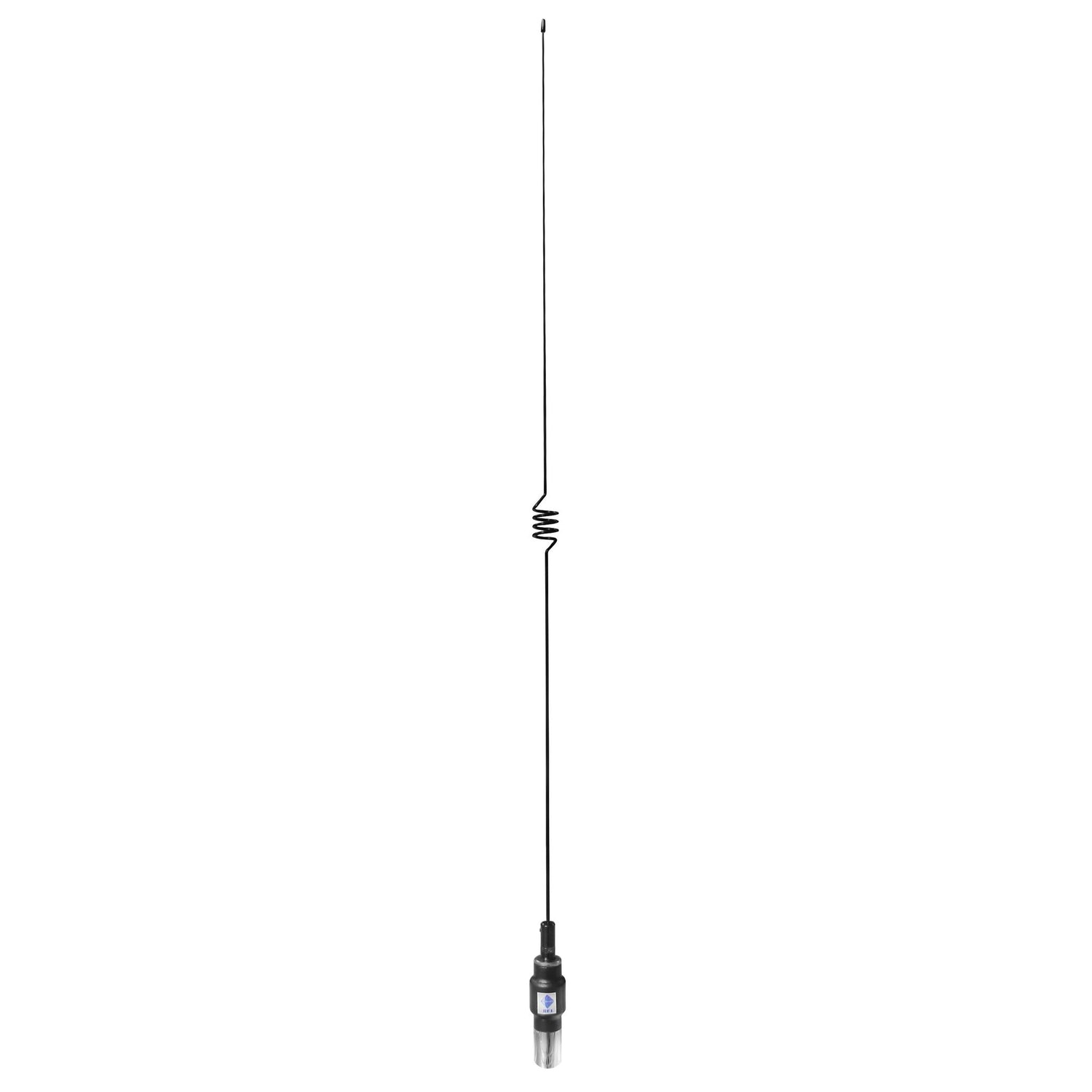

RFi CD34-71-53 UHF CB (477 MHz) Mopole™ Antenna - MBC Mount (4 dBi)

The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.

The antenna is available in a stud mounted version or MBC base with removable whip. Both are supplied with 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

Features:

• Ground plane independent design allows installation in almost any location
• Available in stud or MBC mount
• Robust UV stable base & flexible whip

Specifications:

RFI CD5000-B UHF CB Mobile 477mHZ Broomstick Antenna Black - 900mm

This antenna is extremely robust in design with the patented PCB designed radiating element housed in a black or white (CD5000 W) fibreglass radome fitted to an integral heavy duty electro-polished stainless steel spring.

With a 13mm stud mount and ground plane independent design, this antenna may be installed onto a number of mounting brackets such as mirror, bull bar, gutter or fender mounts and are ideal for installations in commercial vehicles, four wheel drives and trucks. They can even be used as a base station antenna due to their ground plane independent design.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

Features:

• 5 dB Gain ideal for fringe areas and country applications
• Robust design for heavy duty applications
• Available with GPS sub-assembly on request
• Patented PCB based collinear design offering the ultimate in pattern and gain stability

Specifications:

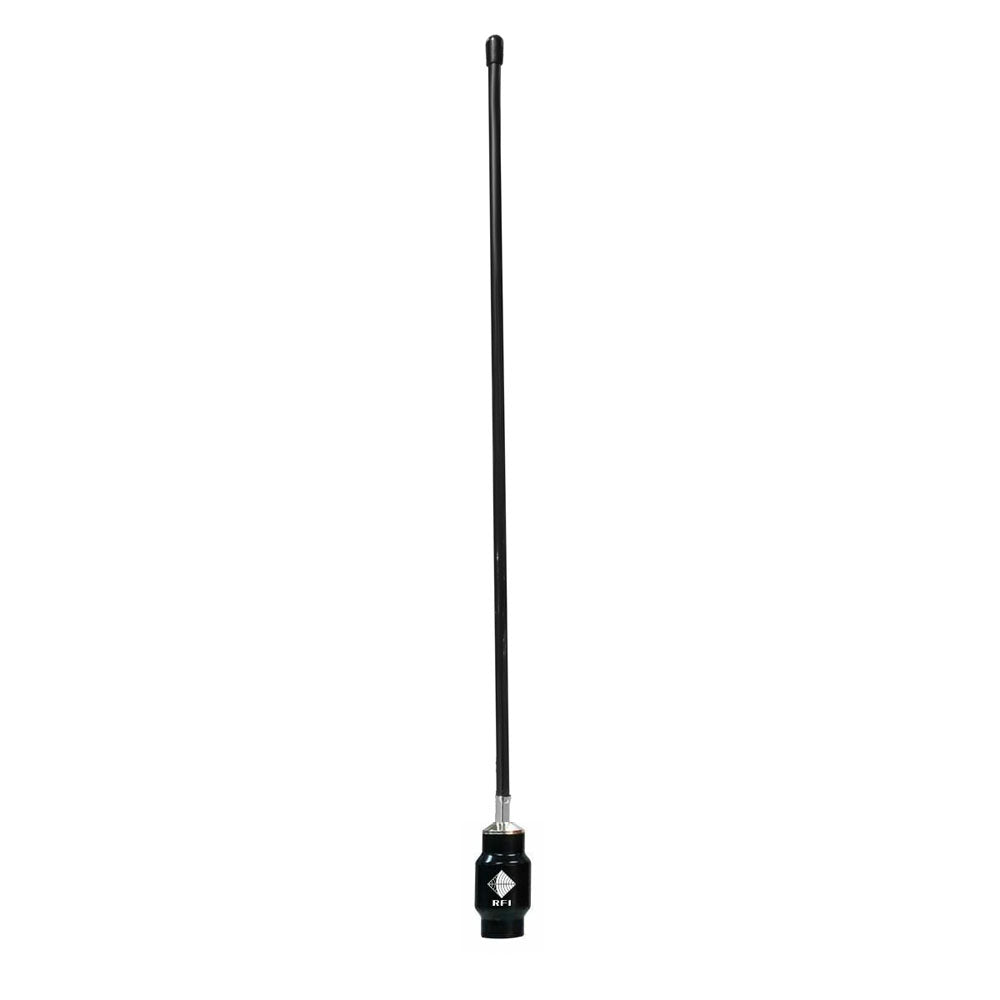

RFI CD51-65-70 UHF Ground Independent Mopole 380 - 440 MHz - Threaded Stud

When the CD50-65-70 gets mounted on a vehicle gutter or similar position, these UHF MopolesTM provide optimum performance with a largely omnidirectional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern, a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF MopolesTM incorporates a truly unique transformer in the base section. In this patented feed assembly, the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications.

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated, tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal, permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

Features:

• Versatile - Ground plane independence allows alternative mounting locations
• Performance - High performance and largely omni-directional pattern when not centre roof mounted
• Convenient - Patented design allows termination or retermination in seconds
• Stainless steel whip or flexible nylon whips cater to individual needs
• Durable - Base coil is virtually indestructible
• Unique transformer design
• Australian Patents #596830 and #656793

(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.
(2) Available preterminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix.

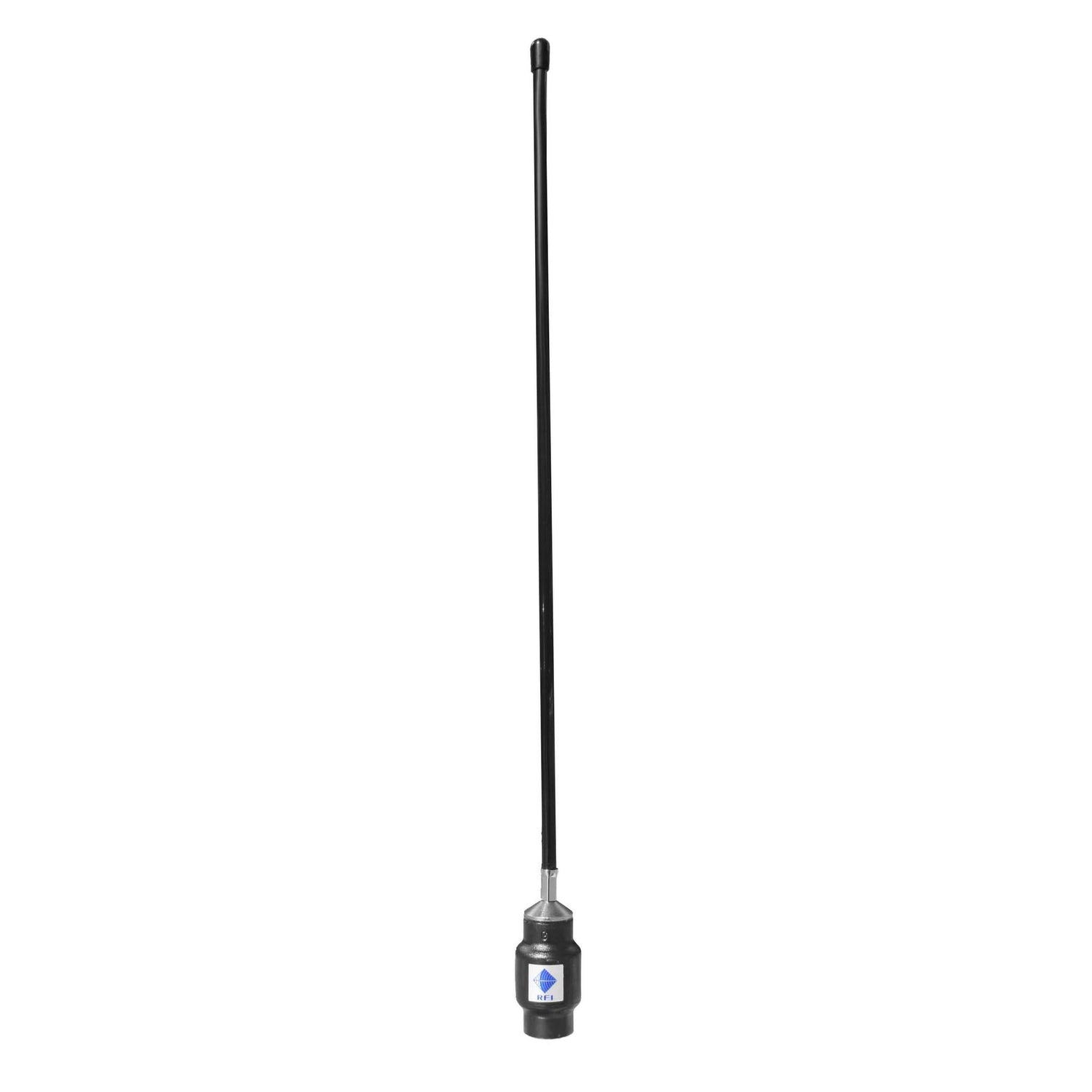

RFI CD51-68-50 UHF Ground Independent Mopole Antenna (450-520MHz) - MBC Base

The CD50/CD51 Series UHF ground independent Mopole antennas are versatile and popular antennas providing excellent performance in virtually any mounting position.

When the CD50/CD51 gets mounted on a vehicle gutter or similar position these UHF Mopoles provide optimum performance with a largely omni-directional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF Mopoles incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

- CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications.
- CD50 antennas have an elegant and durable tapered stainless steel whip section.

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

• Versatile - Ground plane independence allows alternative mounting locations
• Performance - High performance and largely omni-directional pattern when not centre roof mounted
• Convenient - Patented design allows termination or retermination in seconds
• Stainless steel whip or flexible nylon whips cater to individual needs
• Durable - Base coil is virtually indestructible
• Unique transformer design
• Australian Patents #596830 and #656793

(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.
(2) Available pre-terminated with 5m RG58. Use -73 or -53 suffix to replace -70 or -50 suffix.

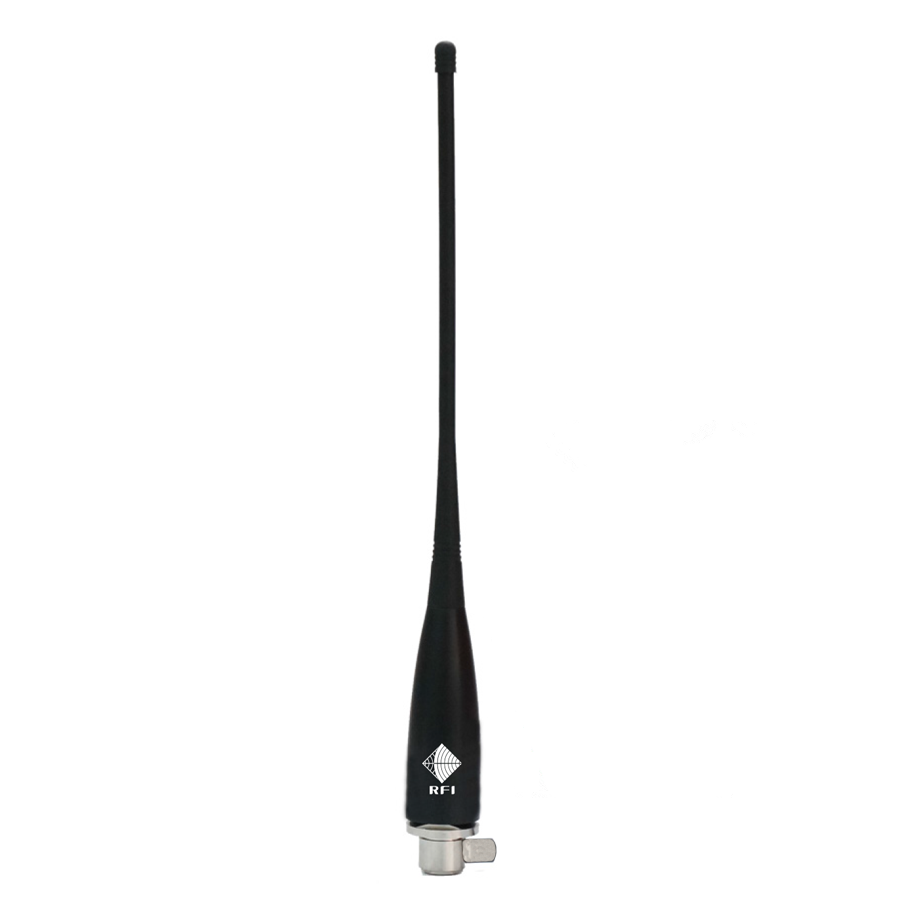

RFI CD61-4552-50 Broadband UHF Ground Independent Mopole 450-520 MHz - MBC Base The CD61 Series broadband antenna supports multi band radio technology providing full interoperability among emergency services and commercial radios regardless of UHF segment used. They provide outstanding coverage of UHF frequencies in a ready-to-install no tune design. The integrated matching circuit is housed in a rugged impact-resistant base for maximum durability with a fully moulded highly flexible whip. The CD61 is designed to interface with standard PL259 (MBC) mobile mounts facilitates existing installation upgrades on public safety vehicles.

CD61-4552-50 Features:
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible over-moulded whip
- Base is virtually indestructible

DESIGNED & MANUFACTURED IN AUSTRALIA.

RFI UHF CB (477 MHz) Mopole Antenna - MBC Mount

The CD63 Series Mopole™ antennas offer complete versatility in mounting options. Unlike conventional roof mount antennas the CD63 Series antennas have true ground independence which allows mounting in a variety of positions including vehicle mirror gutter or roof bar mounts.

Features:

This extraordinary performance is made possible by the use of an exclusive (and patented) high impedance matching circuit in the base coil. This allows the end feeding of the collinear whip section a 5/8 over 1/2 wave radiator wound from a single piece of high resilience 17-7PH stainless steel.

(1) Mopole antennas such as the CD63 have been shown to exhibit a 6dB improvement in received signal level in the field when compared to a ¼ wave whip however in pattern tests exhibit only 1.5 to 2dB over a ¼ wave (equivalent to 1.5-2dBq). This improvement in performance can be attributed to a lower radiation angle level of these ground independent antennas

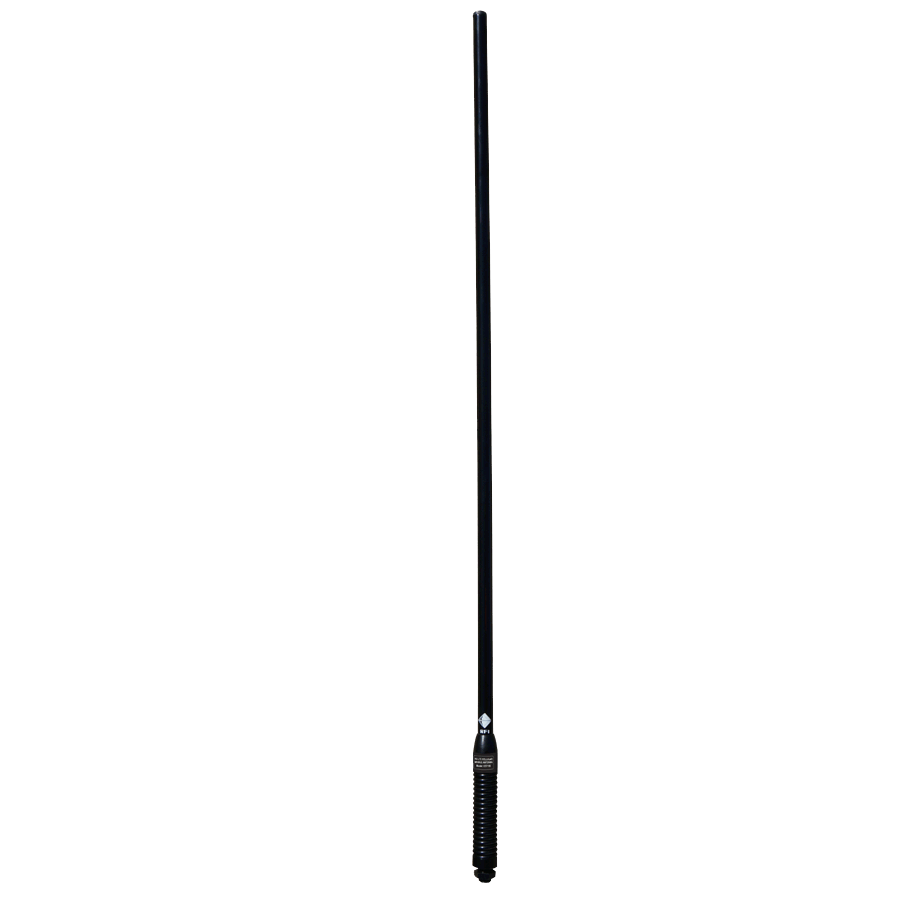

RFI CD7194-B 4G LTE Cellular Mobile Antenna 698-960 & 1710-2700MHz (All Black) 655mm

With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD7194 Series can be installed on a number of mounting brackets and are ideal for installations in
commercial vehicles, four wheel drives and trucks.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

Features:
• Patented PCB based collinear design offering the ultimate in pattern and gain stability
• Ideal for all new 4G LTE networks with true multi-band coverage
• High gain across all bands making it suiting fringe and rural applications

Specifications:

Features:

• Multiband 700-2700MHz
• Cutting edge printed circuit board design
• Supplied with 5m low loss coaxial cable, with female FME connector.

The evolution continues with the release of the CD7195 4G LTE cellular mobile antenna. In response to the lightning fast roll-out of Telstra 4GX and Optus 4G+ services nation wide, Telco approached RFI to design a vehicle mounted antenna capable of operating on the new 700MHz LTE network. Part of the challenge was also to improve gain on regular 1800MHz 4G services, and provide some operation on the new 2600MHz network to ensure the antenna would remain futureproof for Cat-11 LTE devices capable of providing 450-600Mbps by aggregating 700+1800+2600MHz bands together.

The secret to it’s outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD7195 provides an impressive 6.5dBi gain on lower bands such as 3G, Next-G, and 4GX, as well as a modest 4.5dBi gain on regular 4G bands. It's important to note this antenna does not provide MIMO, if you require the best possible Internet performance you should use two antennas, separated by around 300mm.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

Specifications:

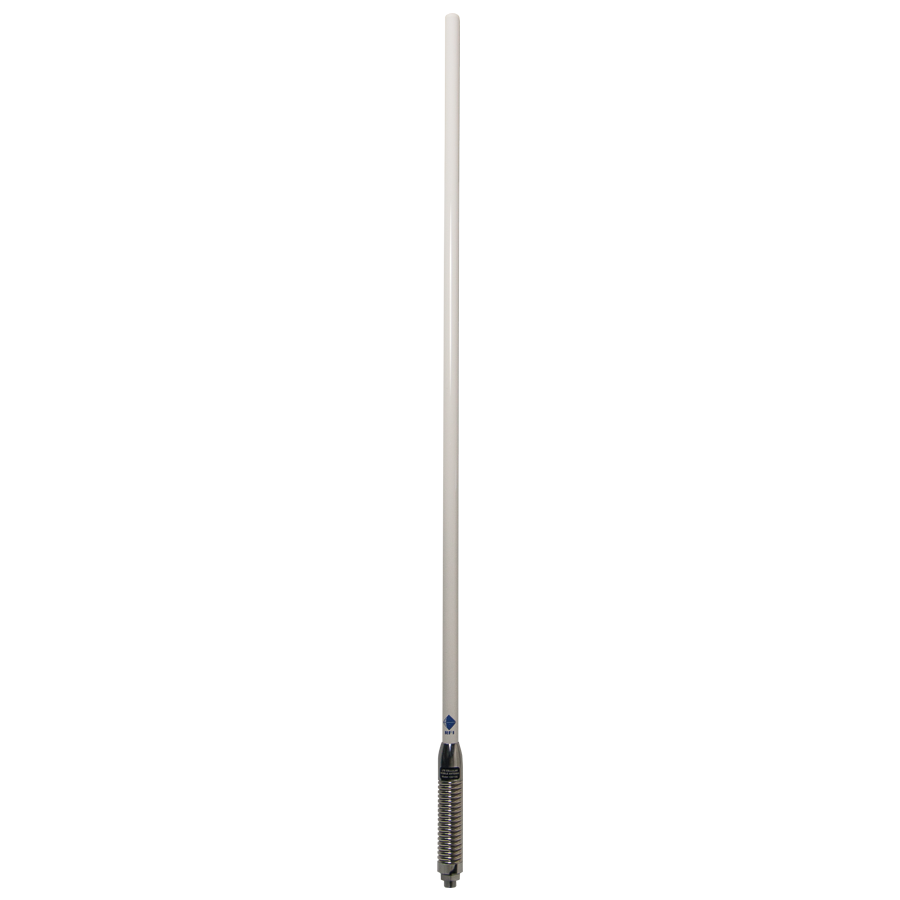

RFI CD7197 4G LTE Cellular Mobile Antenna 698-960 & 1710-2700MHz 1140mm Black/White

With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD7100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

The evolution continues with the release of the CD7100 Series 4G LTE cellular mobile antenna. Like the CD2100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

Features:

• Patented PCB based collinear design offering the ultimate in pattern and gain stability
• Ideal for all new 4G networks with true multi-band coverage
• High gain across 4Gx/4G+ band suiting fringe and rural applications

Specifications:
